Vencer BTVS1000 BLUETOOTH STEREO HEADSET User Manual Quick Guide VS 1000

Vencer Co., Ltd. BLUETOOTH STEREO HEADSET Quick Guide VS 1000

USERS MANUAL

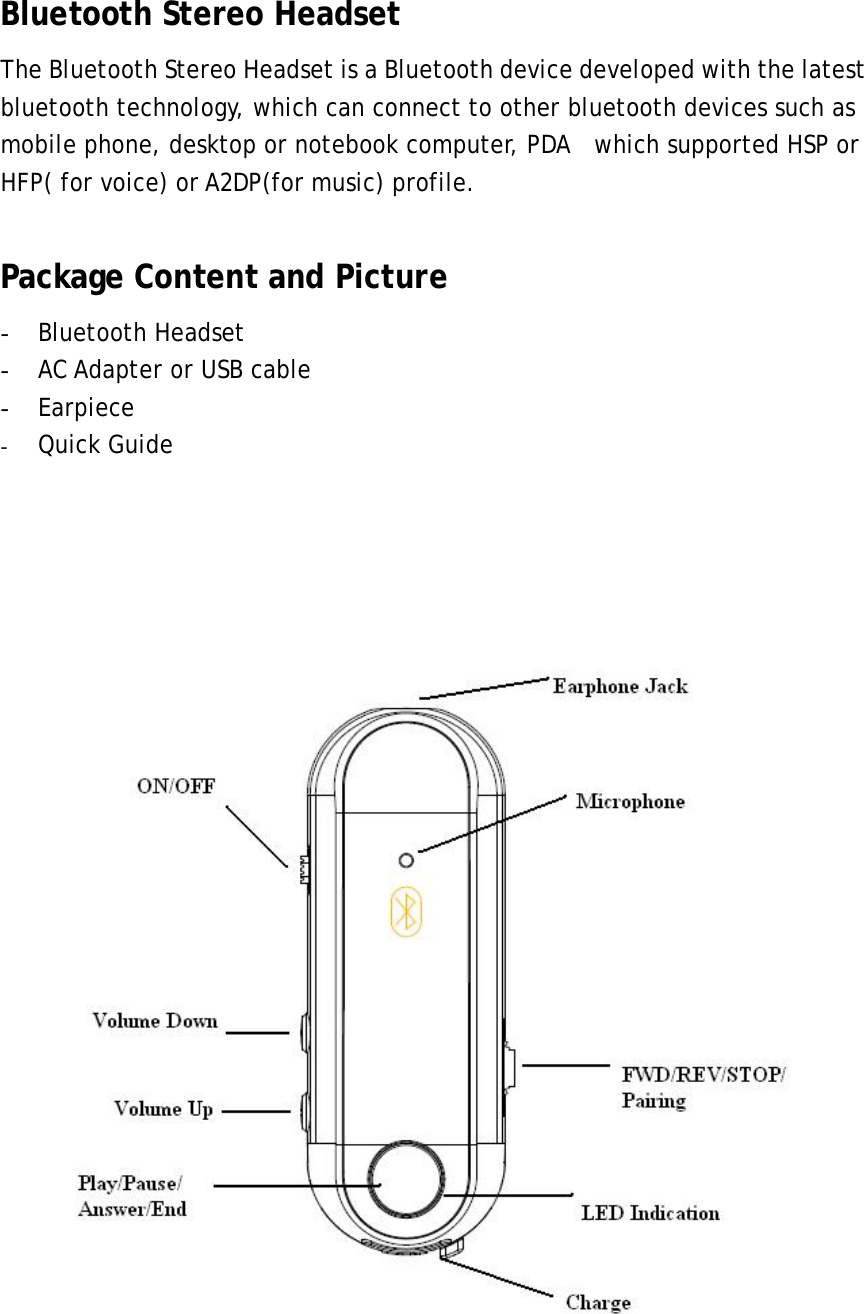

Bluetooth Stereo Headset The Bluetooth Stereo Headset is a Bluetooth device developed with the latest bluetooth technology, which can connect to other bluetooth devices such as mobile phone, desktop or notebook computer, PDA which supported HSP or HFP( for voice) or A2DP(for music) profile. Package Content and Picture - Bluetooth Headset - AC Adapter or USB cable - Earpiece - Quick Guide

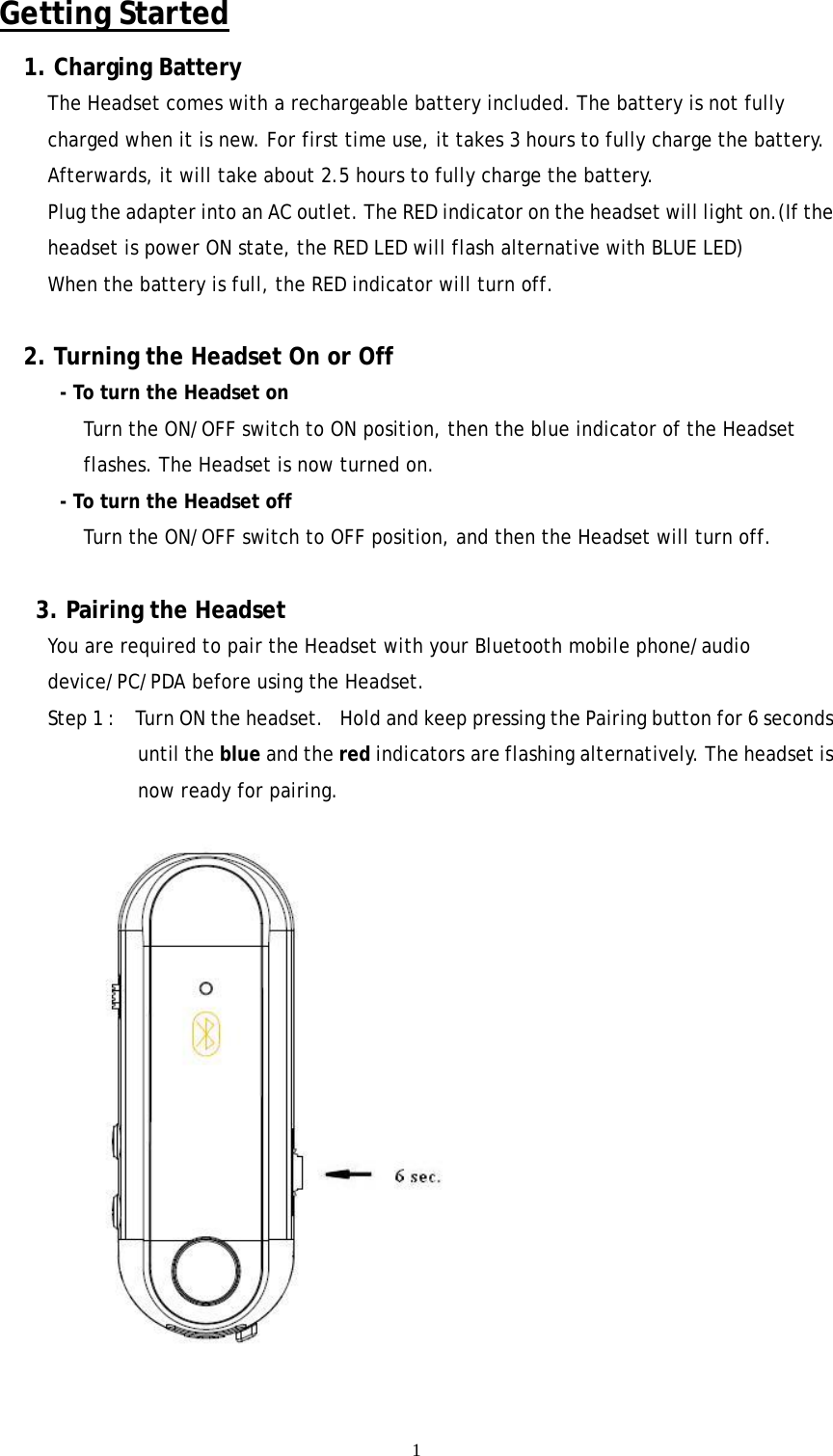

1Getting Started 1. Charging Battery The Headset comes with a rechargeable battery included. The battery is not fully charged when it is new. For first time use, it takes 3 hours to fully charge the battery. Afterwards, it will take about 2.5 hours to fully charge the battery. Plug the adapter into an AC outlet. The RED indicator on the headset will light on.(If the headset is power ON state, the RED LED will flash alternative with BLUE LED) When the battery is full, the RED indicator will turn off. 2. Turning the Headset On or Off - To turn the Headset on Turn the ON/OFF switch to ON position, then the blue indicator of the Headset flashes. The Headset is now turned on. - To turn the Headset off Turn the ON/OFF switch to OFF position, and then the Headset will turn off. 3. Pairing the Headset You are required to pair the Headset with your Bluetooth mobile phone/audio device/PC/PDA before using the Headset. Step 1 : Turn ON the headset. Hold and keep pressing the Pairing button for 6 seconds until the blue and the red indicators are flashing alternatively. The headset is now ready for pairing.

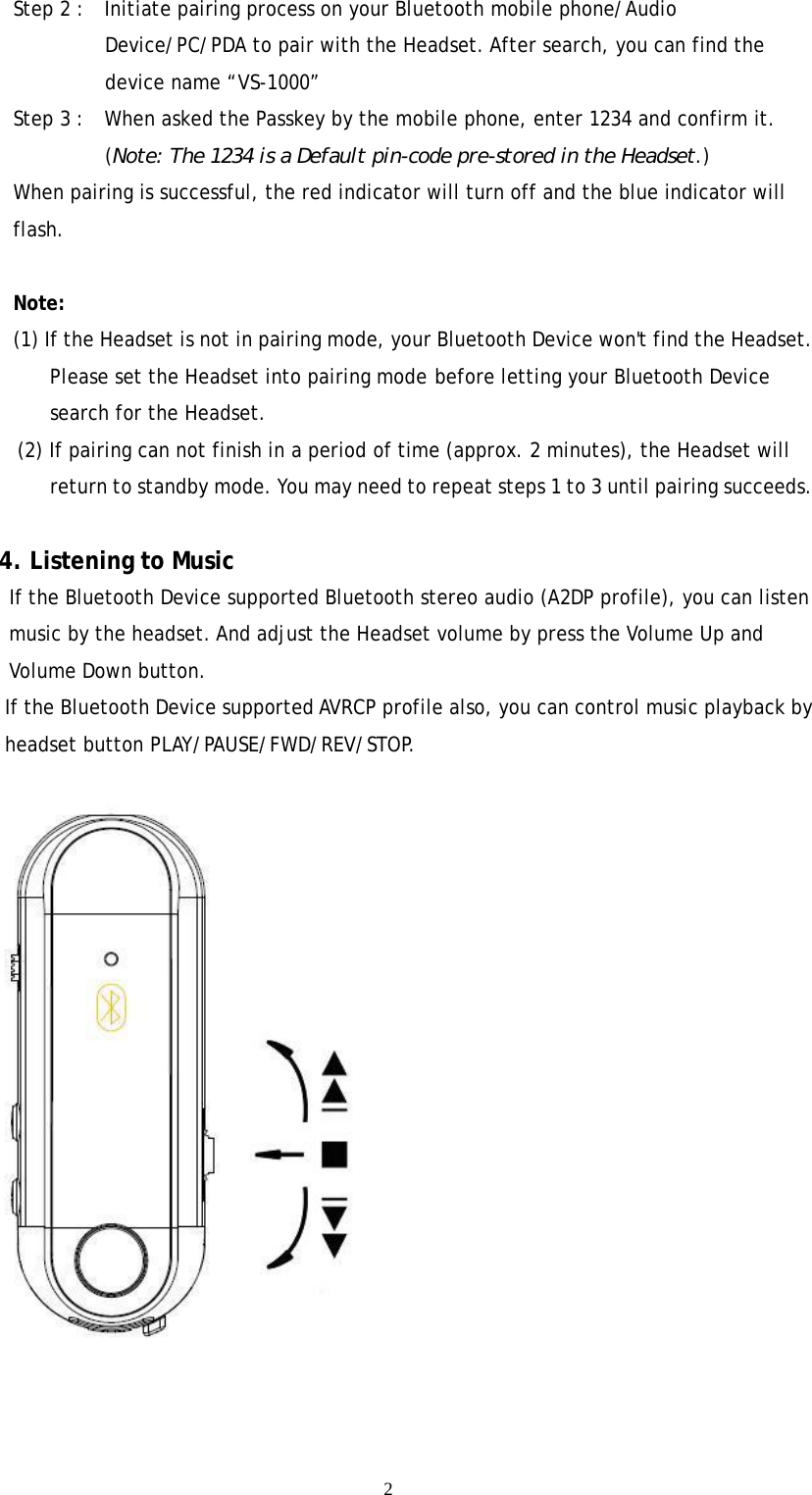

2Step 2 : Initiate pairing process on your Bluetooth mobile phone/Audio Device/PC/PDA to pair with the Headset. After search, you can find the device name “VS-1000” Step 3 : When asked the Passkey by the mobile phone, enter 1234 and confirm it. (Note: The 1234 is a Default pin-code pre-stored in the Headset.) When pairing is successful, the red indicator will turn off and the blue indicator will flash. Note: (1) If the Headset is not in pairing mode, your Bluetooth Device won't find the Headset. Please set the Headset into pairing mode before letting your Bluetooth Device search for the Headset. (2) If pairing can not finish in a period of time (approx. 2 minutes), the Headset will return to standby mode. You may need to repeat steps 1 to 3 until pairing succeeds. 4. Listening to Music If the Bluetooth Device supported Bluetooth stereo audio (A2DP profile), you can listen music by the headset. And adjust the Headset volume by press the Volume Up and Volume Down button. If the Bluetooth Device supported AVRCP profile also, you can control music playback by headset button PLAY/PAUSE/FWD/REV/STOP.
35. Making Calls Using the phone keys to make call Dial the number on the mobile phone as you normally do. Once the call has been set up, the sound will be transmitted to your Headset automatically. 6. Answering Calls and Ending Call When the Headset is powered on, and there is an incoming call, you will hear a ring tone. (1) When the Headset rings, press the Answer button to answer. (2) Adjust the Headset volume by press the Volume Up and Volume Down button. (3) End calls by pressing End button or don’t press any button. 7. Making Bluetooth Connection from Headset By press the PLAY/PAUSE/Answer/End button, the headset can connect with the paired stereo audio device (A2DP profile), like PC or MP3 player, automatically. By long press the PLAY/PAUSE/Answer/End button for 3 seconds, the headset can connect with the paired mono audio device (HSP/HFP profile), like mobile phone, automatically. Low Battery When the RED indicator starts to flash and heard alert at headset, it indicates that the Headset is running low on battery. Charge the Headset until the RED indicator turns off.

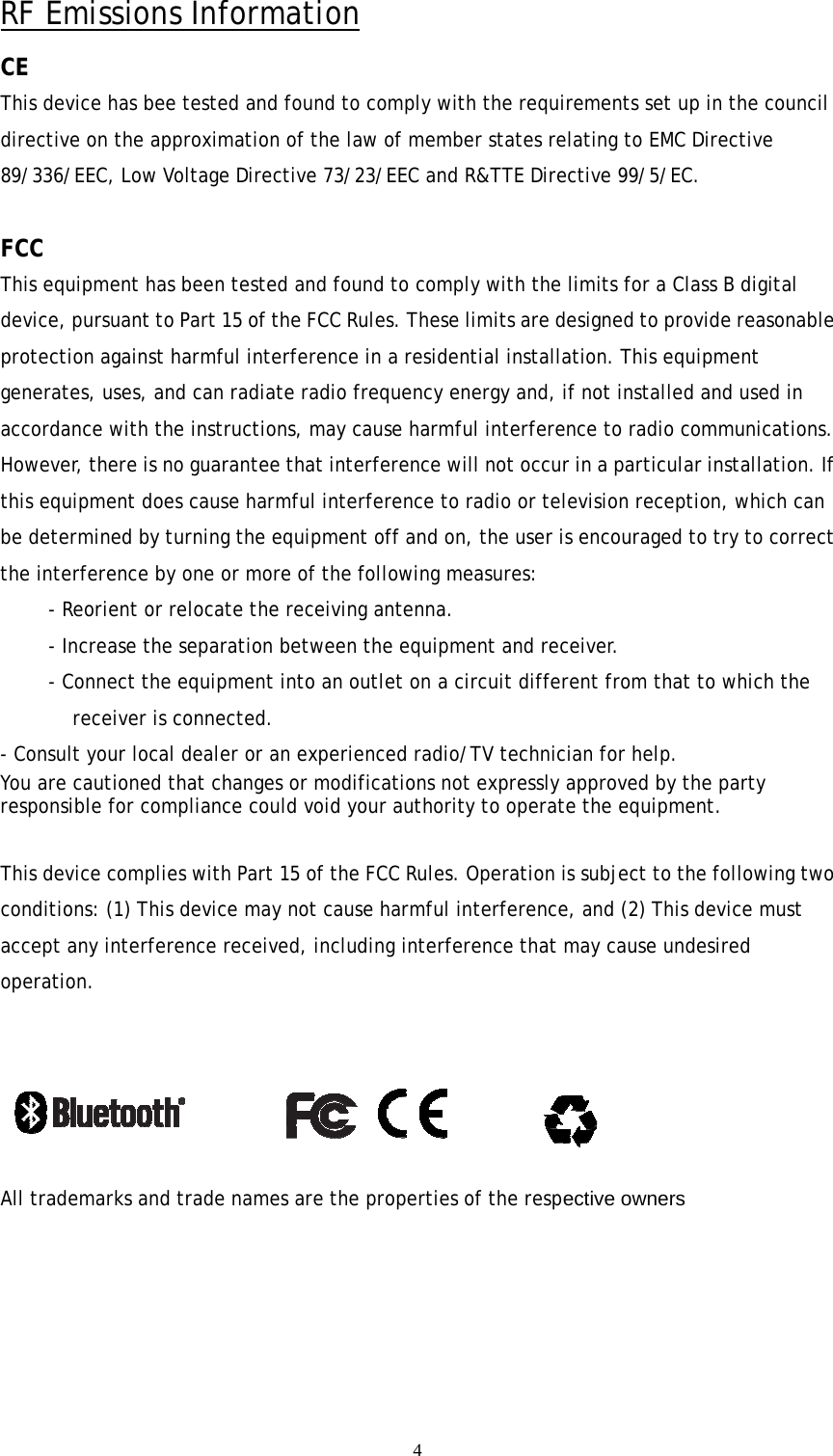

4RF Emissions Information CE This device has bee tested and found to comply with the requirements set up in the council directive on the approximation of the law of member states relating to EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC and R&TTE Directive 99/5/EC. FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult your local dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. All trademarks and trade names are the properties of the respective owners
