Viper Design VDBTLE24 Bluetooth low energy single mode module User Manual Manual

Viper Design, LLC Bluetooth low energy single mode module Manual

Manual

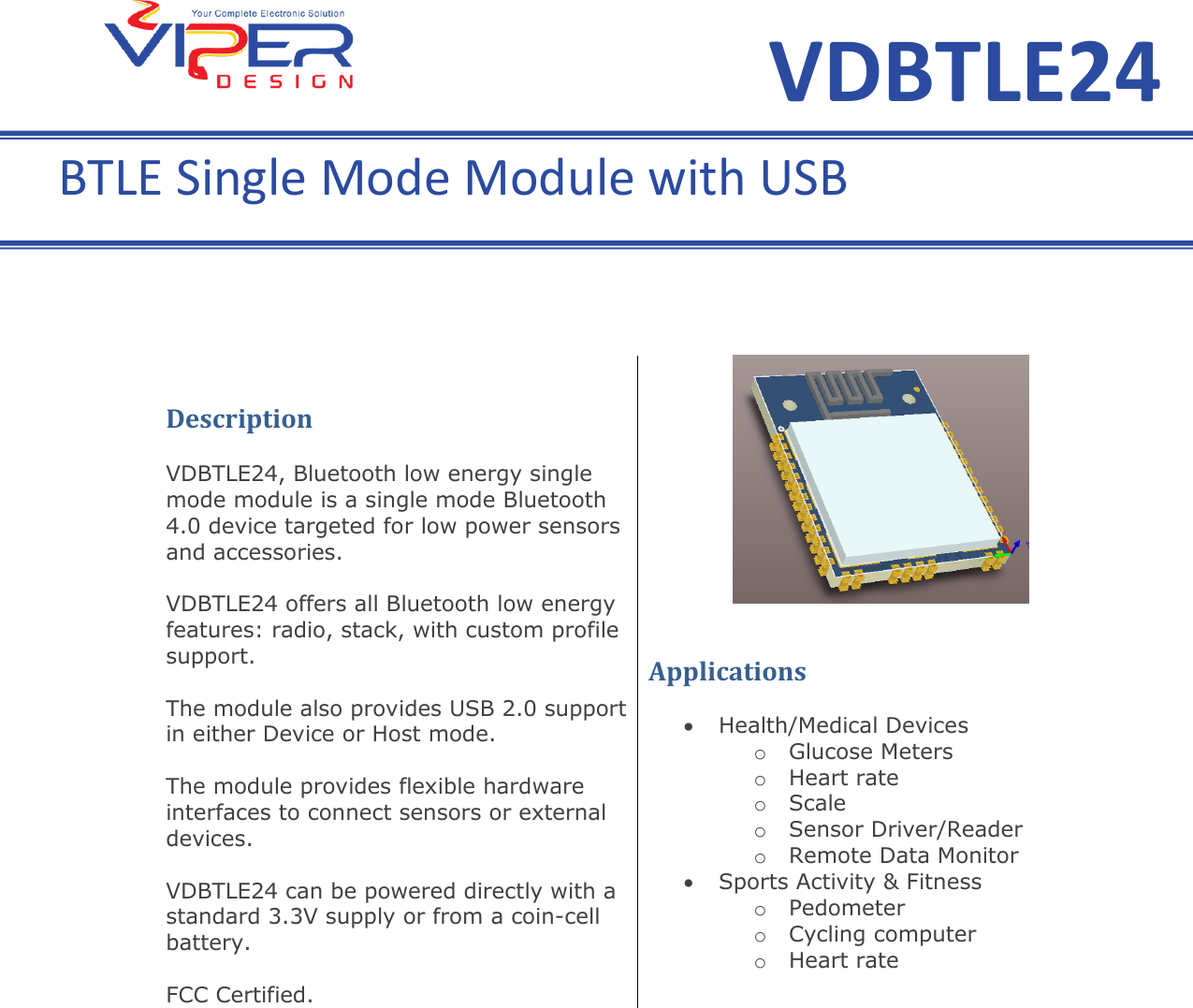

Description VDBTLE24, Bluetooth low energy single mode module is a single mode Bluetooth 4.0 device targeted for low power sensors and accessories. VDBTLE24 offers all Bluetooth low energy features: radio, stack, with custom profile support. The module also provides USB 2.0 support in either Device or Host mode. The module provides flexible hardware interfaces to connect sensors or external devices. VDBTLE24 can be powered directly with a standard 3.3V supply or from a coin-cell battery. FCC Certified. Applications  Health/Medical Devices o Glucose Meters o Heart rate o Scale o Sensor Driver/Reader o Remote Data Monitor  Sports Activity & Fitness o Pedometer o Cycling computer o Heart rate VDBTLE24 BTLE Single Mode Module with USB

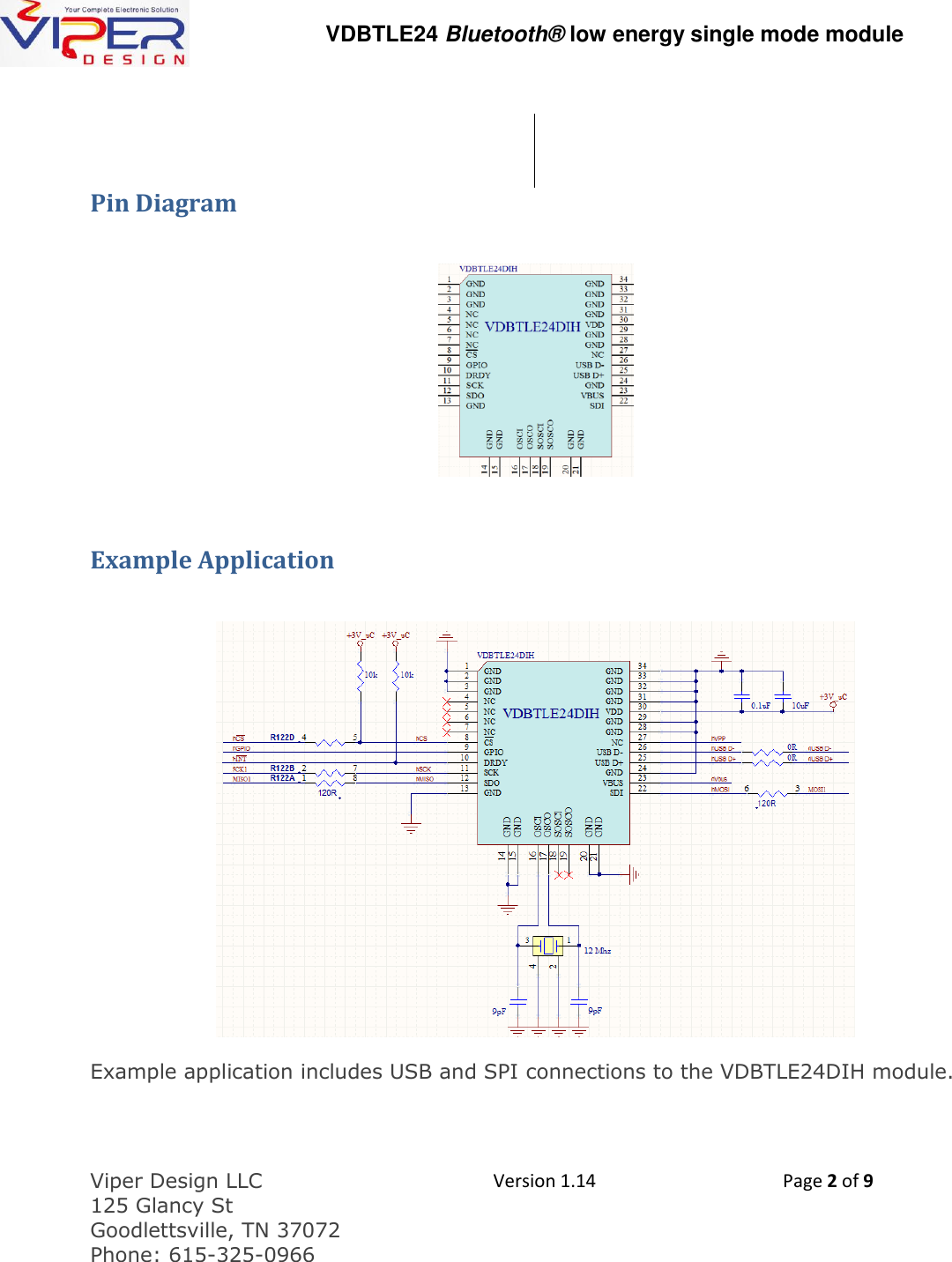

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 2 of 9 Pin Diagram Example Application Example application includes USB and SPI connections to the VDBTLE24DIH module.

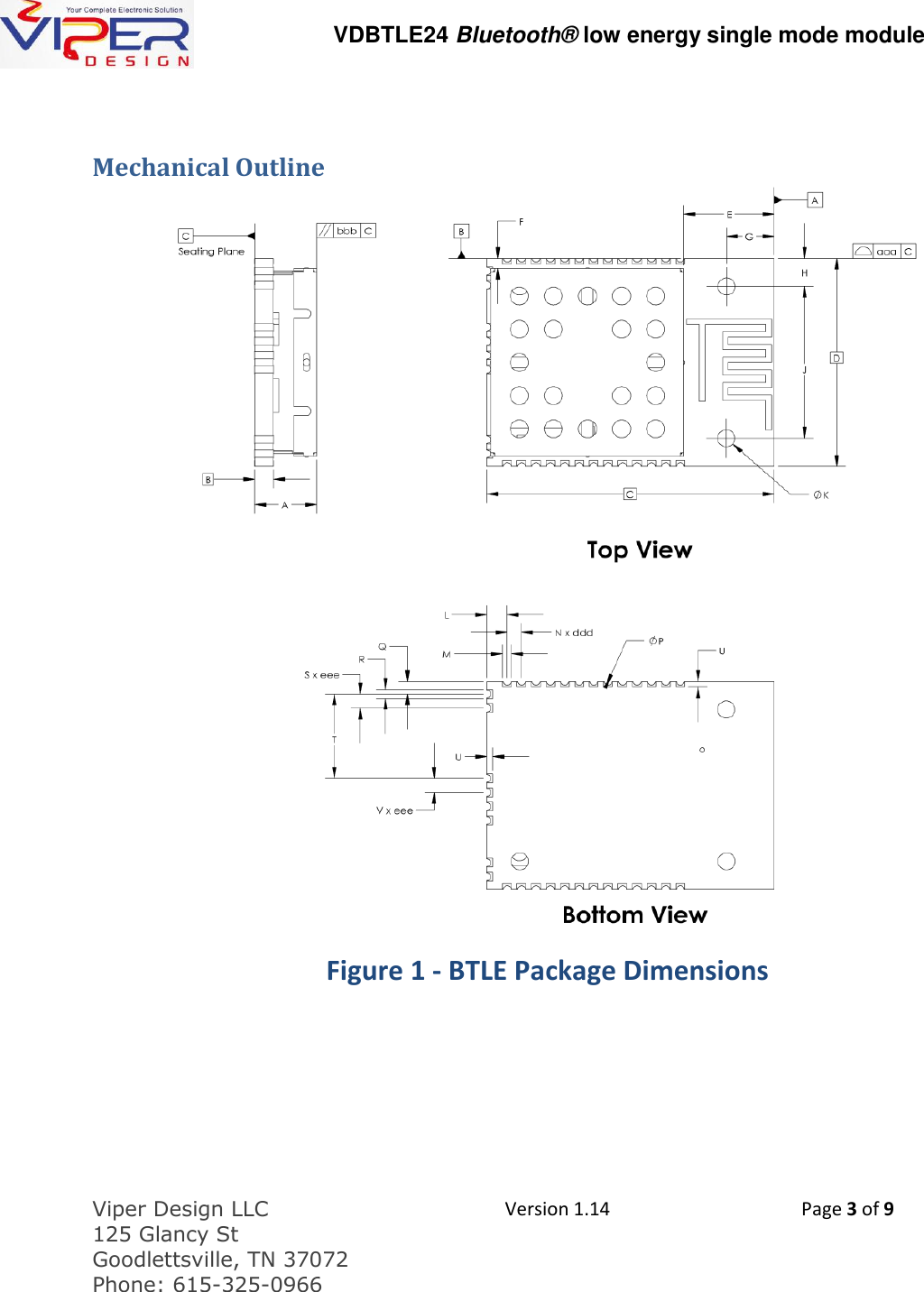

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 3 of 9 Mechanical Outline Figure 1 - BTLE Package Dimensions

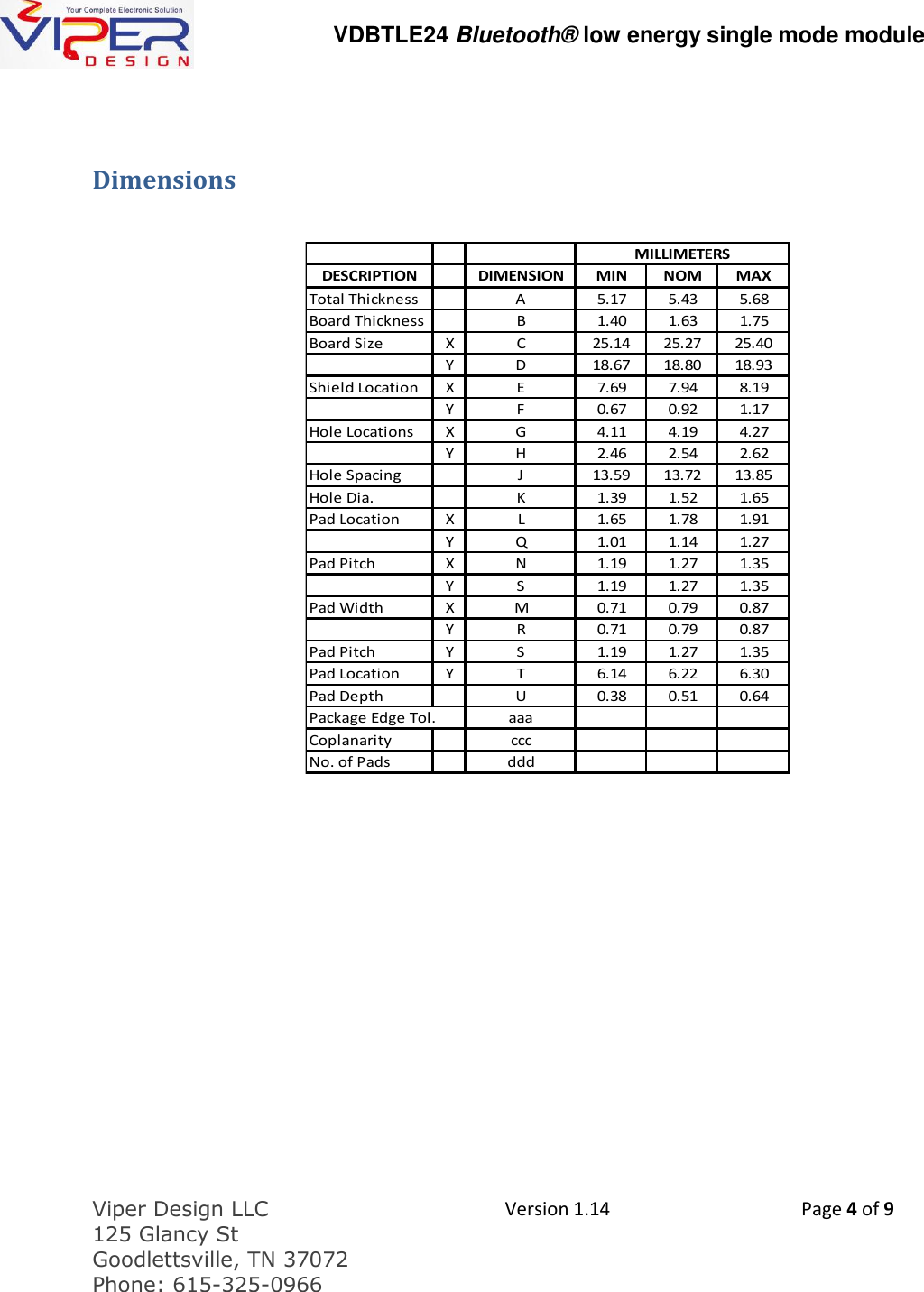

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 4 of 9 Dimensions DESCRIPTION DIMENSION MIN NOM MAXTotal Thickness A 5.17 5.43 5.68Board Thickness B 1.40 1.63 1.75Board Size X C 25.14 25.27 25.40Y D 18.67 18.80 18.93Shield Location X E 7.69 7.94 8.19Y F 0.67 0.92 1.17Hole Locations X G 4.11 4.19 4.27Y H 2.46 2.54 2.62Hole Spacing J 13.59 13.72 13.85Hole Dia. K 1.39 1.52 1.65Pad Location X L 1.65 1.78 1.91Y Q 1.01 1.14 1.27Pad Pitch X N 1.19 1.27 1.35Y S 1.19 1.27 1.35Pad Width X M 0.71 0.79 0.87Y R 0.71 0.79 0.87Pad Pitch Y S 1.19 1.27 1.35Pad Location Y T 6.14 6.22 6.30Pad Depth U 0.38 0.51 0.64Package Edge Tol. aaaCoplanarity cccNo. of Pads dddMILLIMETERS

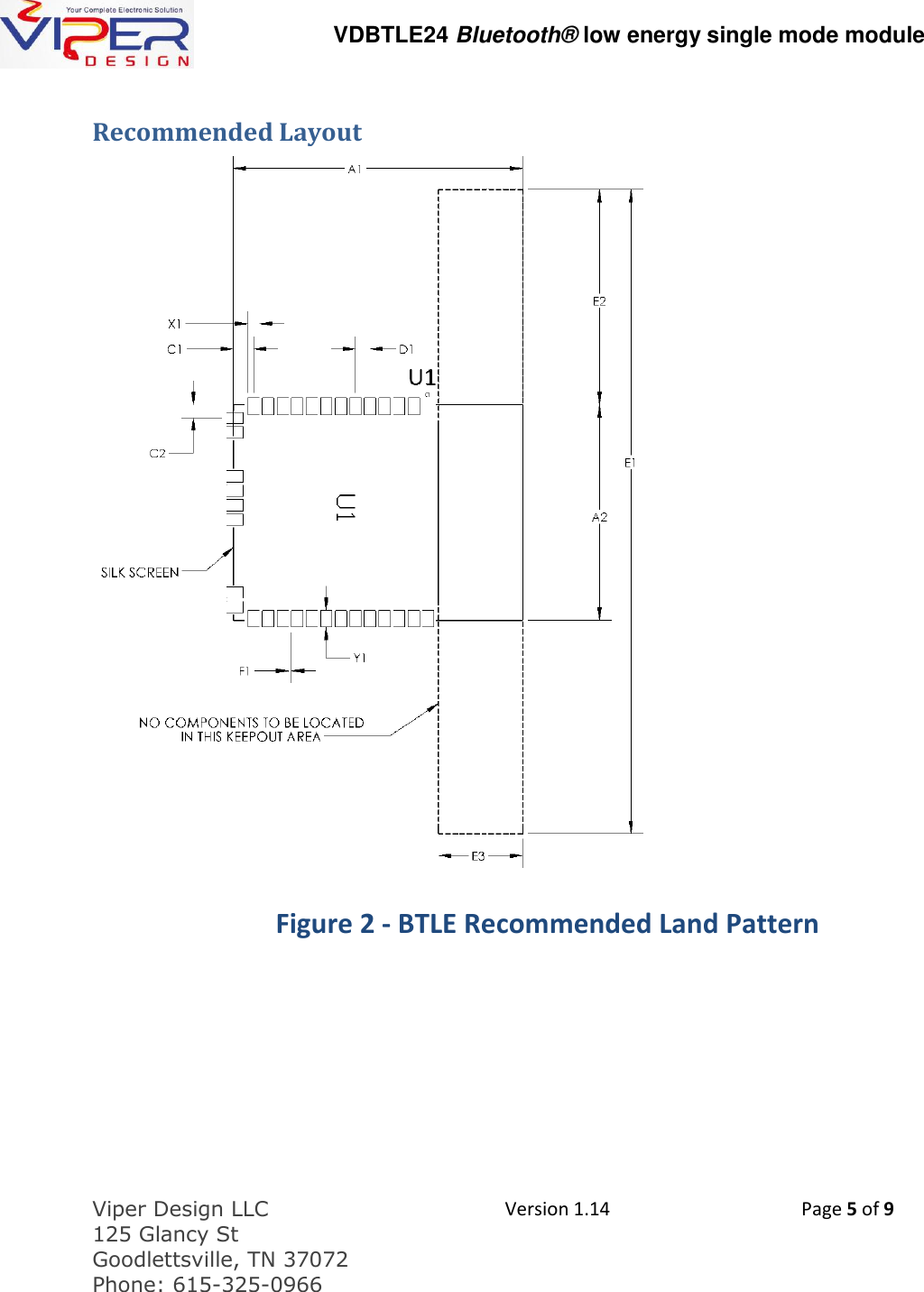

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 5 of 9 Recommended Layout Figure 2 - BTLE Recommended Land Pattern

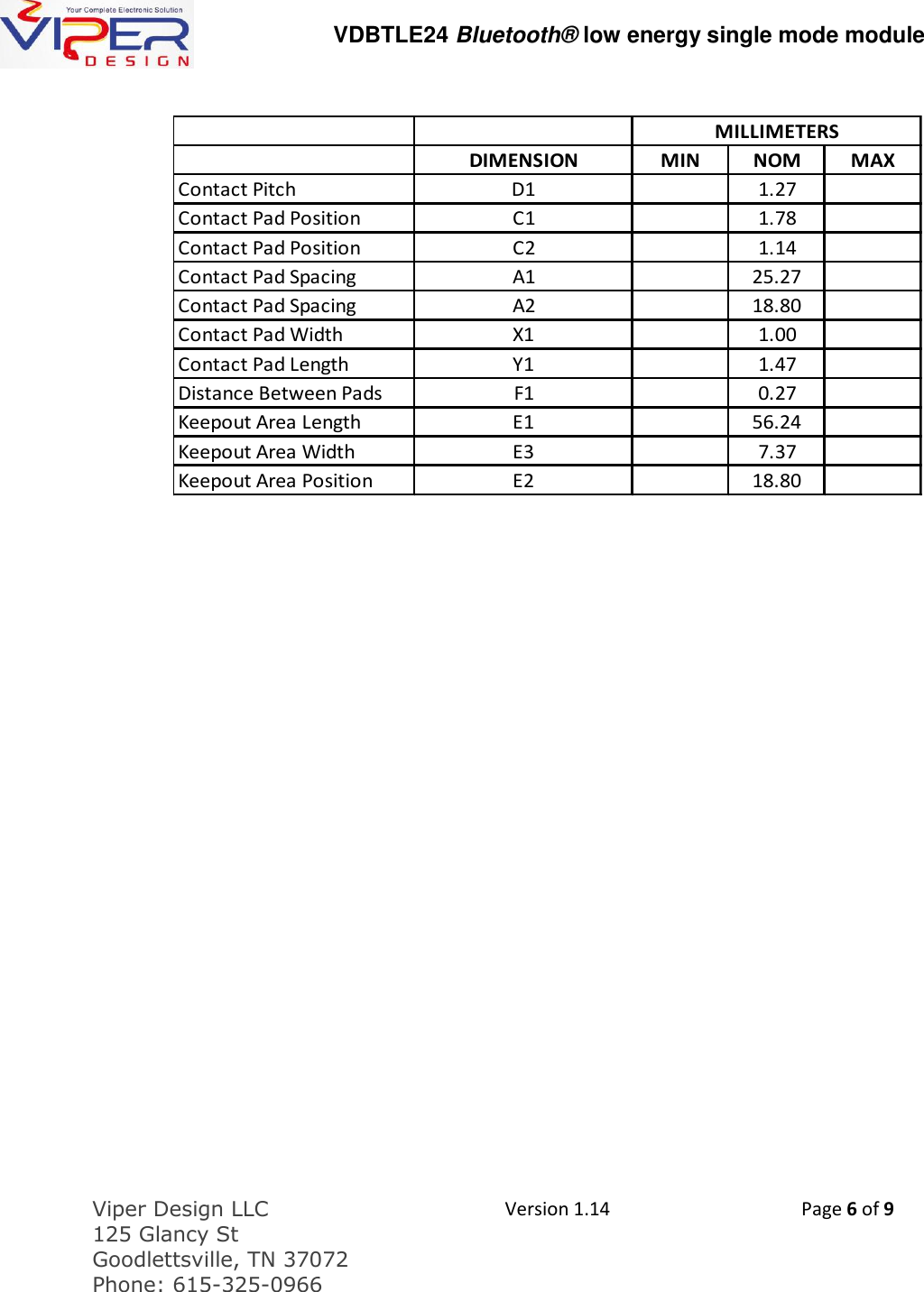

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 6 of 9 DIMENSION MIN NOM MAXContact Pitch D1 1.27Contact Pad Position C1 1.78Contact Pad Position C2 1.14Contact Pad Spacing A1 25.27Contact Pad Spacing A2 18.80Contact Pad Width X1 1.00Contact Pad Length Y1 1.47Distance Between Pads F1 0.27Keepout Area Length E1 56.24Keepout Area Width E3 7.37Keepout Area Position E2 18.80MILLIMETERS

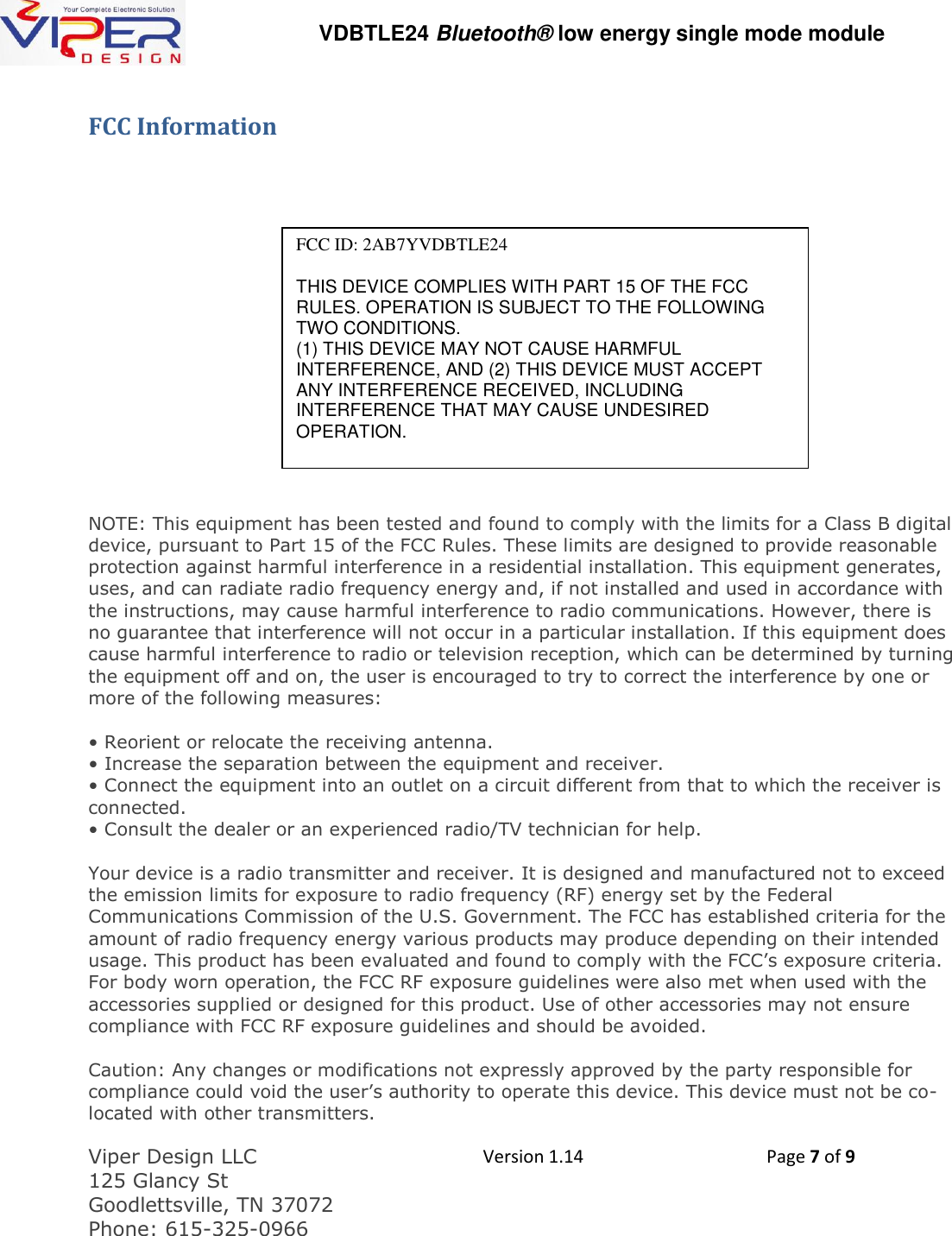

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 7 of 9 FCC Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The FCC has established criteria for the amount of radio frequency energy various products may produce depending on their intended usage. This product has been evaluated and found to comply with the FCC’s exposure criteria. For body worn operation, the FCC RF exposure guidelines were also met when used with the accessories supplied or designed for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines and should be avoided. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. This device must not be co-located with other transmitters. FCC ID: 2AB7YVDBTLE24 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

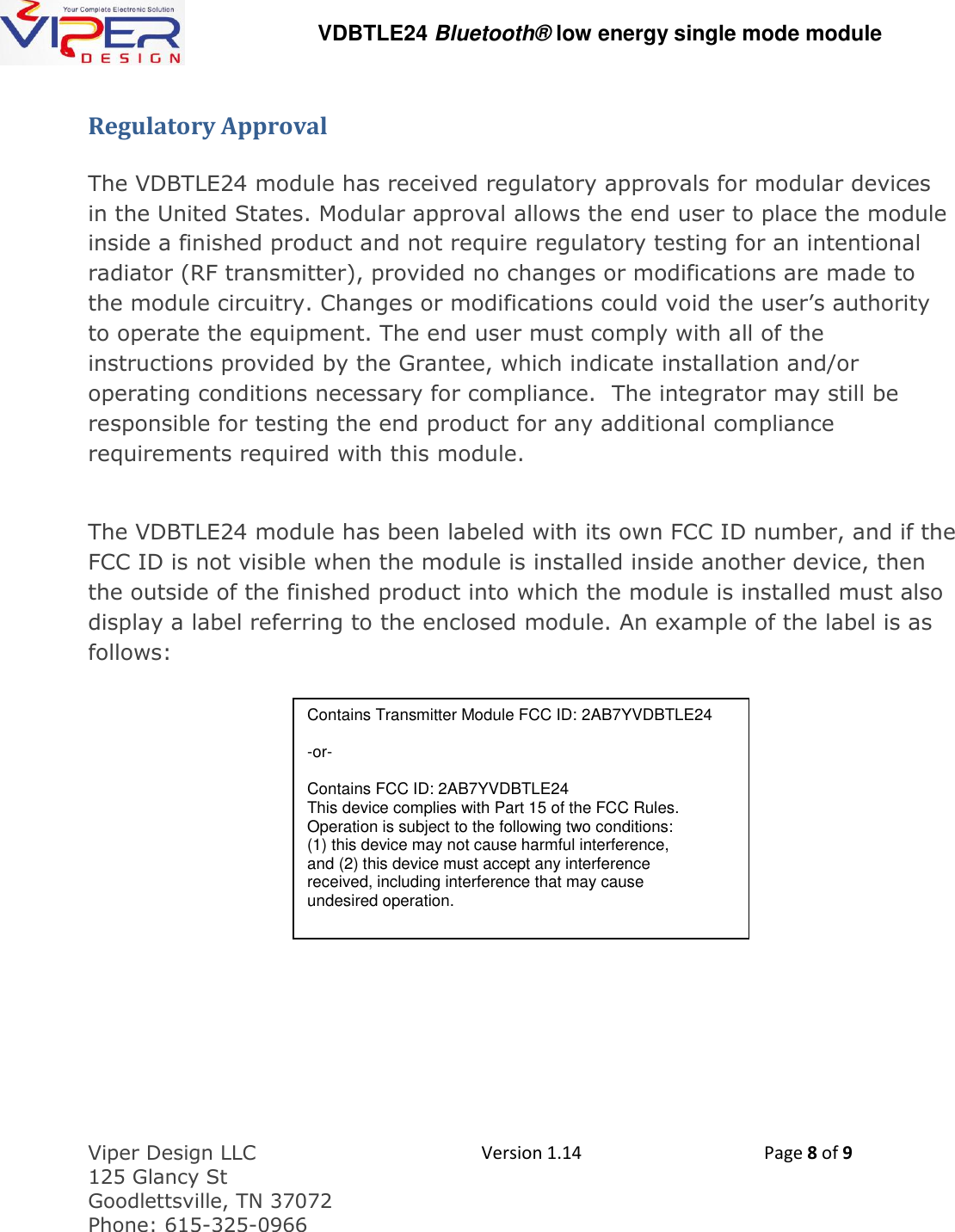

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 8 of 9 Regulatory Approval The VDBTLE24 module has received regulatory approvals for modular devices in the United States. Modular approval allows the end user to place the module inside a finished product and not require regulatory testing for an intentional radiator (RF transmitter), provided no changes or modifications are made to the module circuitry. Changes or modifications could void the user’s authority to operate the equipment. The end user must comply with all of the instructions provided by the Grantee, which indicate installation and/or operating conditions necessary for compliance. The integrator may still be responsible for testing the end product for any additional compliance requirements required with this module. The VDBTLE24 module has been labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the finished product into which the module is installed must also display a label referring to the enclosed module. An example of the label is as follows: Contains Transmitter Module FCC ID: 2AB7YVDBTLE24 -or- Contains FCC ID: 2AB7YVDBTLE24 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

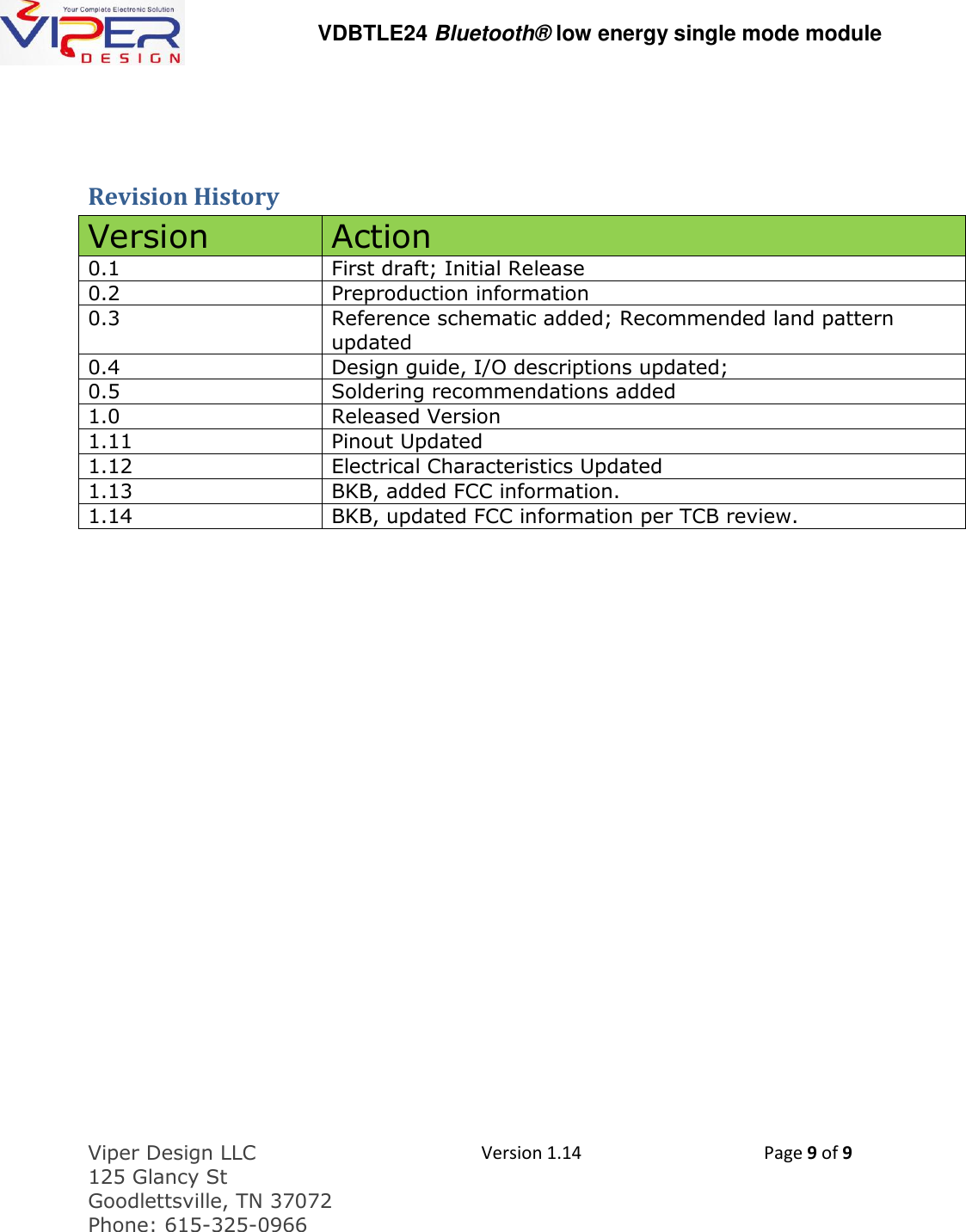

VDBTLE24 Bluetooth® low energy single mode module Viper Design LLC 125 Glancy St Goodlettsville, TN 37072 Phone: 615-325-0966 Version 1.14 Page 9 of 9 Revision History Version Action 0.1 First draft; Initial Release 0.2 Preproduction information 0.3 Reference schematic added; Recommended land pattern updated 0.4 Design guide, I/O descriptions updated; 0.5 Soldering recommendations added 1.0 Released Version 1.11 Pinout Updated 1.12 Electrical Characteristics Updated 1.13 BKB, added FCC information. 1.14 BKB, updated FCC information per TCB review.
