Vision Automobile Electronics Co ZG8101US Z-WAVE GARAGE DOOR SENSOR User Manual INSTALLATION GUIDE

Vision Automobile Electronics Industrial Co Ltd Z-WAVE GARAGE DOOR SENSOR INSTALLATION GUIDE

Manual

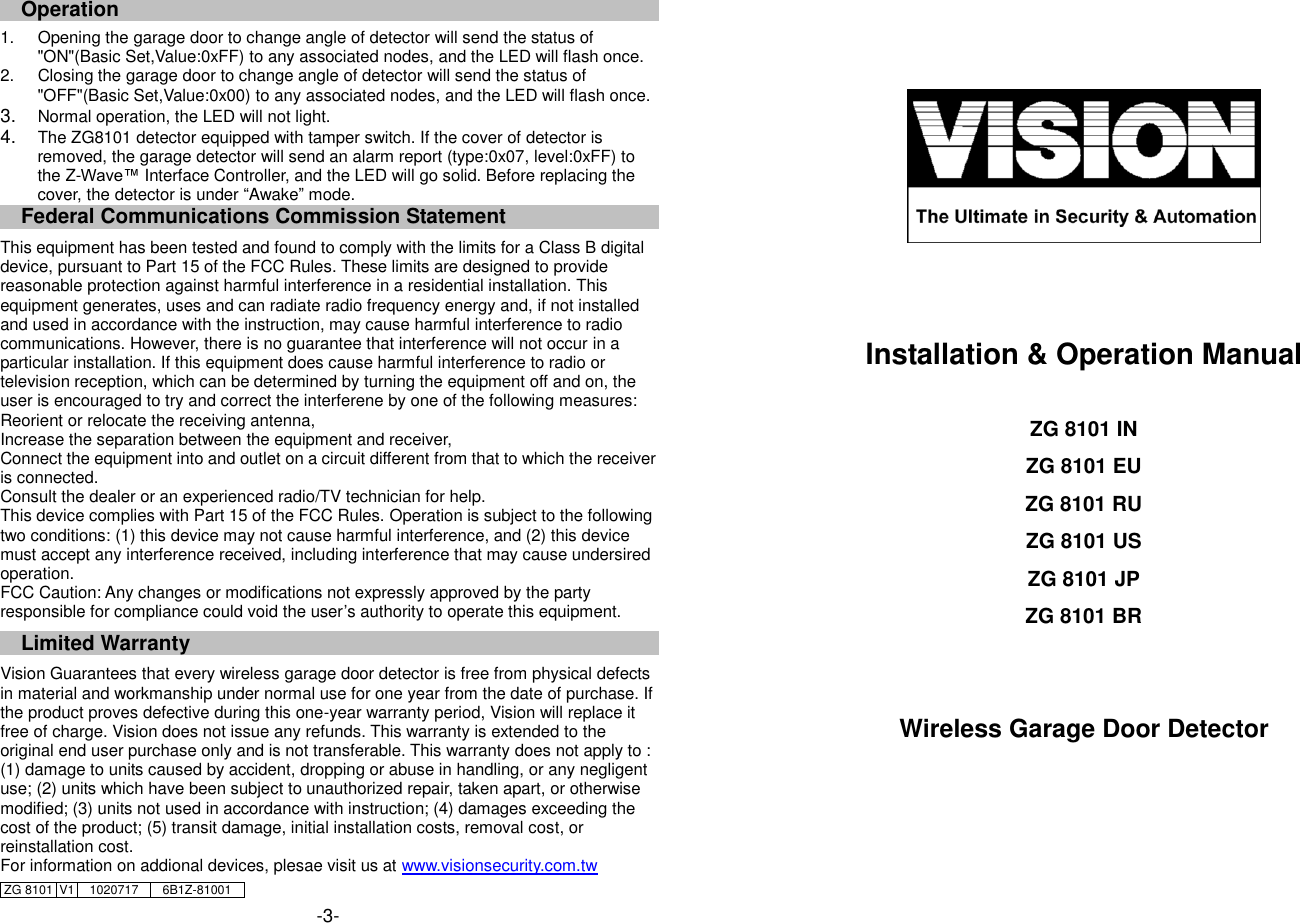

Operation 1. Opening the garage door to change angle of detector will send the status of "ON"(Basic Set,Value:0xFF) to any associated nodes, and the LED will flash once. 2. Closing the garage door to change angle of detector will send the status of "OFF"(Basic Set,Value:0x00) to any associated nodes, and the LED will flash once. 3. Normal operation, the LED will not light. 4. The ZG8101 detector equipped with tamper switch. If the cover of detector is removed, the garage detector will send an alarm report (type:0x07, level:0xFF) to the Z-Wave™ Interface Controller, and the LED will go solid. Before replacing the cover, the detector is under “Awake” mode. Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Limited Warranty Vision Guarantees that every wireless garage door detector is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.visionsecurity.com.tw ZG 8101 V1 1020717 6B1Z-81001 -3- Installation & Operation Manual ZG 8101 IN ZG 8101 EU ZG 8101 RU ZG 8101 US ZG 8101 JP ZG 8101 BR Wireless Garage Door Detector
Introduction Thanks for choosing the Vision’s wireless garage door detector of the home security device. This sensor is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network. Every mains powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sports” Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. This detector monitors garage door and send Z-Wave™ signal when angel is changed. Product Description and Specification *** For indoor use only*** Specification: Package Content: Protocol: Z-Wave™ (ZM3102N) Frequency Range: 865.22MHz (ZG8101IN) 868.42MHz (ZG8101EU) 869.00MHz (ZG8101RU) 908.42MHz (ZG8101US) 920.00MHz (ZG8101JP) 921.42MHz (ZG8101BR) Operating Range: Up to 100 feet line of sight Operating Temp.: -15°C~ 60°C (5°F ~140°F) Battery: Panasonic CR123A * 1PC 1pc 1pc 1pc 3pcs 1pc 1pc ZG 8101 detector Bracket Holder Adhesive tape for detector Screw for bracket CR123A Lithium Battery Installation & Operation manual Installation Notice: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™ Interface Controller before installing ZG8101. 1. Install Battery: Use care when installing the battery. Press the locking tab on the top detector cover, and then gently pull up the cover. Observe the correct polarity before insert the battery. 2. After insert the battery, the LED will start to flash slowly, which means the sensor has not yet been “inclusion”. 3. For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into -1- “inclusion” mode, and following its instruction to add the ZG8101 to your controller. To get in the “inclusion” mode, the distance between sensor and controller is suggested to be in one meter. Press the program switch of ZG8101 for 1 second at least. The LED on the ZG8101 should go solid, if not, please try again. For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZG8101 from your controller. Press the program switch of ZG8101 for 1 second at least to be excluded. For “Association”: removing the cover of the ZG8101 to get into the “Awake” mode, then put the Z-Wave™ Interface Controller into “Association”, and following its instruction to associate the ZG8101 with other device. Close the cover back after “association” done, afterward the ZG8101 will get into “Sleep” mode for power saving. Support one association group (5 nodes). ”Awake” mode: it is to leave the “Sleep” mode by removing the cover of ZG8101, to allow the Z-Wave™ Interface Controller to do “Inclusion”, “Exclusion”, “Association” and to reply and receive the commands from controller. 6. Slide back the rear cover and screw fastening with the front cover, the LED should go off. 7. Using the adhesive tape or fixing screws to fix the bracket holder with garage detector. For better operation, please install detector on top portion of garage door. 8. External Switch: If your garage door needs external switch for fully monitoring. You could use an external switch to connect with the ZG8101 for extending detection. The ZG8101 has 2 normally closed contact terminals. These can be used for additional external switch wired contacts. The external switch will send an alarm report (type:0x07,level:0xFF) by opening the garage door. -2-
