Vision Automobile Electronics Co ZL7261US-5 Z-Wave Power Monitor User Manual

Vision Automobile Electronics Industrial Co Ltd Z-Wave Power Monitor Users Manual

Users Manual

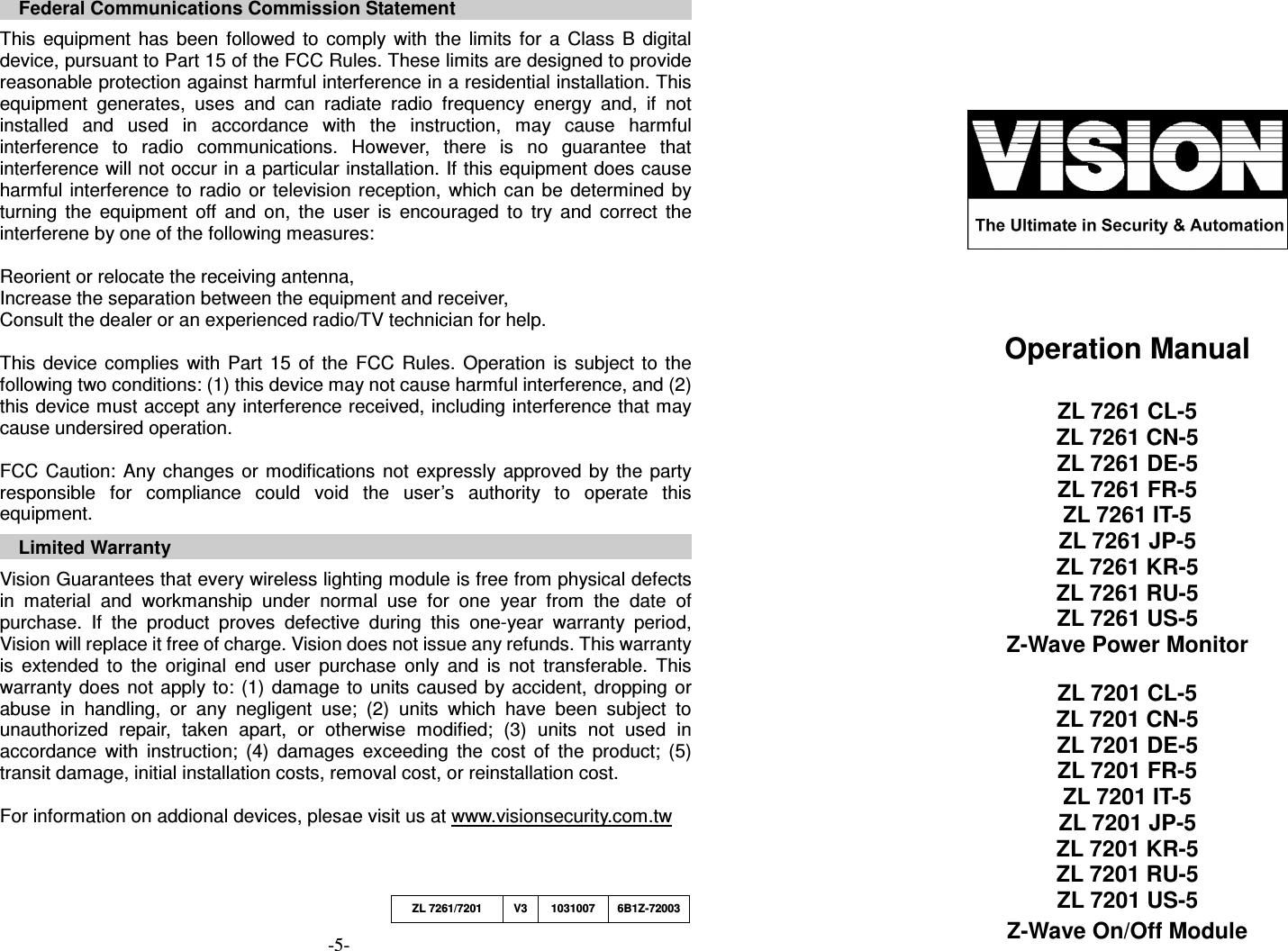

    Federal Communications Commission Statement  This  equipment  has  been  followed  to  comply  with  the  limits  for  a  Class  B  digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment  generates,  uses  and  can  radiate  radio  frequency  energy  and,  if  not installed  and  used  in  accordance  with  the  instruction,  may  cause  harmful interference  to  radio  communications.  However,  there  is  no  guarantee  that interference will not occur in a particular installation. If this equipment does cause harmful  interference to  radio  or  television reception,  which  can be  determined  by turning  the  equipment  off  and  on,  the  user  is  encouraged  to  try  and  correct  the interferene by one of the following measures:  Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Consult the dealer or an experienced radio/TV technician for help.  This  device  complies  with  Part  15  of  the  FCC  Rules.  Operation  is  subject  to  the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation.  FCC  Caution:  Any changes  or  modifications  not expressly  approved  by  the  party responsible  for  compliance  could  void  the  user’s  authority  to  operate  this equipment.  Limited Warranty  Vision Guarantees that every wireless lighting module is free from physical defects in  material  and  workmanship  under  normal  use  for  one  year  from  the  date  of purchase.  If  the  product  proves  defective  during  this  one-year  warranty  period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is  extended  to  the  original  end  user  purchase  only  and  is  not  transferable.  This warranty  does not  apply to:  (1)  damage  to  units caused  by accident,  dropping  or abuse  in  handling,  or  any  negligent  use;  (2)  units  which  have  been  subject  to unauthorized  repair,  taken  apart,  or  otherwise  modified;  (3)  units  not  used  in accordance  with  instruction;  (4)  damages  exceeding  the  cost  of  the  product;  (5) transit damage, initial installation costs, removal cost, or reinstallation cost.  For information on addional devices, plesae visit us at www.visionsecurity.com.tw   -5-                                                                          Operation Manual  ZL 7261 CL-5 ZL 7261 CN-5 ZL 7261 DE-5 ZL 7261 FR-5 ZL 7261 IT-5 ZL 7261 JP-5 ZL 7261 KR-5 ZL 7261 RU-5 ZL 7261 US-5 Z-Wave Power Monitor  ZL 7201 CL-5 ZL 7201 CN-5 ZL 7201 DE-5 ZL 7201 FR-5 ZL 7201 IT-5 ZL 7201 JP-5 ZL 7201 KR-5 ZL 7201 RU-5 ZL 7201 US-5 Z-Wave On/Off Module  ZL 7261/7201  V3 1031007  6B1Z-72003

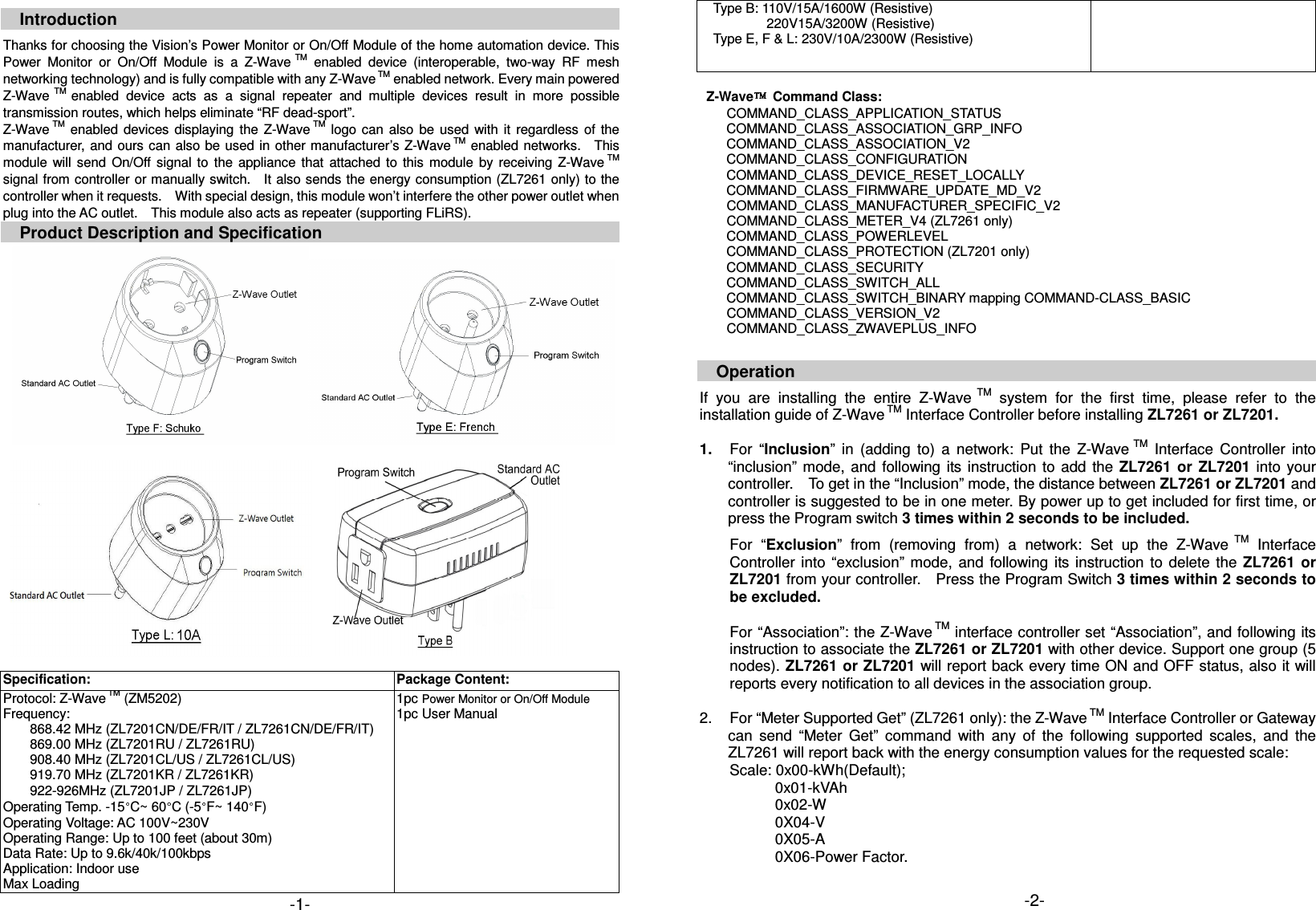

 Introduction  Thanks for choosing the Vision’s Power Monitor or On/Off Module of the home automation device. This Power  Monitor  or  On/Off  Module  is  a  Z-Wave  TM  enabled  device  (interoperable,  two-way  RF  mesh networking technology) and is fully compatible with any Z-Wave TM enabled network. Every main powered Z-Wave  TM enabled  device  acts  as  a  signal  repeater  and  multiple  devices  result  in  more  possible transmission routes, which helps eliminate “RF dead-sport”. Z-Wave TM  enabled  devices  displaying  the  Z-Wave TM  logo  can  also  be  used  with  it  regardless  of  the manufacturer, and  ours can  also be used  in other manufacturer’s Z-Wave TM enabled networks.    This module  will  send  On/Off  signal  to  the  appliance  that  attached  to  this  module  by  receiving  Z-Wave TM signal from controller or manually switch.    It also sends the energy consumption (ZL7261 only) to the controller when it requests.    With special design, this module won’t interfere the other power outlet when plug into the AC outlet.    This module also acts as repeater (supporting FLiRS). Product Description and Specification              Specification: Package Content: Protocol: Z-Wave TM (ZM5202) Frequency:         868.42 MHz (ZL7201CN/DE/FR/IT / ZL7261CN/DE/FR/IT)         869.00 MHz (ZL7201RU / ZL7261RU)         908.40 MHz (ZL7201CL/US / ZL7261CL/US)         919.70 MHz (ZL7201KR / ZL7261KR)         922-926MHz (ZL7201JP / ZL7261JP) Operating Temp. -15 C~ 60 C (-5 F~ 140 F) Operating Voltage: AC 100V~230V Operating Range: Up to 100 feet (about 30m) Data Rate: Up to 9.6k/40k/100kbps Application: Indoor use Max Loading 1pc Power Monitor or On/Off Module 1pc User Manual     Type B: 110V/15A/1600W (Resistive)                     220V15A/3200W (Resistive)     Type E, F & L: 230V/10A/2300W (Resistive)      Z-Wave   Command Class:      COMMAND_CLASS_APPLICATION_STATUS COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_ASSOCIATION_V2 COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_DEVICE_RESET_LOCALLY COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2       COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2       COMMAND_CLASS_METER_V4 (ZL7261 only) COMMAND_CLASS_POWERLEVEL COMMAND_CLASS_PROTECTION (ZL7201 only) COMMAND_CLASS_SECURITY COMMAND_CLASS_SWITCH_ALL COMMAND_CLASS_SWITCH_BINARY mapping COMMAND-CLASS_BASIC       COMMAND_CLASS_VERSION_V2       COMMAND_CLASS_ZWAVEPLUS_INFO   Operation  If  you  are  installing  the  entire  Z-Wave  TM  system  for  the  first  time,  please  refer  to  the installation guide of Z-Wave TM Interface Controller before installing ZL7261 or ZL7201.  1.  For  “Inclusion”  in  (adding  to)  a  network:  Put  the  Z-Wave  TM  Interface  Controller  into “inclusion”  mode, and  following  its instruction  to  add  the ZL7261  or  ZL7201  into  your controller.    To get in the “Inclusion” mode, the distance between ZL7261 or ZL7201 and controller is suggested to be in one meter. By power up to get included for first time, or press the Program switch 3 times within 2 seconds to be included. For  “Exclusion”  from  (removing  from)  a  network:  Set  up  the  Z-Wave  TM  Interface Controller  into “exclusion”  mode,  and  following  its  instruction to  delete  the  ZL7261 or ZL7201 from your controller.    Press the Program Switch 3 times within 2 seconds to be excluded.  For “Association”: the Z-Wave TM interface controller set “Association”, and following its instruction to associate the ZL7261 or ZL7201 with other device. Support one group (5 nodes). ZL7261 or ZL7201 will report back every time ON and OFF status, also it will reports every notification to all devices in the association group.  2.  For “Meter Supported Get” (ZL7261 only): the Z-Wave TM Interface Controller or Gateway can  send  “Meter  Get”  command  with  any  of  the  following  supported  scales,  and  the ZL7261 will report back with the energy consumption values for the requested scale: Scale: 0x00-kWh(Default);             0x01-kVAh             0x02-W             0X04-V             0X05-A               0X06-Power Factor.   -1-  -2-

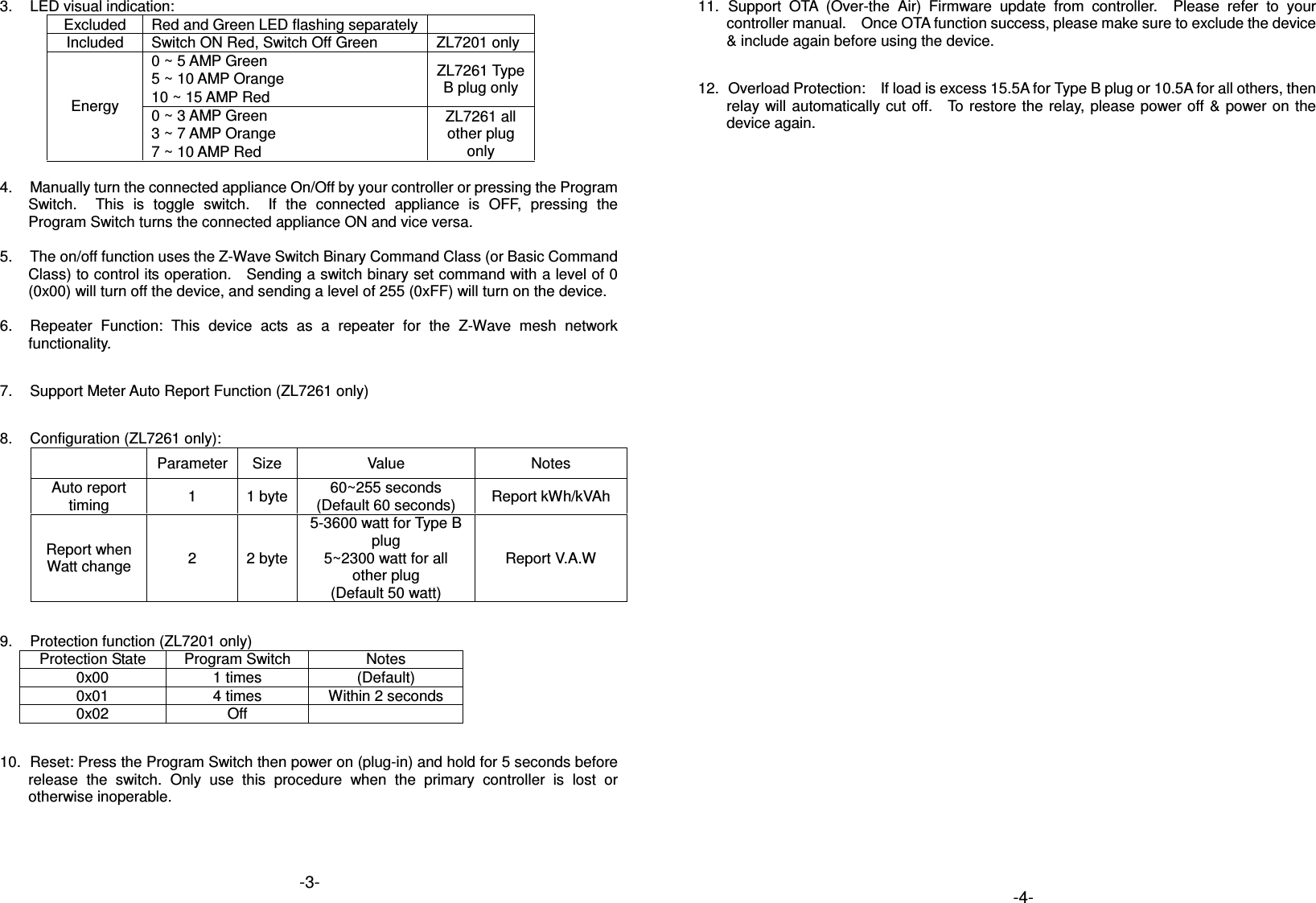

3.  LED visual indication: Excluded  Red and Green LED flashing separately  Included  Switch ON Red, Switch Off Green  ZL7201 only Energy 0 ~ 5 AMP Green  ZL7261 Type B plug only 5 ~ 10 AMP Orange 10 ~ 15 AMP Red 0 ~ 3 AMP Green  ZL7261 all other plug only 3 ~ 7 AMP Orange 7 ~ 10 AMP Red  4.  Manually turn the connected appliance On/Off by your controller or pressing the Program Switch.    This  is  toggle  switch.    If  the  connected  appliance is  OFF,  pressing  the Program Switch turns the connected appliance ON and vice versa.  5.  The on/off function uses the Z-Wave Switch Binary Command Class (or Basic Command Class) to control its operation.    Sending a switch binary set command with a level of 0 (0x00) will turn off the device, and sending a level of 255 (0xFF) will turn on the device.  6.  Repeater  Function:  This  device  acts  as  a  repeater  for  the  Z-Wave  mesh  network functionality.  7.  Support Meter Auto Report Function (ZL7261 only)  8.  Configuration (ZL7261 only):   Parameter Size Value  Notes Auto report timing  1  1 byte 60~255 seconds (Default 60 seconds)  Report kWh/kVAh Report when Watt change  2  2 byte 5-3600 watt for Type B plug 5~2300 watt for all other plug (Default 50 watt) Report V.A.W  9.  Protection function (ZL7201 only) Protection State  Program Switch  Notes 0x00  1 times  (Default) 0x01  4 times  Within 2 seconds 0x02  Off    10.  Reset: Press the Program Switch then power on (plug-in) and hold for 5 seconds before release  the  switch.  Only  use  this  procedure  when  the  primary  controller  is  lost  or otherwise inoperable.    11.  Support  OTA  (Over-the  Air)  Firmware  update  from  controller.    Please  refer  to  your controller manual.    Once OTA function success, please make sure to exclude the device & include again before using the device.  12.  Overload Protection:    If load is excess 15.5A for Type B plug or 10.5A for all others, then relay will automatically cut off.    To restore  the  relay, please power  off & power on the device again.  -3-  -4-
