Vision Automobile Electronics Co ZL7431US In-Wall Switch 1 Relay User Manual Federal Communications Commision Statement

Vision Automobile Electronics Industrial Co Ltd In-Wall Switch 1 Relay Federal Communications Commision Statement

Manual

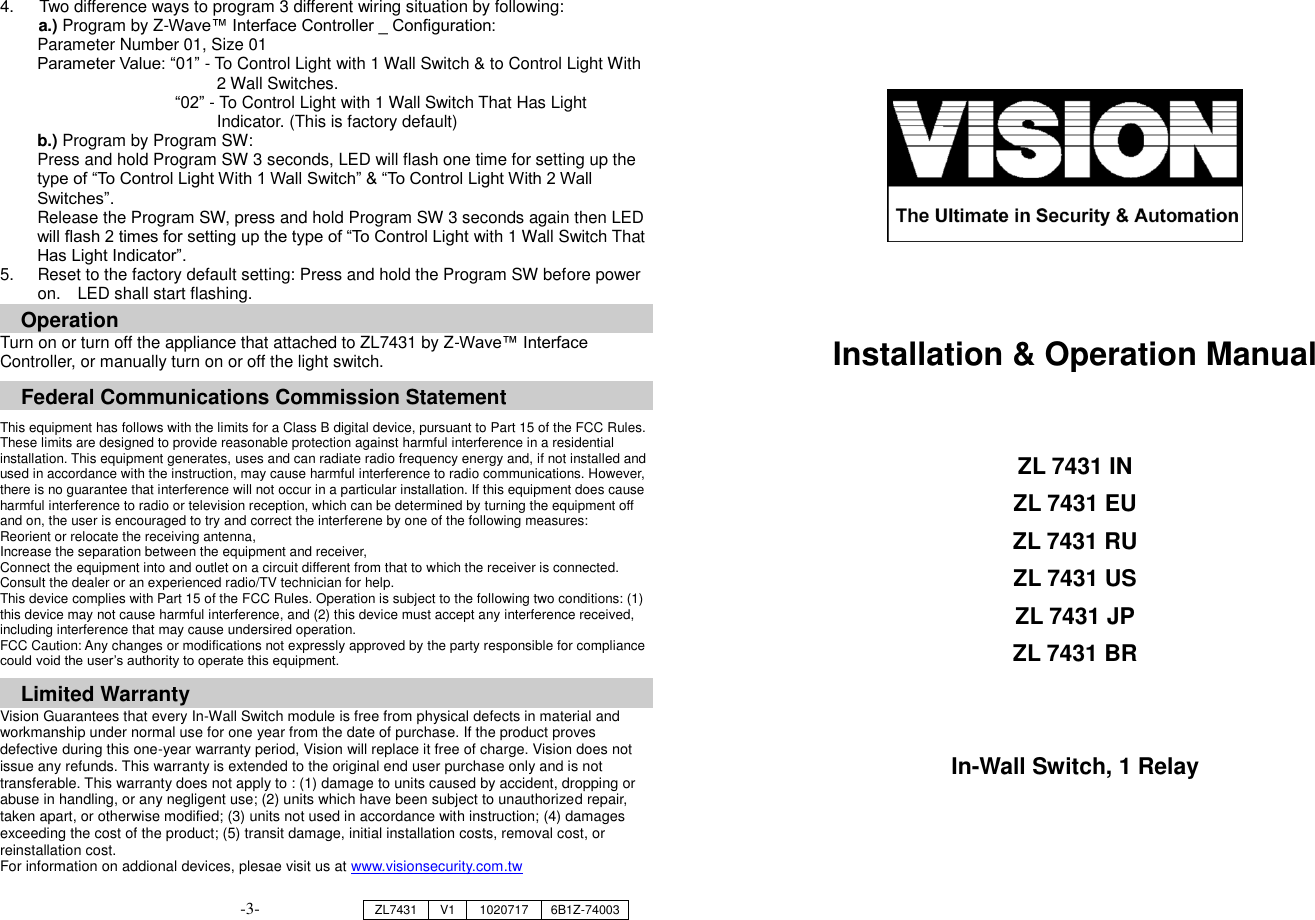

4.    Two difference ways to program 3 different wiring situation by following:   a.) Program by Z-Wave™ Interface Controller _ Configuration: Parameter Number 01, Size 01   Parameter Value: “01” - To Control Light with 1 Wall Switch & to Control Light With   2 Wall Switches. “02” - To Control Light with 1 Wall Switch That Has Light   Indicator. (This is factory default) b.) Program by Program SW: Press and hold Program SW 3 seconds, LED will flash one time for setting up the type of “To Control Light With 1 Wall Switch” & “To Control Light With 2 Wall Switches”. Release the Program SW, press and hold Program SW 3 seconds again then LED will flash 2 times for setting up the type of “To Control Light with 1 Wall Switch That Has Light Indicator”. 5.  Reset to the factory default setting: Press and hold the Program SW before power on.  LED shall start flashing. Operation Turn on or turn off the appliance that attached to ZL7431 by Z-Wave™ Interface Controller, or manually turn on or off the light switch.    Federal Communications Commission Statement  This equipment has follows with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interferene by one of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.  Limited Warranty Vision Guarantees that every In-Wall Switch module is free from physical defects in material and workmanship under normal use for one year from the date of purchase. If the product proves defective during this one-year warranty period, Vision will replace it free of charge. Vision does not issue any refunds. This warranty is extended to the original end user purchase only and is not transferable. This warranty does not apply to : (1) damage to units caused by accident, dropping or abuse in handling, or any negligent use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise modified; (3) units not used in accordance with instruction; (4) damages exceeding the cost of the product; (5) transit damage, initial installation costs, removal cost, or reinstallation cost. For information on addional devices, plesae visit us at www.visionsecurity.com.tw                                       Installation & Operation Manual     ZL 7431 IN ZL 7431 EU ZL 7431 RU ZL 7431 US ZL 7431 JP ZL 7431 BR   In-Wall Switch, 1 Relay       ZL7431 V1 1020717 6B1Z-74003 -3-

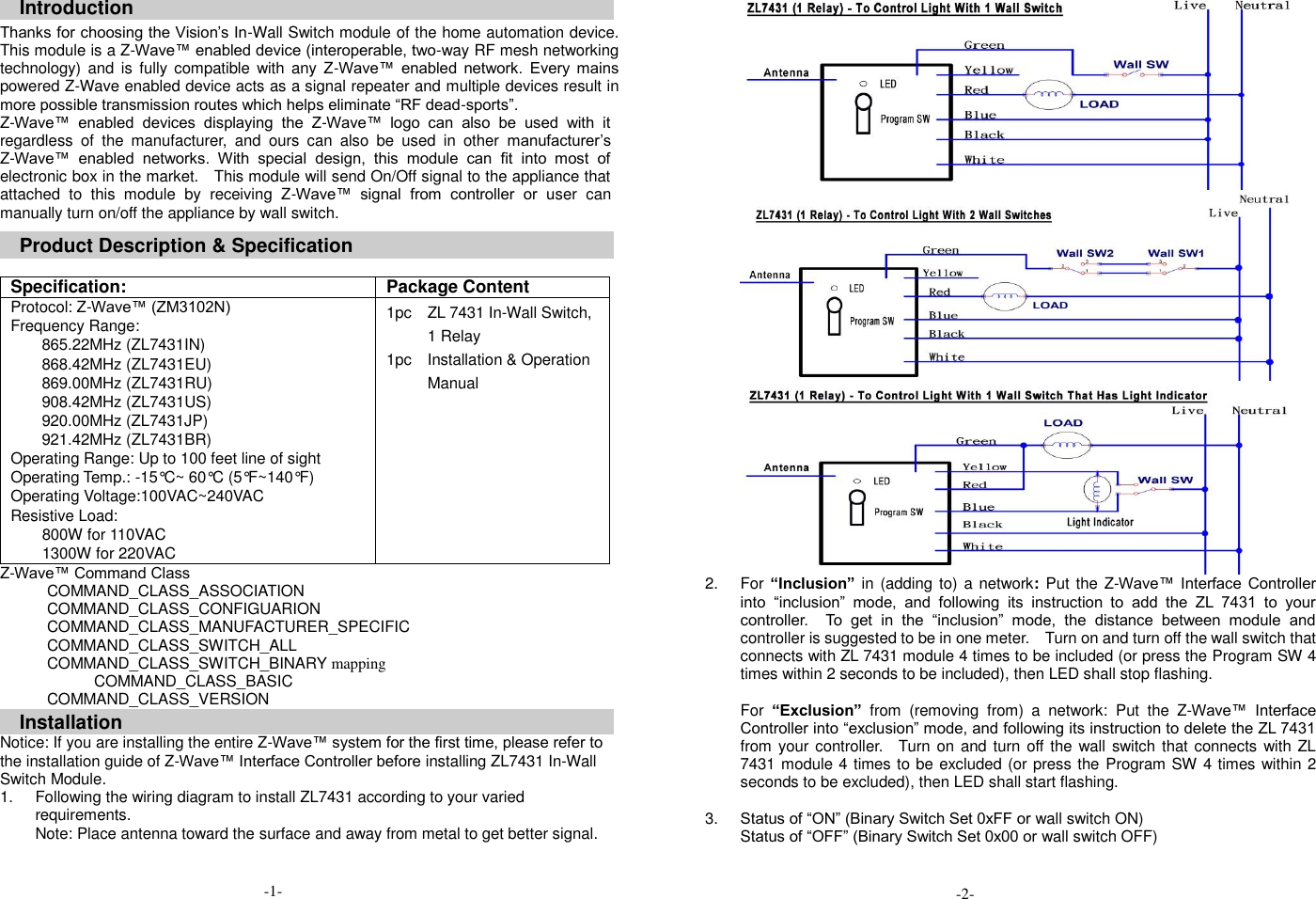

Introduction Thanks for choosing the Vision’s In-Wall Switch module of the home automation device. This module is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and  is  fully compatible with any Z-Wave™  enabled  network.  Every  mains powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sports”. Z-Wave™  enabled  devices  displaying  the  Z-Wave™  logo  can  also  be  used  with  it regardless  of  the  manufacturer,  and  ours  can  also  be  used  in  other  manufacturer’s Z-Wave™  enabled  networks.  With  special  design,  this  module  can  fit  into  most  of electronic box in the market.    This module will send On/Off signal to the appliance that attached  to  this  module  by  receiving  Z-Wave™  signal  from  controller  or  user  can manually turn on/off the appliance by wall switch.   Product Description & Specification    Specification: Package Content Protocol: Z-Wave™ (ZM3102N) Frequency Range: 865.22MHz (ZL7431IN) 868.42MHz (ZL7431EU) 869.00MHz (ZL7431RU) 908.42MHz (ZL7431US) 920.00MHz (ZL7431JP) 921.42MHz (ZL7431BR) Operating Range: Up to 100 feet line of sight Operating Temp.: -15°C~ 60°C (5°F~140°F) Operating Voltage:100VAC~240VAC Resistive Load:       800W for 110VAC         1300W for 220VAC 1pc    ZL 7431 In-Wall Switch, 1 Relay 1pc    Installation & Operation Manual Z-Wave™ Command Class COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_CONFIGUARION COMMAND_CLASS_MANUFACTURER_SPECIFIC COMMAND_CLASS_SWITCH_ALL   COMMAND_CLASS_SWITCH_BINARY mapping COMMAND_CLASS_BASIC COMMAND_CLASS_VERSION Installation Notice: If you are installing the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™ Interface Controller before installing ZL7431 In-Wall Switch Module. 1.  Following the wiring diagram to install ZL7431 according to your varied requirements.       Note: Place antenna toward the surface and away from metal to get better signal.     2.  For “Inclusion”  in  (adding to) a network: Put the Z-Wave™ Interface  Controller into  “inclusion”  mode,  and  following  its  instruction  to  add  the  ZL  7431  to  your controller.    To  get  in  the  “inclusion”  mode,  the  distance  between  module  and controller is suggested to be in one meter.    Turn on and turn off the wall switch that connects with ZL 7431 module 4 times to be included (or press the Program SW 4 times within 2 seconds to be included), then LED shall stop flashing.  For “Exclusion”  from  (removing  from)  a  network:  Put  the  Z-Wave™  Interface Controller into “exclusion” mode, and following its instruction to delete the ZL 7431 from your controller.    Turn  on and turn off the wall switch that connects with ZL 7431 module 4 times to be excluded (or press the Program SW 4  times within 2 seconds to be excluded), then LED shall start flashing.  3. Status of “ON” (Binary Switch Set 0xFF or wall switch ON) Status of “OFF” (Binary Switch Set 0x00 or wall switch OFF)   -1- -2-
