WJ Communications SX1126 CPE Head End User Manual Draft

WJ Communications, Inc. CPE Head End Draft

Contents

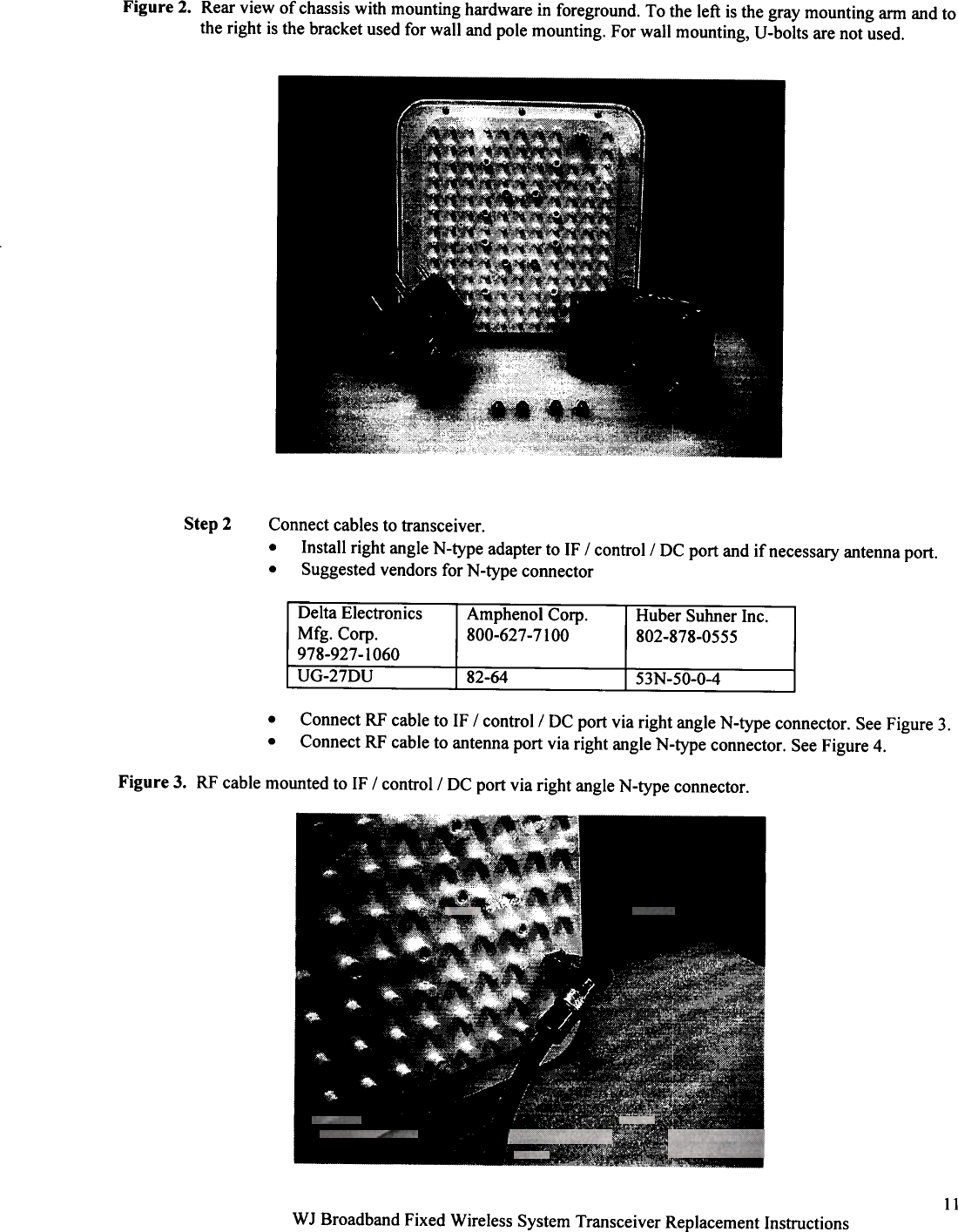

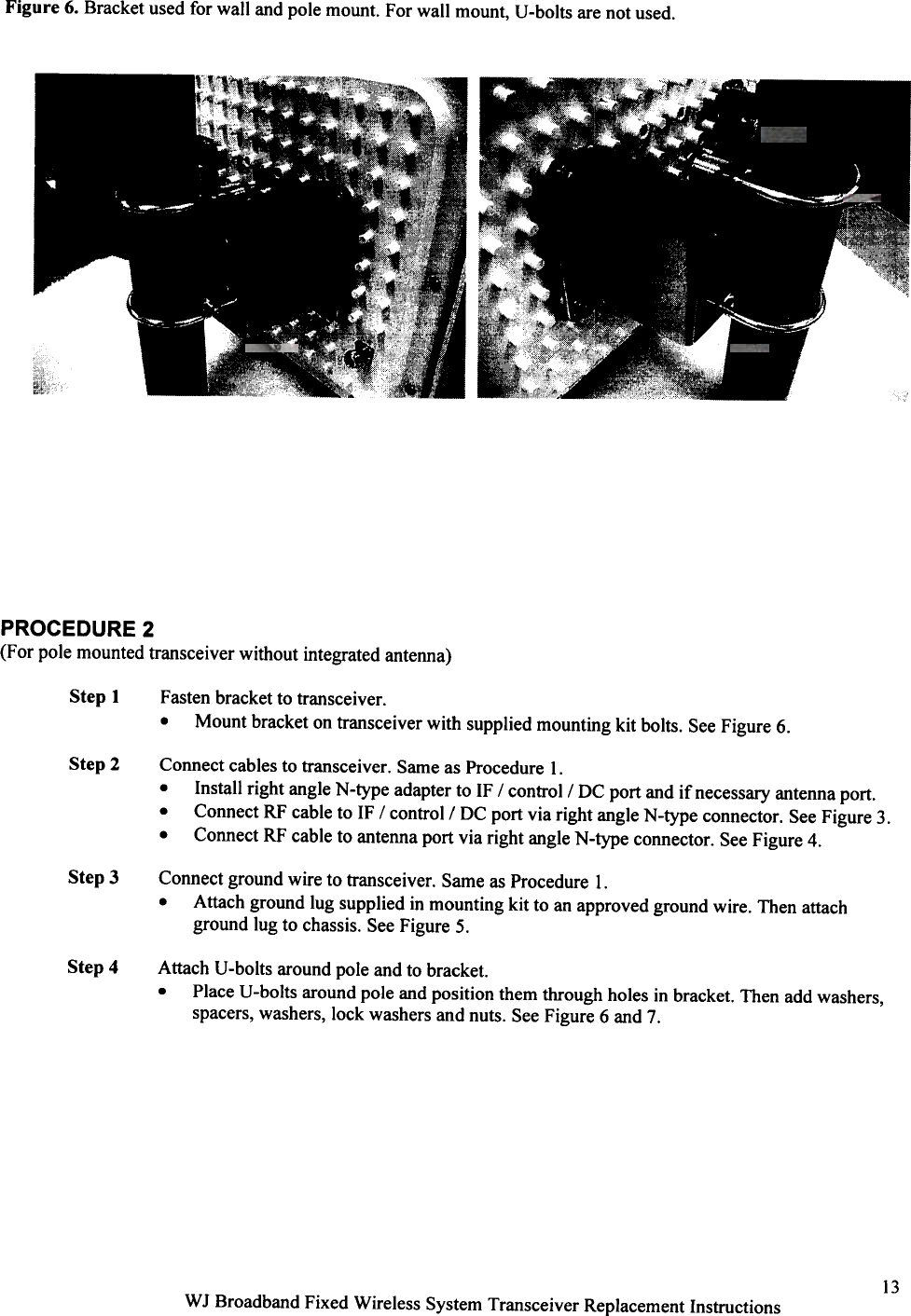

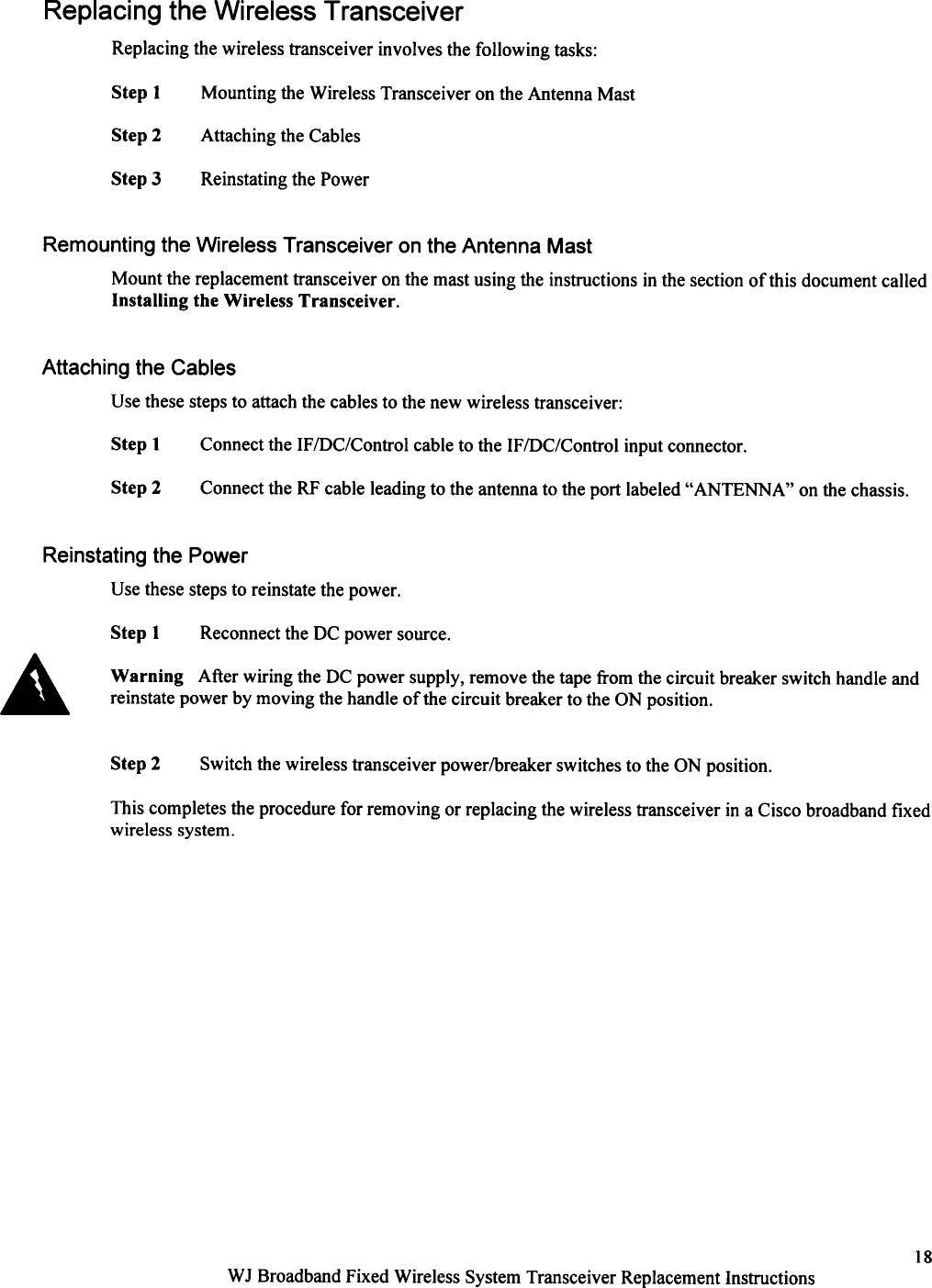

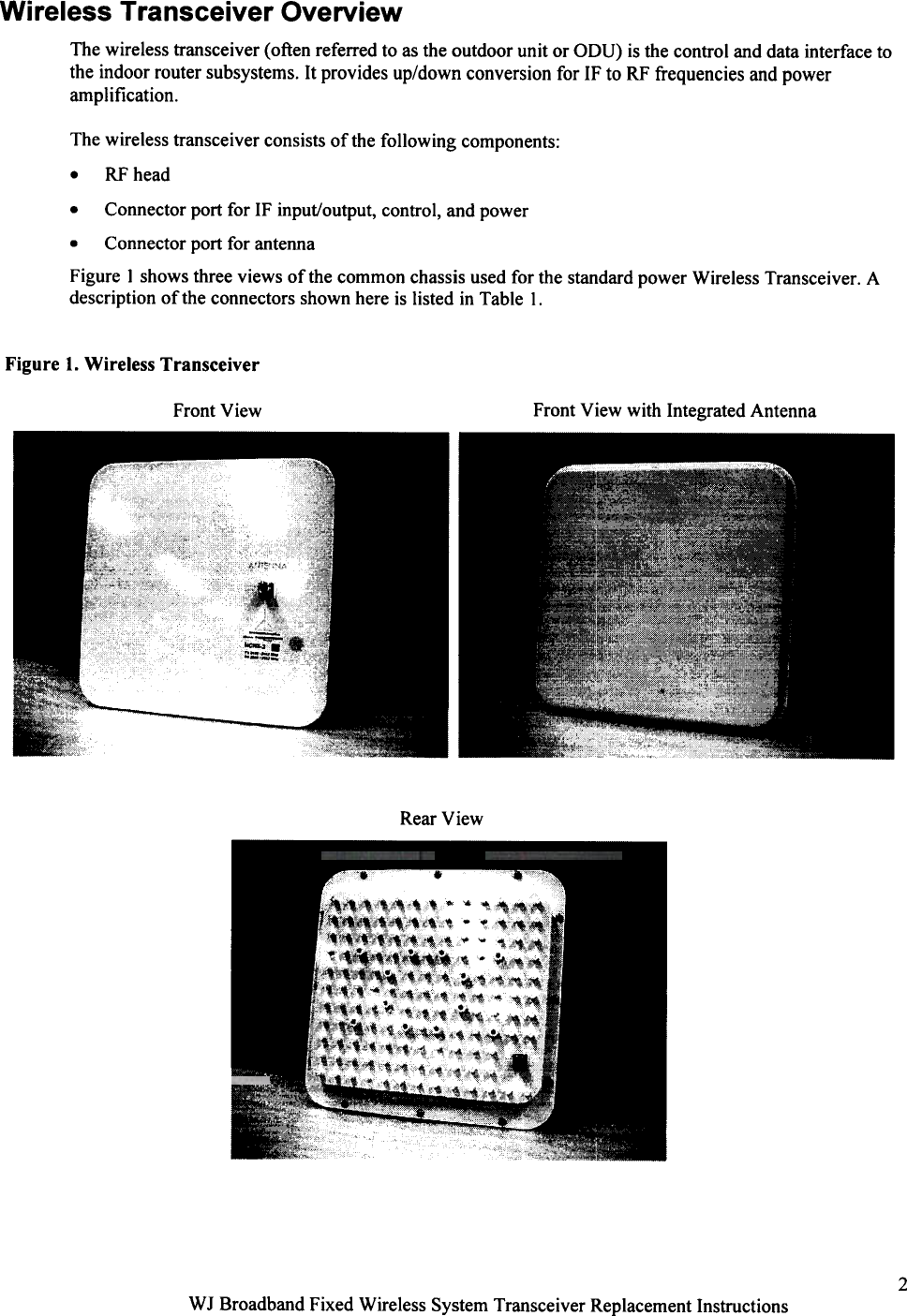

Draft User Manual

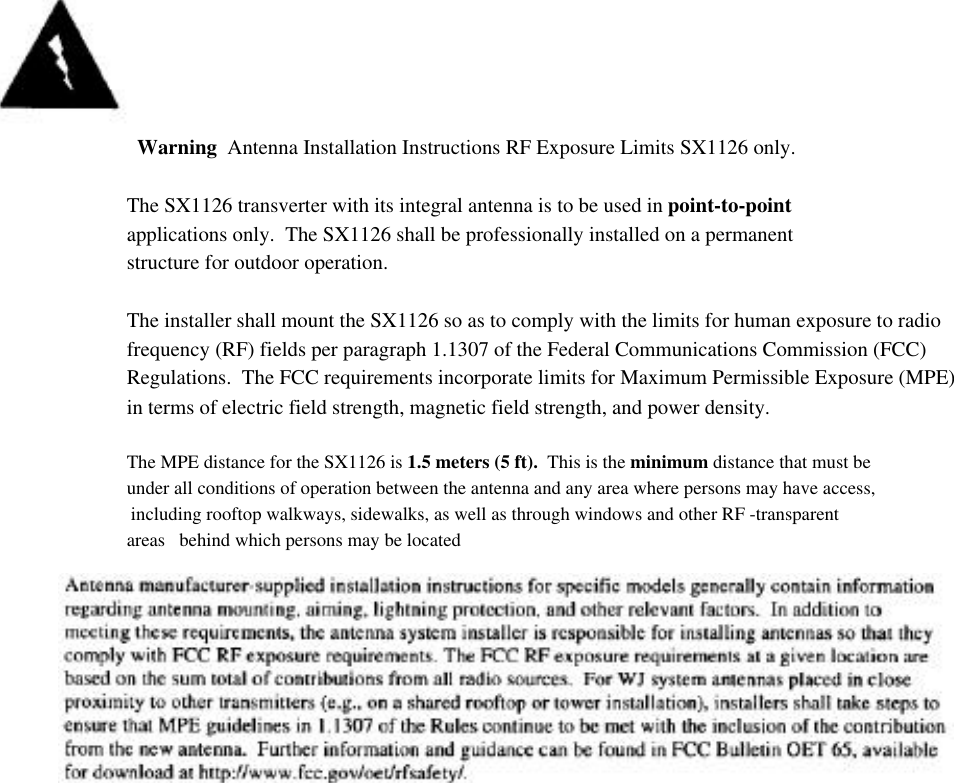

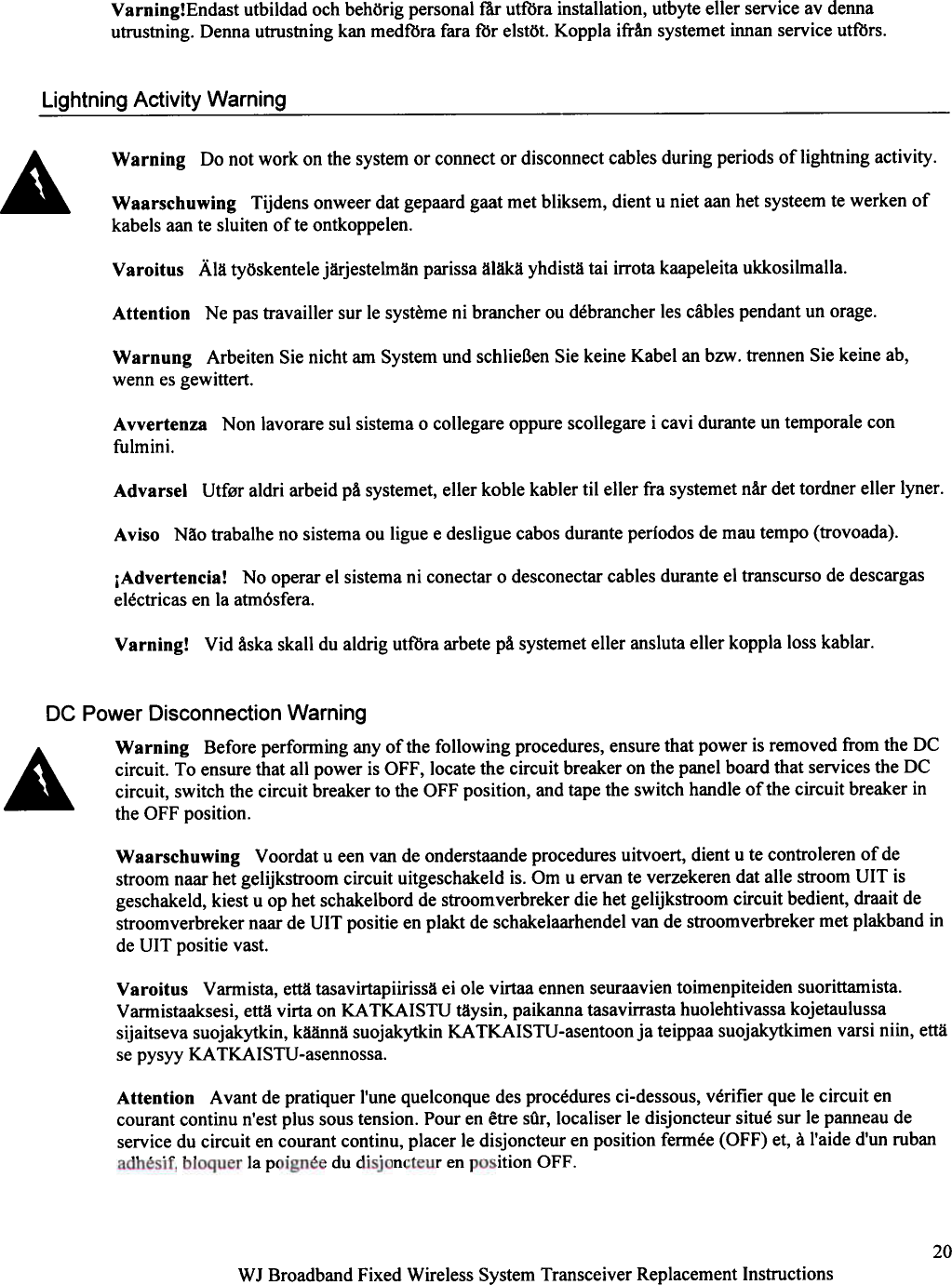

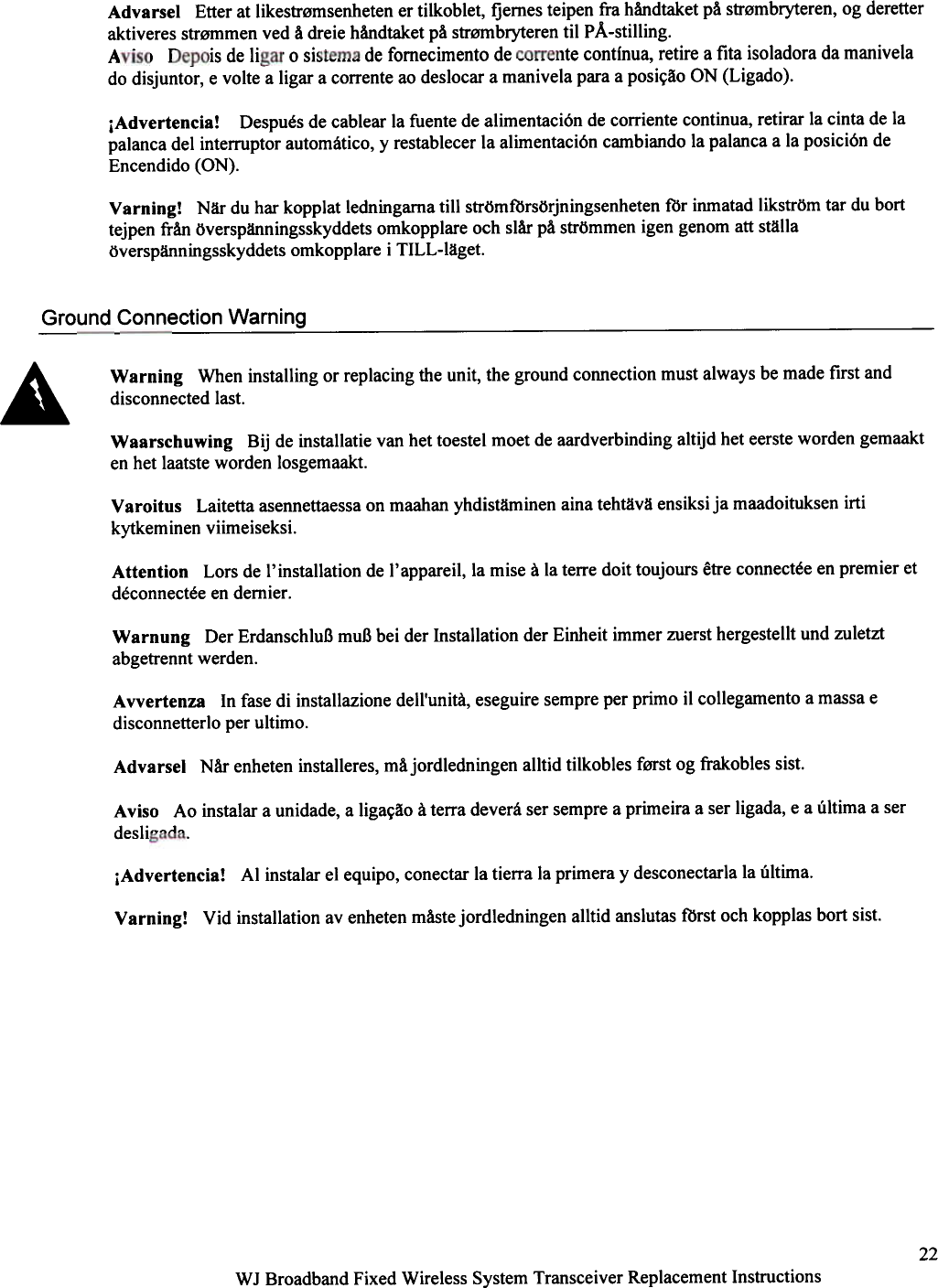

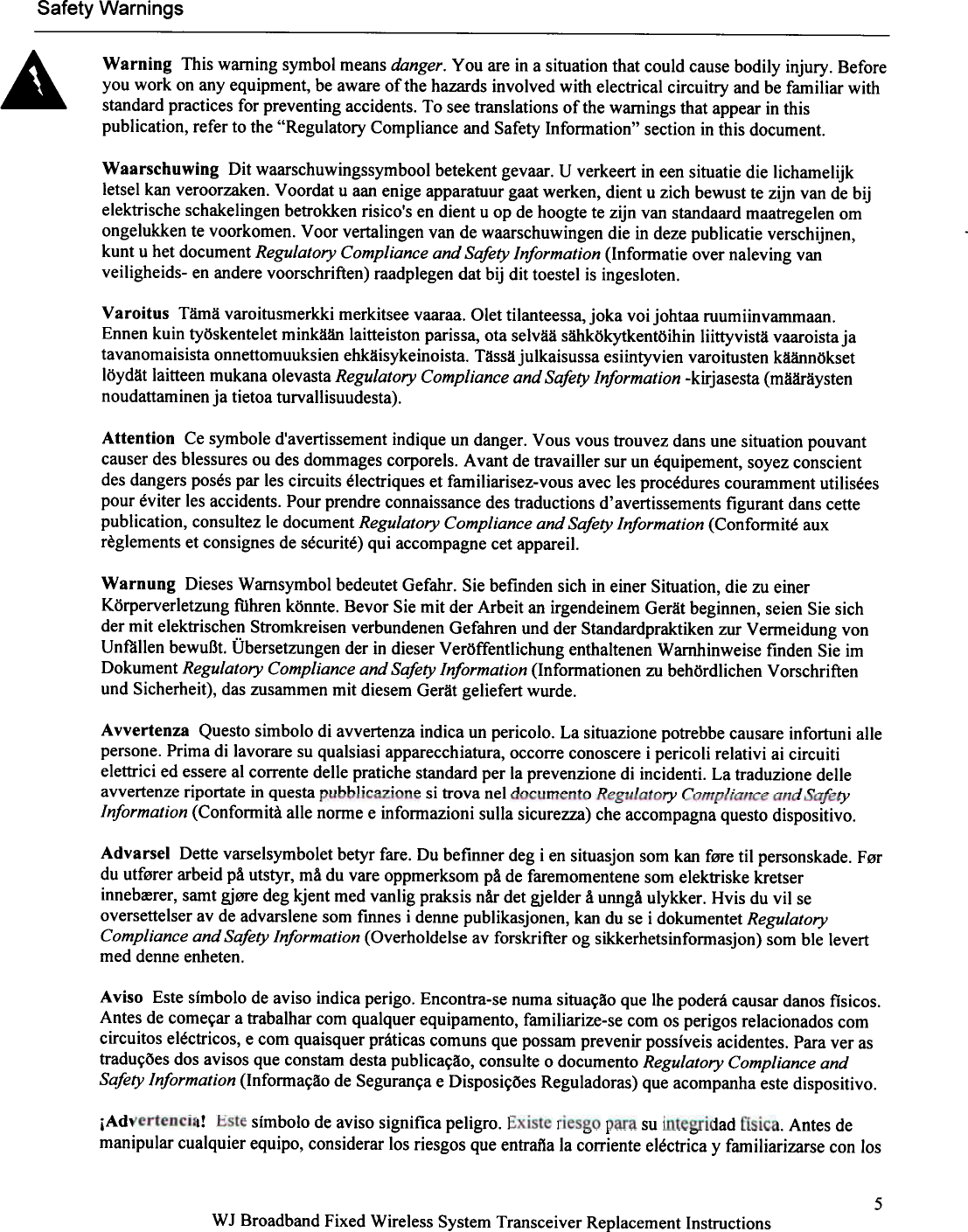

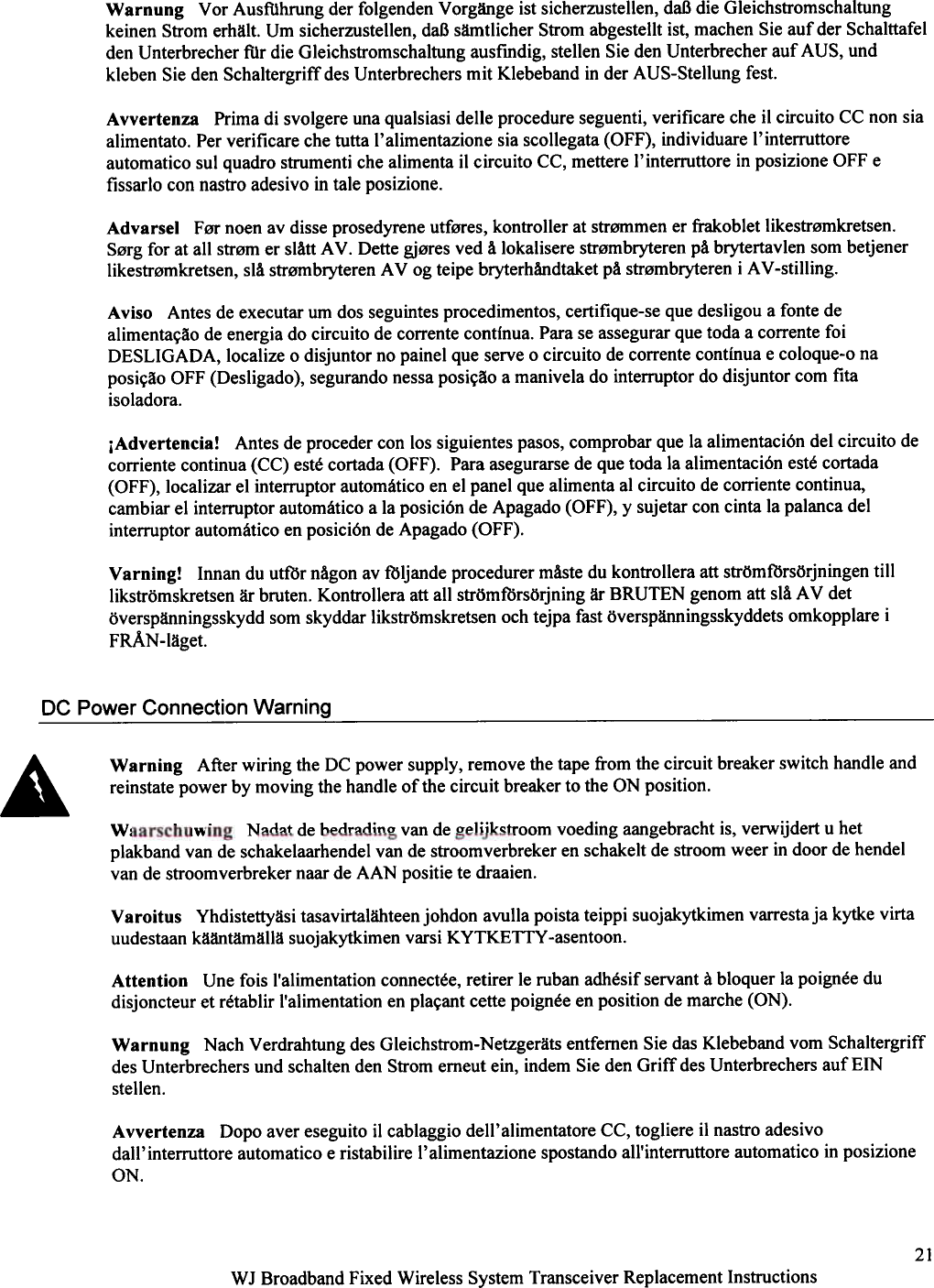

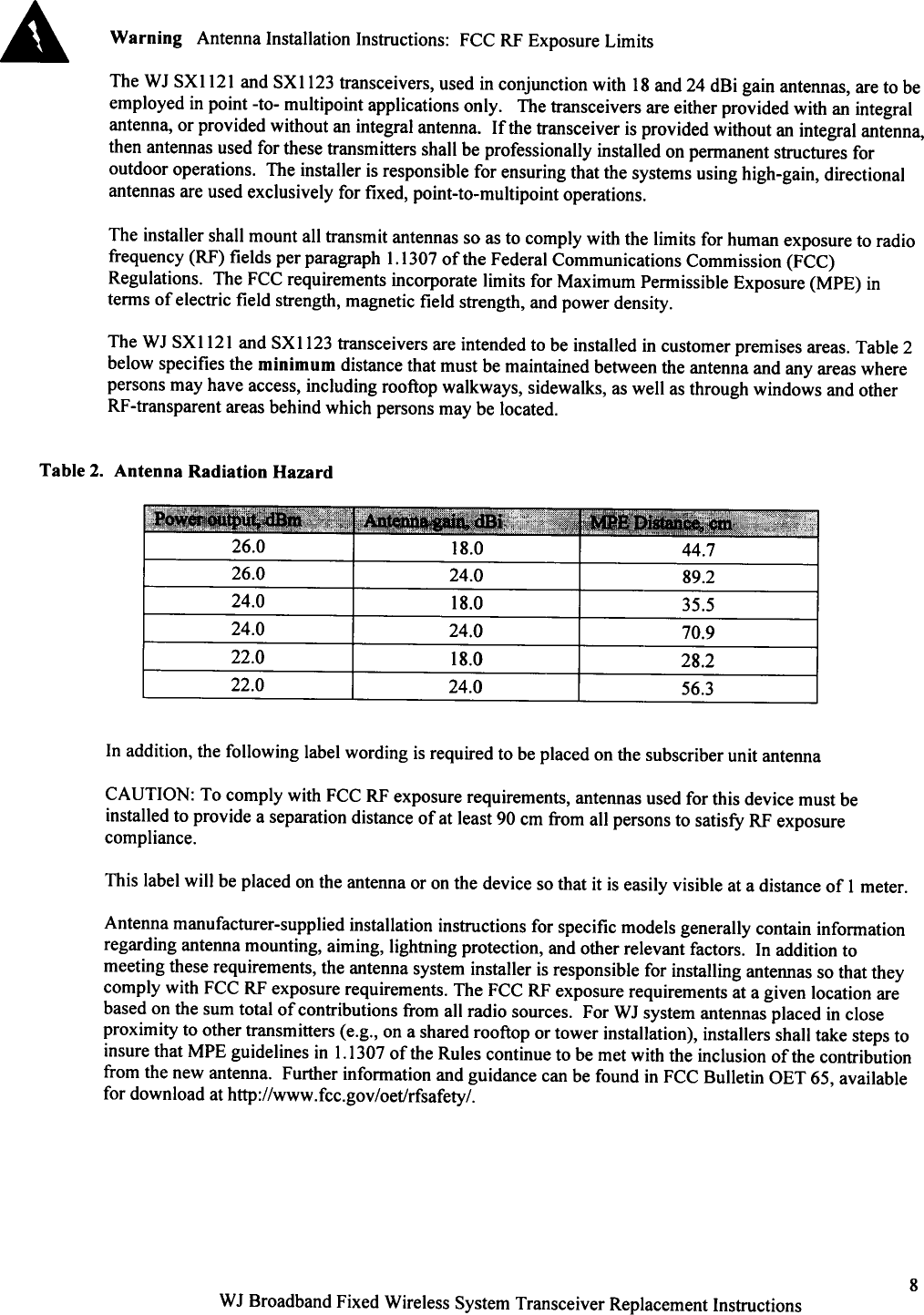

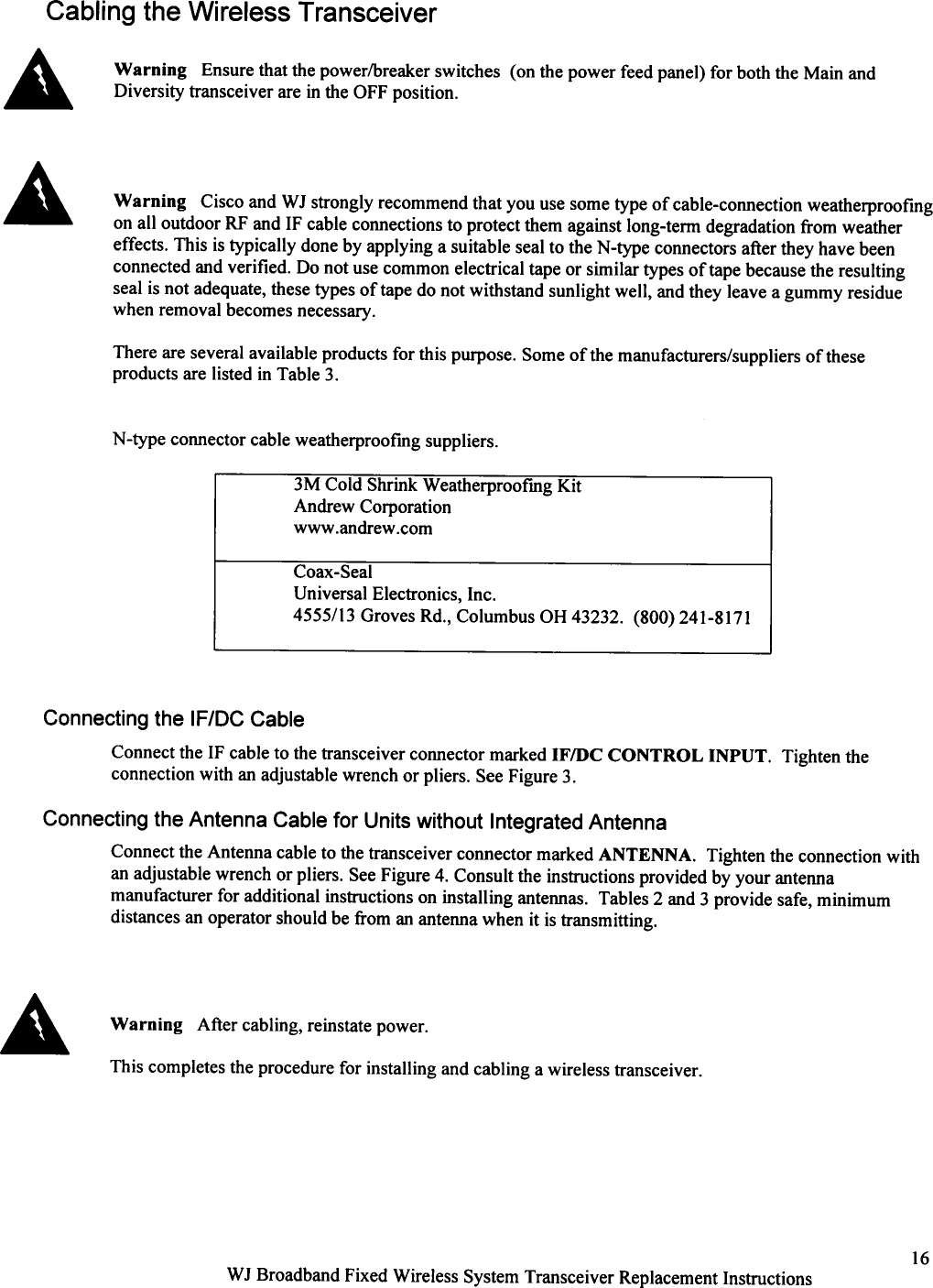

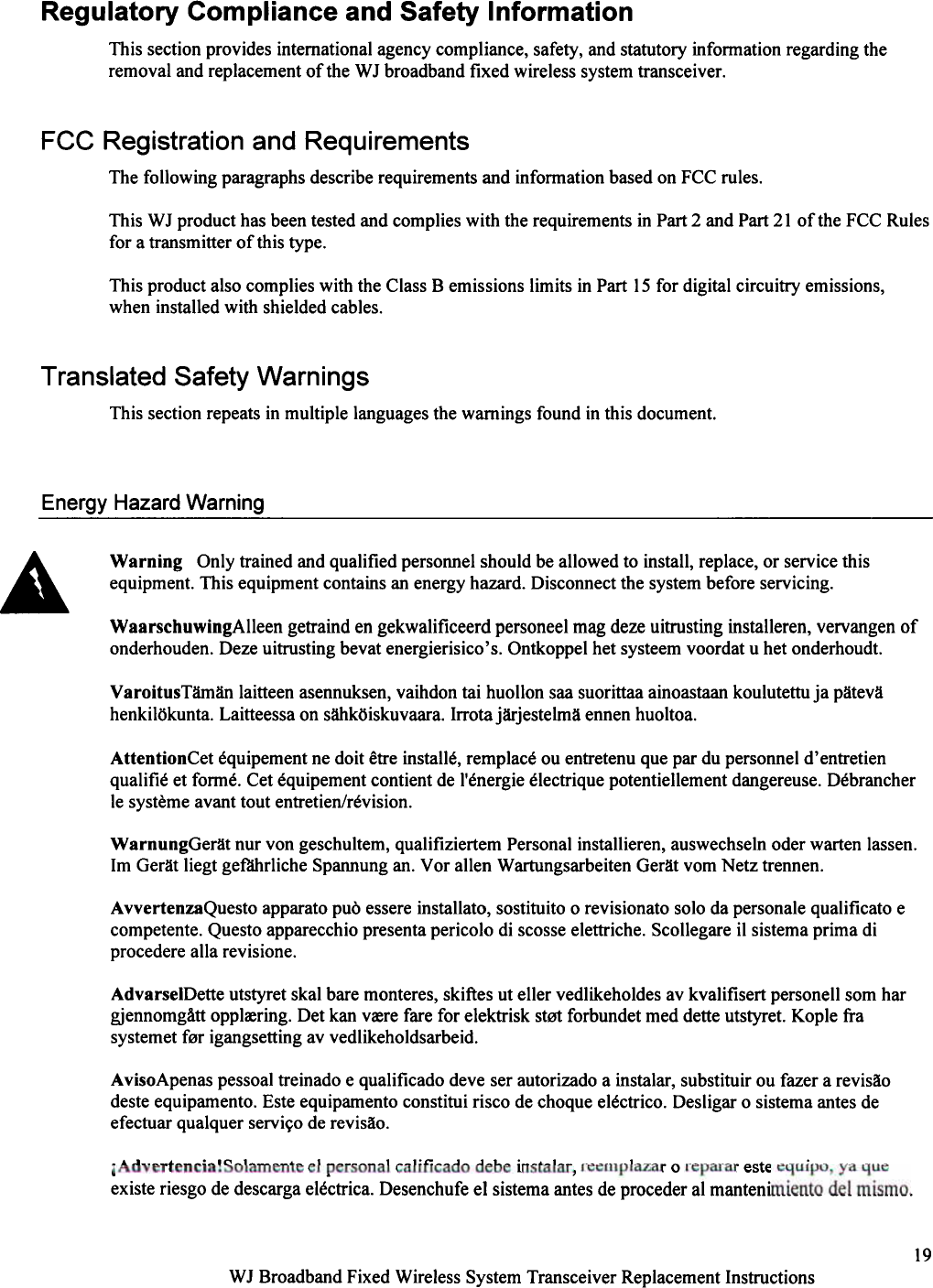

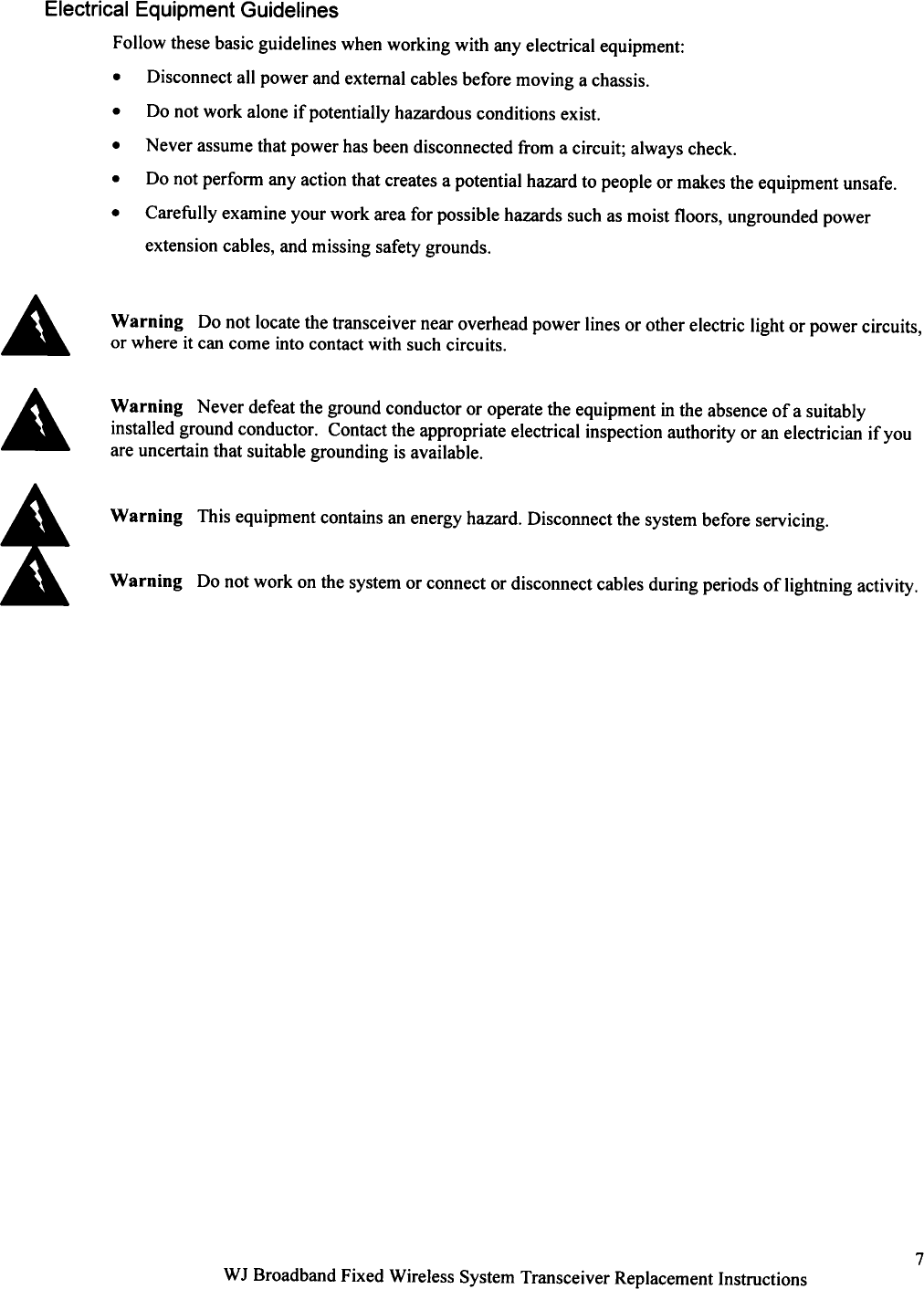

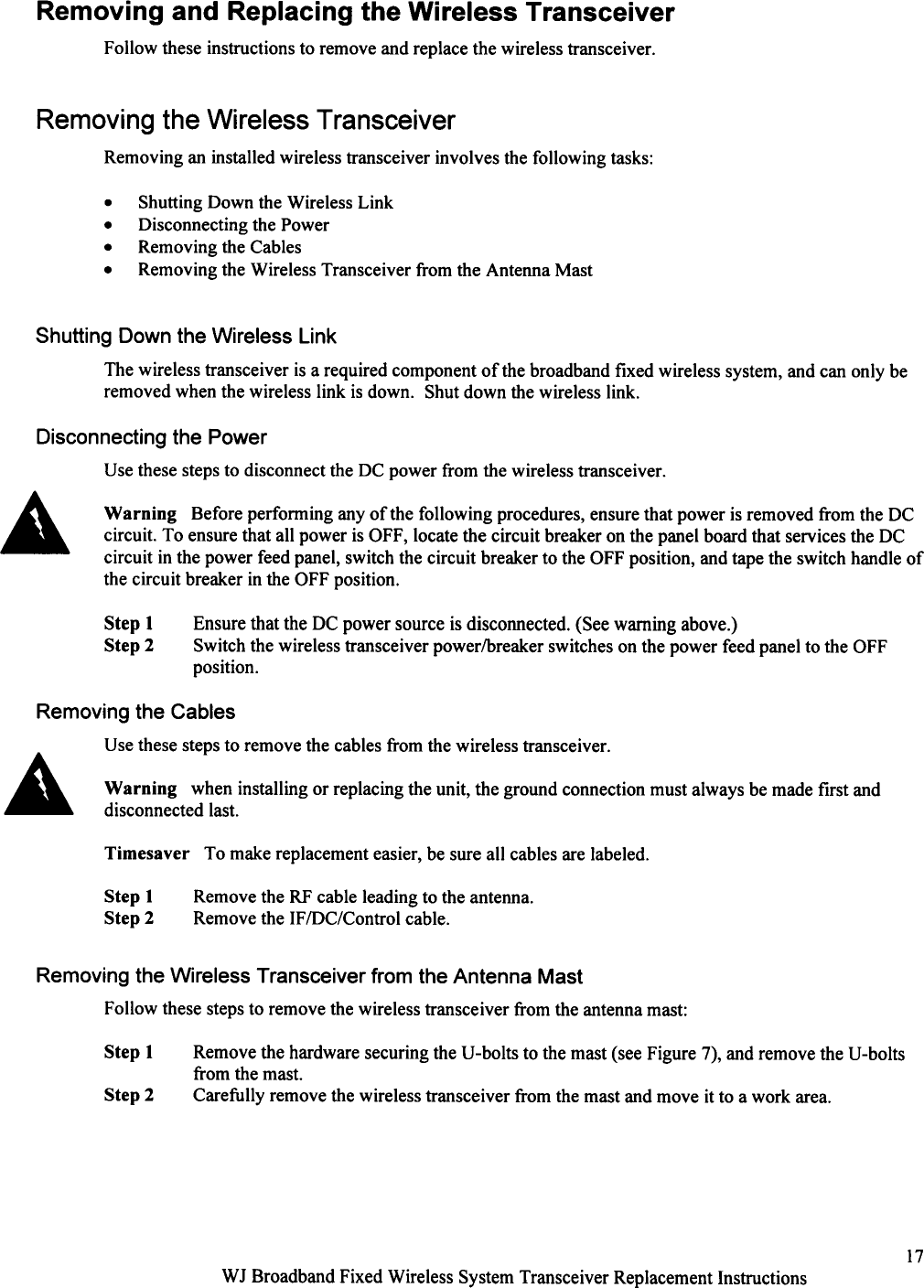

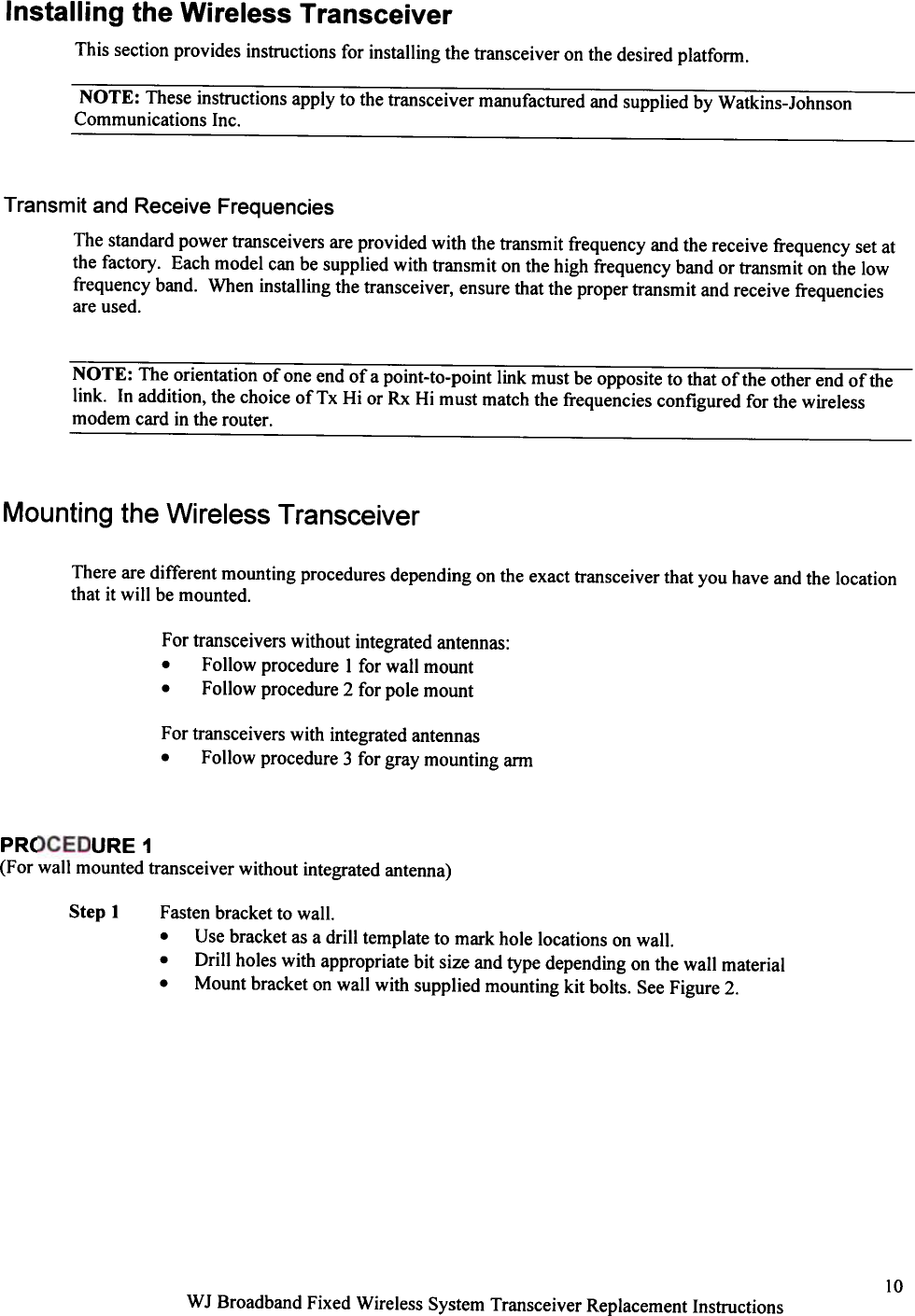

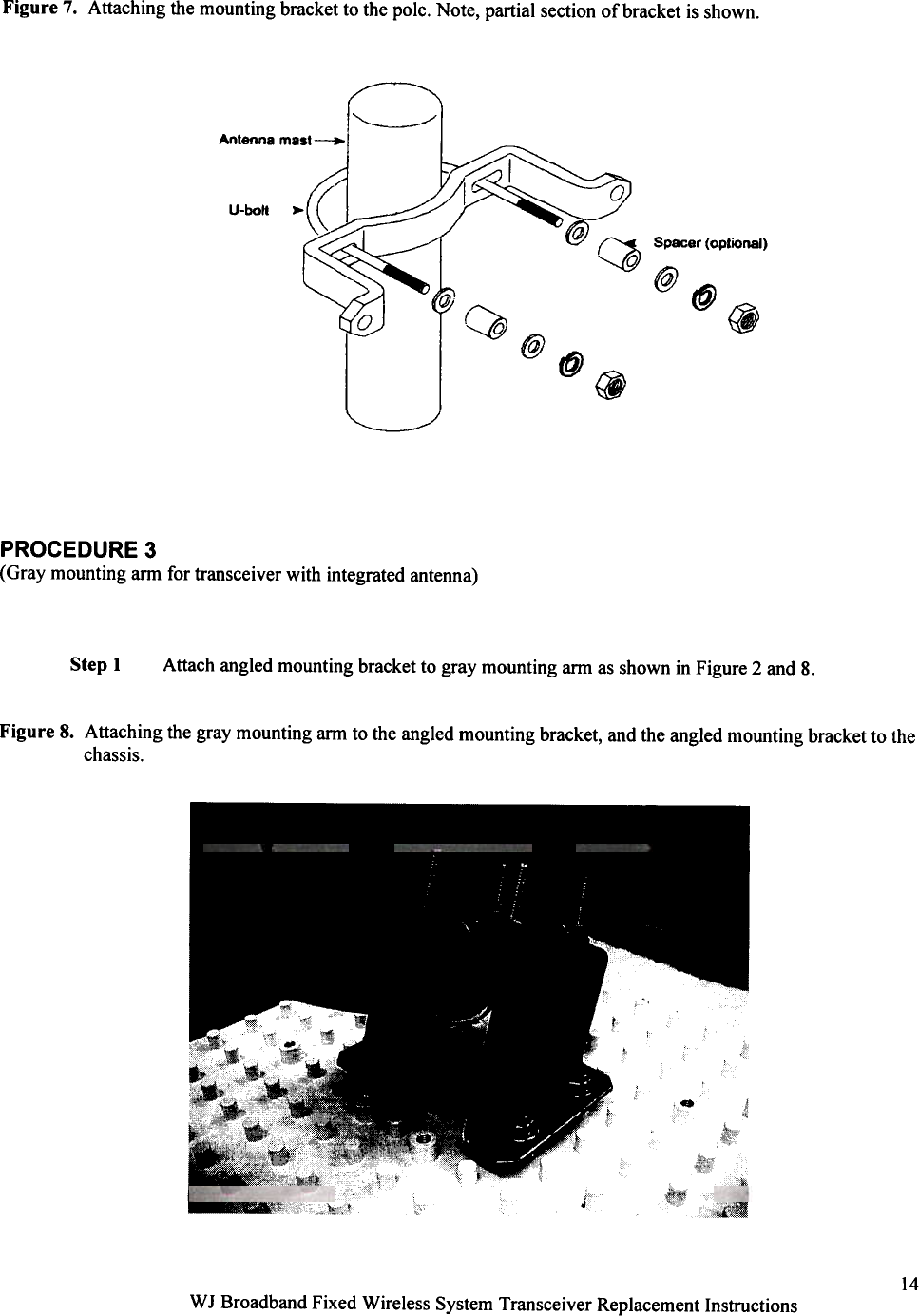

  Warning  Antenna Installation Instructions RF Exposure Limits SX1126 only.The SX1126 transverter with its integral antenna is to be used in point-to-pointapplications only.  The SX1126 shall be professionally installed on a permanentstructure for outdoor operation.The installer shall mount the SX1126 so as to comply with the limits for human exposure to radiofrequency (RF) fields per paragraph 1.1307 of the Federal Communications Commission (FCC)Regulations.  The FCC requirements incorporate limits for Maximum Permissible Exposure (MPE)      in terms of electric field strength, magnetic field strength, and power density.The MPE distance for the SX1126 is 1.5 meters (5 ft).  This is the minimum distance that must beunder all conditions of operation between the antenna and any area where persons may have access,including rooftop walkways, sidewalks, as well as through windows and other RF -transparentareas   behind which persons may be located

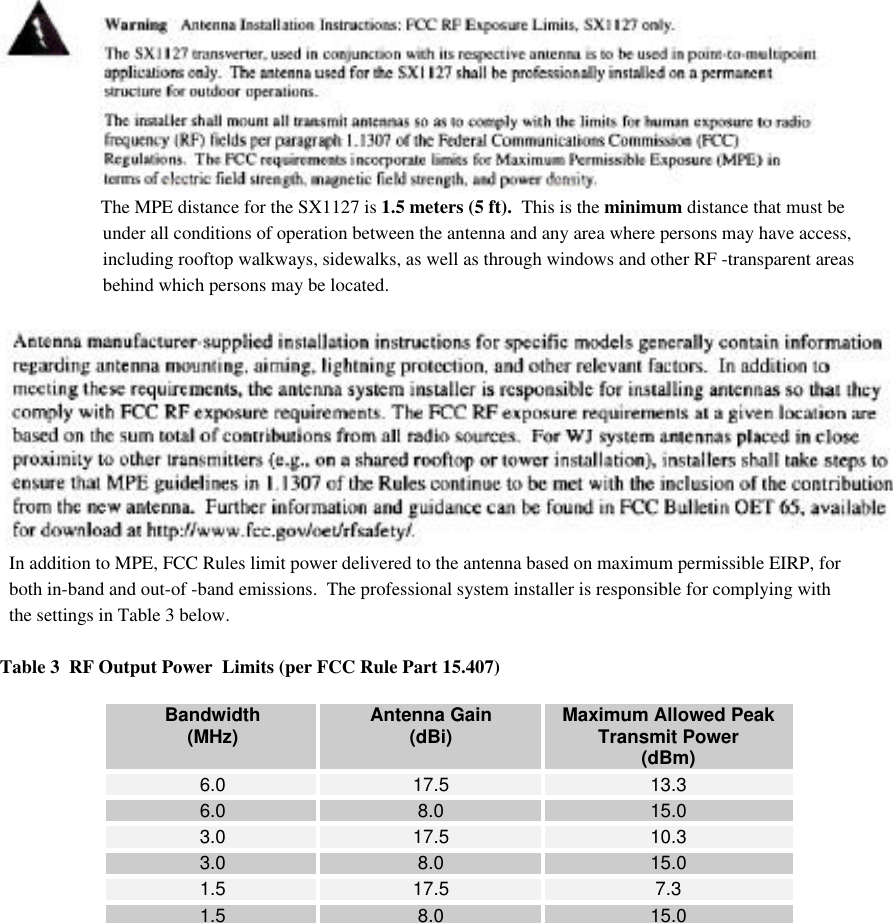

     The MPE distance for the SX1127 is 1.5 meters (5 ft).  This is the minimum distance that must be      under all conditions of operation between the antenna and any area where persons may have access,      including rooftop walkways, sidewalks, as well as through windows and other RF -transparent areas                      behind which persons may be located.  In addition to MPE, FCC Rules limit power delivered to the antenna based on maximum permissible EIRP, for  both in-band and out-of -band emissions.  The professional system installer is responsible for complying with  the settings in Table 3 below.Table 3  RF Output Power  Limits (per FCC Rule Part 15.407)Bandwidth(MHz) Antenna Gain(dBi) Maximum Allowed PeakTransmit Power(dBm)6.0 17.5 13.36.0 8.0 15.03.0 17.5 10.33.0 8.0 15.01.5 17.5 7.31.5 8.0 15.0
