WaveLynx Technologies WLTC-DHMM-1K26 13.56 MHz single gang RF reader with a keypad, 13.56 MHz single gang RF reader with a keypad and Bluetooth communication capability User Manual

WaveLynx Technologies Corporation 13.56 MHz single gang RF reader with a keypad, 13.56 MHz single gang RF reader with a keypad and Bluetooth communication capability Users Manual

Users Manual

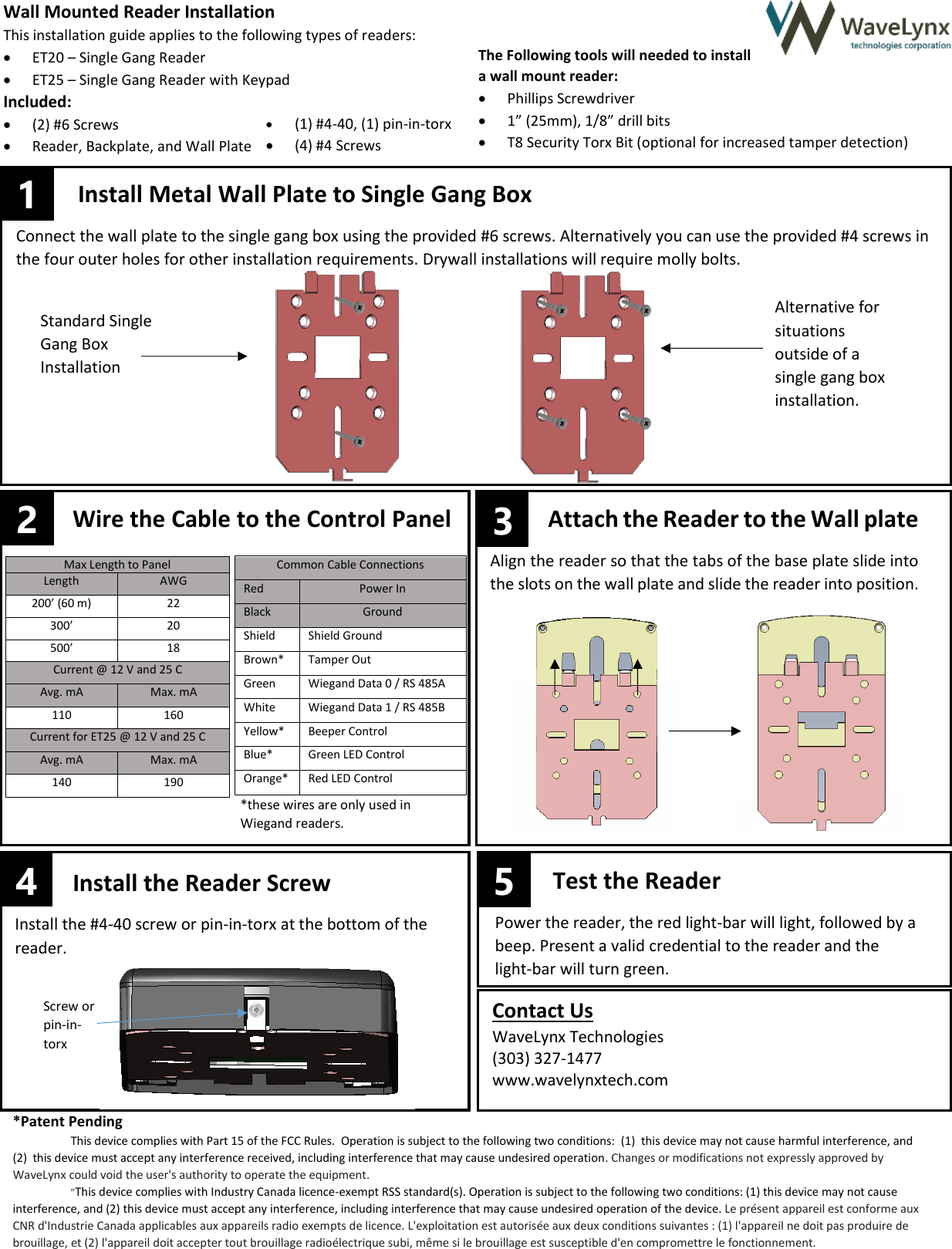

4 –– Max Length to Panel Length AWG 200’ (60 m) 22 300’ 20 500’ 18 Common Cable Connections Red Power In Black Ground Shield Shield Ground Brown* Tamper Out Green Wiegand Data 0 / RS 485A White Wiegand Data 1 / RS 485B Yellow* Beeper Control Blue* Green LED Control Orange* Red LED Control Current @ 12 V and 25 C Avg. mA Max. mA 110 160 Current for ET25 @ 12 V and 25 C Avg. mA Max. mA 140 190 Install the Reader Screw Install the #4-40 screw or pin-in-torx at the bottom of the reader. Test the Reader Power the reader, the red light-bar will light, followed by a beep. Present a valid credential to the reader and the light-bar will turn green. Attach the Reader to the Wall plate Align the reader so that the tabs of the base plate slide into the slots on the wall plate and slide the reader into position. Wall Mounted Reader Installation This installation guide applies to the following types of readers:  ET20 – Single Gang Reader  ET25 – Single Gang Reader with Keypad Included:  (2) #6 Screws  Reader, Backplate, and Wall Plate The Following tools will needed to install a wall mount reader:  Phillips Screwdriver  1” (25mm), 1/8” drill bits  T8 Security Torx Bit (optional for increased tamper detection) Install Metal Wall Plate to Single Gang Box Connect the wall plate to the single gang box using the provided #6 screws. Alternatively you can use the provided #4 screws in the four outer holes for other installation requirements. Drywall installations will require molly bolts. 2 Wire the Cable to the Control Panel 3 5 1 Screw or pin-in-torx Contact Us WaveLynx Technologies (303) 327-1477 www.wavelynxtech.com Alternative for situations outside of a single gang box installation. Standard Single Gang Box Installation *these wires are only used in Wiegand readers. *Patent Pending This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by WaveLynx could void the user's authority to operate the equipment. ”This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  (1) #4-40, (1) pin-in-torx  (4) #4 Screws
