Way Systems WAY5000 Mobile Transaction Terminal User Manual way5000 Operating Instructions 1 5

Way Systems, Inc. Mobile Transaction Terminal way5000 Operating Instructions 1 5

Users Manual Revision 091007

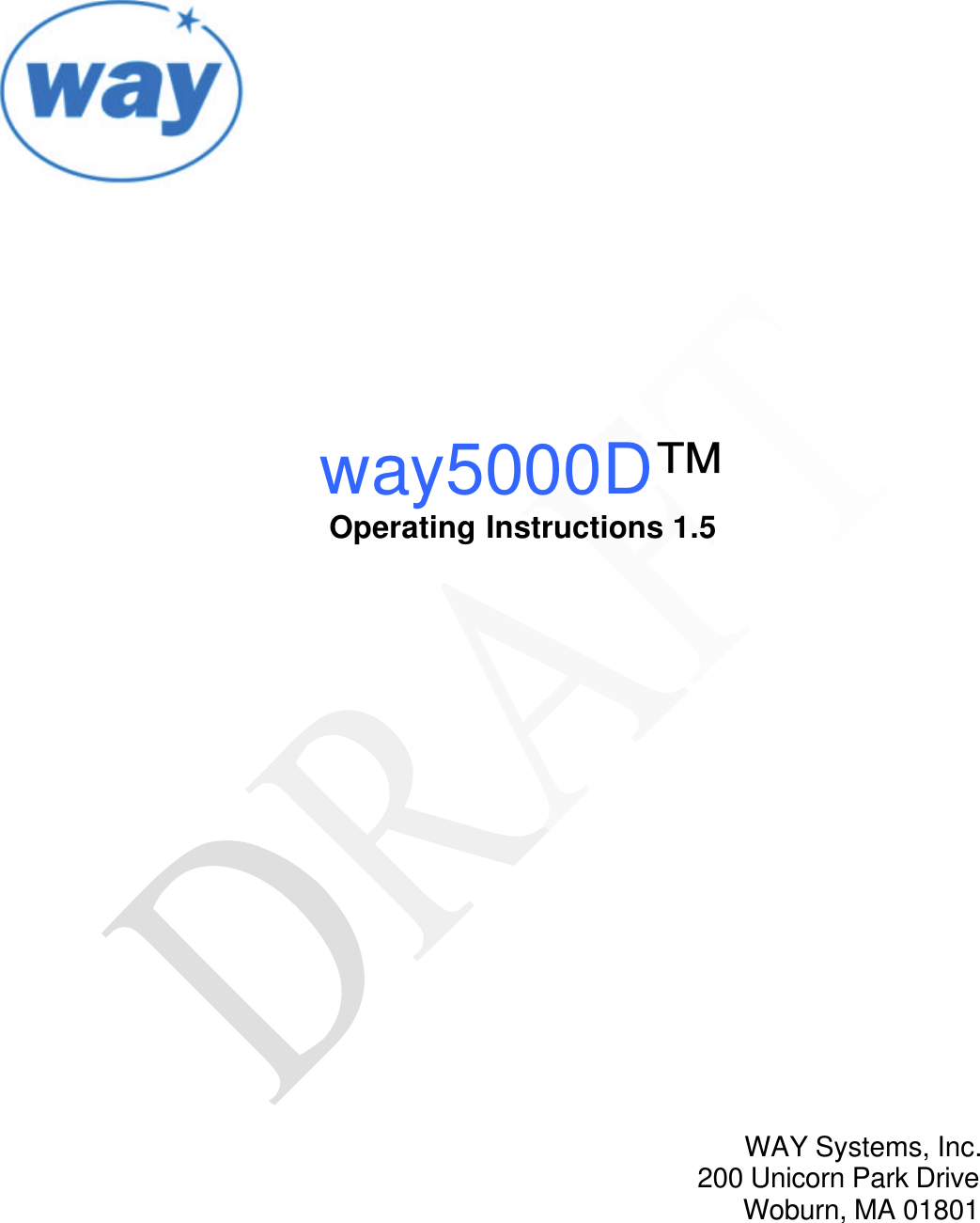

way5000D™ Operating Instructions 1.5 WAY Systems, Inc. 200 Unicorn Park Drive Woburn, MA 01801

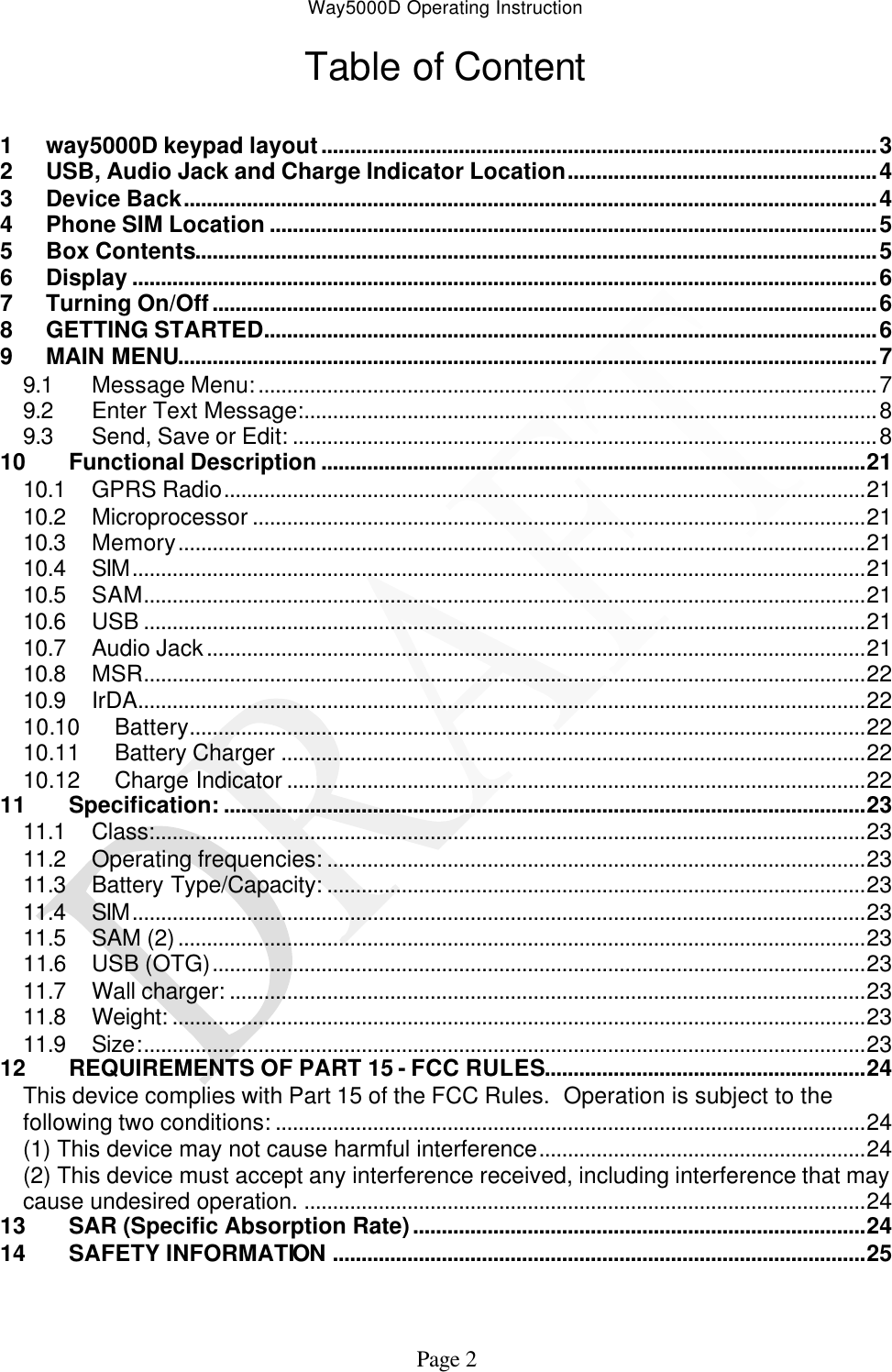

Way5000D Operating Instruction Page 2 Table of Content 1 way5000D keypad layout.................................................................................................3 2 USB, Audio Jack and Charge Indicator Location......................................................4 3 Device Back.........................................................................................................................4 4 Phone SIM Location ..........................................................................................................5 5 Box Contents.......................................................................................................................5 6 Display ..................................................................................................................................6 7 Turning On/Off....................................................................................................................6 8 GETTING STARTED...........................................................................................................6 9 MAIN MENU..........................................................................................................................7 9.1 Message Menu:............................................................................................................7 9.2 Enter Text Message:....................................................................................................8 9.3 Send, Save or Edit: ......................................................................................................8 10 Functional Description ...............................................................................................21 10.1 GPRS Radio................................................................................................................21 10.2 Microprocessor ...........................................................................................................21 10.3 Memory........................................................................................................................21 10.4 SIM................................................................................................................................21 10.5 SAM..............................................................................................................................21 10.6 USB ..............................................................................................................................21 10.7 Audio Jack...................................................................................................................21 10.8 MSR..............................................................................................................................22 10.9 IrDA...............................................................................................................................22 10.10 Battery......................................................................................................................22 10.11 Battery Charger ......................................................................................................22 10.12 Charge Indicator .....................................................................................................22 11 Specification: ................................................................................................................23 11.1 Class:............................................................................................................................23 11.2 Operating frequencies: ..............................................................................................23 11.3 Battery Type/Capacity: ..............................................................................................23 11.4 SIM................................................................................................................................23 11.5 SAM (2)........................................................................................................................23 11.6 USB (OTG)..................................................................................................................23 11.7 Wall charger: ...............................................................................................................23 11.8 Weight: .........................................................................................................................23 11.9 Size:..............................................................................................................................23 12 REQUIREMENTS OF PART 15 - FCC RULES........................................................24 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: .......................................................................................................24 (1) This device may not cause harmful interference.........................................................24 (2) This device must accept any interference received, including interference that may cause undesired operation. ..................................................................................................24 13 SAR (Specific Absorption Rate)...............................................................................24 14 SAFETY INFORMATION .............................................................................................25
Way5000D Operating Instruction Page 3 1 way5000D keypad layout Magnetic Stripe Card Reader (MSR) Navigation Button Screen Addressable Soft Key (F1) Send/Answer Key Numeric Keypad Screen Addressable Soft Key (F2) Hang Up/End Key Cancel Key Clear/Back- Space Key Enter Key

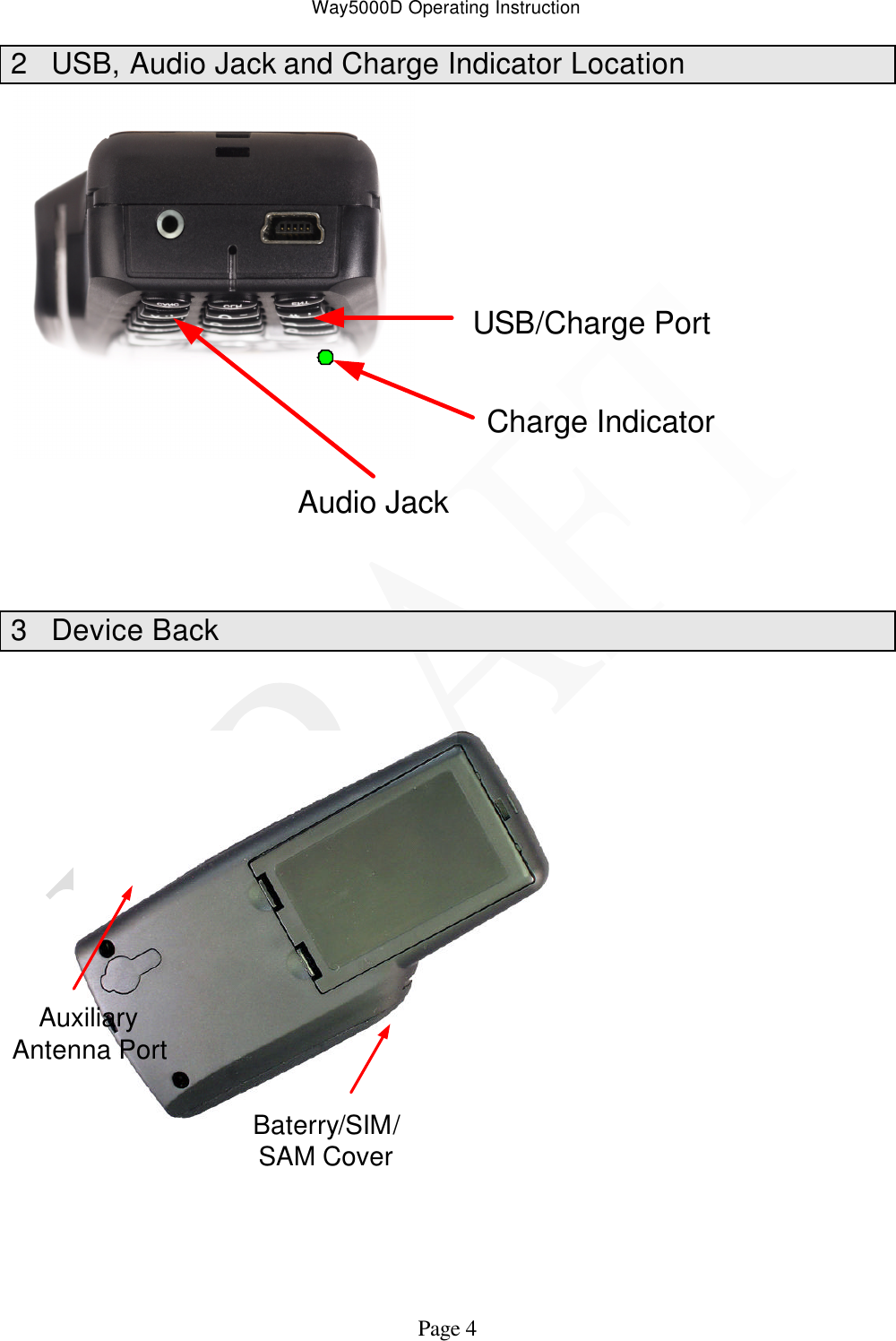

Way5000D Operating Instruction Page 4 2 USB, Audio Jack and Charge Indicator Location USB/Charge PortAudio JackCharge Indicator 3 Device Back Baterry/SIM/SAM CoverAuxiliary Antenna Port

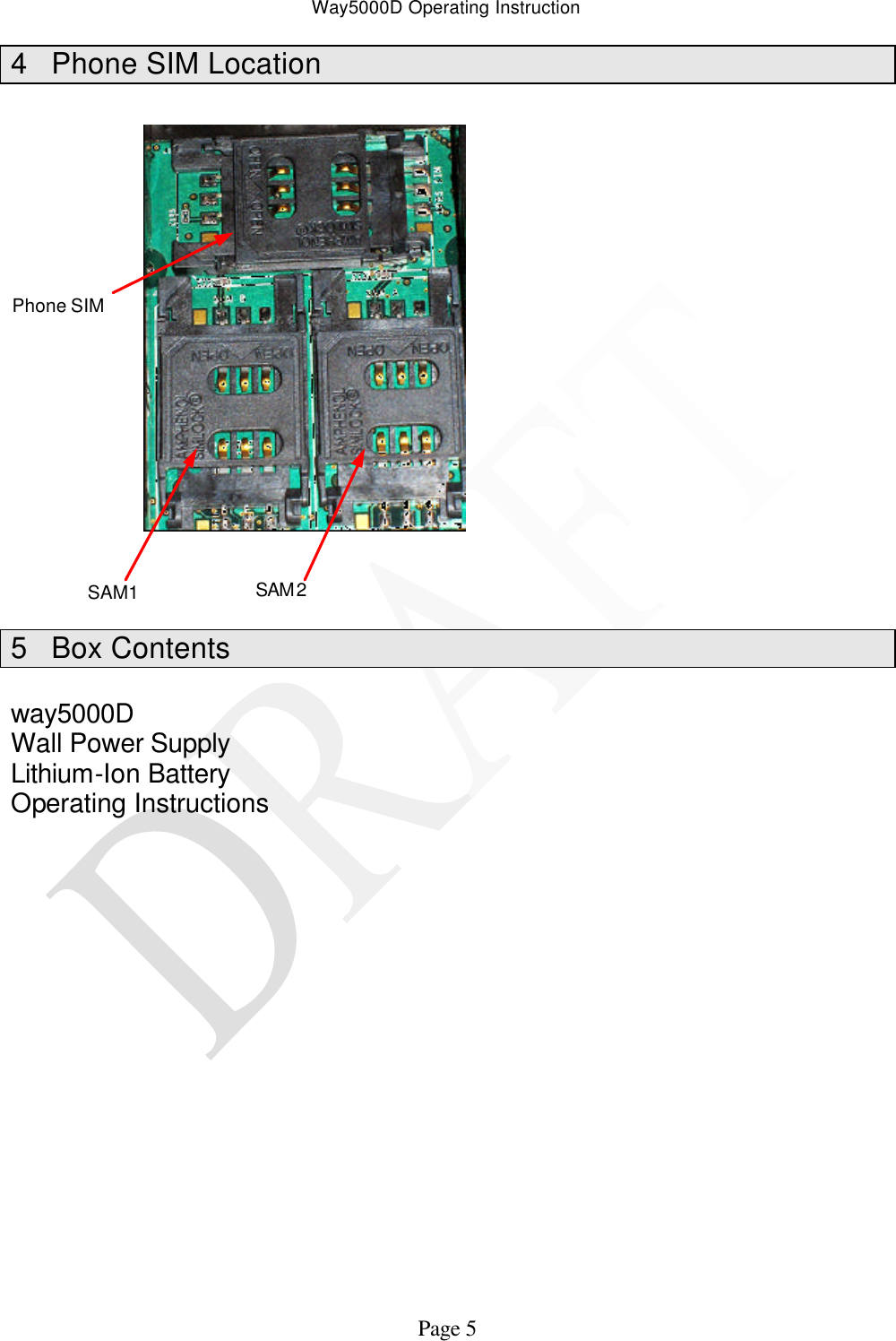

Way5000D Operating Instruction Page 5 4 Phone SIM Location Phone SIMSAM1SAM2 5 Box Contents way5000D Wall Power Supply Lithium-Ion Battery Operating Instructions

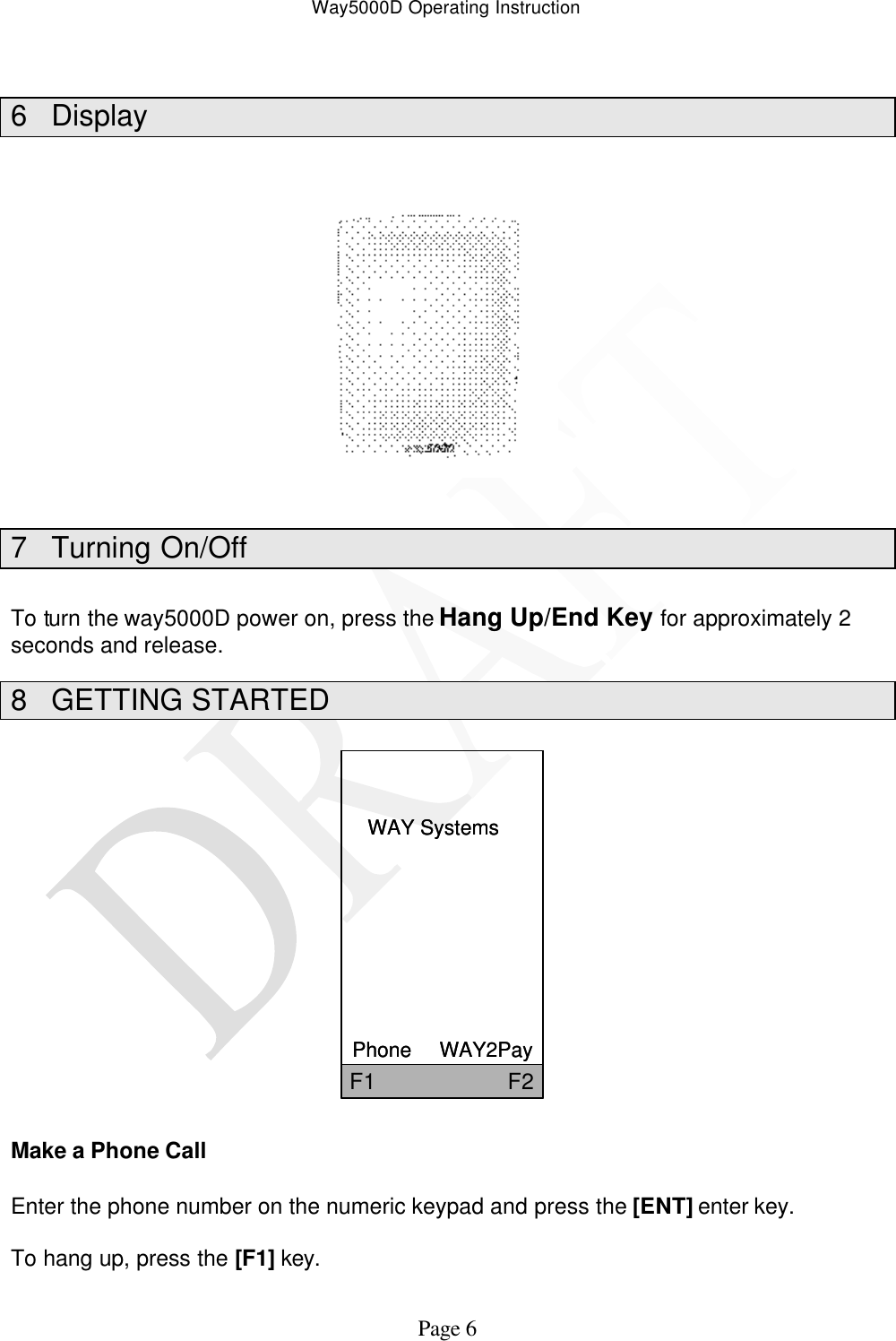

Way5000D Operating Instruction Page 6 6 Display 7 Turning On/Off To turn the way5000D power on, press the Hang Up/End Key for approximately 2 seconds and release. 8 GETTING STARTED WAY SystemsPhone WAY2PayF1 F2WAY SystemsPhone WAY2PayF1 F2 Make a Phone Call Enter the phone number on the numeric keypad and press the [ENT] enter key. To hang up, press the [F1] key.

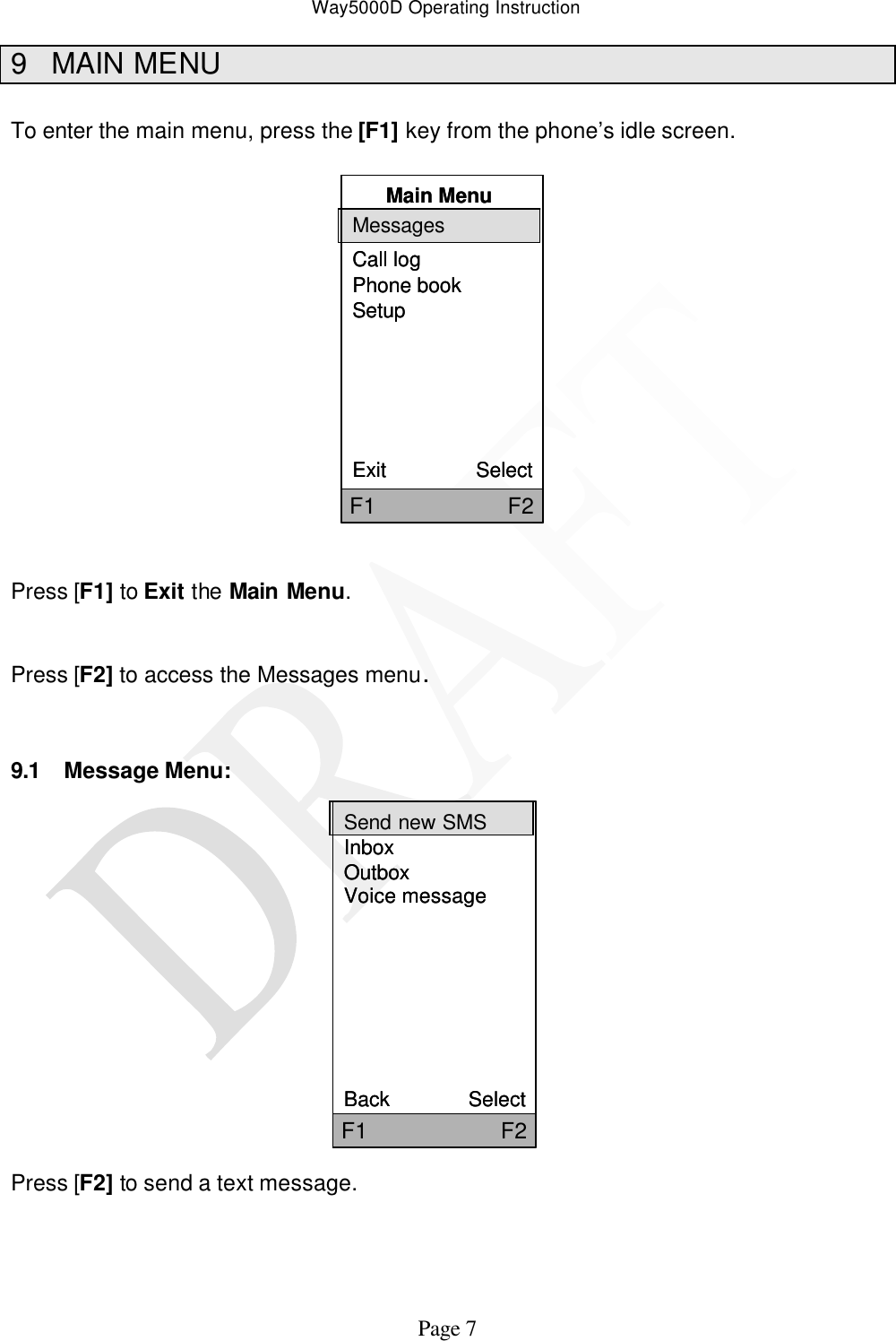

Way5000D Operating Instruction Page 7 9 MAIN MENU To enter the main menu, press the [F1] key from the phone’s idle screen. Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2 Press [F1] to Exit the Main Menu. Press [F2] to access the Messages menu. 9.1 Message Menu: Press [F2] to send a text message. Send new SMSInboxOutboxVoice messageBack SelectF1 F2Send new SMSInboxOutboxVoice messageBack SelectF1 F2

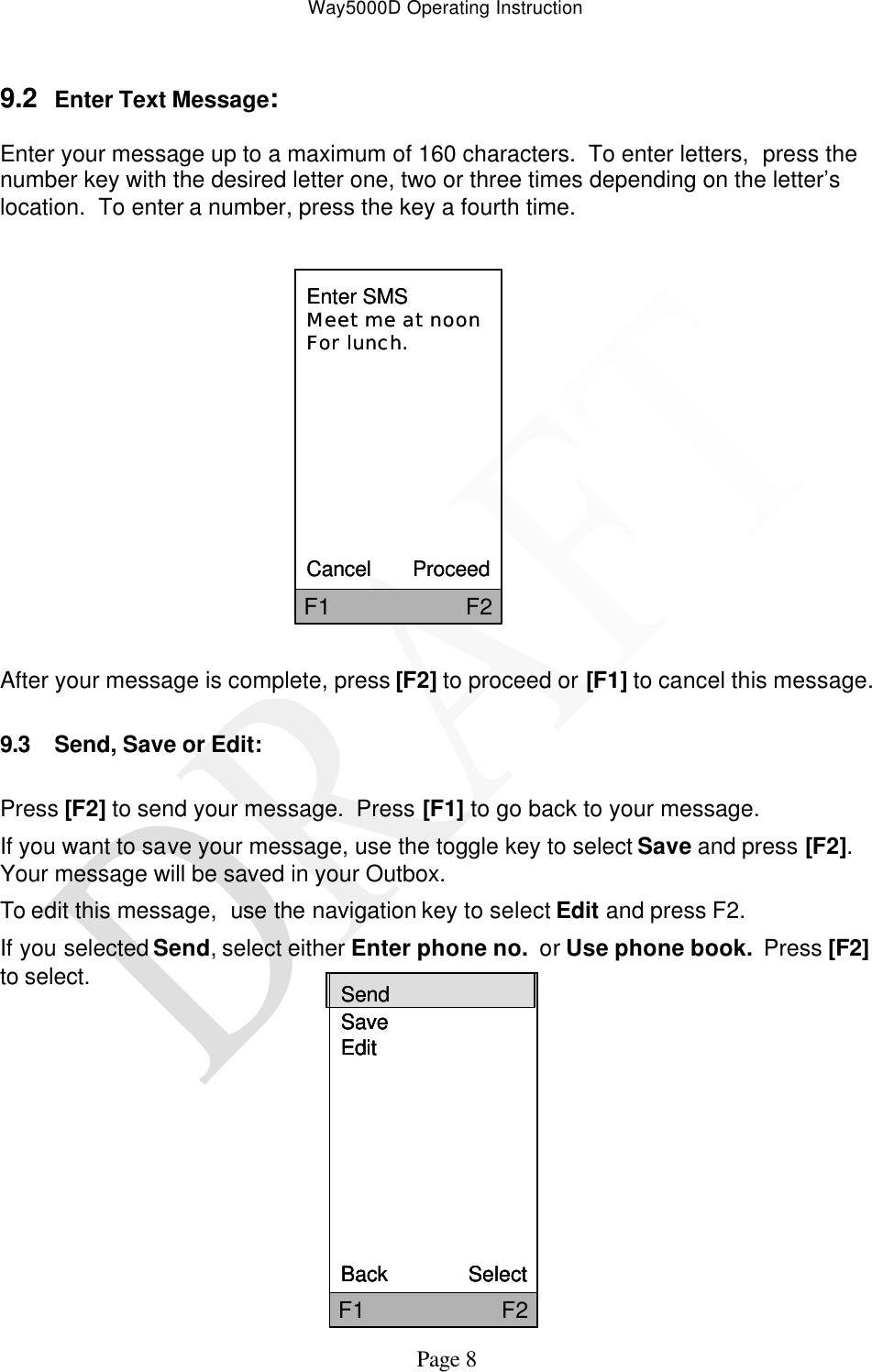

Way5000D Operating Instruction Page 8 9.2 Enter Text Message: Enter your message up to a maximum of 160 characters. To enter letters, press the number key with the desired letter one, two or three times depending on the letter’s location. To enter a number, press the key a fourth time. After your message is complete, press [F2] to proceed or [F1] to cancel this message. 9.3 Send, Save or Edit: Press [F2] to send your message. Press [F1] to go back to your message. If you want to save your message, use the toggle key to select Save and press [F2]. Your message will be saved in your Outbox. To edit this message, use the navigation key to select Edit and press F2. If you selected Send, select either Enter phone no. or Use phone book. Press [F2] to select. Enter SMSMeet me at noonFor lunch.Cancel ProceedF1 F2Enter SMSMeet me at noonFor lunch.Cancel ProceedF1 F2SendSaveEditBack SelectF1 F2SendSaveEditBack SelectF1 F2SendSaveEditBack SelectF1 F2
Way5000D Operating Instruction Page 9 Enter phone no.Use phone bookBack SelectF1 F2Enter phone no.Use phone bookBack SelectF1 F2Enter phone no.Use phone bookBack SelectF1 F2 You will be prompted to enter a phone number or to access your phone book. Enter phone no.7815690420Back SendF1 F2Enter phone no.7815690420Back SendF1 F2 Press [F2] to send your message. Press [F1] to go back to the previous screen. Sending7815690420F1 F2Sending7815690420F1 F2Message SentF1 F2Message SentF1 F2

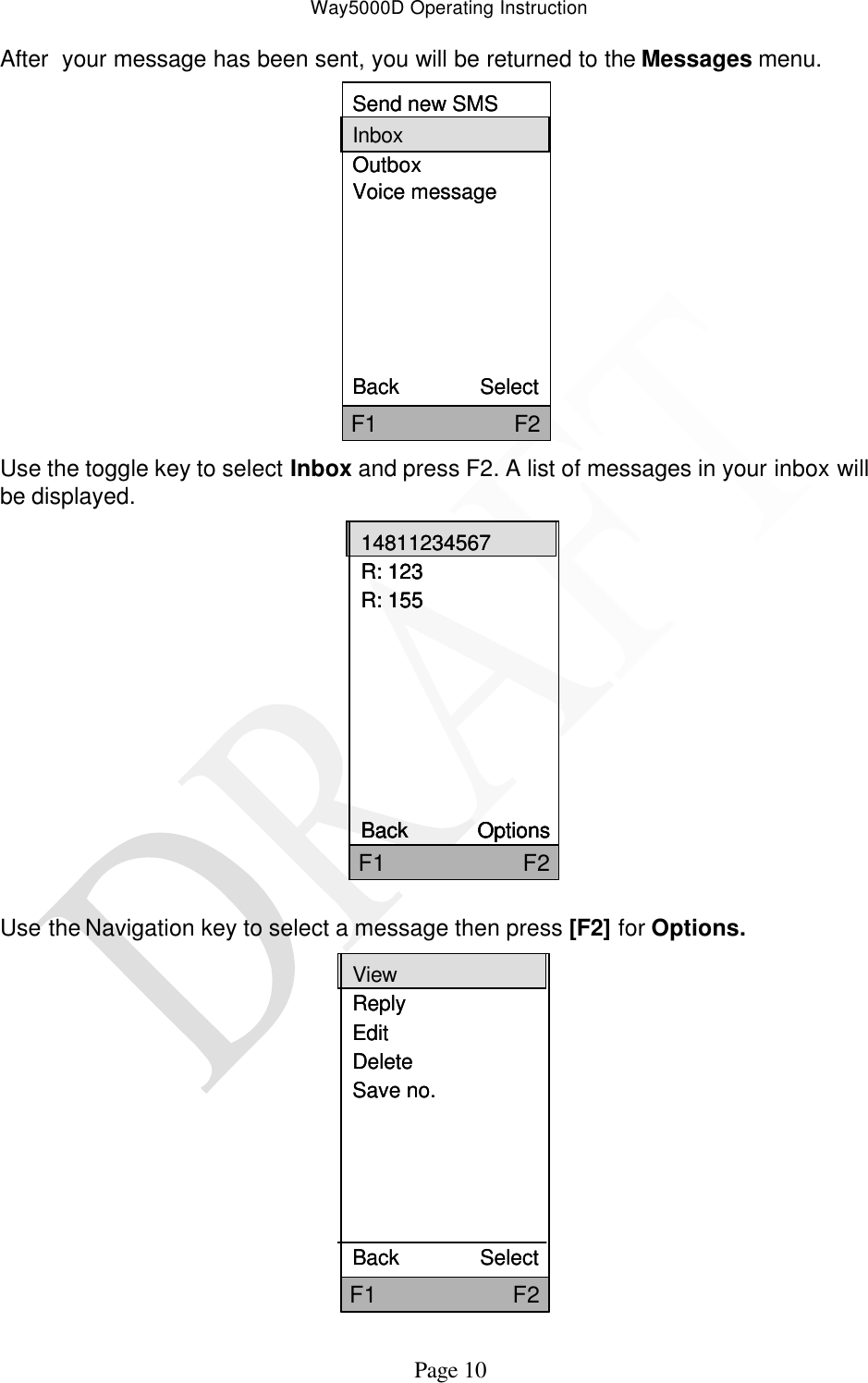

Way5000D Operating Instruction Page 10 After your message has been sent, you will be returned to the Messages menu. Send new SMSInboxOutboxVoice messageBack SelectF1 F2Send new SMSInboxOutboxVoice messageBack SelectF1 F2 Use the toggle key to select Inbox and press F2. A list of messages in your inbox will be displayed. Use the Navigation key to select a message then press [F2] for Options. ViewReplyEditDeleteSave no.Back SelectF1 F2ViewReplyEditDeleteSave no.Back SelectF1 F2 14811234567R: 123R: 155Back OptionsF1 F214811234567R: 123R: 155Back OptionsF1 F214811234567R: 123R: 155Back OptionsF1 F2

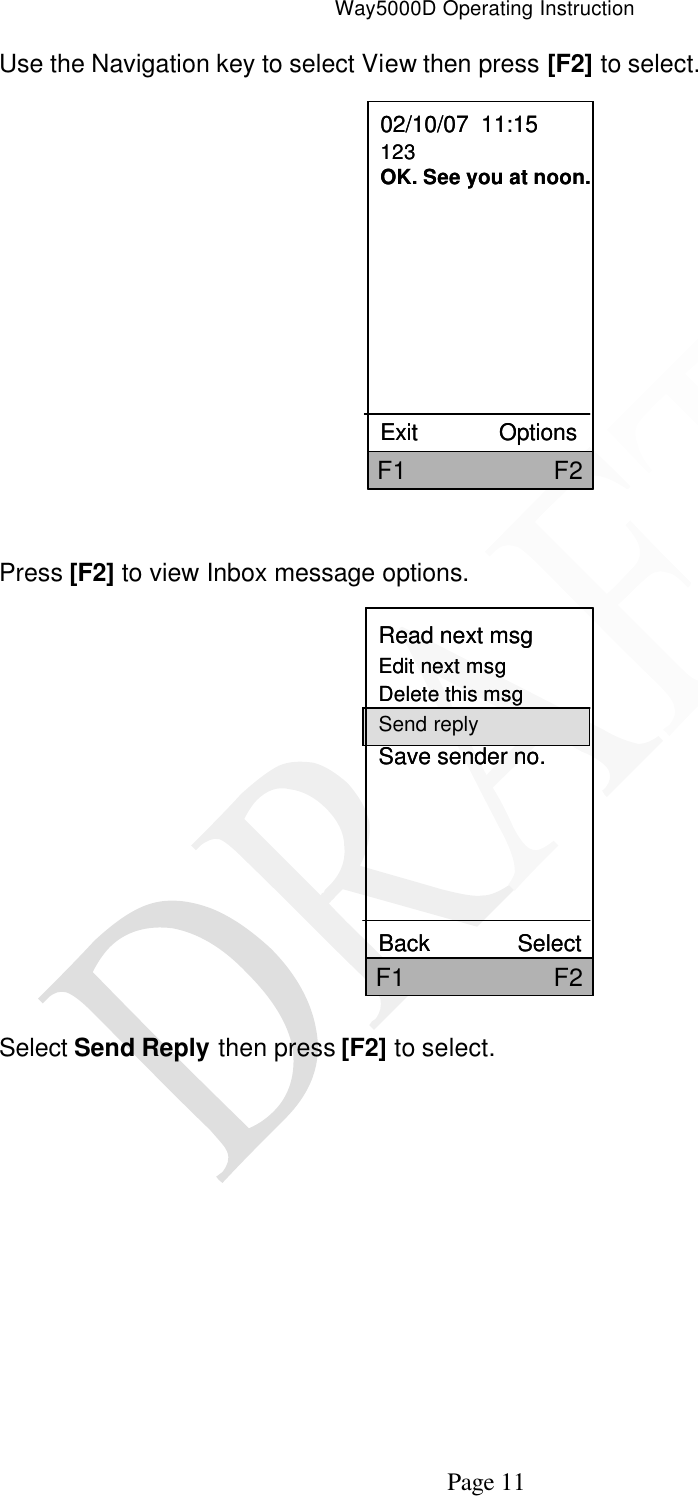

Way5000D Operating Instruction Page 11 Use the Navigation key to select View then press [F2] to select. 02/10/07 11:15123OK. See you at noon.Exit OptionsF1 F202/10/07 11:15123OK. See you at noon.Exit OptionsF1 F2 Press [F2] to view Inbox message options. Select Send Reply then press [F2] to select. Read next msgEdit next msgDelete this msgSend replySave sender no. Back SelectF1 F2Read next msgEdit next msgDelete this msgSend replySave sender no. Back SelectF1 F2
Way5000D Operating Instruction Page 12 Write MessageQuick TextBack SelectF1 F2Write MessageQuick TextBack SelectF1 F2 Select a reply option then press [F2]. I’m in meetingCall me laterI’m BusyYesNoBack SelectF1 F2I’m in meetingCall me laterI’m BusyYesNoBack SelectF1 F2 Select a Quick Text option then press [F2]. F1 F214811234567Back SendF1 F214811234567Back Send
Way5000D Operating Instruction Page 13 Press [F2] to send. After your message has been sent, you will be returned to the Messages menu. Use the Navigation key to select Outbox, then press [F2]. A list of messages in your Outbox will be displayed. F1 F217812221234MARYUNKNOWNBack OptionsF1 F217812221234MARYUNKNOWNBack OptionsSend new SMSInboxOutboxVoice messageBack SelectF1 F2Send new SMSInboxOutboxVoice messageBack SelectF1 F2Message SentF1 F2Message SentF1 F2Sending7815690420F1 F2Sending7815690420F1 F2

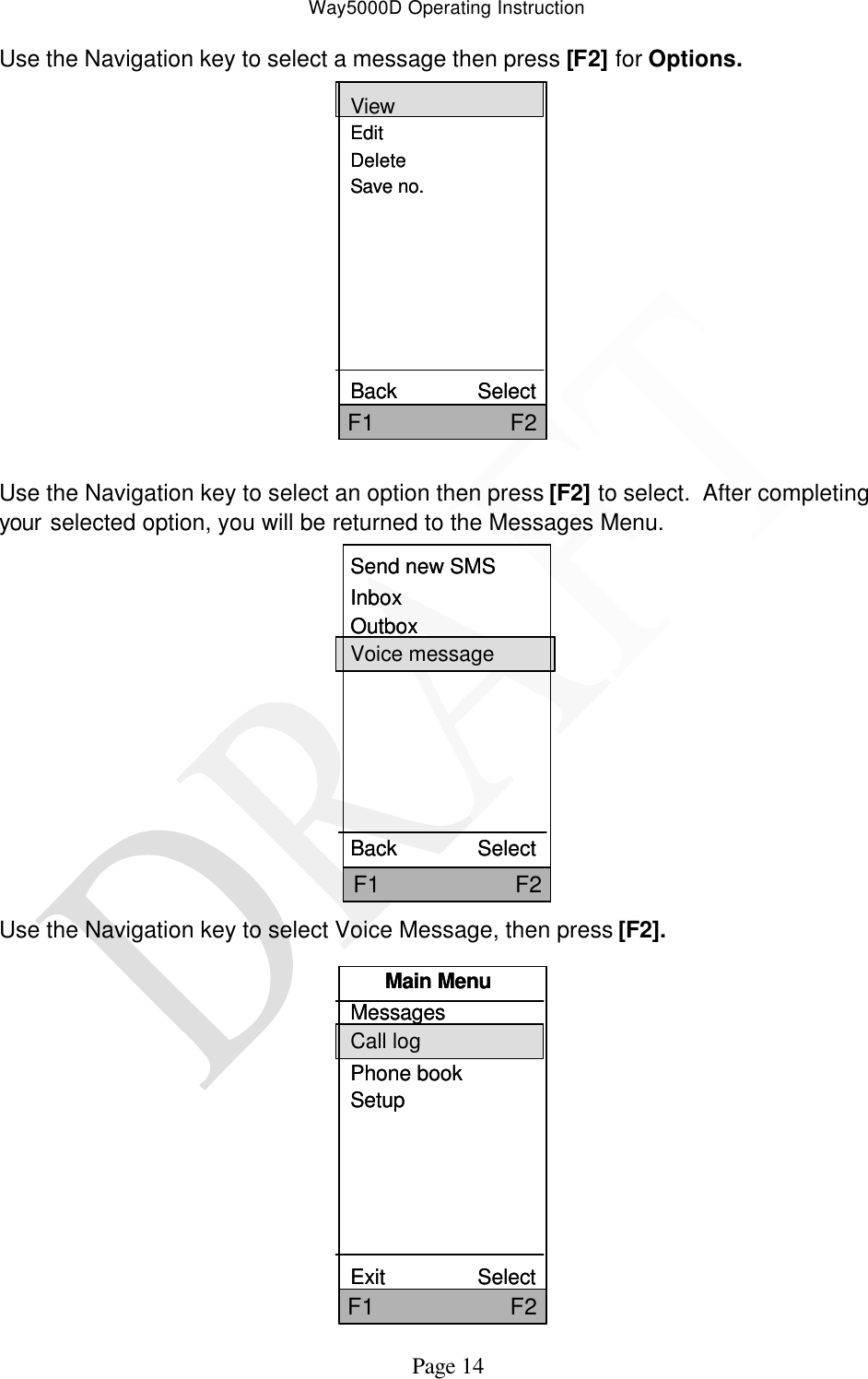

Way5000D Operating Instruction Page 14 Use the Navigation key to select a message then press [F2] for Options. ViewEditDeleteSave no.Back SelectF1 F2ViewEditDeleteSave no.Back SelectF1 F2 Use the Navigation key to select an option then press [F2] to select. After completing your selected option, you will be returned to the Messages Menu. Send new SMSInboxOutboxVoice messageBack SelectF1 F2Send new SMSInboxOutboxVoice messageBack SelectF1 F2 Use the Navigation key to select Voice Message, then press [F2]. Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2

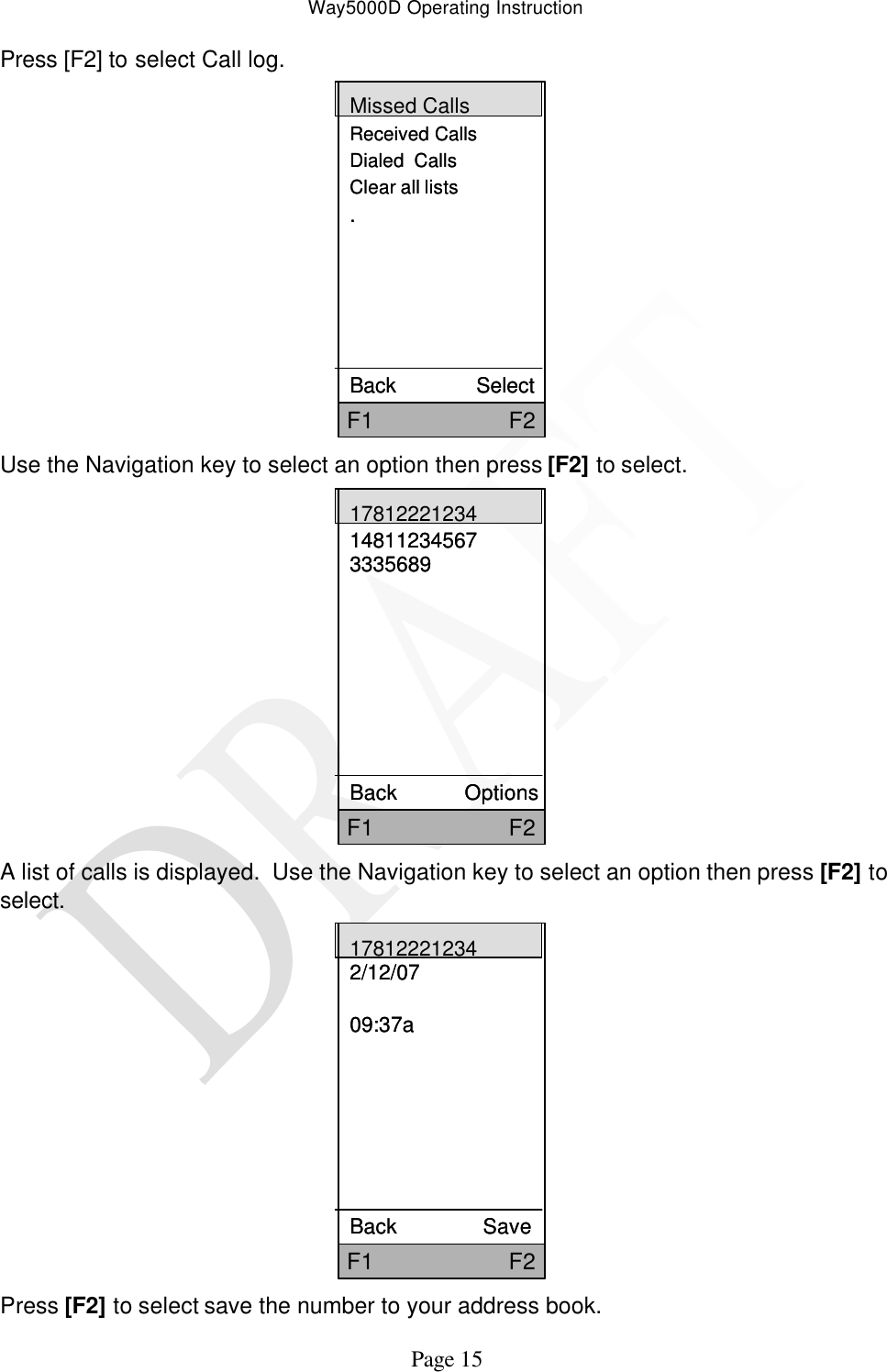

Way5000D Operating Instruction Page 15 Press [F2] to select Call log. Missed CallsReceived CallsDialed CallsClear all lists. Back SelectF1 F2Missed CallsReceived CallsDialed CallsClear all lists. Back SelectF1 F2 Use the Navigation key to select an option then press [F2] to select. F1 F217812221234148112345673335689Back OptionsF1 F217812221234148112345673335689Back Options A list of calls is displayed. Use the Navigation key to select an option then press [F2] to select. F1 F2178122212342/12/0709:37aBack SaveF1 F2178122212342/12/0709:37aBack Save Press [F2] to select save the number to your address book.

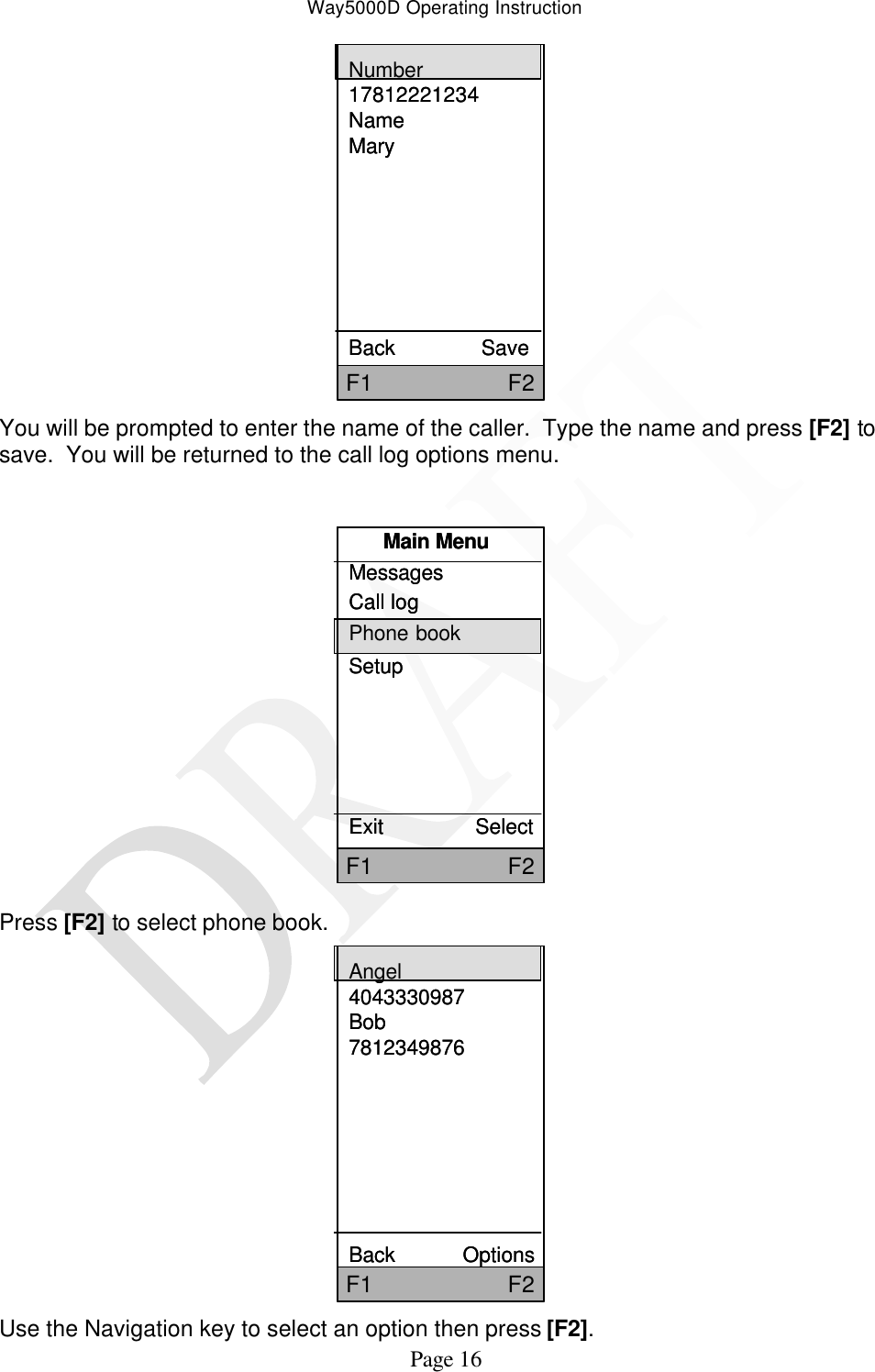

Way5000D Operating Instruction Page 16 F1 F2Number17812221234NameMaryBack SaveF1 F2Number17812221234NameMaryBack Save You will be prompted to enter the name of the caller. Type the name and press [F2] to save. You will be returned to the call log options menu. Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2 Press [F2] to select phone book. Angel4043330987Bob7812349876Back OptionsF1 F2Angel4043330987Bob7812349876Back OptionsF1 F2 Use the Navigation key to select an option then press [F2].

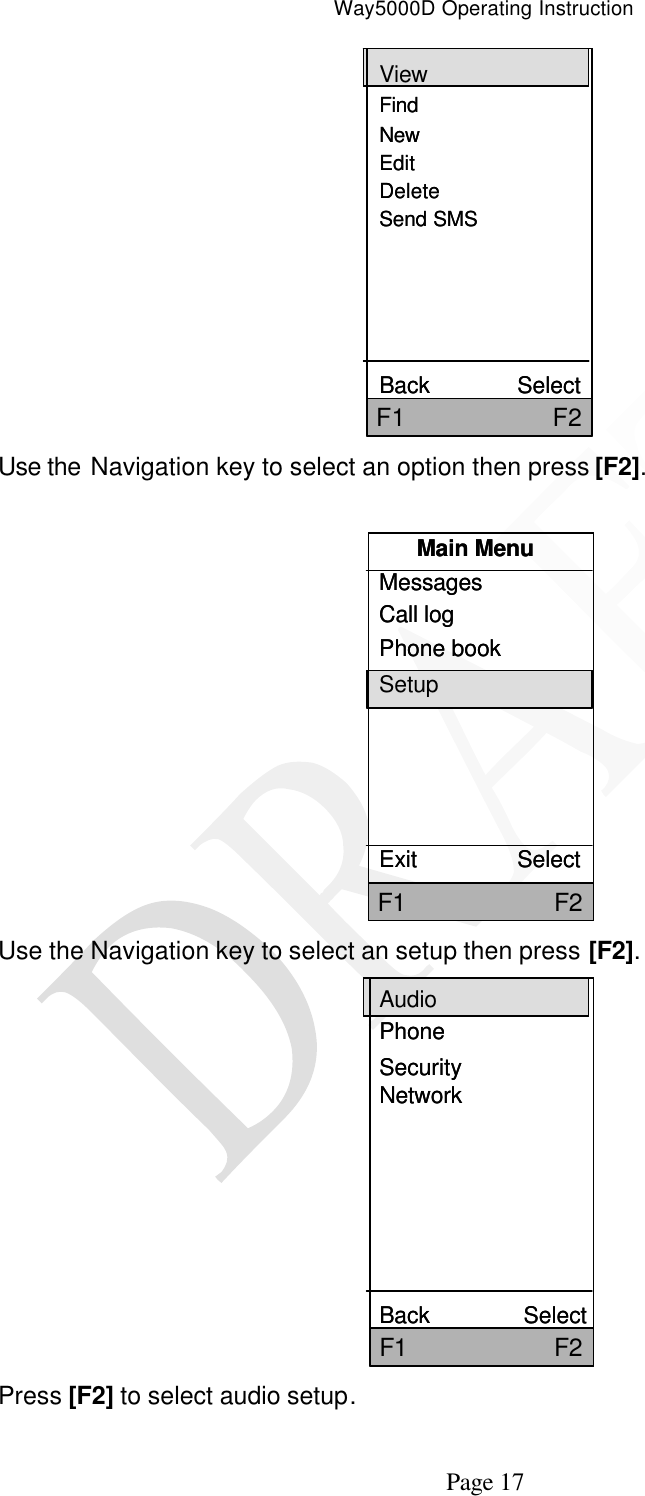

Way5000D Operating Instruction Page 17 ViewFindNewEditDeleteSend SMSBack SelectF1 F2ViewFindNewEditDeleteSend SMSBack SelectF1 F2 Use the Navigation key to select an option then press [F2]. Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2Main MenuMessagesCall logPhone bookSetupExit SelectF1 F2 Use the Navigation key to select an setup then press [F2]. AudioPhoneSecurityNetworkBack SelectF1 F2AudioPhoneSecurityNetworkBack SelectF1 F2 Press [F2] to select audio setup.

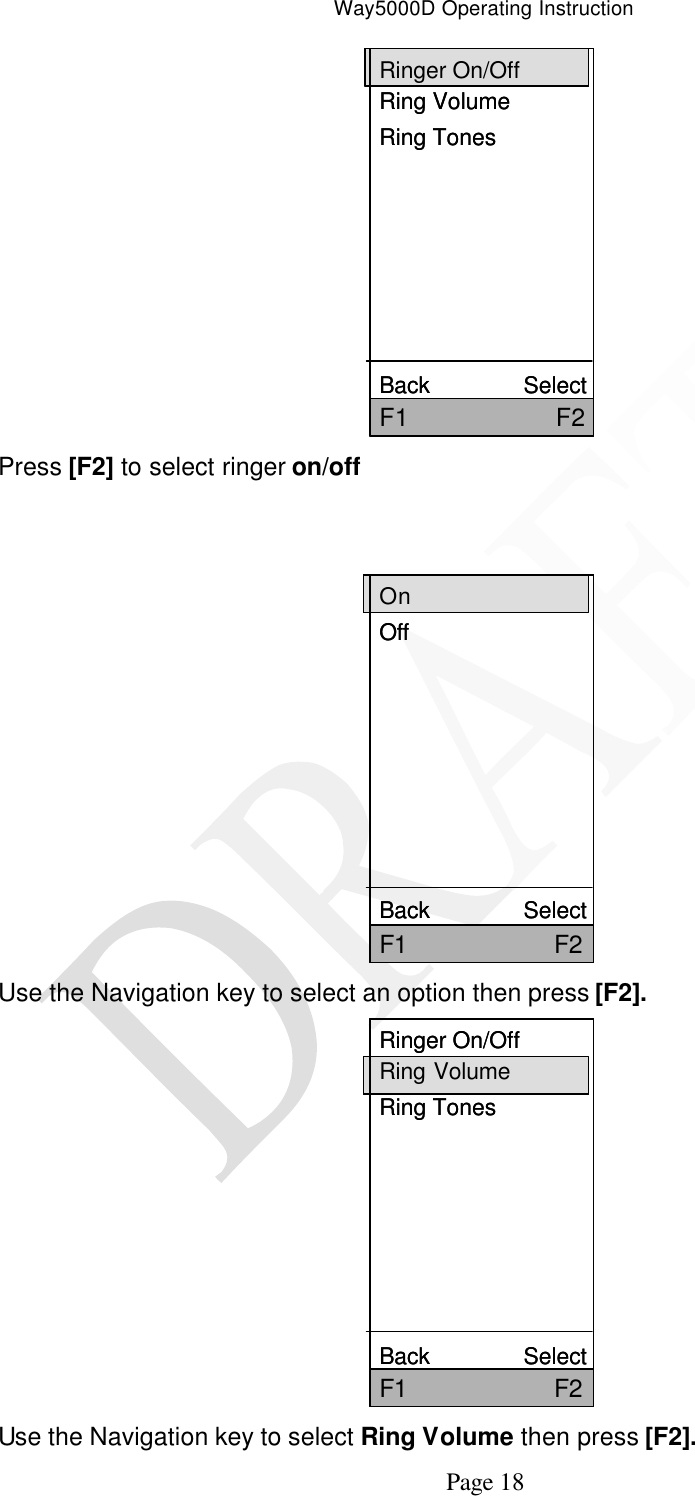

Way5000D Operating Instruction Page 18 Ringer On/OffRing VolumeRing TonesBack SelectF1 F2Ringer On/OffRing VolumeRing TonesBack SelectF1 F2 Press [F2] to select ringer on/off OnOffBack SelectF1 F2OnOffBack SelectF1 F2 Use the Navigation key to select an option then press [F2]. Ringer On/OffRing VolumeRing TonesBack SelectF1 F2Ringer On/OffRing VolumeRing TonesBack SelectF1 F2 Use the Navigation key to select Ring Volume then press [F2].

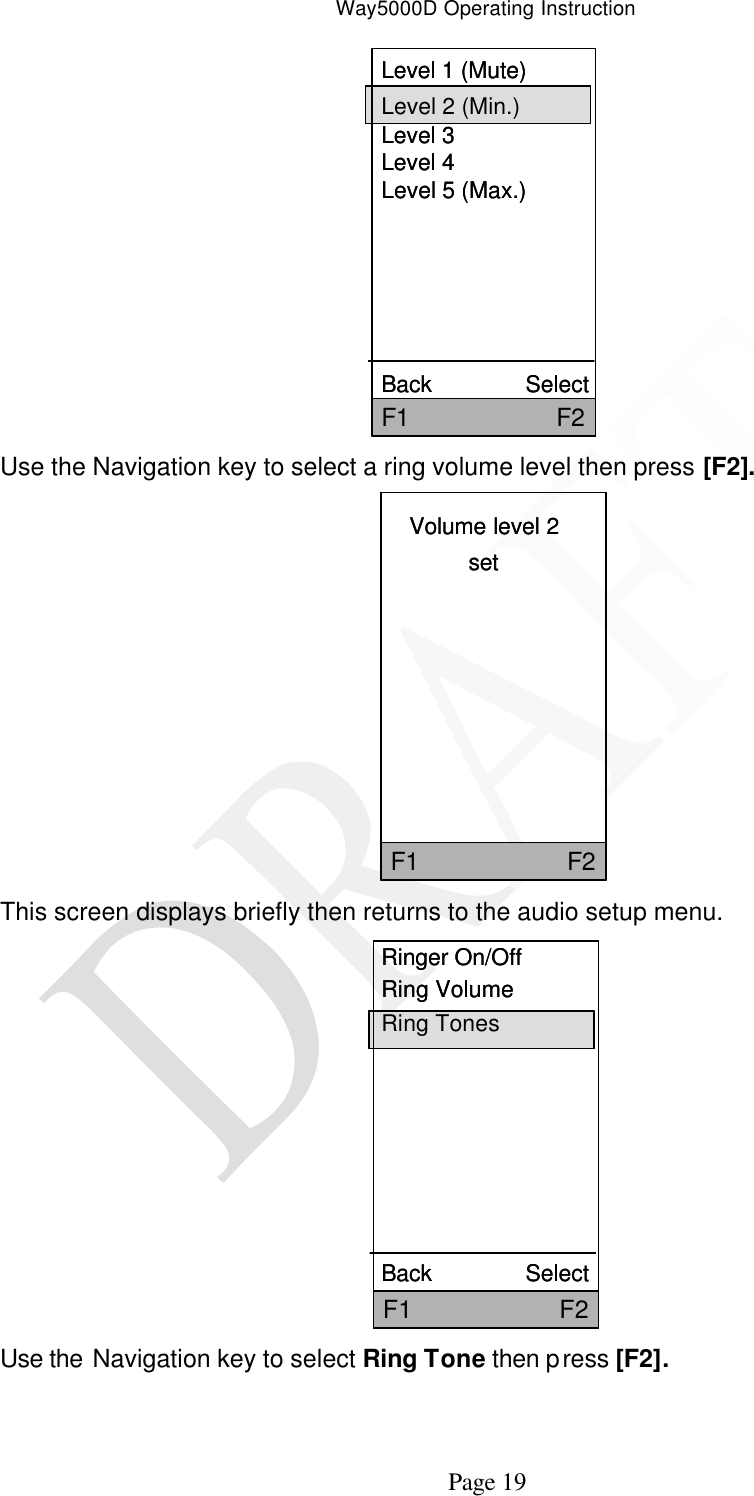

Way5000D Operating Instruction Page 19 Level 1 (Mute)Level 2 (Min.)Level 3Level 4Level 5 (Max.)Back SelectF1 F2Level 1 (Mute)Level 2 (Min.)Level 3Level 4Level 5 (Max.)Back SelectF1 F2 Use the Navigation key to select a ring volume level then press [F2]. Volume level 2setF1 F2Volume level 2setF1 F2 This screen displays briefly then returns to the audio setup menu. Ringer On/OffRing VolumeRing TonesBack SelectF1 F2Ringer On/OffRing VolumeRing TonesBack SelectF1 F2 Use the Navigation key to select Ring Tone then press [F2].
Way5000D Operating Instruction Page 20 Ring Tone 1 Ring Tone 2Ring Tone 3Ring Tone 4Ring Tone 5Ring Tone 6Ring Tone 7Back SelectF1 F2Ring Tone 1 Ring Tone 2Ring Tone 3Ring Tone 4Ring Tone 5Ring Tone 6Ring Tone 7Back SelectF1 F2 Use the Navigation key to select a ring tone then press [F2]. Ring Tone 2setF1 F2Ring Tone 2setF1 F2 This screen displays briefly then returns to the audio setup menu. AudioPhoneSecurityNetworkBack SelectF1 F2AudioPhoneSecurityNetworkBack SelectF1 F2 Press [F1] until you return to the desired screen.
Way5000D Operating Instruction Page 21 10 Functional Description 10.1 GPRS Radio • The radio is considered Class B device. “Class B mobile phones can be attached to both GPRS and GSM services, using one service at a time. Class B enables making or receiving a voice call, or sending/receiving an SMS during a GPRS connection. During voice calls or SMS, GPRS services are suspended and then resumed automatically after the call or SMS session has ended.” 10.2 Microprocessor • USIP (Universal Secure Integrated Platform) • Secure System On Chip (SOC) • Hardware encryption • Embedded devices (MSR, Smart card, LCD, USB 2.0, IrDA) • Intrusion detection • 32 bit RISC Processor, operating at 12 MHz-96 MHz • Internal: 128K SRAM, 256K FLASH, 128K ROM • EMV Level 1 compliant 10.3 Memory • Flash 16 Megabytes expandable to 32 megabytes • SRAM 1 Mega Byte, expandable to 2 Megabytes (factory build option, not field expandable) 10.4 SIM • One SIM slot. Required for wireless functionality. 10.5 SAM • (Secure Access Module) Capable of supporting up to two SAM cards at once • Supports Europay, MasterCard. Visa… SAMs 10.6 USB • USB OTG. Master/Slave 10.7 Audio Jack • Supports standard cellular headsets, with speaker and microphone • 2.50 mm diameter

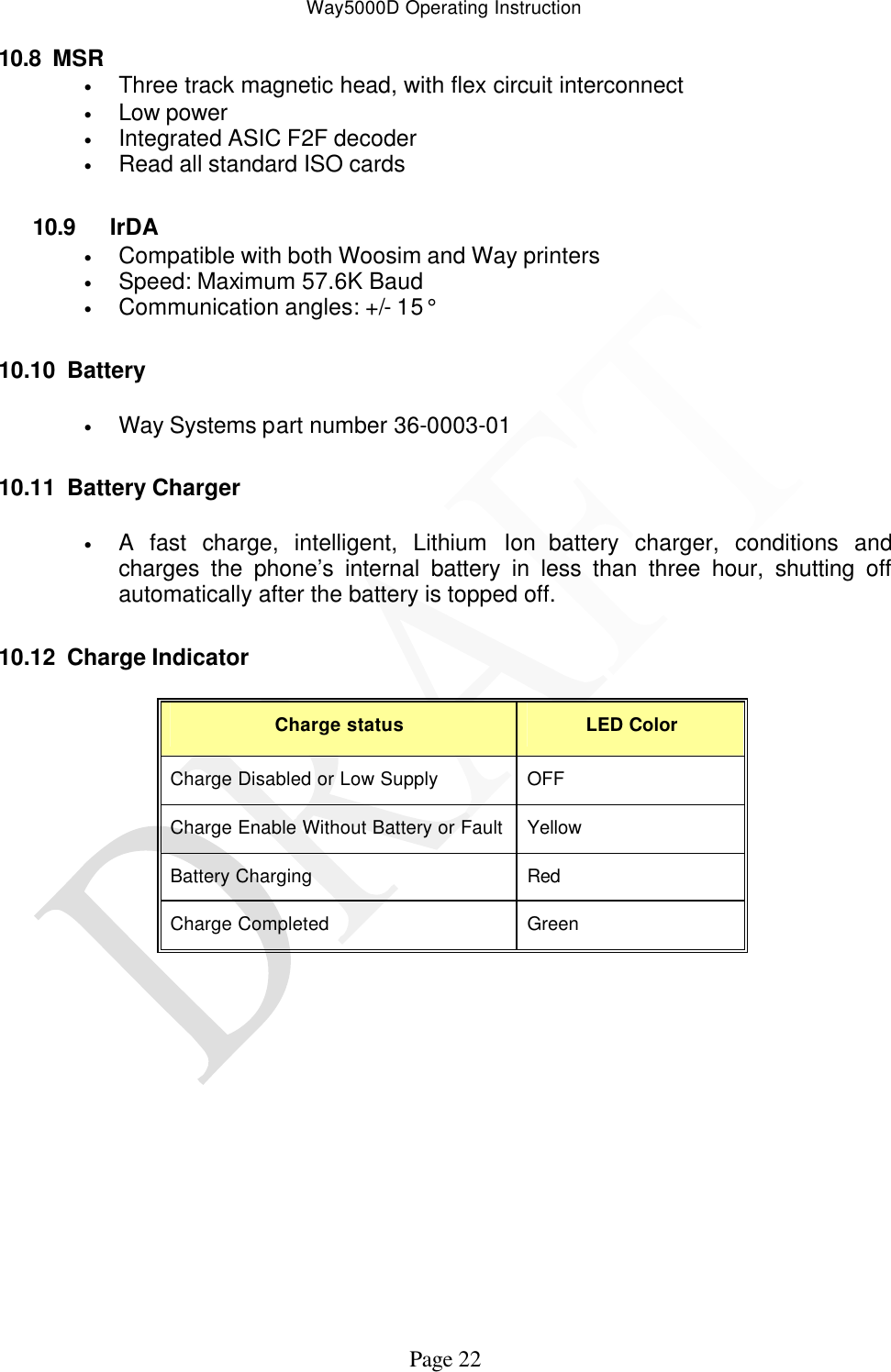

Way5000D Operating Instruction Page 22 10.8 MSR • Three track magnetic head, with flex circuit interconnect • Low power • Integrated ASIC F2F decoder • Read all standard ISO cards 10.9 IrDA • Compatible with both Woosim and Way printers • Speed: Maximum 57.6K Baud • Communication angles: +/- 15° 10.10 Battery • Way Systems part number 36-0003-01 10.11 Battery Charger • A fast charge, intelligent, Lithium Ion battery charger, conditions and charges the phone’s internal battery in less than three hour, shutting off automatically after the battery is topped off. 10.12 Charge Indicator Charge status LED Color Charge Disabled or Low Supply OFF Charge Enable Without Battery or Fault Yellow Battery Charging Red Charge Completed Green

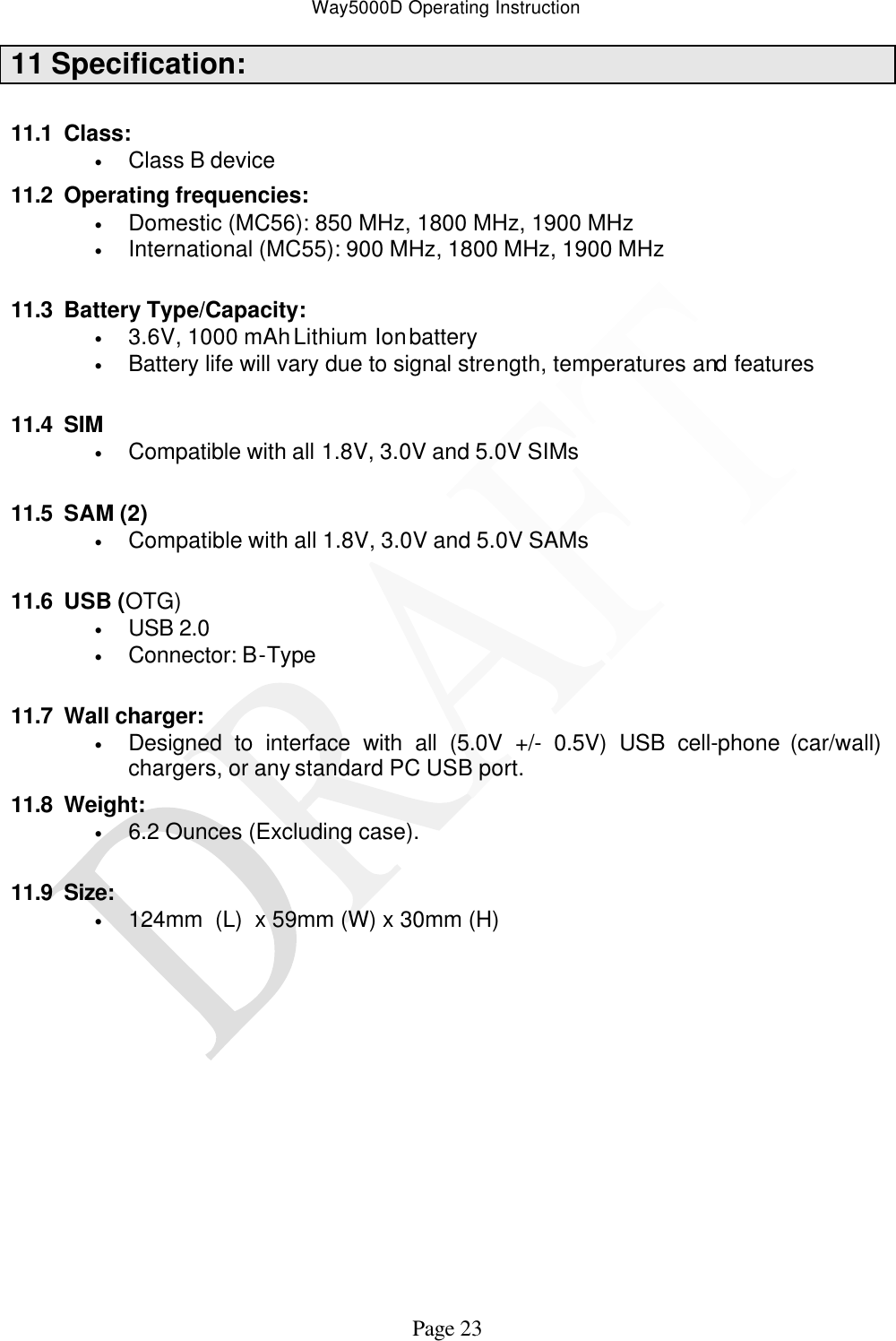

Way5000D Operating Instruction Page 23 11 Specification: 11.1 Class: • Class B device 11.2 Operating frequencies: • Domestic (MC56): 850 MHz, 1800 MHz, 1900 MHz • International (MC55): 900 MHz, 1800 MHz, 1900 MHz 11.3 Battery Type/Capacity: • 3.6V, 1000 mAh Lithium Ion battery • Battery life will vary due to signal strength, temperatures and features 11.4 SIM • Compatible with all 1.8V, 3.0V and 5.0V SIMs 11.5 SAM (2) • Compatible with all 1.8V, 3.0V and 5.0V SAMs 11.6 USB (OTG) • USB 2.0 • Connector: B-Type 11.7 Wall charger: • Designed to interface with all (5.0V +/- 0.5V) USB cell-phone (car/wall) chargers, or any standard PC USB port. 11.8 Weight: • 6.2 Ounces (Excluding case). 11.9 Size: • 124mm (L) x 59mm (W) x 30mm (H)

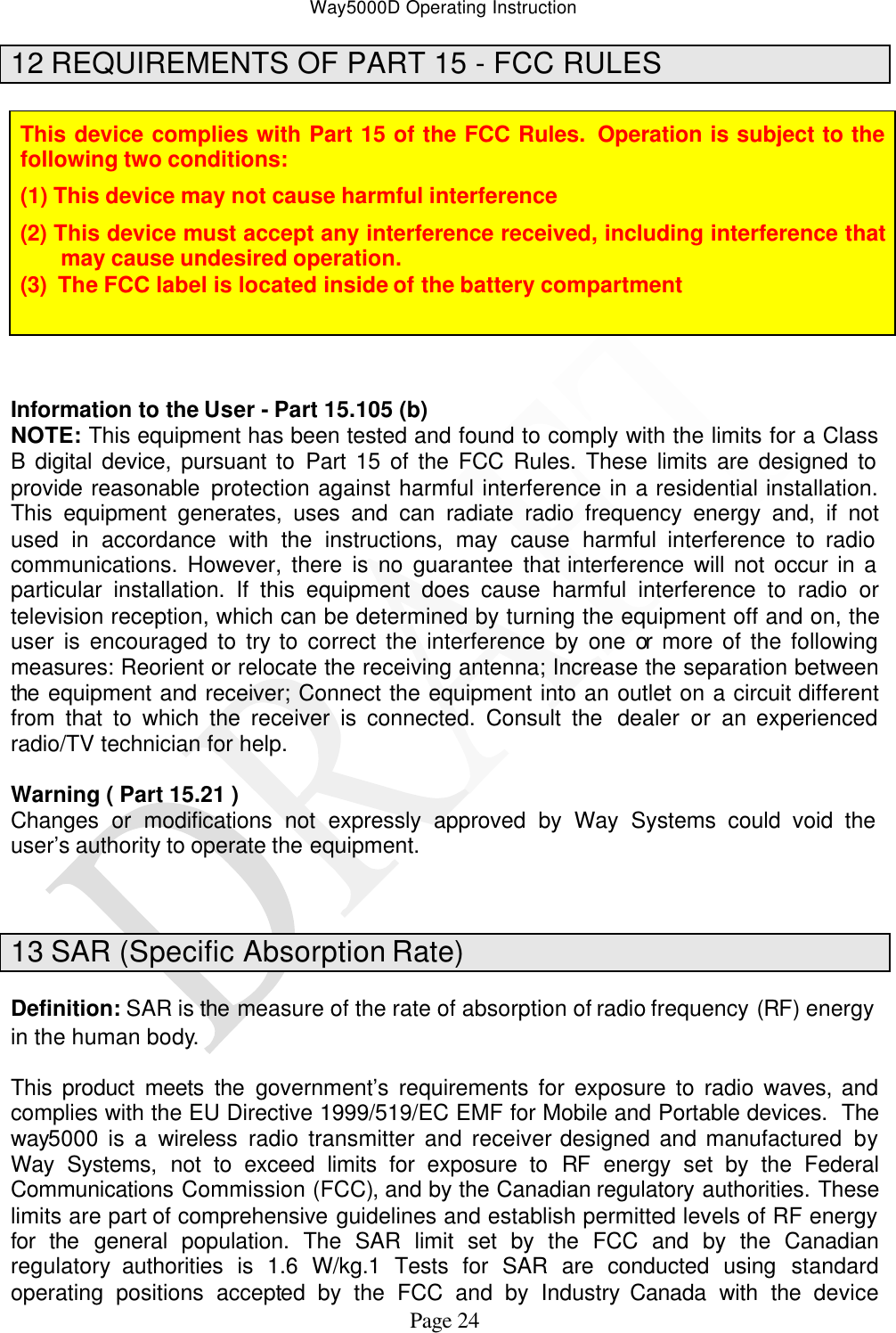

Way5000D Operating Instruction Page 24 12 REQUIREMENTS OF PART 15 - FCC RULES This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. (3) The FCC label is located inside of the battery compartment Information to the User - Part 15.105 (b) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna; Increase the separation between the equipment and receiver; Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning ( Part 15.21 ) Changes or modifications not expressly approved by Way Systems could void the user’s authority to operate the equipment. 13 SAR (Specific Absorption Rate) Definition: SAR is the measure of the rate of absorption of radio frequency (RF) energy in the human body. This product meets the government’s requirements for exposure to radio waves, and complies with the EU Directive 1999/519/EC EMF for Mobile and Portable devices. The way5000 is a wireless radio transmitter and receiver designed and manufactured by Way Systems, not to exceed limits for exposure to RF energy set by the Federal Communications Commission (FCC), and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg.1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the device
Way5000D Operating Instruction Page 25 transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the way5000 while operating can be well below the maximum value. This is because the way5000 is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a portable device is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., hand-held, head, ear...) reported to the FCC and available for review by Industry Canada. The highest SAR value as measured on the way5000 are: head-0.553 W/kg, body-0.905 W/kg. Additional information on SAR can be found CTIA Web site: http://www.phonefacts.net In the United States and Canada, the SAR limit for portable device used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 14 SAFETY INFORMATION Approved Accessories Only body worn approved way5000 accessories may be used. Operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly. Using accessories not supplied or approved by Way Systems, may cause your device to exceed RF energy exposure guidelines. Pacemakers If you have a pacemaker, consult your physician before using this product. Persons with pacemakers should observe the following precautions: 1. When In the ON position, ALWAYS keep the way5000 more than 20 centimeters (8 inches) from your pacemaker 2. Do not carry the way5000 in the breast pocket. 3. Turn OFF the way5000 immediately if you have any reason to suspect that interference is taking place. Battery 1. Use only Way Systems, Inc. approved battery replacements. 2. Dispose of used batteries according to local codes pertaining to rechargeable batteries. 3. Do not dispose of batteries in fire, as they may explode 4. Do not attempt to remove the batteries and charge them in a separate charging unit. 5. Do not short-circuit the battery pack, as this may cause it to explode or catch fire.

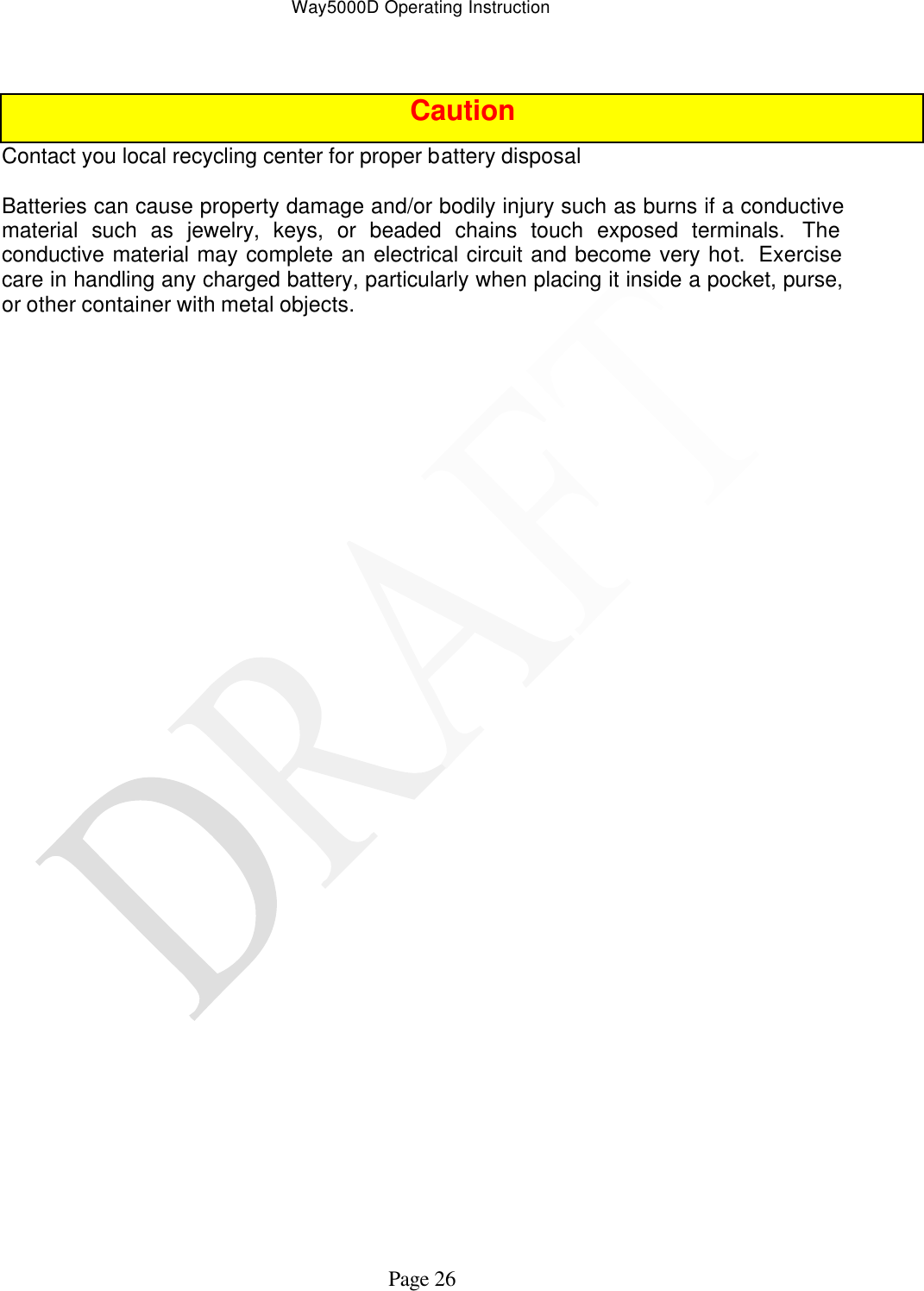

Way5000D Operating Instruction Page 26 Caution Contact you local recycling center for proper battery disposal Batteries can cause property damage and/or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touch exposed terminals. The conductive material may complete an electrical circuit and become very hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse, or other container with metal objects.
