WiSilica SLM-D-B WC-D-2CH0010V User Manual WC D 2CH0010V rev4 3

WiSilica, Inc. WC-D-2CH0010V WC D 2CH0010V rev4 3

User Manual

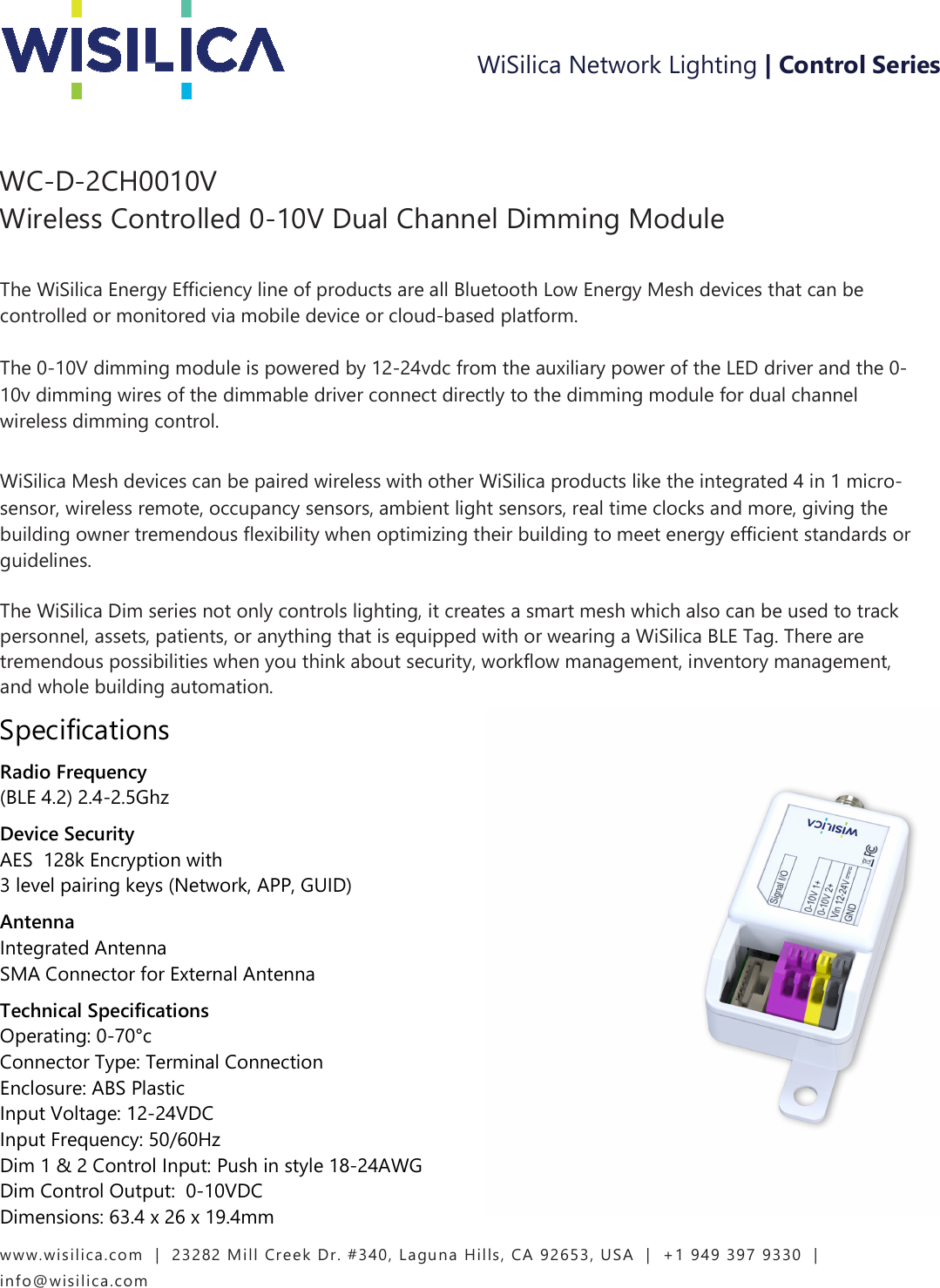

www.wisilica.com   |  23282 Mill Creek Dr. #340, Laguna Hills, CA 92653, USA  |  +1 949 397 9330  |  info@wisilica.com                   WC-D-2CH0010V Wireless Controlled 0-10V Dual Channel Dimming Module      The WiSilica Energy Efficiency line of products are all Bluetooth Low Energy Mesh devices that can be controlled or monitored via mobile device or cloud-based platform.    The 0-10V dimming module is powered by 12-24vdc from the auxiliary power of the LED driver and the 0-10v dimming wires of the dimmable driver connect directly to the dimming module for dual channel wireless dimming control.      WiSilica Mesh devices can be paired wireless with other WiSilica products like the integrated 4 in 1 micro-sensor, wireless remote, occupancy sensors, ambient light sensors, real time clocks and more, giving the building owner tremendous flexibility when optimizing their building to meet energy efficient standards or guidelines.    The WiSilica Dim series not only controls lighting, it creates a smart mesh which also can be used to track personnel, assets, patients, or anything that is equipped with or wearing a WiSilica BLE Tag. There are tremendous possibilities when you think about security, workflow management, inventory management, and whole building automation. Specifications Radio Frequency  (BLE 4.2) 2.4-2.5Ghz  Device Security   AES  128k Encryption with   3 level pairing keys (Network, APP, GUID)  Antenna   Integrated Antenna  SMA Connector for External Antenna Technical Specifications   Operating: 0-70°c   Connector Type: Terminal Connection  Enclosure: ABS Plastic   Input Voltage: 12-24VDC  Input Frequency: 50/60Hz    Dim 1 & 2 Control Input: Push in style 18-24AWG  Dim Control Output:  0-10VDC  Dimensions: 63.4 x 26 x 19.4mm WiSilica Network Lighting | Control Series

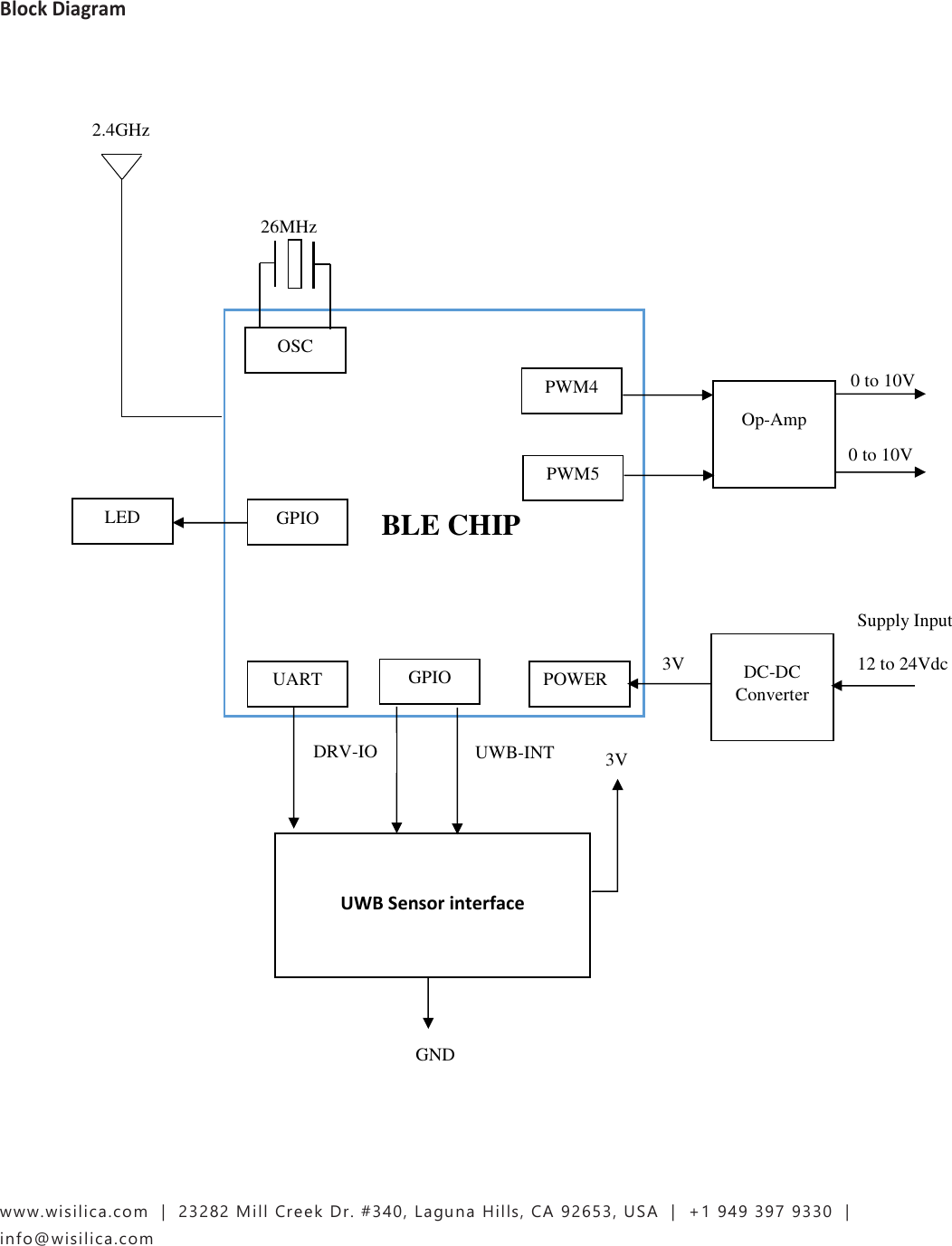

www.wisilica.com   |  23282 Mill Creek Dr. #340, Laguna Hills, CA 92653, USA  |  +1 949 397 9330  |  info@wisilica.com   Block Diagram                                                                               BLE CHIP PWM4 PWM5 POWER UART GPIO OSC  Op-Amp    DC-DC Converter LED Supply Input  12 to 24Vdc 26MHz 3V 0 to 10V 0 to 10V 2.4GHz   UWB Sensor interface GPIO 3V GND DRV-IO  UWB-INT

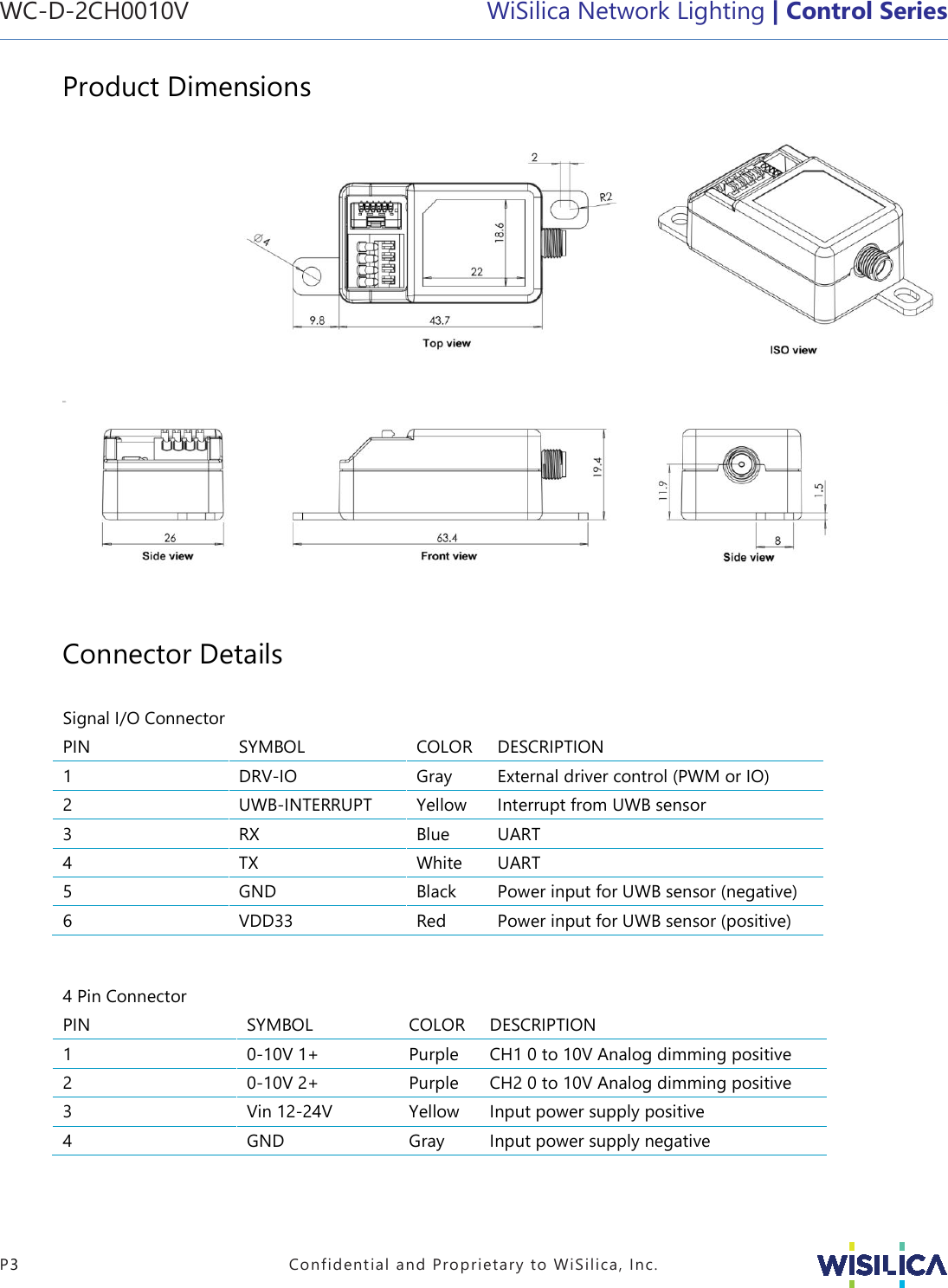

WC-D-2CH0010V   WiSilica Network Lighting | Control Series   P3  Confidential and Proprietary to WiSilica, Inc. Product Dimensions                                                                 Connector Details  Signal I/O Connector    PIN SYMBOL COLOR DESCRIPTION 1 DRV-IO Gray External driver control (PWM or IO) 2 UWB-INTERRUPT Yellow Interrupt from UWB sensor 3 RX Blue UART  4 TX White UART  5 GND Black Power input for UWB sensor (negative) 6 VDD33 Red Power input for UWB sensor (positive)   4 Pin Connector    PIN SYMBOL COLOR DESCRIPTION 1 0-10V 1+ Purple CH1 0 to 10V Analog dimming positive 2 0-10V 2+ Purple CH2 0 to 10V Analog dimming positive 3 Vin 12-24V Yellow Input power supply positive 4 GND Gray Input power supply negative

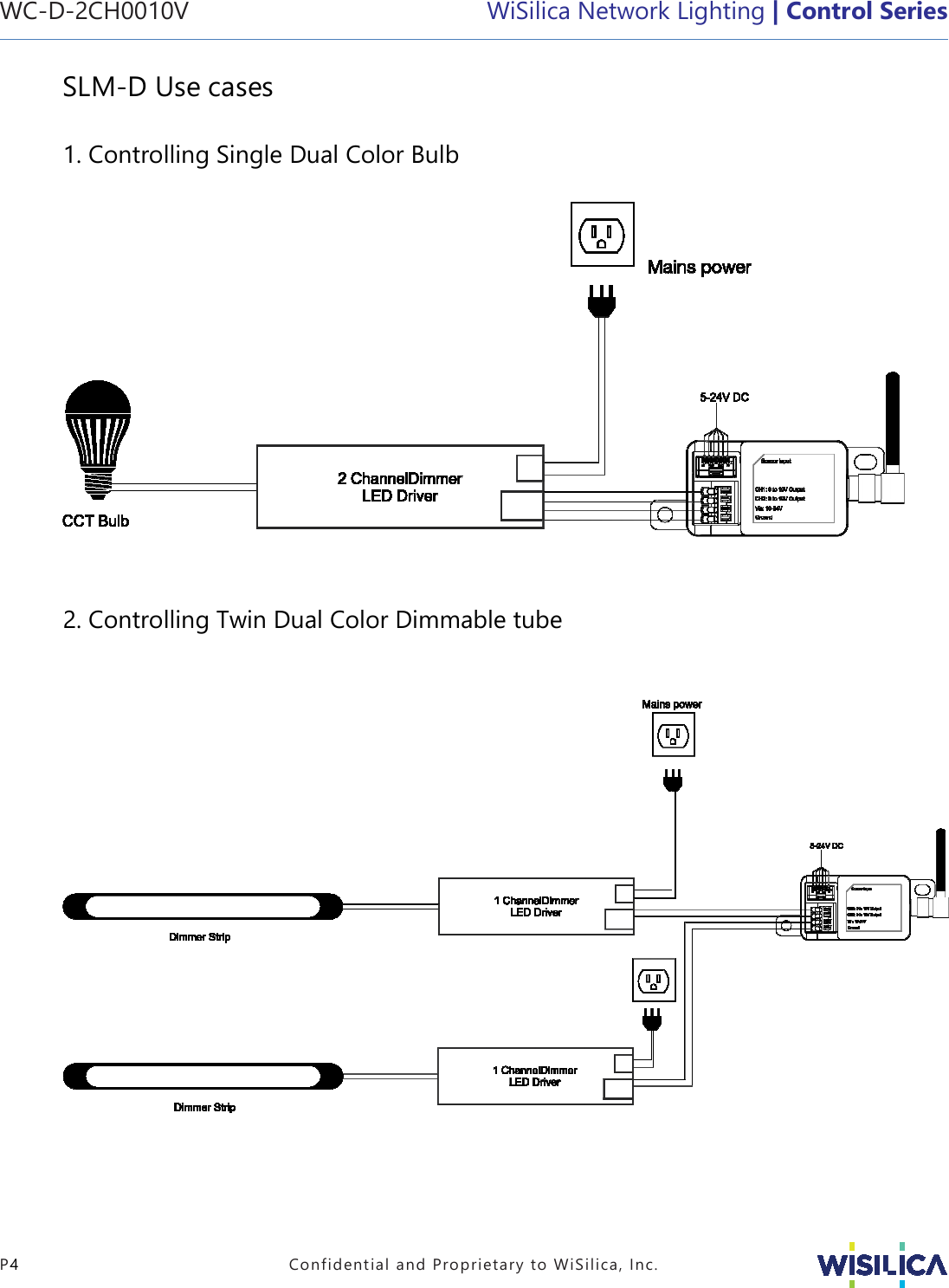

WC-D-2CH0010V   WiSilica Network Lighting | Control Series   P4  Confidential and Proprietary to WiSilica, Inc. SLM-D Use cases  1. Controlling Single Dual Color Bulb     2. Controlling Twin Dual Color Dimmable tube

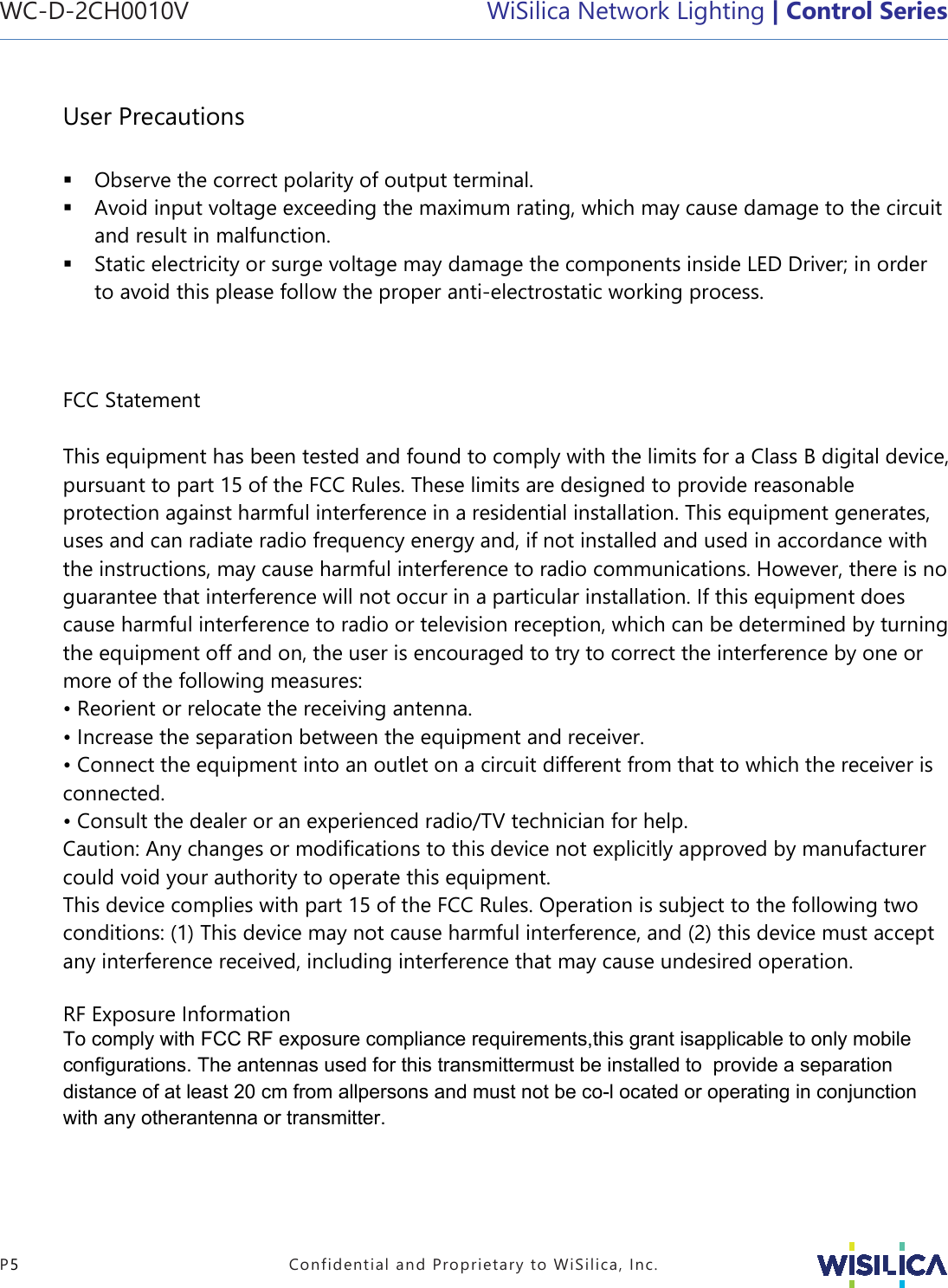

WC-D-2CH0010V WiSilica Network Lighting | Control Series P5  Confidential and Proprietary to WiSilica, Inc. User Precautions Observe the correct polarity of output terminal.Avoid input voltage exceeding the maximum rating, which may cause damage to the circuitand result in malfunction.Static electricity or surge voltage may damage the components inside LED Driver; in orderto avoid this please follow the proper anti-electrostatic working process.FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected. • Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information To comply with FCC RF exposure compliance requirements,this grant isapplicable to only mobile configurations. The antennas used for this transmittermust be installed to  provide a separation distance of at least 20 cm from allpersons and must not be co-l ocated or operating in conjunction with any otherantenna or transmitter.
