WiSilica WCA2CS WCA2CS User Manual WCA2CS Ver1 1 090818x

WiSilica, Inc. WCA2CS WCA2CS Ver1 1 090818x

User manual

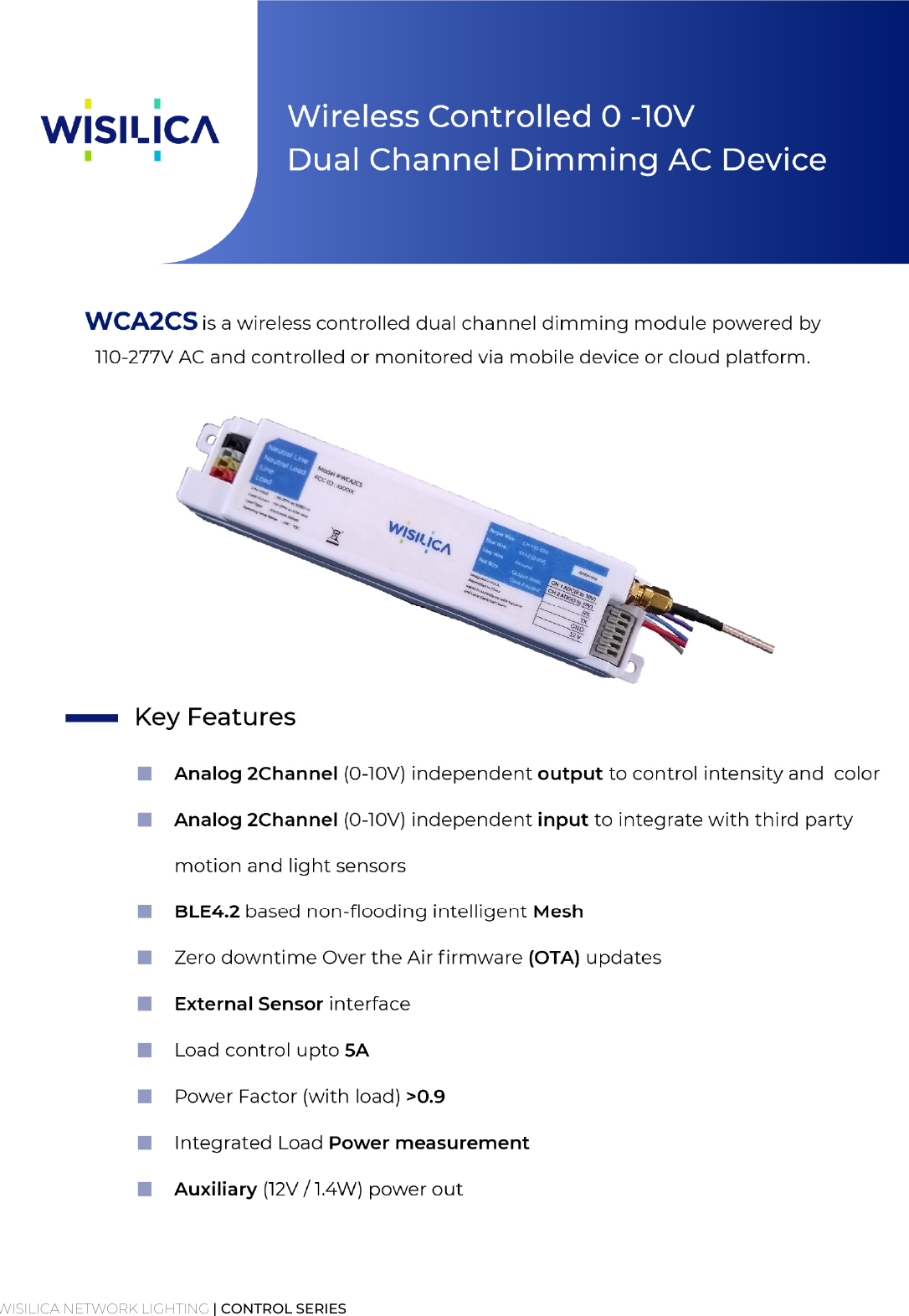

WISILICA NETWORK LIGHTING | CONTROL SERIES
WISILICA NETWORK LIGHTING | CONTROL SERIES Table of Contents 1. Block Diagram ..................................................................................................................................................... 3 2. Specifications ....................................................................................................................................................... 3 3. Device Dimensions (mm) ................................................................................................................................ 5 4. Connector Description ..................................................................................................................................... 5 5. Wiring Diagram .................................................................................................................................................. 6 6. Use Cases .............................................................................................................................................................. 6 7. User Precautions ................................................................................................................................................ 7

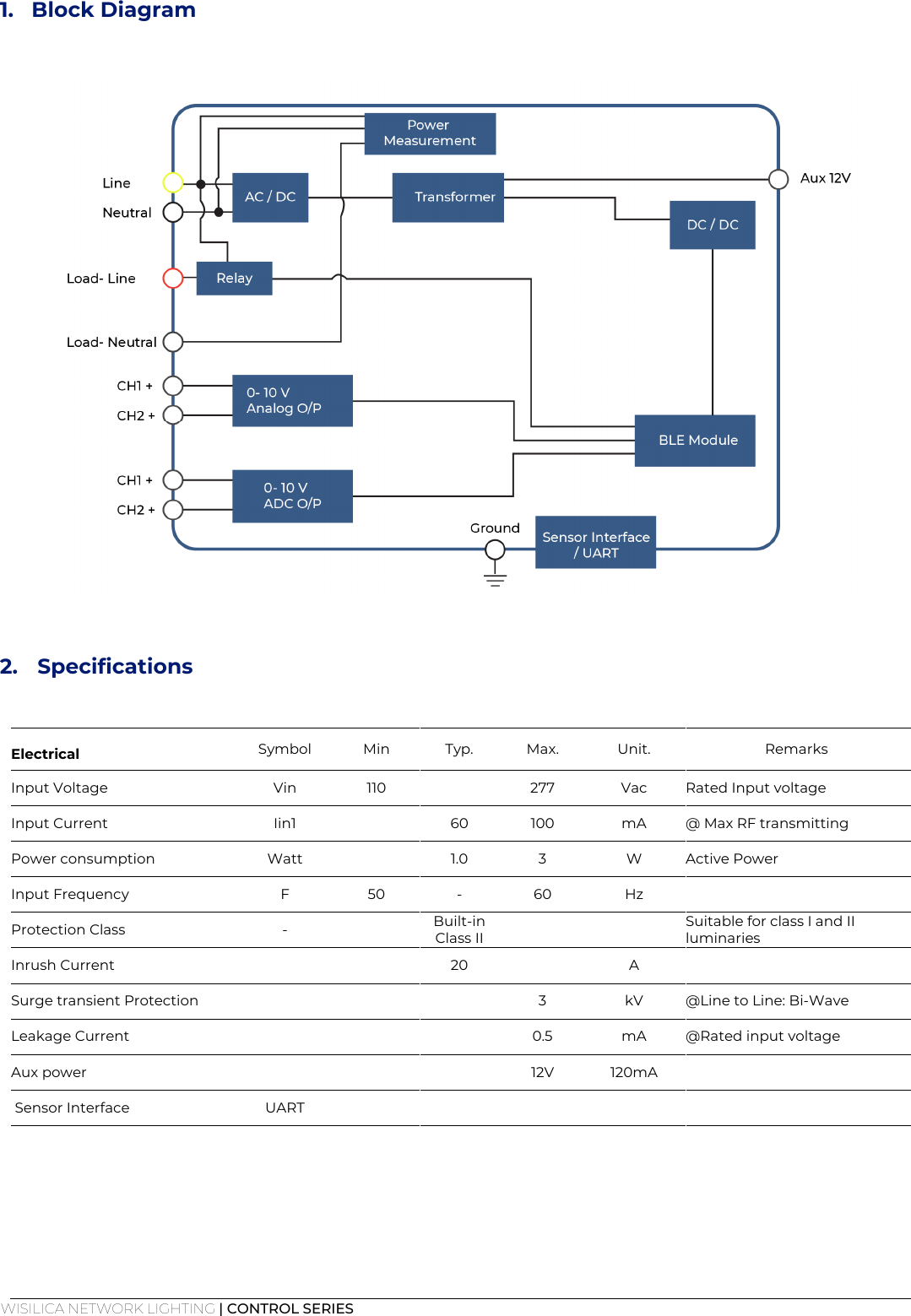

WISILICA NETWORK LIGHTING | CONTROL SERIES 1. Block Diagram 2. Specifications Electrical Symbol Min Typ. Max. Unit. Remarks Input Voltage Vin 110 277 Vac Rated Input voltage Input Current Iin1 60 100 mA @ Max RF transmitting Power consumption Watt 1.0 3 W Active Power Input Frequency F 50 - 60 Hz Protection Class - Built-in Class II Suitable for class I and II luminaries Inrush Current 20 A Surge transient Protection 3 kV @Line to Line: Bi-Wave Leakage Current 0.5 mA @Rated input voltage Aux power 12V 120mA Sensor Interface UART
WISILICA NETWORK LIGHTING | CONTROL SERIES Analogue Dimming Output Dimming Output1 Vadimo1 0 10 V Max output tolerance ±5% Dimming Output2 Vadimo2 0 10 V Max output tolerance ±5% Output Current 15 mA For dimming max output Dimming Range 0 100 % Dimming Resolution 8 bit 100 steps Dimming Curve Linear Cut Off Voltage 1 V Programmable Bluetooth Frequency Range 2400 2483.5 MHz TX Power 6 8 dBm Conductive Frequency Drift(Max) -25 25 kHz dF2 Frequency Deviation ±225 ±275 kHz Carrier Frequency offset 30 150 kHz TX current 48 mA Total current@ Max Tx power Receive Frequency 2400 2483 kHz Rx Current -37 mA Total Current @Rx Mode Receiver Sensitivity -86 -75 dBm Environmental Symbol Min Typ. Max. Unit. Remarks Ambient Temperature ta -20 50 ºC Storage Temperature ts -20 70 ºC Relative Humidity 85 % IP Rating IP20 - Indoor use only Dimensions 175*34*30 mm L x W x H (mm) Net Weight 80 90 100 g T.B.D Dimming Type Note Dimming Control 1 0 – 10V Analog
WISILICA NETWORK LIGHTING | CONTROL SERIES 3. Device Dimensions (mm) Case Material : 5VA 4. Connector Description PIN SYMBOL COLOR DESCRIPTION 1 Neutral Line Black AC Input Neutral 2 Neutral Load Grey 110-277V ~(Line) 3 Line Yellow 110-277V /5Amps 4 Load Red 110-277V /5Amps PIN SYMBOL COLOR DESCRIPTION 1 ADC input Grey CH1 0 to 10V ADC INPUT 2 ADC input Grey CH2 0 to 10V ADC INPUT 3 RX Grey UART 4 TX Grey UART 5 GND Grey 12V Ground Output 6 12V Grey Supports up to 1.4W 5. Wire Description PIN SYMBOL COLOR DESCRIPTION 1 CH1+ Purple CH1 0 to 10V Analog Output 2 CH2+ Blue CH2 0 to 10V Analog Output 3 GND Grey 12V Ground output 4 12V Red 12V

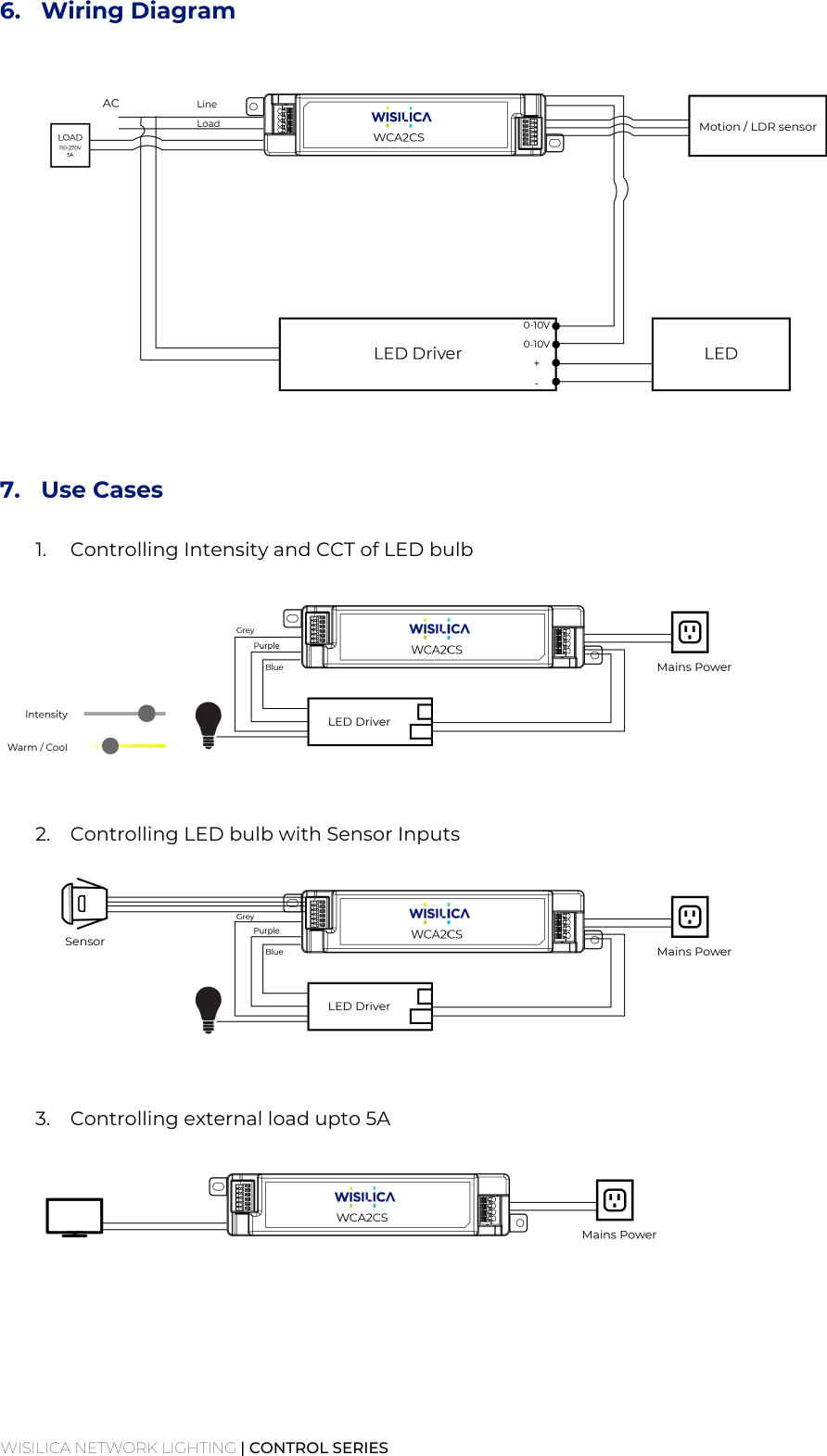

WISILICA NETWORK LIGHTING | CONTROL SERIES 6. Wiring Diagram 7. Use Cases 1. Controlling Intensity and CCT of LED bulb 2. Controlling LED bulb with Sensor Inputs 3. Controlling external load upto 5A
WISILICA NETWORK LIGHTING | CONTROL SERIES 8. User Precautions • Observe the correct polarity of output terminal. • Avoid input voltage exceeds the maximum rating, which will cause damage to the circuit and result in malfunction • Static electricity or surge voltage may damage the components inside LED Driver, to avoid this please follow the proper anti-electrostatic working process. 9. FCC Statement • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 10. RF Exposure Information • The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
