Wiltronic I896QW Detachable Laptop User Manual

Wiltronic Corporation Detachable Laptop

User Manual

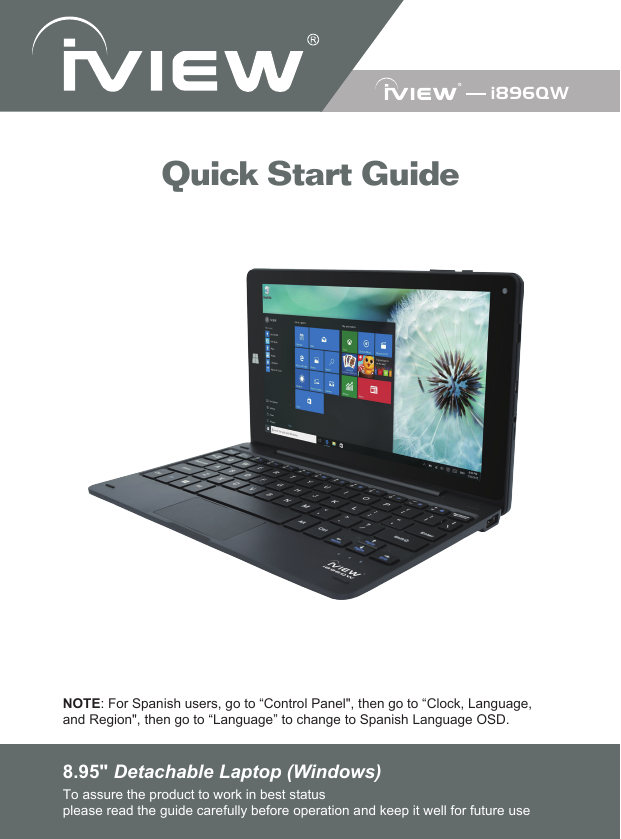

8.95" Detachable Laptop (Windows)To assure the product to work in best statusplease read the guide carefully before operation and keep it well for future useNOTE: For Spanish users, go to “Control Panel", then go to “Clock, Language,and Region", then go to “Language” to change to Spanish Language OSD.Quick Start Guidei896QW

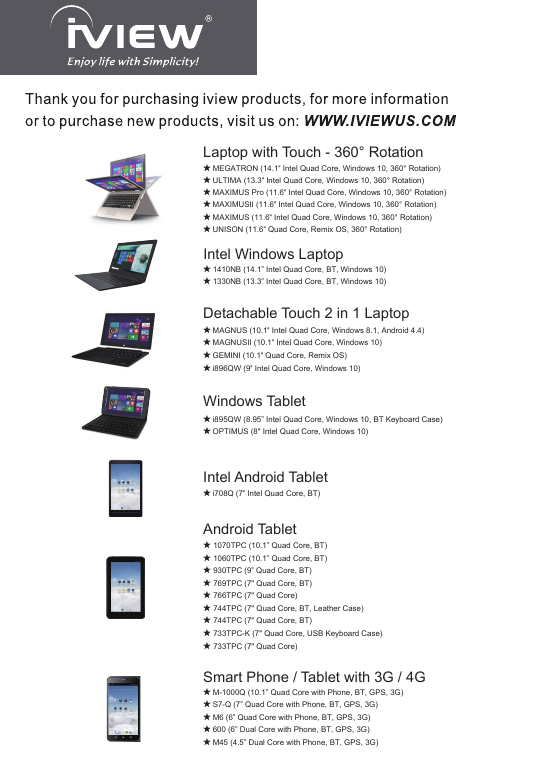

★ MAGNUS (10.1" Intel Quad Core, Windows 8.1, Android 4.4)★ MAGNUSII (10.1" Intel Quad Core, Windows 10)★ GEMINI (10.1" Quad Core, Remix OS)★ i896QW (9" Intel Quad Core, Windows 10)Detachable Touch 2 in 1 Laptop★ i708Q (7" Intel Quad Core, BT)Intel Android Tablet★ i895QW (8.95” Intel Quad Core, Windows 10, BT Keyboard Case)★ OPTIMUS (8" Intel Quad Core, Windows 10)Windows Tablet Android Tablet★ 1070TPC (10.1” Quad Core, BT)★ 1060TPC (10.1” Quad Core, BT)★ 930TPC (9” Quad Core, BT)★ 769TPC (7" Quad Core, BT)★ 766TPC (7" Quad Core)★ 744TPC (7" Quad Core, BT, Leather Case)★ 744TPC (7" Quad Core, BT)★ 733TPC-K (7" Quad Core, USB Keyboard Case)★ 733TPC (7" Quad Core)★ MAXIMUS Pro (11.6" Intel Quad Core, Windows 10, 360° Rotation)★ MEGATRON (14.1" Intel Quad Core, Windows 10, 360° Rotation)★ ULTIMA (13.3" Intel Quad Core, Windows 10, 360° Rotation)Laptop with Touch - 360° Rotation★ MAXIMUSII (11.6" Intel Quad Core, Windows 10, 360° Rotation)★ MAXIMUS (11.6" Intel Quad Core, Windows 10, 360° Rotation)★ UNISON (11.6" Quad Core, Remix OS, 360° Rotation)★ 1410NB (14.1” Intel Quad Core, BT, Windows 10)★ 1330NB (13.3” Intel Quad Core, BT, Windows 10)Intel Windows Laptop★ M-1000Q (10.1” Quad Core with Phone, BT, GPS, 3G)★ S7-Q (7” Quad Core with Phone, BT, GPS, 3G)★ M6 (6” Quad Core with Phone, BT, GPS, 3G)★ 600 (6” Dual Core with Phone, BT, GPS, 3G)★ M45 (4.5” Dual Core with Phone, BT, GPS, 3G)Smart Phone / Tablet with 3G / 4G
★ S5 (Smart Wrist)Wearable★ ATSC Receiver - Air StickNew Product★ 3500STBII (Converter Box)★ 3200STB (Converter Box)★ 3200STB-A (Converter Box, with External Antenna)Converter Box★ CYBER DONGLE (Micracast / WIFI Display on TV)★ CYBER PC (Intel Quad Core, BT, Windows 8.1, Android 4.4)★ CYBER PC Pro (Intel Quad Core, BT, Windows 10)The Smallest PC★ 360° 3D gogle - VR Zone★ 3D gogle - VR Zone S★ Popup Zoo★ Smart Speaker - Genie★ Pet Robot - Pamigo

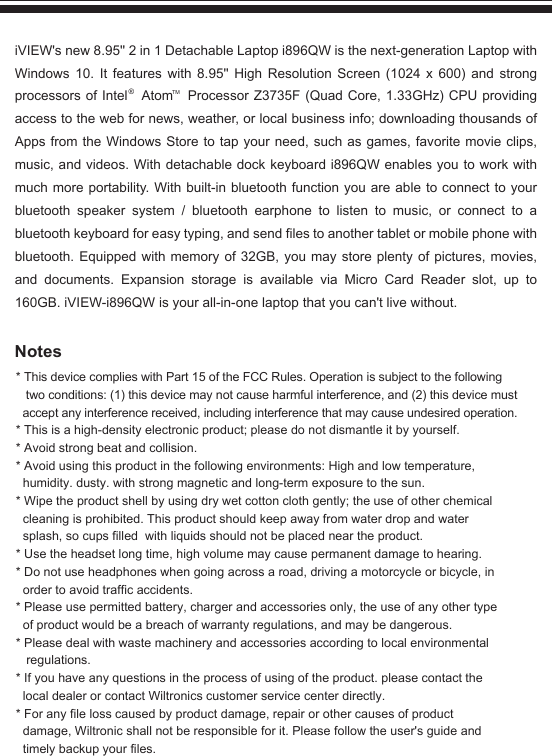

iVIEW's new 8.95'' 2 in 1 Detachable Laptop i896QW is the next-generation Laptop with Windows 10. It features with 8.95'' High Resolution Screen (1024 x 600) and strong processors of Intel Atom Processor Z3735F (Quad Core, 1.33GHz) CPU providing access to the web for news, weather, or local business info; downloading thousands of Apps from the Windows Store to tap your need, such as games, favorite movie clips, music, and videos. With detachable dock keyboard i896QW enables you to work with much more portability. With built-in bluetooth function you are able to connect to your bluetooth speaker system / bluetooth earphone to listen to music, or connect to a bluetooth keyboard for easy typing, and send files to another tablet or mobile phone with bluetooth. Equipped with memory of 32GB, you may store plenty of pictures, movies, and documents. Expansion storage is available via Micro Card Reader slot, up to 160GB. iVIEW-i896QW is your all-in-one laptop that you can't live without.Notes®TM* This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.* This is a high-density electronic product; please do not dismantle it by yourself.* Avoid strong beat and collision.* Avoid using this product in the following environments: High and low temperature, humidity. dusty. with strong magnetic and long-term exposure to the sun.* Wipe the product shell by using dry wet cotton cloth gently; the use of other chemical cleaning is prohibited. This product should keep away from water drop and water splash, so cups filled with liquids should not be placed near the product.* Use the headset long time, high volume may cause permanent damage to hearing.* Do not use headphones when going across a road, driving a motorcycle or bicycle, in order to avoid traffic accidents.* Please use permitted battery, charger and accessories only, the use of any other type of product would be a breach of warranty regulations, and may be dangerous.* Please deal with waste machinery and accessories according to local environmental regulations.* If you have any questions in the process of using of the product. please contact the local dealer or contact Wiltronics customer service center directly.* For any file loss caused by product damage, repair or other causes of product damage, Wiltronic shall not be responsible for it. Please follow the user's guide and timely backup your files.

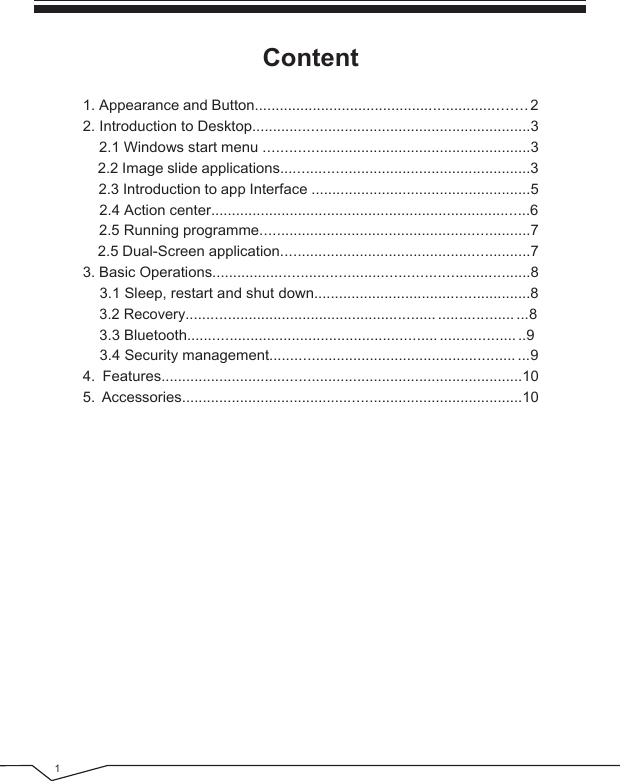

Content1. Appearance and Button................................................................. 22. Introduction to Desktop...................................................................3 2.1 Windows start menu ................................................................3 2.2 Image slide applications............................................................3 2.3 Introduction to app Interface .....................................................5 2.4 Action center.............................................................................6 2.5 Running programme.................................................................7 2.5 Dual-Screen application............................................................73. Basic Operations...........................................................................8 3.1 Sleep, restart and shut down....................................................8 3.2 Recovery............................................................ .................. ...8 3.3 Bluetooth............................................................ .................. ..9 3.4 Security management........................................................... ...94. Features.......................................................................................105. Accessories..................................................................................101

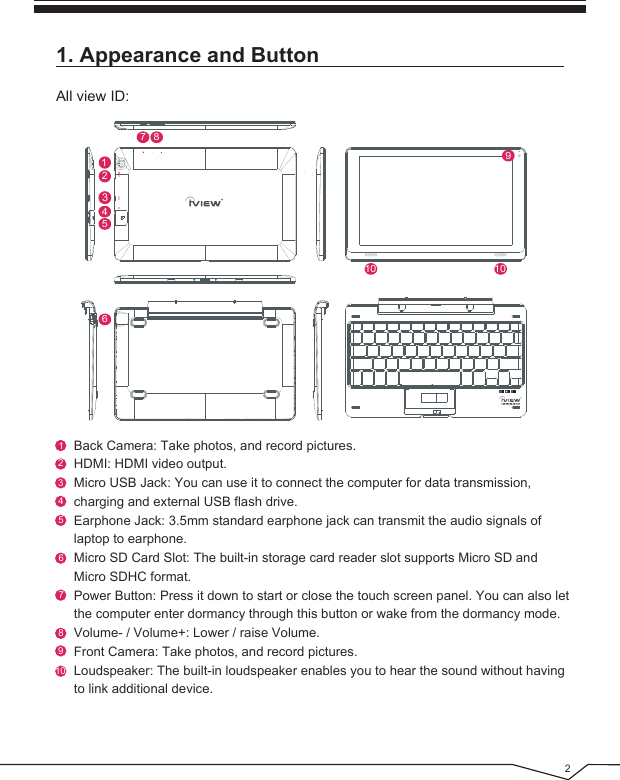

All view ID:21. Appearance and Button687910132Back Camera: Take photos, and record pictures.HDMI: HDMI video output.Micro USB Jack: You can use it to connect the computer for data transmission,charging and external USB flash drive.Earphone Jack: 3.5mm standard earphone jack can transmit the audio signals of laptop to earphone.Micro SD Card Slot: The built-in storage card reader slot supports Micro SD and Micro SDHC format.Power Button: Press it down to start or close the touch screen panel. You can also let the computer enter dormancy through this button or wake from the dormancy mode.Volume- / Volume+: Lower / raise Volume.Front Camera: Take photos, and record pictures.Loudspeaker: The built-in loudspeaker enables you to hear the sound without having to link additional device.54678910 1025431

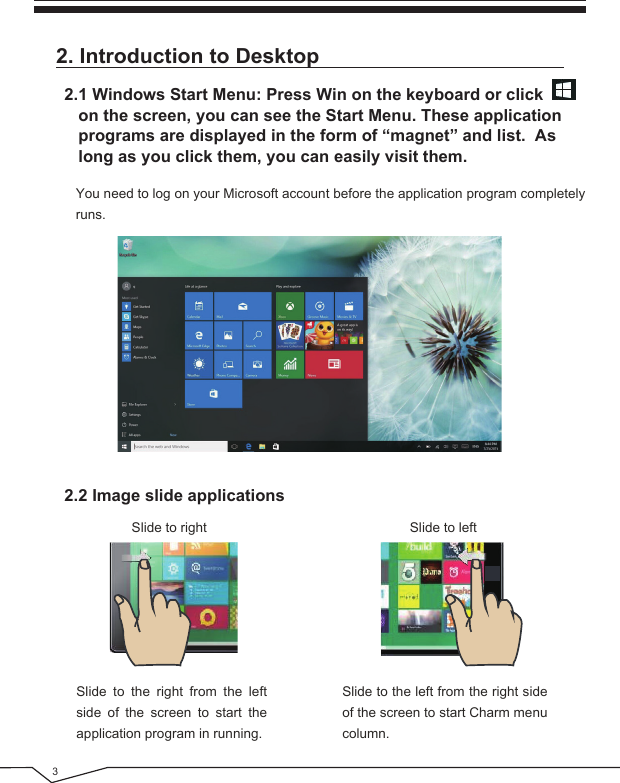

32. Introduction to Desktop You need to log on your Microsoft account before the application program completely runs.Slide to right Slide to left2.1 Windows Start Menu: Press Win on the keyboard or click on the screen, you can see the Start Menu. These application programs are displayed in the form of “magnet” and list. As long as you click them, you can easily visit them.2.2 Image slide applicationsSlide to the right from the left side of the screen to start the application program in running.Slide to the left from the right side of the screen to start Charm menu column.

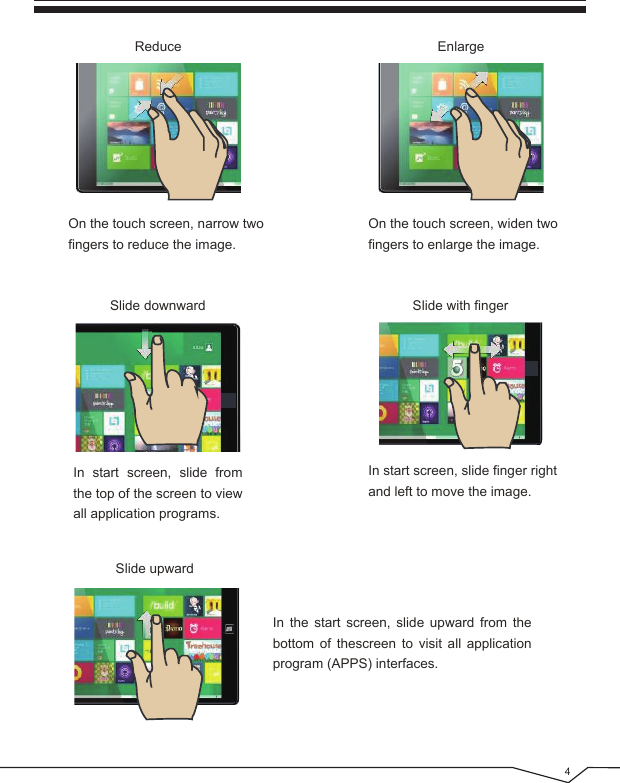

4ReduceOn the touch screen, narrow two fingers to reduce the image.On the touch screen, widen two fingers to enlarge the image.In start screen, slide finger right and left to move the image.EnlargeSlide downwardSlide upward Slide with fingerIn start screen, slide from the top of the screen to view all application programs. In the start screen, slide upward from the bottom of thescreen to visit all application program (APPS) interfaces.

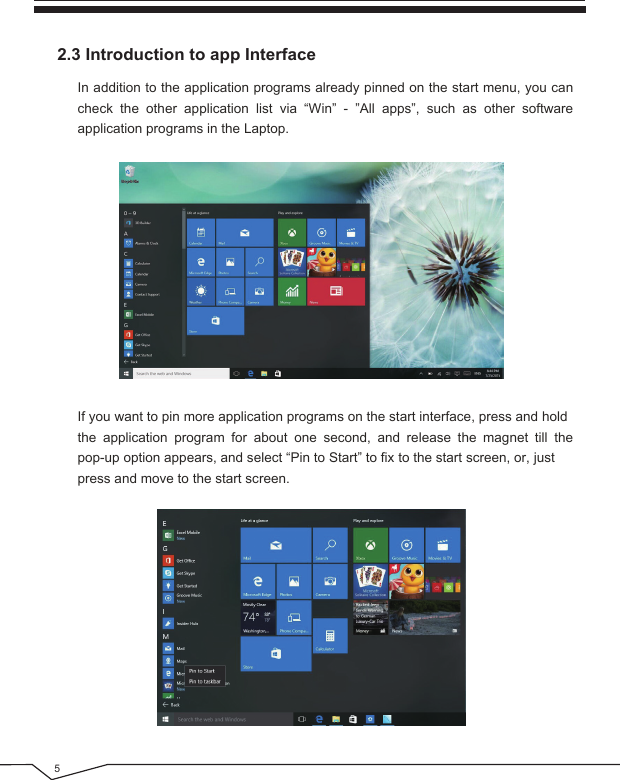

52.3 Introduction to app Interface If you want to pin more application programs on the start interface, press and holdthe application program for about one second, and release the magnet till the pop-up option appears, and select “Pin to Start” to fix to the start screen, or, justpress and move to the start screen.In addition to the application programs already pinned on the start menu, you can check the other application list via “Win” - ”All apps”, such as other software application programs in the Laptop.

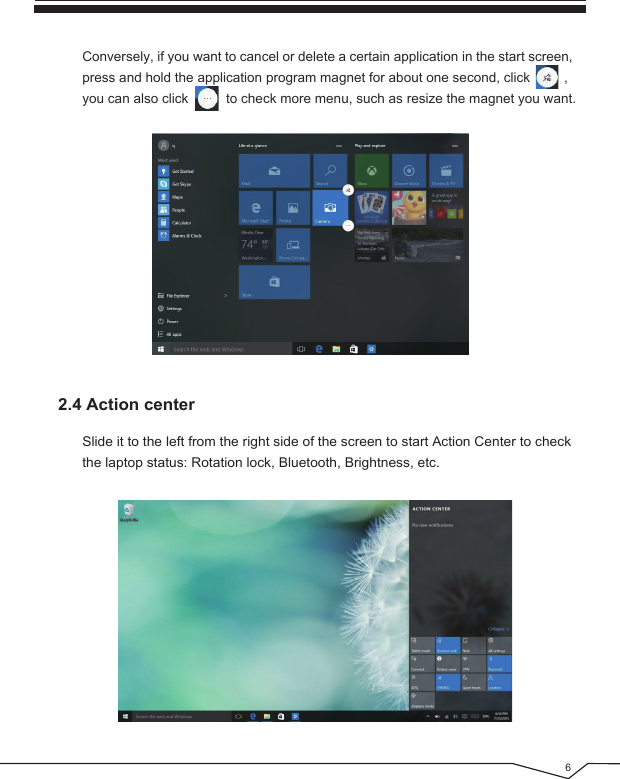

62.4 Action centerConversely, if you want to cancel or delete a certain application in the start screen, press and hold the application program magnet for about one second, click ,you can also click to check more menu, such as resize the magnet you want.Slide it to the left from the right side of the screen to start Action Center to check the laptop status: Rotation lock, Bluetooth, Brightness, etc.

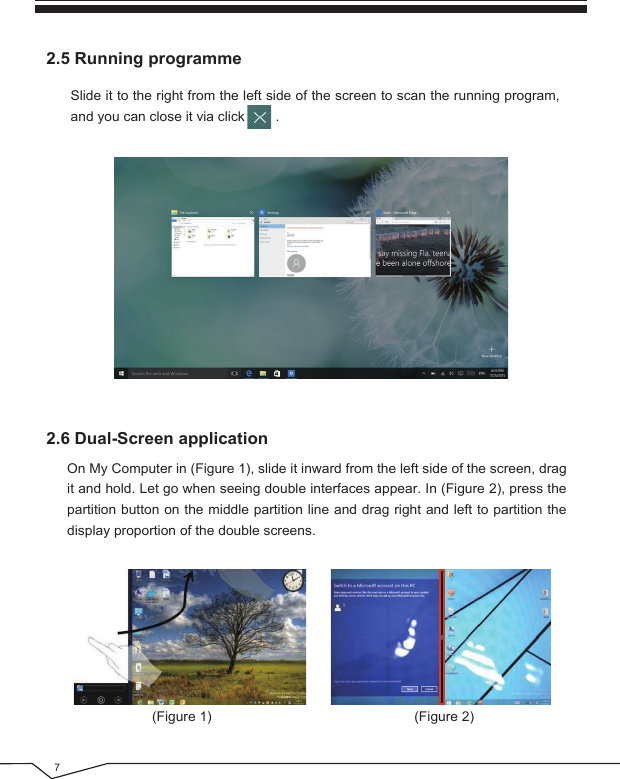

72.6 Dual-Screen applicationOn My Computer in (Figure 1), slide it inward from the left side of the screen, drag it and hold. Let go when seeing double interfaces appear. In (Figure 2), press the partition button on the middle partition line and drag right and left to partition the display proportion of the double screens.(Figure 1) (Figure 2)2.5 Running programmeSlide it to the right from the left side of the screen to scan the running program, and you can close it via click .

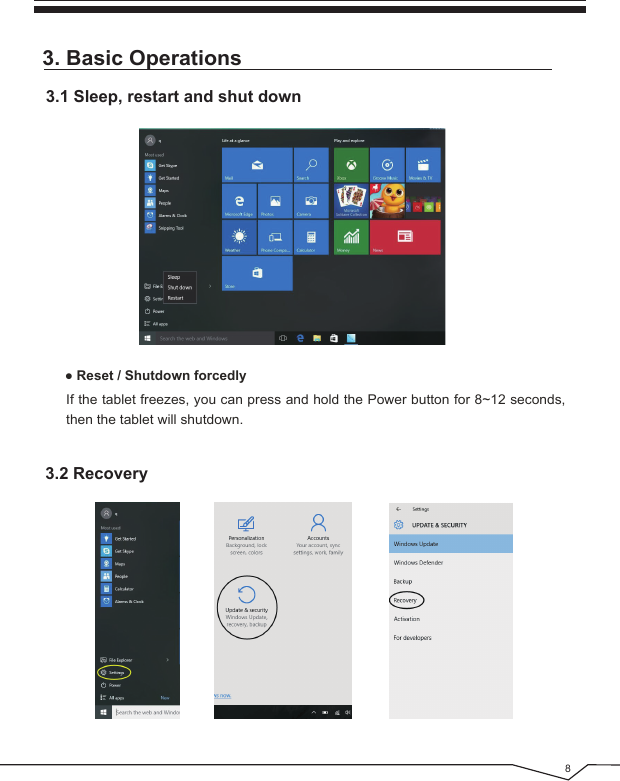

83.2 Recovery3. Basic Operations3.1 Sleep, restart and shut down● Reset / Shutdown forcedly If the tablet freezes, you can press and hold the Power button for 8~12 seconds, then the tablet will shutdown.
93.4 Security management3.3 BluetoothClick the “Win” button in the lower left corner of screen, and select “Settings”. Select “Accounts” on the right and click “Create local account” in “Your account” on the right side. After inputting the password of Complete Windows Live Id Account, input username, password, confirm password and password prompt. a) Turn on Bluetooth: Start Menu - Settings - Devices - Bluetooth.After turn on bluetooth, the tablet will auto-search other device, and you can pair with your device.b) Send a File: Before sending the files, you should open the window "Select where to send your files": Click at lower right corner of desktop - - Send a File.c) Receive a File: Before receiving the files, you should open the window "Waiting for a connection": Click at lower right corner of desktop - - Receive a File.Method for quick setup:

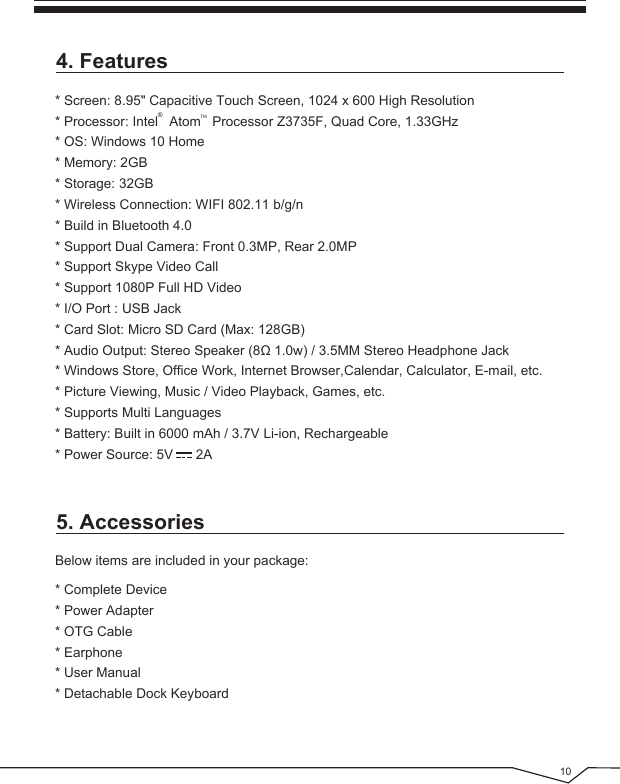

104. Features5. Accessories* Screen: 8.95" Capacitive Touch Screen, 1024 x 600 High Resolution* Processor: Intel Atom Processor Z3735F, Quad Core, 1.33GHz* OS: Windows 10 Home* Memory: 2GB* Storage: 32GB* Wireless Connection: WIFI 802.11 b/g/n* Build in Bluetooth 4.0* Support Dual Camera: Front 0.3MP, Rear 2.0MP* Support Skype Video Call* Support 1080P Full HD Video* I/O Port : USB Jack* Card Slot: Micro SD Card (Max: 128GB)* Audio Output: Stereo Speaker (8Ω 1.0w) / 3.5MM Stereo Headphone Jack* Windows Store, Office Work, Internet Browser,Calendar, Calculator, E-mail, etc.* Picture Viewing, Music / Video Playback, Games, etc.* Supports Multi Languages* Battery: Built in 6000 mAh / 3.7V Li-ion, Rechargeable* Power Source: 5V 2A®TMBelow items are included in your package:* Complete Device* Power Adapter* OTG Cable* Earphone* User Manual* Detachable Dock Keyboard

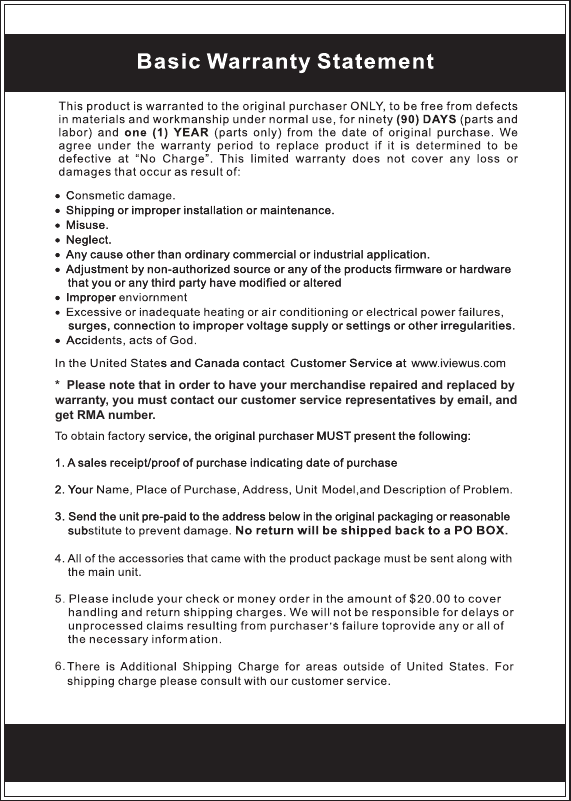

6.* Please note that in order to have your merchandise repaired and replaced by warranty, you must contact our customer service representatives by email, and get RMA number.

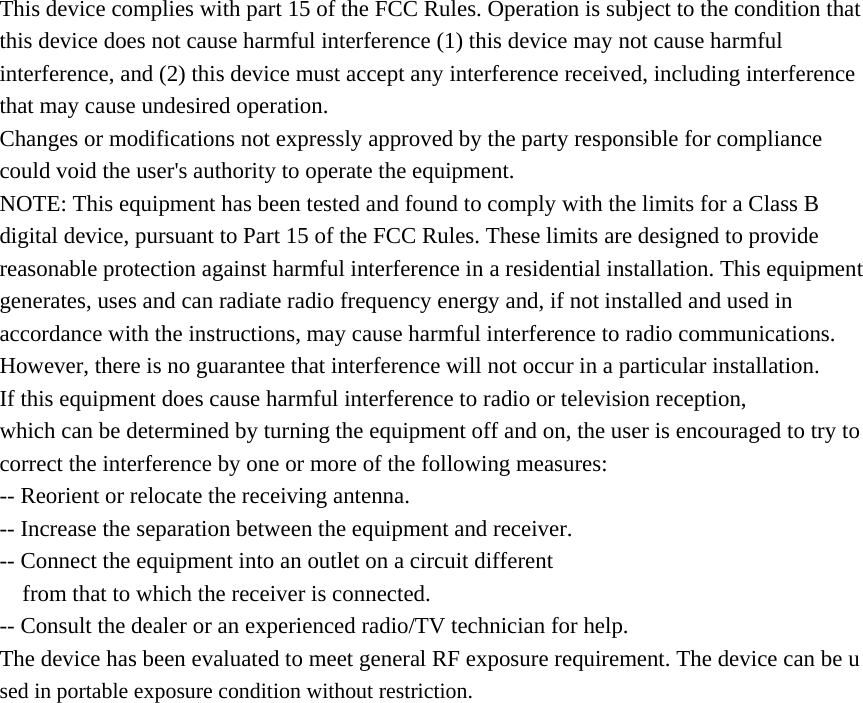

This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
