Win Accord 35WIFI6229 3.5 Inch Diamond 1(with WIFI) User Manual 1

WIN ACCORD LTD., 3.5 Inch Diamond 1(with WIFI) 1

user manual

Touch       screentouch your life 3.53.5alarm clockDigital Picture Frame with WiFi

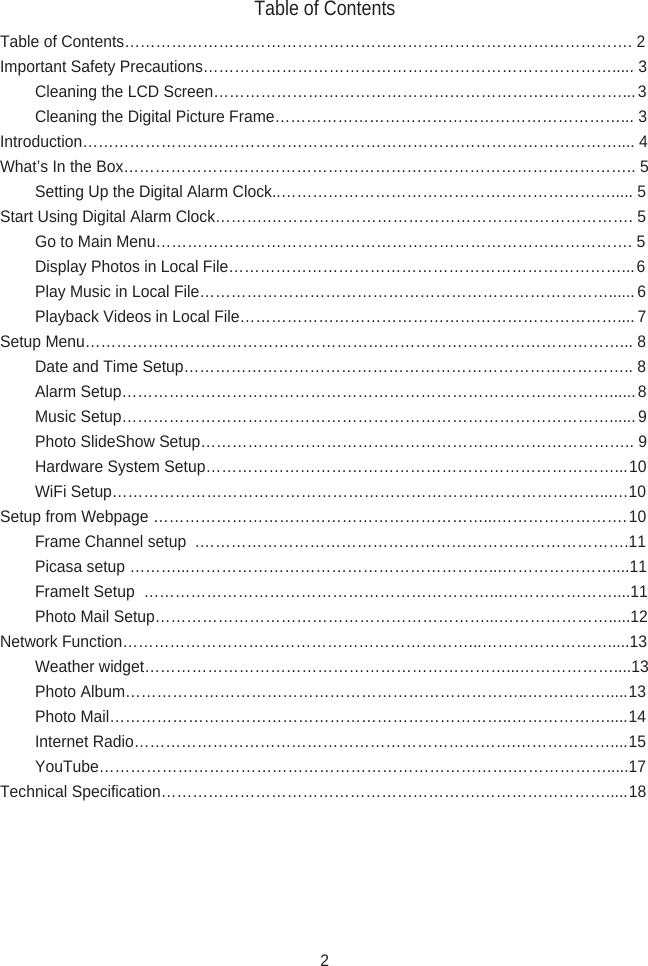

Table of ContentsTable of Contents……………………………………………………………………………………. 2Important Safety Precautions……………………………………………………………………..... 3        Cleaning the LCD Screen……………………………………………………………………... 3        Cleaning the Digital Picture Frame…………………………………………………………... 3Introduction………………………………………………………………………………………….... 4What’s In the Box…………………………………………………………………………………….. 5        Setting Up the Digital Alarm Clock..………………………………………………………..... 5Start Using Digital Alarm Clock……….……………………………………………………………. 5        Go to Main Menu………………………………………………………………………………. 5        Display Photos in Local File…………………………………………………………………... 6        Play Music in Local File……………………………………………………………………...... 6        Playback Videos in Local File……………………………………………………………….... 7Setup Menu…………………………………………………………………………………………... 8        Date and Time Setup………………………………………………………………………….. 8        Alarm Setup…………………………………………………………………………………...... 8        Music Setup…………………………………………………………………………………...... 9        Photo SlideShow Setup……………………………………………………………………….. 9        Hardware System Setup……………………………………………………………………...10        WiFi Setup…………………………………………………………………………………...…10Setup from Webpage ………………………………………………………...…………………….10        Frame Channel setup  .……………………………………………………………………….11        Picasa setup ………...…………………………………………………...…………………....11        FrameIt Setup  …………………………………………………………...…………………....11        Photo Mail Setup………………………………………………………...………………….....12Network Function…………………………………………………………...…………………….....13        Weather widget……………………………………………………………...………………....13        Photo Album…………………………………………………………………..…………….....13        Photo Mail…………………………………………………………………..……………….....14        Internet Radio……………………………………………………………….………………....15        YouTube…………………………………………………………………….……………….....17Technical Specification…………………………………………………….…………………….....182

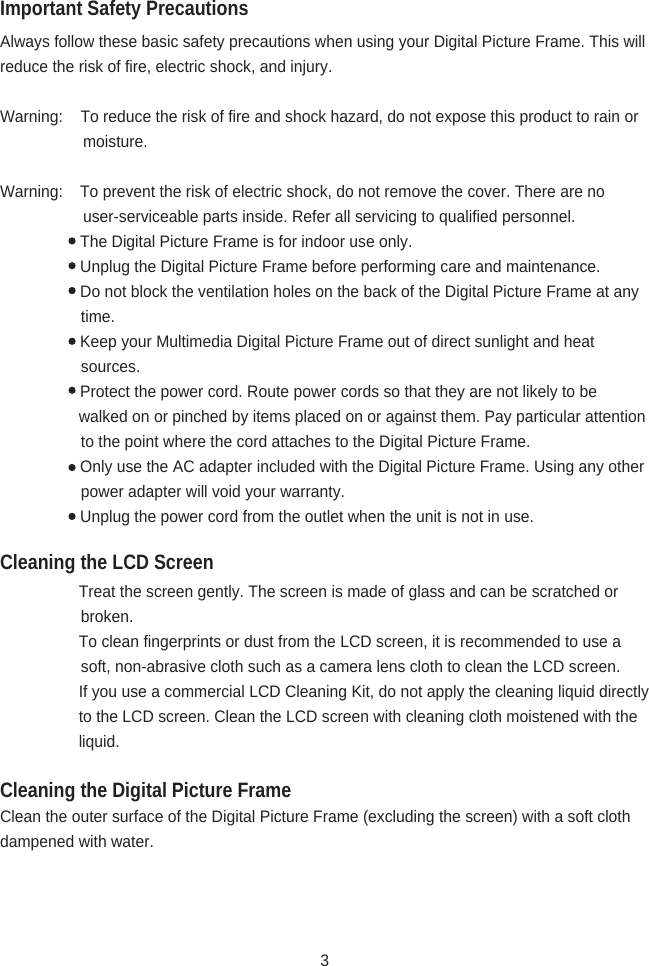

Important Safety PrecautionsCleaning the LCD ScreenCleaning the Digital Picture FrameAlways follow these basic safety precautions when using your Digital Picture Frame. This will reduce the risk of fire, electric shock, and injury.Warning:    To reduce the risk of fire and shock hazard, do not expose this product to rain or                                                                    moisture.Warning:  To prevent the risk of electric shock, do not remove the cover. There are no                                       user-serviceable parts inside. Refer all servicing to qualified personnel.   The Digital Picture Frame is for indoor use only.   Unplug the Digital Picture Frame before performing care and maintenance.   Do not block the ventilation holes on the back of the Digital Picture Frame at any                                      time.   Keep your Multimedia Digital Picture Frame out of direct sunlight and heat                                                        sources.   Protect the power cord. Route power cords so that they are not likely to be                                walked on or pinched by items placed on or against them. Pay particular attention                                      to the point where the cord attaches to the Digital Picture Frame.   Only use the AC adapter included with the Digital Picture Frame. Using any other                                      power adapter will void your warranty.   Unplug the power cord from the outlet when the unit is not in use.                   Treat the screen gently. The screen is made of glass and can be scratched or                                                     broken.                  To clean fingerprints or dust from the LCD screen, it is recommended to use a                                                  soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.                                   If you use a commercial LCD Cleaning Kit, do not apply the cleaning liquid directly                                     to the LCD screen. Clean the LCD screen with cleaning cloth moistened with the                                        liquid.Clean the outer surface of the Digital Picture Frame (excluding the screen) with a soft cloth dampened with water.3

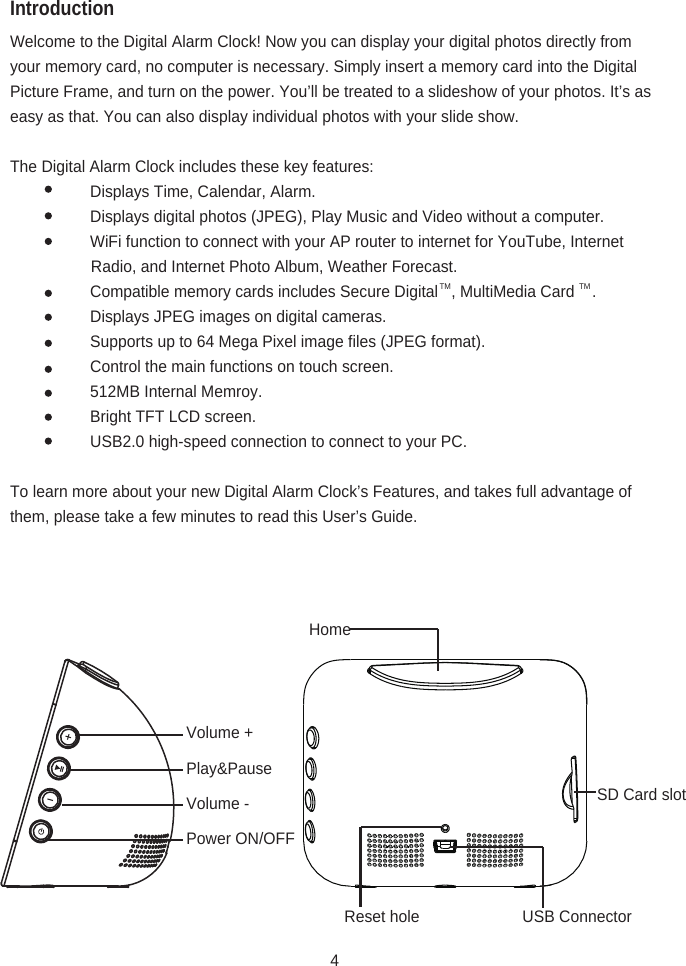

IntroductionWelcome to the Digital Alarm Clock! Now you can display your digital photos directly from your memory card, no computer is necessary. Simply insert a memory card into the Digital Picture Frame, and turn on the power. You’ll be treated to a slideshow of your photos. It’s as easy as that. You can also display individual photos with your slide show.The Digital Alarm Clock includes these key features:   Displays Time, Calendar, Alarm.   Displays digital photos (JPEG), Play Music and Video without a computer.   WiFi function to connect with your AP router to internet for YouTube, Internet                                      Radio, and Internet Photo Album, Weather Forecast.   Compatible memory cards includes Secure Digital   , MultiMedia Card    .   Displays JPEG images on digital cameras.   Supports up to 64 Mega Pixel image files (JPEG format).   Control the main functions on touch screen.   512MB Internal Memroy.   Bright TFT LCD screen.   USB2.0 high-speed connection to connect to your PC.To learn more about your new Digital Alarm Clock’s Features, and takes full advantage of them, please take a few minutes to read this User’s Guide.Volume +HomeVolume -Play&PausePower ON/OFFReset hole USB ConnectorSD Card slot4TM TM

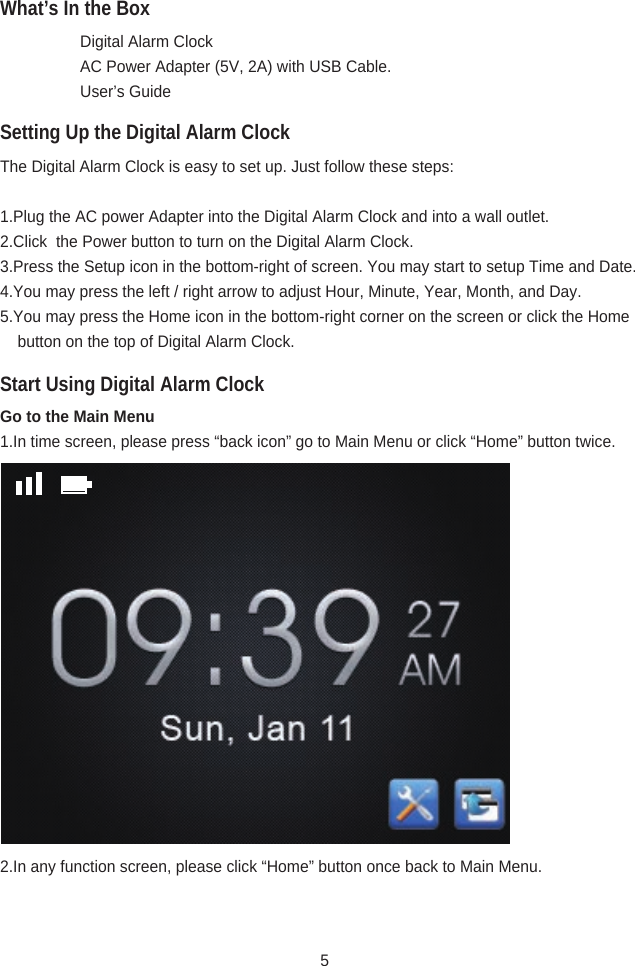

What’s In the BoxSetting Up the Digital Alarm ClockStart Using Digital Alarm Clock  Digital Alarm Clock  AC Power Adapter (5V, 2A) with USB Cable.  User’s GuideThe Digital Alarm Clock is easy to set up. Just follow these steps:1.Plug the AC power Adapter into the Digital Alarm Clock and into a wall outlet.2.Click  the Power button to turn on the Digital Alarm Clock.3.Press the Setup icon in the bottom-right of screen. You may start to setup Time and Date.4.You may press the left / right arrow to adjust Hour, Minute, Year, Month, and Day.5.You may press the Home icon in the bottom-right corner on the screen or click the Home         button on the top of Digital Alarm Clock.Go to the Main Menu1.In time screen, please press “back icon” go to Main Menu or click “Home” button twice.  2.In any function screen, please click “Home” button once back to Main Menu.5

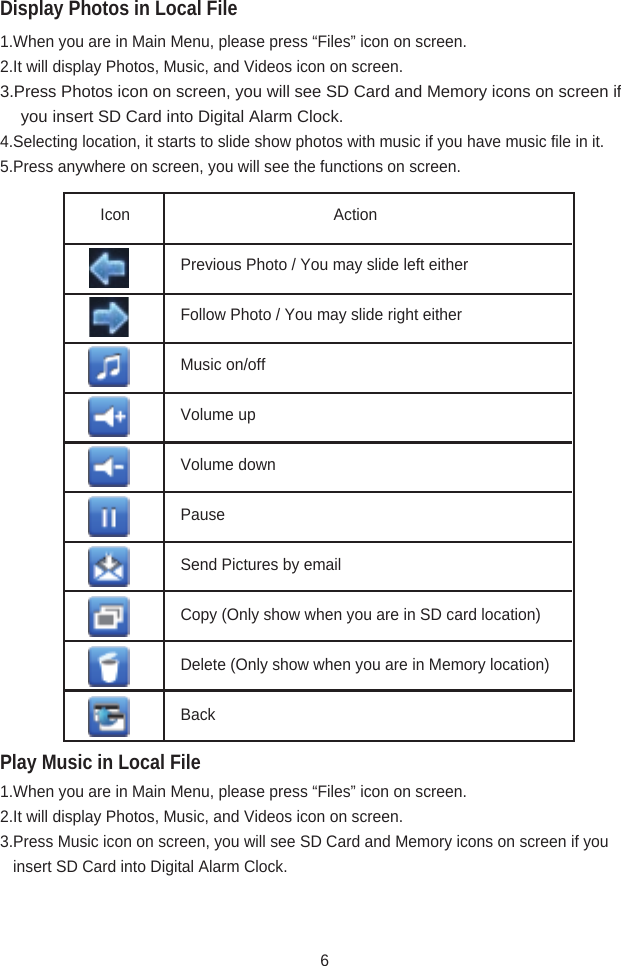

Display Photos in Local FilePlay Music in Local File1.When you are in Main Menu, please press “Files” icon on screen.2.It will display Photos, Music, and Videos icon on screen.3.Press Photos icon on screen, you will see SD Card and Memory icons on screen if           you   insert SD Card into Digital Alarm Clock.4.Selecting location, it starts to slide show photos with music if you have music file in it.5.Press anywhere on screen, you will see the functions on screen. 1.When you are in Main Menu, please press “Files” icon on screen.2.It will display Photos, Music, and Videos icon on screen.3.Press Music icon on screen, you will see SD Card and Memory icons on screen if you                     insert SD Card into Digital Alarm Clock.Icon                                     Action     Previous Photo / You may slide left either     Follow Photo / You may slide right either     Music on/off     Volume up     Volume down     Pause     Send Pictures by email     Copy (Only show when you are in SD card location)     Delete (Only show when you are in Memory location)     Back6

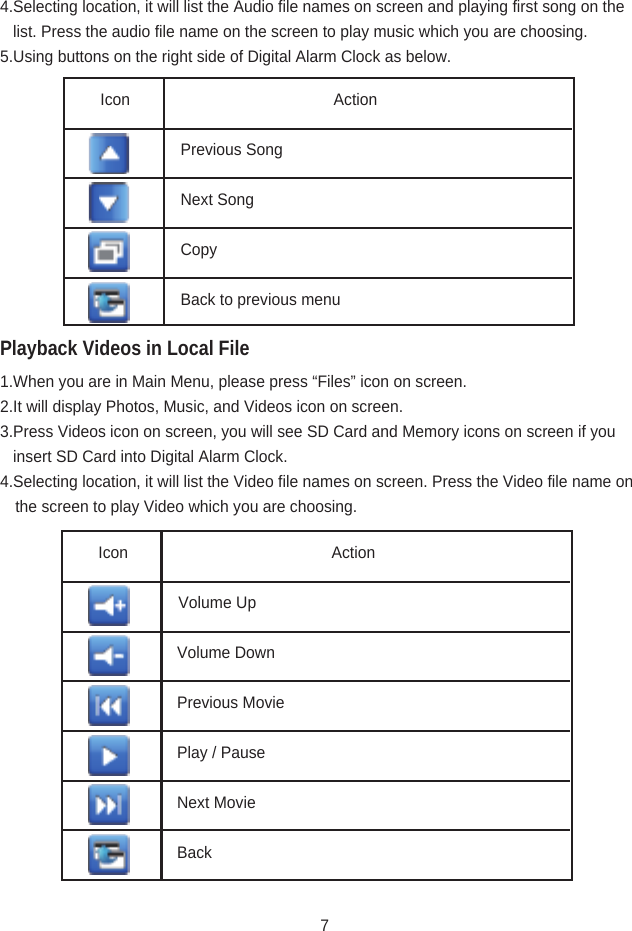

Playback Videos in Local File4.Selecting location, it will list the Audio file names on screen and playing first song on the                              list. Press the audio file name on the screen to play music which you are choosing.5.Using buttons on the right side of Digital Alarm Clock as below.1.When you are in Main Menu, please press “Files” icon on screen.2.It will display Photos, Music, and Videos icon on screen.3.Press Videos icon on screen, you will see SD Card and Memory icons on screen if you           insert SD Card into Digital Alarm Clock.4.Selecting location, it will list the Video file names on screen. Press the Video file name on        the screen to play Video which you are choosing.Icon                                     Action     Previous Song      Next Song       Copy      Back to previous menuIcon                                     Action     Volume Up                  Volume Down                  Previous Movie                      Play / Pause                                 Next Movie                  Back7

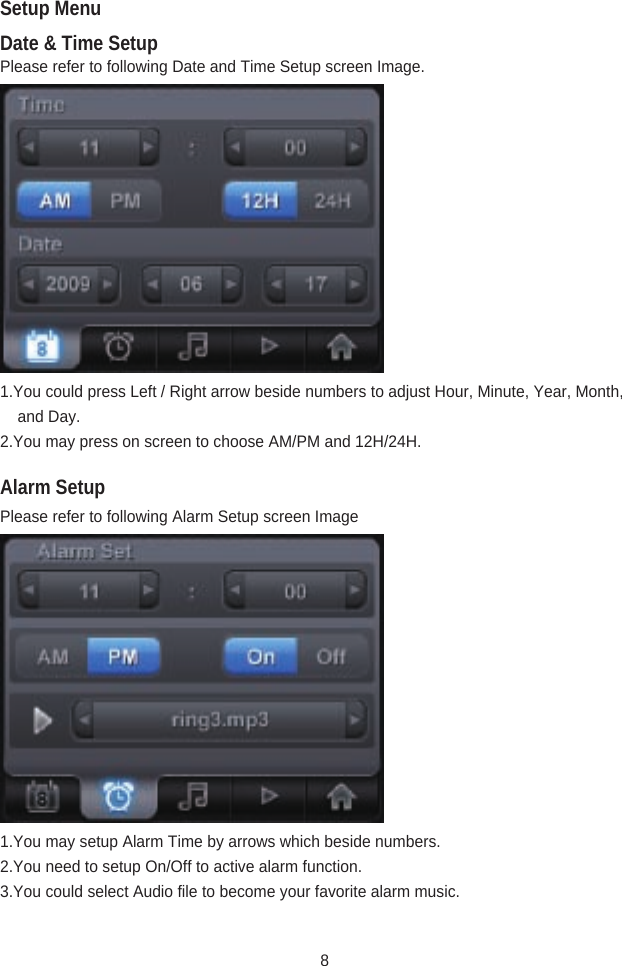

Date & Time SetupAlarm SetupPlease refer to following Date and Time Setup screen Image.1.You could press Left / Right arrow beside numbers to adjust Hour, Minute, Year, Month,      and Day.2.You may press on screen to choose AM/PM and 12H/24H.Please refer to following Alarm Setup screen Image1.You may setup Alarm Time by arrows which beside numbers.2.You need to setup On/Off to active alarm function.3.You could select Audio file to become your favorite alarm music.Setup Menu8

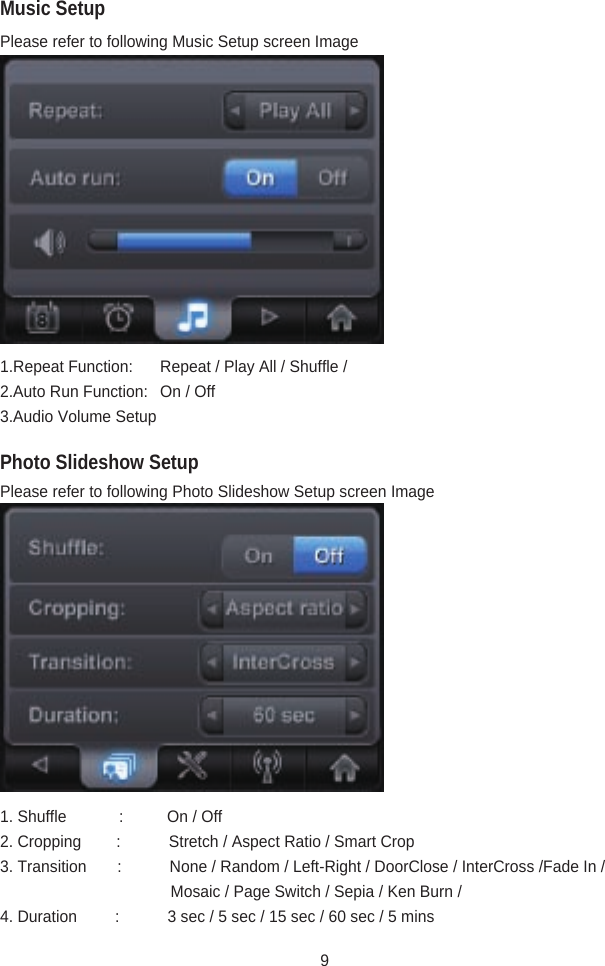

Photo Slideshow SetupPlease refer to following Music Setup screen Image1.Repeat Function:  Repeat / Play All / Shuffle / 2.Auto Run Function:  On / Off3.Audio Volume Setup Please refer to following Photo Slideshow Setup screen Image1. Shuffle            :          On / Off2. Cropping        :           Stretch / Aspect Ratio / Smart Crop3. Transition       :           None / Random / Left-Right / DoorClose / InterCross /Fade In /                                              Mosaic / Page Switch / Sepia / Ken Burn / 4. Duration         :           3 sec / 5 sec / 15 sec / 60 sec / 5 minsMusic Setup9

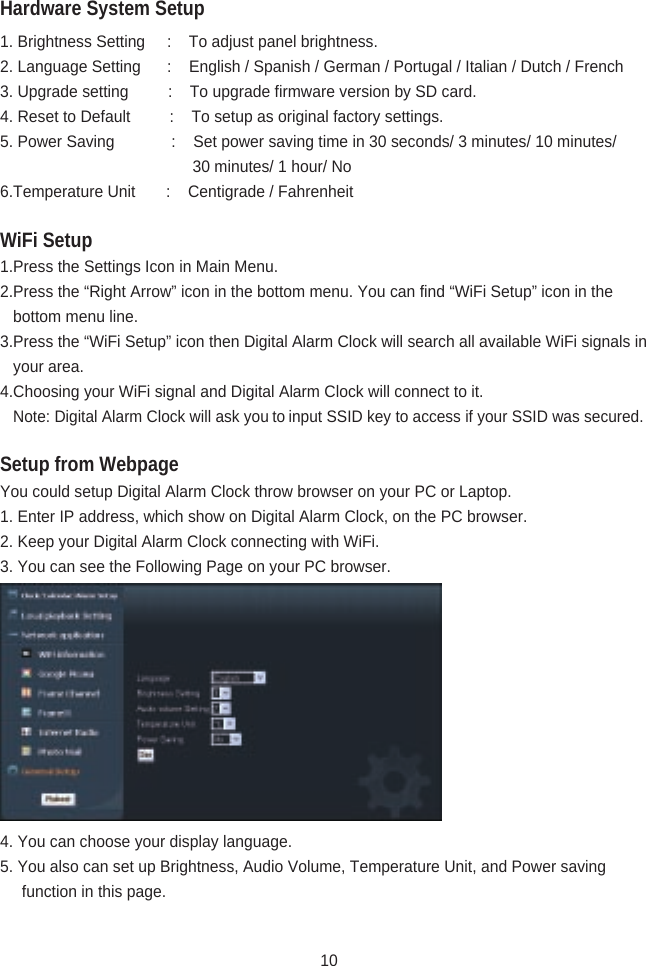

1. Brightness Setting     :    To adjust panel brightness.2. Language Setting      :    English / Spanish / German / Portugal / Italian / Dutch / French3. Upgrade setting         :    To upgrade firmware version by SD card.4. Reset to Default         :    To setup as original factory settings.5. Power Saving             :    Set power saving time in 30 seconds/ 3 minutes/ 10 minutes/                                             30 minutes/ 1 hour/ No6.Temperature Unit       :    Centigrade / Fahrenheit 1.Press the Settings Icon in Main Menu.2.Press the “Right Arrow” icon in the bottom menu. You can find “WiFi Setup” icon in the       bottom menu line.3.Press the “WiFi Setup” icon then Digital Alarm Clock will search all available WiFi signals in       your area.4.Choosing your WiFi signal and Digital Alarm Clock will connect to it.   Note: Digital Alarm Clock will ask you to input SSID key to access if your SSID was secured.You could setup Digital Alarm Clock throw browser on your PC or Laptop.1. Enter IP address, which show on Digital Alarm Clock, on the PC browser.2. Keep your Digital Alarm Clock connecting with WiFi.3. You can see the Following Page on your PC browser.4. You can choose your display language.5. You also can set up Brightness, Audio Volume, Temperature Unit, and Power saving       function in this page.Hardware System SetupWiFi SetupSetup from Webpage10

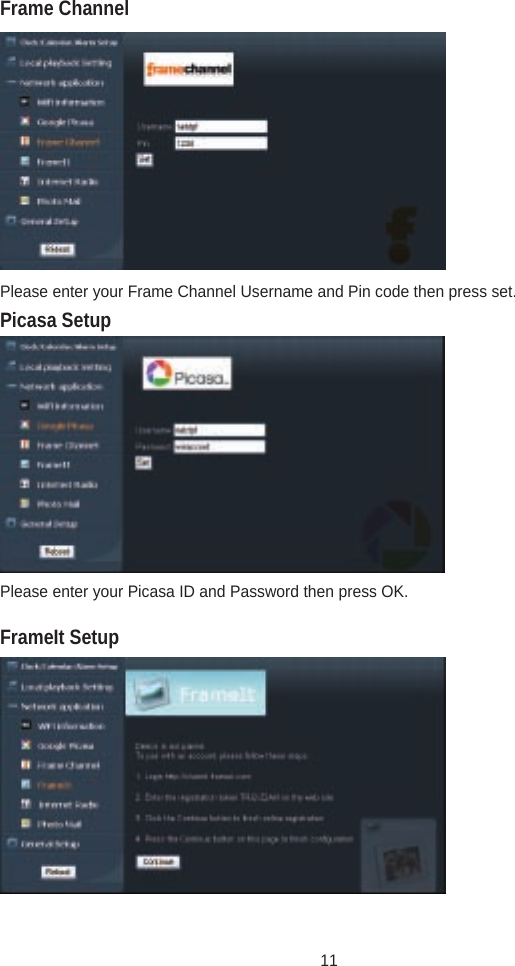

Please enter your Frame Channel Username and Pin code then press set.Please enter your Picasa ID and Password then press OK.Frame ChannelPicasa SetupFrameIt Setup11

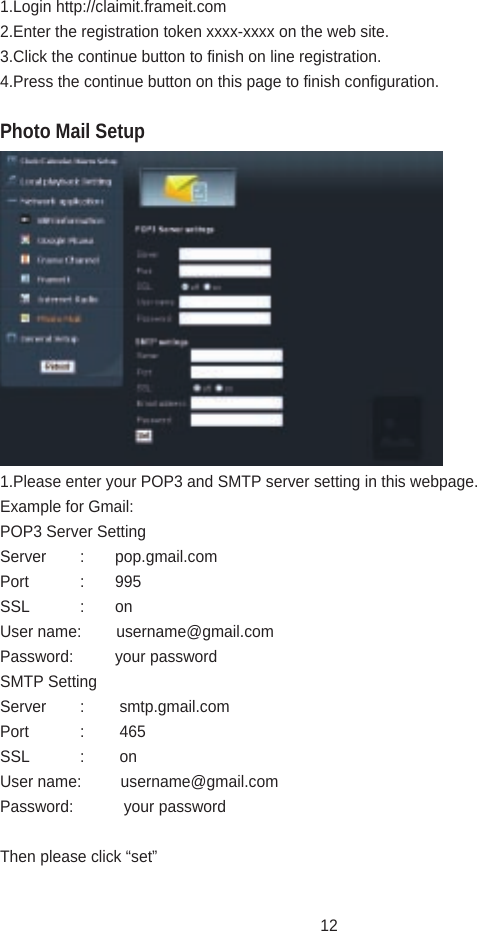

1.Login http://claimit.frameit.com 2.Enter the registration token xxxx-xxxx on the web site.3.Click the continue button to finish on line registration.4.Press the continue button on this page to finish configuration.1.Please enter your POP3 and SMTP server setting in this webpage.Example for Gmail:POP3 Server SettingServer  :       pop.gmail.comPort  :       995SSL  :       onUser name:        username@gmail.comPassword:         your passwordSMTP SettingServer  :        smtp.gmail.comPort  :        465SSL  :        onUser name:         username@gmail.comPassword:           your passwordThen please click “set”Photo Mail Setup12

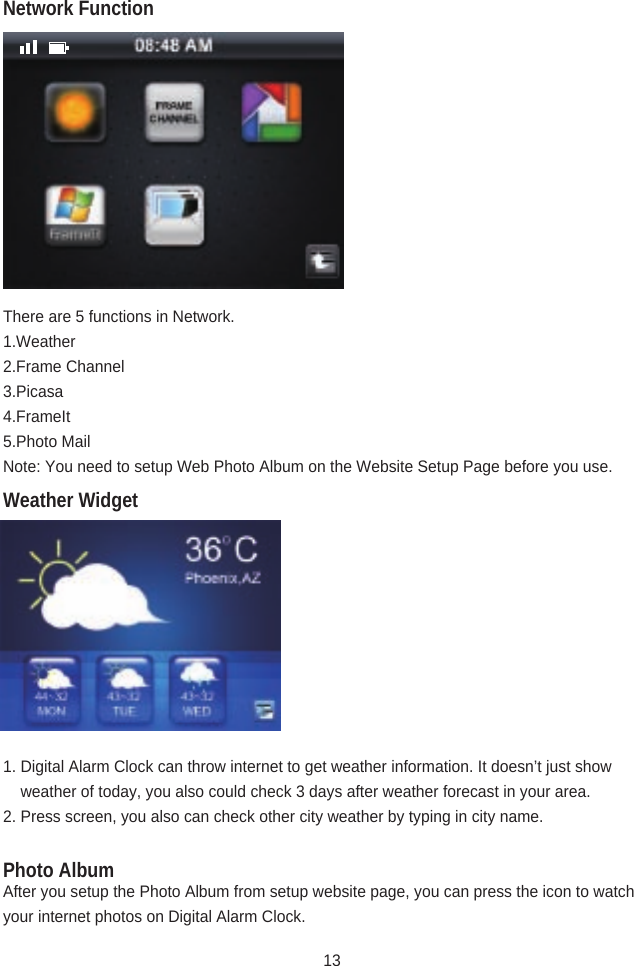

There are 5 functions in Network.1.Weather2.Frame Channel3.Picasa4.FrameIt5.Photo MailNote: You need to setup Web Photo Album on the Website Setup Page before you use.1. Digital Alarm Clock can throw internet to get weather information. It doesn’t just show      weather of today, you also could check 3 days after weather forecast in your area.2. Press screen, you also can check other city weather by typing in city name.After you setup the Photo Album from setup website page, you can press the icon to watch your internet photos on Digital Alarm Clock.Weather WidgetPhoto AlbumNetwork Function13

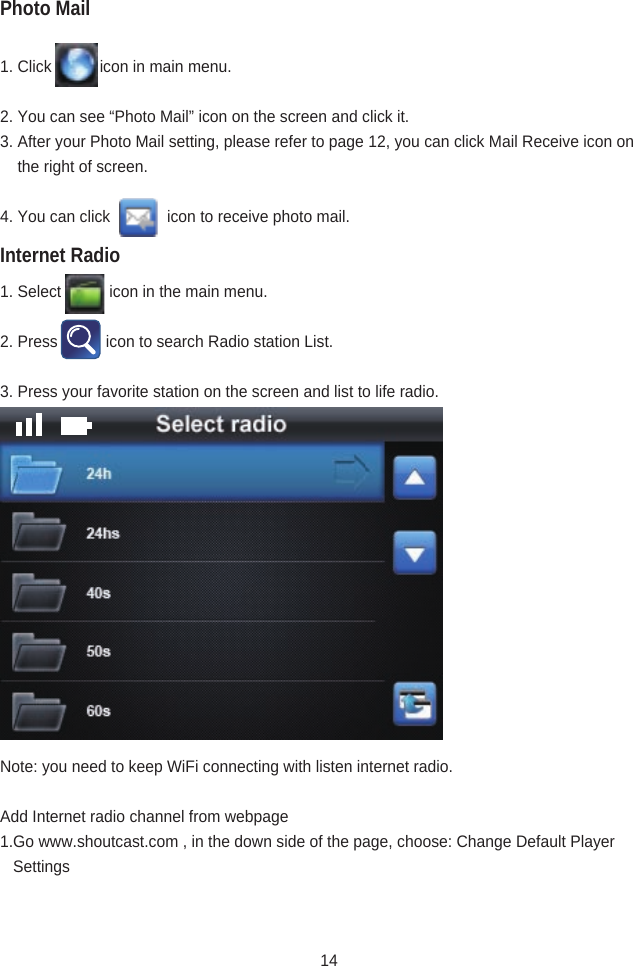

1. Click           icon in main menu.2. You can see “Photo Mail” icon on the screen and click it.3. After your Photo Mail setting, please refer to page 12, you can click Mail Receive icon on      the right of screen.4. You can click             icon to receive photo mail.1. Select           icon in the main menu.2. Press           icon to search Radio station List.3. Press your favorite station on the screen and list to life radio.Note: you need to keep WiFi connecting with listen internet radio.Add Internet radio channel from webpage1.Go www.shoutcast.com , in the down side of the page, choose: Change Default Player                 SettingsInternet RadioPhoto Mail14

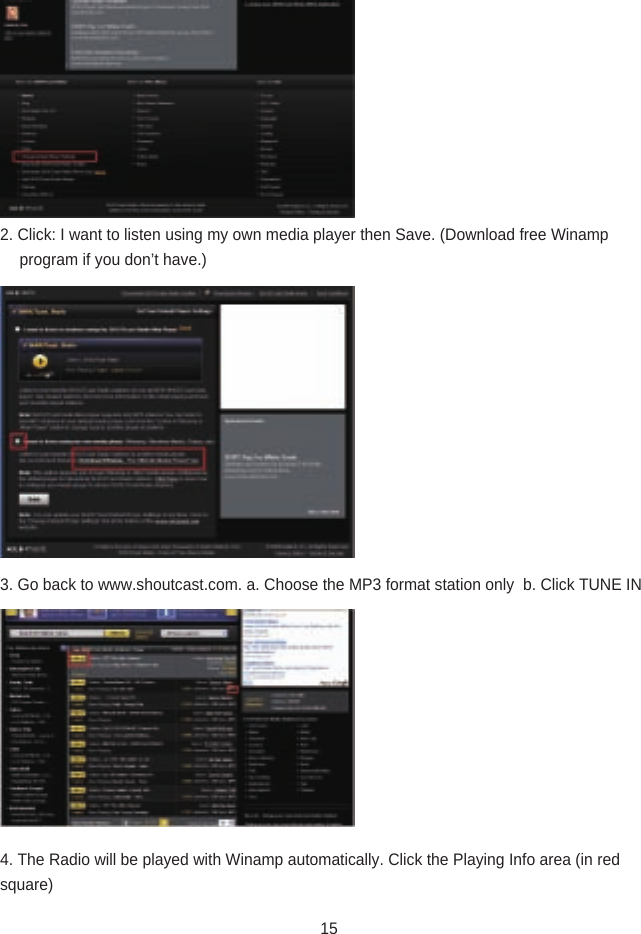

2. Click: I want to listen using my own media player then Save. (Download free Winamp                   program if you don’t have.)3. Go back to www.shoutcast.com. a. Choose the MP3 format station only  b. Click TUNE IN4. The Radio will be played with Winamp automatically. Click the Playing Info area (in red square)15

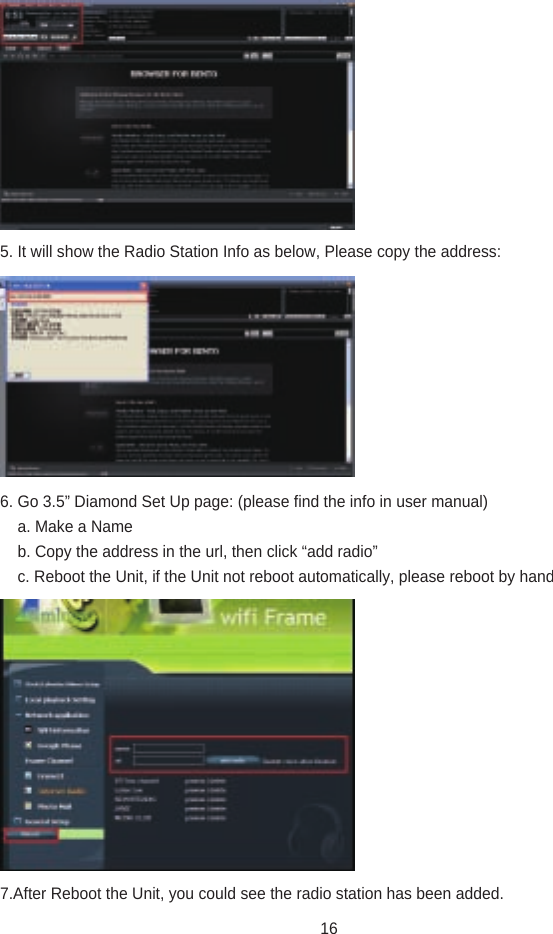

5. It will show the Radio Station Info as below, Please copy the address:6. Go 3.5” Diamond Set Up page: (please find the info in user manual)    a. Make a Name    b. Copy the address in the url, then click “add radio”    c. Reboot the Unit, if the Unit not reboot automatically, please reboot by hand7.After Reboot the Unit, you could see the radio station has been added.16

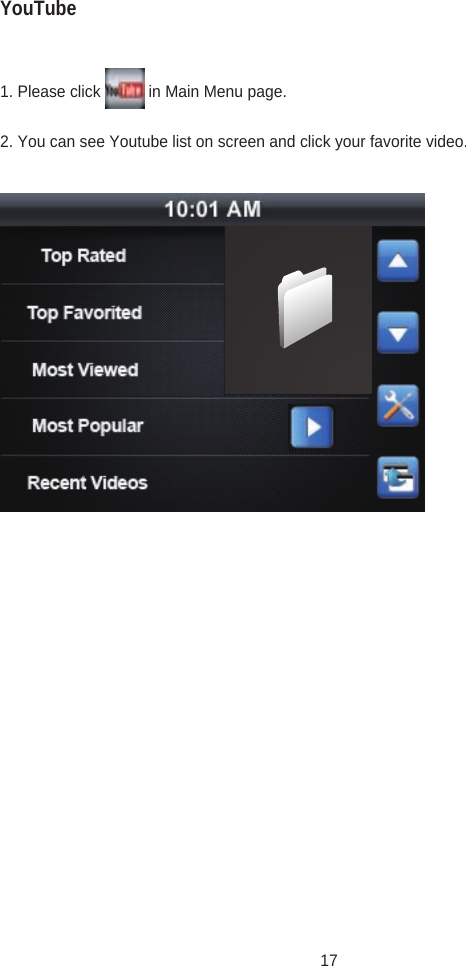

1. Please click           in Main Menu page.2. You can see Youtube list on screen and click your favorite video.YouTube17

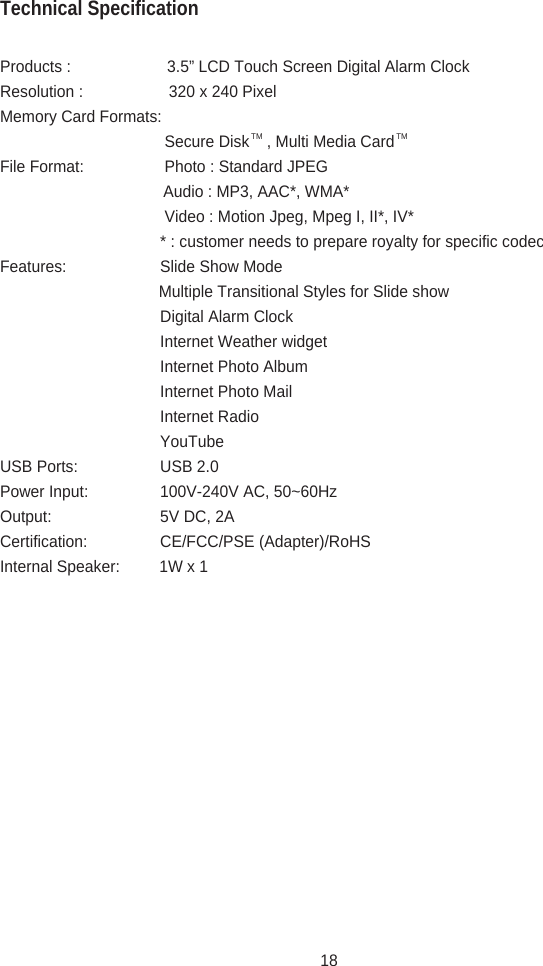

Products :                      3.5” LCD Touch Screen Digital Alarm ClockResolution :    320 x 240 PixelMemory Card Formats:     Secure Disk    , Multi Media CardFile Format:   Photo : Standard JPEG                     Audio : MP3, AAC*, WMA*     Video : Motion Jpeg, Mpeg I, II*, IV*    * : customer needs to prepare royalty for specific codecFeatures:    Slide Show Mode                    Multiple Transitional Styles for Slide show    Digital Alarm Clock    Internet Weather widget    Internet Photo Album    Internet Photo Mail    Internet Radio    YouTubeUSB Ports:   USB 2.0Power Input:  100V-240V AC, 50~60HzOutput:    5V DC, 2ACertification:  CE/FCC/PSE (Adapter)/RoHSInternal Speaker:         1W x 1Technical SpecificationTM TM18

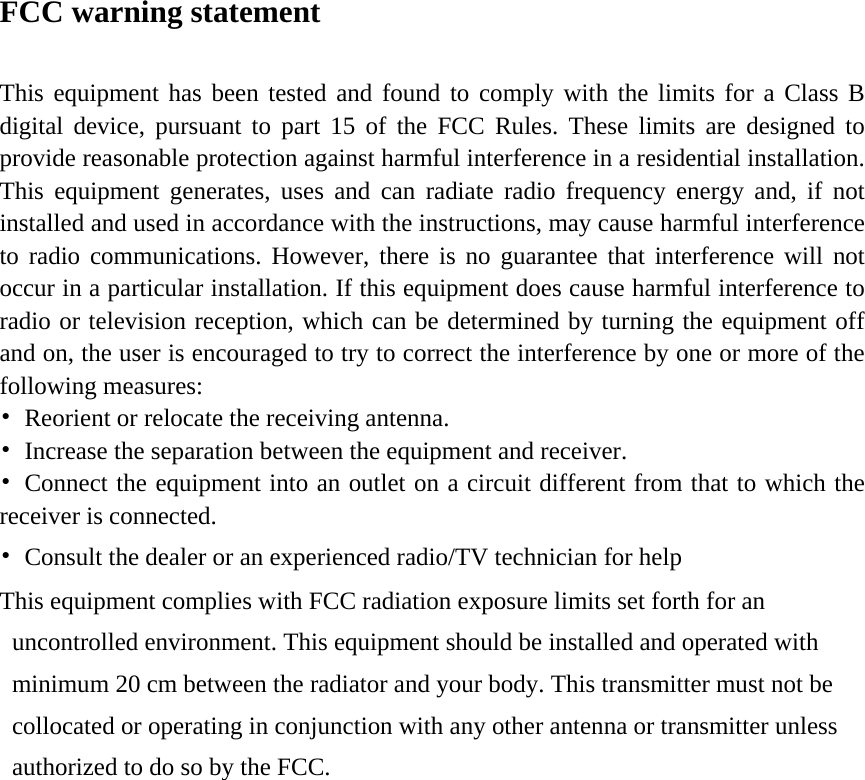

FCC warning statement  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •  Reorient or relocate the receiving antenna. •  Increase the separation between the equipment and receiver. •  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •  Consult the dealer or an experienced radio/TV technician for help   This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.
