BRF210 Hardware Installation Manual

   BRF210 Hardware Installation Guide  Version 0.1
   DOCUMENT REVISION INFORMATION Version Date Revision Information 0.1 15/10/2014 Initial version.

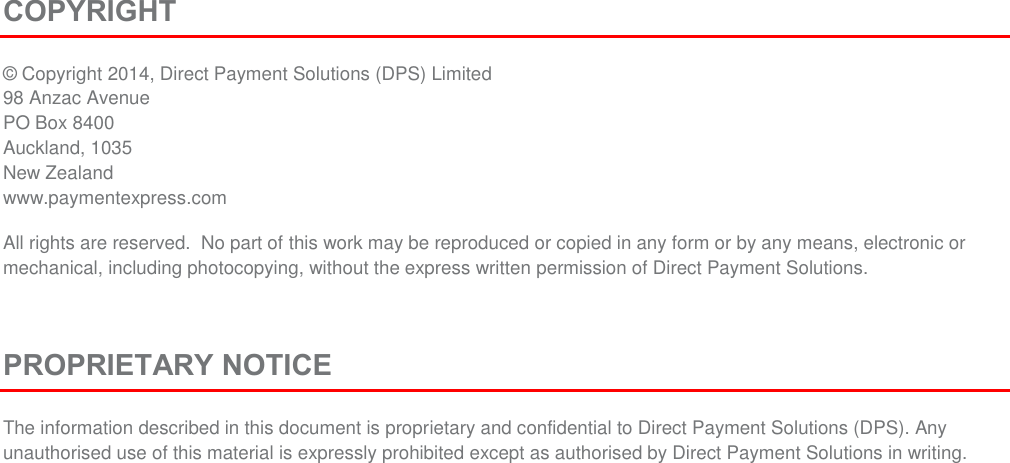

   COPYRIGHT © Copyright 2014, Direct Payment Solutions (DPS) Limited 98 Anzac Avenue PO Box 8400 Auckland, 1035 New Zealand www.paymentexpress.com All rights are reserved.  No part of this work may be reproduced or copied in any form or by any means, electronic or mechanical, including photocopying, without the express written permission of Direct Payment Solutions.  PROPRIETARY NOTICE The information described in this document is proprietary and confidential to Direct Payment Solutions (DPS). Any unauthorised use of this material is expressly prohibited except as authorised by Direct Payment Solutions in writing.

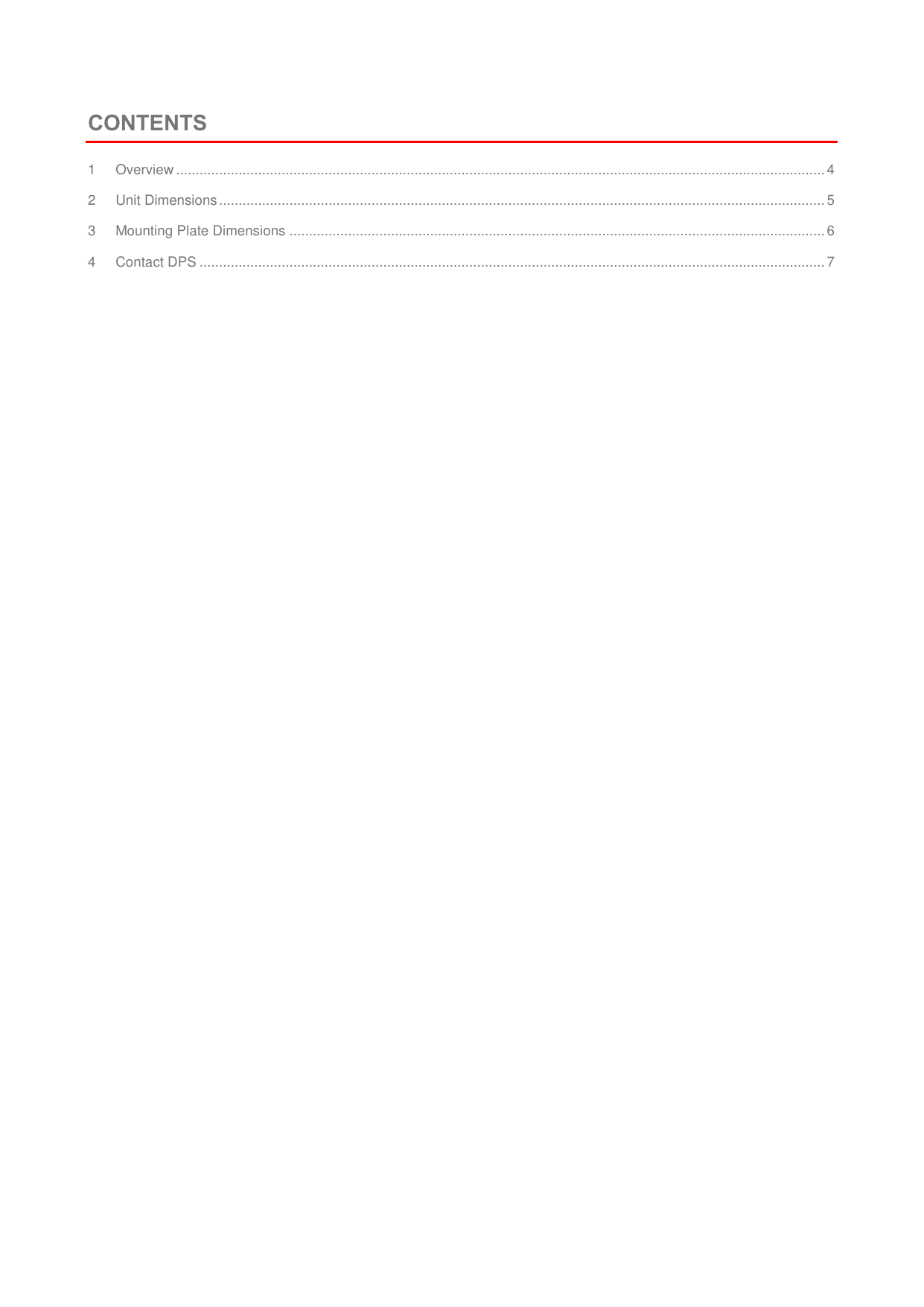

   CONTENTS 1 Overview ...................................................................................................................................................................... 4 2 Unit Dimensions ........................................................................................................................................................... 5 3 Mounting Plate Dimensions ......................................................................................................................................... 6 4 Contact DPS ................................................................................................................................................................ 7

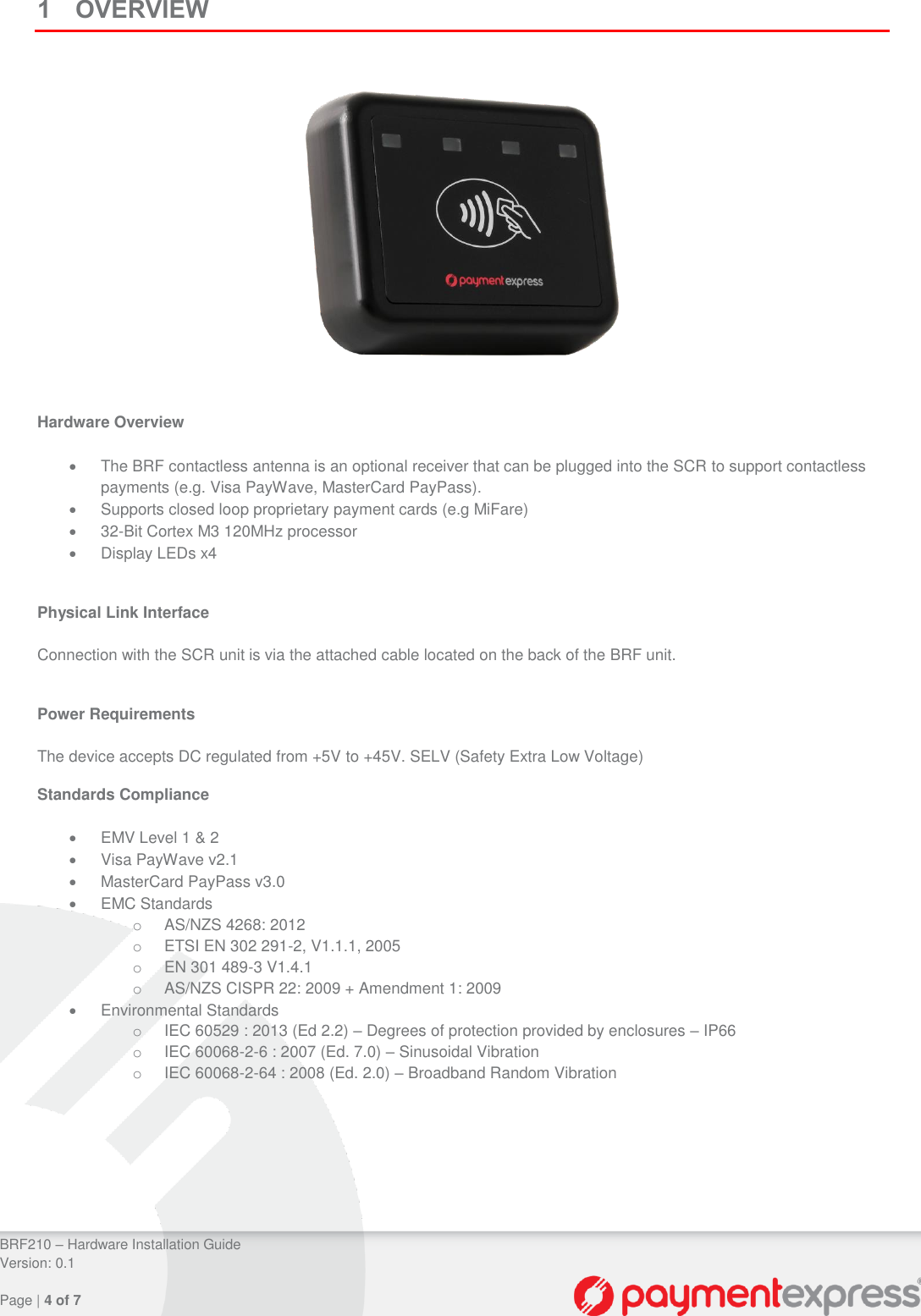

BRF210 – Hardware Installation Guide Version: 0.1   Page | 4 of 7    1 OVERVIEW    Hardware Overview    The BRF contactless antenna is an optional receiver that can be plugged into the SCR to support contactless payments (e.g. Visa PayWave, MasterCard PayPass).   Supports closed loop proprietary payment cards (e.g MiFare)  32-Bit Cortex M3 120MHz processor   Display LEDs x4  Physical Link Interface  Connection with the SCR unit is via the attached cable located on the back of the BRF unit.  Power Requirements  The device accepts DC regulated from +5V to +45V. SELV (Safety Extra Low Voltage) Standards Compliance    EMV Level 1 & 2   Visa PayWave v2.1   MasterCard PayPass v3.0   EMC Standards o  AS/NZS 4268: 2012 o  ETSI EN 302 291-2, V1.1.1, 2005 o  EN 301 489-3 V1.4.1 o  AS/NZS CISPR 22: 2009 + Amendment 1: 2009   Environmental Standards o  IEC 60529 : 2013 (Ed 2.2) – Degrees of protection provided by enclosures – IP66 o  IEC 60068-2-6 : 2007 (Ed. 7.0) – Sinusoidal Vibration  o  IEC 60068-2-64 : 2008 (Ed. 2.0) – Broadband Random Vibration

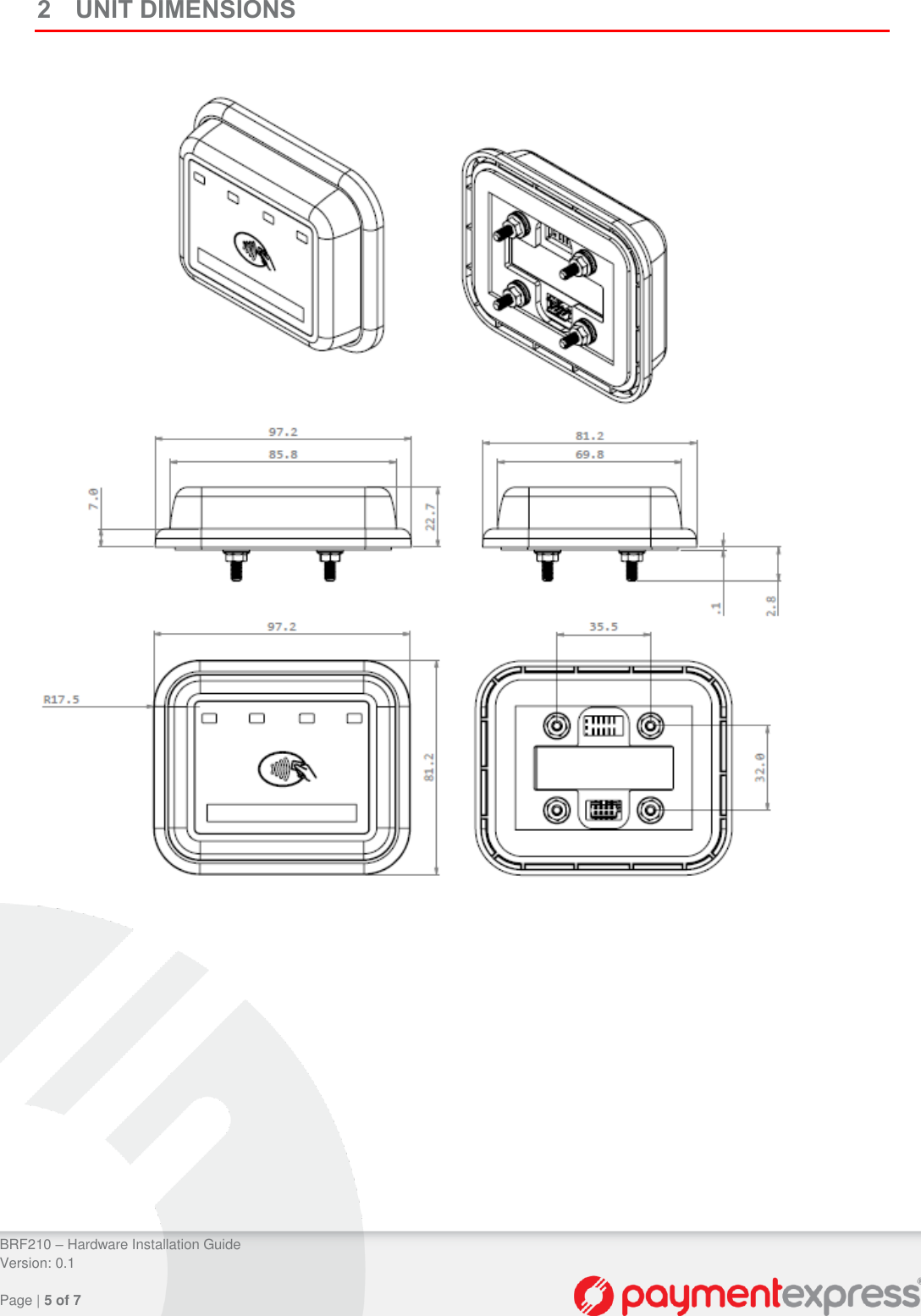

BRF210 – Hardware Installation Guide Version: 0.1   Page | 5 of 7    2 UNIT DIMENSIONS

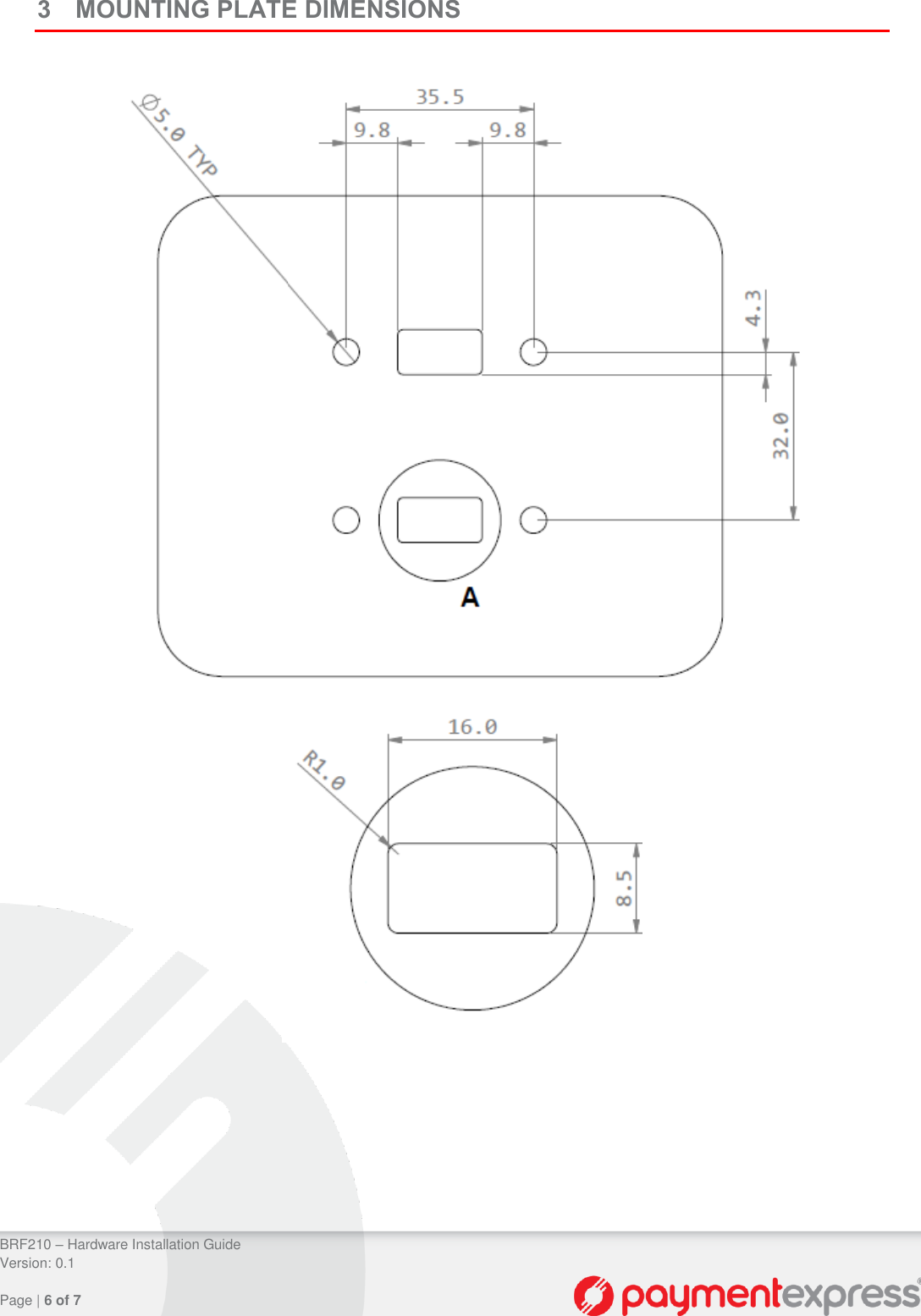

BRF210 – Hardware Installation Guide Version: 0.1   Page | 6 of 7    3 MOUNTING PLATE DIMENSIONS

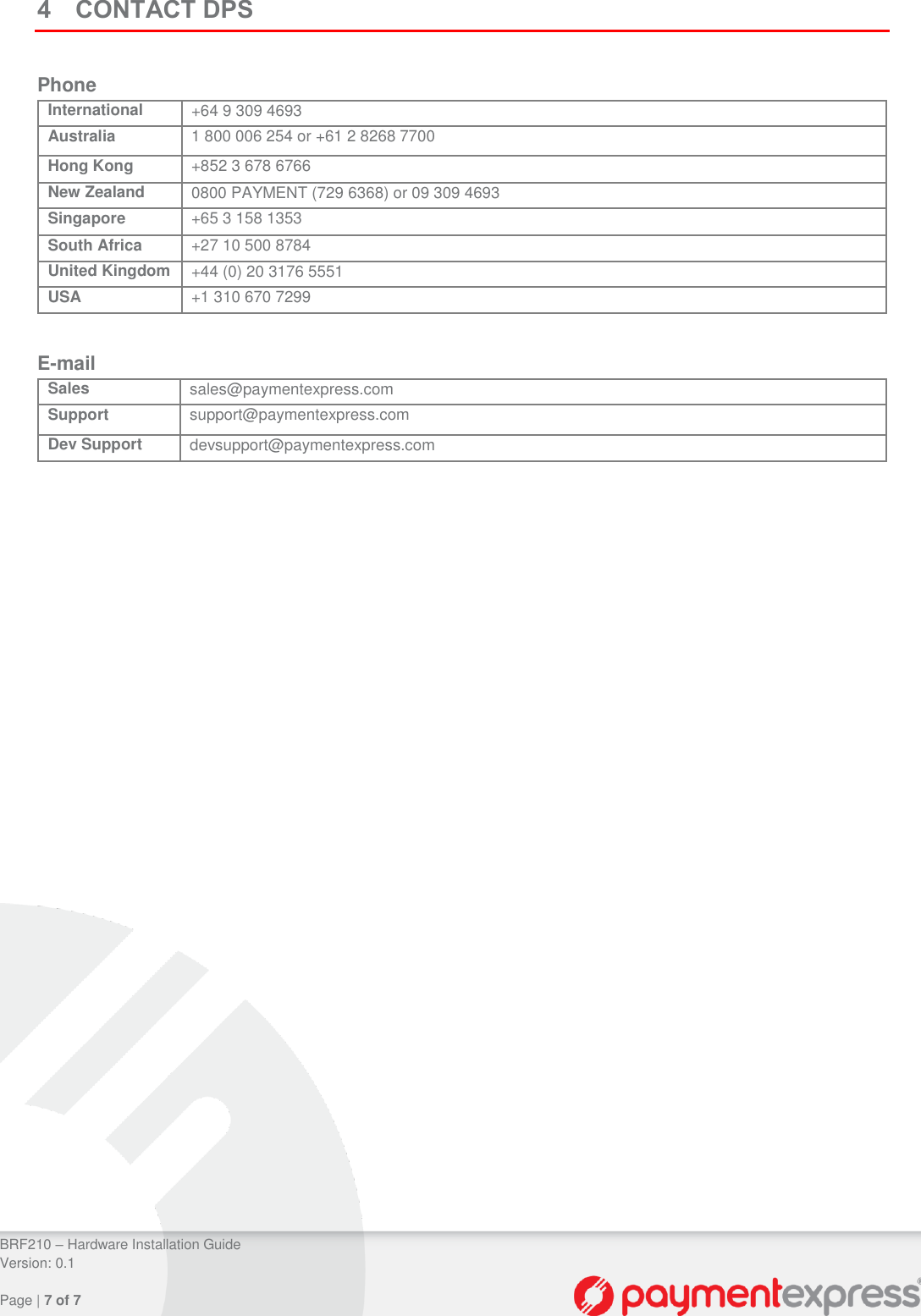

BRF210 – Hardware Installation Guide Version: 0.1   Page | 7 of 7    4 CONTACT DPS  Phone International +64 9 309 4693 Australia 1 800 006 254 or +61 2 8268 7700 Hong Kong +852 3 678 6766 New Zealand 0800 PAYMENT (729 6368) or 09 309 4693 Singapore +65 3 158 1353 South Africa +27 10 500 8784 United Kingdom +44 (0) 20 3176 5551 USA +1 310 670 7299  E-mail Sales sales@paymentexpress.com Support support@paymentexpress.com Dev Support devsupport@paymentexpress.com
