Winegard WF4000 WiFi Extender Product User Manual WF 4000 Quickx

Winegard Company WiFi Extender Product WF 4000 Quickx

Exhibit D Users Manual per 2 1033 b3

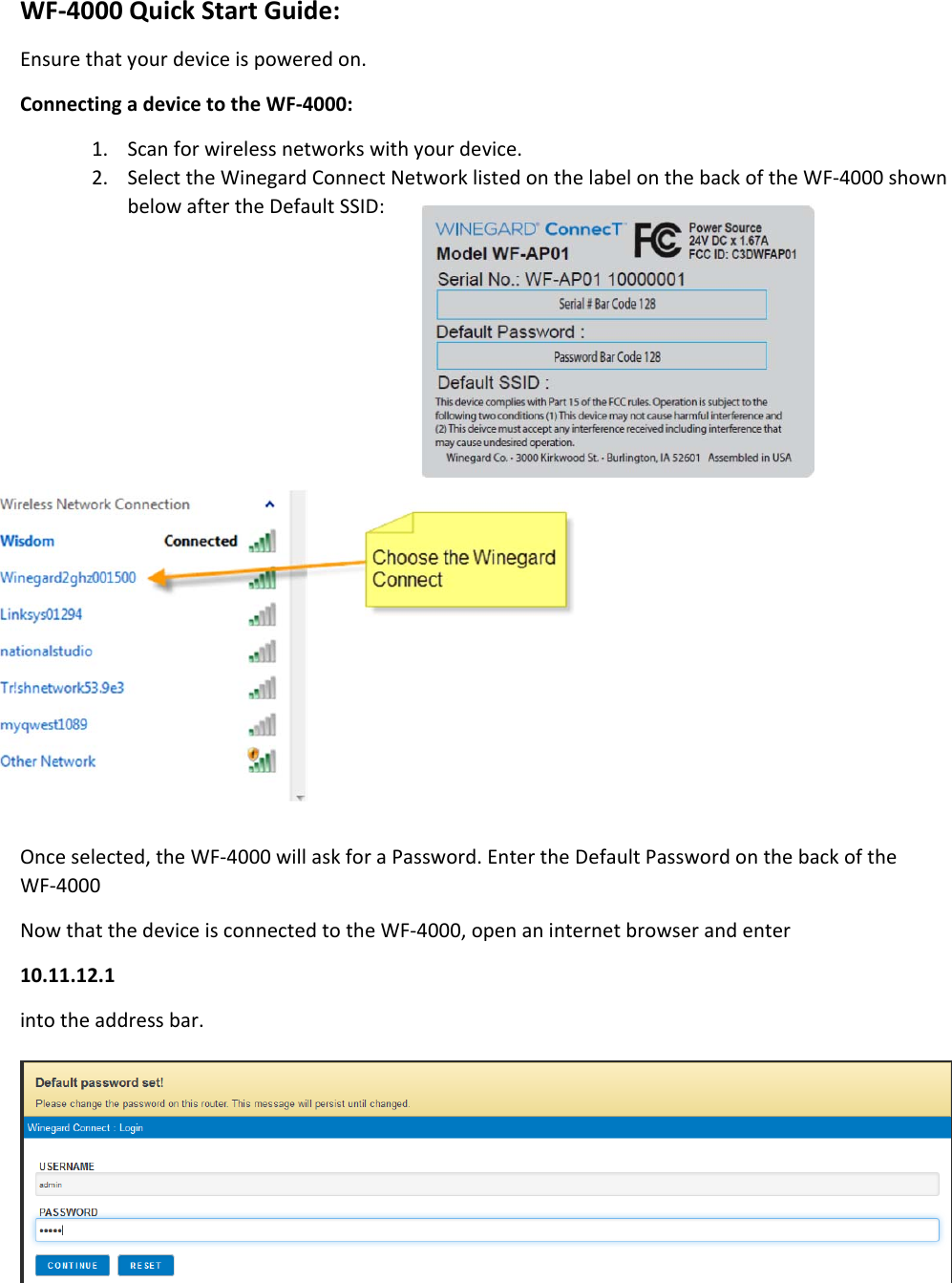

WF‐4000QuickStartGuide:Ensurethatyourdeviceispoweredon.ConnectingadevicetotheWF‐4000:1. Scanforwirelessnetworkswithyourdevice.2. SelecttheWinegardConnectNetworklistedonthelabelonthebackoftheWF‐4000shownbelowaftertheDefaultSSID:Onceselected,theWF‐4000willaskforaPassword.EntertheDefaultPasswordonthebackoftheWF‐4000NowthatthedeviceisconnectedtotheWF‐4000,openaninternetbrowserandenter10.11.12.1intotheaddressbar.

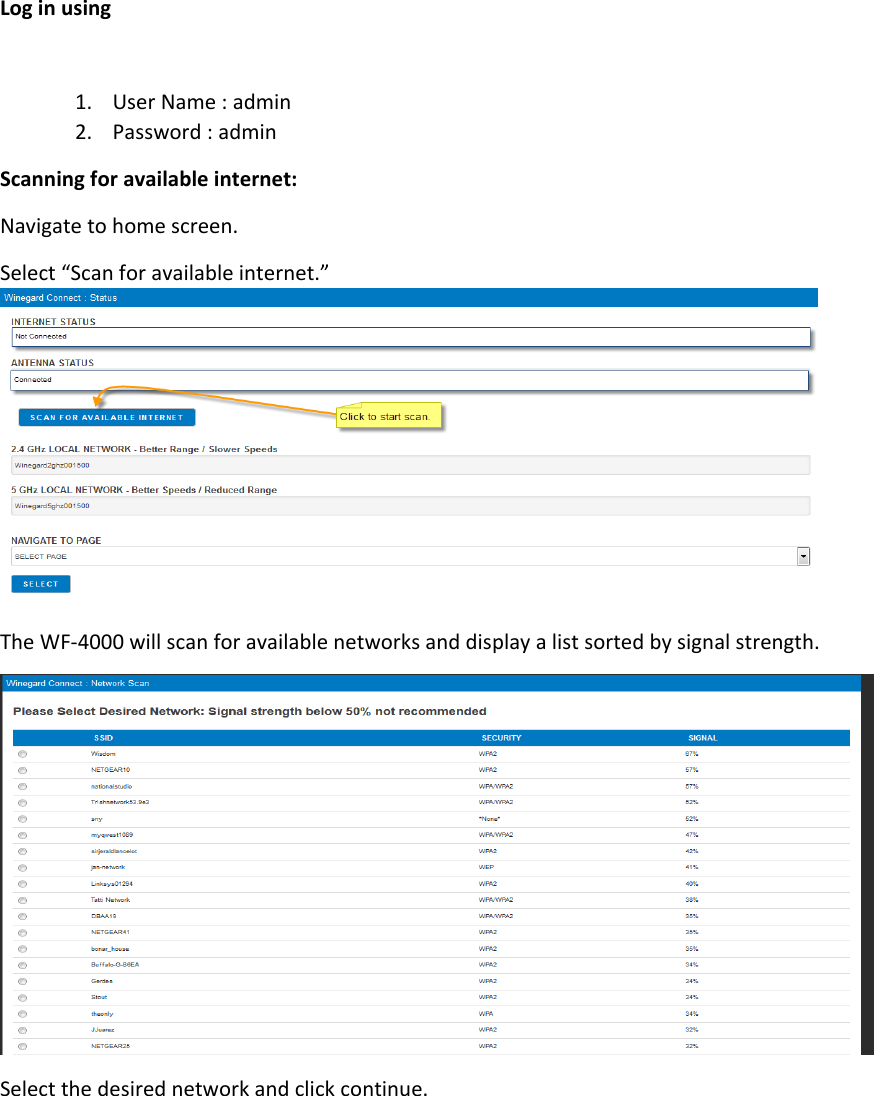

Loginusing1. UserName:admin2. Password:adminScanningforavailableinternet:Navigatetohomescreen.Select“Scanforavailableinternet.”TheWF‐4000willscanforavailablenetworksanddisplayalistsortedbysignalstrength.Selectthedesirednetworkandclickcontinue.

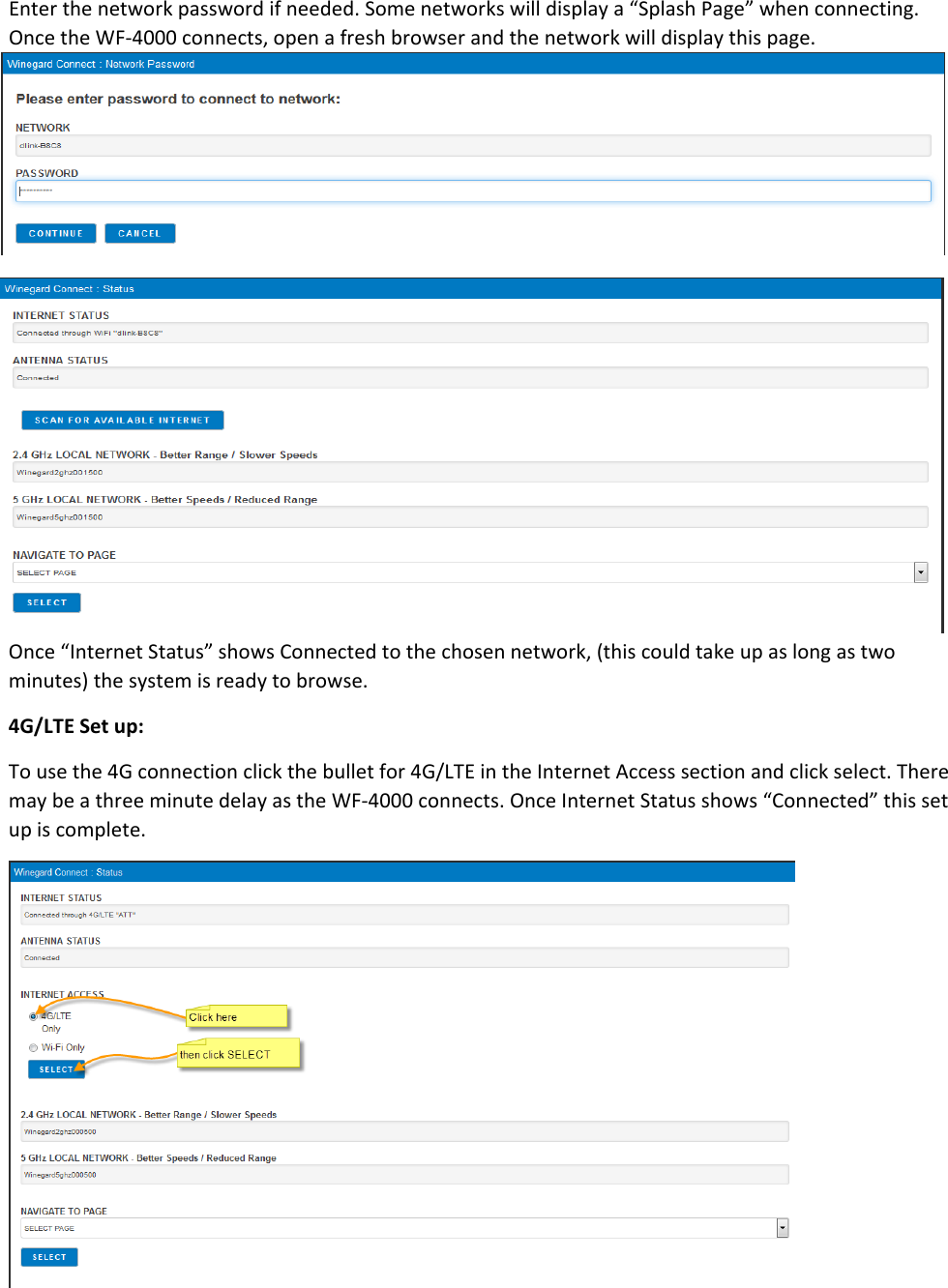

Enterthenetworkpasswordifneeded.Somenetworkswilldisplaya“SplashPage”whenconnecting.OncetheWF‐4000connects,openafreshbrowserandthenetworkwilldisplaythispage.Once“InternetStatus”showsConnectedtothechosennetwork,(thiscouldtakeupaslongastwominutes)thesystemisreadytobrowse.4G/LTESetup:Tousethe4Gconnectionclickthebulletfor4G/LTEintheInternetAccesssectionandclickselect.TheremaybeathreeminutedelayastheWF‐4000connects.OnceInternetStatusshows“Connected”thissetupiscomplete.

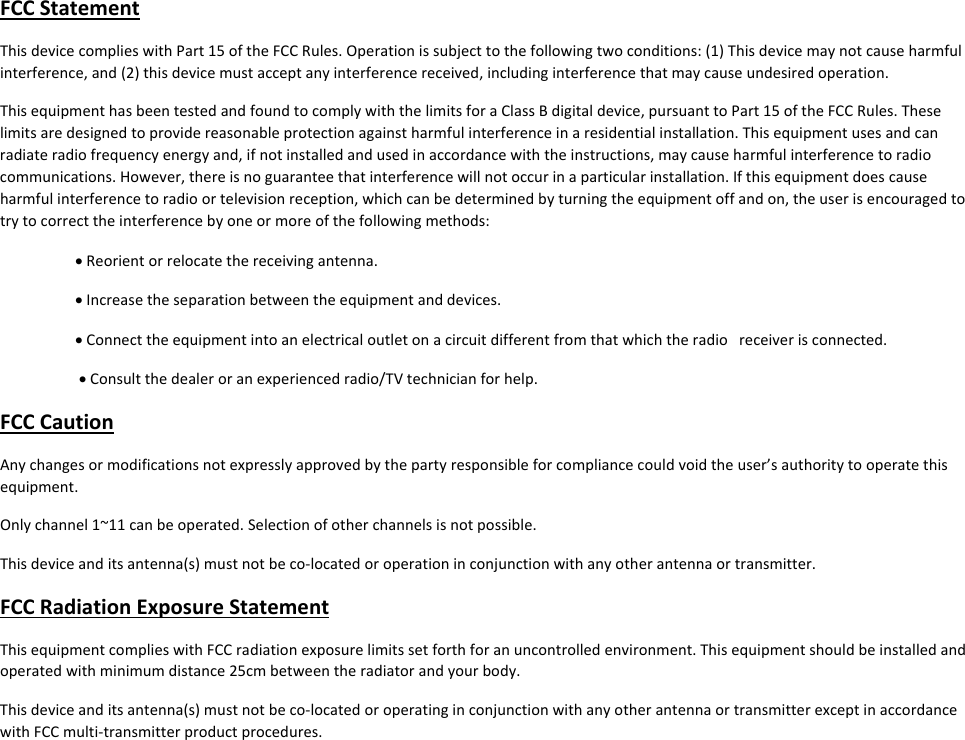

FCCStatementThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmethods:Reorientorrelocatethereceivingantenna.Increasetheseparationbetweentheequipmentanddevices.Connecttheequipmentintoanelectricaloutletonacircuitdifferentfromthatwhichtheradioreceiverisconnected.Consultthedealeroranexperiencedradio/TVtechnicianforhelp.FCCCautionAnychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.Onlychannel1~11canbeoperated.Selectionofotherchannelsisnotpossible.Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperationinconjunctionwithanyotherantennaortransmitter.FCCRadiationExposureStatementThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance25cmbetweentheradiatorandyourbody.Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitterexceptinaccordancewithFCCmulti‐transmitterproductprocedures.
