Wireless Cables AB3C2 Bluetooth Module User Manual AB3C2

Wireless Cables Inc. Bluetooth Module AB3C2

Manual

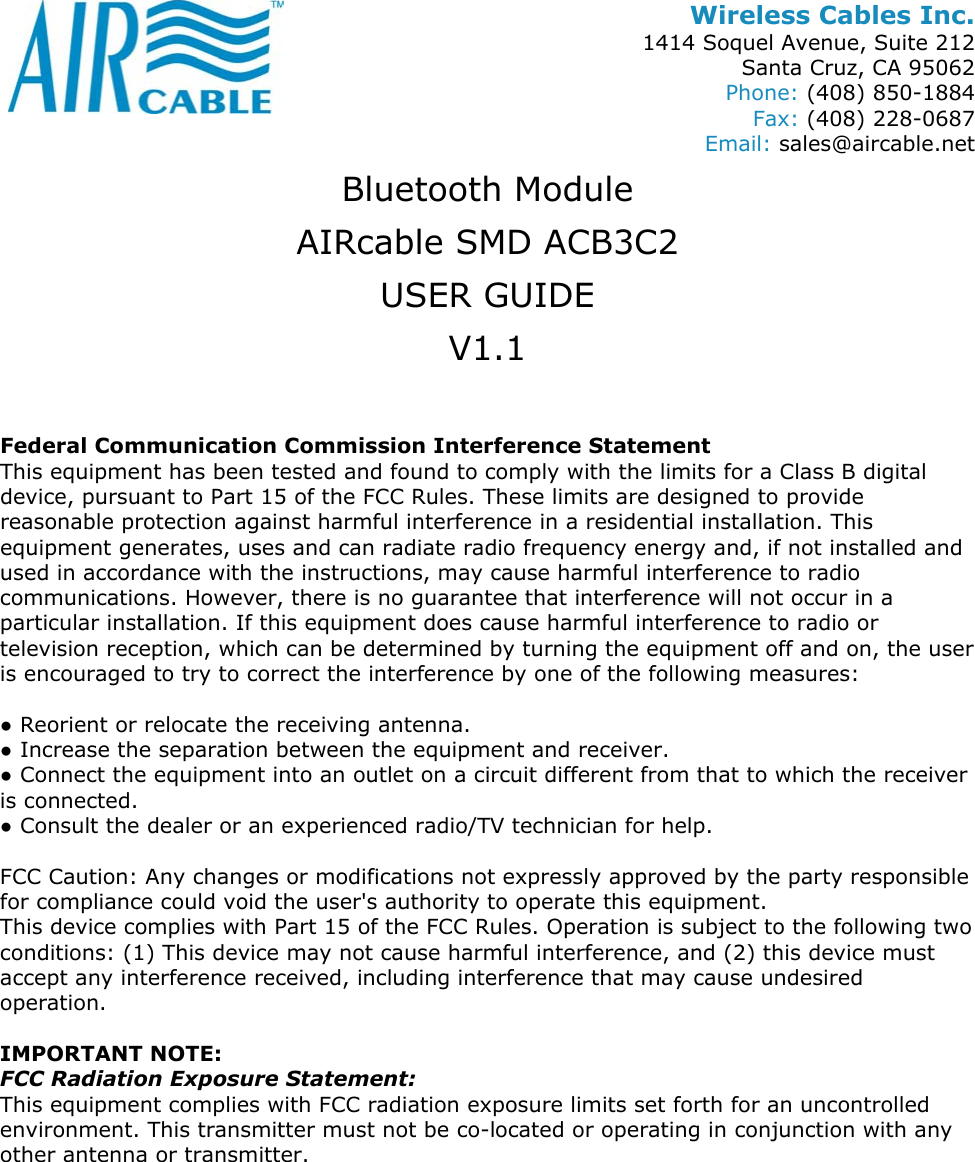

Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: sales@aircable.net Bluetooth Module AIRcable SMD ACB3C2 USER GUIDE V1.1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: sales@aircable.net This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna. As long as condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: SQCAB3C2”. Manual Information That Must be Included The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used not be co-located or operating in conjunction with any other antenna or transmitter. Example Sticker:

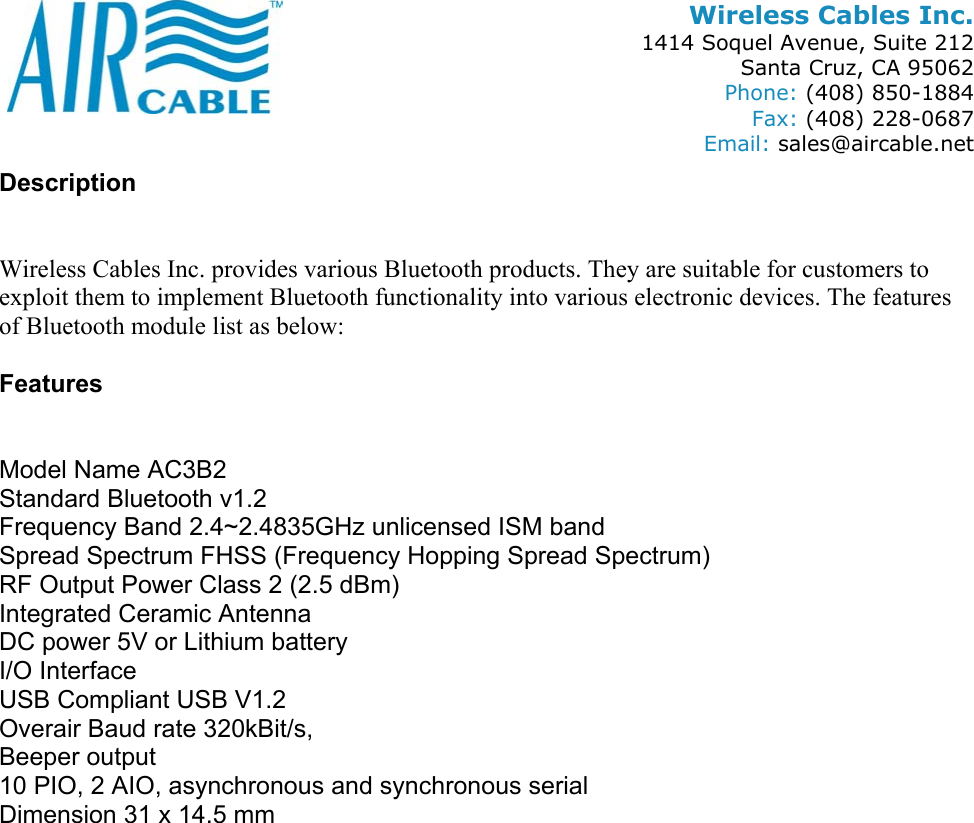

Wireless Cables Inc. 1414 Soquel Avenue, Suite 212 Santa Cruz, CA 95062 Phone: (408) 850-1884 Fax: (408) 228-0687 Email: sales@aircable.net Description Wireless Cables Inc. provides various Bluetooth products. They are suitable for customers to exploit them to implement Bluetooth functionality into various electronic devices. The features of Bluetooth module list as below: Features Model Name AC3B2 Standard Bluetooth v1.2 Frequency Band 2.4~2.4835GHz unlicensed ISM band Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) RF Output Power Class 2 (2.5 dBm) Integrated Ceramic Antenna DC power 5V or Lithium battery I/O Interface USB Compliant USB V1.2 Overair Baud rate 320kBit/s, Beeper output 10 PIO, 2 AIO, asynchronous and synchronous serial Dimension 31 x 14.5 mm
