Wireless Cables BLE1K Bluetooth 4.0 Low Energy Single Mode Module User Manual

Wireless Cables Inc. Bluetooth 4.0 Low Energy Single Mode Module Users Manual

Users Manual

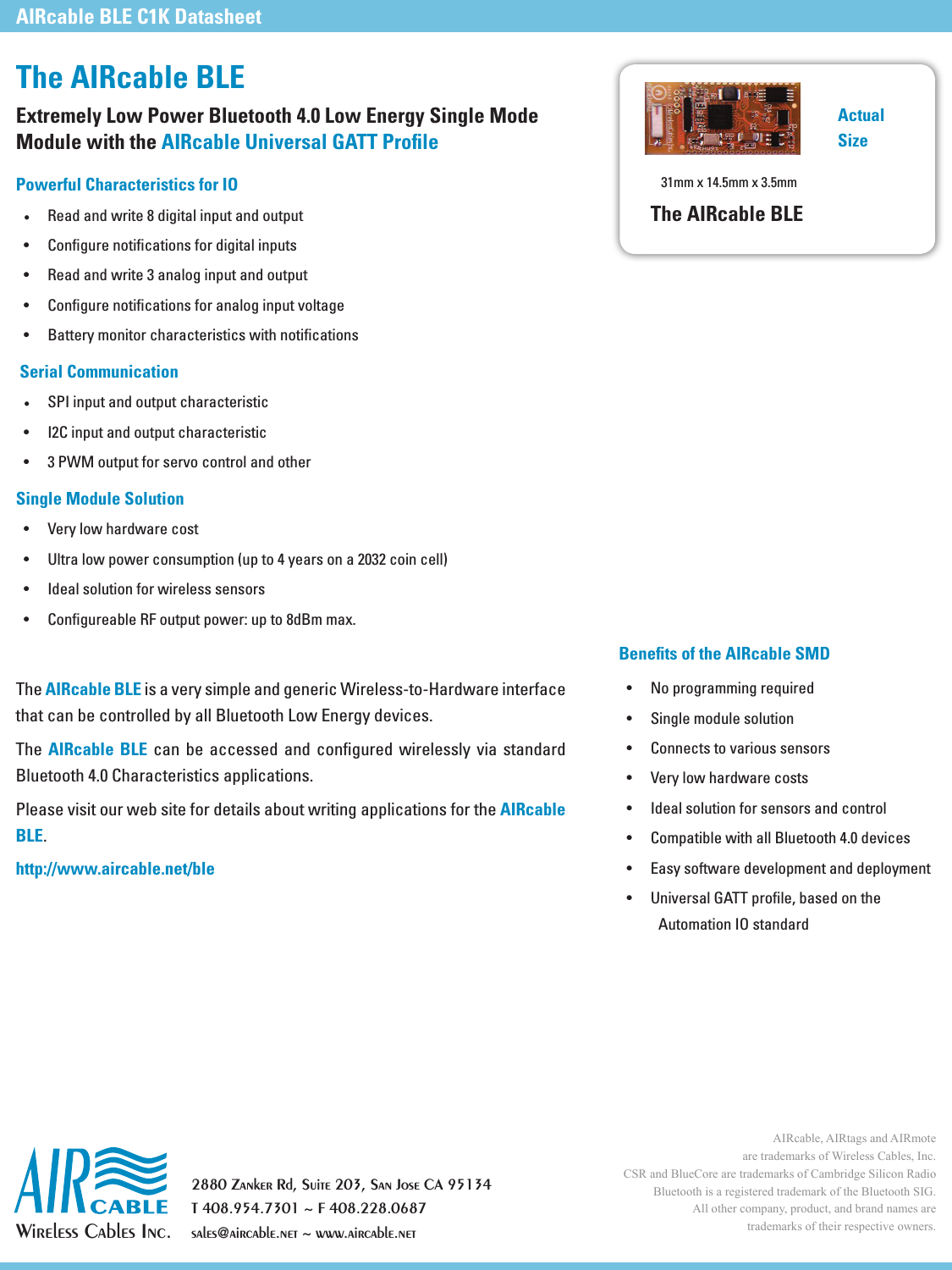

Wireless Cables Inc.2880 Zanker Rd, Suite 203, San Jose CA 95134T 408.954.7301 ~ F 408.228.0687sales@aircable.net ~ www.aircable.netThe AIRcable BLEExtremely Low Power Bluetooth 4.0 Low Energy Single Mode Module with the AIRcable Universal GATT ProfilePowerful Characteristics for IO• Read and write 8 digital input and output    Serial Communication•   Single Module Solution    AIRcable BLE AIRcable BLE        AIRcable BLEhttp://www.aircable.net/bleAIRcable, AIRtags and AIRmote are trademarks of Wireless Cables, Inc.CSR and BlueCore are trademarks of Cambridge Silicon Radio Bluetooth is a registered trademark of the Bluetooth SIG. All other company, product, and brand names are trademarks of their respective owners.AIRcable BLE C1K DatasheetBenefits of the AIRcable SMD         The AIRcable BLEActualSize

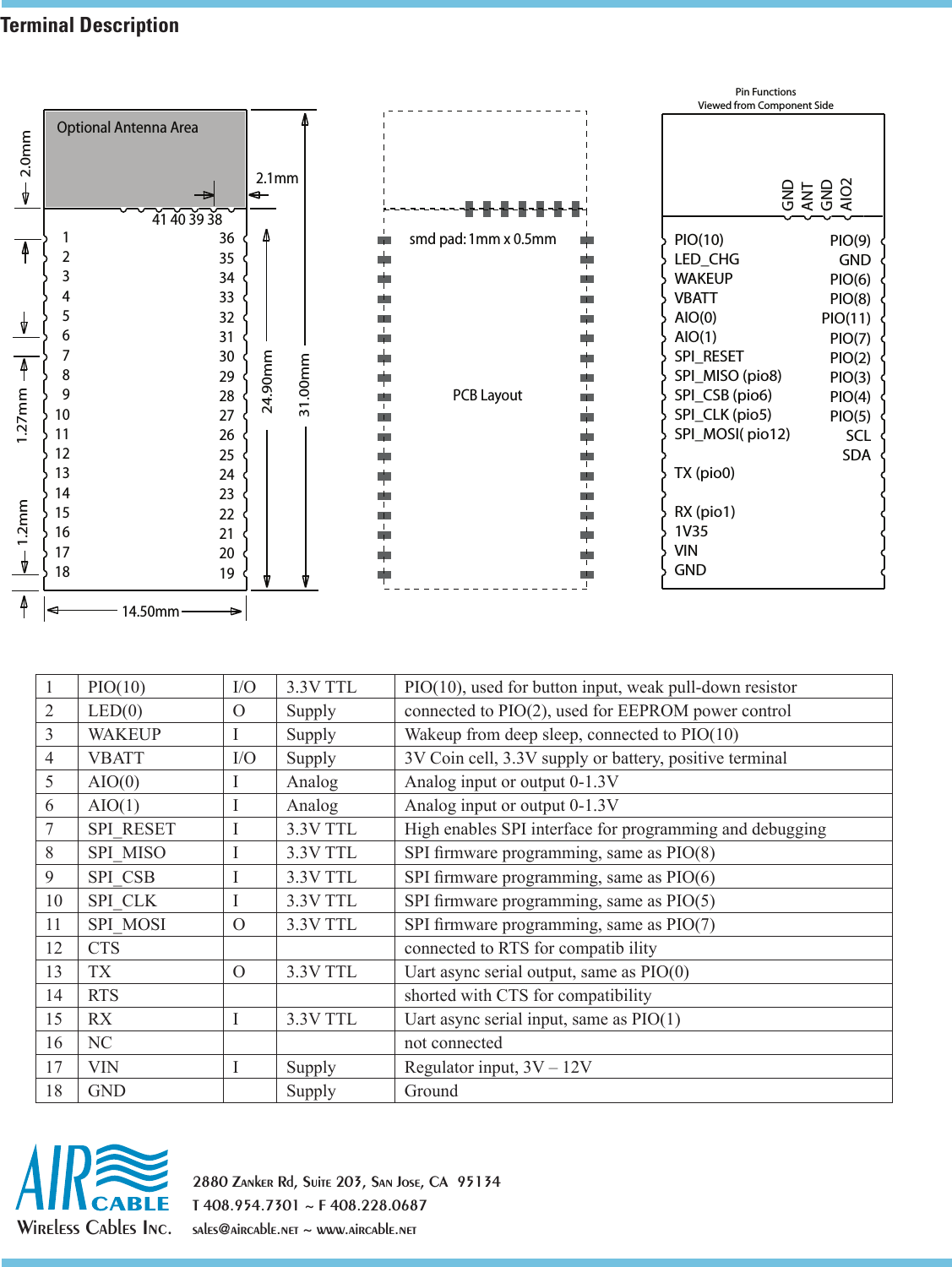

Wireless Cables Inc.2880 Zanker Rd, Suite 203, San Jose, CA 95134T 408.954.7301 ~ F 408.228.0687sales@aircable.net ~ www.aircable.netTerminal Description1 PIO(10) I/O 3.3V TTL PIO(10), used for button input, weak pull-down resistor2 LED(0) O Supply connected to PIO(2), used for EEPROM power control3 WAKEUP I Supply Wakeup from deep sleep, connected to PIO(10)4 VBATT I/O Supply 3V Coin cell, 3.3V supply or battery, positive terminal5 AIO(0) I Analog Analog input or output 0-1.3V6 AIO(1) I Analog Analog input or output 0-1.3V7 SPI_RESET I 3.3V TTL High enables SPI interface for programming and debugging8 SPI_MISO I 3.3V TTL 9 SPI_CSB I 3.3V TTL 10 SPI_CLK I 3.3V TTL 11 SPI_MOSI O 3.3V TTL 12 CTS connected to RTS for compatib ility13 TX O 3.3V TTL Uart async serial output, same as PIO(0)14 RTS shorted with CTS for compatibility15 RX I 3.3V TTL Uart async serial input, same as PIO(1)16 NC not connected17 VIN I Supply Regulator input, 3V – 12V18 GND Supply GroundPIO(10)LED_CHGWAKEUPVBATTAIO(0)AIO(1)SPI_RESETSPI_MISO (pio8)SPI_CSB (pio6)SPI_CLK (pio5)SPI_MOSI( pio12)TX (pio0)RX (pio1)1V35VINGNDPIO(9)GNDPIO(6)PIO(8)PIO(11)PIO(7)PIO(2)PIO(3)PIO(4)PIO(5)SCLSDAPin FunctionsViewed from Component Side GNDANTGNDAIO2 14.50mm31.00mm1.27mm1.2mm123456789101112131415161718363534333231302928272625242322212019Optional Antenna Area24.90mm2.0mm2.1mm 41 40 39 38 smd pad: 1mm x 0.5mmPCB Layout

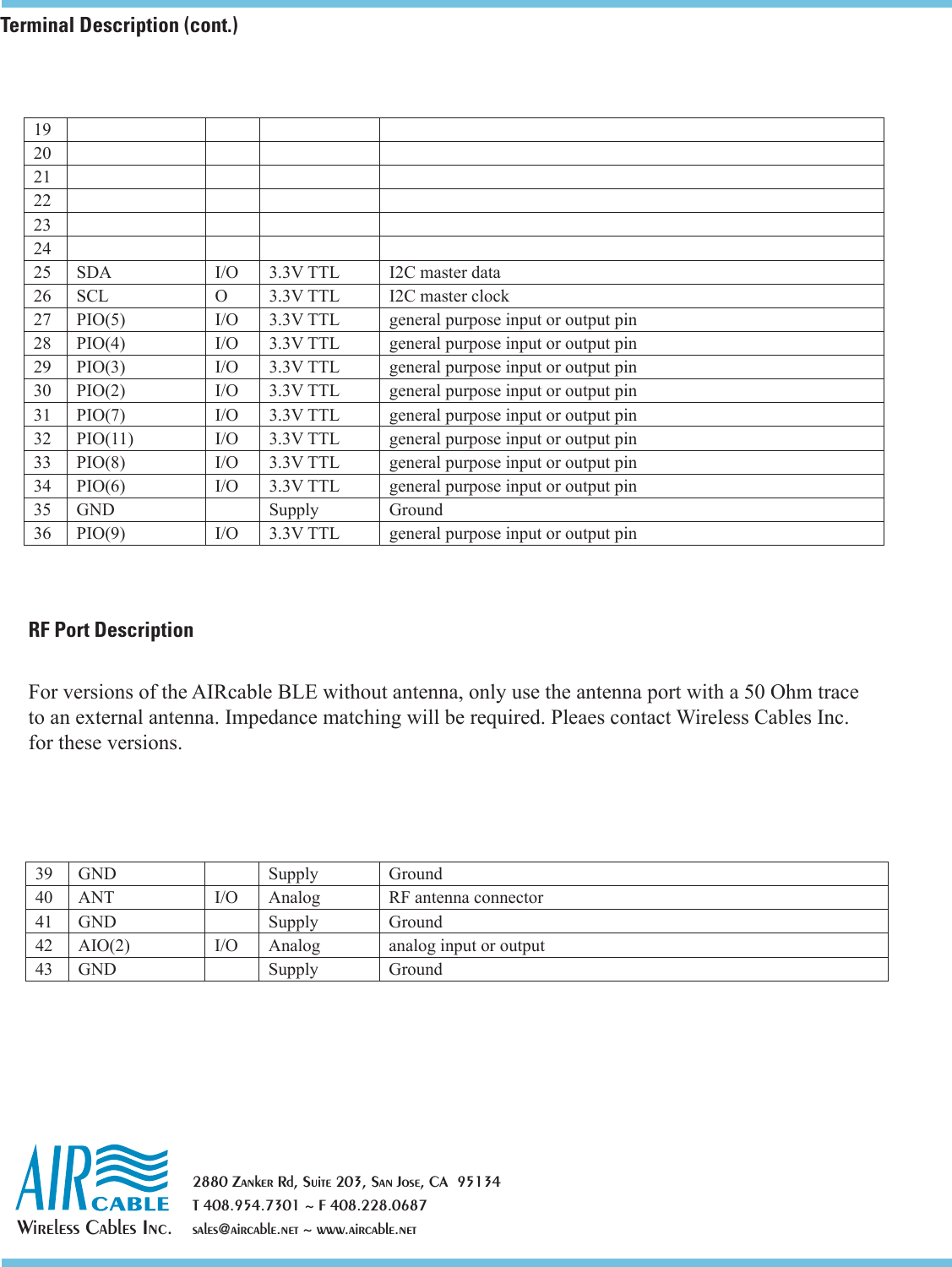

Wireless Cables Inc.2880 Zanker Rd, Suite 203, San Jose, CA 95134T 408.954.7301 ~ F 408.228.0687sales@aircable.net ~ www.aircable.netTerminal Description (cont.)39 GND Supply Ground40 ANT I/O Analog RF antenna connector41 GND Supply Ground42 AIO(2) I/O Analog analog input or output43 GND Supply Ground19202122232425 SDA I/O 3.3V TTL I2C master data26 SCL O 3.3V TTL I2C master clock27 PIO(5) I/O 3.3V TTL general purpose input or output pin28 PIO(4) I/O 3.3V TTL general purpose input or output pin29 PIO(3) I/O 3.3V TTL general purpose input or output pin30 PIO(2) I/O 3.3V TTL general purpose input or output pin31 PIO(7) I/O 3.3V TTL general purpose input or output pin32 PIO(11) I/O 3.3V TTL general purpose input or output pin33 PIO(8) I/O 3.3V TTL general purpose input or output pin34 PIO(6) I/O 3.3V TTL general purpose input or output pin35 GND Supply Ground36 PIO(9) I/O 3.3V TTL general purpose input or output pinRF Port DescriptionFor versions of the AIRcable BLE without antenna, only use the antenna port with a 50 Ohm trace to an external antenna. Impedance matching will be required. Pleaes contact Wireless Cables Inc. for these versions.

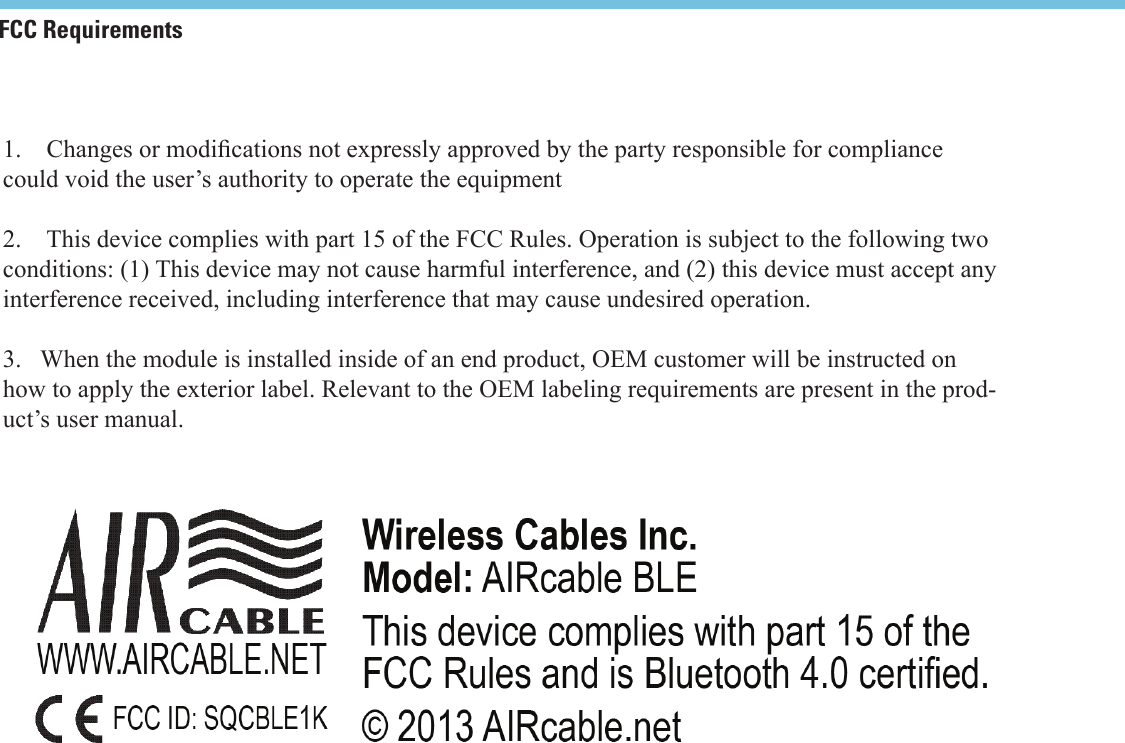

FCC Requirementscould void the user’s authority to operate the equipment2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.3. When the module is installed inside of an end product, OEM customer will be instructed on how to apply the exterior label. Relevant to the OEM labeling requirements are present in the prod-uct’s user manual.
