Wireless Seismic 00103 Wireless Remote Unit User Manual DeploymentGuide

Wireless Seismic, Inc. Wireless Remote Unit DeploymentGuide

Contents

Users Manual 1

DraftRT System 2Deployment GuideJune 21, 2012Part Number: 90-0018R00.e

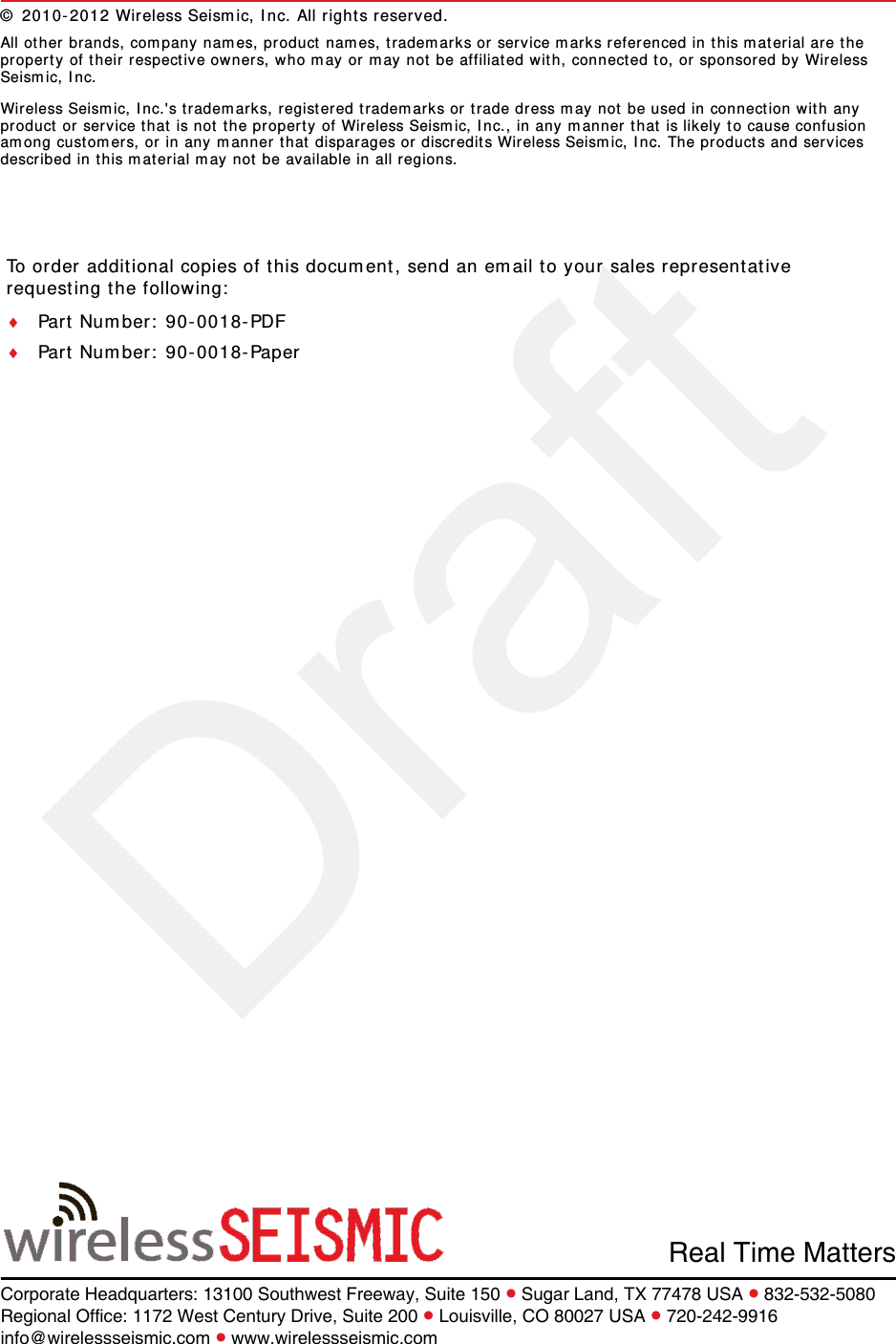

DraftTo order additional copies of this document, send an email to your sales representative requesting the following:Part Number: 90-0018-PDFPart Number: 90-0018-PaperReal Time MattersCorporate Headquarters: 13100 Southwest Freeway, Suite 150  Sugar Land, TX 77478 USA  832-532-5080Regional Office: 1172 West Century Drive, Suite 200  Louisville, CO 80027 USA  720-242-9916info@wirelessseismic.com  www.wirelessseismic.com© 2010-2012 Wireless Seismic, Inc. All rights reserved. All other brands, company names, product names, trademarks or service marks referenced in this material are the property of their respective owners, who may or may not be affiliated with, connected to, or sponsored by Wireless Seismic, Inc.Wireless Seismic, Inc.'s trademarks, registered trademarks or trade dress may not be used in connection with any product or service that is not the property of Wireless Seismic, Inc., in any manner that is likely to cause confusion among customers, or in any manner that disparages or discredits Wireless Seismic, Inc. The products and services described in this material may not be available in all regions.

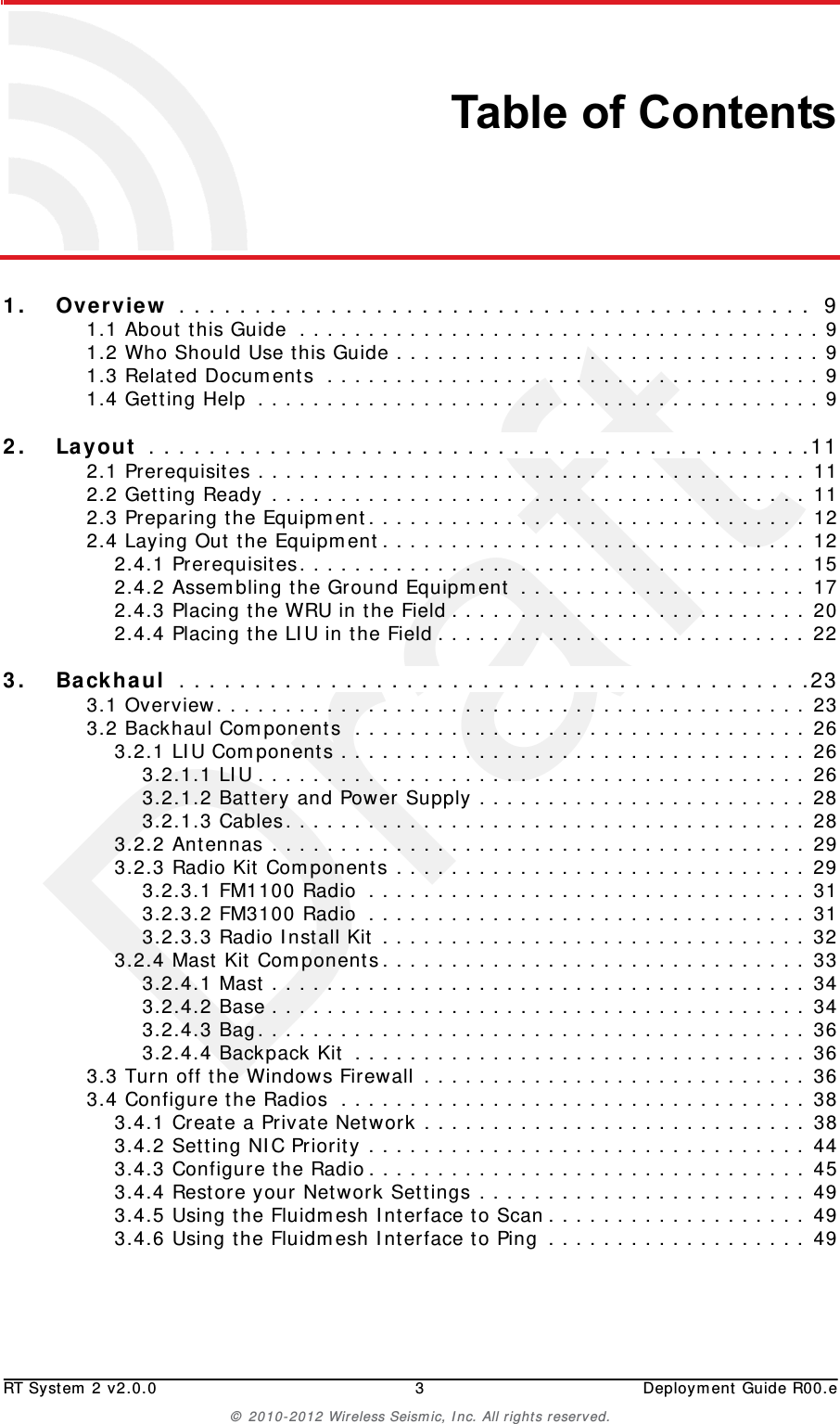

DraftRT System 2 v2.0.0 3 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.Table of Contents1.1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.1 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.2 Who Should Use this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.3 Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.4 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92.2. Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112.1 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112.2 Getting Ready . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112.3 Preparing the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122.4 Laying Out the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122.4.1 Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152.4.2 Assembling the Ground Equipment . . . . . . . . . . . . . . . . . . . . . 172.4.3 Placing the WRU in the Field . . . . . . . . . . . . . . . . . . . . . . . . . . 202.4.4 Placing the LIU in the Field . . . . . . . . . . . . . . . . . . . . . . . . . . . 223.3. Backhaul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233.2 Backhaul Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263.2.1 LIU Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263.2.1.1 LIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263.2.1.2 Battery and Power Supply . . . . . . . . . . . . . . . . . . . . . . . . 283.2.1.3 Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283.2.2 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293.2.3 Radio Kit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293.2.3.1 FM1100 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313.2.3.2 FM3100 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313.2.3.3 Radio Install Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323.2.4 Mast Kit Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333.2.4.1 Mast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343.2.4.2 Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343.2.4.3 Bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363.2.4.4 Backpack Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363.3 Turn off the Windows Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363.4 Configure the Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383.4.1 Create a Private Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383.4.2 Setting NIC Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443.4.3 Configure the Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453.4.4 Restore your Network Settings . . . . . . . . . . . . . . . . . . . . . . . . 493.4.5 Using the Fluidmesh Interface to Scan . . . . . . . . . . . . . . . . . . . 493.4.6 Using the Fluidmesh Interface to Ping . . . . . . . . . . . . . . . . . . . 49

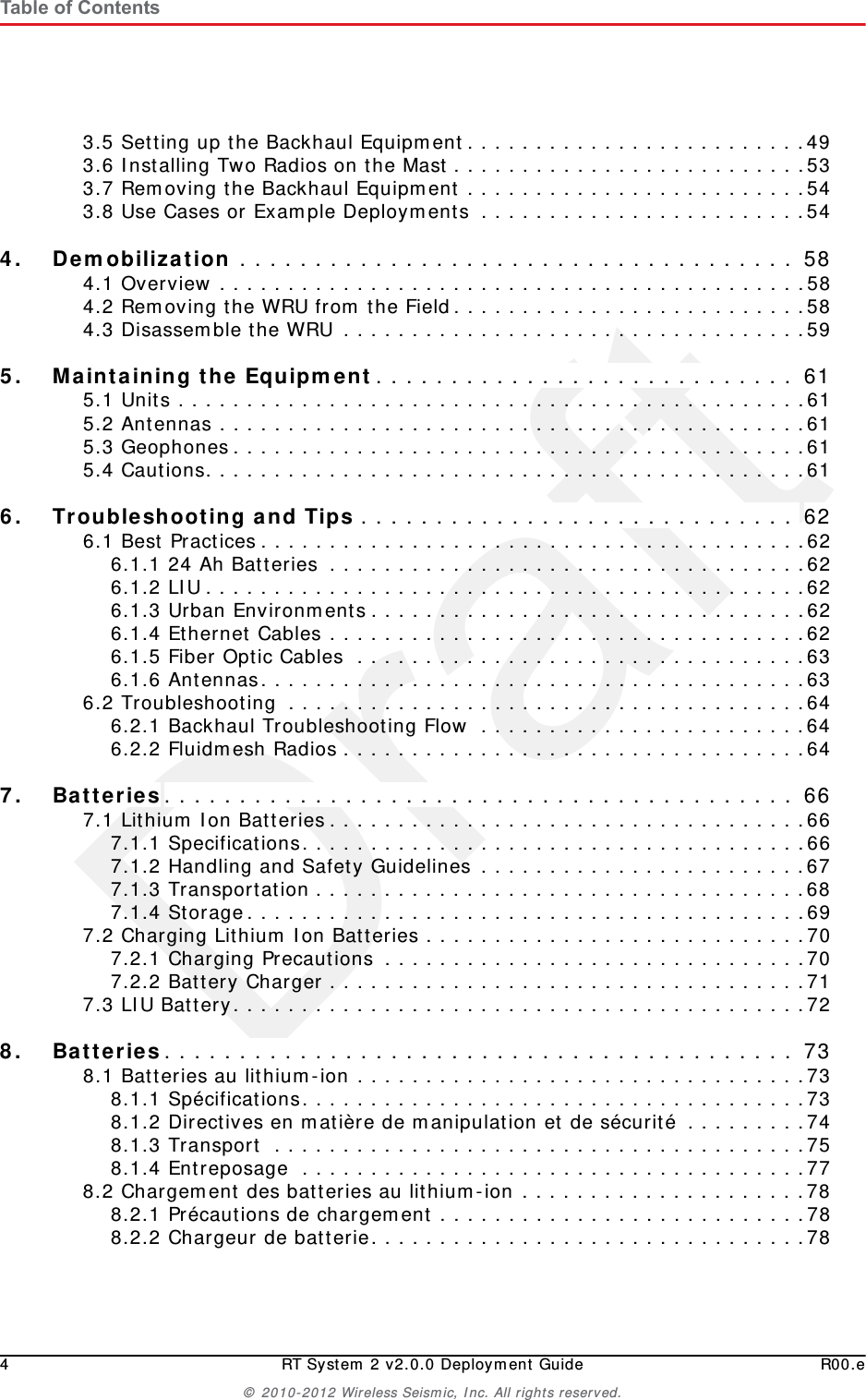

Draft4 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.Table of Contents3.5 Setting up the Backhaul Equipment. . . . . . . . . . . . . . . . . . . . . . . . .493.6 Installing Two Radios on the Mast . . . . . . . . . . . . . . . . . . . . . . . . . .533.7 Removing the Backhaul Equipment . . . . . . . . . . . . . . . . . . . . . . . . .543.8 Use Cases or Example Deployments . . . . . . . . . . . . . . . . . . . . . . . .544.4. Demobilization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .584.2 Removing the WRU from the Field. . . . . . . . . . . . . . . . . . . . . . . . . .584.3 Disassemble the WRU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .595.5. Maintaining the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . 615.1 Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .615.2 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .615.3 Geophones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .615.4 Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .616.6. Troubleshooting and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 626.1 Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .626.1.1 24 Ah Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .626.1.2 LIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .626.1.3 Urban Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .626.1.4 Ethernet Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .626.1.5 Fiber Optic Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .636.1.6 Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .636.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .646.2.1 Backhaul Troubleshooting Flow . . . . . . . . . . . . . . . . . . . . . . . .646.2.2 Fluidmesh Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .647.7. Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 667.1 Lithium Ion Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .667.1.1 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .667.1.2 Handling and Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . .677.1.3 Transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .687.1.4 Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .697.2 Charging Lithium Ion Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . .707.2.1 Charging Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .707.2.2 Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .717.3 LIU Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .728.8. Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 738.1 Batteries au lithium-ion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .738.1.1 Spécifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .738.1.2 Directives en matière de manipulation et de sécurité . . . . . . . . .748.1.3 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .758.1.4 Entreposage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .778.2 Chargement des batteries au lithium-ion . . . . . . . . . . . . . . . . . . . . .788.2.1 Précautions de chargement . . . . . . . . . . . . . . . . . . . . . . . . . . .788.2.2 Chargeur de batterie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
DraftR00.e RT System 2 v2.0.0 Deployment Guide 5© 2010-2012 Wireless Seismic, Inc. All rights reserved.Table of Contents8.3 LIU de batterie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80A.A. Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81A.1 FCC Rules and Regulations Compliance. . . . . . . . . . . . . . . . . . . . . . 81A.2 Industry Canada Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82B.B. l'information juridique. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83B.1 Conformité avec les règles et règlements de la FCC . . . . . . . . . . . . . 83B.2 Industrie Canada Conformité. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84C.C. Fluidmesh Radio Specifications . . . . . . . . . . . . . . . . . . . . . . . . .85C.1 The Fluidmesh Mito Series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85C.2 Fluidmesh 1100 with MITO Technology. . . . . . . . . . . . . . . . . . . . . . 87C.3 Fluidmesh 3100 with MITO Technology. . . . . . . . . . . . . . . . . . . . . . 88C.4 MITO Series General Characteristics. . . . . . . . . . . . . . . . . . . . . . . . 89D.D. LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91E.E. Weighted Mast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98E.1 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98E.2 Hardware Supplied. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99E.3 Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

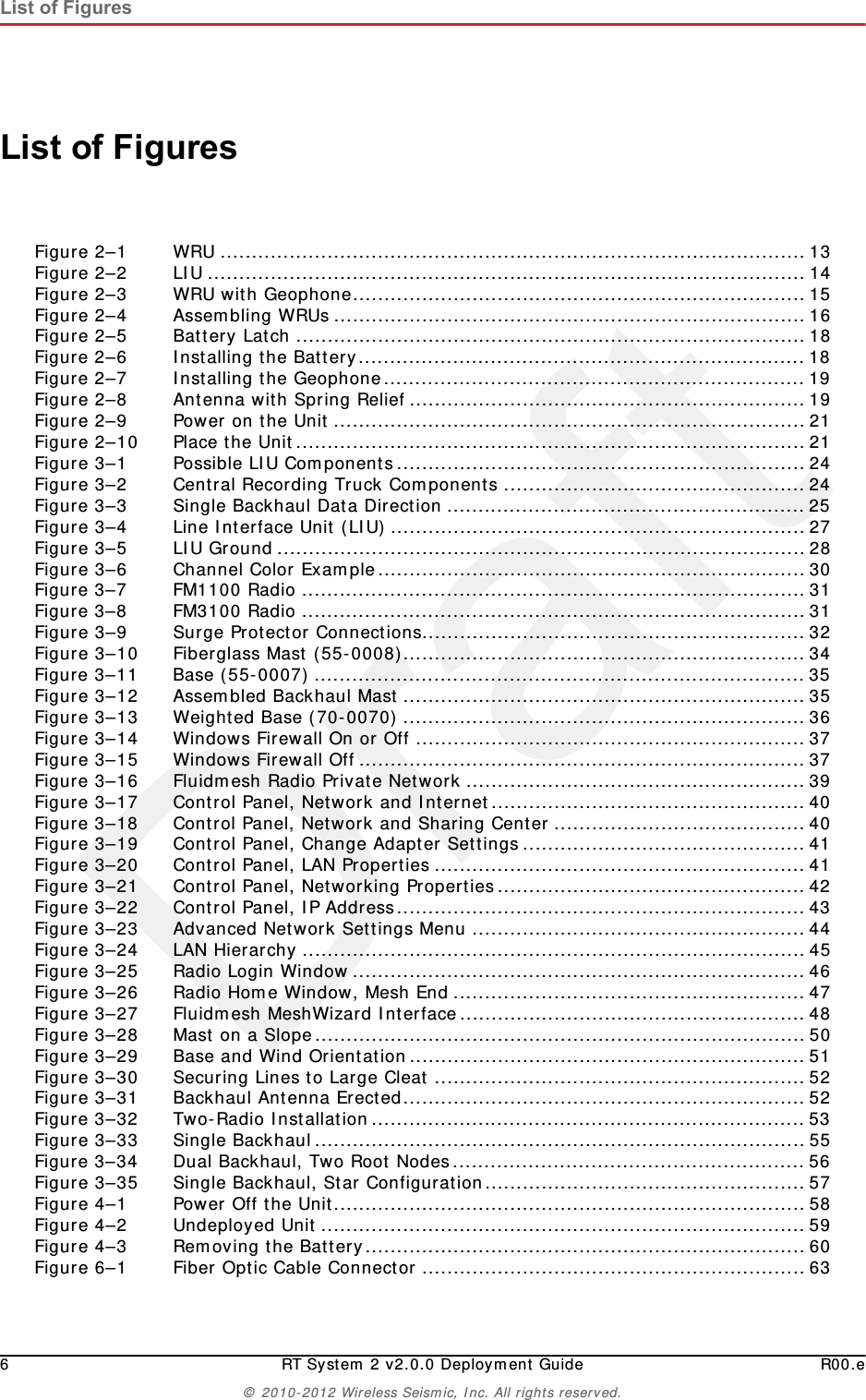

Draft6 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.List of FiguresList of FiguresFigure 2–1 WRU .............................................................................................13Figure 2–2 LIU ...............................................................................................14Figure 2–3 WRU with Geophone........................................................................15Figure 2–4 Assembling WRUs ...........................................................................16Figure 2–5 Battery Latch .................................................................................18Figure 2–6 Installing the Battery.......................................................................18Figure 2–7 Installing the Geophone................................................................... 19Figure 2–8 Antenna with Spring Relief ...............................................................19Figure 2–9 Power on the Unit ...........................................................................21Figure 2–10 Place the Unit.................................................................................21Figure 3–1 Possible LIU Components.................................................................24Figure 3–2 Central Recording Truck Components ................................................24Figure 3–3 Single Backhaul Data Direction .........................................................25Figure 3–4 Line Interface Unit (LIU)..................................................................27Figure 3–5 LIU Ground ....................................................................................28Figure 3–6 Channel Color Example....................................................................30Figure 3–7 FM1100 Radio ................................................................................ 31Figure 3–8 FM3100 Radio ................................................................................ 31Figure 3–9 Surge Protector Connections.............................................................32Figure 3–10 Fiberglass Mast (55-0008)................................................................34Figure 3–11 Base (55-0007) .............................................................................. 35Figure 3–12 Assembled Backhaul Mast ................................................................35Figure 3–13 Weighted Base (70-0070) ................................................................36Figure 3–14 Windows Firewall On or Off ..............................................................37Figure 3–15 Windows Firewall Off.......................................................................37Figure 3–16 Fluidmesh Radio Private Network ......................................................39Figure 3–17 Control Panel, Network and Internet..................................................40Figure 3–18 Control Panel, Network and Sharing Center ........................................40Figure 3–19 Control Panel, Change Adapter Settings.............................................41Figure 3–20 Control Panel, LAN Properties ...........................................................41Figure 3–21 Control Panel, Networking Properties.................................................42Figure 3–22 Control Panel, IP Address.................................................................43Figure 3–23 Advanced Network Settings Menu .....................................................44Figure 3–24 LAN Hierarchy ................................................................................45Figure 3–25 Radio Login Window........................................................................46Figure 3–26 Radio Home Window, Mesh End ........................................................47Figure 3–27 Fluidmesh MeshWizard Interface.......................................................48Figure 3–28 Mast on a Slope..............................................................................50Figure 3–29 Base and Wind Orientation...............................................................51Figure 3–30 Securing Lines to Large Cleat ...........................................................52Figure 3–31 Backhaul Antenna Erected................................................................52Figure 3–32 Two-Radio Installation.....................................................................53Figure 3–33 Single Backhaul..............................................................................55Figure 3–34 Dual Backhaul, Two Root Nodes........................................................56Figure 3–35 Single Backhaul, Star Configuration...................................................57Figure 4–1 Power Off the Unit...........................................................................58Figure 4–2 Undeployed Unit .............................................................................59Figure 4–3 Removing the Battery......................................................................60Figure 6–1 Fiber Optic Cable Connector .............................................................63

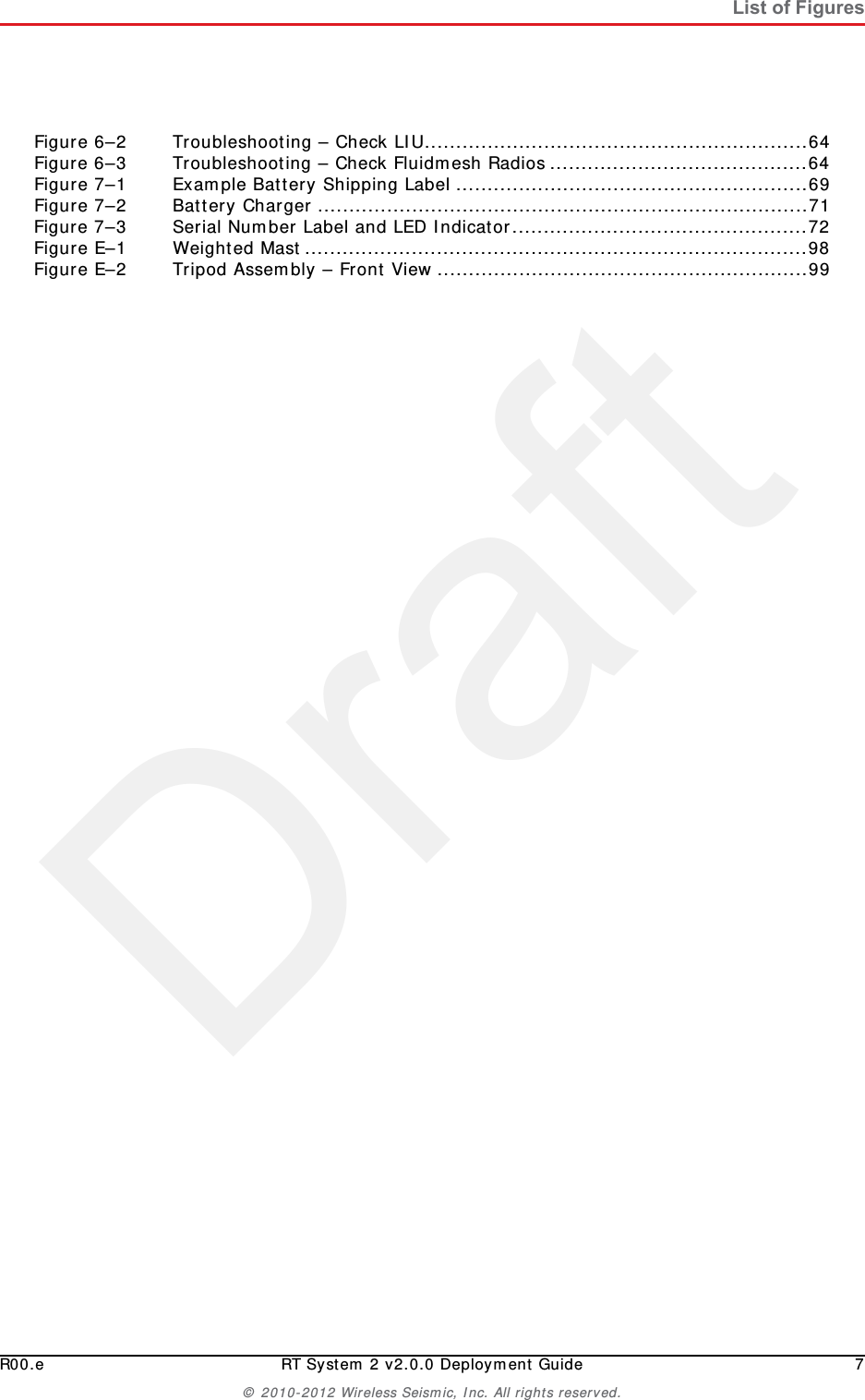

DraftR00.e RT System 2 v2.0.0 Deployment Guide 7© 2010-2012 Wireless Seismic, Inc. All rights reserved.List of FiguresFigure 6–2 Troubleshooting – Check LIU.............................................................64Figure 6–3 Troubleshooting – Check Fluidmesh Radios .........................................64Figure 7–1 Example Battery Shipping Label ........................................................69Figure 7–2 Battery Charger ..............................................................................71Figure 7–3 Serial Number Label and LED Indicator...............................................72Figure E–1 Weighted Mast................................................................................98Figure E–2 Tripod Assembly – Front View ...........................................................99

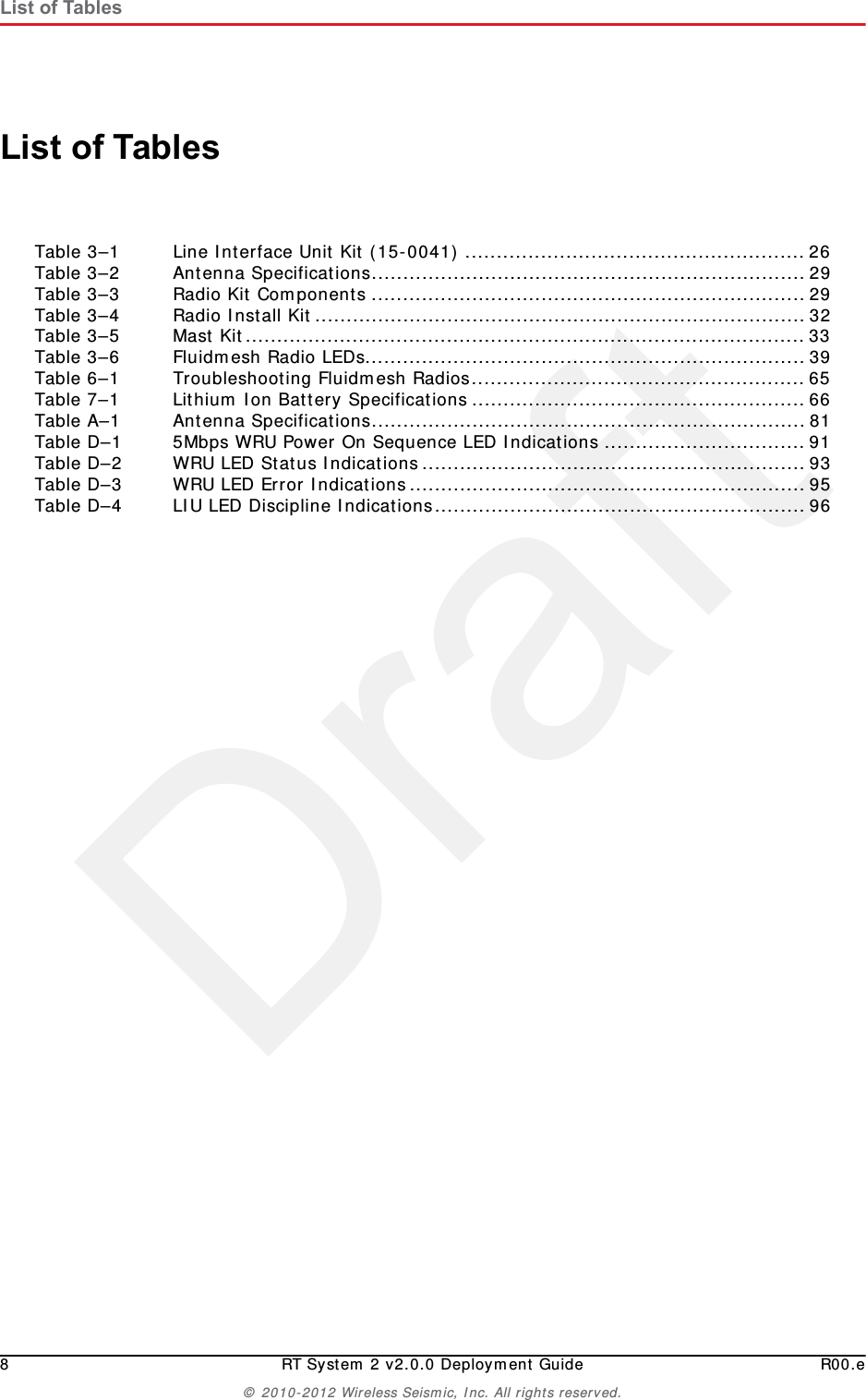

Draft8 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.List of TablesList of TablesTable 3–1 Line Interface Unit Kit (15-0041) ......................................................26Table 3–2 Antenna Specifications.....................................................................29Table 3–3 Radio Kit Components .....................................................................29Table 3–4 Radio Install Kit..............................................................................32Table 3–5 Mast Kit.........................................................................................33Table 3–6 Fluidmesh Radio LEDs......................................................................39Table 6–1 Troubleshooting Fluidmesh Radios.....................................................65Table 7–1 Lithium Ion Battery Specifications .....................................................66Table A–1 Antenna Specifications.....................................................................81Table D–1 5Mbps WRU Power On Sequence LED Indications ................................91Table D–2 WRU LED Status Indications.............................................................93Table D–3 WRU LED Error Indications...............................................................95Table D–4 LIU LED Discipline Indications...........................................................96

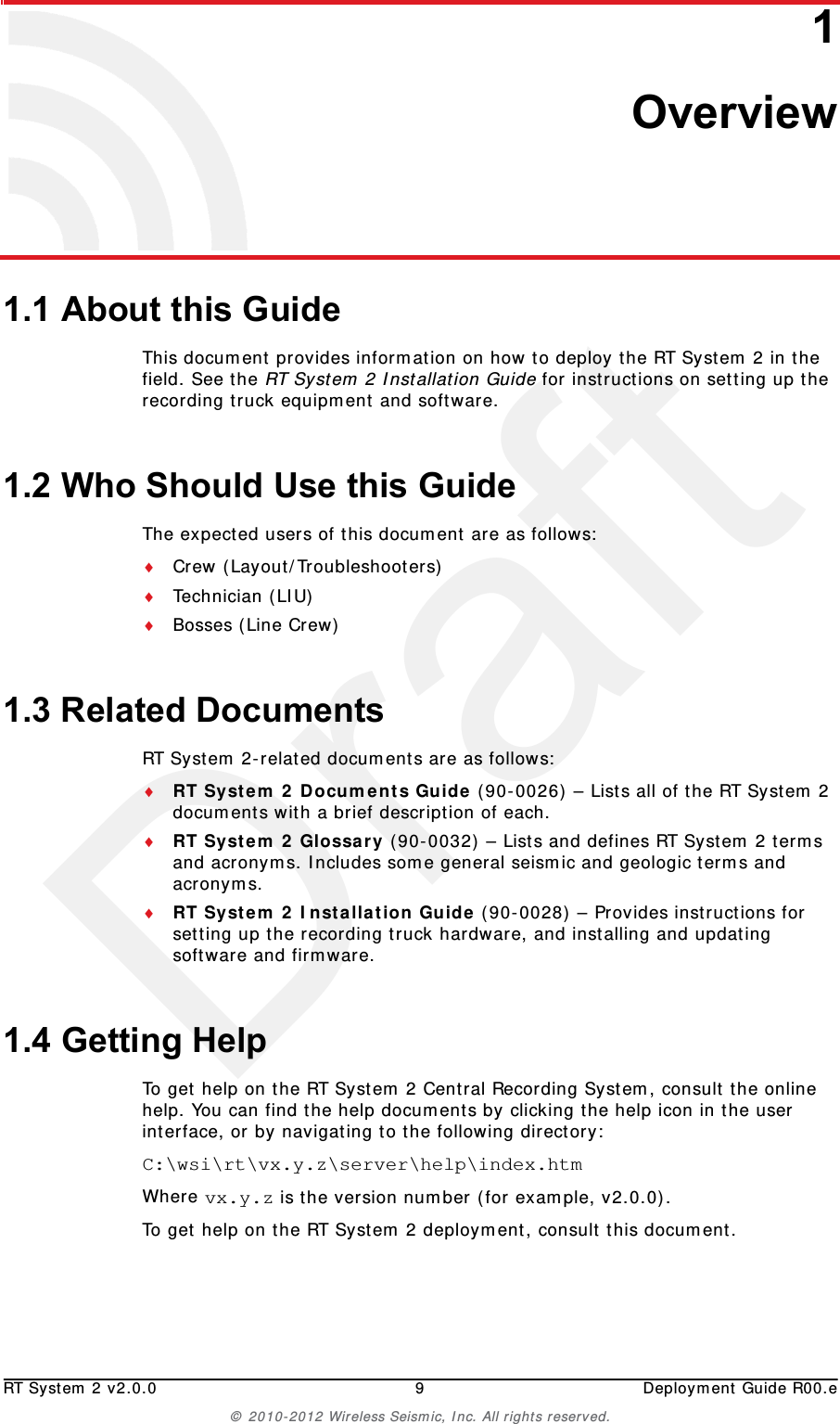

DraftRT System 2 v2.0.0 9 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.11. Overview1.1 About this GuideThis document provides information on how to deploy the RT System 2 in the field. See the RT System 2 Installation Guide for instructions on setting up the recording truck equipment and software. 1.2 Who Should Use this GuideThe expected users of this document are as follows:Crew (Layout/Troubleshooters)Technician (LIU)Bosses (Line Crew)1.3 Related DocumentsRT System 2-related documents are as follows:RT System 2 Documents Guide (90-0026) – Lists all of the RT System 2 documents with a brief description of each.RT System 2 Glossary (90-0032) – Lists and defines RT System 2 terms and acronyms. Includes some general seismic and geologic terms and acronyms.RT System 2 Installation Guide (90-0028) – Provides instructions for setting up the recording truck hardware, and installing and updating software and firmware. 1.4 Getting HelpTo get help on the RT System 2 Central Recording System, consult the online help. You can find the help documents by clicking the help icon in the user interface, or by navigating to the following directory:C:\wsi\rt\vx.y.z\server\help\index.htm Where vx.y.z is the version number (for example, v2.0.0).To get help on the RT System 2 deployment, consult this document.

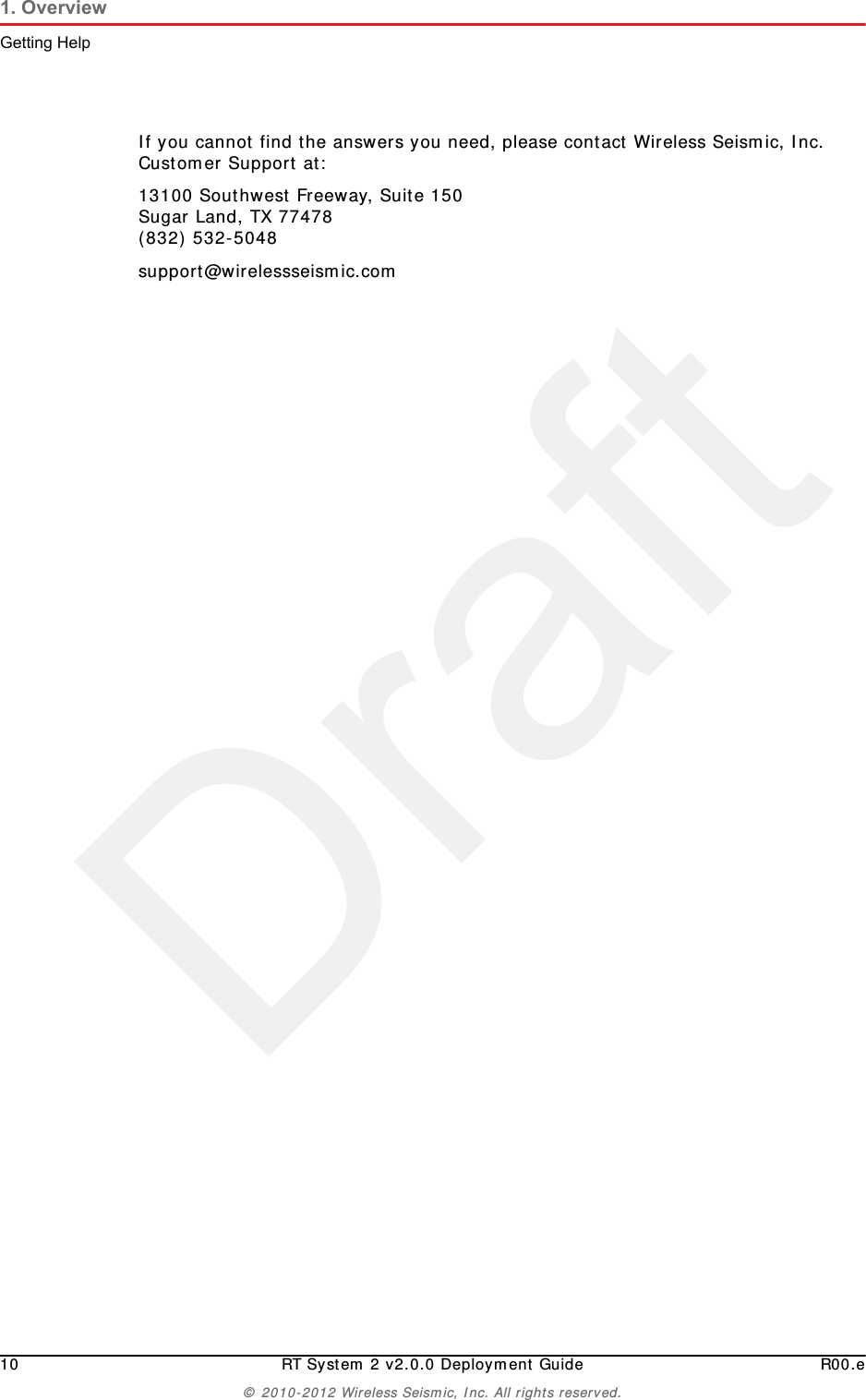

Draft10 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.1. OverviewGetting HelpIf you cannot find the answers you need, please contact Wireless Seismic, Inc. Customer Support at:13100 Southwest Freeway, Suite 150 Sugar Land, TX 77478 (832) 532-5048support@wirelessseismic.com

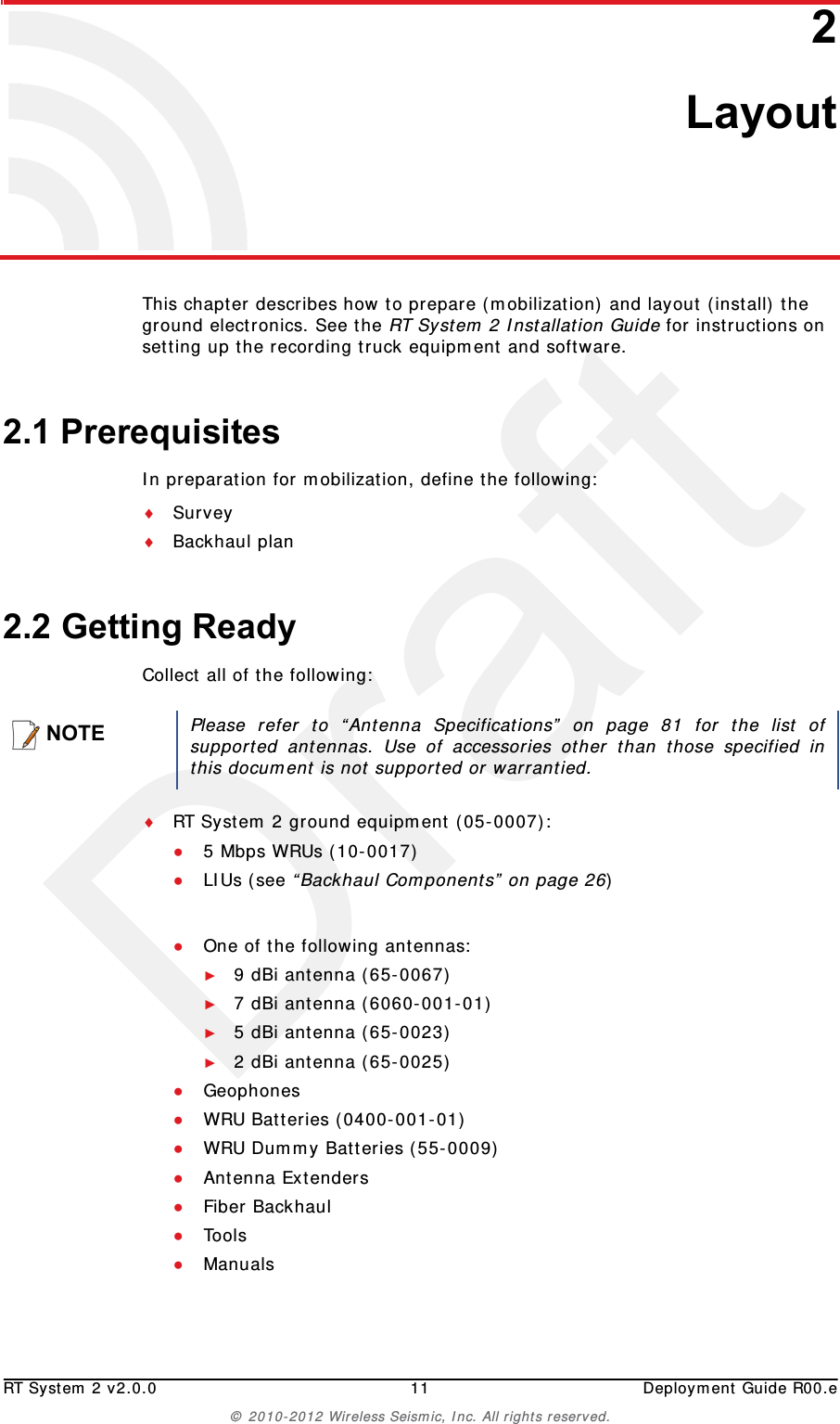

DraftRT System 2 v2.0.0 11 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.22. LayoutThis chapter describes how to prepare (mobilization) and layout (install) the ground electronics. See the RT System 2 Installation Guide for instructions on setting up the recording truck equipment and software. 2.1 PrerequisitesIn preparation for mobilization, define the following:SurveyBackhaul plan2.2 Getting ReadyCollect all of the following:RT System 2 ground equipment (05-0007):●5 Mbps WRUs (10-0017)●LIUs (see “Backhaul Components” on page 26)●One of the following antennas:►9 dBi antenna (65-0067)►7 dBi antenna (6060-001-01)►5 dBi antenna (65-0023)►2 dBi antenna (65-0025)●Geophones●WRU Batteries (0400-001-01)●WRU Dummy Batteries (55-0009)●Antenna Extenders●Fiber Backhaul●Tools●ManualsNOTEPlease refer to “Antenna Specifications” on page 81 for the list ofsupported antennas. Use of accessories other than those specified inthis document is not supported or warrantied.

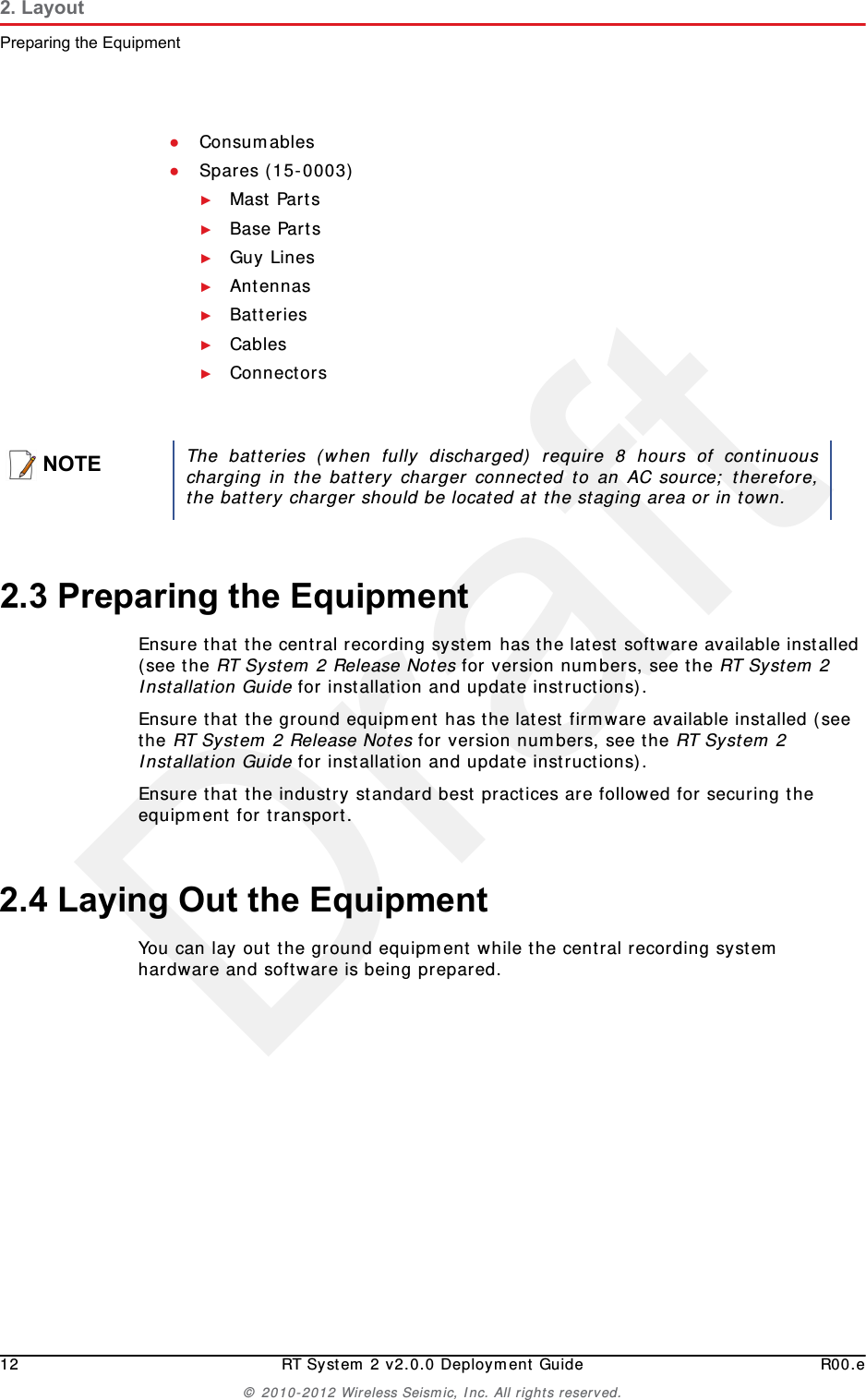

Draft12 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutPreparing the Equipment●Consumables●Spares (15-0003)►Mast Parts►Base Parts►Guy Lines►Antennas►Batteries►Cables►Connectors2.3 Preparing the EquipmentEnsure that the central recording system has the latest software available installed (see the RT System 2 Release Notes for version numbers, see the RT System 2 Installation Guide for installation and update instructions).Ensure that the ground equipment has the latest firmware available installed (see the RT System 2 Release Notes for version numbers, see the RT System 2 Installation Guide for installation and update instructions).Ensure that the industry standard best practices are followed for securing the equipment for transport. 2.4 Laying Out the EquipmentYou can lay out the ground equipment while the central recording system hardware and software is being prepared. NOTEThe batteries (when fully discharged) require 8 hours of continuouscharging in the battery charger connected to an AC source; therefore,the battery charger should be located at the staging area or in town.

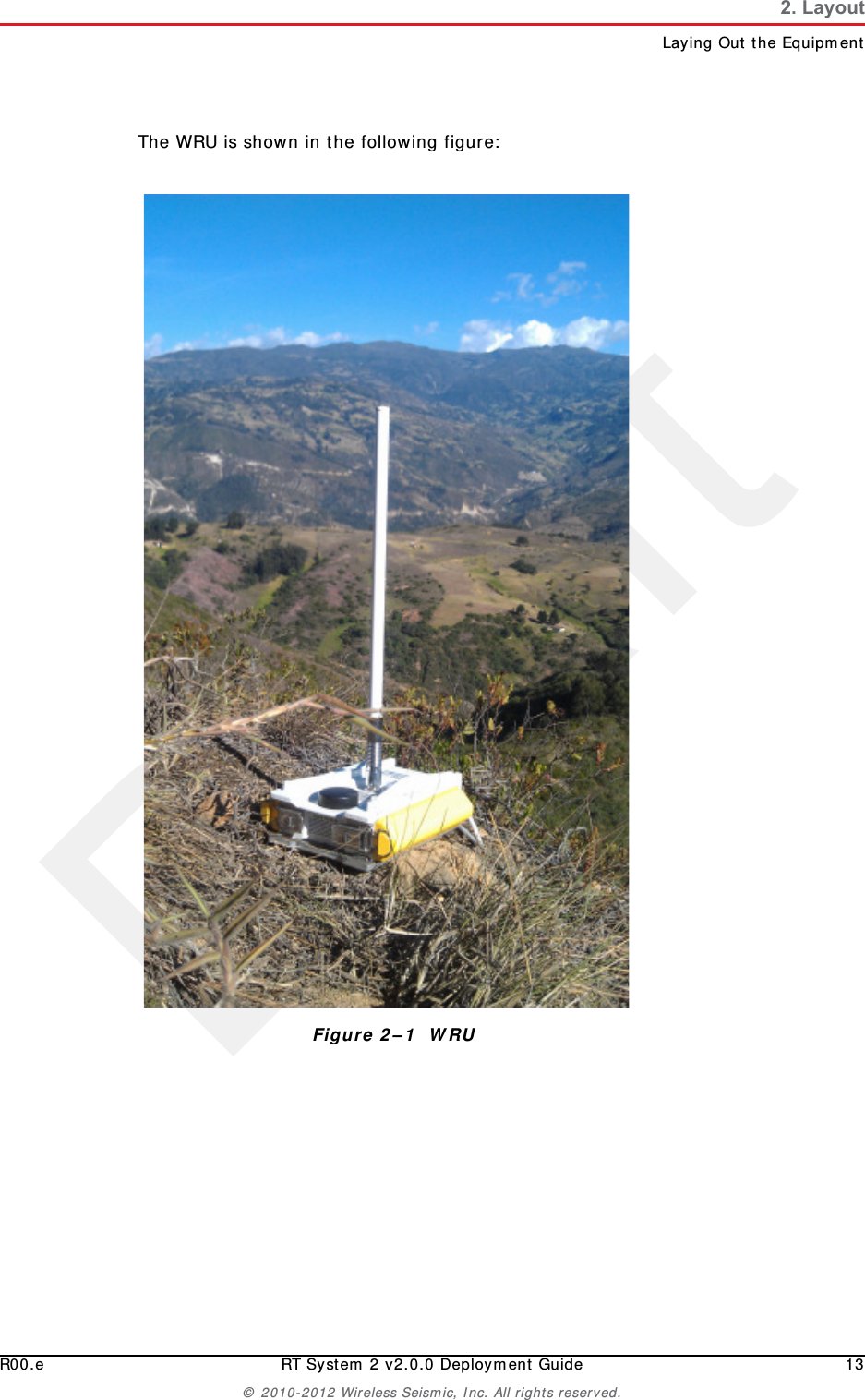

DraftR00.e RT System 2 v2.0.0 Deployment Guide 13© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the EquipmentThe WRU is shown in the following figure:Figure 2–1 WRU

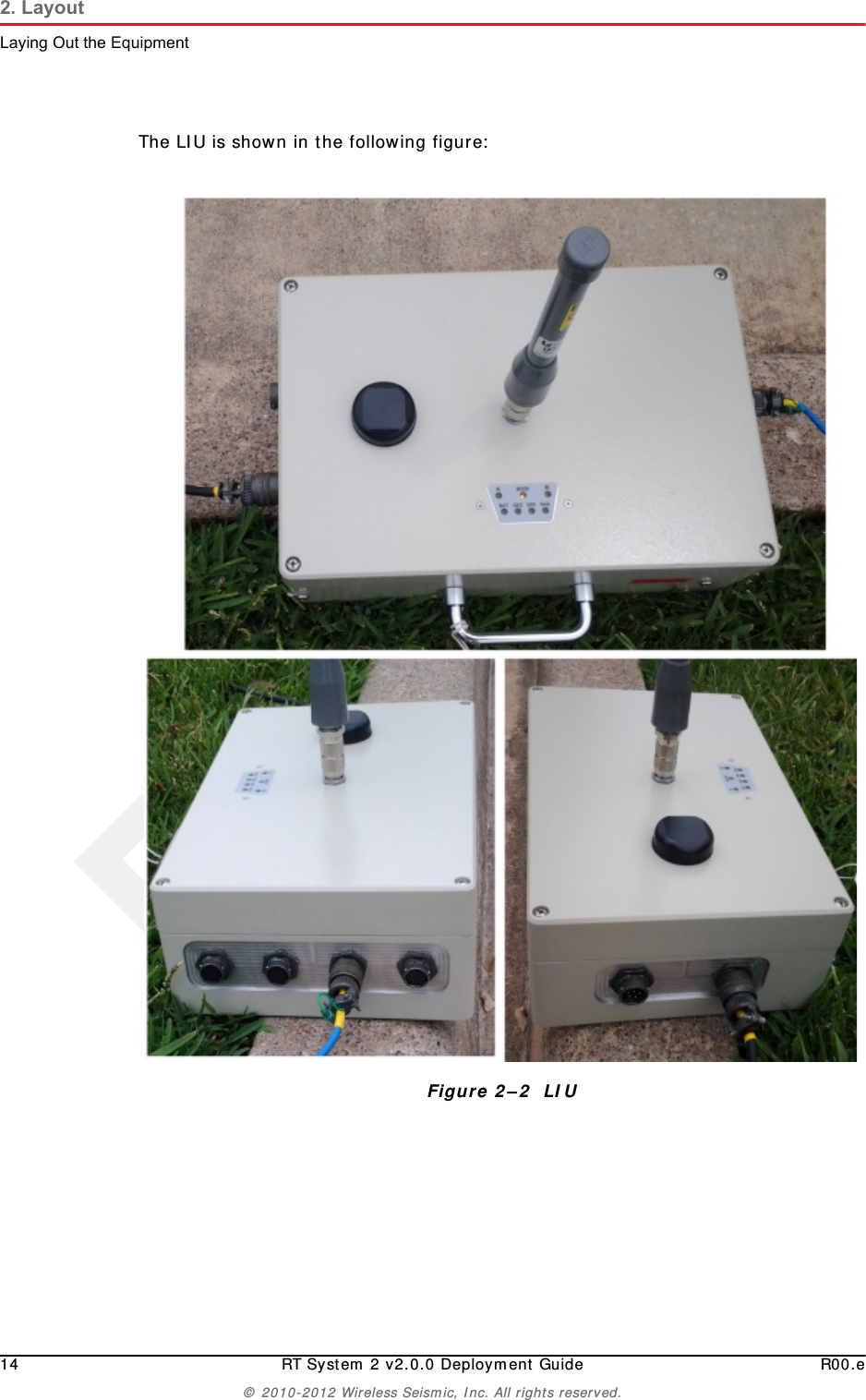

Draft14 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the EquipmentThe LIU is shown in the following figure:Figure 2–2 LIU

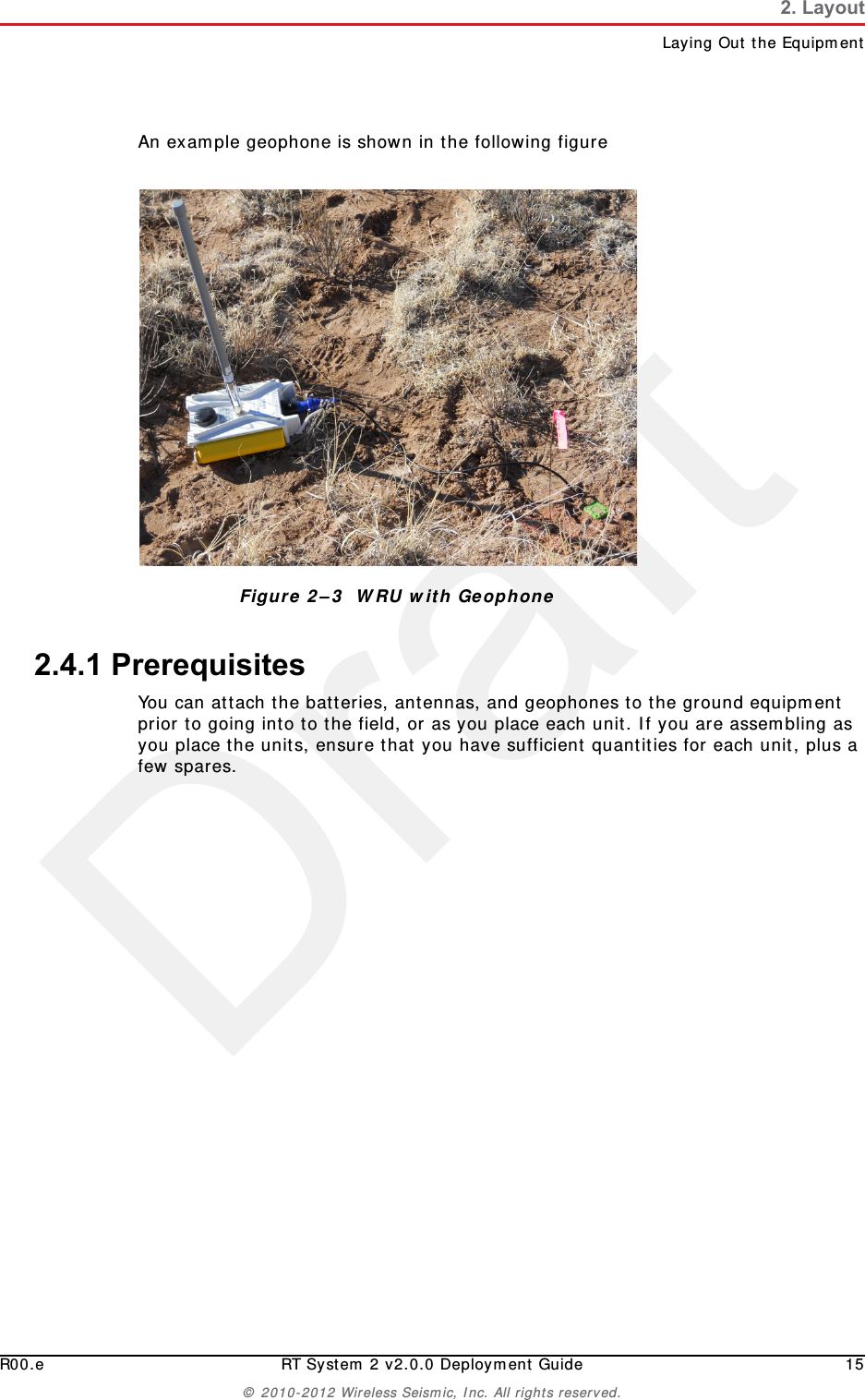

DraftR00.e RT System 2 v2.0.0 Deployment Guide 15© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the EquipmentAn example geophone is shown in the following figure2.4.1 PrerequisitesYou can attach the batteries, antennas, and geophones to the ground equipment prior to going into to the field, or as you place each unit. If you are assembling as you place the units, ensure that you have sufficient quantities for each unit, plus a few spares.Figure 2–3 WRU with Geophone

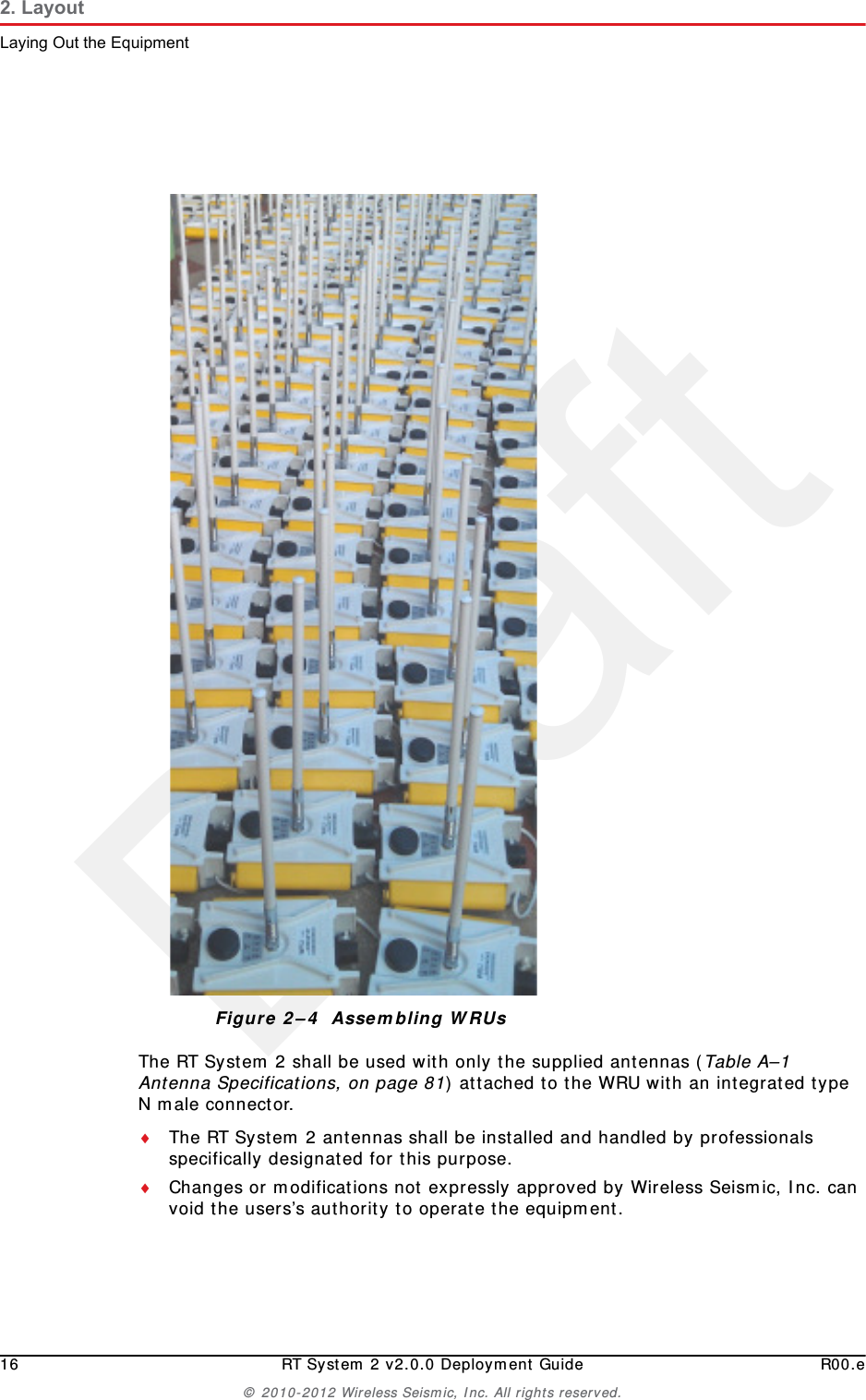

Draft16 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the EquipmentThe RT System 2 shall be used with only the supplied antennas (Table A–1 Antenna Specifications, on page 81) attached to the WRU with an integrated type N male connector.The RT System 2 antennas shall be installed and handled by professionals specifically designated for this purpose.Changes or modifications not expressly approved by Wireless Seismic, Inc. can void the users’s authority to operate the equipment. Figure 2–4 Assembling WRUs

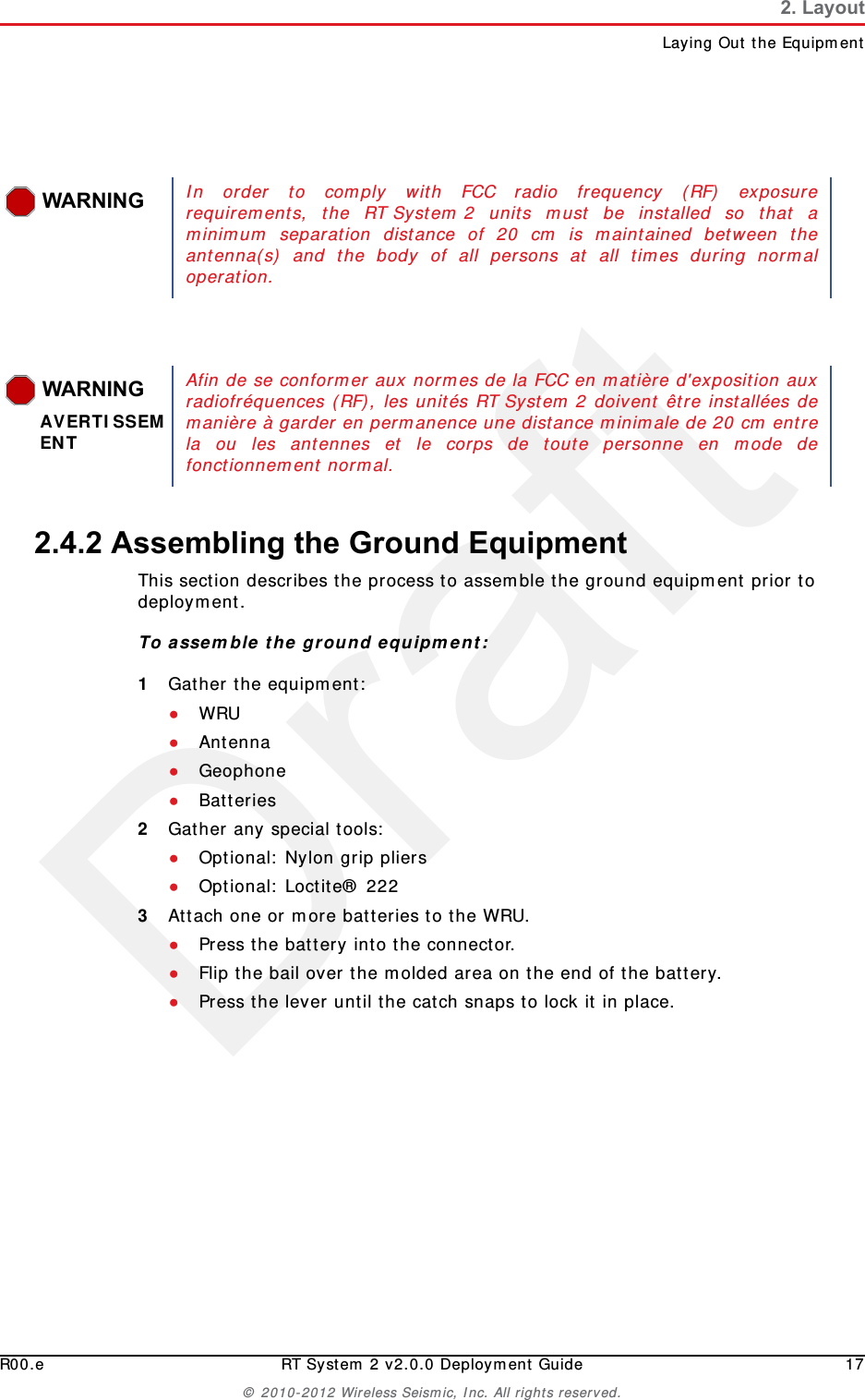

DraftR00.e RT System 2 v2.0.0 Deployment Guide 17© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the Equipment2.4.2 Assembling the Ground Equipment This section describes the process to assemble the ground equipment prior to deployment.To assemble the ground equipment:1Gather the equipment:●WRU●Antenna●Geophone●Batteries2Gather any special tools:●Optional: Nylon grip pliers●Optional: Loctite® 2223Attach one or more batteries to the WRU.●Press the battery into the connector.●Flip the bail over the molded area on the end of the battery.●Press the lever until the catch snaps to lock it in place.WARNINGIn order to comply with FCC radio frequency (RF) exposurerequirements, the RT System 2 units must be installed so that aminimum separation distance of 20 cm is maintained between theantenna(s) and the body of all persons at all times during normaloperation.WARNINGAVERTISSEMENTAfin de se conformer aux normes de la FCC en matière d'exposition auxradiofréquences (RF), les unités RT System 2 doivent être installées demanière à garder en permanence une distance minimale de 20 cm entrela ou les antennes et le corps de toute personne en mode defonctionnement normal.

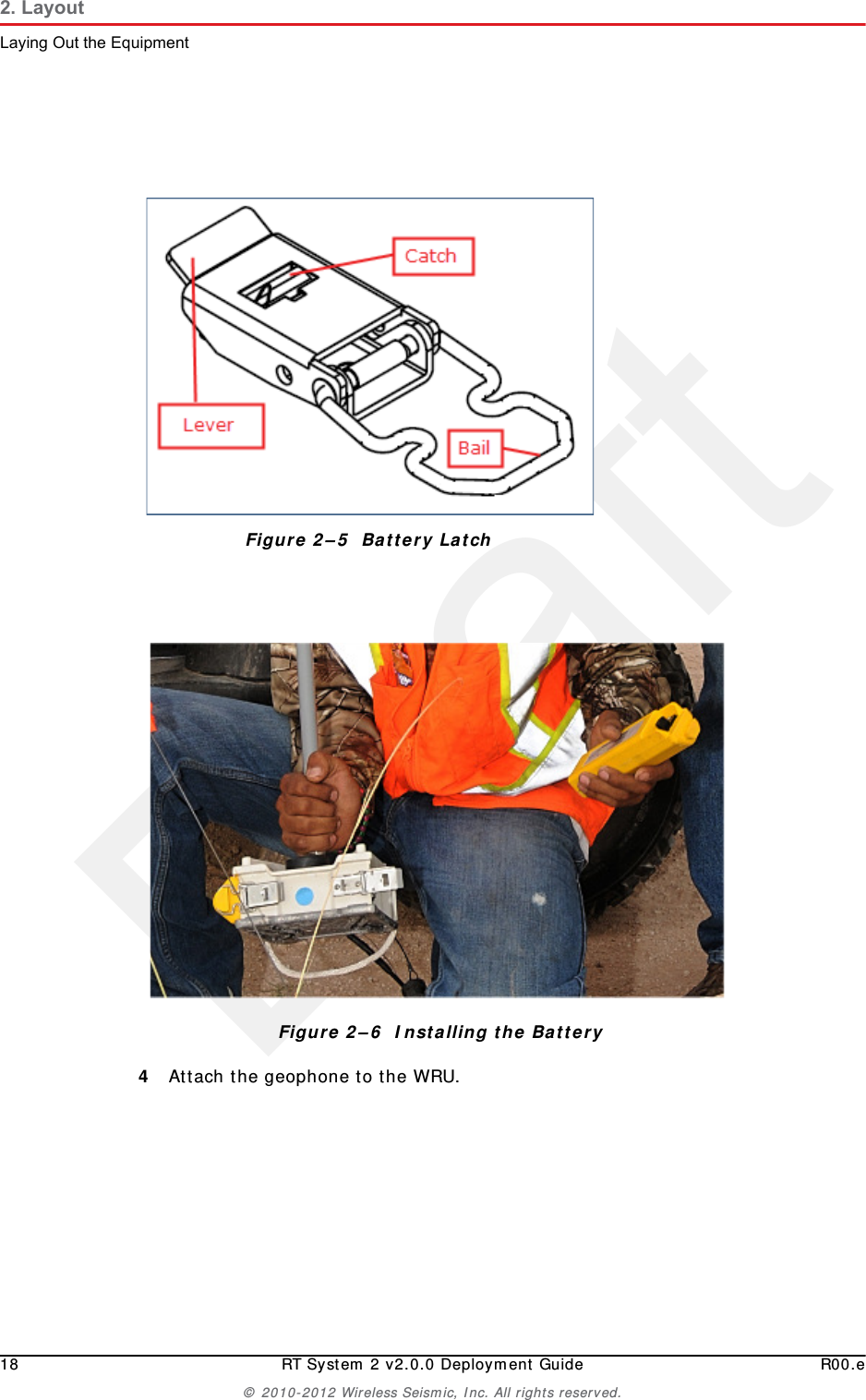

Draft18 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the Equipment4Attach the geophone to the WRU.Figure 2–5 Battery LatchFigure 2–6 Installing the Battery

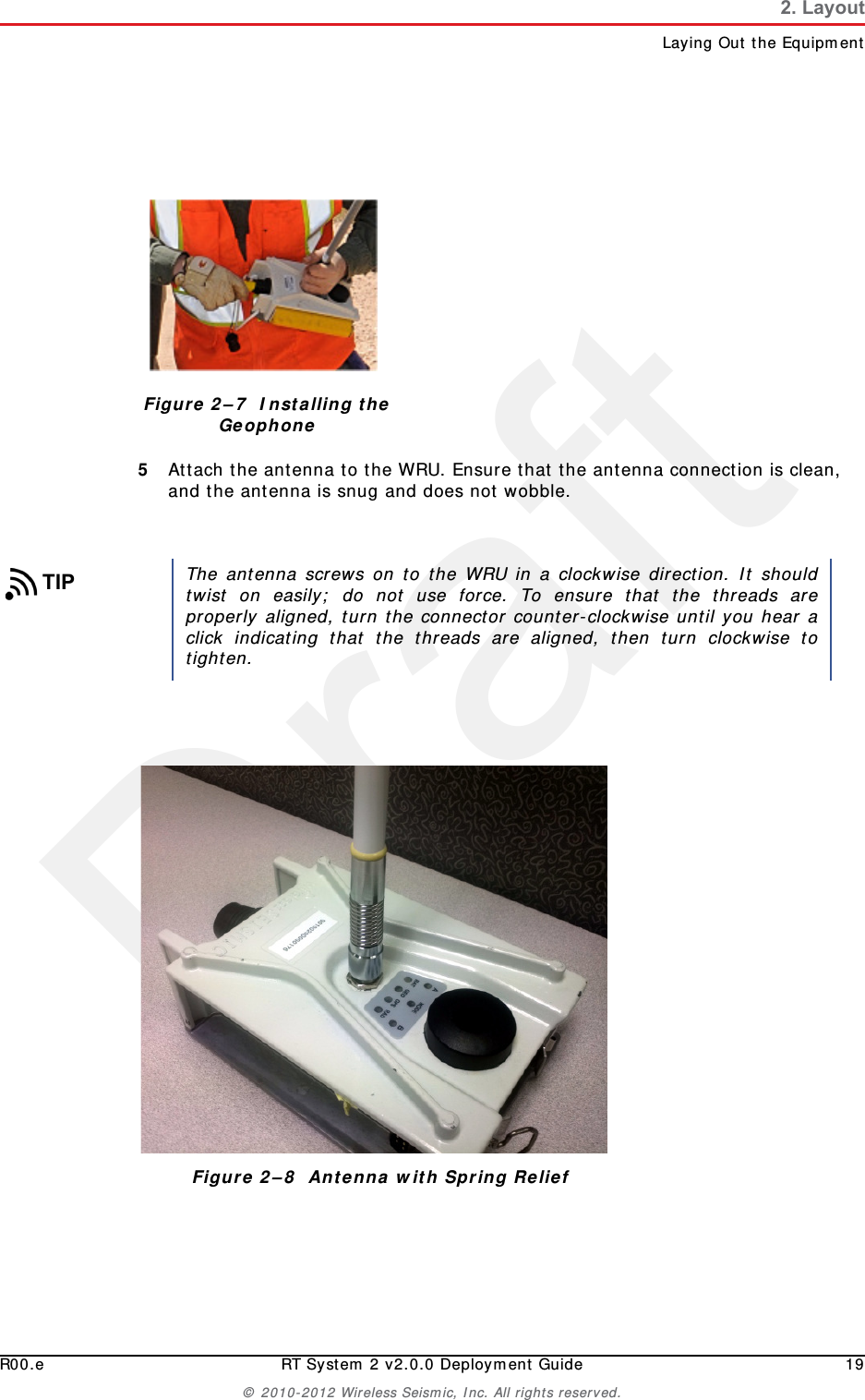

DraftR00.e RT System 2 v2.0.0 Deployment Guide 19© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the Equipment5Attach the antenna to the WRU. Ensure that the antenna connection is clean, and the antenna is snug and does not wobble.Figure 2–7 Installing the GeophoneTIPThe antenna screws on to the WRU in a clockwise direction. It shouldtwist on easily; do not use force. To ensure that the threads areproperly aligned, turn the connector counter-clockwise until you hear aclick indicating that the threads are aligned, then turn clockwise totighten.Figure 2–8 Antenna with Spring Relief

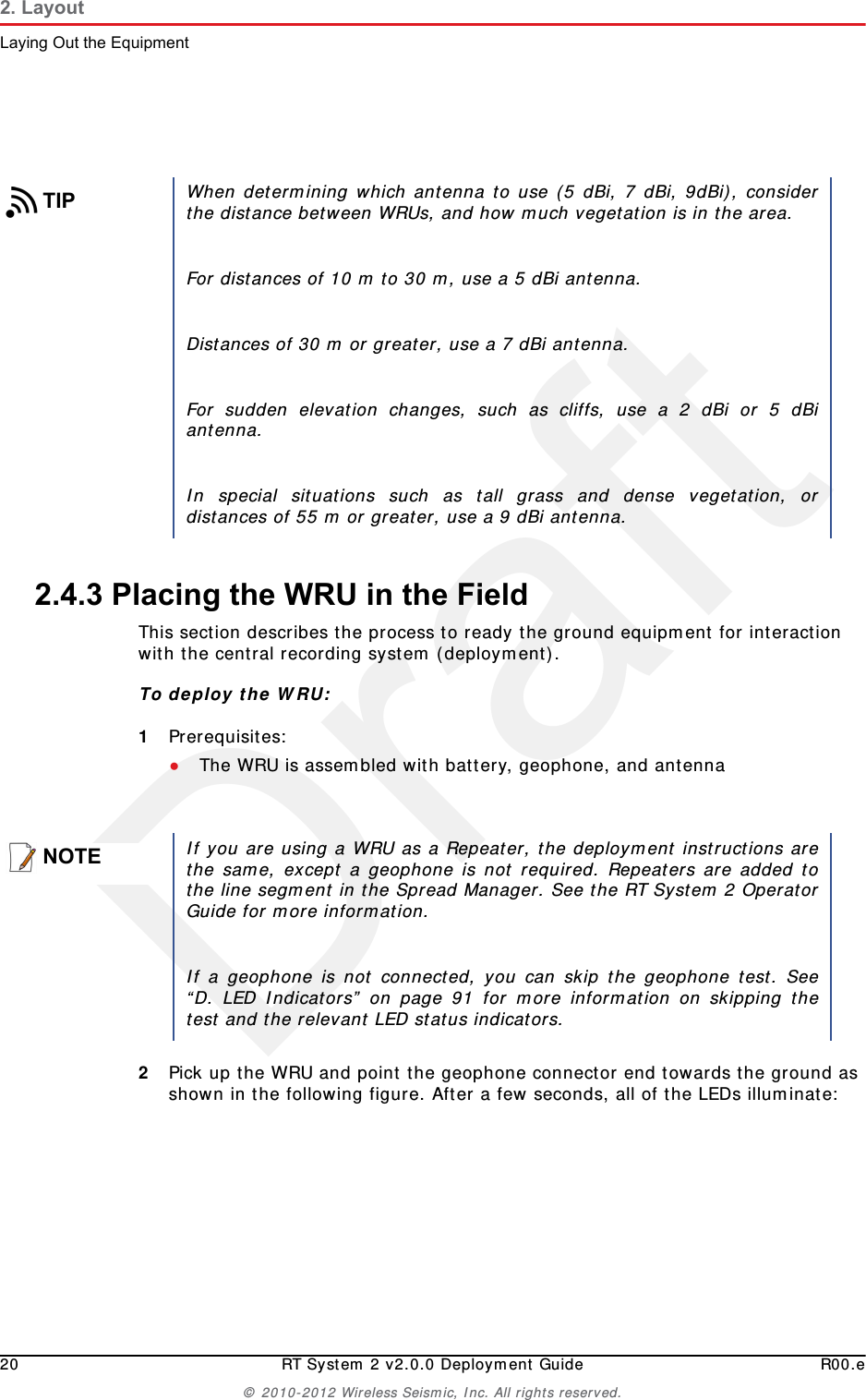

Draft20 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the Equipment2.4.3 Placing the WRU in the FieldThis section describes the process to ready the ground equipment for interaction with the central recording system (deployment).To deploy the WRU:1Prerequisites:●The WRU is assembled with battery, geophone, and antenna2Pick up the WRU and point the geophone connector end towards the ground as shown in the following figure. After a few seconds, all of the LEDs illuminate:TIPWhen determining which antenna to use (5 dBi, 7 dBi, 9dBi), considerthe distance between WRUs, and how much vegetation is in the area. For distances of 10 m to 30 m, use a 5 dBi antenna. Distances of 30 m or greater, use a 7 dBi antenna.For sudden elevation changes, such as cliffs, use a 2 dBi or 5 dBiantenna.In special situations such as tall grass and dense vegetation, ordistances of 55 m or greater, use a 9 dBi antenna. NOTEIf you are using a WRU as a Repeater, the deployment instructions arethe same, except a geophone is not required. Repeaters are added tothe line segment in the Spread Manager. See the RT System 2 OperatorGuide for more information. If a geophone is not connected, you can skip the geophone test. See“D. LED Indicators” on page 91 for more information on skipping thetest and the relevant LED status indicators.

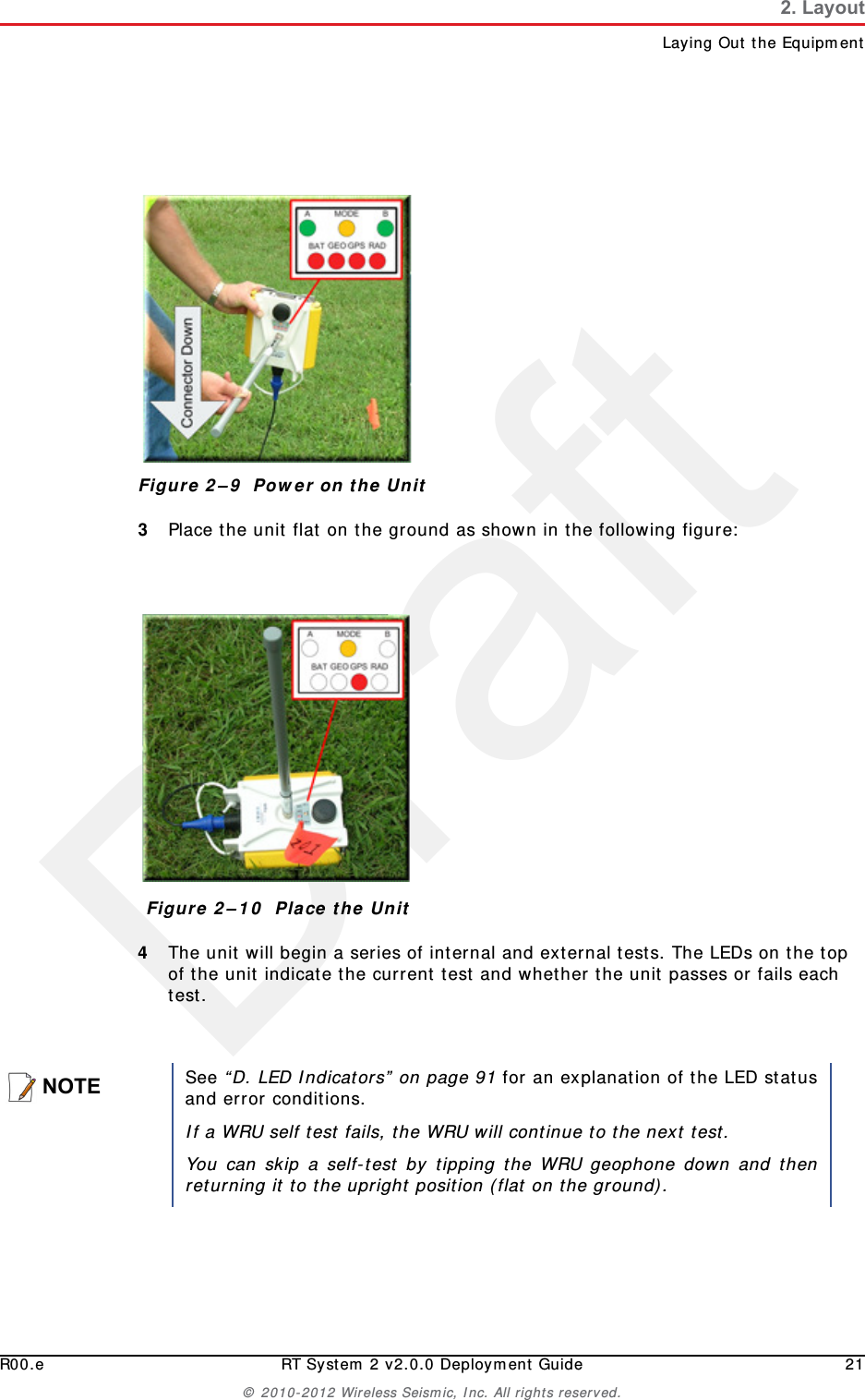

DraftR00.e RT System 2 v2.0.0 Deployment Guide 21© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the Equipment3Place the unit flat on the ground as shown in the following figure:4The unit will begin a series of internal and external tests. The LEDs on the top of the unit indicate the current test and whether the unit passes or fails each test. Figure 2–9 Power on the UnitFigure 2–10 Place the UnitNOTESee “D. LED Indicators” on page 91 for an explanation of the LED statusand error conditions.If a WRU self test fails, the WRU will continue to the next test. You can skip a self-test by tipping the WRU geophone down and thenreturning it to the upright position (flat on the ground).

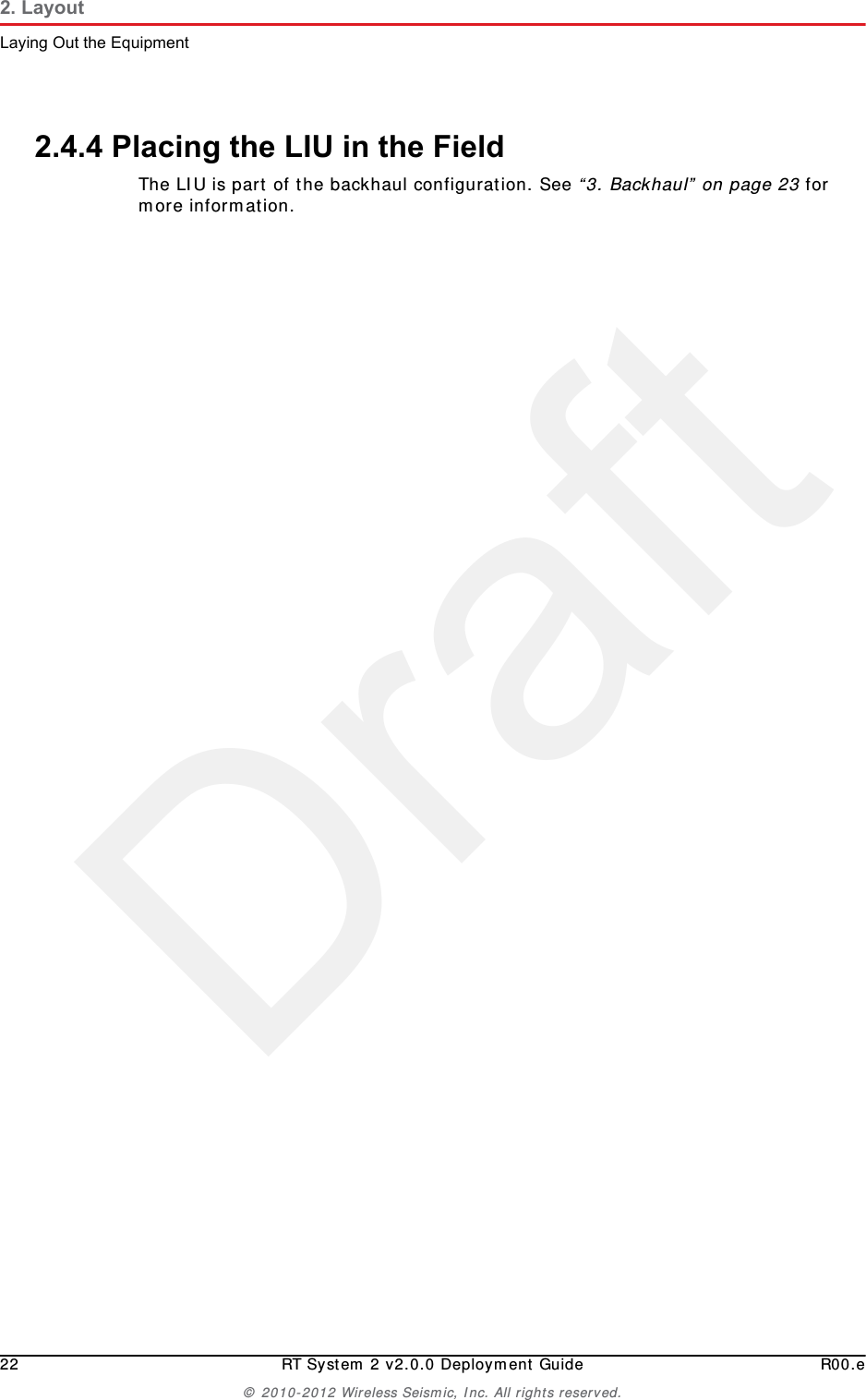

Draft22 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.2. LayoutLaying Out the Equipment2.4.4 Placing the LIU in the FieldThe LIU is part of the backhaul configuration. See “3. Backhaul” on page 23 for more information.

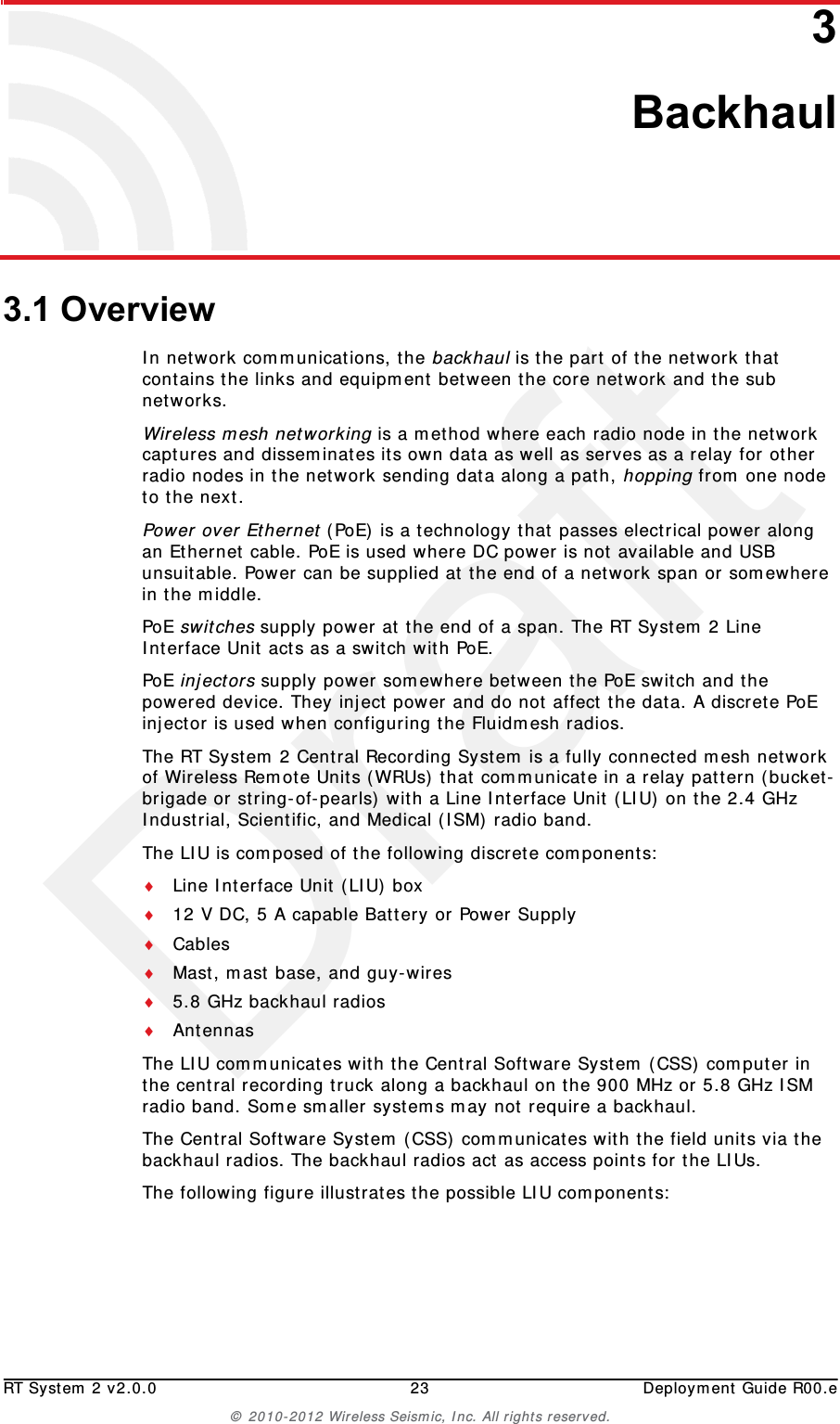

DraftRT System 2 v2.0.0 23 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.33. Backhaul3.1 OverviewIn network communications, the backhaul is the part of the network that contains the links and equipment between the core network and the sub networks.Wireless mesh networking is a method where each radio node in the network captures and disseminates its own data as well as serves as a relay for other radio nodes in the network sending data along a path, hopping from one node to the next. Power over Ethernet (PoE) is a technology that passes electrical power along an Ethernet cable. PoE is used where DC power is not available and USB unsuitable. Power can be supplied at the end of a network span or somewhere in the middle.PoE switches supply power at the end of a span. The RT System 2 Line Interface Unit acts as a switch with PoE.PoE injectors supply power somewhere between the PoE switch and the powered device. They inject power and do not affect the data. A discrete PoE injector is used when configuring the Fluidmesh radios. The RT System 2 Central Recording System is a fully connected mesh network of Wireless Remote Units (WRUs) that communicate in a relay pattern (bucket-brigade or string-of-pearls) with a Line Interface Unit (LIU) on the 2.4 GHz Industrial, Scientific, and Medical (ISM) radio band. The LIU is composed of the following discrete components:Line Interface Unit (LIU) box12 V DC, 5 A capable Battery or Power SupplyCablesMast, mast base, and guy-wires5.8 GHz backhaul radiosAntennasThe LIU communicates with the Central Software System (CSS) computer in the central recording truck along a backhaul on the 900 MHz or 5.8 GHz ISM radio band. Some smaller systems may not require a backhaul.The Central Software System (CSS) communicates with the field units via the backhaul radios. The backhaul radios act as access points for the LIUs.The following figure illustrates the possible LIU components:

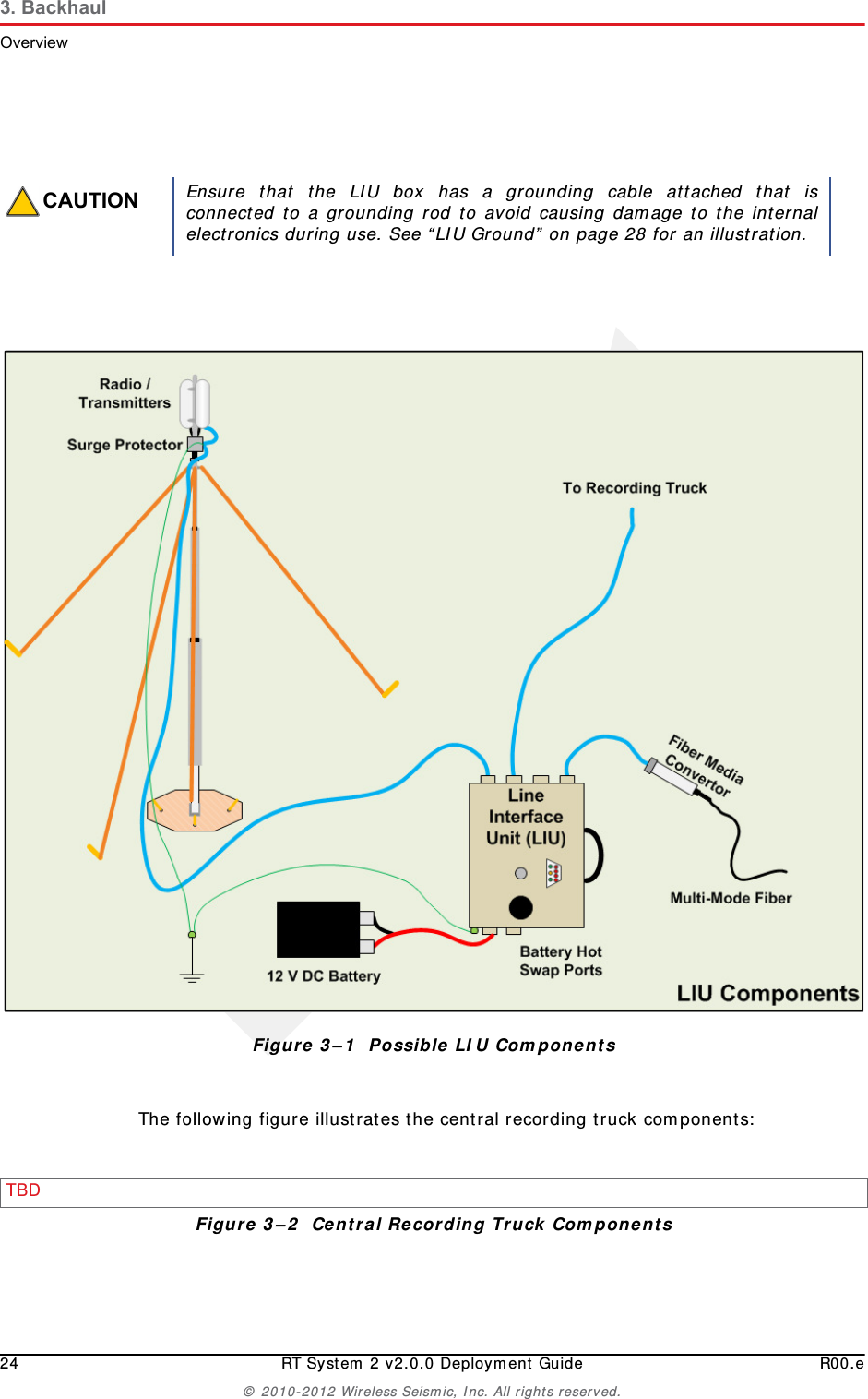

Draft24 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulOverviewThe following figure illustrates the central recording truck components:CAUTIONEnsure that the LIU box has a grounding cable attached that isconnected to a grounding rod to avoid causing damage to the internalelectronics during use. See “LIU Ground” on page 28 for an illustration.Figure 3–1 Possible LIU ComponentsTBD Figure 3–2 Central Recording Truck Components

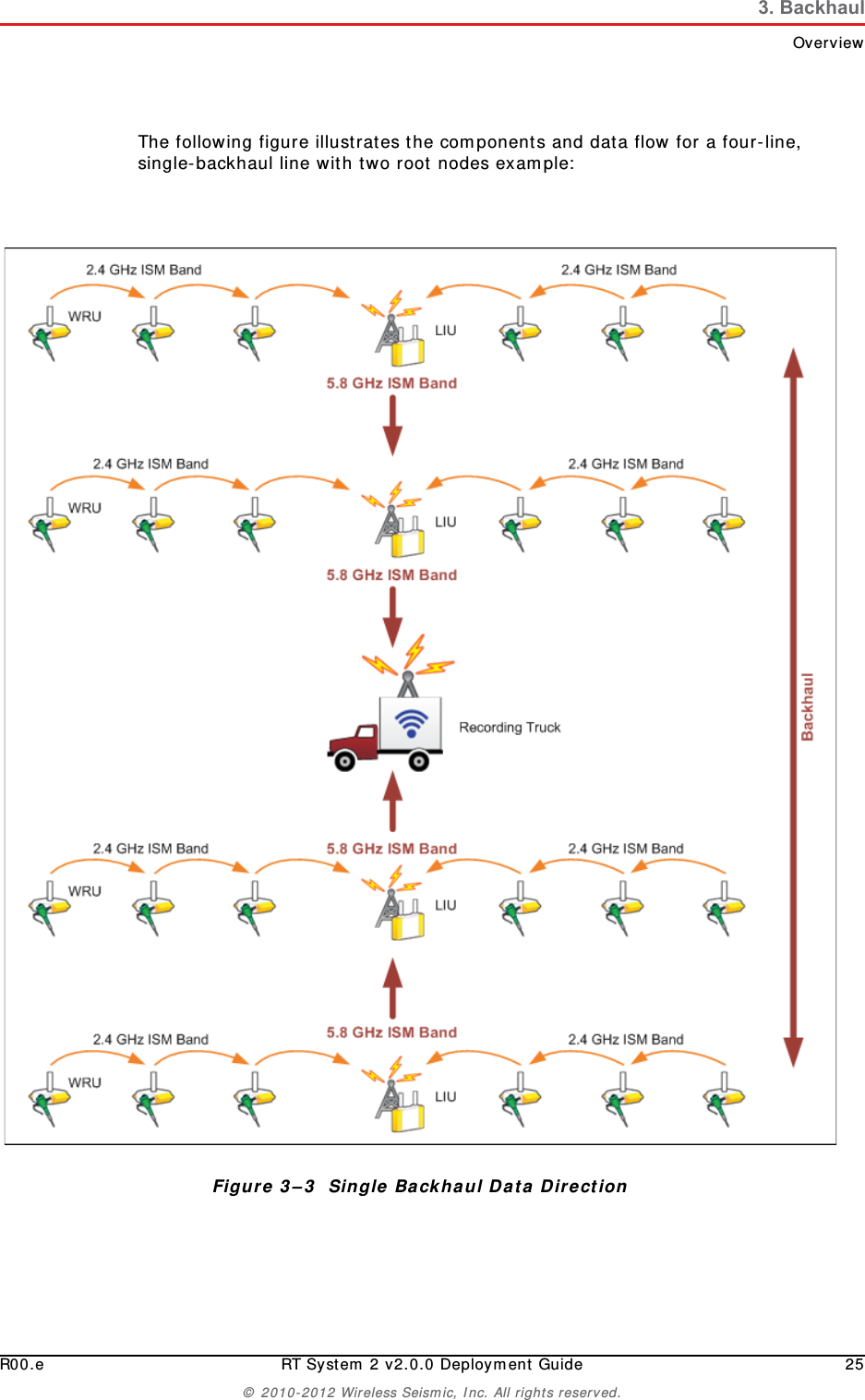

DraftR00.e RT System 2 v2.0.0 Deployment Guide 25© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulOverviewThe following figure illustrates the components and data flow for a four-line, single-backhaul line with two root nodes example:Figure 3–3 Single Backhaul Data Direction

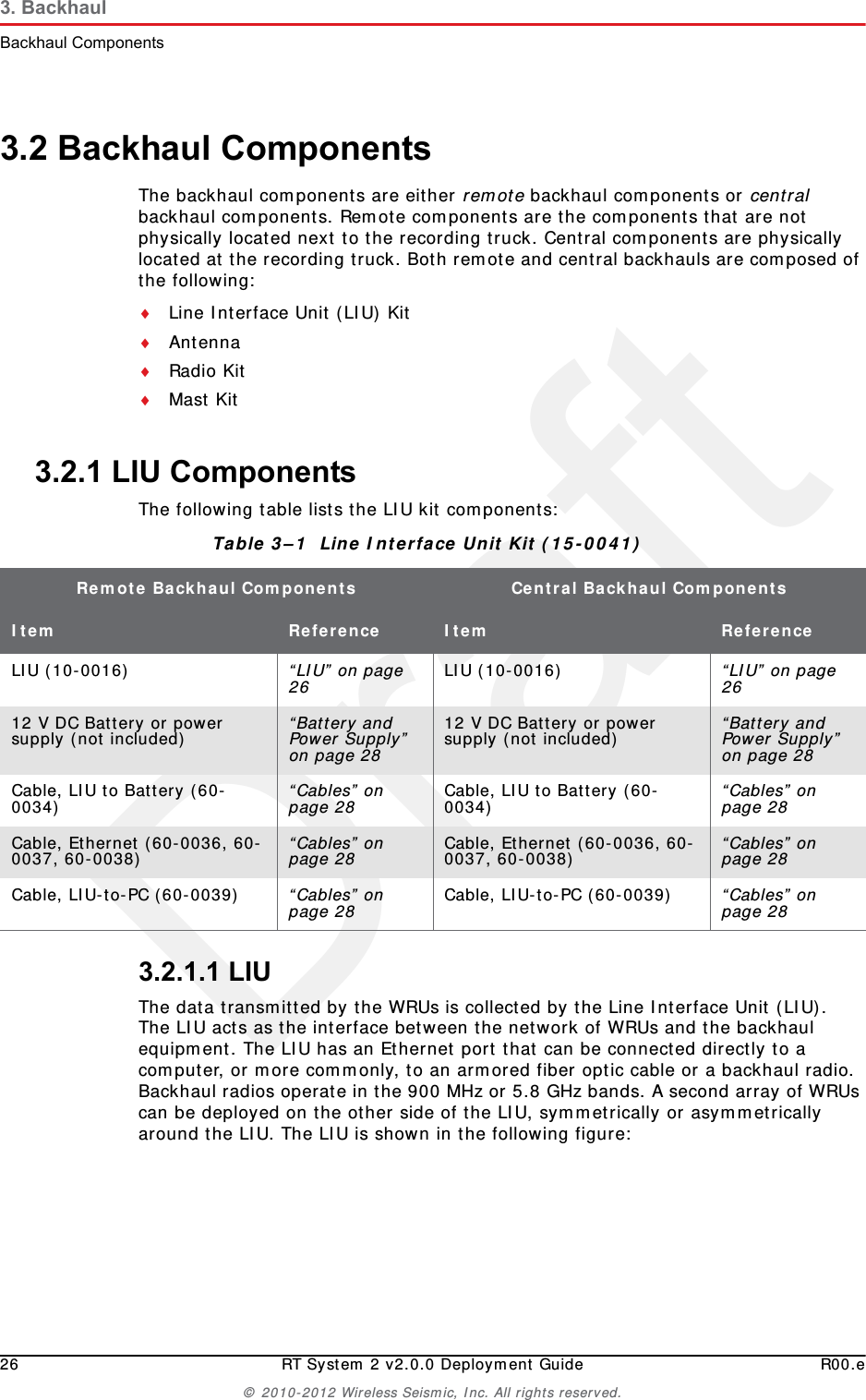

Draft26 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul Components3.2 Backhaul ComponentsThe backhaul components are either remote backhaul components or central backhaul components. Remote components are the components that are not physically located next to the recording truck. Central components are physically located at the recording truck. Both remote and central backhauls are composed of the following:Line Interface Unit (LIU) KitAntennaRadio KitMast Kit3.2.1 LIU ComponentsThe following table lists the LIU kit components:3.2.1.1 LIUThe data transmitted by the WRUs is collected by the Line Interface Unit (LIU). The LIU acts as the interface between the network of WRUs and the backhaul equipment. The LIU has an Ethernet port that can be connected directly to a computer, or more commonly, to an armored fiber optic cable or a backhaul radio. Backhaul radios operate in the 900 MHz or 5.8 GHz bands. A second array of WRUs can be deployed on the other side of the LIU, symmetrically or asymmetrically around the LIU. The LIU is shown in the following figure:Table 3–1 Line Interface Unit Kit (15-0041) Remote Backhaul Components Central Backhaul ComponentsItem Reference Item ReferenceLIU (10-0016) “LIU” on page 26 LIU (10-0016) “LIU” on page 2612 V DC Battery or power supply (not included) “Battery and Power Supply” on page 2812 V DC Battery or power supply (not included) “Battery and Power Supply” on page 28Cable, LIU to Battery (60-0034) “Cables” on page 28 Cable, LIU to Battery (60-0034) “Cables” on page 28Cable, Ethernet (60-0036, 60-0037, 60-0038) “Cables” on page 28 Cable, Ethernet (60-0036, 60-0037, 60-0038) “Cables” on page 28Cable, LIU-to-PC (60-0039) “Cables” on page 28 Cable, LIU-to-PC (60-0039) “Cables” on page 28
DraftR00.e RT System 2 v2.0.0 Deployment Guide 27© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul ComponentsFigure 3–4 Line Interface Unit (LIU)

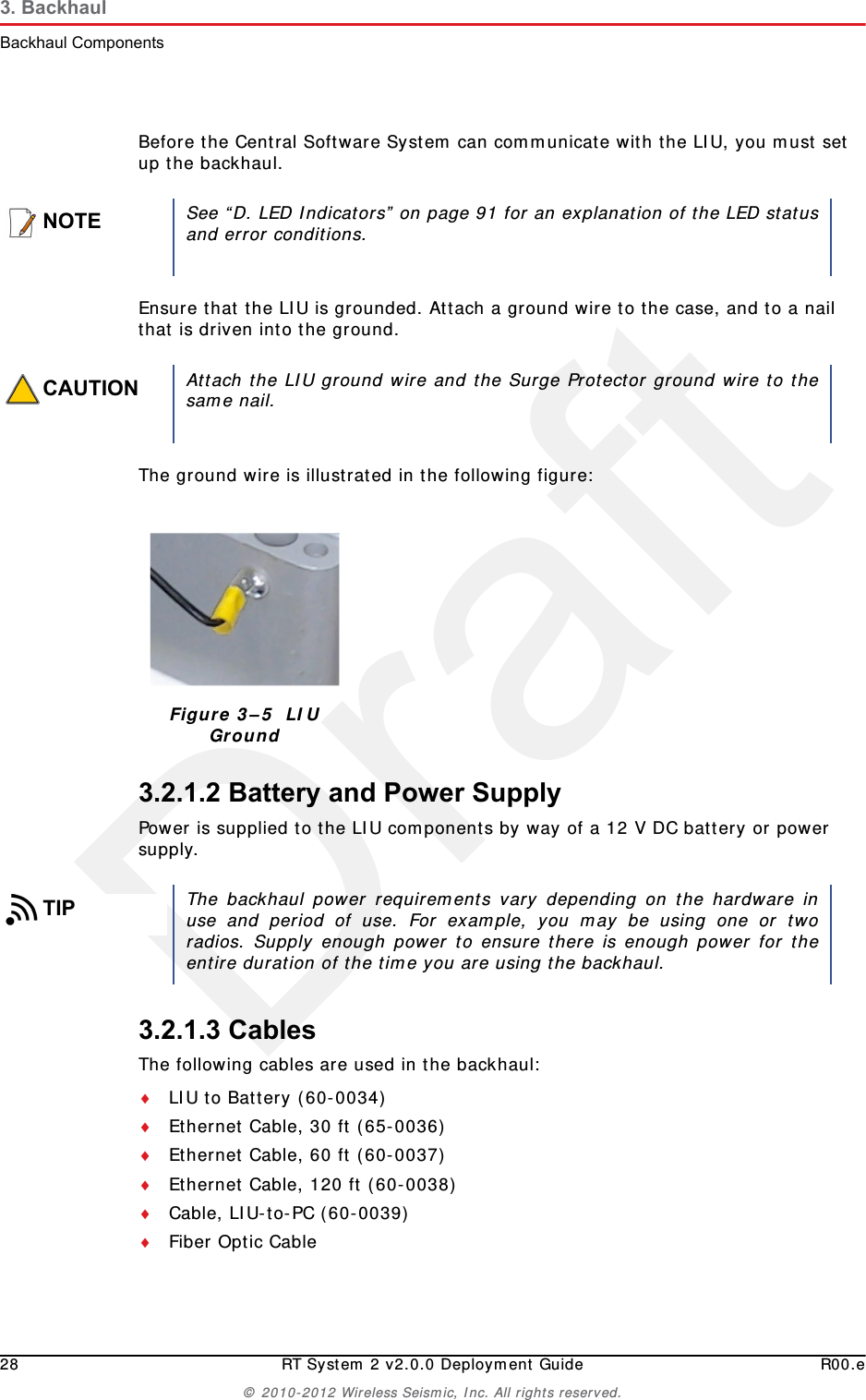

Draft28 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul ComponentsBefore the Central Software System can communicate with the LIU, you must set up the backhaul.Ensure that the LIU is grounded. Attach a ground wire to the case, and to a nail that is driven into the ground. The ground wire is illustrated in the following figure:3.2.1.2 Battery and Power SupplyPower is supplied to the LIU components by way of a 12 V DC battery or power supply.3.2.1.3 CablesThe following cables are used in the backhaul:LIU to Battery (60-0034) Ethernet Cable, 30 ft (65-0036) Ethernet Cable, 60 ft (60-0037) Ethernet Cable, 120 ft (60-0038) Cable, LIU-to-PC (60-0039) Fiber Optic CableNOTESee “D. LED Indicators” on page 91 for an explanation of the LED statusand error conditions.CAUTIONAttach the LIU ground wire and the Surge Protector ground wire to thesame nail.Figure 3–5 LIU GroundTIPThe backhaul power requirements vary depending on the hardware inuse and period of use. For example, you may be using one or tworadios. Supply enough power to ensure there is enough power for theentire duration of the time you are using the backhaul.

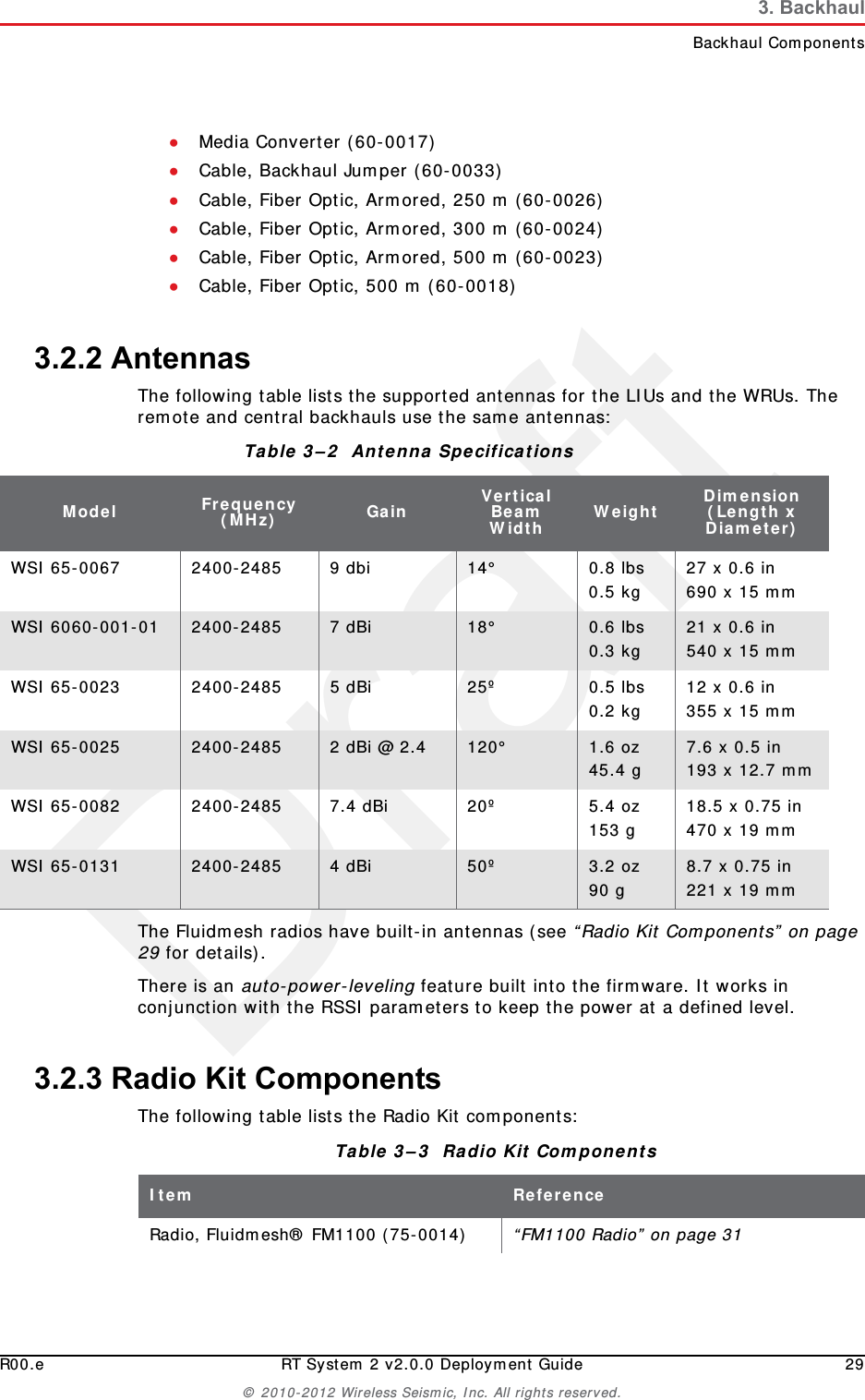

DraftR00.e RT System 2 v2.0.0 Deployment Guide 29© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul Components●Media Converter (60-0017) ●Cable, Backhaul Jumper (60-0033) ●Cable, Fiber Optic, Armored, 250 m (60-0026) ●Cable, Fiber Optic, Armored, 300 m (60-0024) ●Cable, Fiber Optic, Armored, 500 m (60-0023) ●Cable, Fiber Optic, 500 m (60-0018) 3.2.2 AntennasThe following table lists the supported antennas for the LIUs and the WRUs. The remote and central backhauls use the same antennas: The Fluidmesh radios have built-in antennas (see “Radio Kit Components” on page 29 for details). There is an auto-power-leveling feature built into the firmware. It works in conjunction with the RSSI parameters to keep the power at a defined level. 3.2.3 Radio Kit ComponentsThe following table lists the Radio Kit components:Table 3–2 Antenna Specifications Model Frequency (MHz) Gain Vertical Beam Width Weight Dimension (Length x Diameter)WSI 65-0067 2400-2485 9 dbi 14° 0.8 lbs0.5 kg 27 x 0.6 in690 x 15 mmWSI 6060-001-01 2400-2485 7 dBi 18° 0.6 lbs 0.3 kg 21 x 0.6 in540 x 15 mmWSI 65-0023 2400-2485 5 dBi 25º 0.5 lbs 0.2 kg 12 x 0.6 in355 x 15 mmWSI 65-0025 2400-2485 2 dBi @ 2.4 120° 1.6 oz 45.4 g 7.6 x 0.5 in193 x 12.7 mmWSI 65-0082 2400-2485 7.4 dBi 20º 5.4 oz153 g 18.5 x 0.75 in470 x 19 mmWSI 65-0131 2400-2485 4 dBi 50º 3.2 oz90 g 8.7 x 0.75 in221 x 19 mmTable 3–3 Radio Kit Components Item ReferenceRadio, Fluidmesh® FM1100 (75-0014) “FM1100 Radio” on page 31

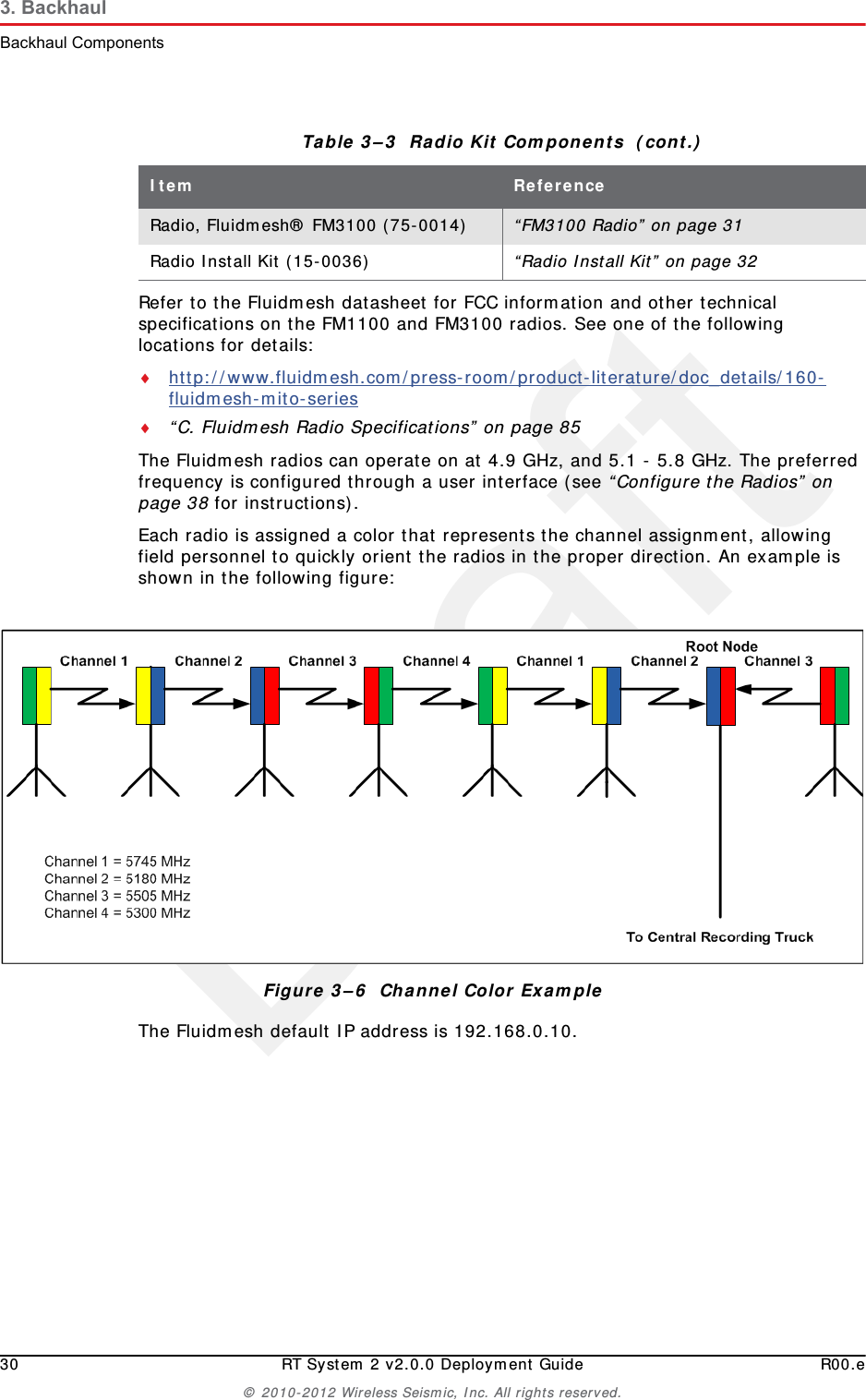

Draft30 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul ComponentsRefer to the Fluidmesh datasheet for FCC information and other technical specifications on the FM1100 and FM3100 radios. See one of the following locations for details: http://www.fluidmesh.com/press-room/product-literature/doc_details/160-fluidmesh-mito-series “C. Fluidmesh Radio Specifications” on page 85The Fluidmesh radios can operate on at 4.9 GHz, and 5.1 - 5.8 GHz. The preferred frequency is configured through a user interface (see “Configure the Radios” on page 38 for instructions). Each radio is assigned a color that represents the channel assignment, allowing field personnel to quickly orient the radios in the proper direction. An example is shown in the following figure:The Fluidmesh default IP address is 192.168.0.10.Radio, Fluidmesh® FM3100 (75-0014) “FM3100 Radio” on page 31Radio Install Kit (15-0036) “Radio Install Kit” on page 32Table 3–3 Radio Kit Components (cont.)Item ReferenceFigure 3–6 Channel Color Example

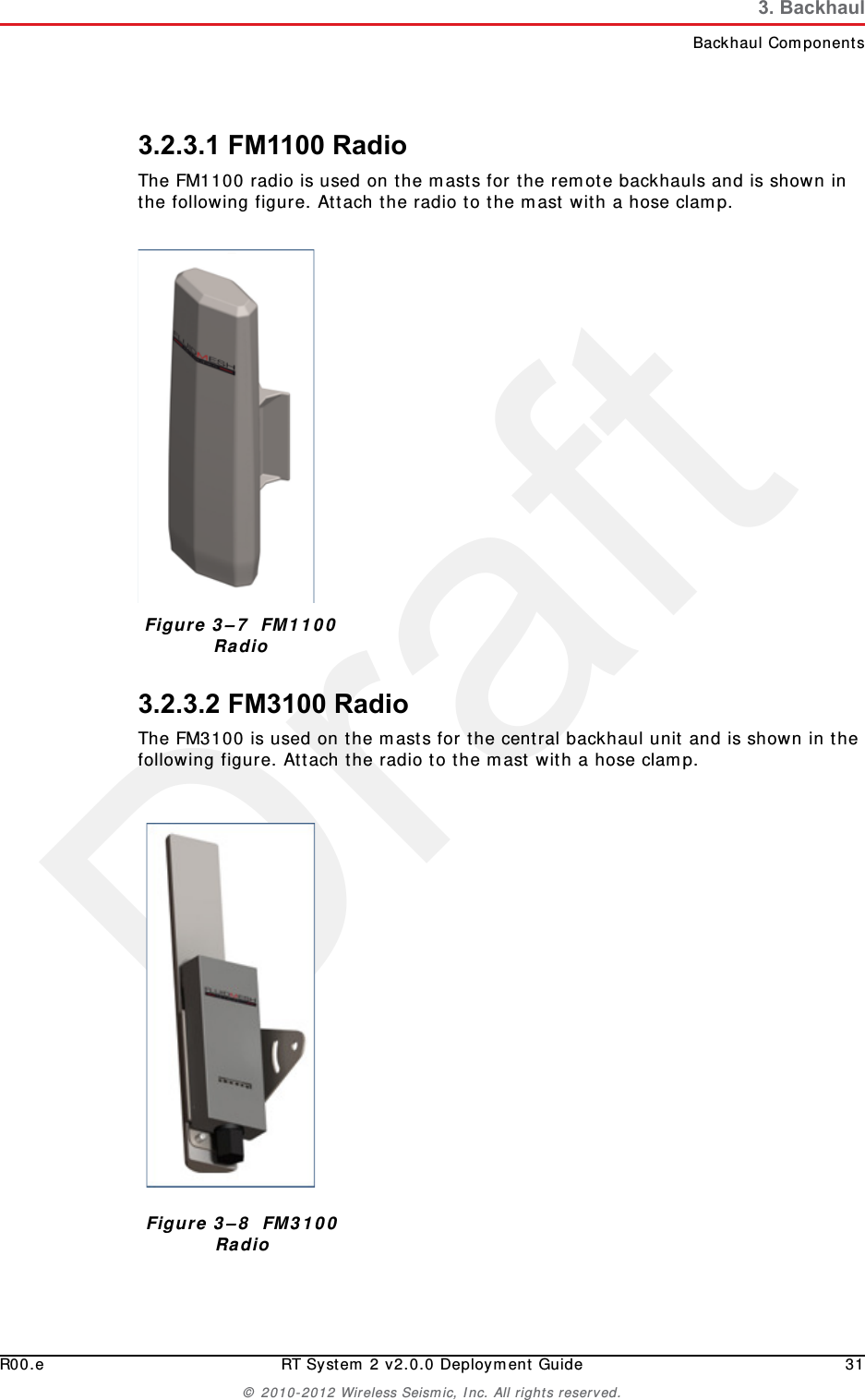

DraftR00.e RT System 2 v2.0.0 Deployment Guide 31© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul Components3.2.3.1 FM1100 RadioThe FM1100 radio is used on the masts for the remote backhauls and is shown in the following figure. Attach the radio to the mast with a hose clamp.3.2.3.2 FM3100 RadioThe FM3100 is used on the masts for the central backhaul unit and is shown in the following figure. Attach the radio to the mast with a hose clamp.Figure 3–7 FM1100 RadioFigure 3–8 FM3100 Radio

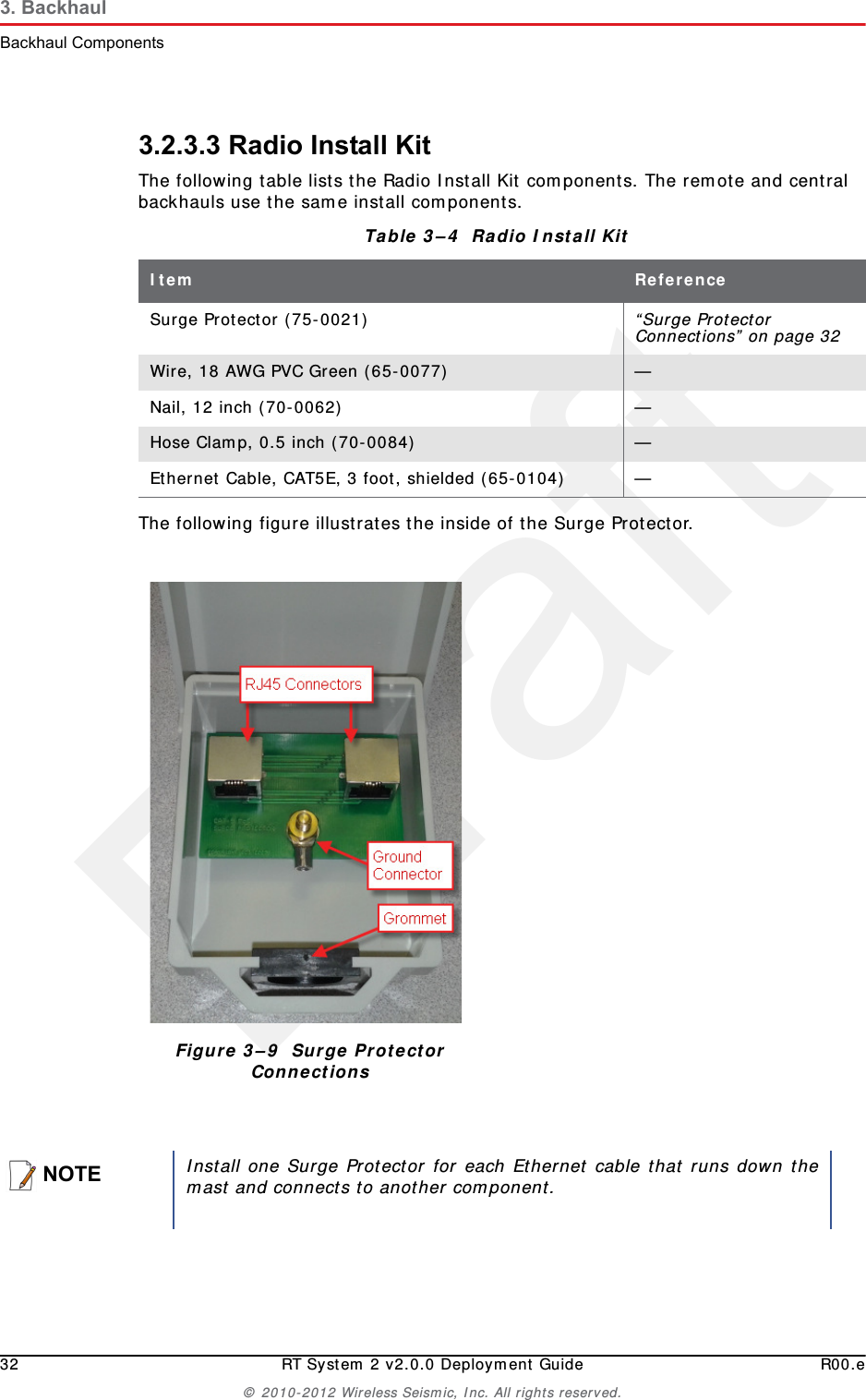

Draft32 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul Components3.2.3.3 Radio Install KitThe following table lists the Radio Install Kit components. The remote and central backhauls use the same install components.The following figure illustrates the inside of the Surge Protector. Table 3–4 Radio Install Kit Item ReferenceSurge Protector (75-0021) “Surge Protector Connections” on page 32Wire, 18 AWG PVC Green (65-0077) —Nail, 12 inch (70-0062) —Hose Clamp, 0.5 inch (70-0084) —Ethernet Cable, CAT5E, 3 foot, shielded (65-0104) —Figure 3–9 Surge Protector ConnectionsNOTEInstall one Surge Protector for each Ethernet cable that runs down themast and connects to another component.

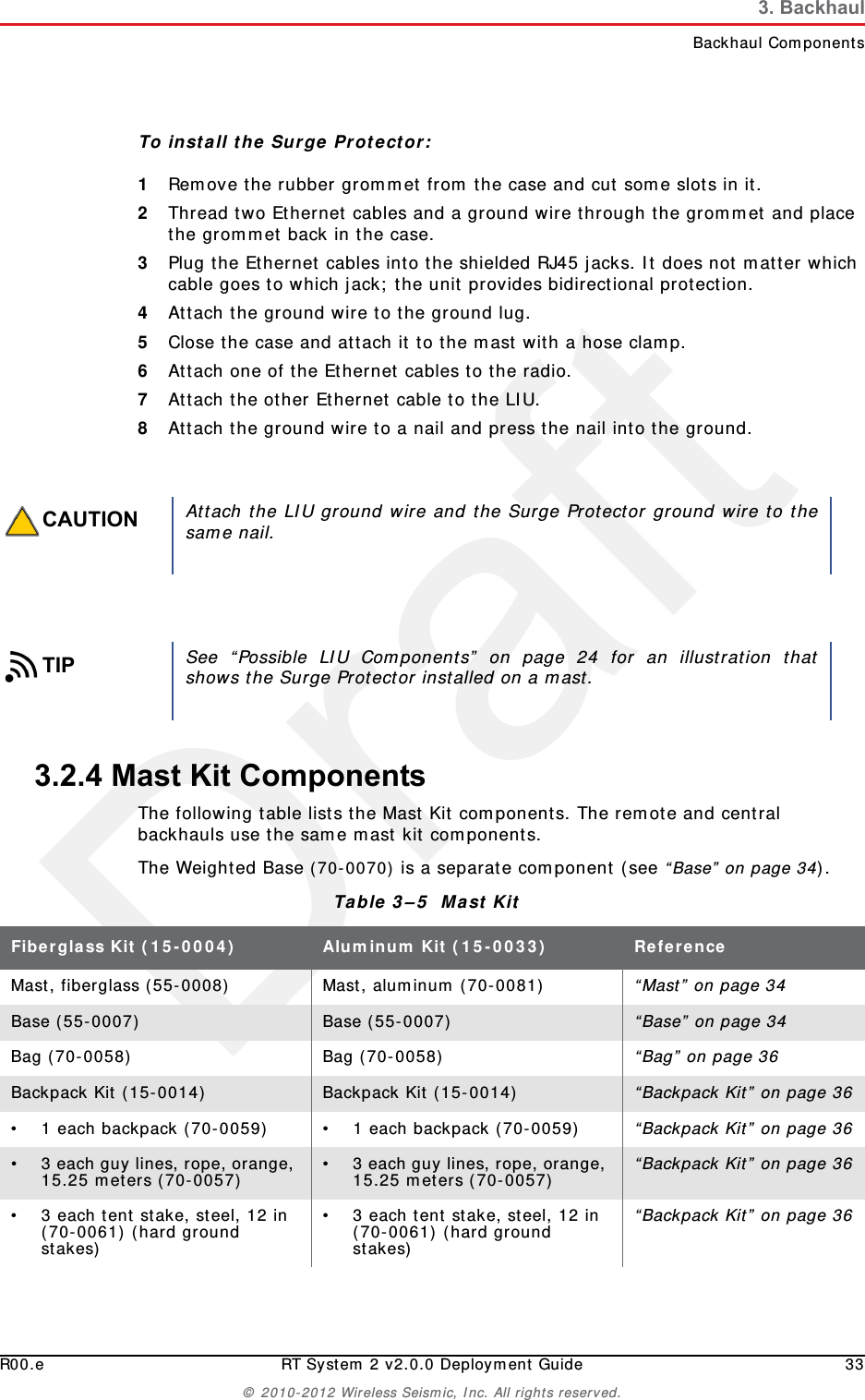

DraftR00.e RT System 2 v2.0.0 Deployment Guide 33© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul ComponentsTo install the Surge Protector:1Remove the rubber grommet from the case and cut some slots in it. 2Thread two Ethernet cables and a ground wire through the grommet and place the grommet back in the case.3Plug the Ethernet cables into the shielded RJ45 jacks. It does not matter which cable goes to which jack; the unit provides bidirectional protection.4Attach the ground wire to the ground lug.5Close the case and attach it to the mast with a hose clamp.6Attach one of the Ethernet cables to the radio.7Attach the other Ethernet cable to the LIU. 8Attach the ground wire to a nail and press the nail into the ground.3.2.4 Mast Kit ComponentsThe following table lists the Mast Kit components. The remote and central backhauls use the same mast kit components. The Weighted Base (70-0070) is a separate component (see “Base” on page 34).CAUTIONAttach the LIU ground wire and the Surge Protector ground wire to thesame nail.TIPSee “Possible LIU Components” on page 24 for an illustration thatshows the Surge Protector installed on a mast.Table 3–5 Mast Kit Fiberglass Kit (15-0004) Aluminum Kit (15-0033) ReferenceMast, fiberglass (55-0008) Mast, aluminum (70-0081) “Mast” on page 34Base (55-0007) Base (55-0007) “Base” on page 34Bag (70-0058) Bag (70-0058) “Bag” on page 36Backpack Kit (15-0014) Backpack Kit (15-0014) “Backpack Kit” on page 36• 1 each backpack (70-0059) • 1 each backpack (70-0059) “Backpack Kit” on page 36• 3 each guy lines, rope, orange, 15.25 meters (70-0057) • 3 each guy lines, rope, orange, 15.25 meters (70-0057) “Backpack Kit” on page 36• 3 each tent stake, steel, 12 in (70-0061) (hard ground stakes)• 3 each tent stake, steel, 12 in (70-0061) (hard ground stakes)“Backpack Kit” on page 36

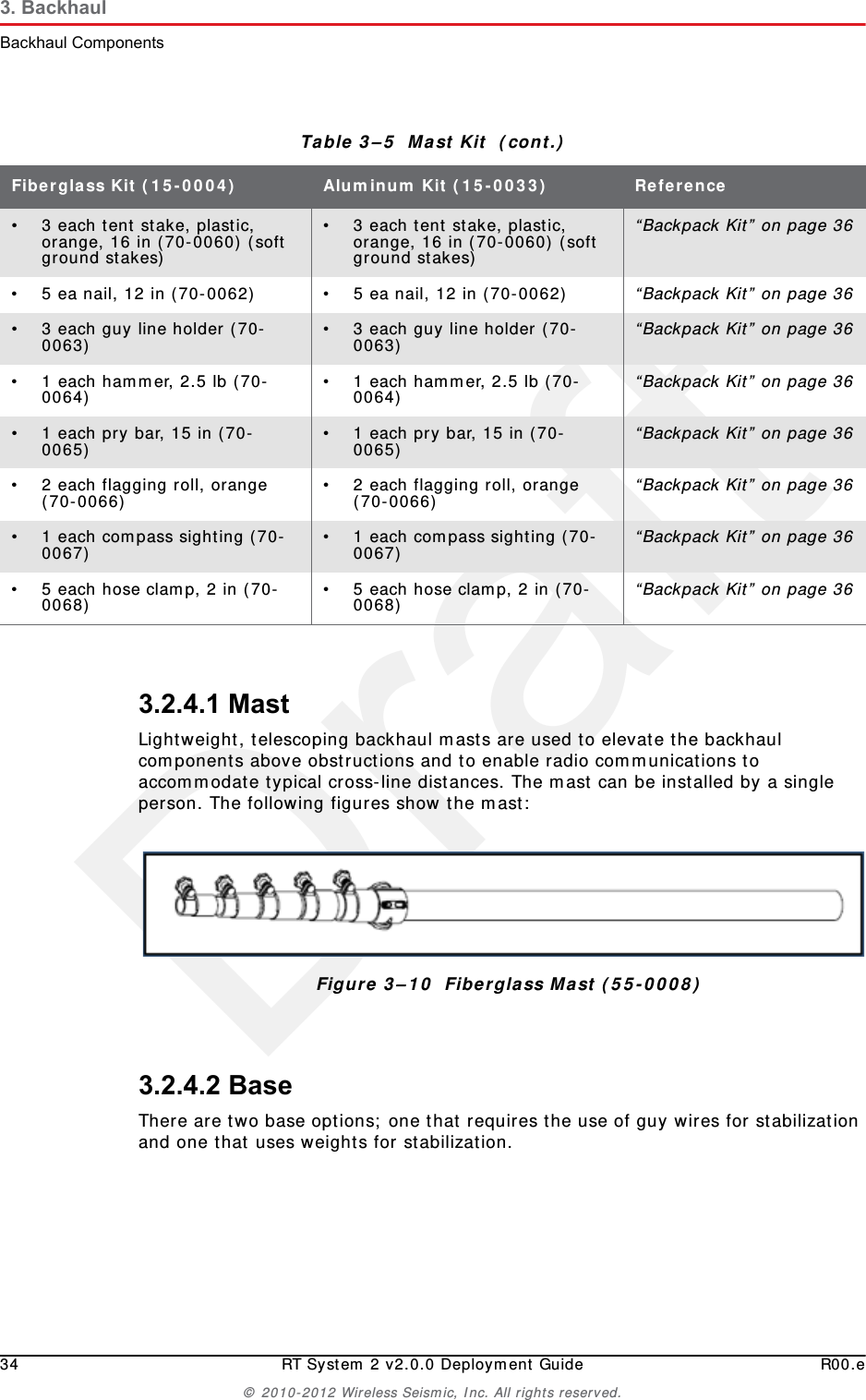

Draft34 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul Components3.2.4.1 MastLightweight, telescoping backhaul masts are used to elevate the backhaul components above obstructions and to enable radio communications to accommodate typical cross-line distances. The mast can be installed by a single person. The following figures show the mast:3.2.4.2 BaseThere are two base options; one that requires the use of guy wires for stabilization and one that uses weights for stabilization.• 3 each tent stake, plastic, orange, 16 in (70-0060) (soft ground stakes)• 3 each tent stake, plastic, orange, 16 in (70-0060) (soft ground stakes)“Backpack Kit” on page 36• 5 ea nail, 12 in (70-0062) • 5 ea nail, 12 in (70-0062) “Backpack Kit” on page 36• 3 each guy line holder (70-0063) • 3 each guy line holder (70-0063) “Backpack Kit” on page 36• 1 each hammer, 2.5 lb (70-0064) • 1 each hammer, 2.5 lb (70-0064) “Backpack Kit” on page 36• 1 each pry bar, 15 in (70-0065) • 1 each pry bar, 15 in (70-0065) “Backpack Kit” on page 36• 2 each flagging roll, orange (70-0066) • 2 each flagging roll, orange (70-0066) “Backpack Kit” on page 36• 1 each compass sighting (70-0067) • 1 each compass sighting (70-0067) “Backpack Kit” on page 36• 5 each hose clamp, 2 in (70-0068) • 5 each hose clamp, 2 in (70-0068) “Backpack Kit” on page 36Table 3–5 Mast Kit (cont.)Fiberglass Kit (15-0004) Aluminum Kit (15-0033) ReferenceFigure 3–10 Fiberglass Mast (55-0008)

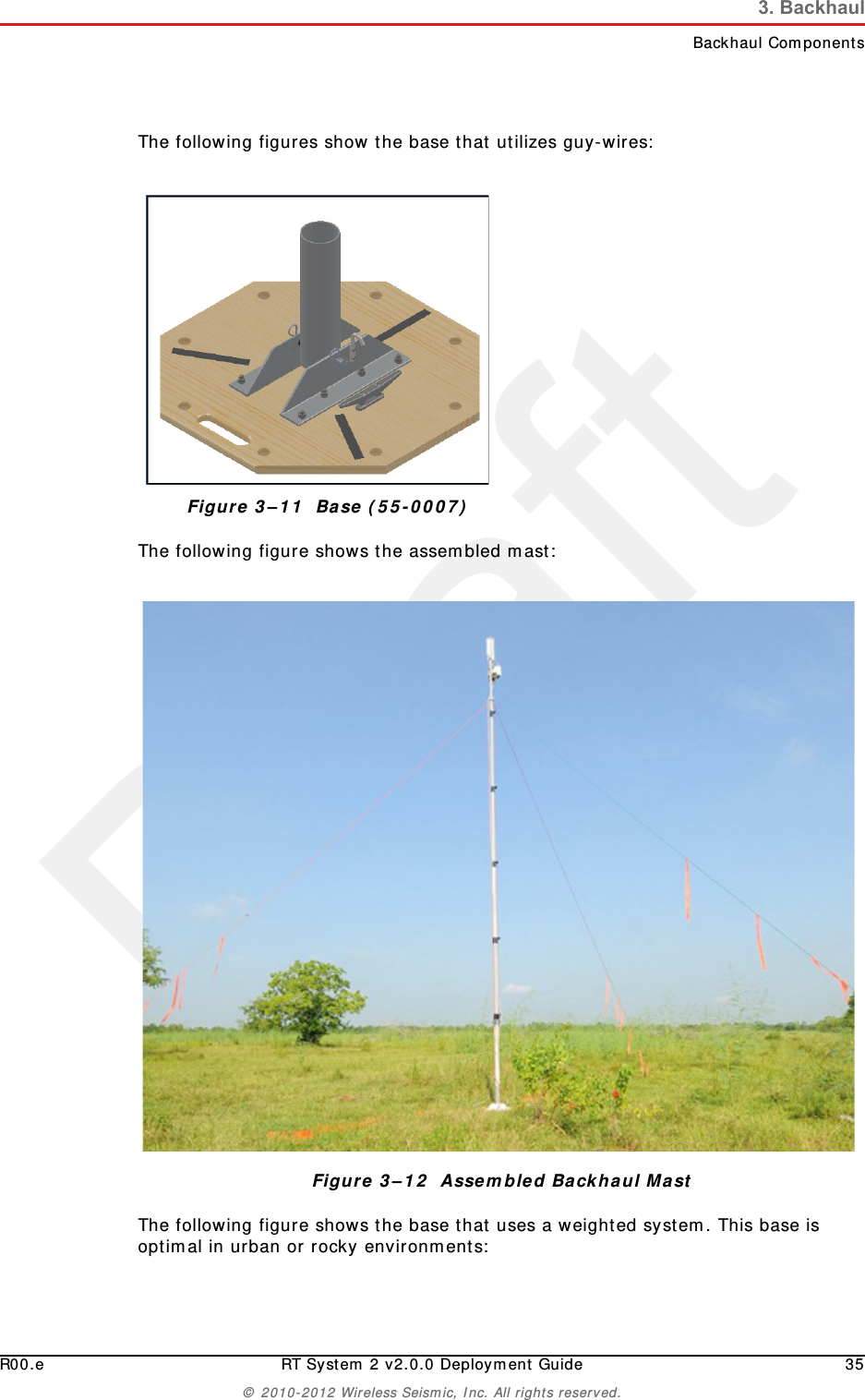

DraftR00.e RT System 2 v2.0.0 Deployment Guide 35© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulBackhaul ComponentsThe following figures show the base that utilizes guy-wires:The following figure shows the assembled mast:The following figure shows the base that uses a weighted system. This base is optimal in urban or rocky environments:Figure 3–11 Base (55-0007)Figure 3–12 Assembled Backhaul Mast

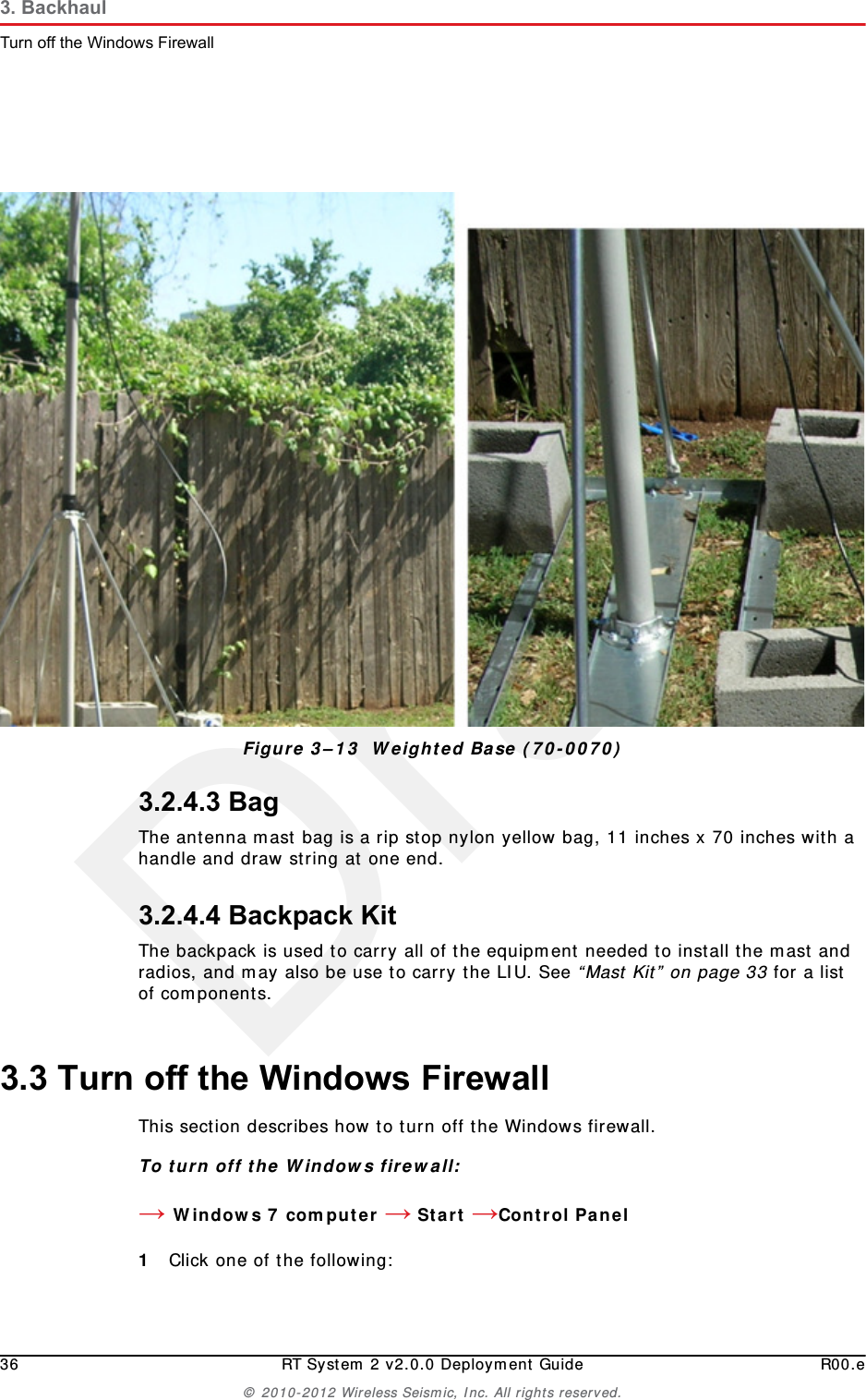

Draft36 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulTurn off the Windows Firewall3.2.4.3 BagThe antenna mast bag is a rip stop nylon yellow bag, 11 inches x 70 inches with a handle and draw string at one end.3.2.4.4 Backpack KitThe backpack is used to carry all of the equipment needed to install the mast and radios, and may also be use to carry the LIU. See “Mast Kit” on page 33 for a list of components. 3.3 Turn off the Windows FirewallThis section describes how to turn off the Windows firewall.To turn off the Windows firewall:→Windows 7 computer → Start →Control Panel 1Click one of the following:Figure 3–13 Weighted Base (70-0070)

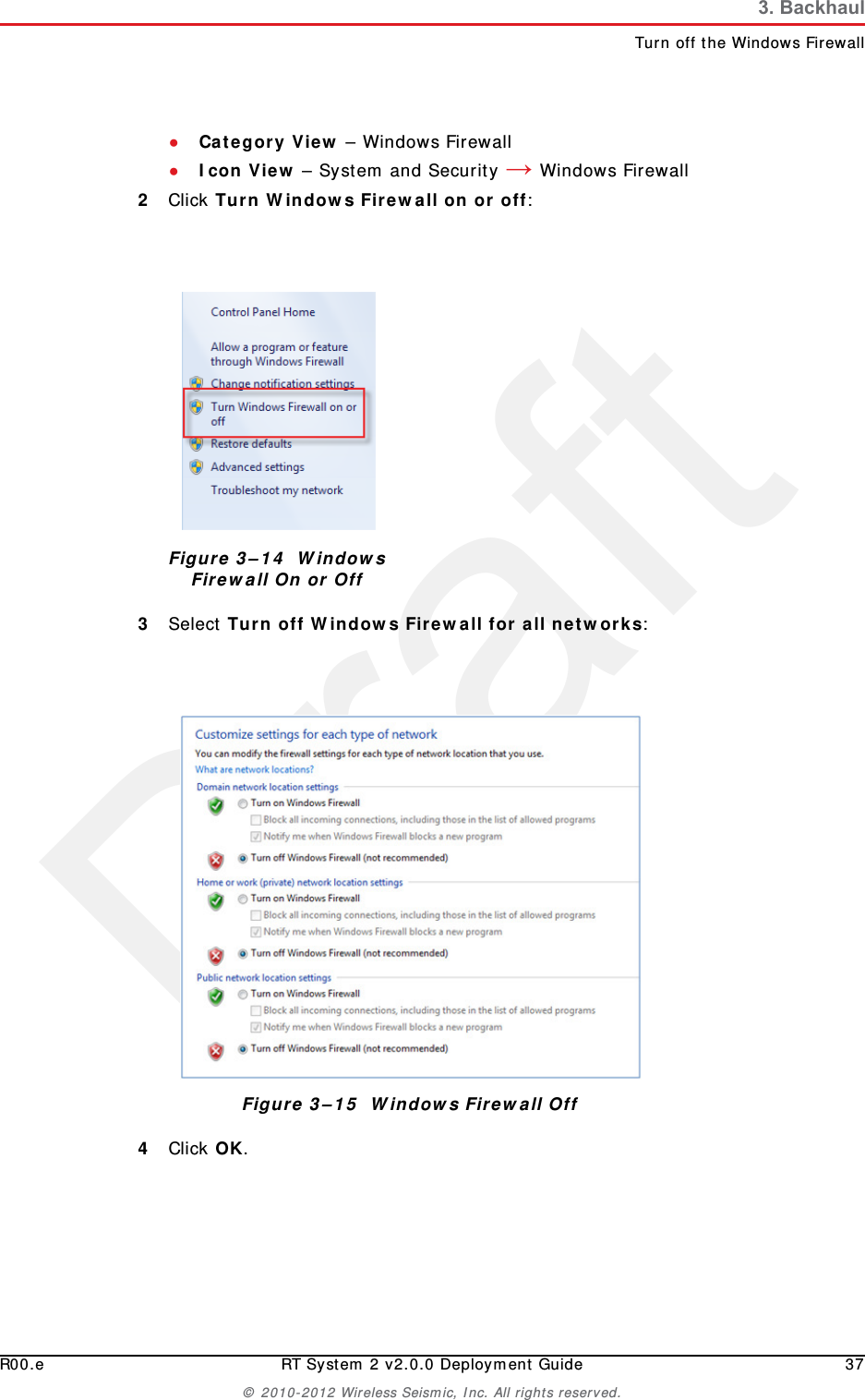

DraftR00.e RT System 2 v2.0.0 Deployment Guide 37© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulTurn off the Windows Firewall●Category View – Windows Firewall●Icon View – System and Security → Windows Firewall2Click Turn Windows Firewall on or off:3Select Turn off Windows Firewall for all networks:4Click OK.Figure 3–14 Windows Firewall On or OffFigure 3–15 Windows Firewall Off

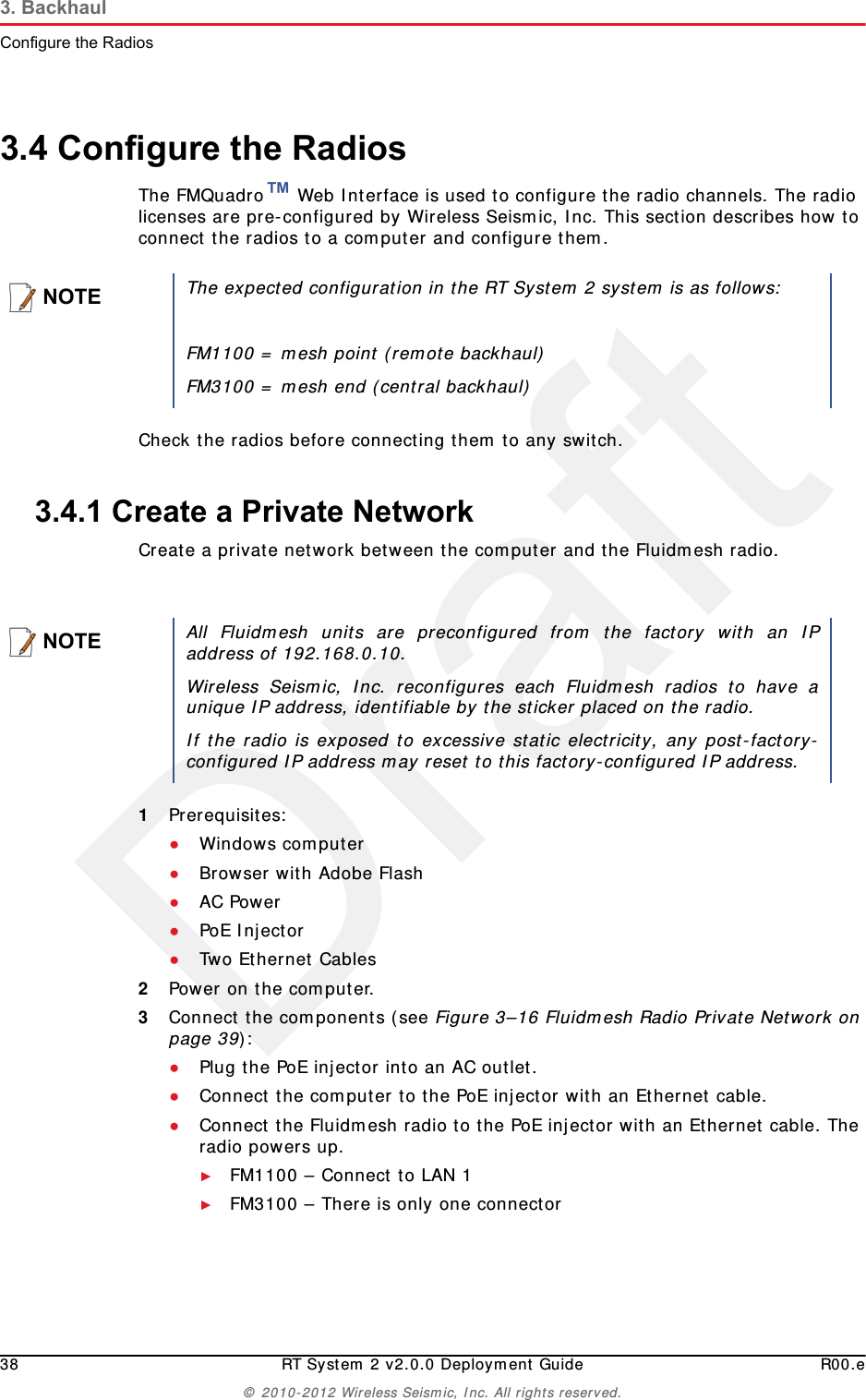

Draft38 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios3.4 Configure the RadiosThe FMQuadro™ Web Interface is used to configure the radio channels. The radio licenses are pre-configured by Wireless Seismic, Inc. This section describes how to connect the radios to a computer and configure them.Check the radios before connecting them to any switch.3.4.1 Create a Private NetworkCreate a private network between the computer and the Fluidmesh radio.1Prerequisites:●Windows computer●Browser with Adobe Flash●AC Power●PoE Injector●Two Ethernet Cables2Power on the computer.3Connect the components (see Figure 3–16 Fluidmesh Radio Private Network on page 39):●Plug the PoE injector into an AC outlet.●Connect the computer to the PoE injector with an Ethernet cable.●Connect the Fluidmesh radio to the PoE injector with an Ethernet cable. The radio powers up.►FM1100 – Connect to LAN 1►FM3100 – There is only one connectorNOTEThe expected configuration in the RT System 2 system is as follows:FM1100 = mesh point (remote backhaul)FM3100 = mesh end (central backhaul)NOTEAll Fluidmesh units are preconfigured from the factory with an IPaddress of 192.168.0.10. Wireless Seismic, Inc. reconfigures each Fluidmesh radios to have aunique IP address, identifiable by the sticker placed on the radio.If the radio is exposed to excessive static electricity, any post-factory-configured IP address may reset to this factory-configured IP address.

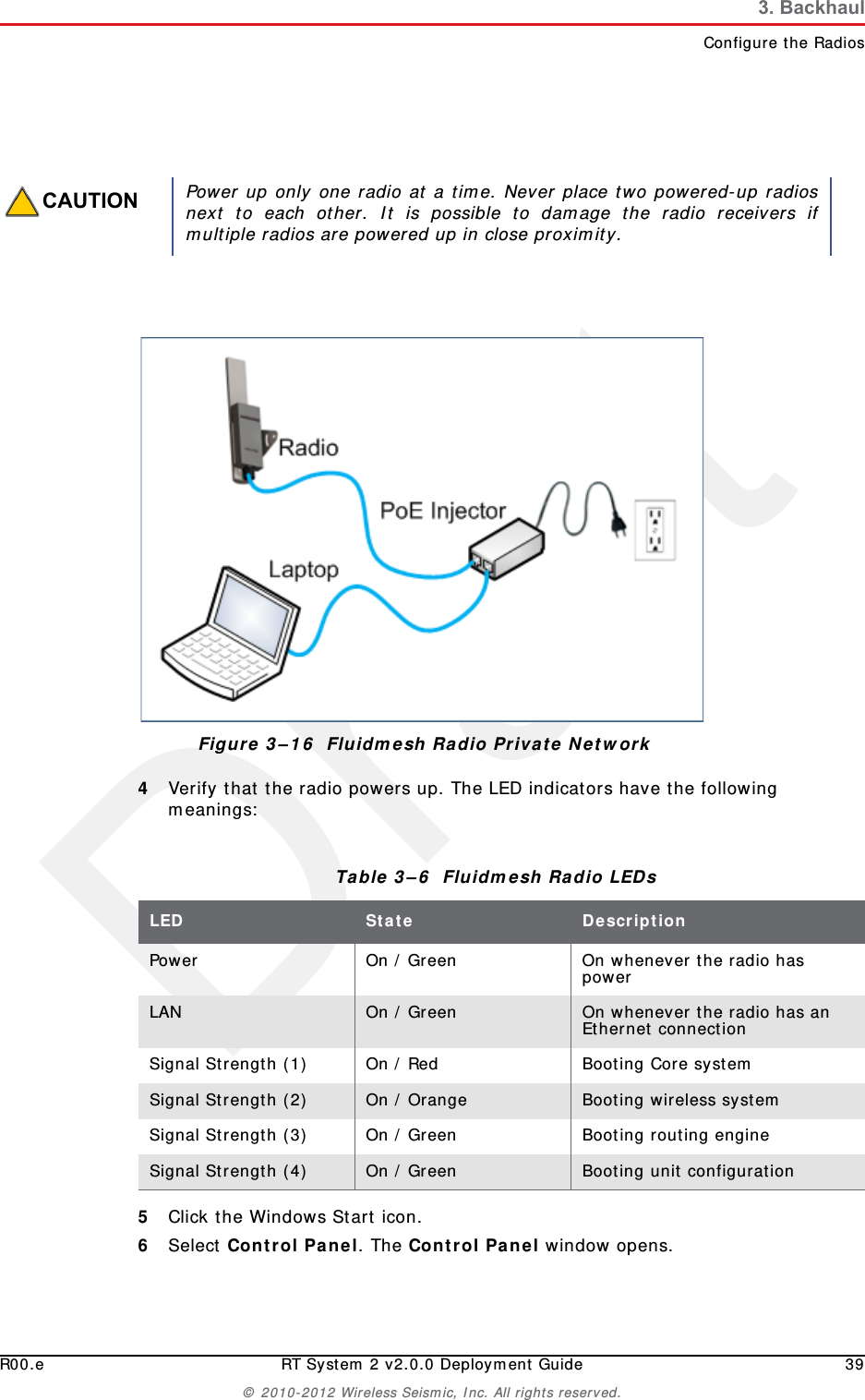

DraftR00.e RT System 2 v2.0.0 Deployment Guide 39© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios4Verify that the radio powers up. The LED indicators have the following meanings:5Click the Windows Start icon.6Select Control Panel. The Control Panel window opens. CAUTIONPower up only one radio at a time. Never place two powered-up radiosnext to each other. It is possible to damage the radio receivers ifmultiple radios are powered up in close proximity.Figure 3–16 Fluidmesh Radio Private NetworkTable 3–6 Fluidmesh Radio LEDs LED State DescriptionPower On / Green On whenever the radio has powerLAN On / Green On whenever the radio has an Ethernet connectionSignal Strength (1) On / Red Booting Core systemSignal Strength (2) On / Orange Booting wireless systemSignal Strength (3) On / Green Booting routing engineSignal Strength (4) On / Green Booting unit configuration

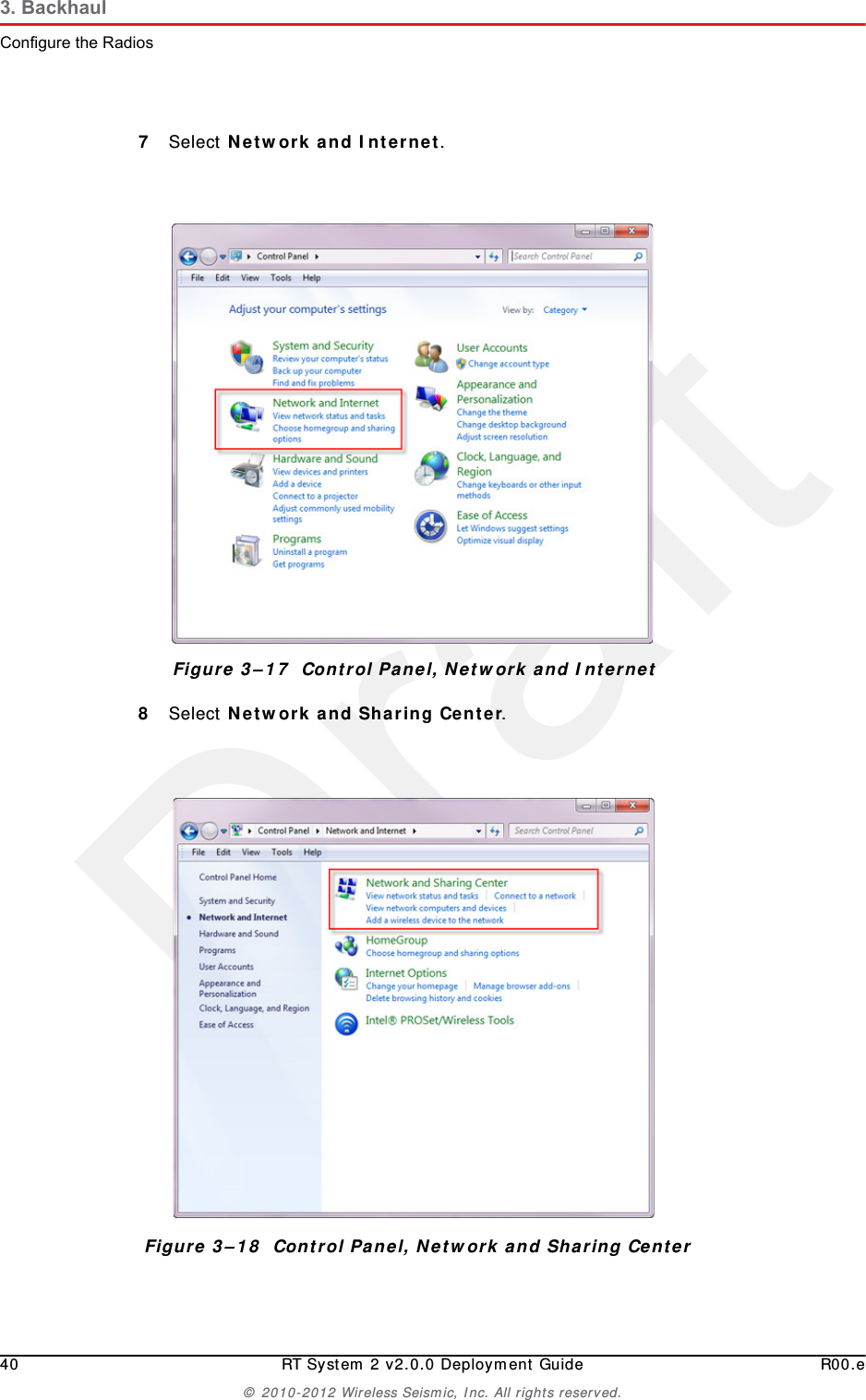

Draft40 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios7Select Network and Internet. 8Select Network and Sharing Center.Figure 3–17 Control Panel, Network and InternetFigure 3–18 Control Panel, Network and Sharing Center

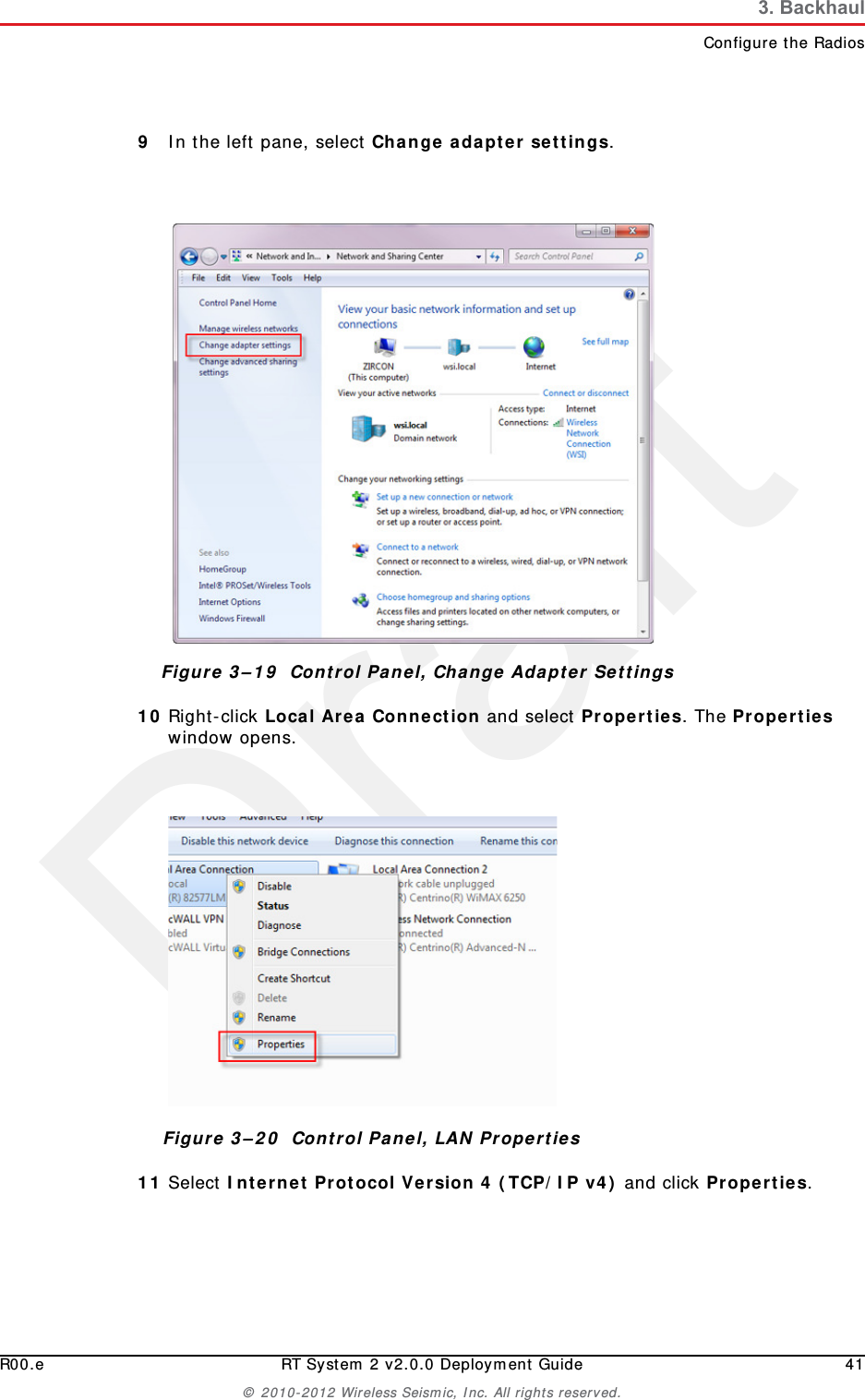

DraftR00.e RT System 2 v2.0.0 Deployment Guide 41© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios9In the left pane, select Change adapter settings.10 Right-click Local Area Connection and select Properties. The Properties window opens. 11 Select Internet Protocol Version 4 (TCP/IP v4) and click Properties. Figure 3–19 Control Panel, Change Adapter SettingsFigure 3–20 Control Panel, LAN Properties

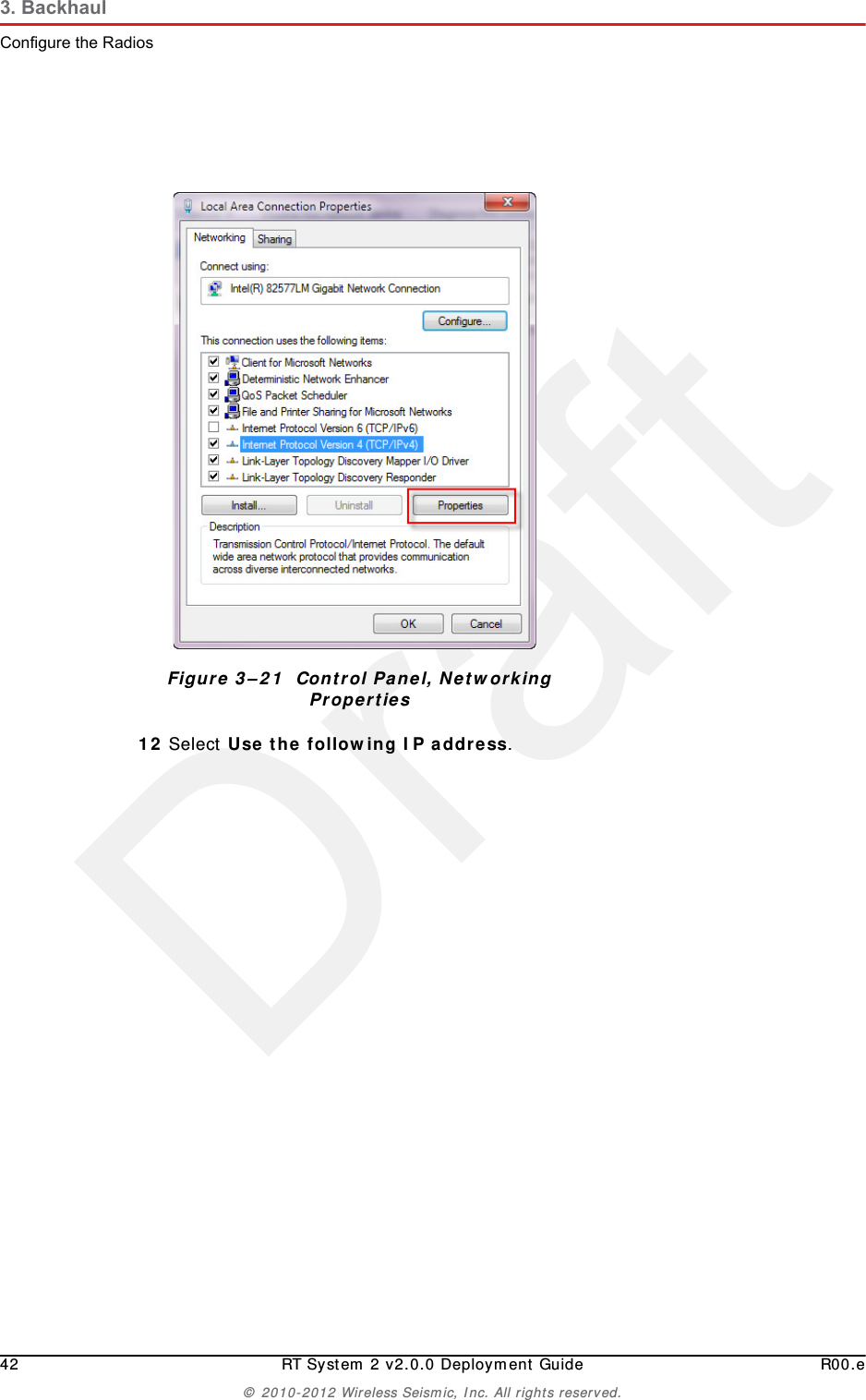

Draft42 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios12 Select Use the following IP address.Figure 3–21 Control Panel, Networking Properties

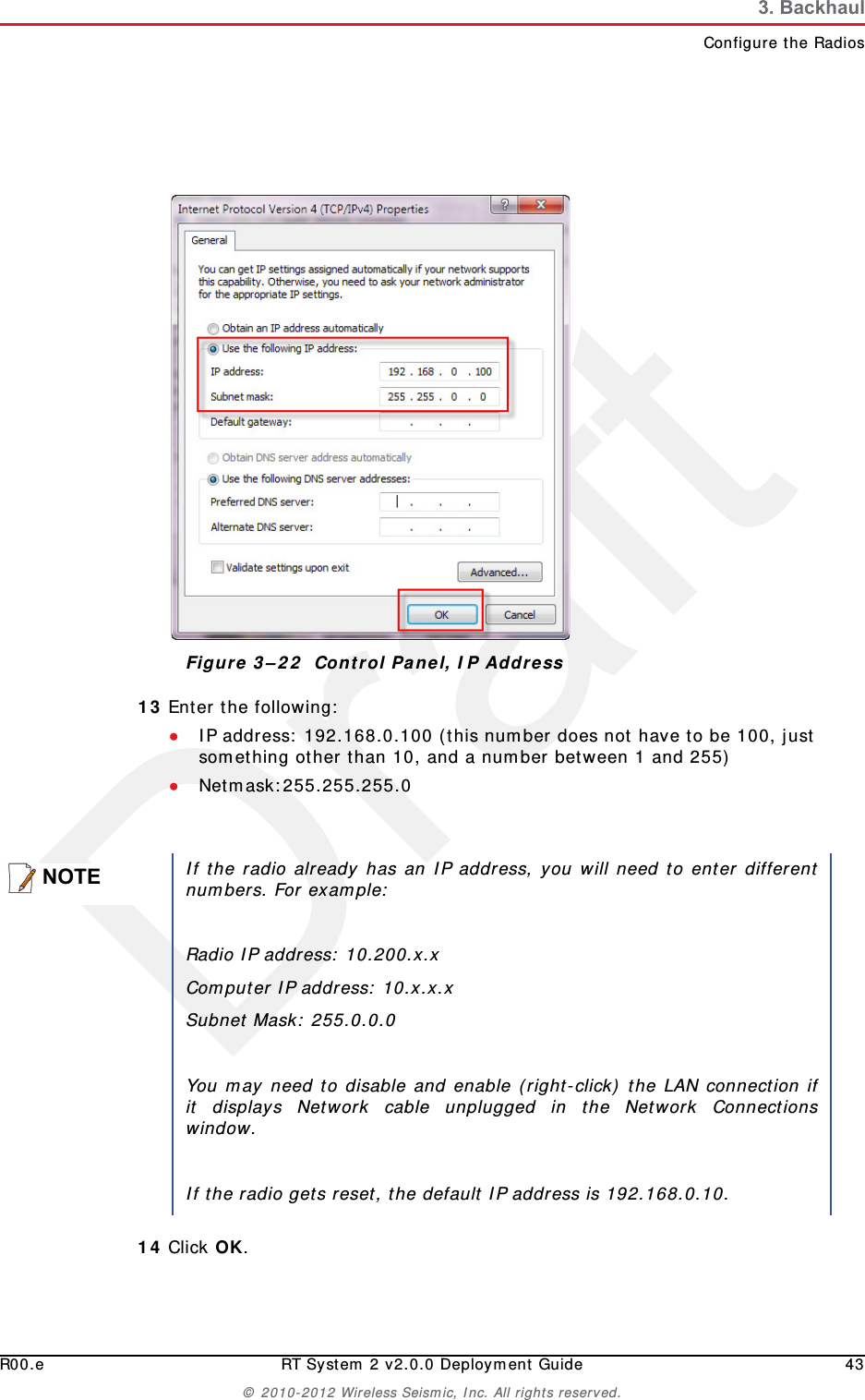

DraftR00.e RT System 2 v2.0.0 Deployment Guide 43© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios13 Enter the following:●IP address: 192.168.0.100 (this number does not have to be 100, just something other than 10, and a number between 1 and 255)●Netmask:255.255.255.014 Click OK.Figure 3–22 Control Panel, IP AddressNOTEIf the radio already has an IP address, you will need to enter differentnumbers. For example:Radio IP address: 10.200.x.xComputer IP address: 10.x.x.xSubnet Mask: 255.0.0.0You may need to disable and enable (right-click) the LAN connection ifit displays Network cable unplugged in the Network Connectionswindow. If the radio gets reset, the default IP address is 192.168.0.10.

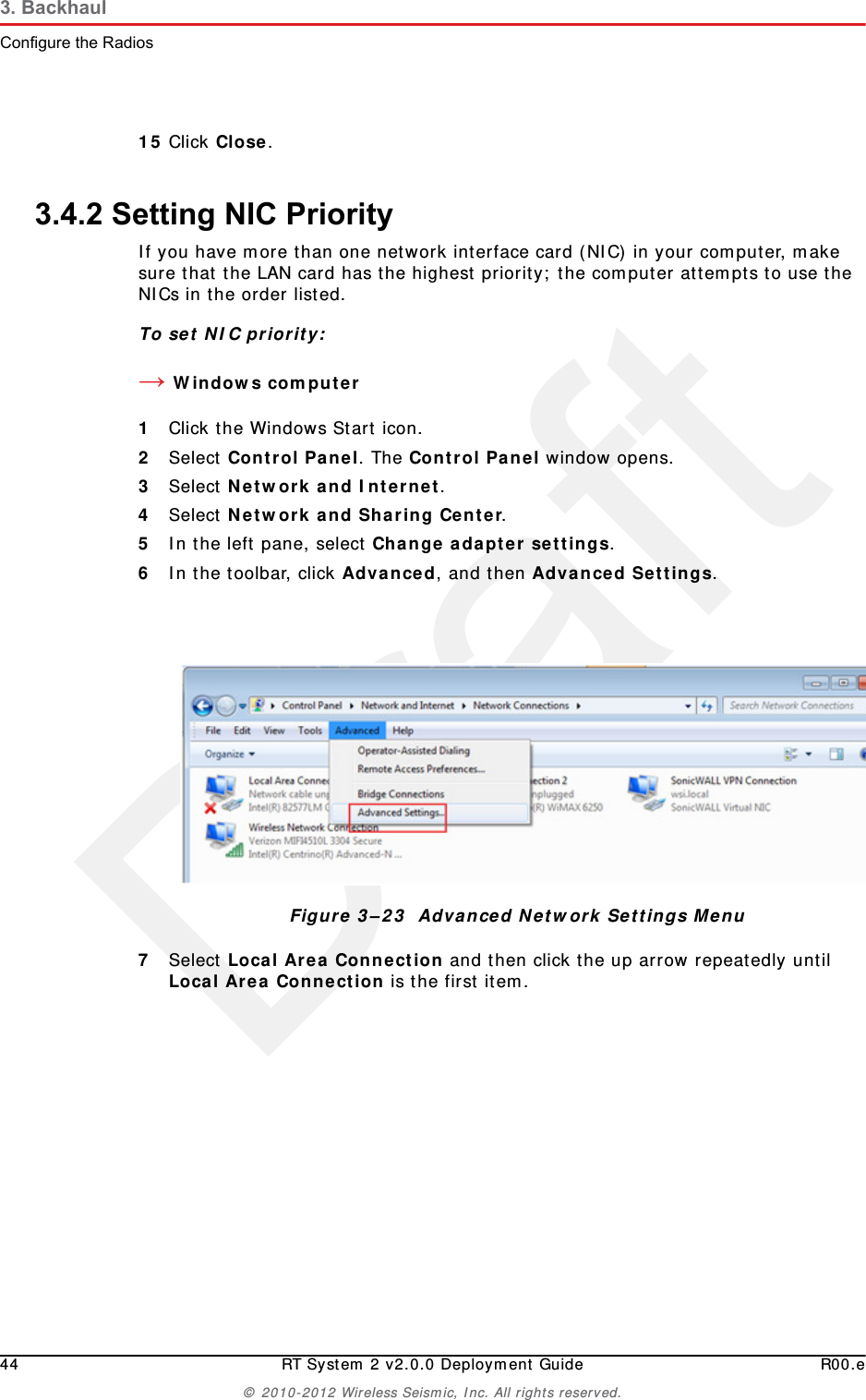

Draft44 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios15 Click Close.3.4.2 Setting NIC PriorityIf you have more than one network interface card (NIC) in your computer, make sure that the LAN card has the highest priority; the computer attempts to use the NICs in the order listed.To set NIC priority:→Windows computer1Click the Windows Start icon.2Select Control Panel. The Control Panel window opens. 3Select Network and Internet. 4Select Network and Sharing Center.5In the left pane, select Change adapter settings.6In the toolbar, click Advanced, and then Advanced Settings.7Select Local Area Connection and then click the up arrow repeatedly until Local Area Connection is the first item. Figure 3–23 Advanced Network Settings Menu

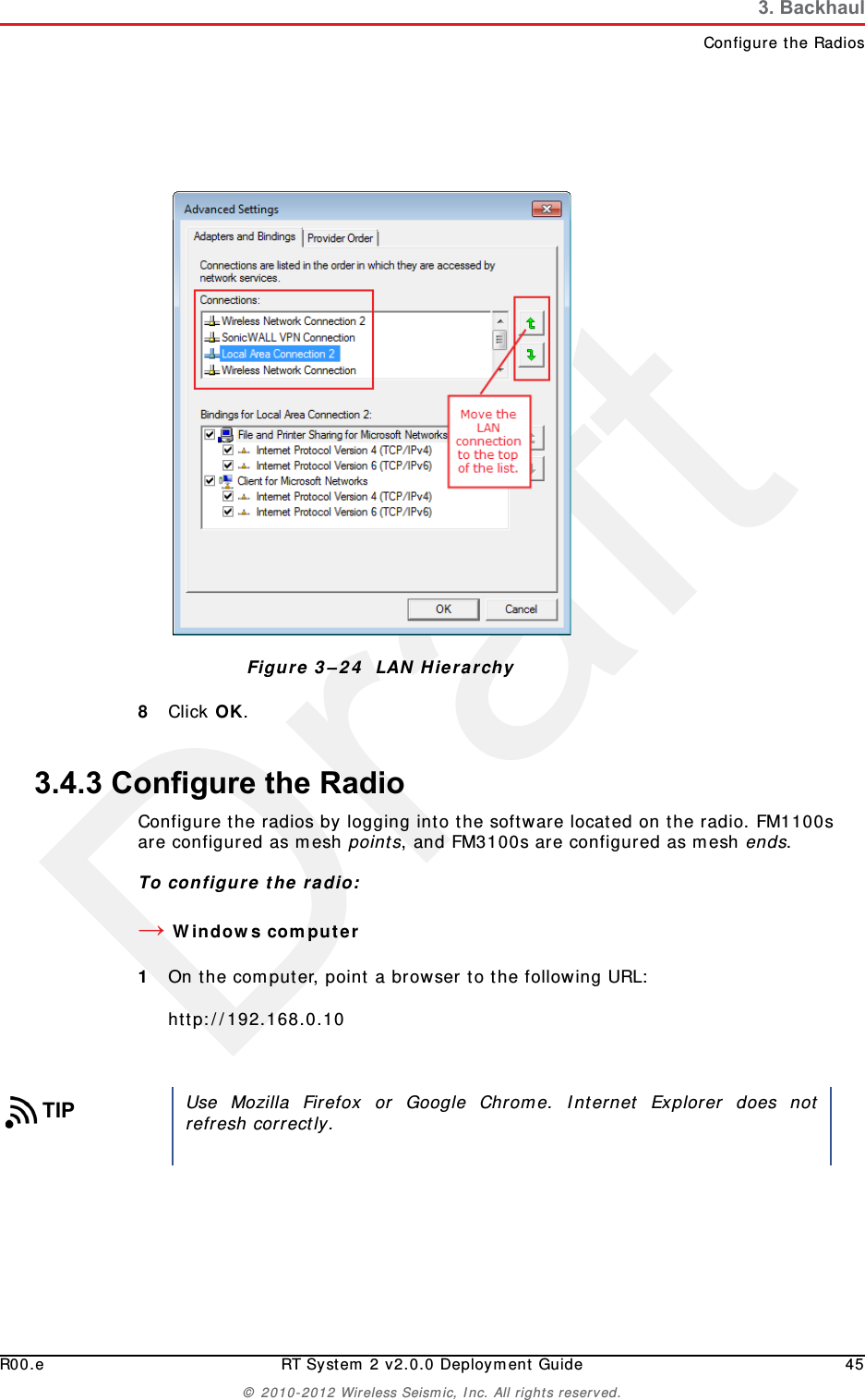

DraftR00.e RT System 2 v2.0.0 Deployment Guide 45© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios8Click OK. 3.4.3 Configure the RadioConfigure the radios by logging into the software located on the radio. FM1100s are configured as mesh points, and FM3100s are configured as mesh ends.To configure the radio:→Windows computer1On the computer, point a browser to the following URL:http://192.168.0.10Figure 3–24 LAN HierarchyTIPUse Mozilla Firefox or Google Chrome. Internet Explorer does notrefresh correctly.

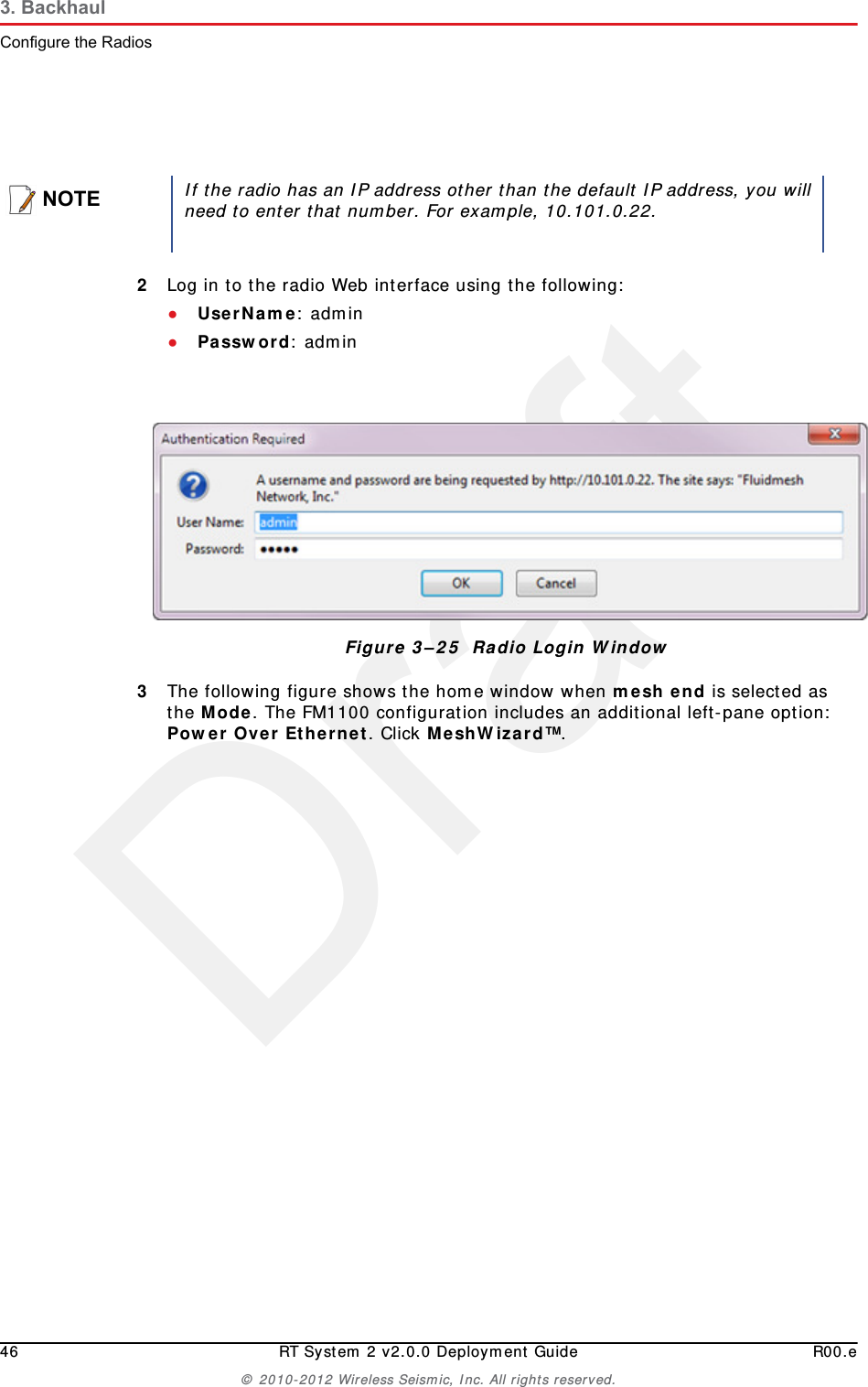

Draft46 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios2Log in to the radio Web interface using the following:●UserName: admin●Password: admin3The following figure shows the home window when mesh end is selected as the Mode. The FM1100 configuration includes an additional left-pane option: Power Over Ethernet. Click MeshWizard™.NOTEIf the radio has an IP address other than the default IP address, you willneed to enter that number. For example, 10.101.0.22.Figure 3–25 Radio Login Window

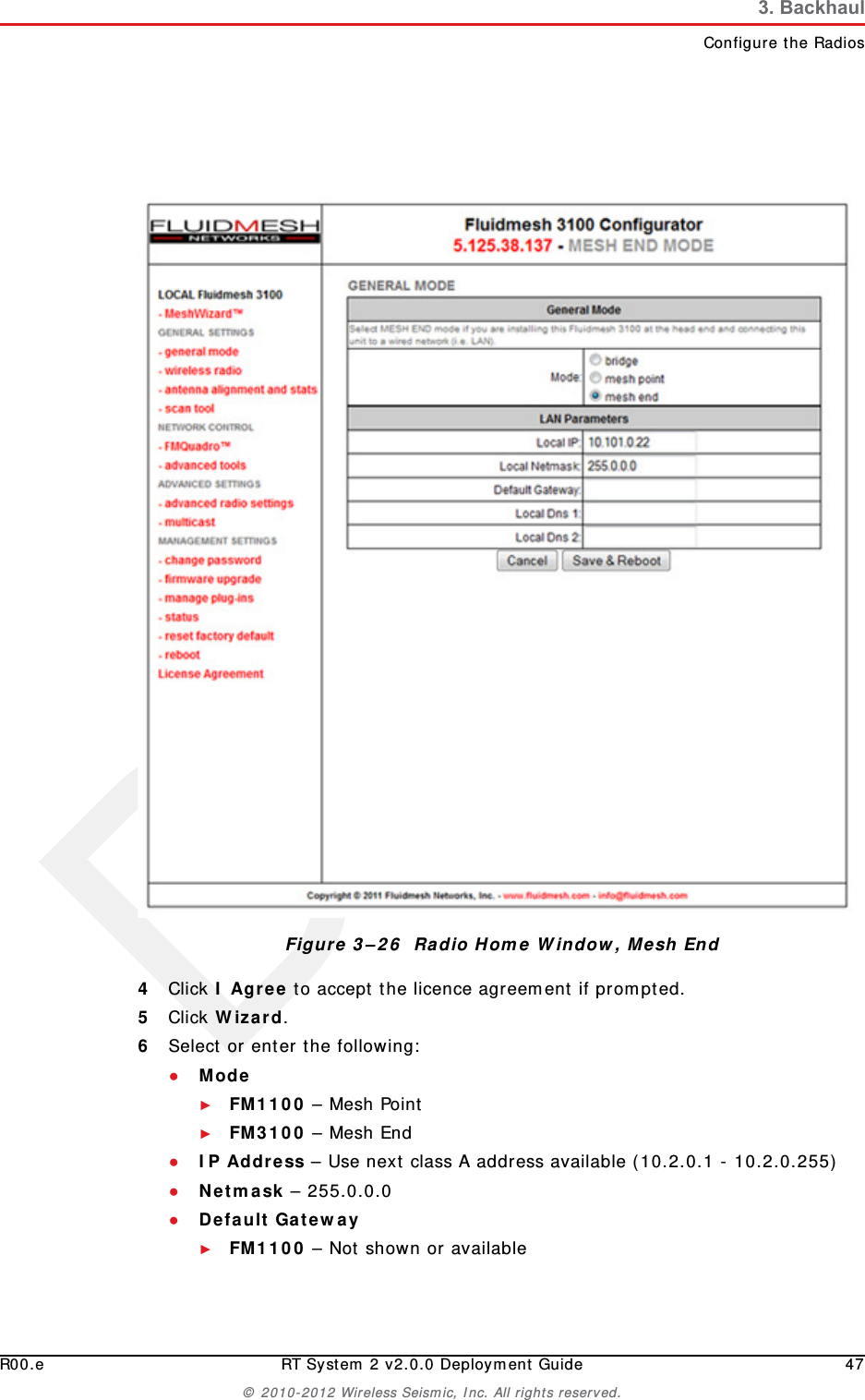

DraftR00.e RT System 2 v2.0.0 Deployment Guide 47© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios4Click I Agree to accept the licence agreement if prompted.5Click Wizard.6Select or enter the following:●Mode ►FM1100 – Mesh Point►FM3100 – Mesh End ●IP Address – Use next class A address available (10.2.0.1 - 10.2.0.255)●Netmask – 255.0.0.0●Default Gateway►FM1100 – Not shown or availableFigure 3–26 Radio Home Window, Mesh End

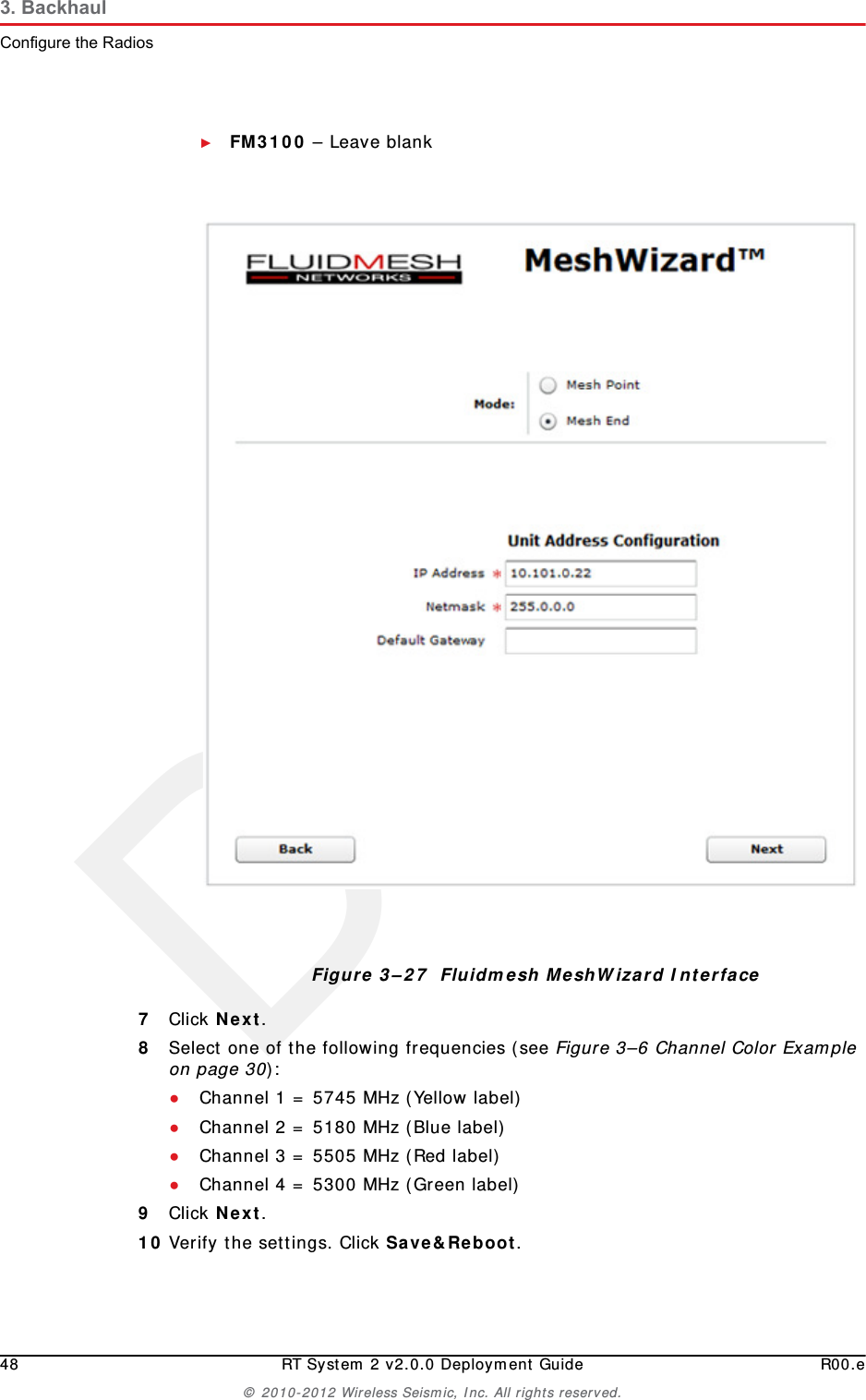

Draft48 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulConfigure the Radios►FM3100 – Leave blank7Click Next.8Select one of the following frequencies (see Figure 3–6 Channel Color Example on page 30):●Channel 1 = 5745 MHz (Yellow label)●Channel 2 = 5180 MHz (Blue label)●Channel 3 = 5505 MHz (Red label)●Channel 4 = 5300 MHz (Green label)9Click Next.10 Verify the settings. Click Save&Reboot.Figure 3–27 Fluidmesh MeshWizard Interface

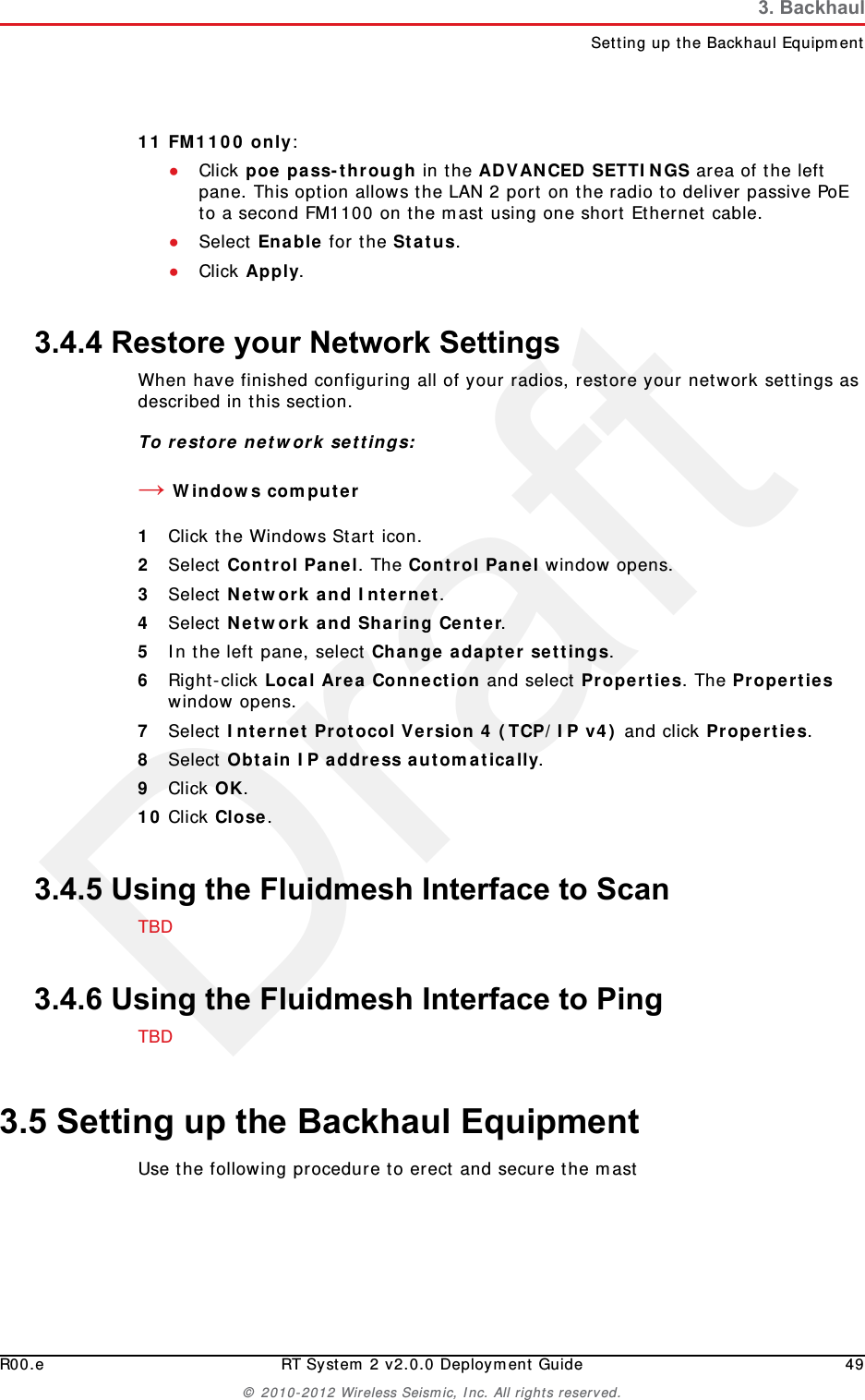

DraftR00.e RT System 2 v2.0.0 Deployment Guide 49© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulSetting up the Backhaul Equipment11 FM1100 only: ●Click poe pass-through in the ADVANCED SETTINGS area of the left pane. This option allows the LAN 2 port on the radio to deliver passive PoE to a second FM1100 on the mast using one short Ethernet cable. ●Select Enable for the Status.●Click Apply.3.4.4 Restore your Network SettingsWhen have finished configuring all of your radios, restore your network settings as described in this section. To restore network settings:→Windows computer1Click the Windows Start icon.2Select Control Panel. The Control Panel window opens. 3Select Network and Internet. 4Select Network and Sharing Center.5In the left pane, select Change adapter settings.6Right-click Local Area Connection and select Properties. The Properties window opens. 7Select Internet Protocol Version 4 (TCP/IP v4) and click Properties. 8Select Obtain IP address automatically.9Click OK.10 Click Close.3.4.5 Using the Fluidmesh Interface to ScanTBD 3.4.6 Using the Fluidmesh Interface to PingTBD3.5 Setting up the Backhaul EquipmentUse the following procedure to erect and secure the mast

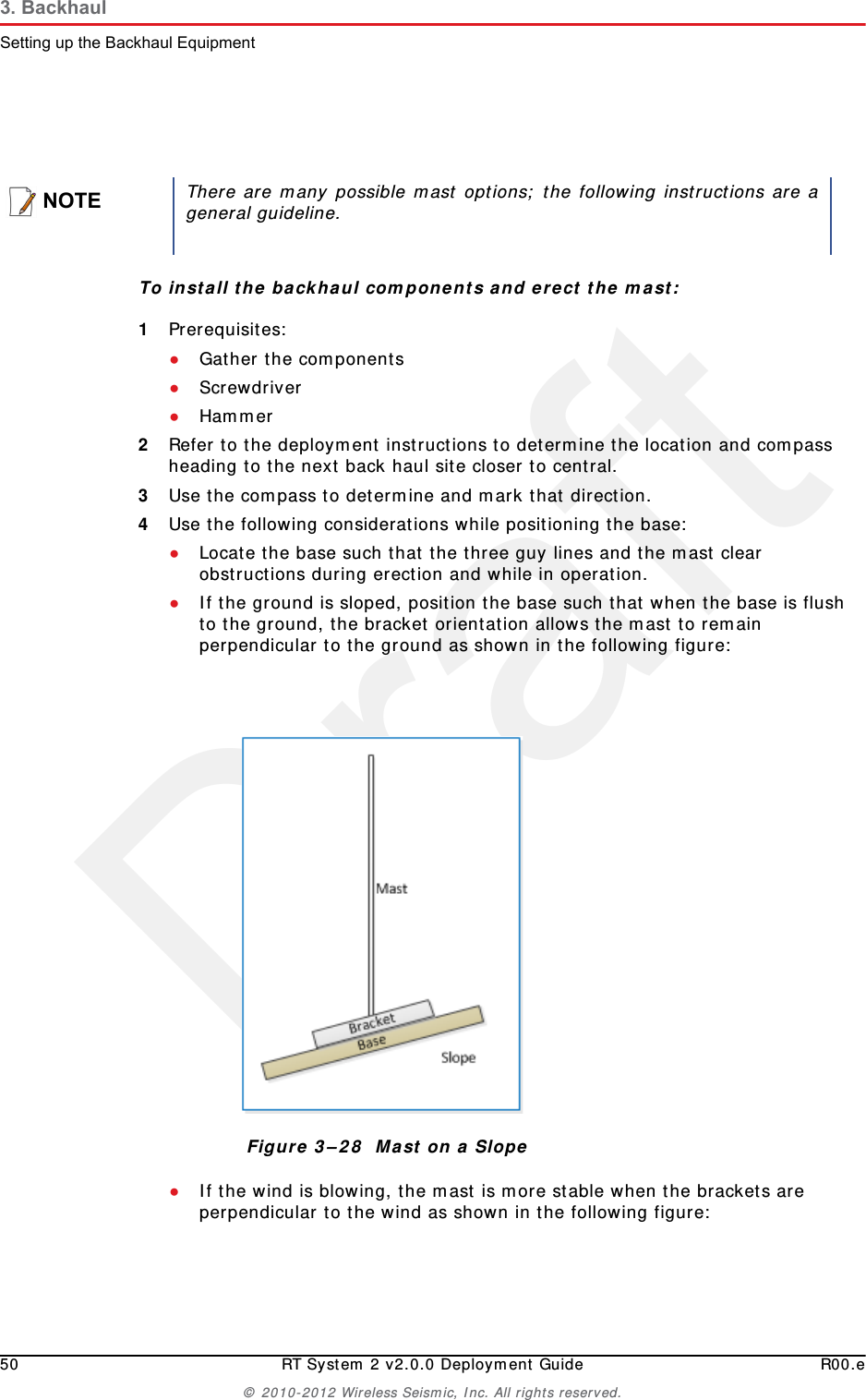

Draft50 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulSetting up the Backhaul EquipmentTo install the backhaul components and erect the mast:1Prerequisites:●Gather the components●Screwdriver●Hammer2Refer to the deployment instructions to determine the location and compass heading to the next back haul site closer to central.3Use the compass to determine and mark that direction.4Use the following considerations while positioning the base:●Locate the base such that the three guy lines and the mast clear obstructions during erection and while in operation.●If the ground is sloped, position the base such that when the base is flush to the ground, the bracket orientation allows the mast to remain perpendicular to the ground as shown in the following figure:●If the wind is blowing, the mast is more stable when the brackets are perpendicular to the wind as shown in the following figure: NOTEThere are many possible mast options; the following instructions are ageneral guideline.Figure 3–28 Mast on a Slope

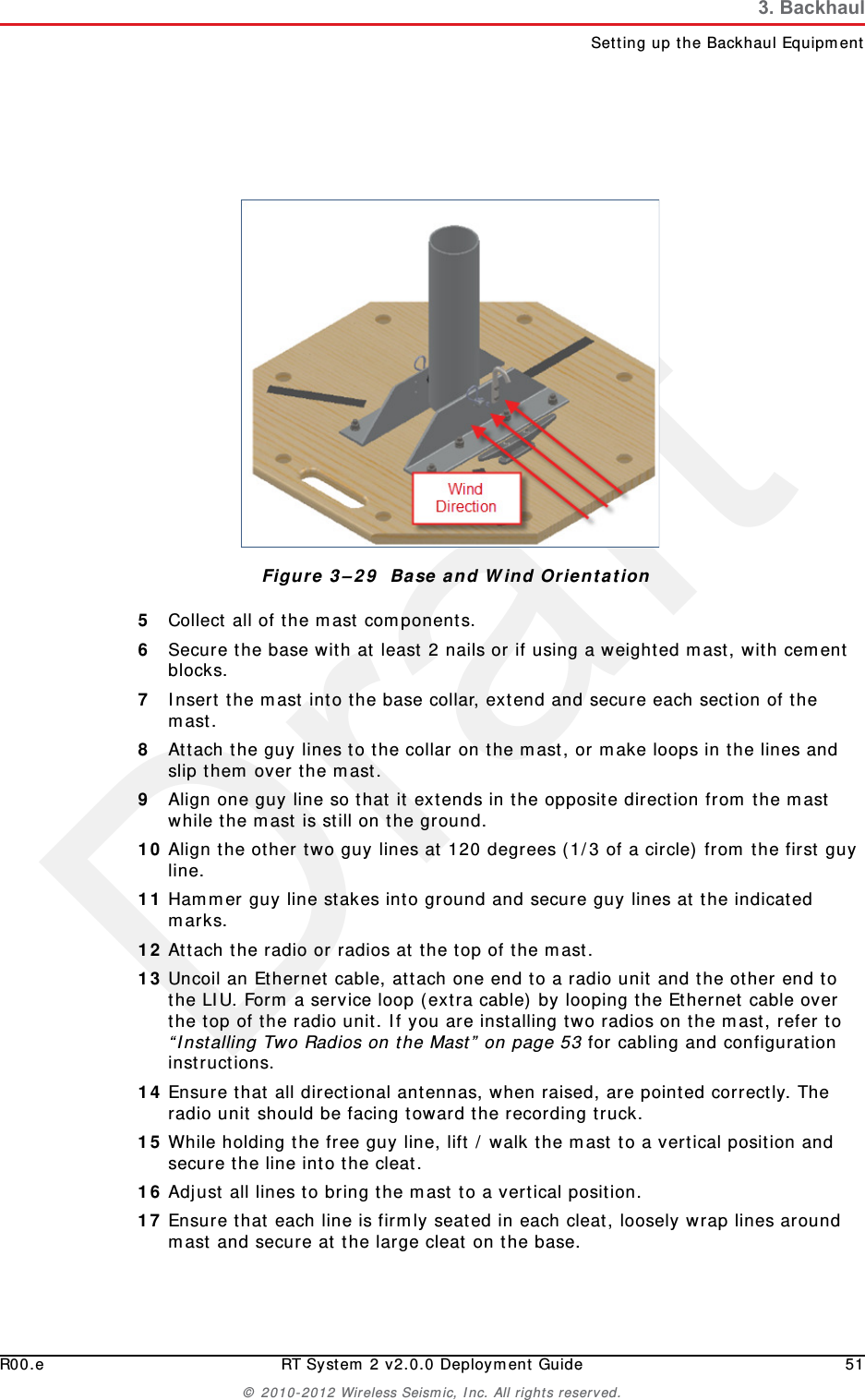

DraftR00.e RT System 2 v2.0.0 Deployment Guide 51© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulSetting up the Backhaul Equipment5Collect all of the mast components. 6Secure the base with at least 2 nails or if using a weighted mast, with cement blocks. 7Insert the mast into the base collar, extend and secure each section of the mast. 8Attach the guy lines to the collar on the mast, or make loops in the lines and slip them over the mast. 9Align one guy line so that it extends in the opposite direction from the mast while the mast is still on the ground. 10 Align the other two guy lines at 120 degrees (1/3 of a circle) from the first guy line. 11 Hammer guy line stakes into ground and secure guy lines at the indicated marks. 12 Attach the radio or radios at the top of the mast.13 Uncoil an Ethernet cable, attach one end to a radio unit and the other end to the LIU. Form a service loop (extra cable) by looping the Ethernet cable over the top of the radio unit. If you are installing two radios on the mast, refer to “Installing Two Radios on the Mast” on page 53 for cabling and configuration instructions.14 Ensure that all directional antennas, when raised, are pointed correctly. The radio unit should be facing toward the recording truck.15 While holding the free guy line, lift / walk the mast to a vertical position and secure the line into the cleat.16 Adjust all lines to bring the mast to a vertical position.17 Ensure that each line is firmly seated in each cleat, loosely wrap lines around mast and secure at the large cleat on the base.Figure 3–29 Base and Wind Orientation

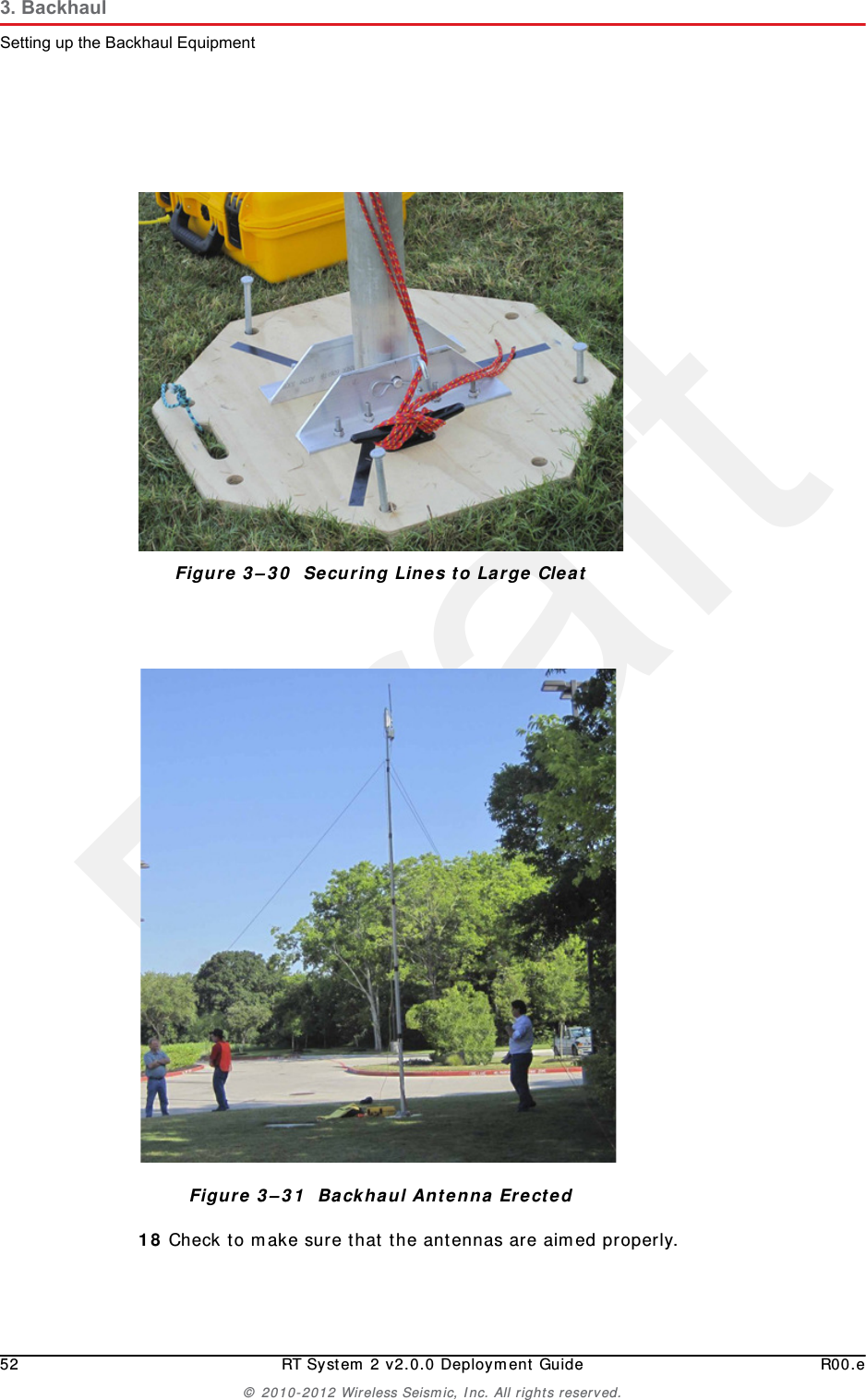

Draft52 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulSetting up the Backhaul Equipment18 Check to make sure that the antennas are aimed properly.Figure 3–30 Securing Lines to Large CleatFigure 3–31 Backhaul Antenna Erected

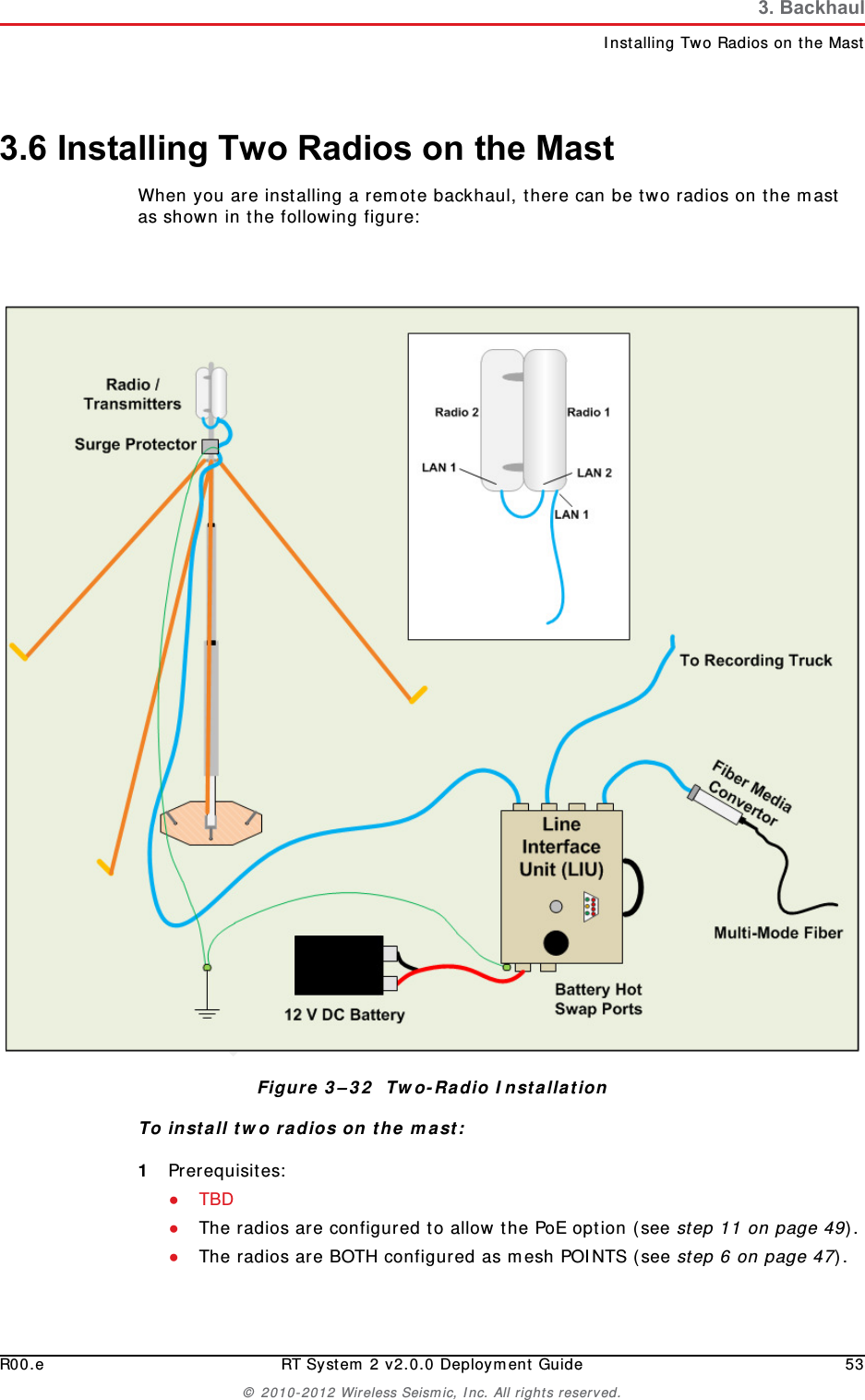

DraftR00.e RT System 2 v2.0.0 Deployment Guide 53© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulInstalling Two Radios on the Mast3.6 Installing Two Radios on the MastWhen you are installing a remote backhaul, there can be two radios on the mast as shown in the following figure:To install two radios on the mast:1Prerequisites:●TBD ●The radios are configured to allow the PoE option (see step 11 on page 49).●The radios are BOTH configured as mesh POINTS (see step 6 on page 47).Figure 3–32 Two-Radio Installation

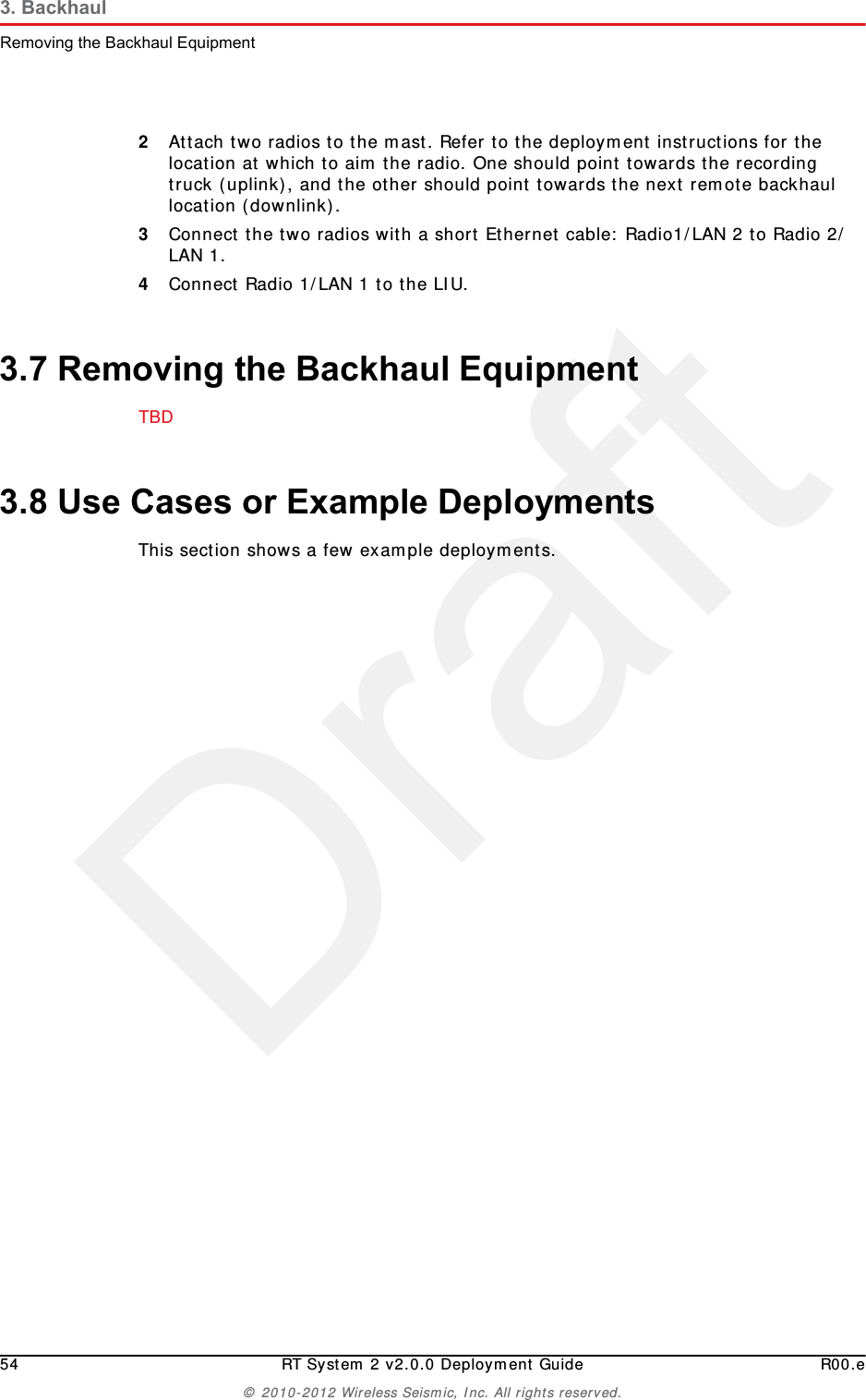

Draft54 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulRemoving the Backhaul Equipment2Attach two radios to the mast. Refer to the deployment instructions for the location at which to aim the radio. One should point towards the recording truck (uplink), and the other should point towards the next remote backhaul location (downlink).3Connect the two radios with a short Ethernet cable: Radio1/LAN 2 to Radio 2/LAN 1.4Connect Radio 1/LAN 1 to the LIU.3.7 Removing the Backhaul EquipmentTBD 3.8 Use Cases or Example DeploymentsThis section shows a few example deployments.

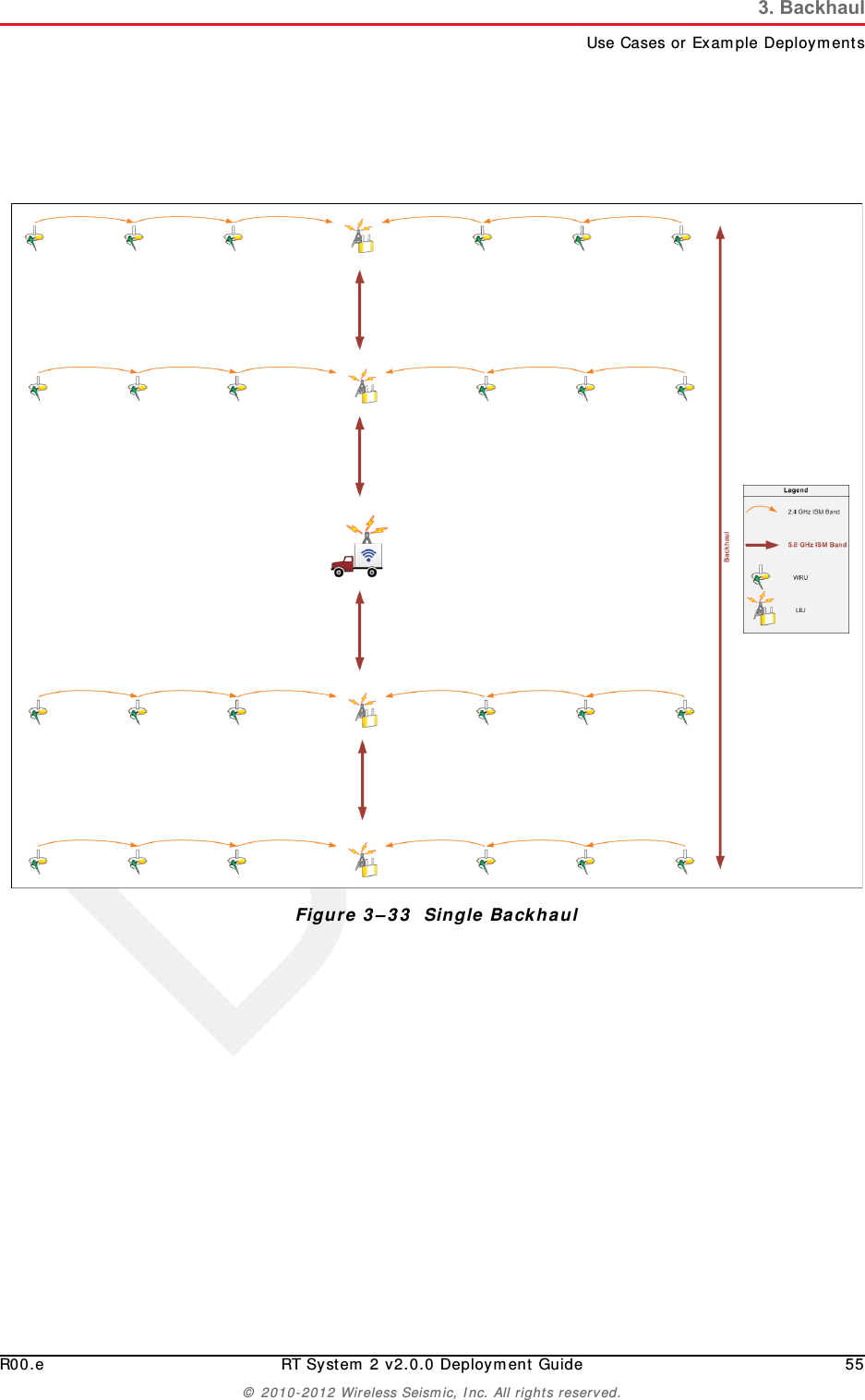

DraftR00.e RT System 2 v2.0.0 Deployment Guide 55© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulUse Cases or Example DeploymentsFigure 3–33 Single Backhaul

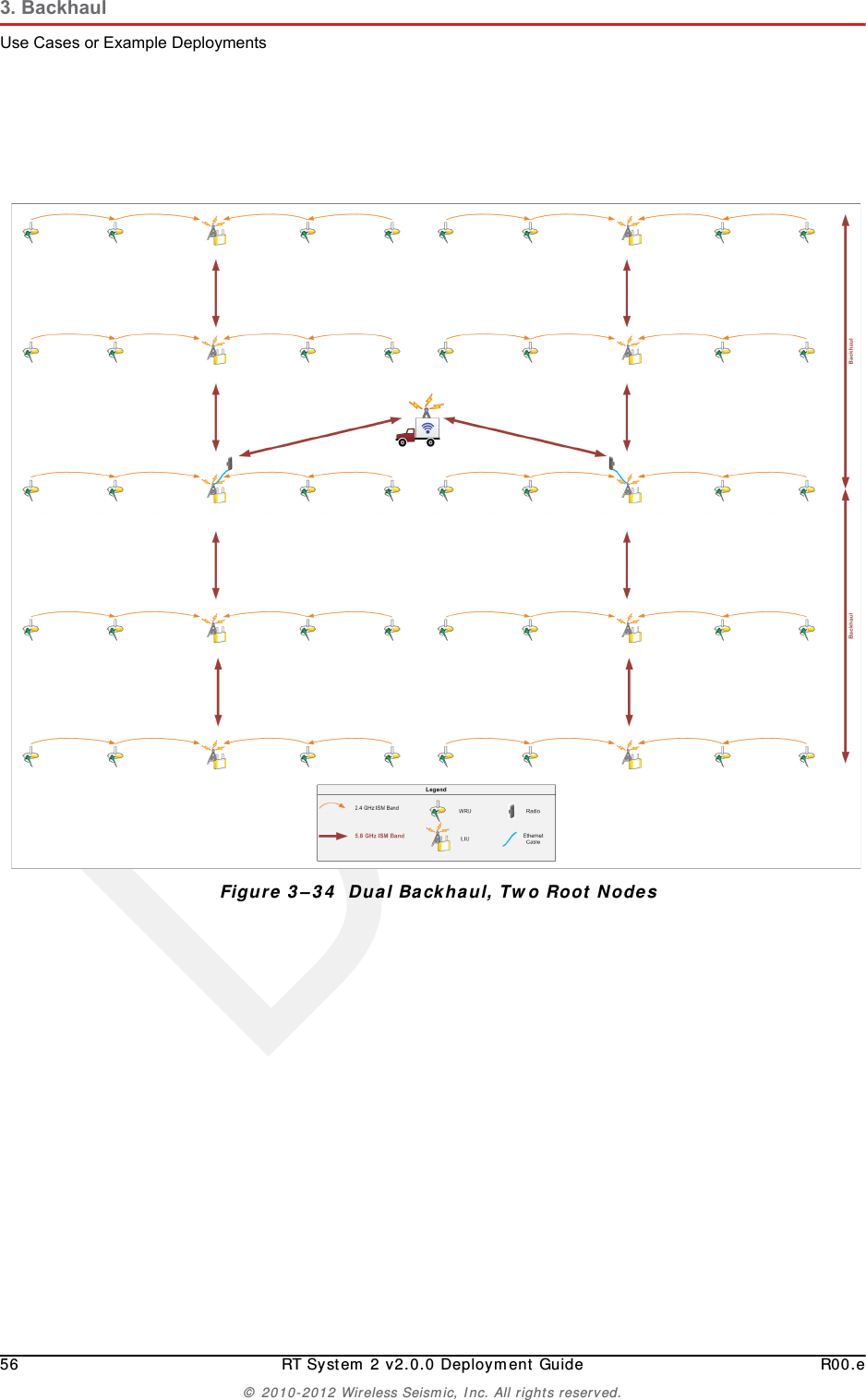

Draft56 RT System 2 v2.0.0 Deployment Guide R00.e© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulUse Cases or Example DeploymentsFigure 3–34 Dual Backhaul, Two Root Nodes

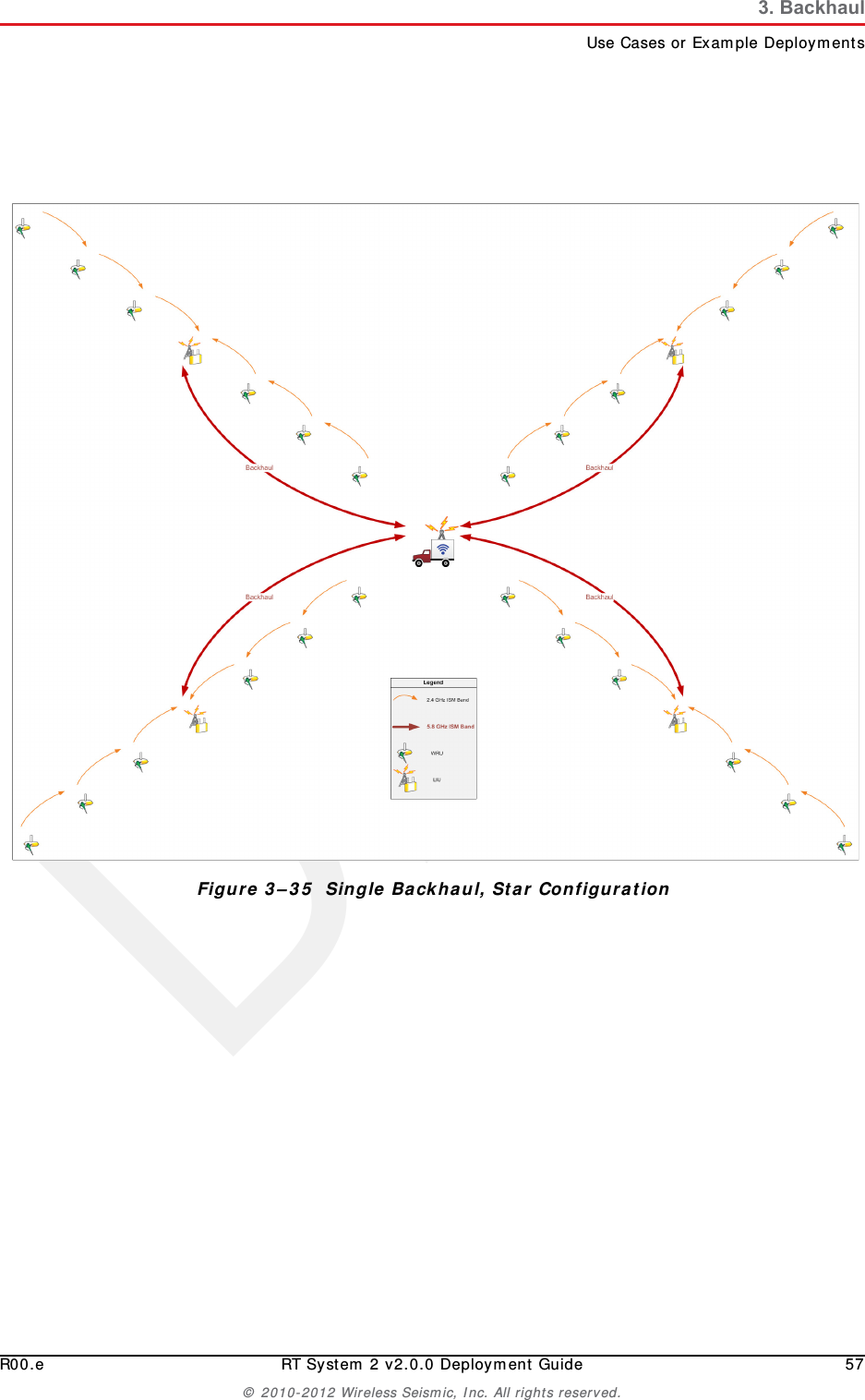

DraftR00.e RT System 2 v2.0.0 Deployment Guide 57© 2010-2012 Wireless Seismic, Inc. All rights reserved.3. BackhaulUse Cases or Example DeploymentsFigure 3–35 Single Backhaul, Star Configuration
