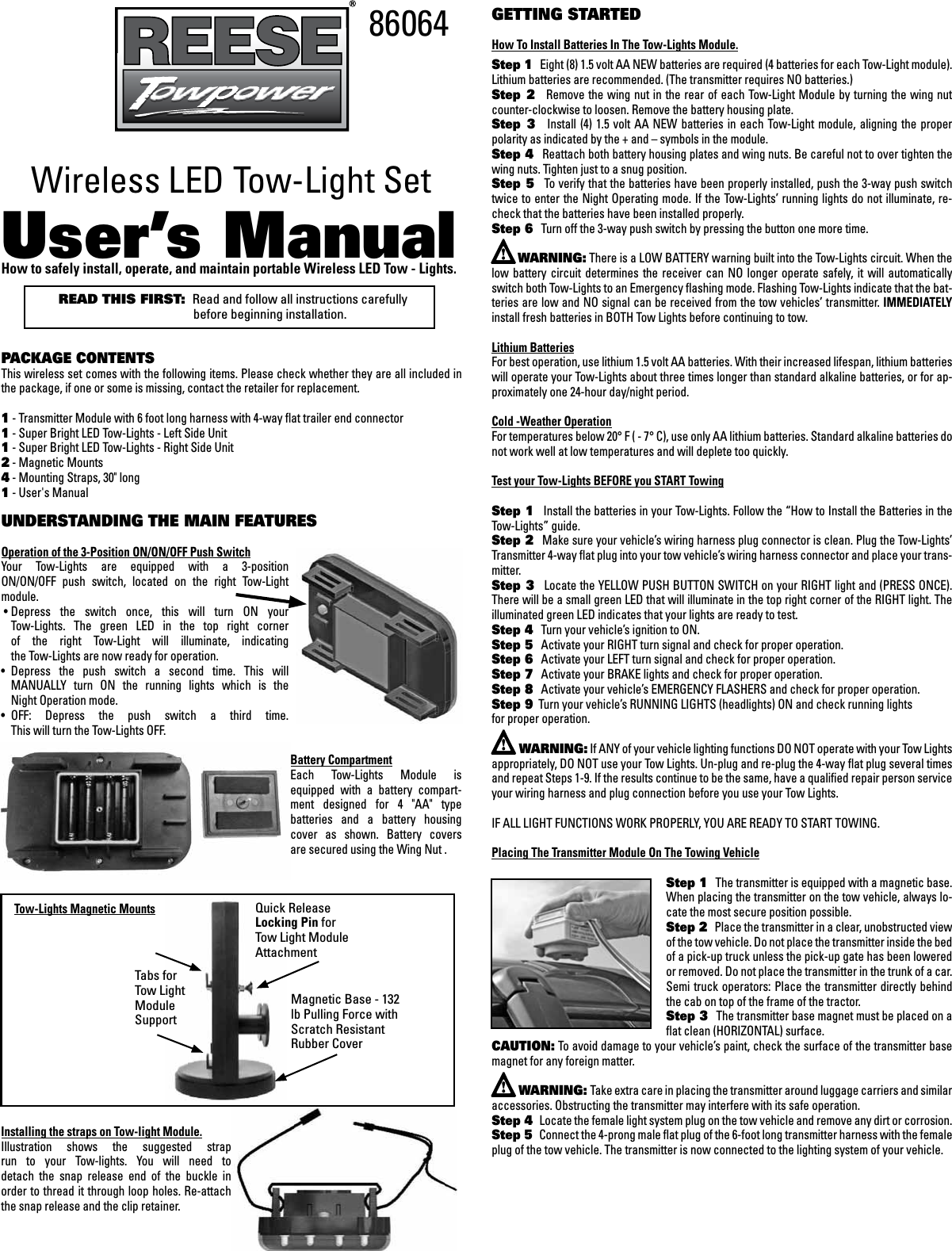

Wireless LED Tow-Light SetUser’s ManualHow to safely install, operate, and maintain portable Wireless LED Tow - Lights. READ THIS FIRST:  Read and follow all instructions carefully           before beginning installation.PACKAGE CONTENTSThis wireless set comes with the following items. Please check whether they are all included in the package, if one or some is missing, contact the retailer for replacement.1 - Transmitter Module with 6 foot long harness with 4-way flat trailer end connector1 - Super Bright LED Tow-Lights - Left Side Unit1 - Super Bright LED Tow-Lights - Right Side Unit2 - Magnetic Mounts4 - Mounting Straps, 30" long 1 - User's ManualUNDERSTANDING THE MAIN FEATURES Operation of the 3-Position ON/ON/OFF Push Switch Your  Tow-Lights  are  equipped  with  a  3-position  ON/ON/OFF  push  switch,  located  on  the  right  Tow-Light  module. • Depress  the  switch  once,  this  will  turn  ON  your    Tow-Lights.  The  green  LED  in  the  top  right  corner    of  the  right  Tow-Light  will  illuminate,  indicating    the Tow-Lights are now ready for operation.•  Depress  the  push  switch  a  second  time.  This  will    MANUALLY  turn  ON  the  running  lights  which  is  the    Night Operation mode.•  OFF:  Depress  the  push  switch  a  third  time.    This will turn the Tow-Lights OFF.Battery CompartmentEach  Tow-Lights  Module  is equipped  with  a  battery  compart-ment  designed  for  4  "AA"  type batteries  and  a  battery  housing cover  as  shown.  Battery  covers  are secured using the Wing Nut .      Tow-Lights Magnetic MountsInstalling the straps on Tow-light Module.Illustration  shows  the  suggested  strap run  to  your  Tow-lights.  You  will  need  to  detach  the  snap  release  end  of  the  buckle  in  order to thread it through loop holes. Re-attach the snap release and the clip retainer.GETTING STARTEDHow To Install Batteries In The Tow-Lights Module.Step 1   Eight (8) 1.5 volt AA NEW batteries are required (4 batteries for each Tow-Light module). Lithium batteries are recommended. (The transmitter requires NO batteries.) Step  2   Remove  the wing nut  in the rear  of each Tow-Light Module  by turning the  wing nut counter-clockwise to loosen. Remove the battery housing plate. Step  3     Install (4) 1.5 volt  AA  NEW  batteries  in each  Tow-Light  module,  aligning the proper polarity as indicated by the + and – symbols in the module. Step 4   Reattach both battery housing plates and wing nuts. Be careful not to over tighten the wing nuts. Tighten just to a snug position. Step 5   To verify that the batteries have been properly installed, push the 3-way push switch twice to enter the Night Operating mode. If the Tow-Lights’ running lights do not illuminate, re-check that the batteries have been installed properly. Step 6   Turn off the 3-way push switch by pressing the button one more time.      WARNING: There is a LOW BATTERY warning built into the Tow-Lights circuit. When the low  battery  circuit  determines  the  receiver  can  NO  longer  operate  safely, it  will  automatically switch both Tow-Lights to an Emergency flashing mode. Flashing Tow-Lights indicate that the bat-teries are low and NO signal can be received from the tow vehicles’ transmitter. IMMEDIATELY install fresh batteries in BOTH Tow Lights before continuing to tow.Lithium BatteriesFor best operation, use lithium 1.5 volt AA batteries. With their increased lifespan, lithium batteries will operate your Tow-Lights about three times longer than standard alkaline batteries, or for ap-proximately one 24-hour day/night period.Cold -Weather OperationFor temperatures below 20° F ( - 7° C), use only AA lithium batteries. Standard alkaline batteries do not work well at low temperatures and will deplete too quickly.Test your Tow-Lights BEFORE you START TowingStep 1   Install the batteries in your Tow-Lights. Follow the “How to Install the Batteries in the Tow-Lights” guide.Step 2   Make sure your vehicle’s wiring harness plug connector is clean. Plug the Tow-Lights’ Transmitter 4-way flat plug into your tow vehicle’s wiring harness connector and place your trans-mitter. Step 3   Locate the YELLOW PUSH BUTTON SWITCH on your RIGHT light and (PRESS ONCE). There will be a small green LED that will illuminate in the top right corner of the RIGHT light. The illuminated green LED indicates that your lights are ready to test.Step 4   Turn your vehicle’s ignition to ON. Step 5   Activate your RIGHT turn signal and check for proper operation. Step 6   Activate your LEFT turn signal and check for proper operation.Step 7   Activate your BRAKE lights and check for proper operation. Step 8   Activate your vehicle’s EMERGENCY FLASHERS and check for proper operation. Step 9  Turn your vehicle’s RUNNING LIGHTS (headlights) ON and check running lights for proper operation.        WARNING: If ANY of your vehicle lighting functions DO NOT operate with your Tow Lights appropriately, DO NOT use your Tow Lights. Un-plug and re-plug the 4-way flat plug several times and repeat Steps 1-9. If the results continue to be the same, have a qualified repair person service your wiring harness and plug connection before you use your Tow Lights. IF ALL LIGHT FUNCTIONS WORK PROPERLY, YOU ARE READY TO START TOWING.Placing The Transmitter Module On The Towing VehicleStep 1   The transmitter is equipped with a magnetic base. When placing the transmitter on the tow vehicle, always lo-cate the most secure position possible. Step 2   Place the transmitter in a clear, unobstructed view of the tow vehicle. Do not place the transmitter inside the bed of a pick-up truck unless the pick-up gate has been lowered or removed. Do not place the transmitter in the trunk of a car. Semi truck operators:  Place the  transmitter directly behind the cab on top of the frame of the tractor. Step 3   The transmitter base magnet must be placed on a flat clean (HORIZONTAL) surface. CAUTION: To avoid damage to your vehicle’s paint, check the surface of the transmitter base magnet for any foreign matter.         WARNING: Take extra care in placing the transmitter around luggage carriers and similar accessories. Obstructing the transmitter may interfere with its safe operation. Step 4   Locate the female light system plug on the tow vehicle and remove any dirt or corrosion. Step 5   Connect the 4-prong male flat plug of the 6-foot long transmitter harness with the female plug of the tow vehicle. The transmitter is now connected to the lighting system of your vehicle.86064Magnetic Base - 132 lb Pulling Force with Scratch Resistant  Rubber CoverTabs for Tow Light Module SupportQuick Release Locking Pin for Tow Light Module Attachment

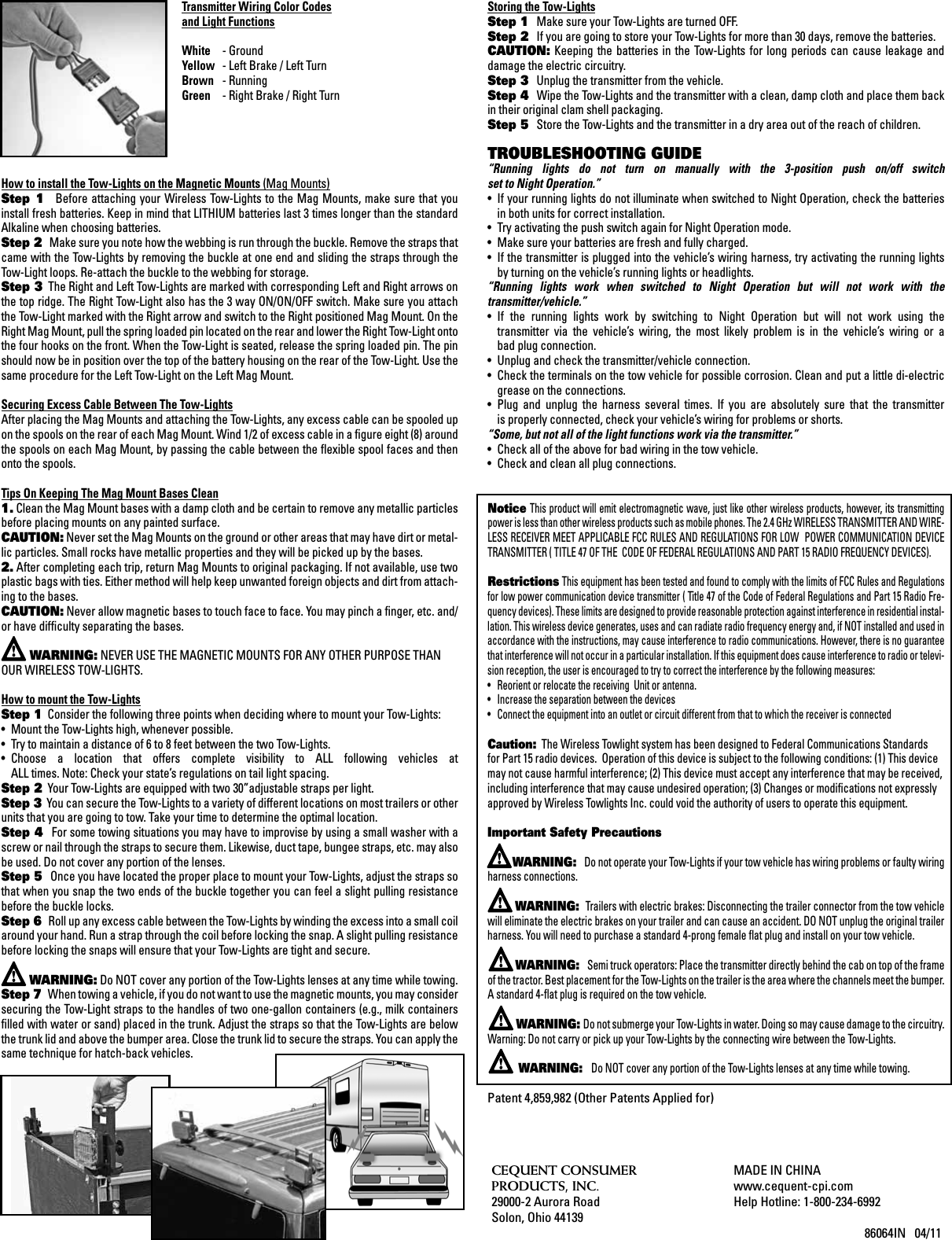

Transmitter Wiring Color Codes and Light FunctionsWhite  - Ground Yellow  - Left Brake / Left Turn Brown  - Running Green  - Right Brake / Right Turn How to install the Tow-Lights on the Magnetic Mounts (Mag Mounts)Step  1   Before attaching  your Wireless  Tow-Lights  to the  Mag Mounts,  make sure that  you install fresh batteries. Keep in mind that LITHIUM batteries last 3 times longer than the standard Alkaline when choosing batteries.Step 2   Make sure you note how the webbing is run through the buckle. Remove the straps that came with the Tow-Lights by removing the buckle at one end and sliding the straps through the Tow-Light loops. Re-attach the buckle to the webbing for storage.Step 3  The Right and Left Tow-Lights are marked with corresponding Left and Right arrows on the top ridge. The Right Tow-Light also has the 3 way ON/ON/OFF switch. Make sure you attach the Tow-Light marked with the Right arrow and switch to the Right positioned Mag Mount. On the Right Mag Mount, pull the spring loaded pin located on the rear and lower the Right Tow-Light onto the four hooks on the front. When the Tow-Light is seated, release the spring loaded pin. The pin should now be in position over the top of the battery housing on the rear of the Tow-Light. Use the same procedure for the Left Tow-Light on the Left Mag Mount.Securing Excess Cable Between The Tow-LightsAfter placing the Mag Mounts and attaching the Tow-Lights, any excess cable can be spooled up on the spools on the rear of each Mag Mount. Wind 1/2 of excess cable in a figure eight (8) around the spools on each Mag Mount, by passing the cable between the flexible spool faces and then onto the spools.Tips On Keeping The Mag Mount Bases Clean1. Clean the Mag Mount bases with a damp cloth and be certain to remove any metallic particles before placing mounts on any painted surface.CAUTION: Never set the Mag Mounts on the ground or other areas that may have dirt or metal-lic particles. Small rocks have metallic properties and they will be picked up by the bases.2. After completing each trip, return Mag Mounts to original packaging. If not available, use two plastic bags with ties. Either method will help keep unwanted foreign objects and dirt from attach-ing to the bases.CAUTION: Never allow magnetic bases to touch face to face. You may pinch a finger, etc. and/or have difficulty separating the bases.       WARNING: NEVER USE THE MAGNETIC MOUNTS FOR ANY OTHER PURPOSE THAN OUR WIRELESS TOW-LIGHTS.How to mount the Tow-LightsStep 1  Consider the following three points when deciding where to mount your Tow-Lights: •  Mount the Tow-Lights high, whenever possible. •  Try to maintain a distance of 6 to 8 feet between the two Tow-Lights. •  Choose  a  location  that  offers  complete  visibility  to  ALL  following  vehicles  at    ALL times. Note: Check your state’s regulations on tail light spacing. Step 2  Your Tow-Lights are equipped with two 30”adjustable straps per light. Step 3  You can secure the Tow-Lights to a variety of different locations on most trailers or other units that you are going to tow. Take your time to determine the optimal location. Step 4   For some towing situations you may have to improvise by using a small washer with a screw or nail through the straps to secure them. Likewise, duct tape, bungee straps, etc. may also be used. Do not cover any portion of the lenses.Step 5   Once you have located the proper place to mount your Tow-Lights, adjust the straps so that when you snap the two ends of the buckle together you can feel a slight pulling resistance before the buckle locks. Step 6   Roll up any excess cable between the Tow-Lights by winding the excess into a small coil around your hand. Run a strap through the coil before locking the snap. A slight pulling resistance before locking the snaps will ensure that your Tow-Lights are tight and secure.        WARNING: Do NOT cover any portion of the Tow-Lights lenses at any time while towing. Step 7   When towing a vehicle, if you do not want to use the magnetic mounts, you may consider securing the Tow-Light straps to the handles of two one-gallon containers (e.g., milk containers filled with water or sand) placed in the trunk. Adjust the straps so that the Tow-Lights are below the trunk lid and above the bumper area. Close the trunk lid to secure the straps. You can apply the same technique for hatch-back vehicles.Storing the Tow-LightsStep 1   Make sure your Tow-Lights are turned OFF. Step 2   If you are going to store your Tow-Lights for more than 30 days, remove the batteries. CAUTION: Keeping  the  batteries  in  the  Tow-Lights  for  long  periods  can  cause  leakage  and damage the electric circuitry. Step 3   Unplug the transmitter from the vehicle. Step 4   Wipe the Tow-Lights and the transmitter with a clean, damp cloth and place them back in their original clam shell packaging. Step 5   Store the Tow-Lights and the transmitter in a dry area out of the reach of children. TROUBLESHOOTING GUIDE“Running  lights  do  not  turn  on  manually  with  the  3-position  push  on/off  switch  set to Night Operation.”•  If your running lights do not illuminate when switched to Night Operation, check the batteries    in both units for correct installation. •  Try activating the push switch again for Night Operation mode. •  Make sure your batteries are fresh and fully charged. •  If the transmitter is plugged into the vehicle’s wiring harness, try activating the running lights    by turning on the vehicle’s running lights or headlights. “Running  lights  work  when  switched  to  Night  Operation  but  will  not  work  with  the  transmitter/vehicle.”•  If  the  running  lights  work  by  switching  to  Night  Operation  but  will  not  work  using  the    transmitter  via  the  vehicle’s  wiring,  the  most  likely  problem  is  in  the  vehicle’s  wiring  or  a    bad plug connection. •  Unplug and check the transmitter/vehicle connection. •  Check the terminals on the tow vehicle for possible corrosion. Clean and put a little di-electric    grease on the connections. •  Plug  and  unplug  the  harness  several  times.  If  you  are  absolutely  sure  that  the  transmitter    is properly connected, check your vehicle’s wiring for problems or shorts.“Some, but not all of the light functions work via the transmitter.”•  Check all of the above for bad wiring in the tow vehicle.•  Check and clean all plug connections.Notice This product will emit electromagnetic wave, just like other wireless products, however, its transmitting power is less than other wireless products such as mobile phones. The 2.4 GHz WIRELESS TRANSMITTER AND WIRE-LESS RECEIVER MEET APPLICABLE FCC RULES AND REGULATIONS FOR LOW  POWER COMMUNICATION DEVICE TRANSMITTER ( TITLE 47 OF THE  CODE OF FEDERAL REGULATIONS AND PART 15 RADIO FREQUENCY DEVICES).Restrictions This equipment has been tested and found to comply with the limits of FCC Rules and Regulations for low power communication device transmitter ( Title 47 of the Code of Federal Regulations and Part 15 Radio Fre-quency devices). These limits are designed to provide reasonable protection against interference in residential instal-lation. This wireless device generates, uses and can radiate radio frequency energy and, if NOT installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or televi-sion reception, the user is encouraged to try to correct the interference by the following measures:•  Reorient or relocate the receiving  Unit or antenna.•  Increase the separation between the devices•  Connect the equipment into an outlet or circuit different from that to which the receiver is connectedCaution:  The Wireless Towlight system has been designed to Federal Communications Standards for Part 15 radio devices.  Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference that may be received, including interference that may cause undesired operation; (3) Changes or modifications not expressly approved by Wireless Towlights Inc. could void the authority of users to operate this equipment. Important Safety Precautions        WARNING:   Do not operate your Tow-Lights if your tow vehicle has wiring problems or faulty wiring harness connections.        WARNING:  Trailers with electric brakes: Disconnecting the trailer connector from the tow vehicle will eliminate the electric brakes on your trailer and can cause an accident. DO NOT unplug the original trailer harness. You will need to purchase a standard 4-prong female flat plug and install on your tow vehicle.        WARNING:   Semi truck operators: Place the transmitter directly behind the cab on top of the frame of the tractor. Best placement for the Tow-Lights on the trailer is the area where the channels meet the bumper. A standard 4-flat plug is required on the tow vehicle.         WARNING: Do not submerge your Tow-Lights in water. Doing so may cause damage to the circuitry. Warning: Do not carry or pick up your Tow-Lights by the connecting wire between the Tow-Lights.        WARNING:   Do NOT cover any portion of the Tow-Lights lenses at any time while towing. Patent 4,859,982 (Other Patents Applied for)CEQUENT CONSUMERPRODUCTS, INC. 29000-2 Aurora RoadSolon, Ohio 44139MADE IN CHINAwww.cequent-cpi.comHelp Hotline: 1-800-234-6992                                             86064IN   04/11
