WirelessWERX orporated SBS05W Base Station User Manual SBS05 W Usr Manual

WirelessWERX, Incorporated Base Station SBS05 W Usr Manual

User Manual

  User Manual SiteWERX Base Station, Wireless         20 October 2011

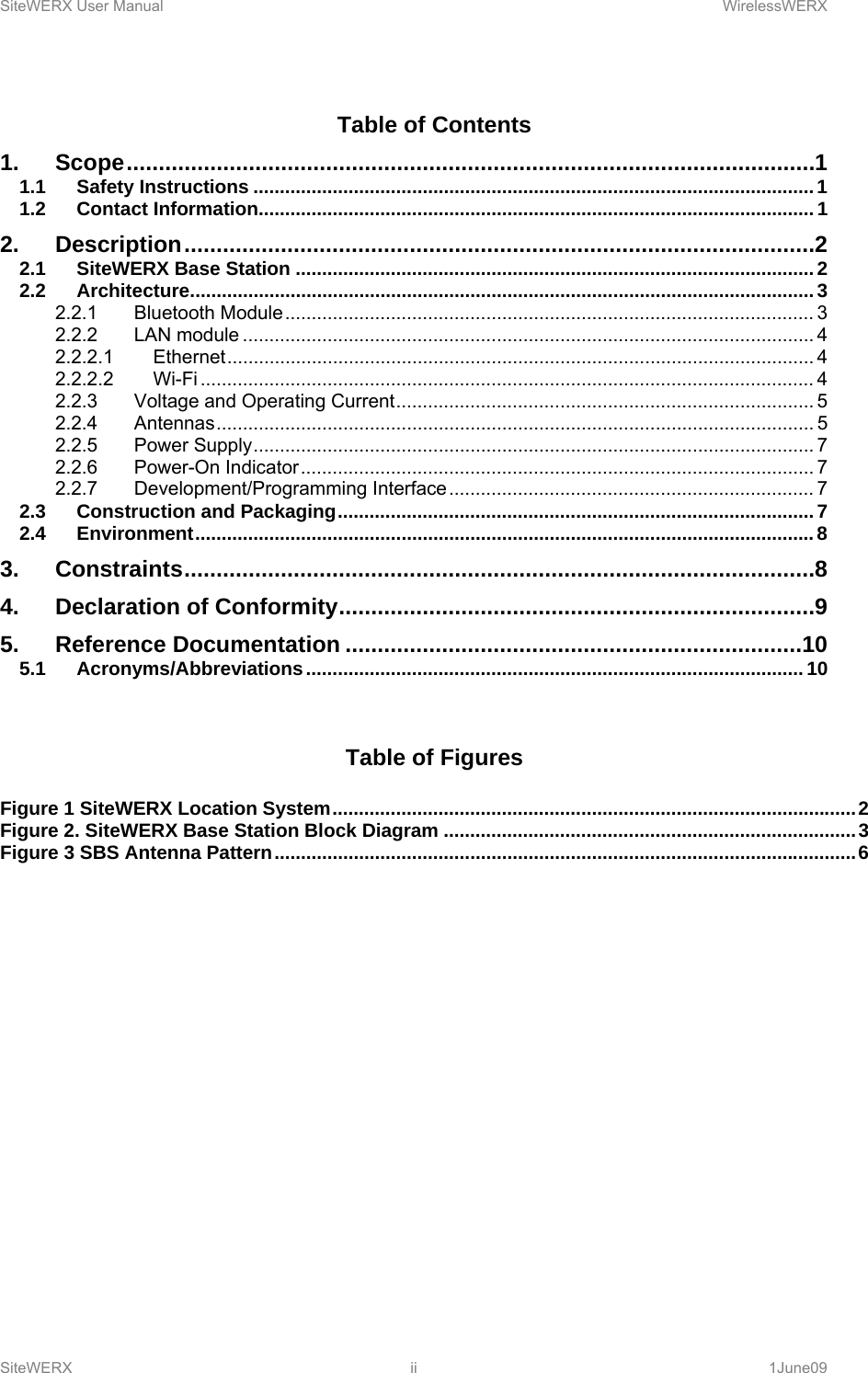

SiteWERX User Manual    WirelessWERX SiteWERX ii  1June09  Table of Contents 1.Scope ........................................................................................................... 11.1Safety Instructions .......................................................................................................... 11.2Contact Information......................................................................................................... 12.Description .................................................................................................. 22.1SiteWERX Base Station .................................................................................................. 22.2Architecture ...................................................................................................................... 32.2.1Bluetooth Module .................................................................................................... 32.2.2LAN module ............................................................................................................ 42.2.2.1Ethernet ...............................................................................................................  42.2.2.2Wi-Fi .................................................................................................................... 42.2.3Voltage and Operating Current ............................................................................... 52.2.4Antennas ................................................................................................................. 52.2.5Power Supply .......................................................................................................... 72.2.6Power-On Indicator ................................................................................................. 72.2.7Development/Programming Interface ..................................................................... 72.3Construction and Packaging .......................................................................................... 72.4Environment ..................................................................................................................... 83.Constraints .................................................................................................. 84.Declaration of Conformity .......................................................................... 95.Reference Documentation ....................................................................... 105.1Acronyms/Abbreviations .............................................................................................. 10  Table of Figures  Figure 1 SiteWERX Location System ................................................................................................... 2Figure 2. SiteWERX Base Station Block Diagram .............................................................................. 3Figure 3 SBS Antenna Pattern .............................................................................................................. 6

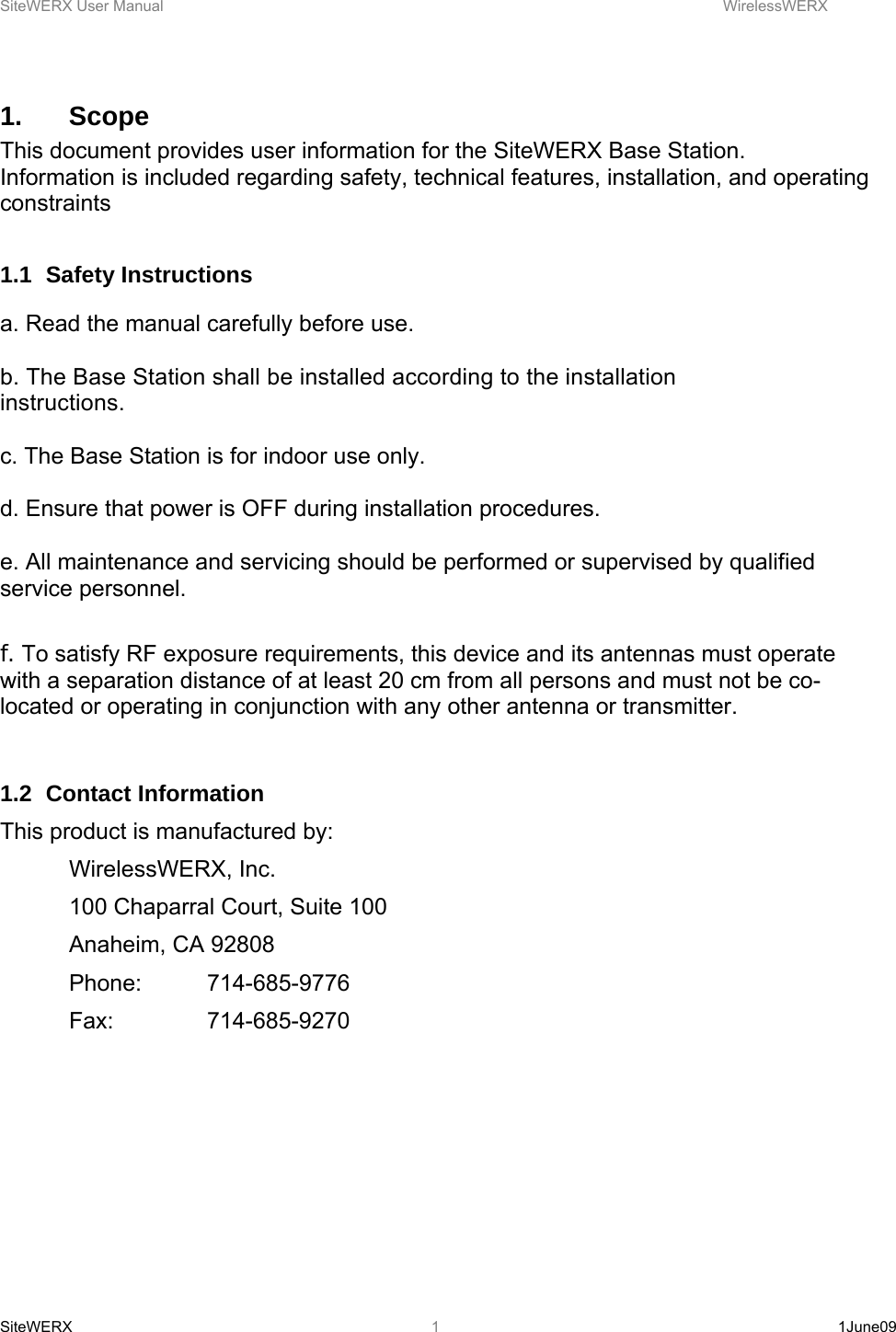

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  11.   Scope This document provides user information for the SiteWERX Base Station.  Information is included regarding safety, technical features, installation, and operating constraints  1.1 Safety Instructions  a. Read the manual carefully before use.  b. The Base Station shall be installed according to the installation instructions.   c. The Base Station is for indoor use only.  d. Ensure that power is OFF during installation procedures.  e. All maintenance and servicing should be performed or supervised by qualified service personnel.  f. To satisfy RF exposure requirements, this device and its antennas must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.    1.2 Contact Information This product is manufactured by:  WirelessWERX, Inc.   100 Chaparral Court, Suite 100  Anaheim, CA 92808  Phone: 714-685-9776  Fax:  714-685-9270

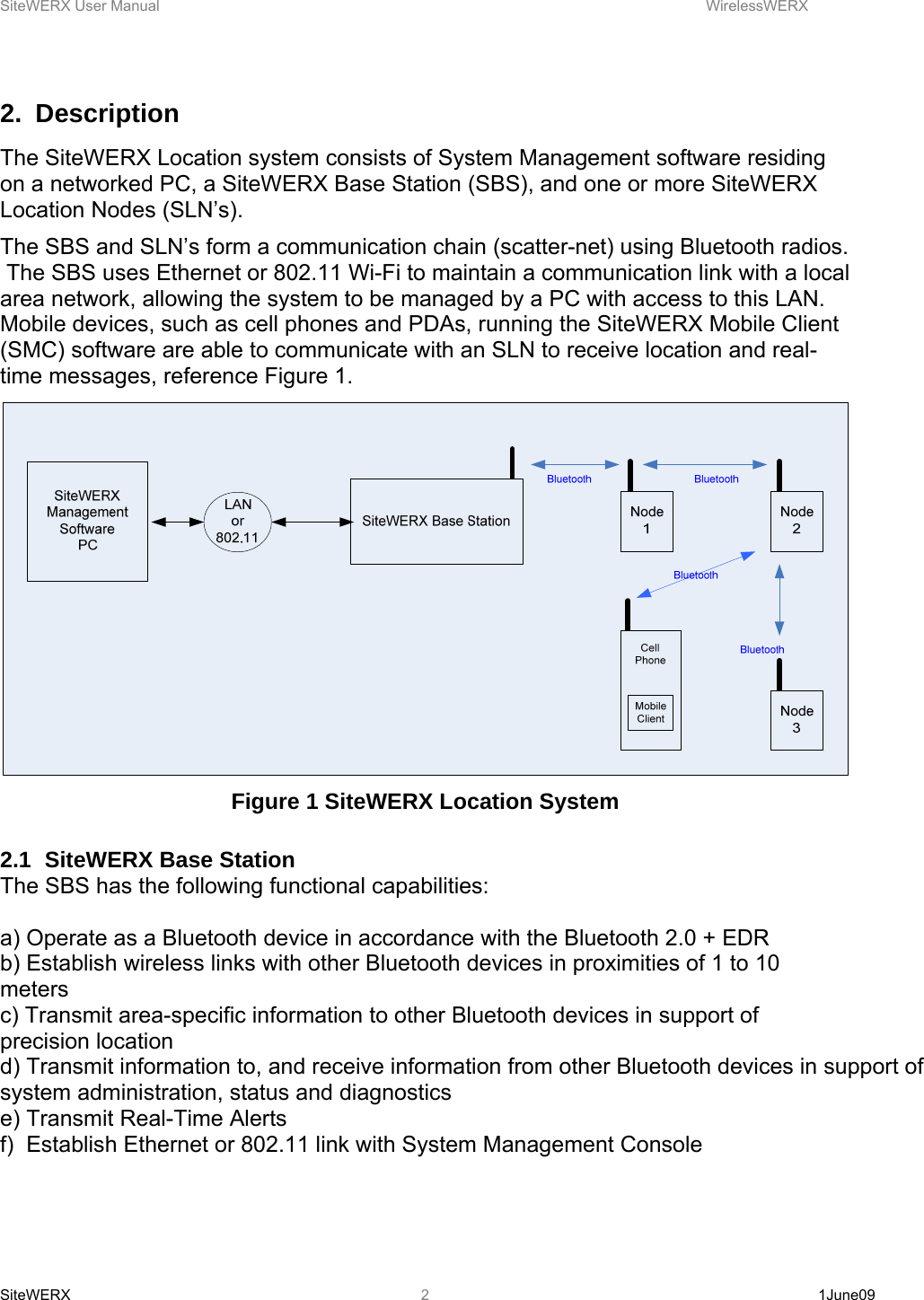

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  22. Description The SiteWERX Location system consists of System Management software residing on a networked PC, a SiteWERX Base Station (SBS), and one or more SiteWERX Location Nodes (SLN’s). The SBS and SLN’s form a communication chain (scatter-net) using Bluetooth radios.  The SBS uses Ethernet or 802.11 Wi-Fi to maintain a communication link with a local area network, allowing the system to be managed by a PC with access to this LAN. Mobile devices, such as cell phones and PDAs, running the SiteWERX Mobile Client (SMC) software are able to communicate with an SLN to receive location and real-time messages, reference Figure 1.  Figure 1 SiteWERX Location System  2.1  SiteWERX Base Station The SBS has the following functional capabilities:  a) Operate as a Bluetooth device in accordance with the Bluetooth 2.0 + EDR b) Establish wireless links with other Bluetooth devices in proximities of 1 to 10 meters c) Transmit area-specific information to other Bluetooth devices in support of precision location d) Transmit information to, and receive information from other Bluetooth devices in support of system administration, status and diagnostics e) Transmit Real-Time Alerts f)  Establish Ethernet or 802.11 link with System Management Console

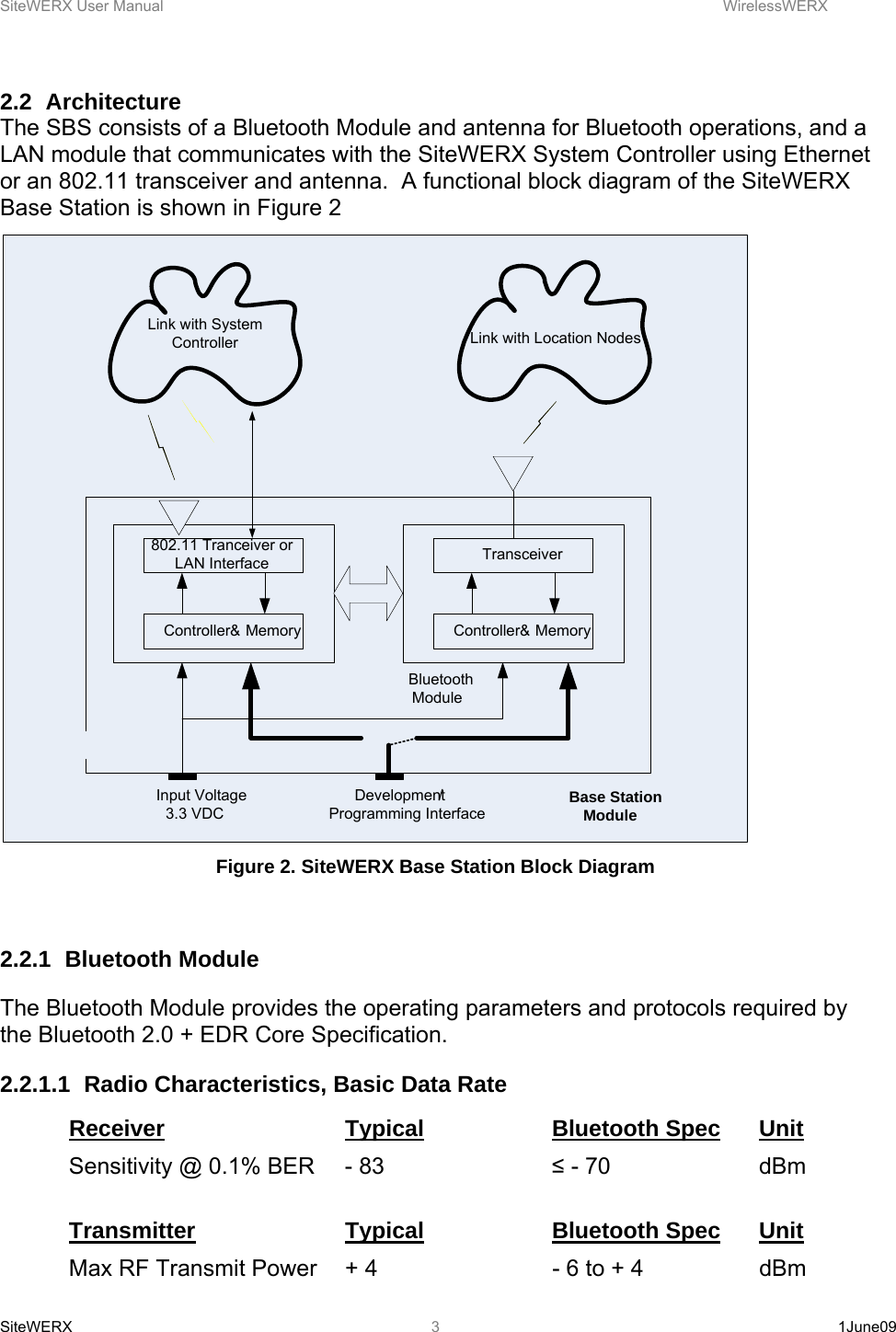

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  3 2.2 Architecture The SBS consists of a Bluetooth Module and antenna for Bluetooth operations, and a LAN module that communicates with the SiteWERX System Controller using Ethernet or an 802.11 transceiver and antenna.  A functional block diagram of the SiteWERX Base Station is shown in Figure 2 Bluetooth ModuleInput Voltage 3.3 VDC 802.11 Tranceiver or LAN InterfaceController & MemoryTransceiverController & MemoryLink with Location NodesDevelopment/Programming InterfaceBase Station ModuleLink with System Controller Figure 2. SiteWERX Base Station Block Diagram  2.2.1 Bluetooth Module The Bluetooth Module provides the operating parameters and protocols required by the Bluetooth 2.0 + EDR Core Specification. 2.2.1.1  Radio Characteristics, Basic Data Rate Receiver   Typical   Bluetooth Spec Unit Sensitivity @ 0.1% BER  - 83       ≤ - 70      dBm  Transmitter   Typical   Bluetooth Spec Unit Max RF Transmit Power  + 4       - 6 to + 4    dBm

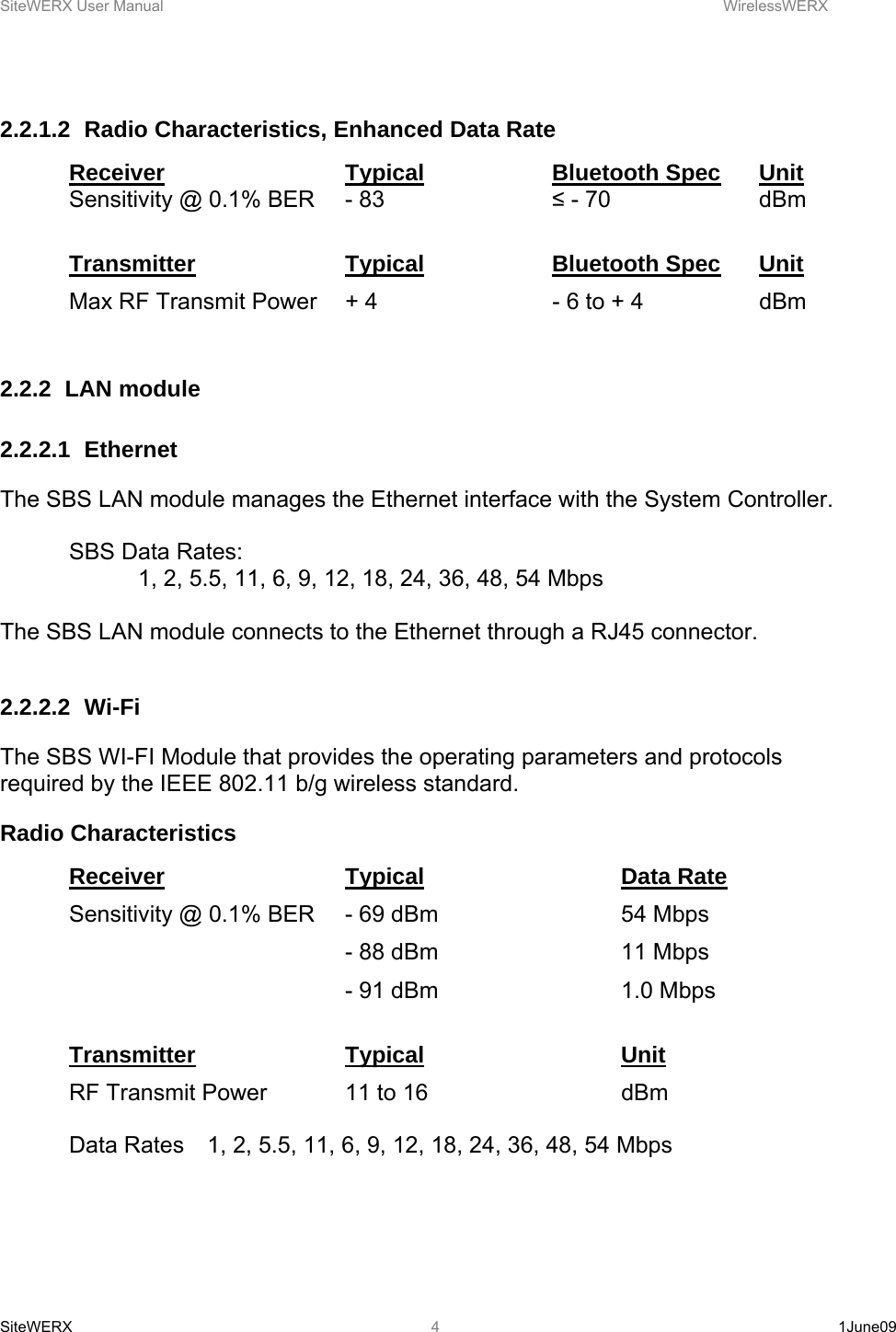

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  4 2.2.1.2  Radio Characteristics, Enhanced Data Rate Receiver   Typical   Bluetooth Spec Unit Sensitivity @ 0.1% BER  - 83       ≤ - 70      dBm  Transmitter   Typical   Bluetooth Spec Unit Max RF Transmit Power  + 4       - 6 to + 4    dBm  2.2.2 LAN module 2.2.2.1 Ethernet The SBS LAN module manages the Ethernet interface with the System Controller.    SBS Data Rates: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps  The SBS LAN module connects to the Ethernet through a RJ45 connector.  2.2.2.2 Wi-Fi The SBS WI-FI Module that provides the operating parameters and protocols required by the IEEE 802.11 b/g wireless standard.   Radio Characteristics Receiver   Typical   Data Rate Sensitivity @ 0.1% BER  - 69 dBm       54 Mbps     - 88 dBm   11 Mbps     - 91 dBm   1.0 Mbps  Transmitter   Typical   Unit RF Transmit Power   11 to 16       dBm  Data Rates  1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps

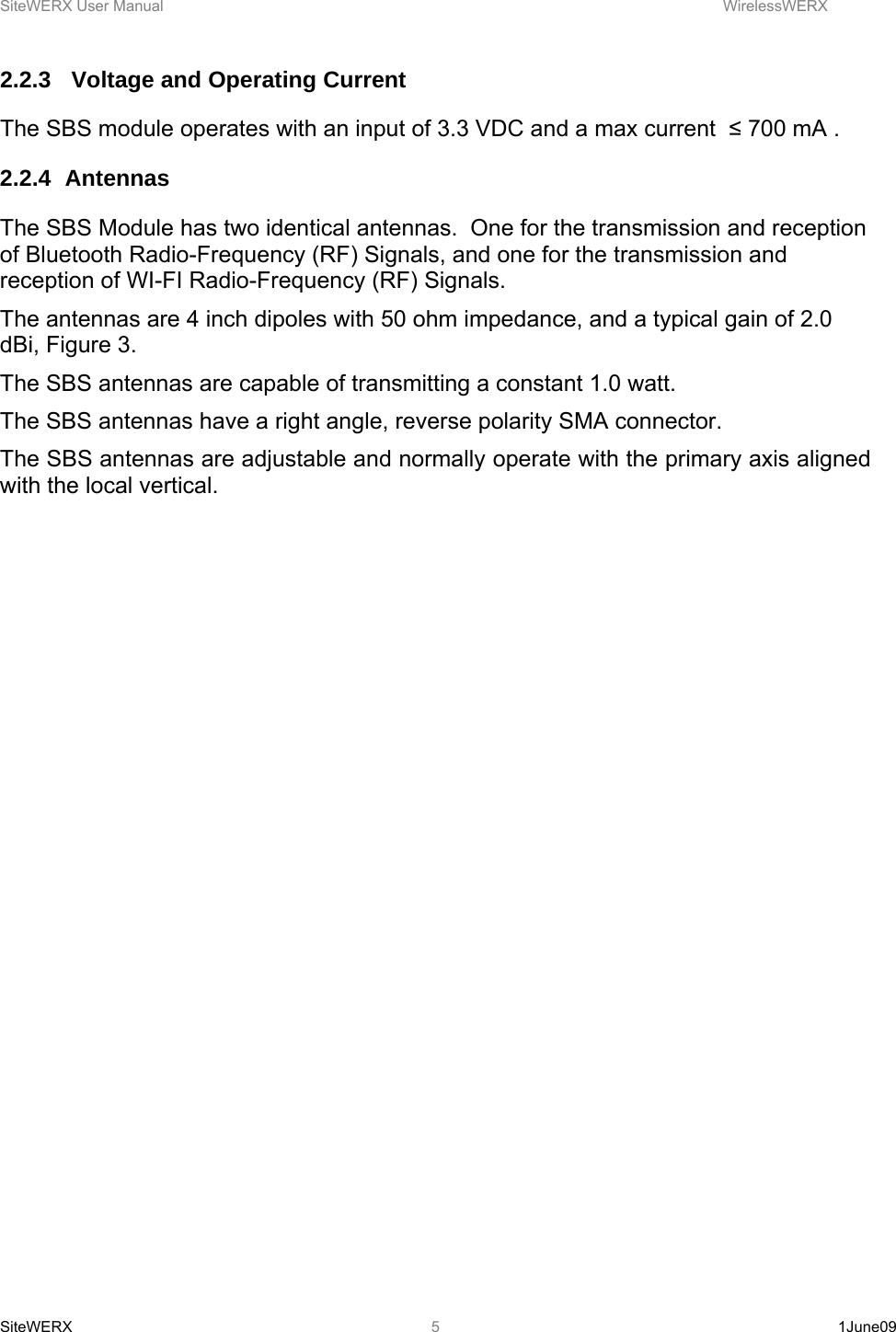

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  52.2.3   Voltage and Operating Current The SBS module operates with an input of 3.3 VDC and a max current  ≤ 700 mA . 2.2.4 Antennas The SBS Module has two identical antennas.  One for the transmission and reception of Bluetooth Radio-Frequency (RF) Signals, and one for the transmission and reception of WI-FI Radio-Frequency (RF) Signals. The antennas are 4 inch dipoles with 50 ohm impedance, and a typical gain of 2.0 dBi, Figure 3. The SBS antennas are capable of transmitting a constant 1.0 watt. The SBS antennas have a right angle, reverse polarity SMA connector. The SBS antennas are adjustable and normally operate with the primary axis aligned with the local vertical.

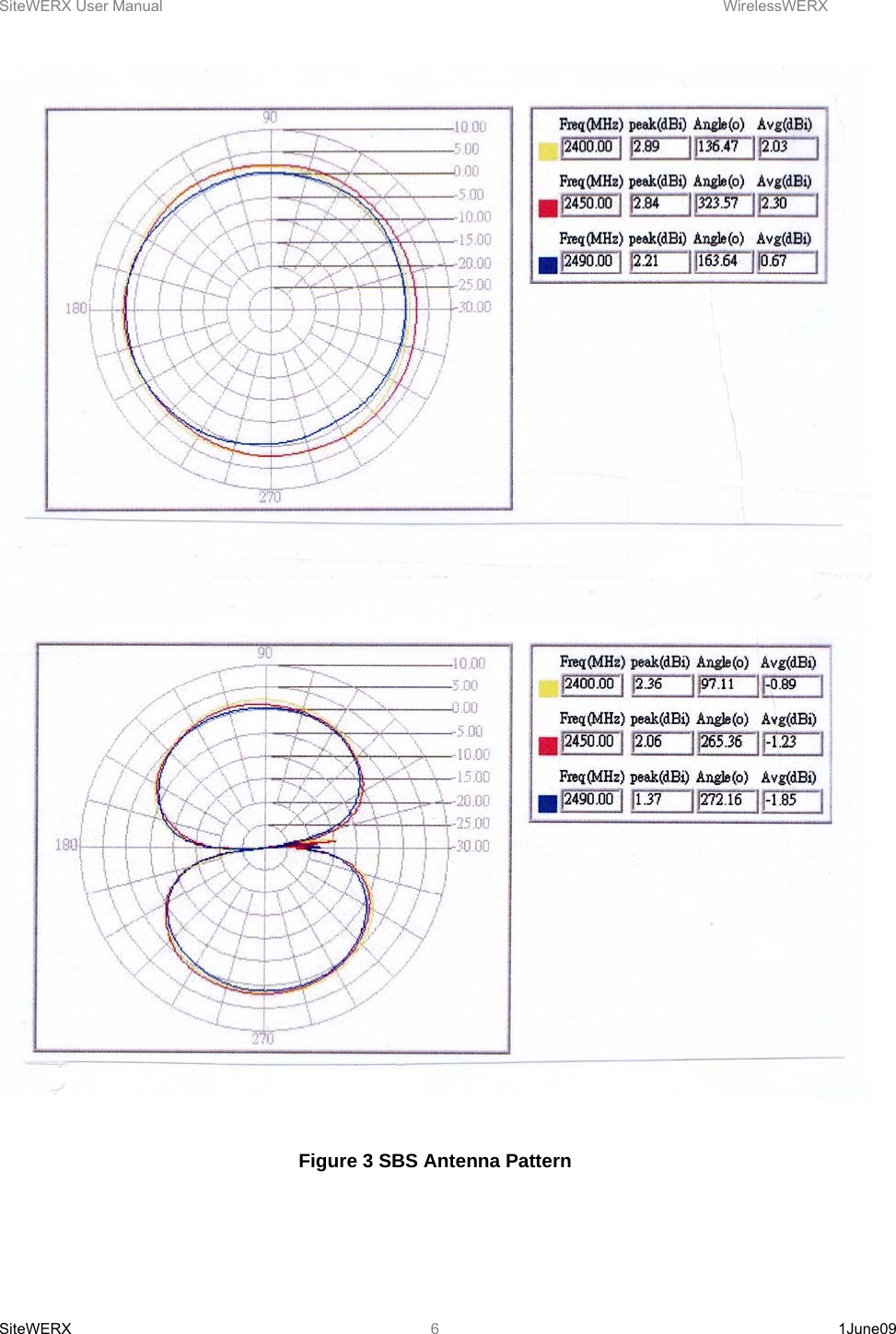

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  6  Figure 3 SBS Antenna Pattern

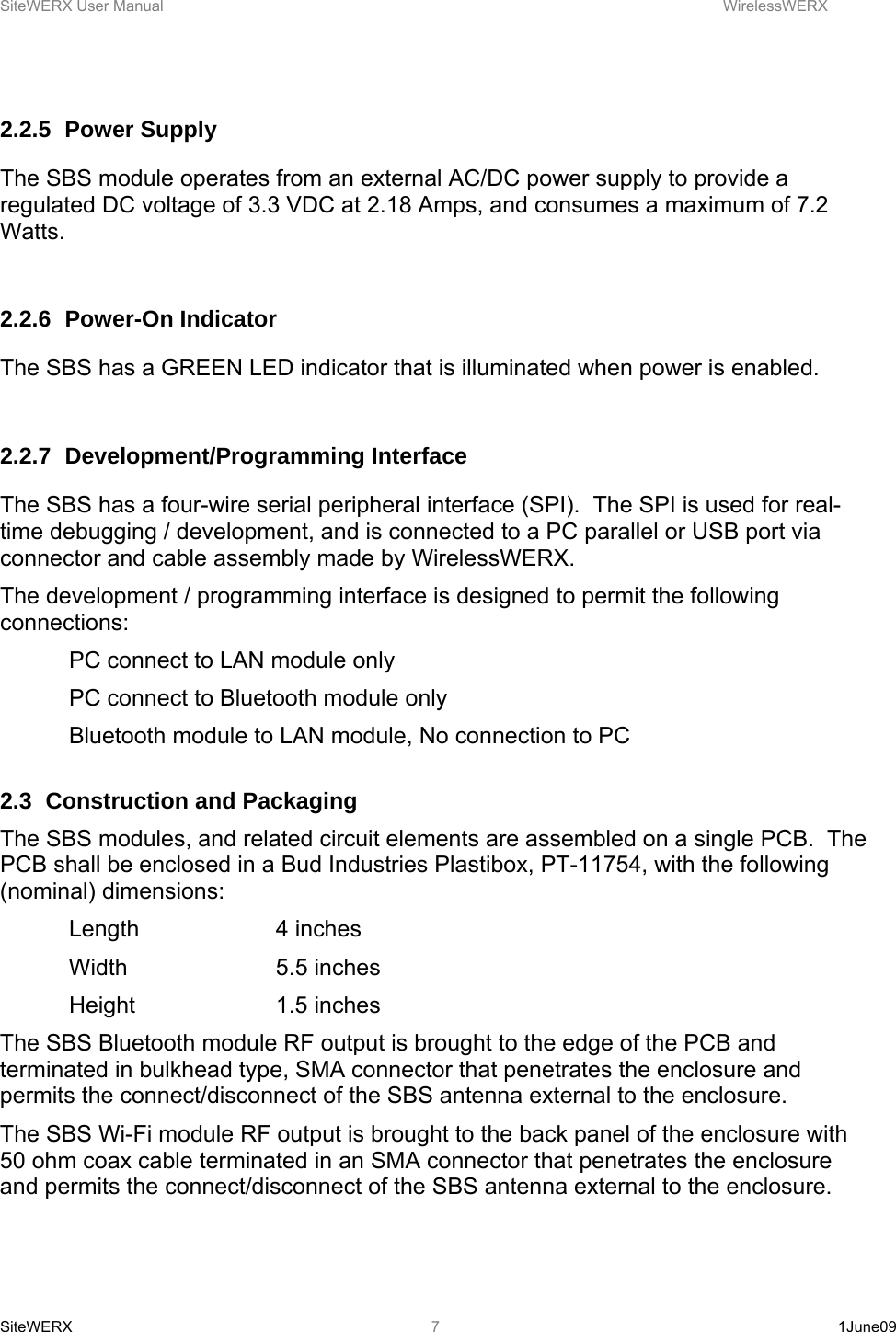

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  7 2.2.5 Power Supply The SBS module operates from an external AC/DC power supply to provide a regulated DC voltage of 3.3 VDC at 2.18 Amps, and consumes a maximum of 7.2 Watts.  2.2.6 Power-On Indicator The SBS has a GREEN LED indicator that is illuminated when power is enabled.    2.2.7 Development/Programming Interface The SBS has a four-wire serial peripheral interface (SPI).  The SPI is used for real-time debugging / development, and is connected to a PC parallel or USB port via connector and cable assembly made by WirelessWERX. The development / programming interface is designed to permit the following connections:   PC connect to LAN module only   PC connect to Bluetooth module only   Bluetooth module to LAN module, No connection to PC  2.3  Construction and Packaging The SBS modules, and related circuit elements are assembled on a single PCB.  The PCB shall be enclosed in a Bud Industries Plastibox, PT-11754, with the following (nominal) dimensions:  Length  4 inches  Width   5.5 inches  Height   1.5 inches The SBS Bluetooth module RF output is brought to the edge of the PCB and terminated in bulkhead type, SMA connector that penetrates the enclosure and permits the connect/disconnect of the SBS antenna external to the enclosure.  The SBS Wi-Fi module RF output is brought to the back panel of the enclosure with 50 ohm coax cable terminated in an SMA connector that penetrates the enclosure and permits the connect/disconnect of the SBS antenna external to the enclosure.

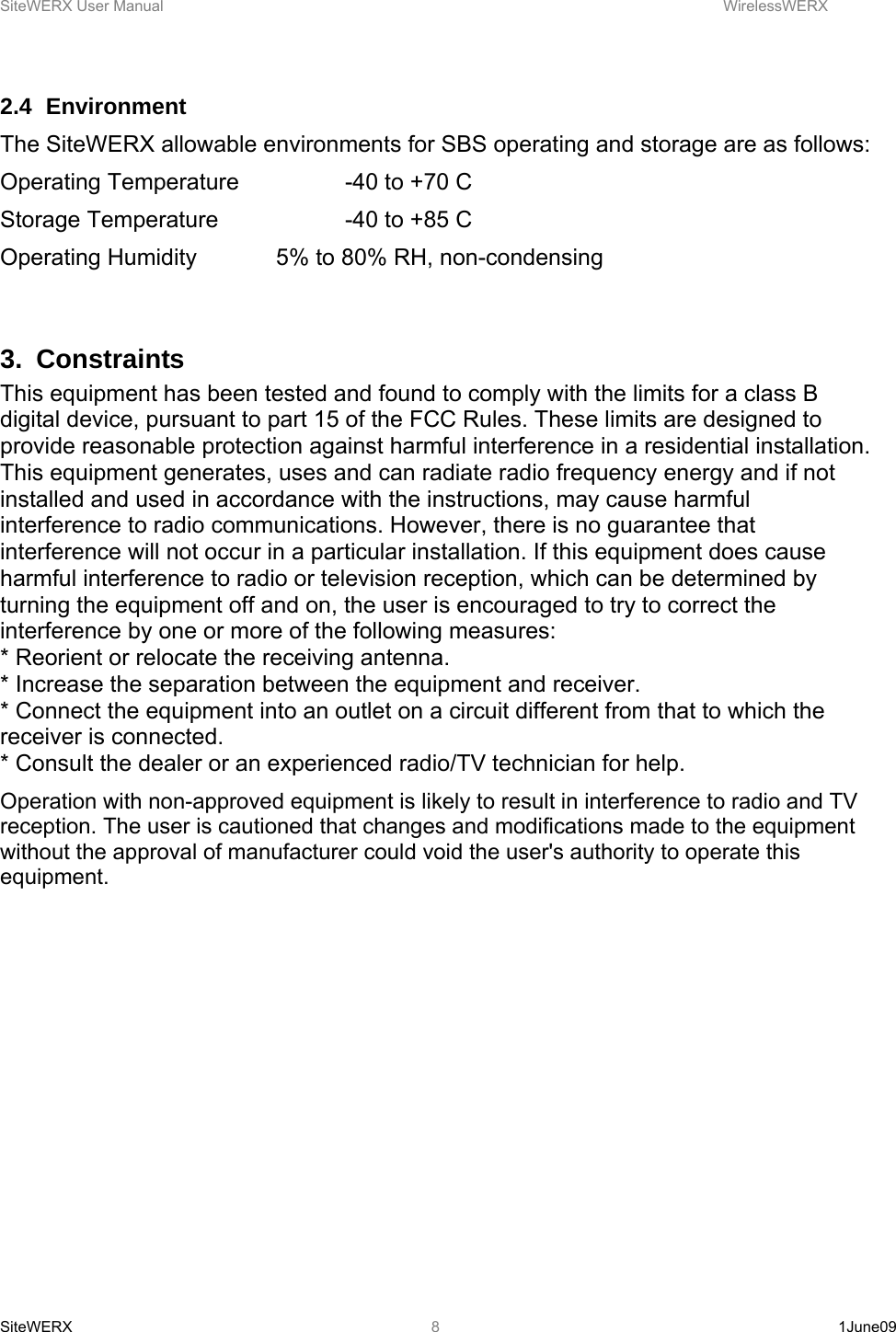

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  8 2.4 Environment  The SiteWERX allowable environments for SBS operating and storage are as follows: Operating Temperature    -40 to +70 C Storage Temperature    -40 to +85 C Operating Humidity    5% to 80% RH, non-condensing  3. Constraints This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  * Reorient or relocate the receiving antenna.  * Increase the separation between the equipment and receiver.  * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  * Consult the dealer or an experienced radio/TV technician for help.  Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

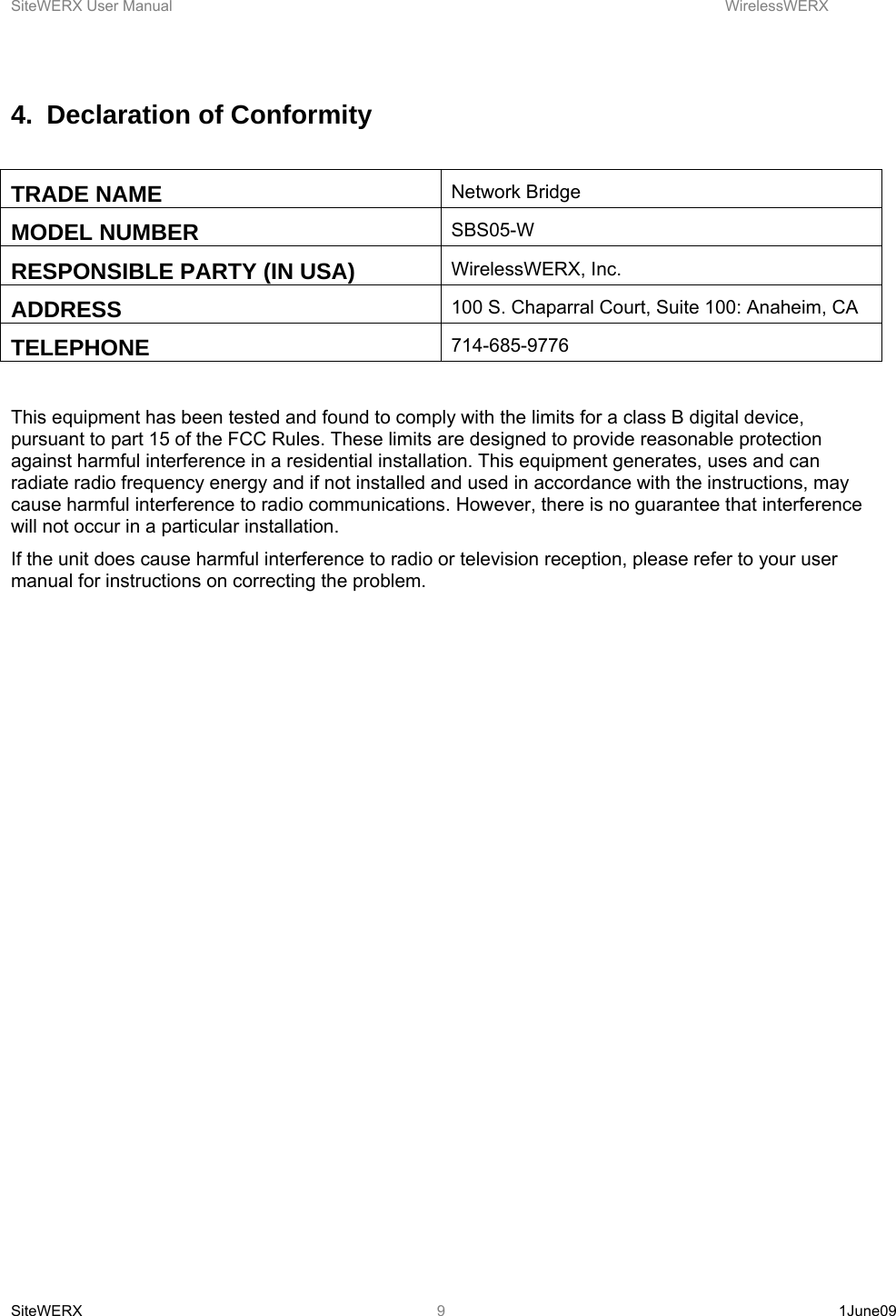

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  94.  Declaration of Conformity  TRADE NAME  Network Bridge MODEL NUMBER  SBS05-W RESPONSIBLE PARTY (IN USA)  WirelessWERX, Inc. ADDRESS  100 S. Chaparral Court, Suite 100: Anaheim, CA TELEPHONE  714-685-9776  This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the unit does cause harmful interference to radio or television reception, please refer to your user manual for instructions on correcting the problem.

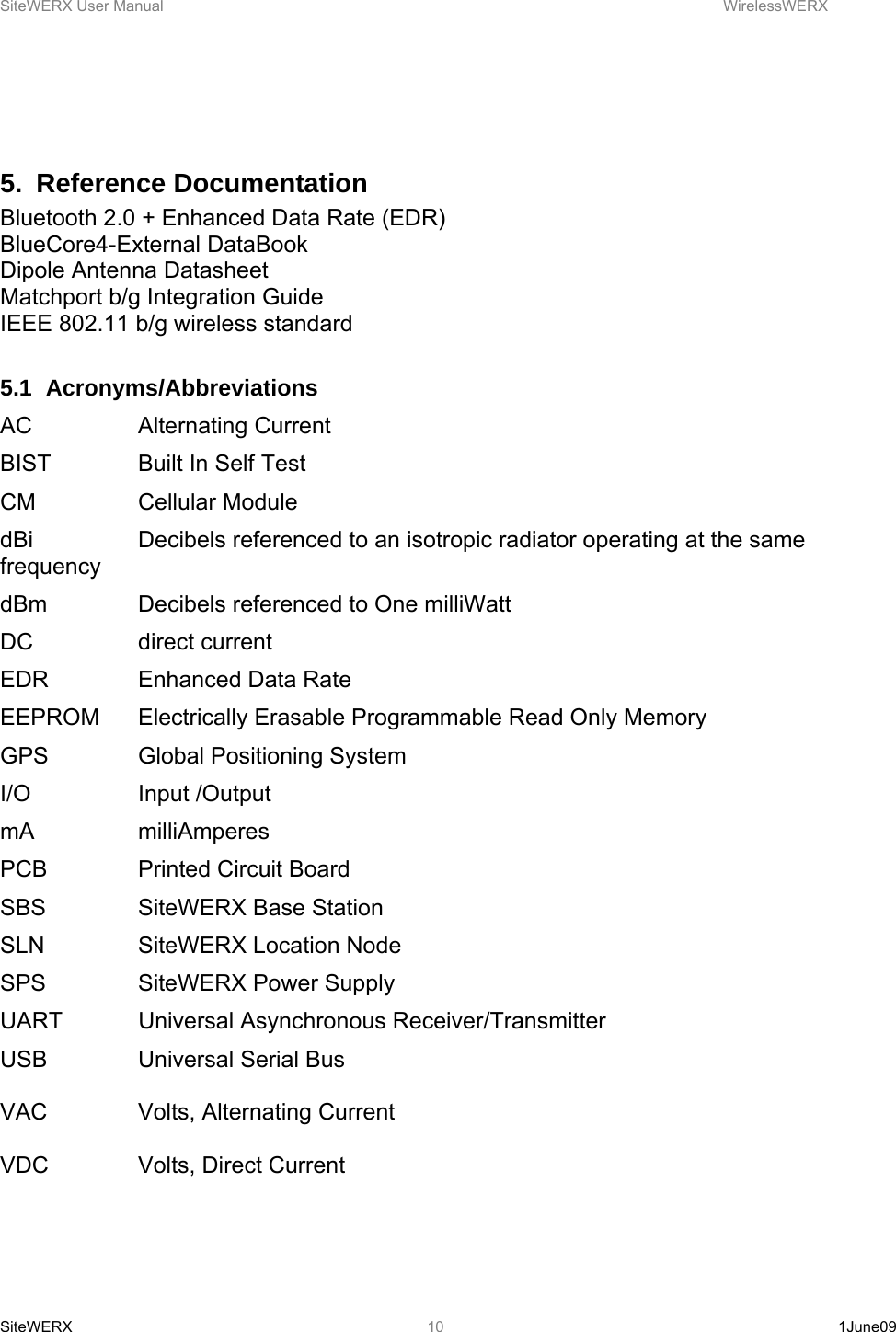

SiteWERX User Manual    WirelessWERX SiteWERX   1June09  10  5. Reference Documentation Bluetooth 2.0 + Enhanced Data Rate (EDR) BlueCore4-External DataBook Dipole Antenna Datasheet Matchport b/g Integration Guide IEEE 802.11 b/g wireless standard  5.1 Acronyms/Abbreviations AC   Alternating Current BIST    Built In Self Test CM   Cellular Module dBi    Decibels referenced to an isotropic radiator operating at the same frequency dBm    Decibels referenced to One milliWatt DC   direct current EDR    Enhanced Data Rate EEPROM  Electrically Erasable Programmable Read Only Memory GPS    Global Positioning System I/O   Input /Output mA   milliAmperes PCB    Printed Circuit Board SBS    SiteWERX Base Station SLN    SiteWERX Location Node SPS    SiteWERX Power Supply UART   Universal Asynchronous Receiver/Transmitter USB    Universal Serial Bus  VAC    Volts, Alternating Current  VDC    Volts, Direct Current
