WirelessWERX orporated SLN05 Site Location Node User Manual ocs tech manual

WirelessWERX, Incorporated Site Location Node ocs tech manual

Users Manual

  User Manual SiteWERX Location Node           1 June 2009

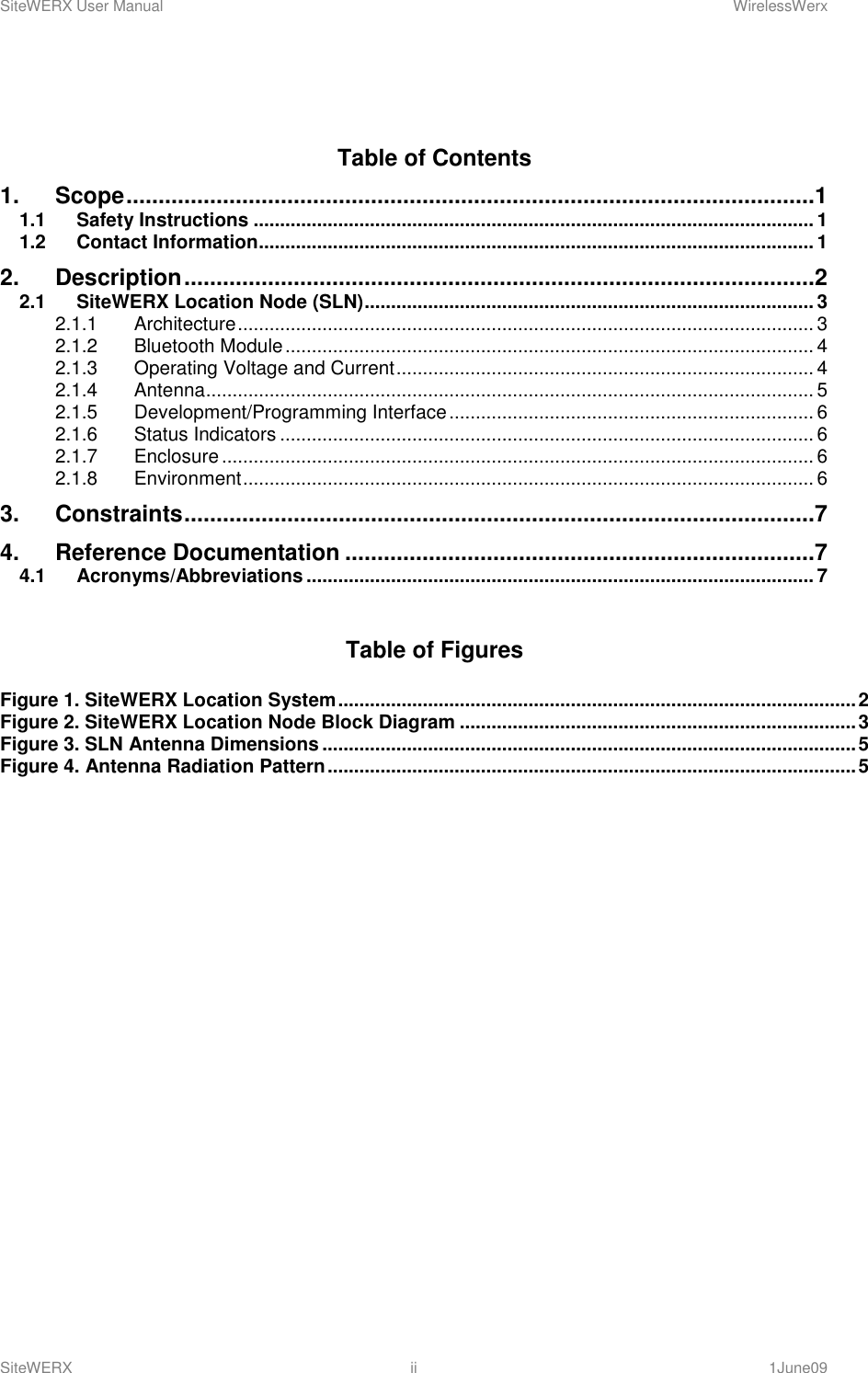

SiteWERX User Manual    WirelessWerx SiteWERX  ii  1June09   Table of Contents 1. Scope ...........................................................................................................1 1.1 Safety Instructions .......................................................................................................... 1 1.2 Contact Information......................................................................................................... 1 2. Description ..................................................................................................2 2.1 SiteWERX Location Node (SLN) ..................................................................................... 3 2.1.1 Architecture ............................................................................................................. 3 2.1.2 Bluetooth Module .................................................................................................... 4 2.1.3 Operating Voltage and Current ............................................................................... 4 2.1.4 Antenna ................................................................................................................... 5 2.1.5 Development/Programming Interface ..................................................................... 6 2.1.6 Status Indicators ..................................................................................................... 6 2.1.7 Enclosure ................................................................................................................ 6 2.1.8 Environment ............................................................................................................ 6 3. Constraints ..................................................................................................7 4. Reference Documentation .........................................................................7 4.1 Acronyms/Abbreviations ................................................................................................ 7  Table of Figures  Figure 1. SiteWERX Location System .................................................................................................. 2 Figure 2. SiteWERX Location Node Block Diagram ........................................................................... 3 Figure 3. SLN Antenna Dimensions ..................................................................................................... 5 Figure 4. Antenna Radiation Pattern .................................................................................................... 5

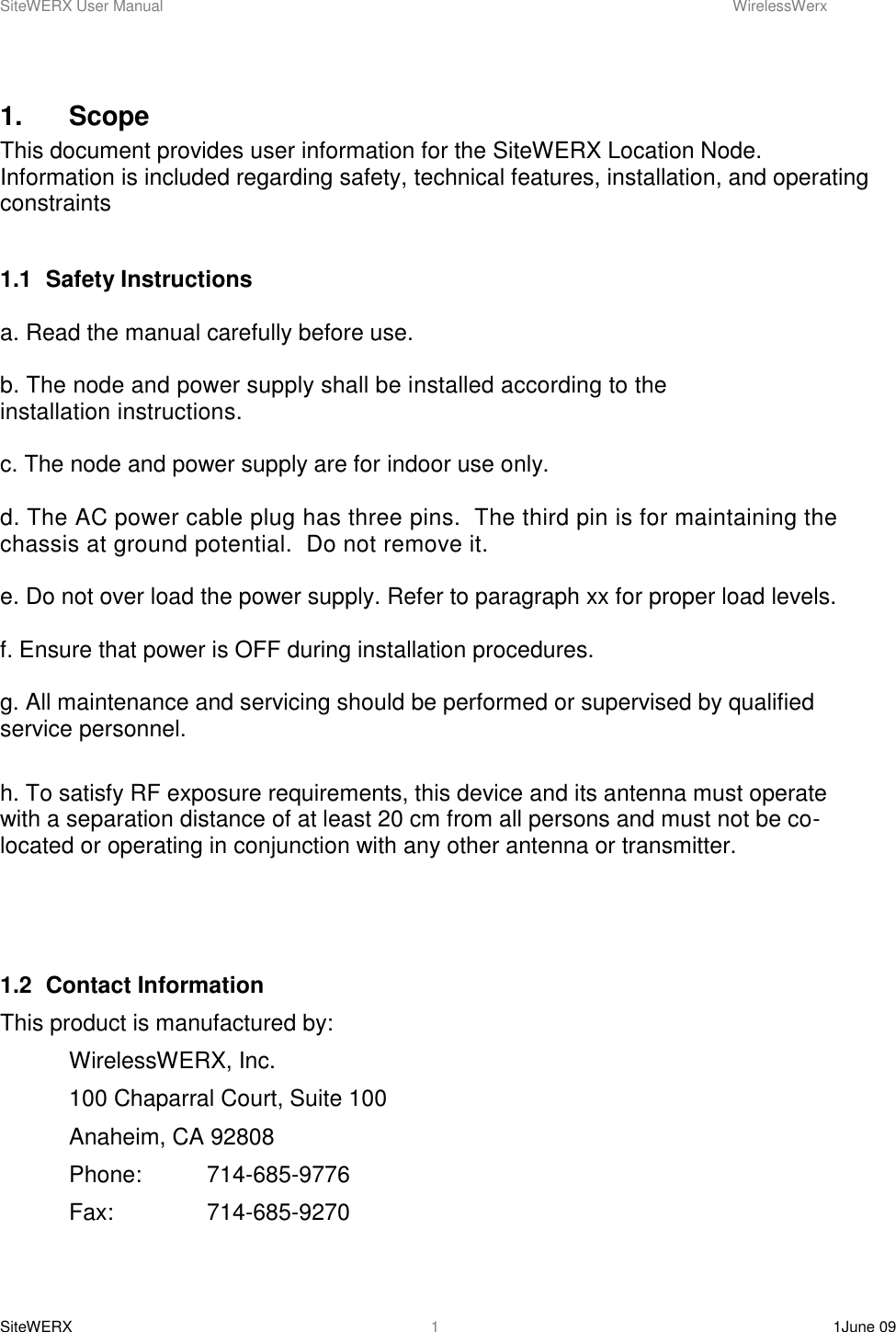

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  1 1.    Scope This document provides user information for the SiteWERX Location Node.  Information is included regarding safety, technical features, installation, and operating constraints  1.1  Safety Instructions  a. Read the manual carefully before use.  b. The node and power supply shall be installed according to the installation instructions.   c. The node and power supply are for indoor use only.  d. The AC power cable plug has three pins.  The third pin is for maintaining the chassis at ground potential.  Do not remove it.  e. Do not over load the power supply. Refer to paragraph xx for proper load levels.  f. Ensure that power is OFF during installation procedures.  g. All maintenance and servicing should be performed or supervised by qualified service personnel.  h. To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.      1.2  Contact Information This product is manufactured by:   WirelessWERX, Inc.  100 Chaparral Court, Suite 100   Anaheim, CA 92808   Phone:  714-685-9776   Fax:    714-685-9270

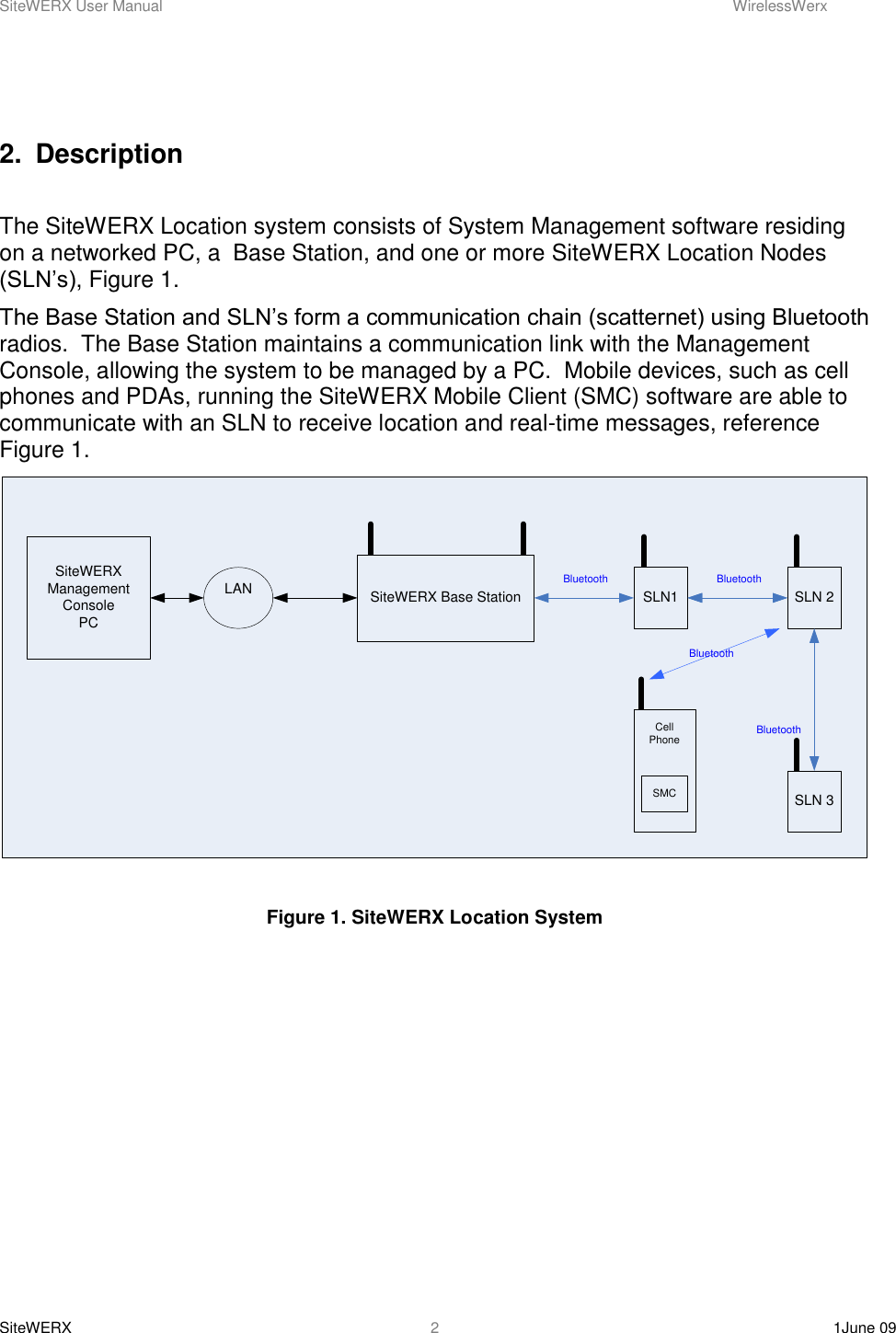

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  2  2.  Description   The SiteWERX Location system consists of System Management software residing on a networked PC, a  Base Station, and one or more SiteWERX Location Nodes (SLN’s), Figure 1. The Base Station and SLN’s form a communication chain (scatternet) using Bluetooth radios.  The Base Station maintains a communication link with the Management Console, allowing the system to be managed by a PC.  Mobile devices, such as cell phones and PDAs, running the SiteWERX Mobile Client (SMC) software are able to communicate with an SLN to receive location and real-time messages, reference Figure 1. SiteWERX Management ConsolePCLAN SiteWERX Base Station SLN1Bluetooth BluetoothSLN 2SLN 3BluetoothCell PhoneSMCBluetooth  Figure 1. SiteWERX Location System

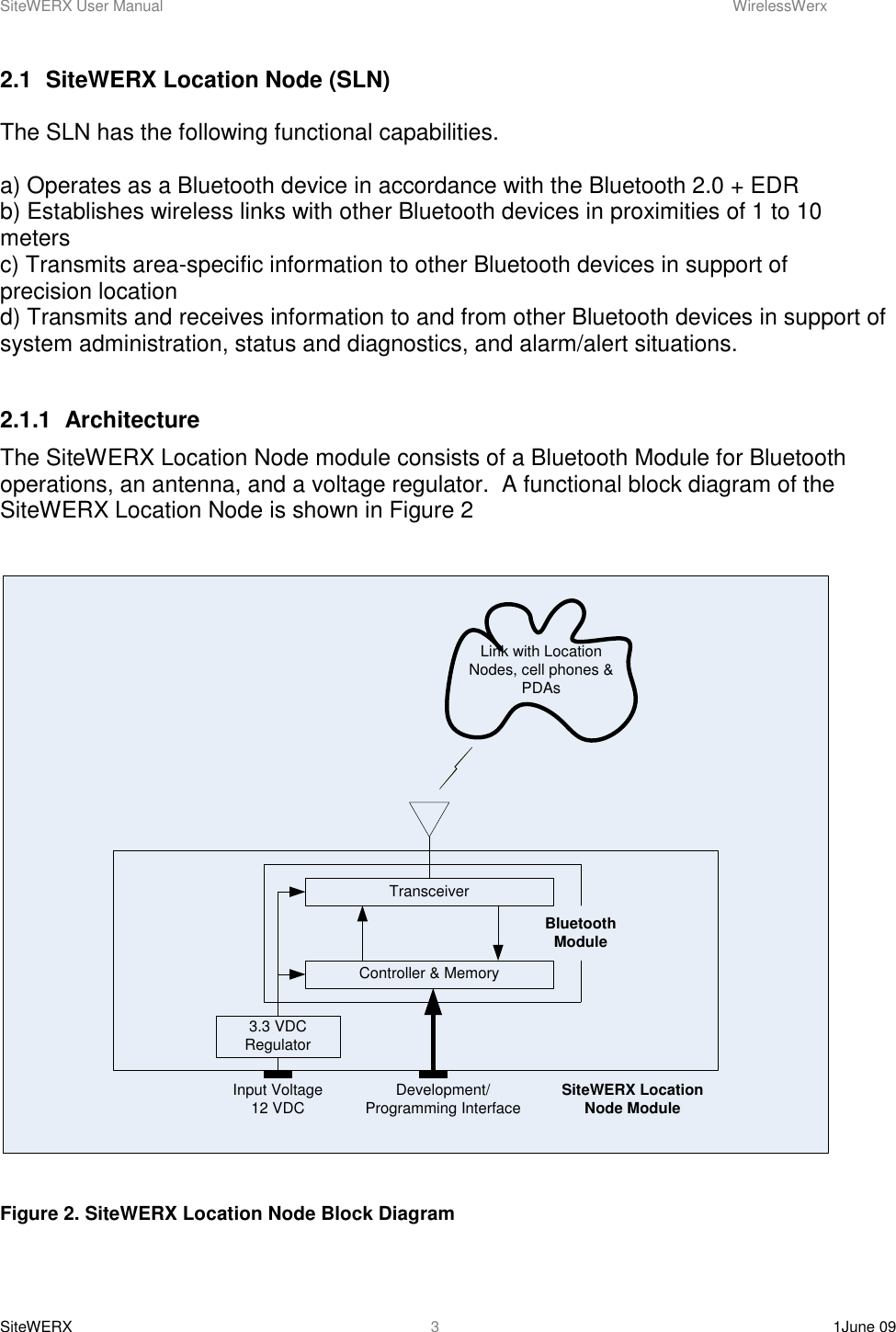

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  3 2.1  SiteWERX Location Node (SLN)  The SLN has the following functional capabilities.  a) Operates as a Bluetooth device in accordance with the Bluetooth 2.0 + EDR b) Establishes wireless links with other Bluetooth devices in proximities of 1 to 10 meters c) Transmits area-specific information to other Bluetooth devices in support of precision location d) Transmits and receives information to and from other Bluetooth devices in support of system administration, status and diagnostics, and alarm/alert situations.  2.1.1  Architecture The SiteWERX Location Node module consists of a Bluetooth Module for Bluetooth operations, an antenna, and a voltage regulator.  A functional block diagram of the SiteWERX Location Node is shown in Figure 2  Input Voltage 12 VDC TransceiverController & MemoryLink with Location Nodes, cell phones & PDAsBluetooth ModuleDevelopment/Programming Interface3.3 VDC RegulatorSiteWERX Location Node Module  Figure 2. SiteWERX Location Node Block Diagram

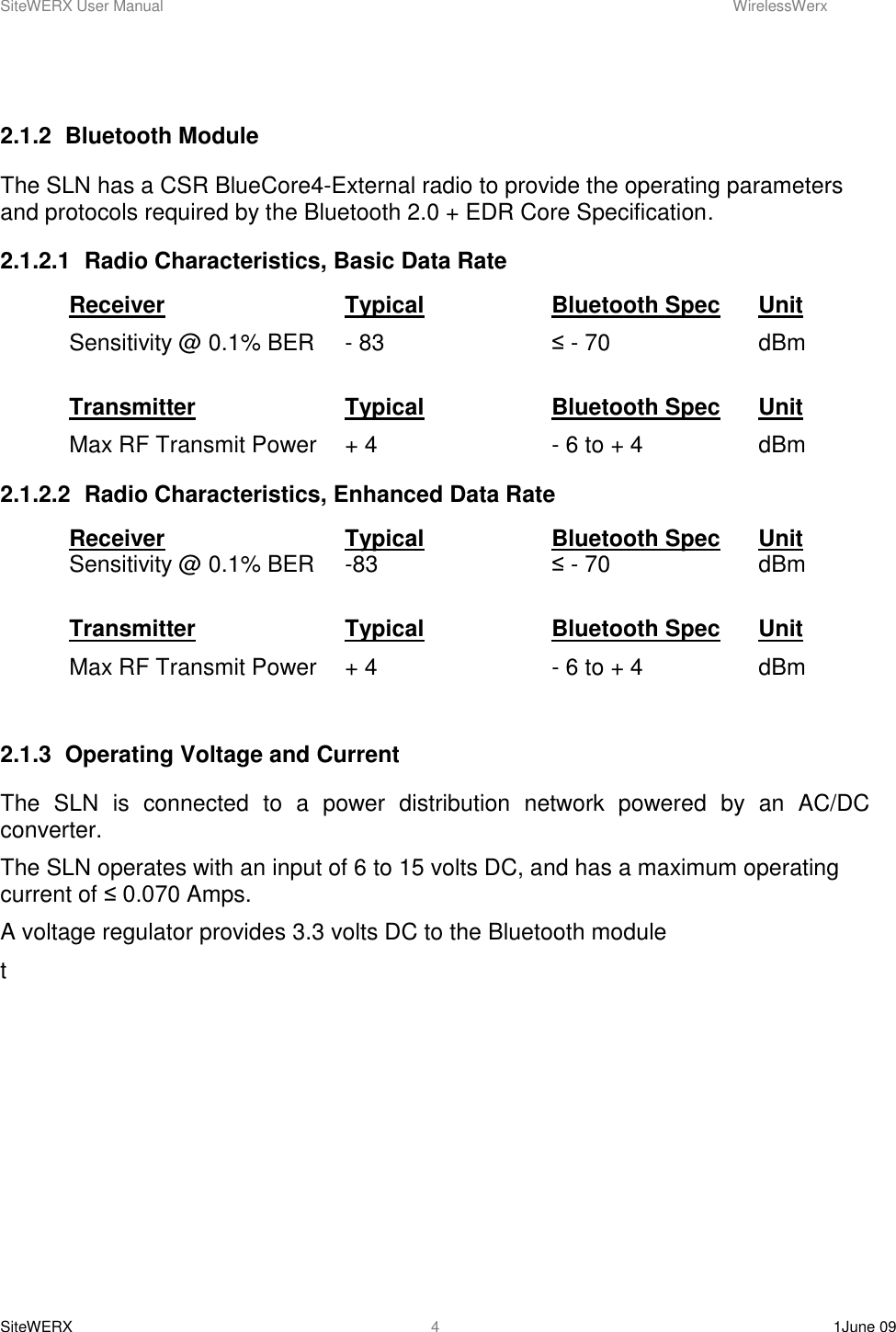

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  4  2.1.2  Bluetooth Module The SLN has a CSR BlueCore4-External radio to provide the operating parameters and protocols required by the Bluetooth 2.0 + EDR Core Specification. 2.1.2.1  Radio Characteristics, Basic Data Rate Receiver      Typical    Bluetooth Spec  Unit Sensitivity @ 0.1% BER  - 83       ≤ - 70      dBm  Transmitter      Typical    Bluetooth Spec  Unit Max RF Transmit Power  + 4       - 6 to + 4    dBm 2.1.2.2  Radio Characteristics, Enhanced Data Rate Receiver      Typical    Bluetooth Spec  Unit Sensitivity @ 0.1% BER  -83      ≤ - 70      dBm  Transmitter      Typical    Bluetooth Spec  Unit Max RF Transmit Power  + 4       - 6 to + 4    dBm  2.1.3  Operating Voltage and Current The  SLN  is  connected  to  a  power  distribution  network  powered  by  an  AC/DC converter. The SLN operates with an input of 6 to 15 volts DC, and has a maximum operating current of ≤ 0.070 Amps.   A voltage regulator provides 3.3 volts DC to the Bluetooth module t

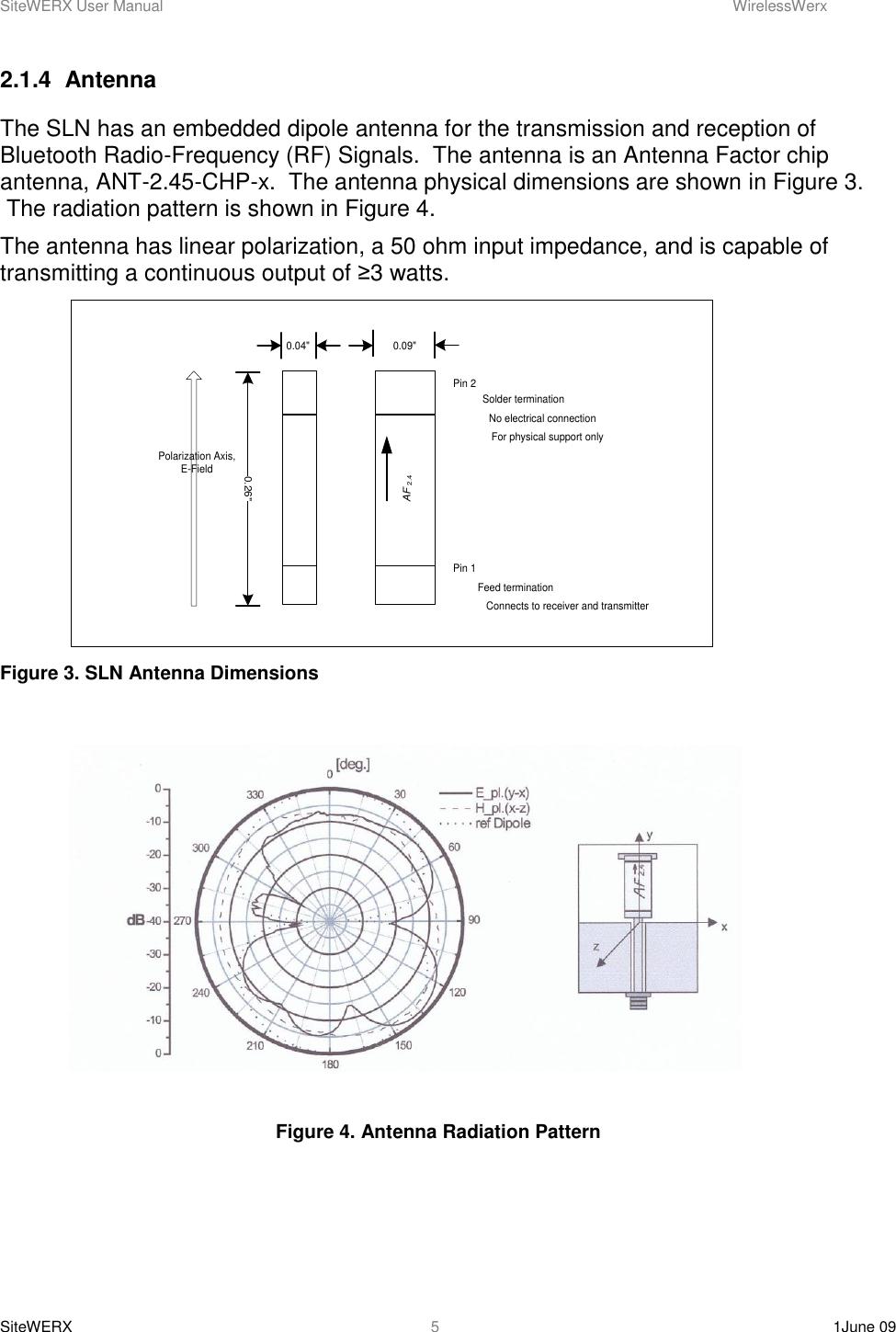

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  5 2.1.4  Antenna The SLN has an embedded dipole antenna for the transmission and reception of Bluetooth Radio-Frequency (RF) Signals.  The antenna is an Antenna Factor chip antenna, ANT-2.45-CHP-x.  The antenna physical dimensions are shown in Figure 3.  The radiation pattern is shown in Figure 4. The antenna has linear polarization, a 50 ohm input impedance, and is capable of transmitting a continuous output of ≥3 watts.   AF 2.40.09"Pin 1Feed terminationPin 2No electrical connectionFor physical support onlySolder termination0.26"0.04"Connects to receiver and transmitterPolarization Axis, E-Field Figure 3. SLN Antenna Dimensions    Figure 4. Antenna Radiation Pattern

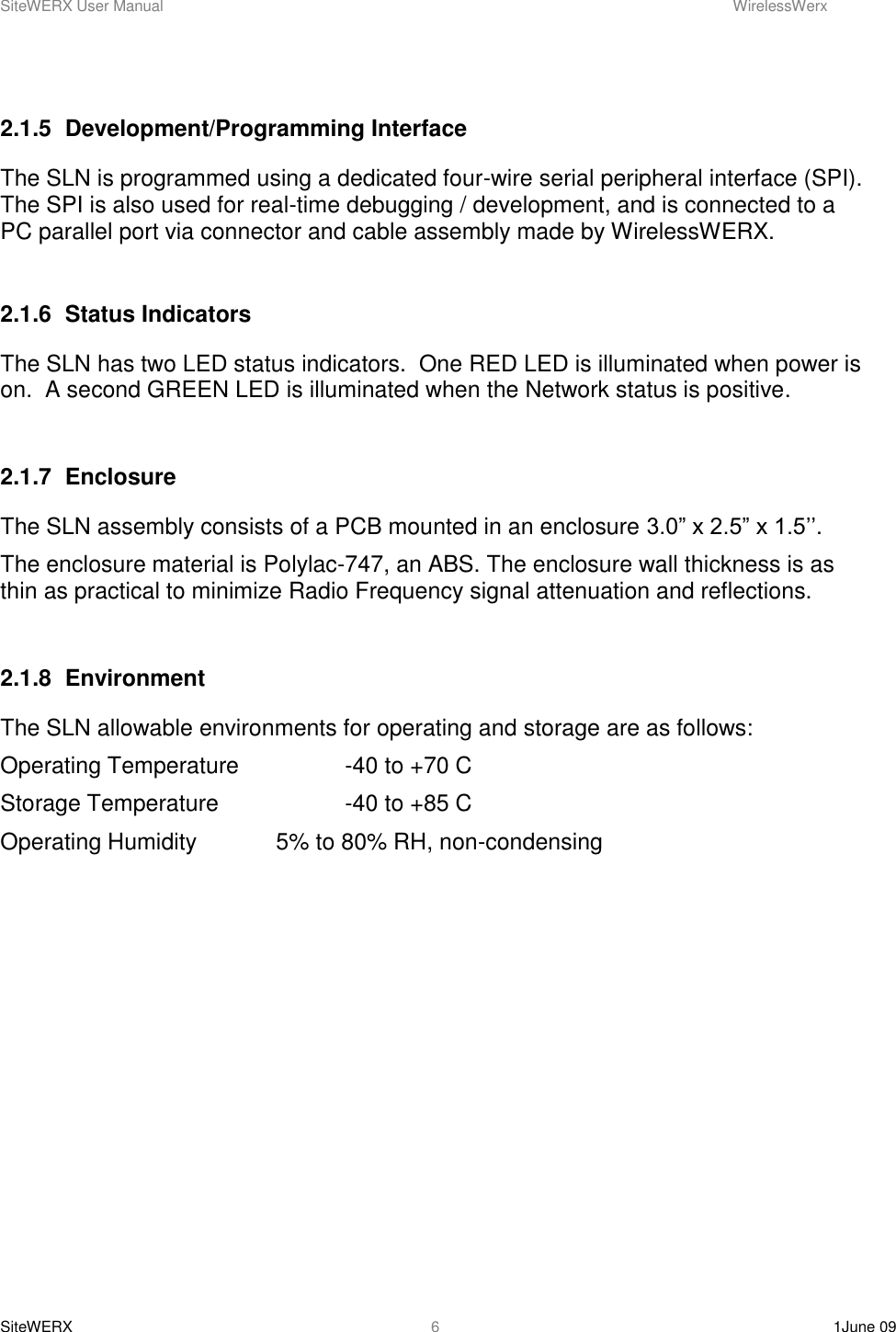

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  6  2.1.5  Development/Programming Interface The SLN is programmed using a dedicated four-wire serial peripheral interface (SPI). The SPI is also used for real-time debugging / development, and is connected to a PC parallel port via connector and cable assembly made by WirelessWERX.  2.1.6  Status Indicators The SLN has two LED status indicators.  One RED LED is illuminated when power is on.  A second GREEN LED is illuminated when the Network status is positive.  2.1.7  Enclosure  The SLN assembly consists of a PCB mounted in an enclosure 3.0” x 2.5” x 1.5’’.   The enclosure material is Polylac-747, an ABS. The enclosure wall thickness is as thin as practical to minimize Radio Frequency signal attenuation and reflections.  2.1.8  Environment The SLN allowable environments for operating and storage are as follows: Operating Temperature    -40 to +70 C Storage Temperature    -40 to +85 C Operating Humidity    5% to 80% RH, non-condensing

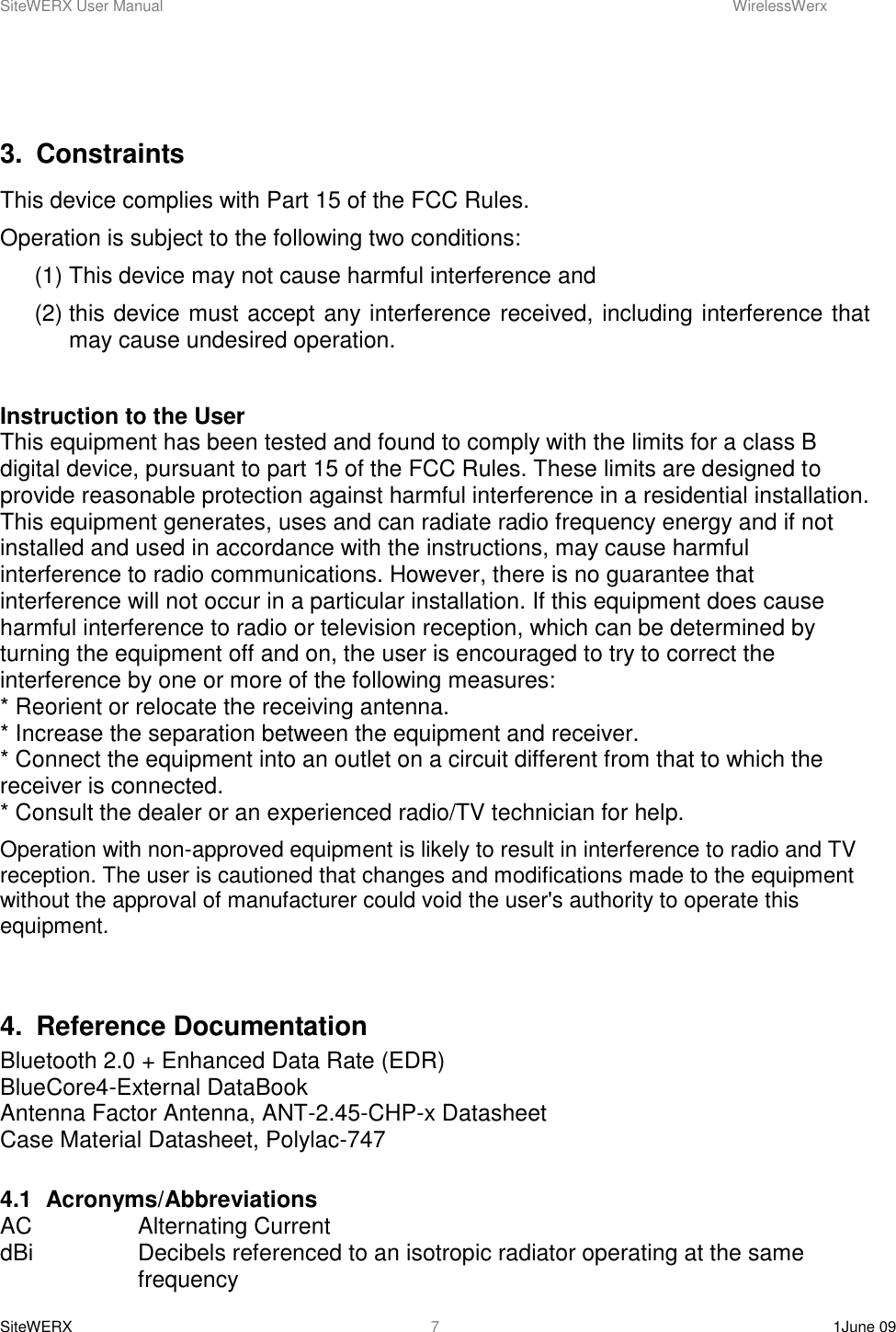

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  7  3.  Constraints This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.  Instruction to the User This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  * Reorient or relocate the receiving antenna.  * Increase the separation between the equipment and receiver.  * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  * Consult the dealer or an experienced radio/TV technician for help.  Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.  4.  Reference Documentation Bluetooth 2.0 + Enhanced Data Rate (EDR) BlueCore4-External DataBook Antenna Factor Antenna, ANT-2.45-CHP-x Datasheet Case Material Datasheet, Polylac-747  4.1  Acronyms/Abbreviations AC    Alternating Current dBi    Decibels referenced to an isotropic radiator operating at the same  frequency

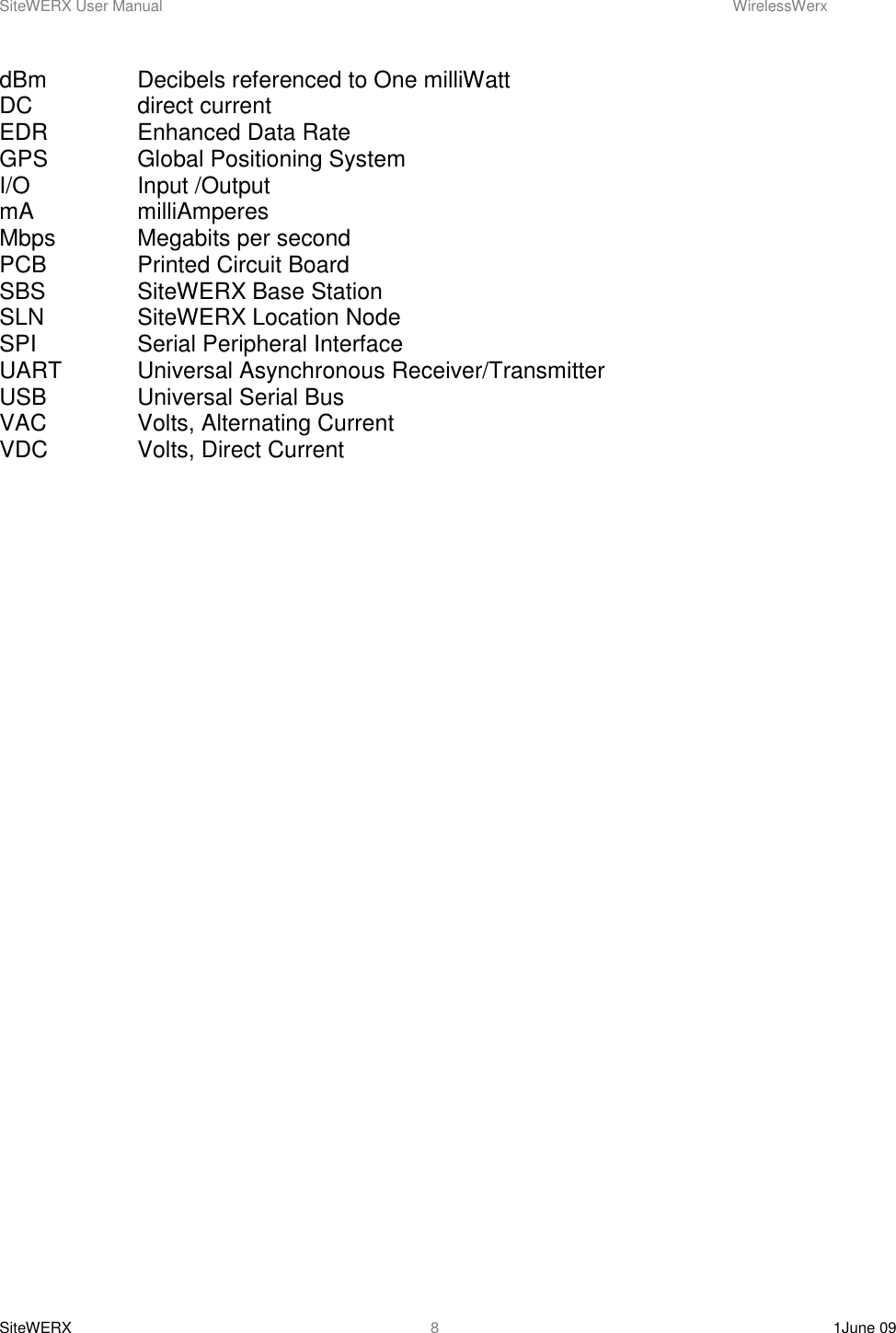

SiteWERX User Manual    WirelessWerx SiteWERX    1June 09  8 dBm    Decibels referenced to One milliWatt DC    direct current EDR    Enhanced Data Rate GPS    Global Positioning System I/O    Input /Output mA    milliAmperes Mbps    Megabits per second PCB    Printed Circuit Board SBS    SiteWERX Base Station SLN    SiteWERX Location Node SPI    Serial Peripheral Interface UART   Universal Asynchronous Receiver/Transmitter USB    Universal Serial Bus VAC    Volts, Alternating Current VDC    Volts, Direct Current
