Wistron TX8670 RIVA Turbo X User Manual RIVA CV 1
Wistron Corporation RIVA Turbo X RIVA CV 1
Wistron >
Users Manual
We truly appreciate that you have chosen the RIVA Turbo X for your listening experience.
Many days and months have gone into designing this product in the hope that you will have as
much pleasure listening to it as we had creating it
The RIVA Team
Fountain Valley, California
!
Q & A
Troubleshooting 24-25
ADDITIONAL SUPPORT
Online Resources/Reference 26
COMPLIANCE
FCC and IC (USA & Canada Only) 28
EU Countries 29
PLAY SAFE
Safety Guidelines 30
LEGAL
Disclaimers 31
TURBO CHARGED
Power On/O 16
CONNECTION
Blue Tooth Pairing 18
TURN IT UP TO 11
TURBO Mode 19
CALL ME
Speakerphone 20
CHARGE OUT
Charge Your Phone/Tablet 21
DOUBLE UP
Stereo/Repeater 22
CONTENTS
TAKE CONTROL
Controls 6-7
HOOK UPS
Input / Outputs 8-9
THE MINERALS
Technical Specifications 10
IN THE BOX
Whats Included 12
REGISTER YOUR TURBO
Warranty Coverage Registration 14
RIVA GROUND CONTROL
TURBO Mobile App 15
Register your Turbo X for warranty coverage
and to receive VIP access to RIVA Nation!
Register online at:
nation.rivaaudio.com/register
Be sure to have your Turbo X serial number,
located on the bottom of the Turbo X unit or on the side of the unit’s box.
Warranty Coverage Registration
REGISTER YOUR TURBO

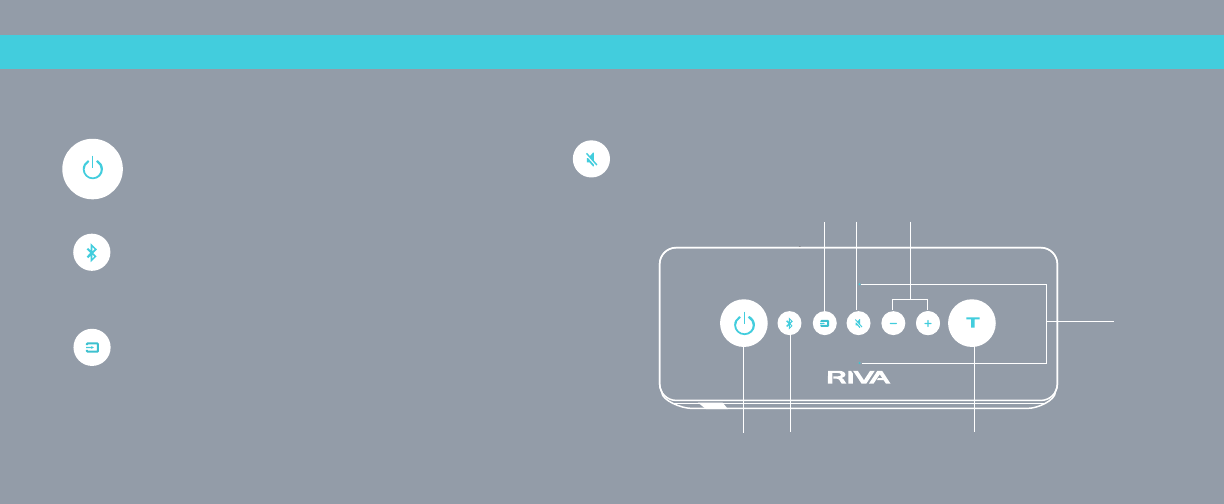

SOUND MACHINE
support.rivaaudio.com/Turbo-X
Bluetooth®
Power
Microphones
Mute
Turbo
Input Volume Up/Down
Power On/Off
Power On: Tap the Power button
Power O: Hold the Power button down
Bluetooth®
Pairing: The Bluetooth® icon will pluse blue while pairing
Paired: The Bluetooth® icon will remain solid blue when paired
Input
You may cycle through the input source by tapping the input
button. The input icon changes color based on the input you
select.
Auxiliary 3.5: Green light
USB: Magenta light
Mute
Tap to mute. The Mute icon light will pulse while muted.
Tap again to unmute.
Controls
TAKE CONTROL
Controls
TAKE CONTROL
Volume Down/Up
Control the volume + or —. Volume level will aect your battery life.
Our laboratory tests have measured approximate battery life for the following:
* 6 hours @ TURBO Mode
* 16 hours @ medium level
* 20+ hours @ low level
We do not recommend running the battery to end of life. Please
follow the voice prompts for recharging.
TURBO
TURBO mode gives your music that extra BOOST! Tap the TURBO button to
engage, increasing both volume and EQ for unique audio output. Add a few
more revs to your TURBO by tapping the Volume + button. Tap the TURBO button
again to go back to normal listening levels. Note: TURBO mode will reduce your
battery life.
Microphones For Teleconferencing
Pair your phone or other Bluetooth® devices to
the Turbo X to enjoy the crystal clear
teleconferencing delivered by the dual noise and
echo canceling microphones. Please do not cover
or stick anything (toothpicks, q-tips, spaghetti
sauce, etc.) in the two microphone openings.
Doing so will void your warranty.

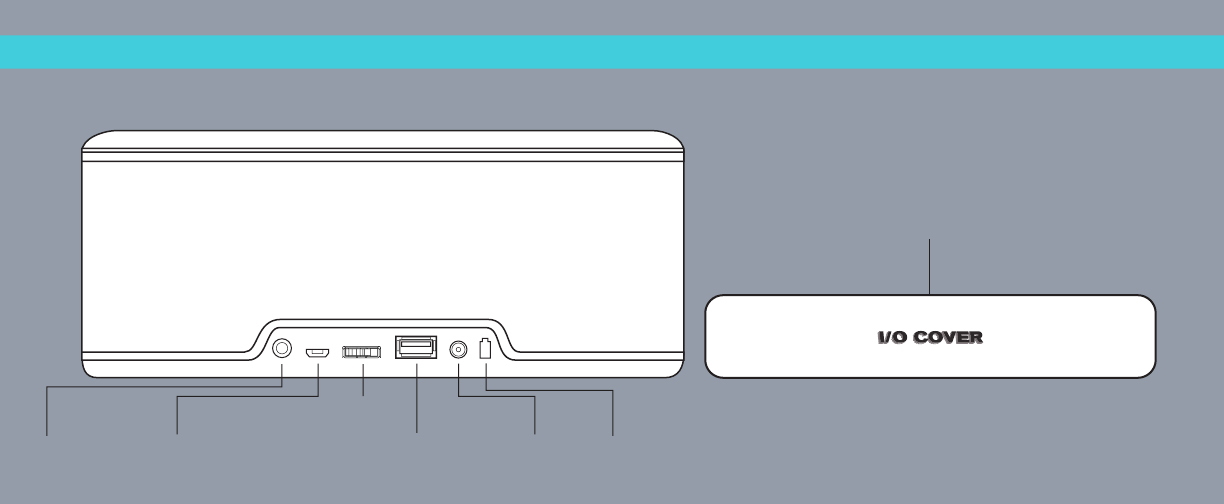

Inputs / Outputs
HOOK UPS
AUXILLARY USB / DATA 19V DC BATTERY INDEXCHARGE OUT
BATTERY
ON/OFF
Use the I/O cover, located on the bottom of your Turbo X,
to protect the I/Os from the elements and moisture when
enjoying your Turbo outdoors.
Auxiliary 3.5 Input
A 3.5 mm cable is included to connect your
non-Bluetooth® playing devices.
USB Data Input
For highest quality audio input, use this for digital audio signals
directly from your computer or other USB source.
Battery On/O Switch
Control battery power functions. Switch OFF to conserve battery,
especially when you will separated from your Turbo for an extended
period of time. When OFF, proximity sensing and charge out are
disabled.
Charge Out
Plug your phone or tablet in using a compatible cord to give an extra
boost from the Turbo X’s powerful battery. The Battery On/O switch
must be ON to charge out.
19V DC Power Adapter Input
Use this with the provided external power supply to charge the RIVA
Turbo. Use of any other non-approved power adapter may damage the
electronics and will void the warranty.
Battery Icon
Inputs / Outputs
HOOK UPS
Green:
Orange:
Red:
60 -
30 -
0 -
100%
60%
30%
charge
charge
charge
•
•
•
Battery Life* 6 hours @ TURBO Mode
16 hours @ 83dB
20+ hours @ 74dB
Dimensions 9.1 in (230 mm) L
3.5 in (89 mm) W
4.1 in (105 mm) H
Weight 3.5 lbs (1.6 kg)
AC Adapter 19V DC, 3A
Power Adapter Input Rating 100-240VAC
50-60HZ
Audio Codecs Supported AAC, aptX
Features, specifications, and appearance are subject to change without notice.
* These hours are approximate based on averages as tested in our laboratory.
•
•
•
Technical Specifications
THE MINERALS
External Power Supply
36” USB Connector
48” RCA to 3.5 mm Connector
Neoprene Cover for Inputs
User Guide
What’s Included in Package
IN THE BOX
TURBO X BLOWOUT IMAGE
START ME UP!
support.rivaaudio.com/Turbo-X
1. Switch the Battery On/O switch to On
2. Turbo X is partially charged out of the box so use the
provided power adapter to charge to 100% before using.
The Battery icon LED will appear green and a voice
prompt will announce when the battery is fully charged.
3. Power On: Tap the Power button to turn ON
4. Power O: Hold the Power button to turn OFF
Power On / O
TURBO CHARGE
•
•
•

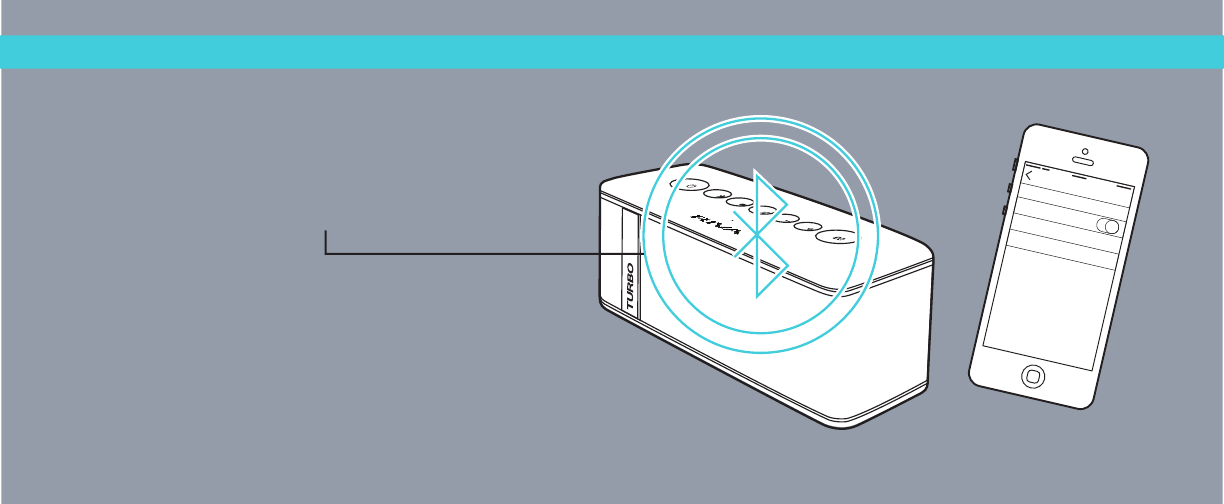

When you first turn your Turbo on,
it will automatically go into discovery/pairing
mode to connect to a Bluetooth® device.
The unit will appear on your device as RIVA Turbo X.
Once paired, you can begin playing.
To pair a new device, hold down the Bluetooth® button
to discover your device. The Bluetooth® icon will pluse
blue when pairing and stay solid once paired.
Bluetooth
Settings
Bluetooth
DEVICES
RIVA
®
Turbo
Now Discoverable
Blue Tooth Pairing
CONNECTION

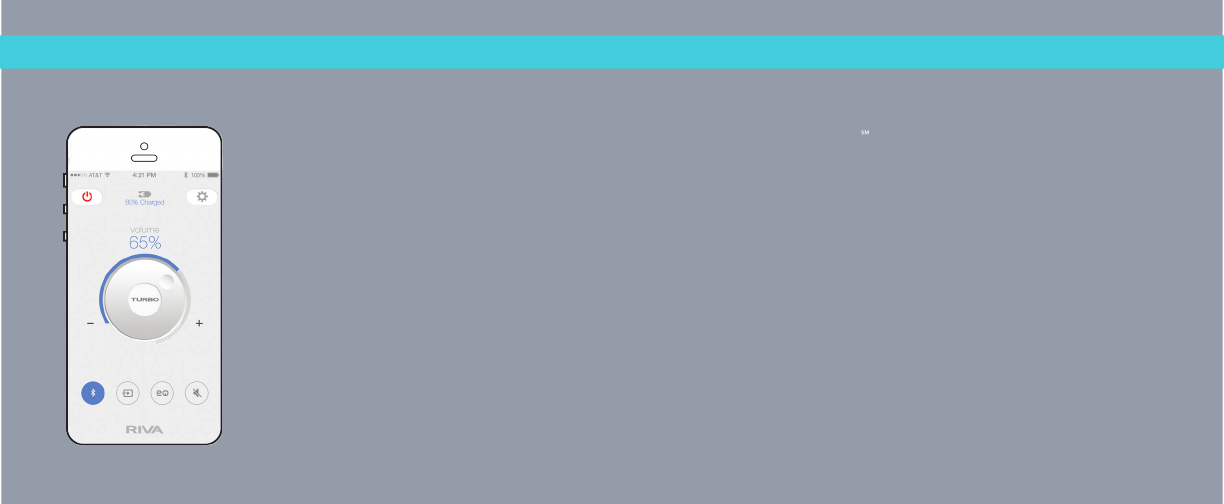

Download the RIVA Ground Control App for free from the App Store or Google Play™.
Control all of the features on your Turbo X right on your phone or tablet for iOS or Android™!
Select a black or white app skin.
Select male or female voice prompts or disable voice prompts. If you choose to disable the
male/female voice prompts, these will be replaced with audible beep prompts.
RIVA is constantly developing software with the latest technologies to improve your Turbo experience.
Download the latest firmware updates for your Turbo X directly from the RIVA Ground Control App.
•
•
•
•
Turbo Mobile App.
RIVA GROUND CONTROL
PLAY ME
support.rivaaudio.com/Turbo-X
TURBO X IMAGE
•
•
•
•
•

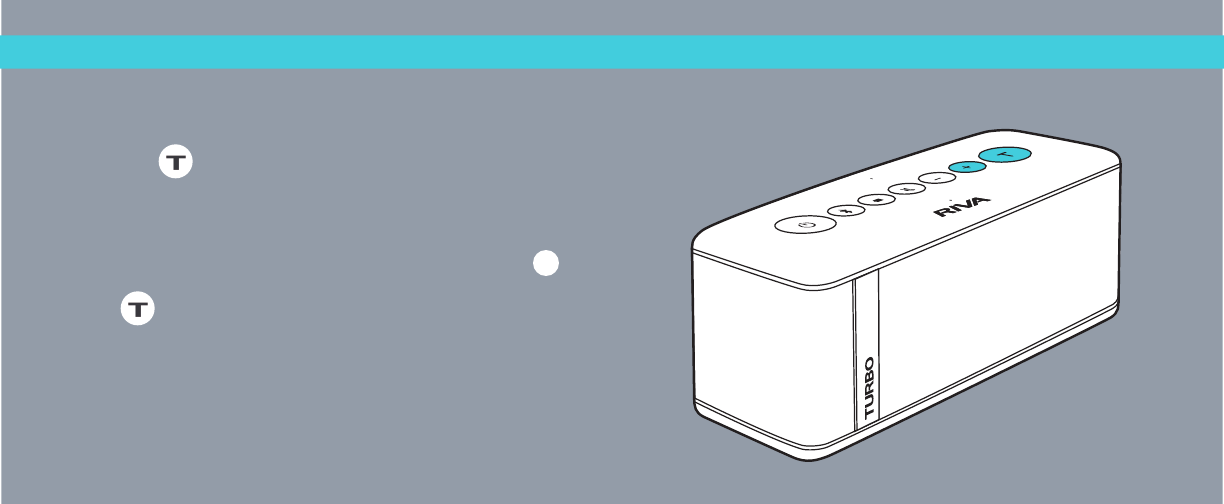

TURBO Mode
TURN IT UP TO 11
Tap the to engage TURBO, increasing both volume and
EQ for a unique audio output ! *
Add a few more revs to your TURBO by tapping the
Tap again to return to normal listening levels.
Note: TURBO mode will reduce your battery life to 1/3 of
normal usage, approximately 6 hours from full charge.
®
+
* The maximum volume levels achievable with Riva speakers may exceed safe levels for extended listening.
Please see the Play Safe page for more information.
•
•
•
•
•
Speakerphone
CALL ME
Decline/End Call
When you decline or end the call, Turbo X will go back
to your previous setting that was used before the call.
For Best Clarity
For best clarity, speak directly toward the Turbo X unit.
Do not obstruct or cover the microphone openings.
Outbound Call
If your device is connected to the Turbo X via Bluetooth®,
the Turbo X will switch to the Speakerphone setting once
you place your call.
Incoming Call
Turbo X will auto-switch to the speakerphone setting when
you phone rings.
You may choose from your phone to take the call privately,
via speakerphone, or decline the call.
•
•
•
•
•
•
•
•
•
•

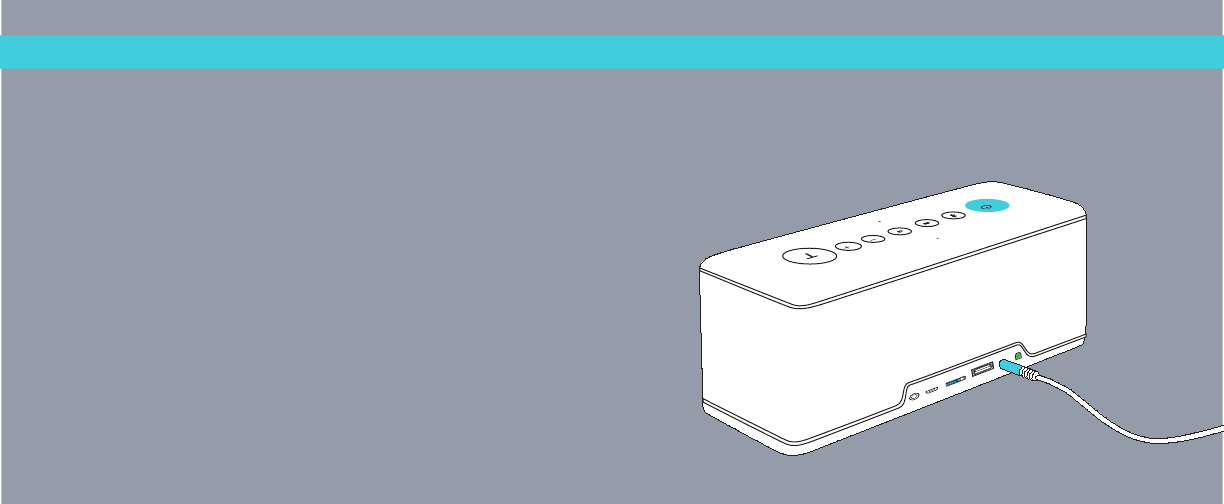

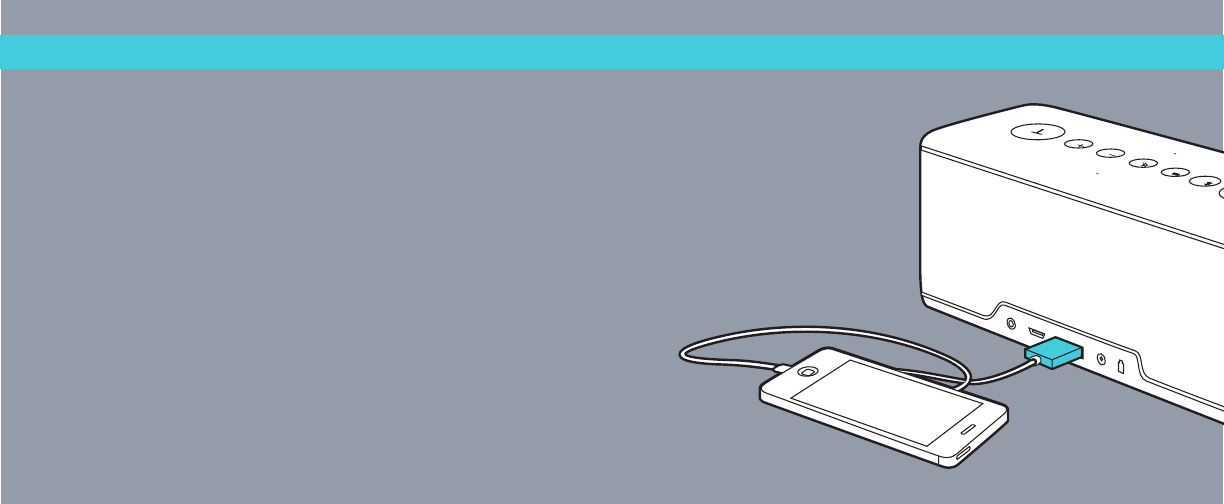

Charge your phone or tablet by connecting your USB cable into the Turbo X.
Make sure that the Battery On/O switch is in the ON position.
Turbo X can charge your device when it has over 30% battery power,
the battery icon LED will be green or orange.
•
•
•
Charge your Phone / Tablet
CHARGE OUT

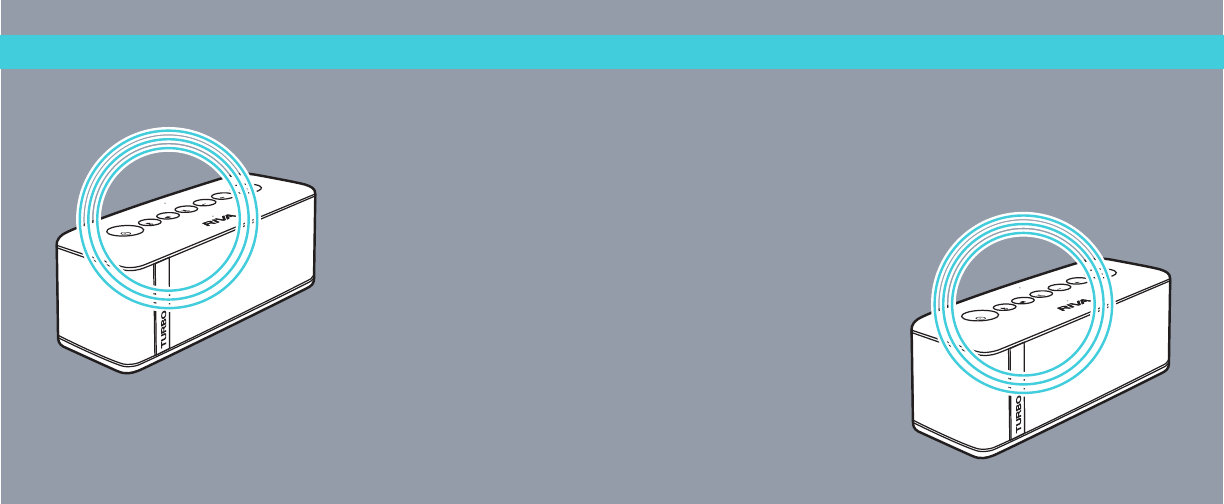

Want more out of your Turbo X listening experience?
In the Settings section of the Ground Control App select
stereo or repeater mode to pair up two Turbo X units.
Stereo
Plays left and right channel so you can expand the listening field.
Repeater
Each speaker will play both left and right channels simultaneously.
®
®
Stereo / Repeater
DOUBLE UP
Turbo works within published Bluetooth® range.
HELP, HELP ME, RIVA!
support.rivaaudio.com/Turbo-X
Q: Why is there no power to the Turbo?
Check to see if your AC adapter is plugged in.
Make sure the battery icon LED is not red, indicating the Turbo has less than 30% battery power left.
Turbo will only charge your device if it has more than 30% battery power remaining.
Q: I plugged in my phone/tablet to charge through my Turbo, but it’s not charging
Check to see if the battery power switch is in the ON position.
Make sure the battery icon LED is not red. Turbo will only charge if it has more than 30% battery power
remaining, a red battery icon LED means the Turbo has less than 30% of battery power left.
Q: I wave my hand over the Turbo and nothing happens
Proximity sensing works between 1 to 2 inches (25 - 50 mm) from the top cover of Turbo.
Check to see if the battery power switch is in the ON position.
•
•
•
•
Troubleshooting
Q & A
•
•
Troubleshooting
Q & A
Have more questions, visit
support.rivaaudio.com
Q: It shows Turbo X is paired on my phone/tablet, but I can’t hear anything.
Make sure the music is playing on the device.
Make sure RIVA Turbo X is selected as the playing device.
Make sure Turbo is not muted.
Increase volume level.
Make sure the Bluetooth® input is selected.
Q: I don’t like the current voice prompts, what can I do?
Turbo has three prompt settings: male voice, female voice, and audible beeps. To switch, go to the Settings page
in the RIVA Ground Control App to make your selection. If you choose to disable the male/female voice prompts,
these will be replaced with audible beep prompts.
•
•
•
•
•
FAQ
support.rivaaudio.com
Register your Turbo X
nation.rivaaudio.com/register
Customer Support
1-844-GET-RIVA
support@rivaaudio.com
Technical Specifications
support.rivaaudio.com/Turbo-X
Privacy Policy
support.rivaaudio.com/privacy-policy
Warranty Information
support.rivaaudio.com/warranty
support.rivaaudio.com/battery-warranty
••
Online Resources / Reference
ADDITIONAL SUPPORT
Firmware Updates
Download the latest firmware updates for your Turbo X directly from your RIVA Ground Control App.
Digital Getting Started Guide
This guide is available in a variety of languages at support.rivaaudio.com/user-guides.
Riva Ground Control App
Download the RIVA Ground Control App for iOS or Android free on the App Store! or Google Play™.
Connect with RIVA!
facebook.com/RIVANation
@RIVANation
pinterest.com/RIVANation
instagram.com/RIVANation
•
•
•
•
•
•
•
•
COVERING OUR ASSETS
support.rivaaudio.com/Turbo-X
FCC and IC (USA & CANADA only)
COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encourage to try correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected..
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with Pat 15 of the FCC Rules. Operation is subject to the following conditions:
–This device may not cause harmful interference, and
–This device must accept any interference received, including interference that may cause undesired operation.
–The Class B digital apparatus complies with Canadian ICES-003
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device and it’s antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
To locate FCC identification numbers, please look on the underside of the Turbo X unit.
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrollable environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
This product must be disposed of according to local laws and regulations once it comes to the end of its life.
FCC and IC Statements
FCC Caution
FCC and IC Radiation Exposure Information
•
•
•
•
Disposal & Recycling Instructions
•
FCC Interference Communication
EU Countries
COMPLIANCE
WEEE Notice
•
•
•
•
This product is compliant with the CE directive. All returns must be made to the original place of purchase.
The Directive on Waste Electrical and Electronic equipment (WEEE), which entered into force as European law on
13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse,
recycling and other forms of recovery of such wastes so as to reduce disposal.
The WEEE logo on the product or on its box indicating collection for electrical or electronic equipment consists of
the crossed-out wheeled bin, as shown below.
This product must not be disposed of or dumped with your other household waste. Your are liable to dispose of all
your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of
such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste equipment
at the time of disposal will allow us to help conserve natural resources. Moreover, proper recycling of the electronic
and electrical waste equipment will ensure safety of human health and environment. For more information about
electronic and electrical waste equipment disposal, recovery, and collection points, please contact your local city
center, household waste disposal service , shop from where you purchased the equipment, or the manufacturer
of the equipment.
ROHS COMPLIANCE
This product is in compliance with Directive 2011/65/EU of the European Parliament and
of the Council of 8 June 2011 of the restriction of the use of certain hazardous substances
in electrical and electronic equipment.
EU Batteries Directive 2006/66/EC
A new battery directive 2006/66/EC on Battery and Accumulator replacing directive entered into force on the 26th
September 2008. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead acid,
rechargeable packs) including those incorporated into appliances except for military, medical and power tool applications.
The directive sets out rules for collection, treatment, recycling and disposal of batteries, and aims to prohibit certain
hazardous substances and to improve environmental performance of batteries and all operations in the supply chain.
Instructions for Users on Removal, Recycling and Disposal of Used Batteries
For products with a built-in battery that last for the lifetime of the product, removal may not be possible for the user. in this
case, recycling or recovery centers handle the dismantling of the product and the removal of the battery. If, for any reason,
it becomes necessary to replace such a battery, this procedure must be performed by authorized service centers.
In the European Union and other locations, it is illegal to dispose of any battery with household trash. All batteries must be
disposed of in an environmentally sound manner. Contact your local waste-management officials for information regarding
environmentally sound collection, recycling and disposal of used batteries.
WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, don’t disassemble, crush,
puncture, short external contacts, expose to temperature above 60°C (140°F), or dispose of in fire or water. Replace only
with specified batteries. The symbol indicating “separate collection” for all batteries and accumulators shall be the crossed
-out wheeled bin shown below.
For All Products with Wireless Operation
Audio Design Experts, Inc. herby declares that this equipment is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC, ErP 2009/125/EC Directive and RoHS 2011/65/EU Directive. The declaration of
conformity may be viewed at support.rivaaudio.com.
•
•
Safety Guidelines
PLAY SAFE
DO NOT...CAUTION CARE
•
•
•
Drag sharp objects across any surface.
Leave in the sun for extended periods.
Place in low or freezing temperatures.
Use the included cords in the Turbo X
packaging for any other purpose other
than their intended one.
Defeat the safety purpose of the polarized
or grounding type plug. A polarized plug
has two blades with one wider than the
other. A grounding type plug has two
bladed and a third grounded prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does
not fit into your outlet, consult an
electrician for the replacement of the
obsolete outlet.
Try to replace the Turbo X Battery.
Contact us at support@rivaaudio.com,
and we will help you.
•
•
•
•
Your Turbo X is designed and manufactured to operate within defined design limits, and misuse may result in electrical shock or fire. To prevent your Turbo from being
damaged, the following rules should be observed for the installation, use, and maintenance. Please read the following safety instructions before operating your Turbo.
Keep these instructions in a safe place for future reference and heed all warnings.
•Use only the manufacture supplied power
supply and accessories with your Turbo X.
Only charge your Turbo X according to the
instructions provided by the RIVA team in this
and online manuals.
Do not dispose of the Turbo or its battery
in a fire. Doing so could cause the battery
to explode causing injury or death.
Listening to music at high volume over extended
periods of time may damage your hearing. The
maximum volume levels achievable with Riva
speakers may exceed safe levels for extended
listening. Riva accepts no liability for hearing loss,
bodily injury or property damage as a result of use
or misuse of this product.
•
Use the Turbo near water or pour water/other liquids on the unit.
Submerge your Turbo X in any liquid.
Install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Puncture, throw, kick/punt, shred, crush, step on, microwave, light
on fire, or toss your Turbo X in the dishwasher.
Insert foreign objects into your Turbo X.
Leave or store the Turbo or any of its accessories over or near your
car’s airbag. Serious injury may result if the airbag deploys.
Place the Turbo on high surfaces where the speaker may shift or
fall o the edge.
Leave a battery on prolonged charge when not in use.
Charge the battery in damp places.
Block ventilation openings.
Allow the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point
where they exit from the apparatus.
Disassemble, paint, or blanket in stickers.
Do not clean your Turbo while it is charging because this could result
in electric shock.
Clean your Turbo X with a dry cloth (preferably microfiber), no steel
wool, grill brushes, or other abrasive cleaners. Do not clean your
Turbo while it is charging because this could result in electric shock.
If your Turbo X is under the weather, contact us at support@rivaaudio.com.
Remember, you have a warranty, support.rivaaudio.com/battery-warranty,
and we know how to make them feel better.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Disclaimer
LEGAL
This Turbo X User Guide contains information that is subject to change without notice.
©2014 Audio Design Experts, Inc. All Rights Reserved. RIVA, Turbo Series by RIVA, and Trillium
are trademarks of Audio Design Experts, Inc., registered in the US and other countries.
Member of the CSR plc group of companies. CSR plc registered in England and Wales, registered number 4187346,
registered oce Churchill House, Cambridge Business Park, Cowley Road, Cambridge, CB4 0WZ, United Kingdom
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Audio Design Experts, Inc. is under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
App Store is a service mark of Apple Inc.
Android and Google Play are trademarks of Google Inc.
All other company and product names mentioned may be trademarks or service marks of their respective owners.
Mention of any third-party products is for informational purposes only and does not constitute an endorsement or recommendation.
Audio Design Experts, Inc. assumes no responsibility for these products’ performance or use of.
B E A U T I F U L S O U N D ANYWHERE
Turbo Series by RIVA
www.rivaaudio.com
