Wonderware Mobile Solutions 990001 RFID System User Manual 70108

Wonderware Mobile Solutions RFID System 70108

Users Guide

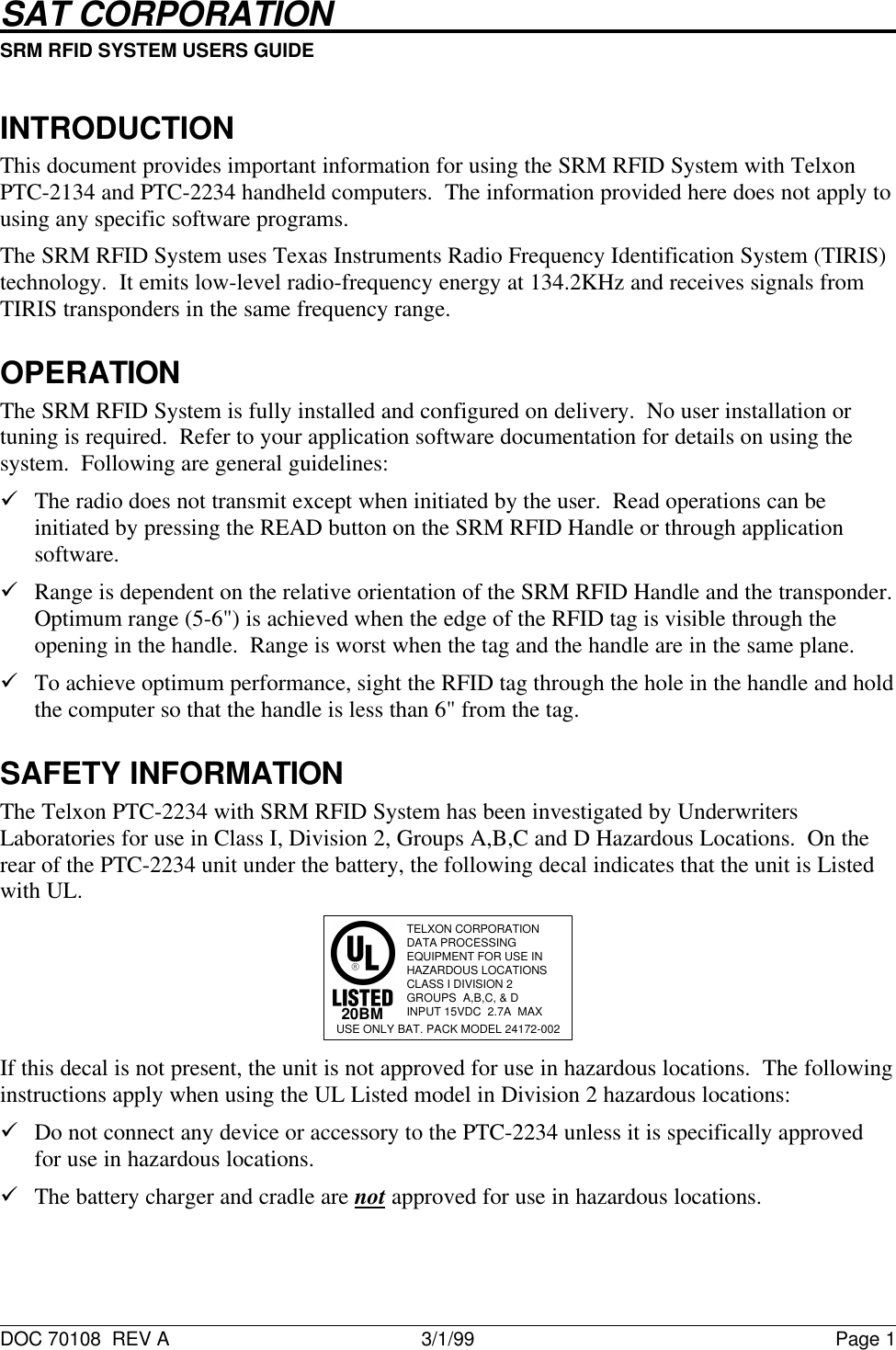

SAT CORPORATION SRM RFID SYSTEM USERS GUIDE DOC 70108 REV A 3/1/99 Page 1INTRODUCTIONThis document provides important information for using the SRM RFID System with TelxonPTC-2134 and PTC-2234 handheld computers. The information provided here does not apply tousing any specific software programs.The SRM RFID System uses Texas Instruments Radio Frequency Identification System (TIRIS)technology. It emits low-level radio-frequency energy at 134.2KHz and receives signals fromTIRIS transponders in the same frequency range.OPERATIONThe SRM RFID System is fully installed and configured on delivery. No user installation ortuning is required. Refer to your application software documentation for details on using thesystem. Following are general guidelines:ü The radio does not transmit except when initiated by the user. Read operations can beinitiated by pressing the READ button on the SRM RFID Handle or through applicationsoftware.ü Range is dependent on the relative orientation of the SRM RFID Handle and the transponder.Optimum range (5-6") is achieved when the edge of the RFID tag is visible through theopening in the handle. Range is worst when the tag and the handle are in the same plane.ü To achieve optimum performance, sight the RFID tag through the hole in the handle and holdthe computer so that the handle is less than 6" from the tag.SAFETY INFORMATIONThe Telxon PTC-2234 with SRM RFID System has been investigated by UnderwritersLaboratories for use in Class I, Division 2, Groups A,B,C and D Hazardous Locations. On therear of the PTC-2234 unit under the battery, the following decal indicates that the unit is Listedwith UL.TELXON CORPORATIONDATA PROCESSINGEQUIPMENT FOR USE INHAZARDOUS LOCATIONSCLASS I DIVISION 2GROUPS A,B,C, & DINPUT 15VDC 2.7A MAX20BMUSE ONLY BAT. PACK MODEL 24172-002If this decal is not present, the unit is not approved for use in hazardous locations. The followinginstructions apply when using the UL Listed model in Division 2 hazardous locations:ü Do not connect any device or accessory to the PTC-2234 unless it is specifically approvedfor use in hazardous locations.ü The battery charger and cradle are not approved for use in hazardous locations.

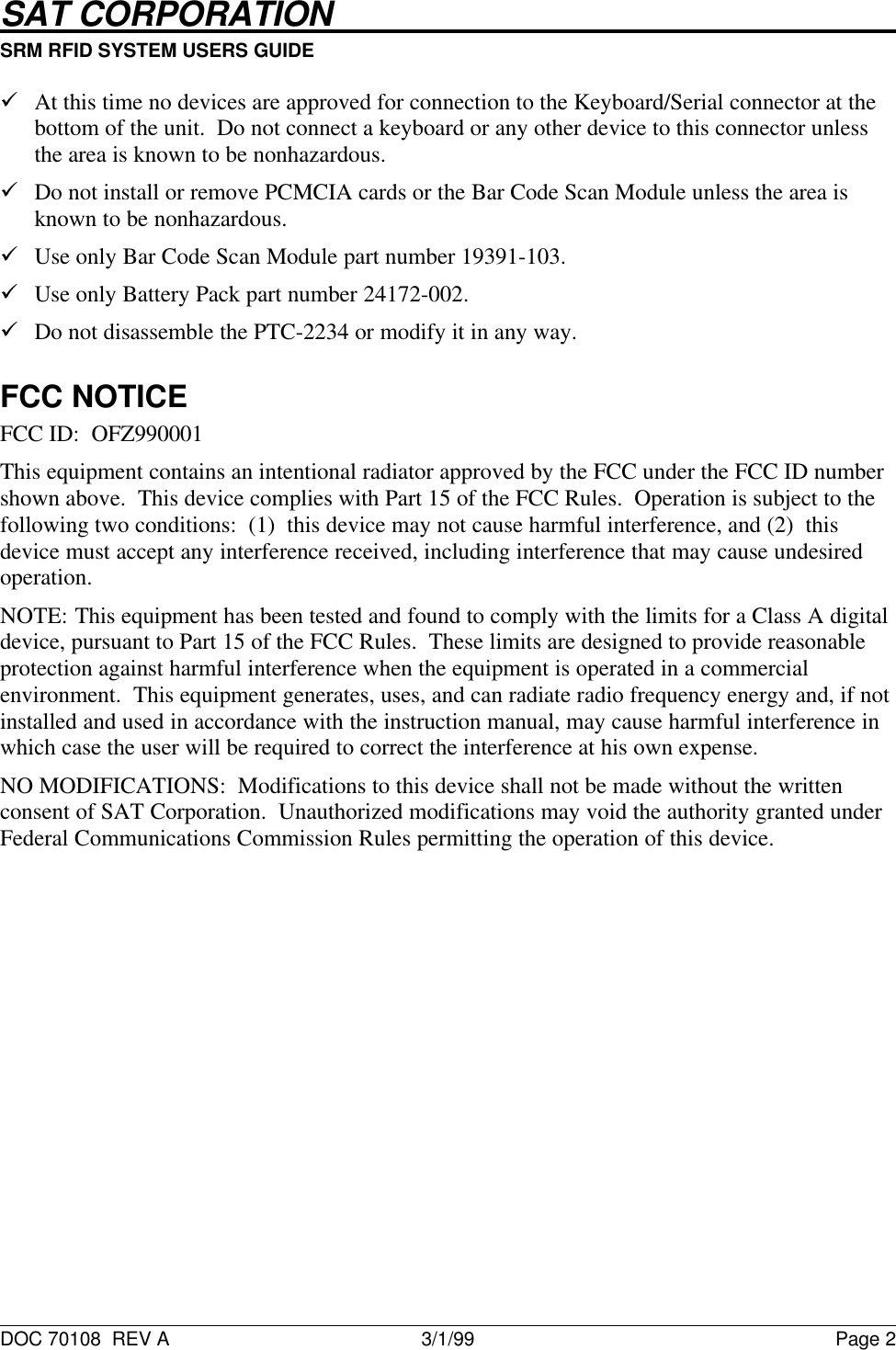

SAT CORPORATION SRM RFID SYSTEM USERS GUIDE DOC 70108 REV A 3/1/99 Page 2ü At this time no devices are approved for connection to the Keyboard/Serial connector at thebottom of the unit. Do not connect a keyboard or any other device to this connector unlessthe area is known to be nonhazardous.ü Do not install or remove PCMCIA cards or the Bar Code Scan Module unless the area isknown to be nonhazardous.ü Use only Bar Code Scan Module part number 19391-103.ü Use only Battery Pack part number 24172-002.ü Do not disassemble the PTC-2234 or modify it in any way.FCC NOTICEFCC ID: OFZ990001This equipment contains an intentional radiator approved by the FCC under the FCC ID numbershown above. This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference, and (2) thisdevice must accept any interference received, including interference that may cause undesiredoperation.NOTE: This equipment has been tested and found to comply with the limits for a Class A digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference when the equipment is operated in a commercialenvironment. This equipment generates, uses, and can radiate radio frequency energy and, if notinstalled and used in accordance with the instruction manual, may cause harmful interference inwhich case the user will be required to correct the interference at his own expense.NO MODIFICATIONS: Modifications to this device shall not be made without the writtenconsent of SAT Corporation. Unauthorized modifications may void the authority granted underFederal Communications Commission Rules permitting the operation of this device.
