Xhorse Electronics S01 Universal Remote Key User Manual 10003 2002

Shenzhen Xhorse Electronics Co., Ltd. Universal Remote Key 10003 2002

User Manual

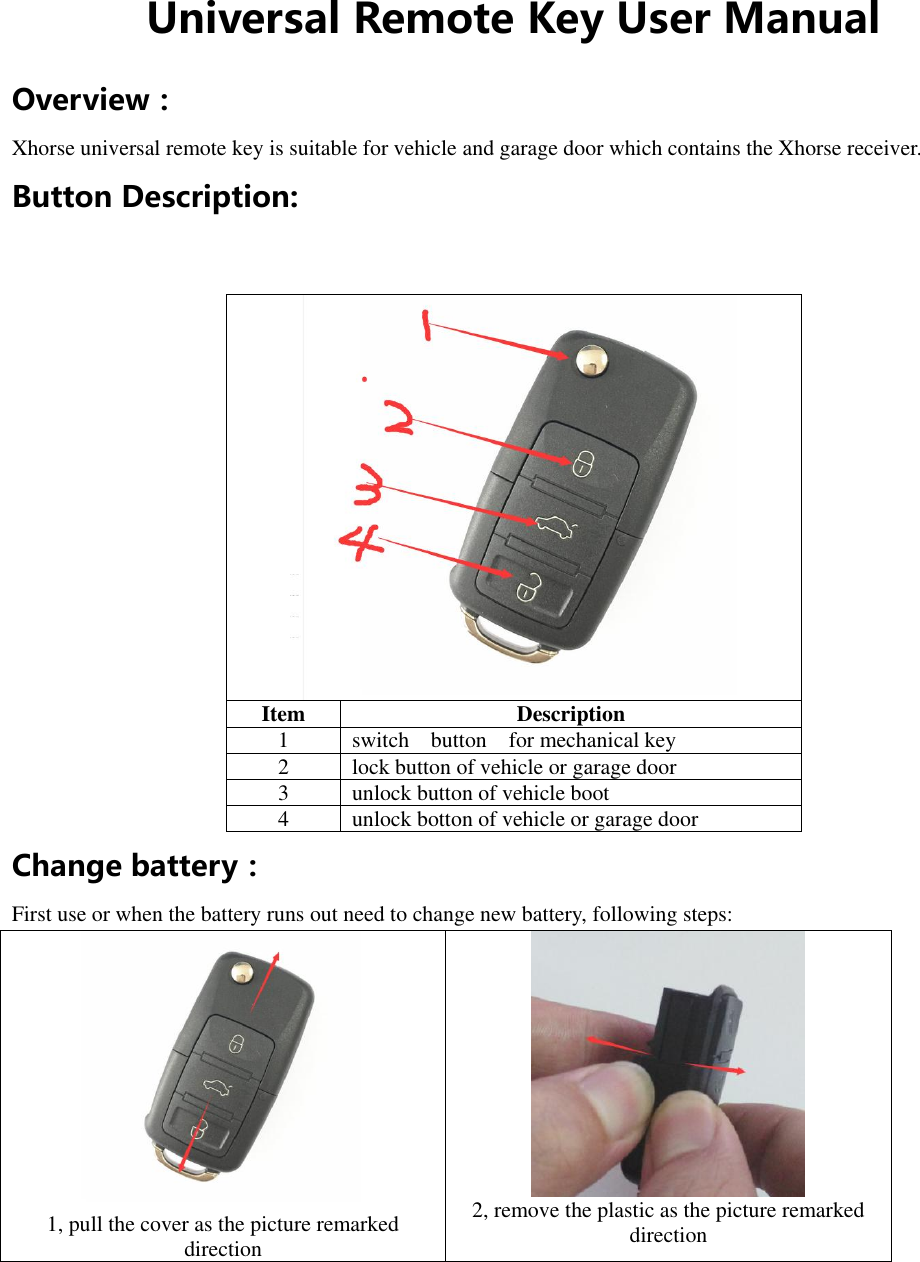

  Universal Remote Key User Manual Overview: Xhorse universal remote key is suitable for vehicle and garage door which contains the Xhorse receiver. Button Description:   Item     Description 1 switch    button    for mechanical key 2 lock button of vehicle or garage door 3 unlock button of vehicle boot 4 unlock botton of vehicle or garage door Change battery: First use or when the battery runs out need to change new battery, following steps:  1, pull the cover as the picture remarked direction  2, remove the plastic as the picture remarked direction

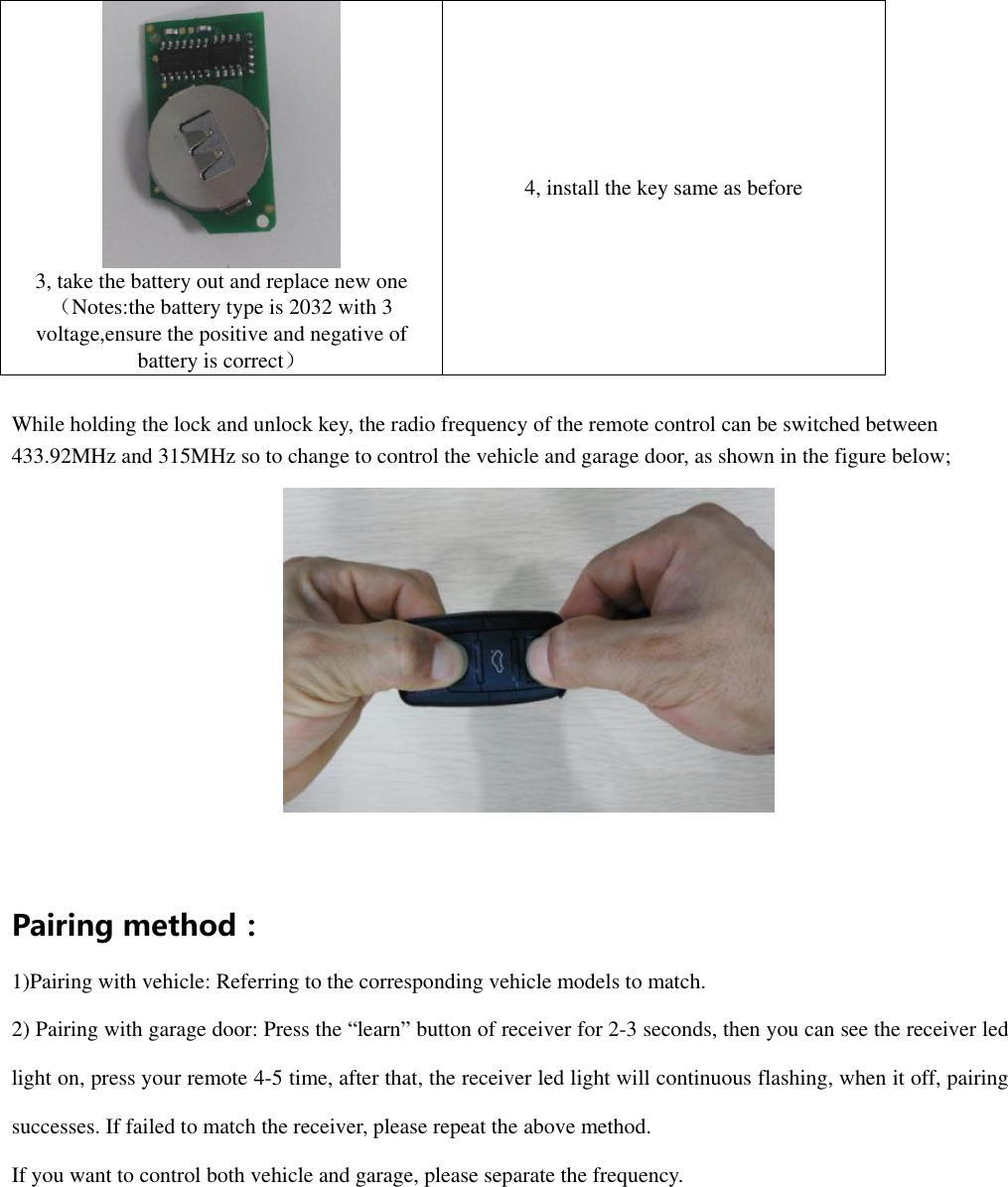

   3, take the battery out and replace new one (Notes:the battery type is 2032 with 3 voltage,ensure the positive and negative of battery is correct) 4, install the key same as before  While holding the lock and unlock key, the radio frequency of the remote control can be switched between 433.92MHz and 315MHz so to change to control the vehicle and garage door, as shown in the figure below;   Pairing method: 1)Pairing with vehicle: Referring to the corresponding vehicle models to match. 2) Pairing with garage door: Press the “learn” button of receiver for 2-3 seconds, then you can see the receiver led light on, press your remote 4-5 time, after that, the receiver led light will continuous flashing, when it off, pairing successes. If failed to match the receiver, please repeat the above method. If you want to control both vehicle and garage, please separate the frequency.

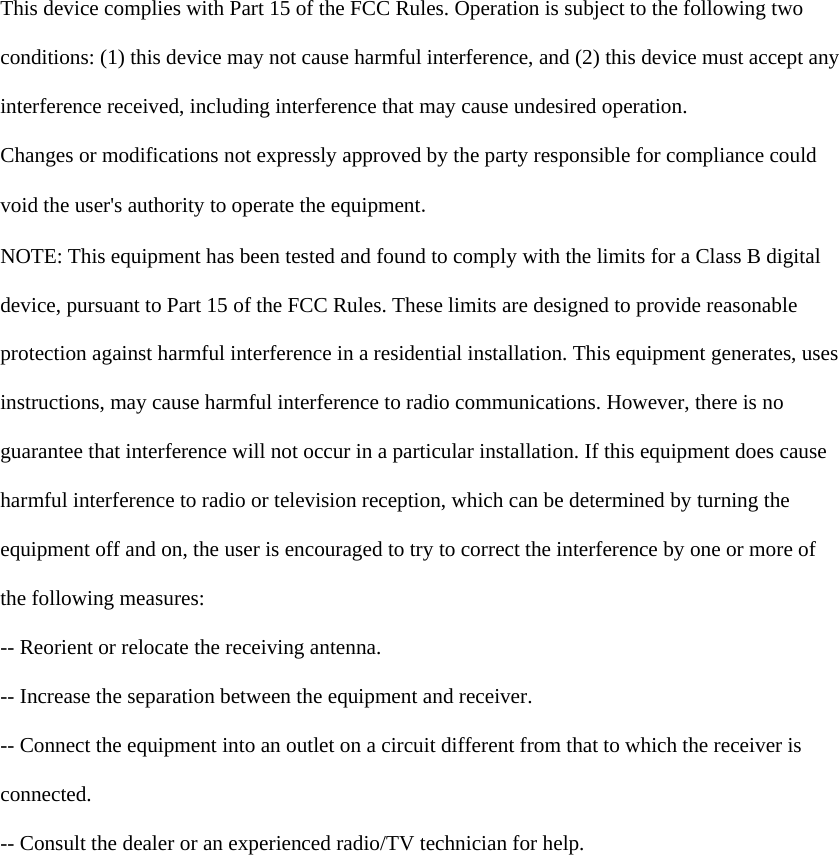

   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two  conditions: (1) this device may not cause harmful interference, and (2) this device must accept any  interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could  void the user's authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital  device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable  protection against harmful interference in a residential installation. This equipment generates, uses  instructions, may cause harmful interference to radio communications. However, there is no  guarantee that interference will not occur in a particular installation. If this equipment does cause  harmful interference to radio or television reception, which can be determined by turning the  equipment off and on, the user is encouraged to try to correct the interference by one or more of  the following measures:  -- Reorient or relocate the receiving antenna.  -- Increase the separation between the equipment and receiver.  -- Connect the equipment into an outlet on a circuit different from that to which the receiver is  connected.  -- Consult the dealer or an experienced radio/TV technician for help.
