Xiamen Intretech LS0002 Beehive User Manual

Xiamen Intretech Inc. Beehive Users Manual

Users Manual

Page 1 of 8 Catalog:1GENERAL...................................................................................................................................21.1PRODUCT DESCRIPTION ................................................................................................................21.2MODEL # ......................................................................................................................................21.3CERTIFICATIONS ...........................................................................................................................21.4ROHS..........................................................................................................................................21.5PRODUCT MAIN SPECIAL CHARACTERISTIC .....................................................................................22ELECTRICAL SPECIFICATION .................................................................................................3BLOCK DIAGRAM ...........................................................................................................................3MAIN PARAMETER .........................................................................................................................34.2.1SystemFrequencyResponseLimits .................................................................................................................... 53SOFTWARE FUNCTION FEATURE...........................................................................................73.1BUTTON FUNCTION DESC. .............................................................................................................73.2INDICATOR DESC. .........................................................................................................................74 FCC WARNING ………………………………………………………………………………………..8 2.12.2

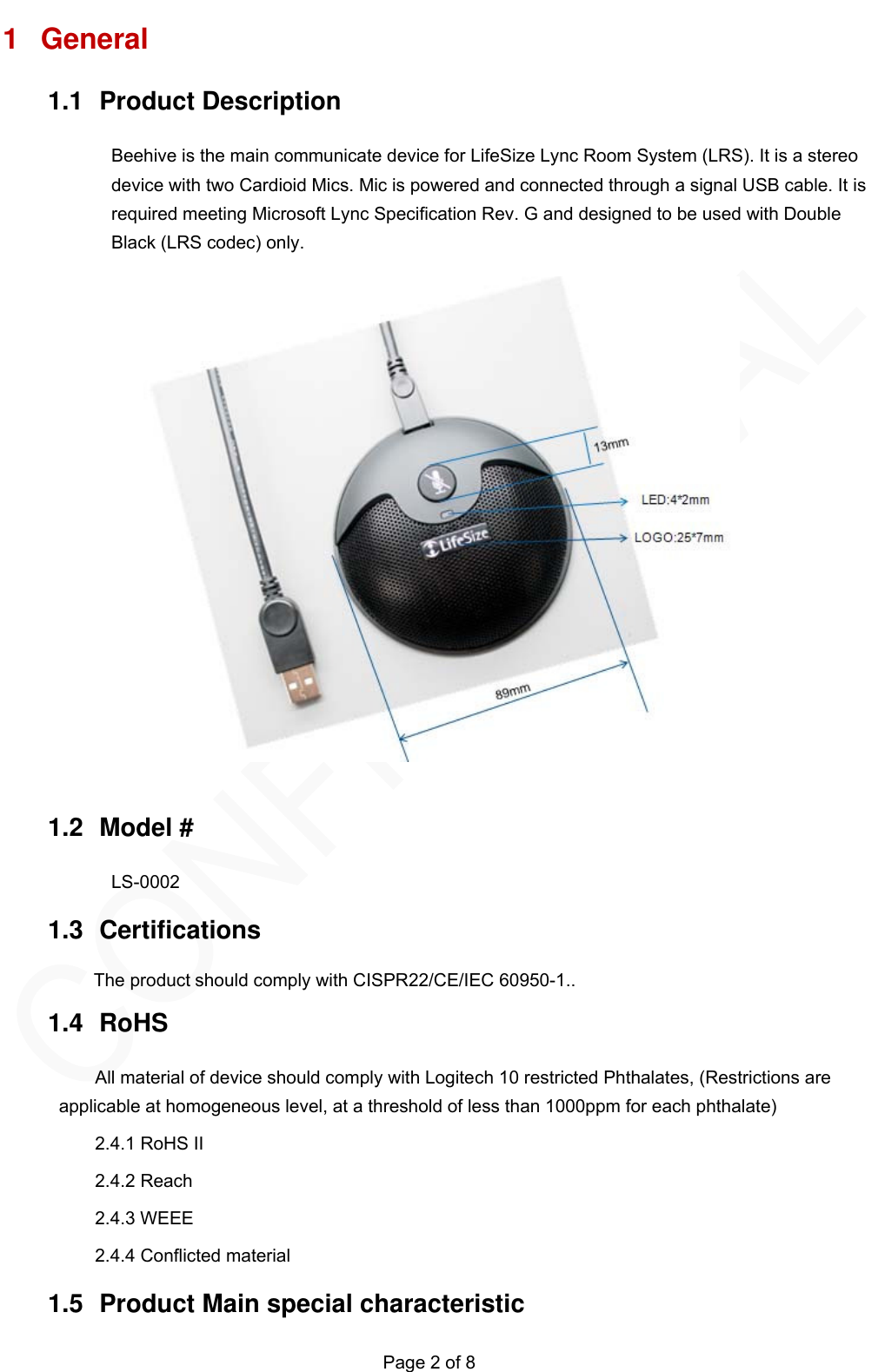

Page 2 of 8 1 General 1.1 Product Description Beehive is the main communicate device for LifeSize Lync Room System (LRS). It is a stereo device with two Cardioid Mics. Mic is powered and connected through a signal USB cable. It is required meeting Microsoft Lync Specification Rev. G and designed to be used with Double Black (LRS codec) only. 1.2 Model # LS-0002 1.3 Certifications 1.4 RoHS All material of device should comply with Logitech 10 restricted Phthalates, (Restrictions are applicable at homogeneous level, at a threshold of less than 1000ppm for each phthalate) 2.4.1 RoHS II 2.4.2 Reach 2.4.3 WEEE 2.4.4 Conflicted material 1.5 Product Main special characteristic The product should comply with CISPR22/CE/IEC 60950-1..

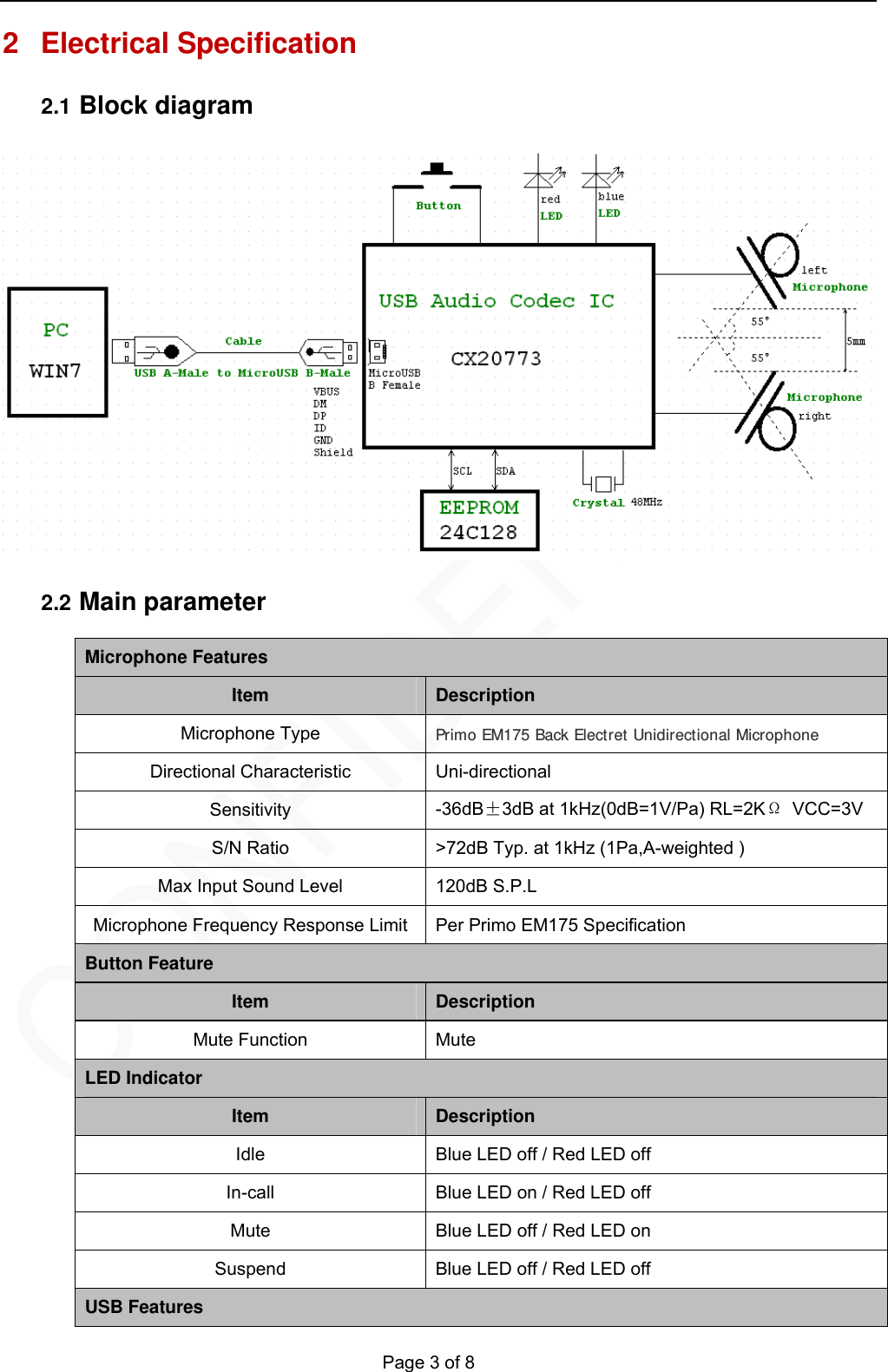

Page 3 of 8 2 Electrical Specification Block diagram Main parameter Microphone Features Item Description Microphone Type Primo EM175 Back Electret Unidirectional Microphone Directional Characteristic Uni-directional Sensitivity -36dB±3dB at 1kHz(0dB=1V/Pa) RL=2KΩ VCC=3V S/N Ratio >72dB Typ. at 1kHz (1Pa,A-weighted ) Max Input Sound Level 120dB S.P.L Microphone Frequency Response Limit Per Primo EM175 Specification Button Feature Item Description Mute Function Mute LED Indicator Item Description Idle Blue LED off / Red LED off In-call Blue LED on / Red LED off Mute Blue LED off / Red LED on Suspend Blue LED off / Red LED off USB Features 2.1 2.2

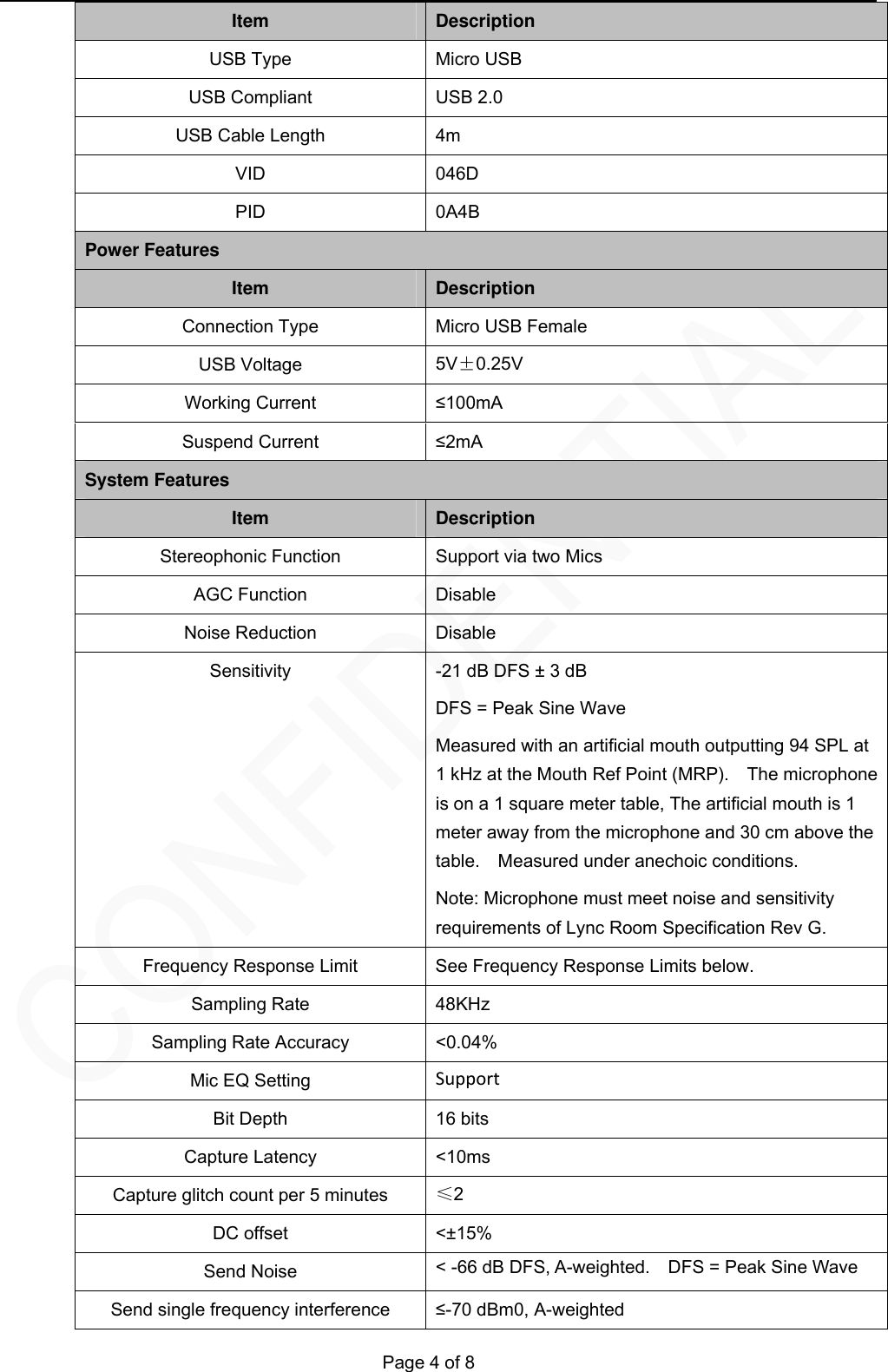

Page 4 of 8 Item Description USB Type Micro USB USB Compliant USB 2.0 USB Cable Length 4m VID 046D PID 0A4B Power Features Item Description Connection Type Micro USB Female USB Voltage 5V±0.25V Working Current ≤100mA Suspend Current ≤2mA System Features Item Description Stereophonic Function Support via two Mics AGC Function Disable Noise Reduction Disable Sensitivity -21 dB DFS ± 3 dB DFS = Peak Sine Wave Measured with an artificial mouth outputting 94 SPL at 1 kHz at the Mouth Ref Point (MRP). The microphone is on a 1 square meter table, The artificial mouth is 1 meter away from the microphone and 30 cm above the table. Measured under anechoic conditions. Note: Microphone must meet noise and sensitivity requirements of Lync Room Specification Rev G. Frequency Response Limit See Frequency Response Limits below. Sampling Rate 48KHz Sampling Rate Accuracy <0.04% Mic EQ Setting Support Bit Depth 16 bits Capture Latency <10ms Capture glitch count per 5 minutes ≤2 DC offset <±15% Send Noise < -66 dB DFS, A-weighted. DFS = Peak Sine Wave Send single frequency interference ≤-70 dBm0, A-weighted

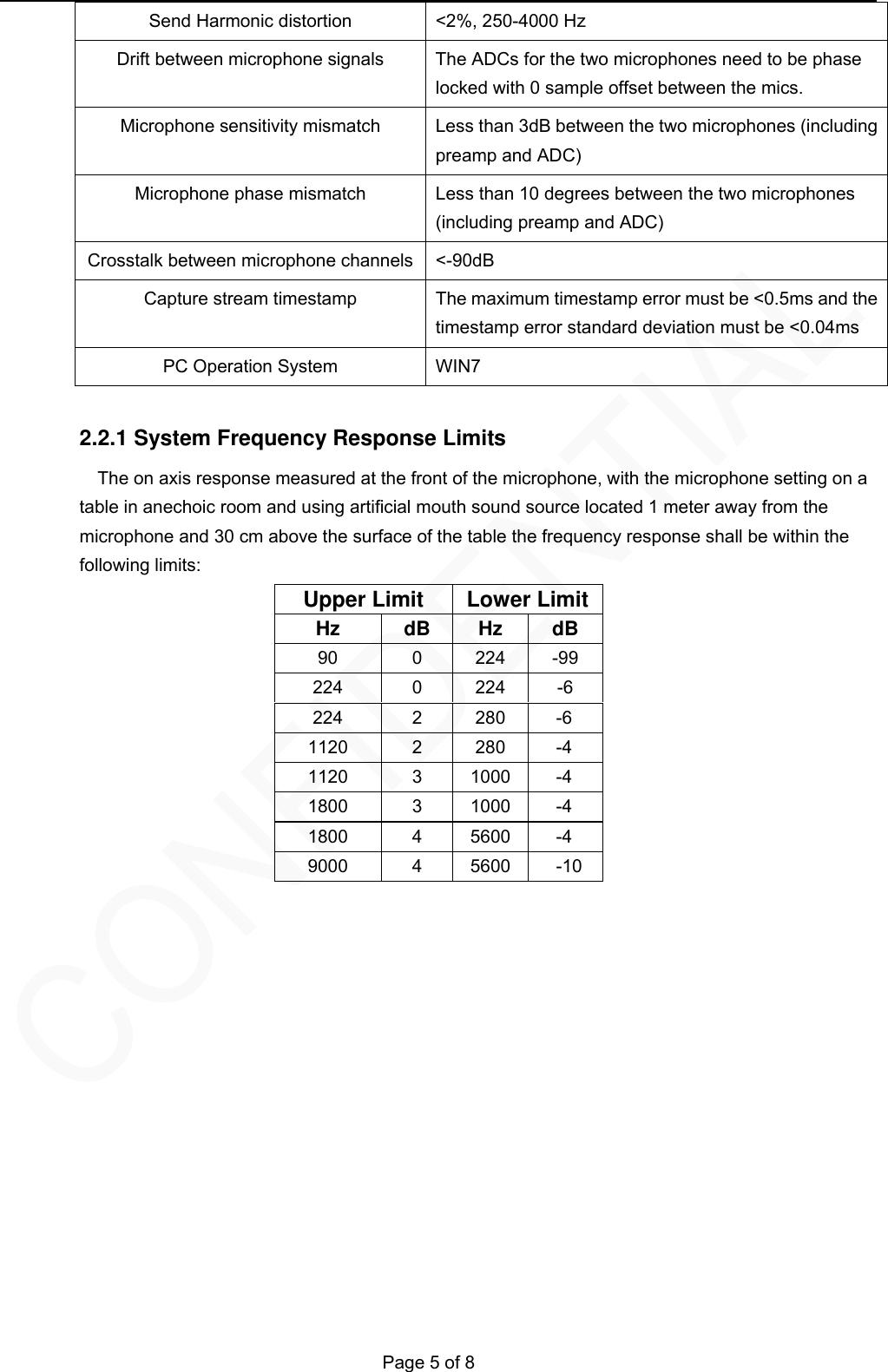

Page 5 of 8 Send Harmonic distortion <2%, 250-4000 Hz Drift between microphone signals The ADCs for the two microphones need to be phase locked with 0 sample offset between the mics. Microphone sensitivity mismatch Less than 3dB between the two microphones (including preamp and ADC) Microphone phase mismatch Less than 10 degrees between the two microphones (including preamp and ADC) Crosstalk between microphone channels <-90dB Capture stream timestamp The maximum timestamp error must be <0.5ms and the timestamp error standard deviation must be <0.04ms PC Operation System WIN7 The on axis response measured at the front of the microphone, with the microphone setting on a table in anechoic room and using artificial mouth sound source located 1 meter away from the microphone and 30 cm above the surface of the table the frequency response shall be within the following limits: Upper Limit Lower LimitHz dB Hz dB 90 0 224 -99 224 0 224 -6 224 2 280 -6 1120 2 280 -4 1120 3 1000 -4 1800 3 1000 -4 1800 4 5600 -4 9000 4 5600 -10 2.2.1 System Frequency Response Limits

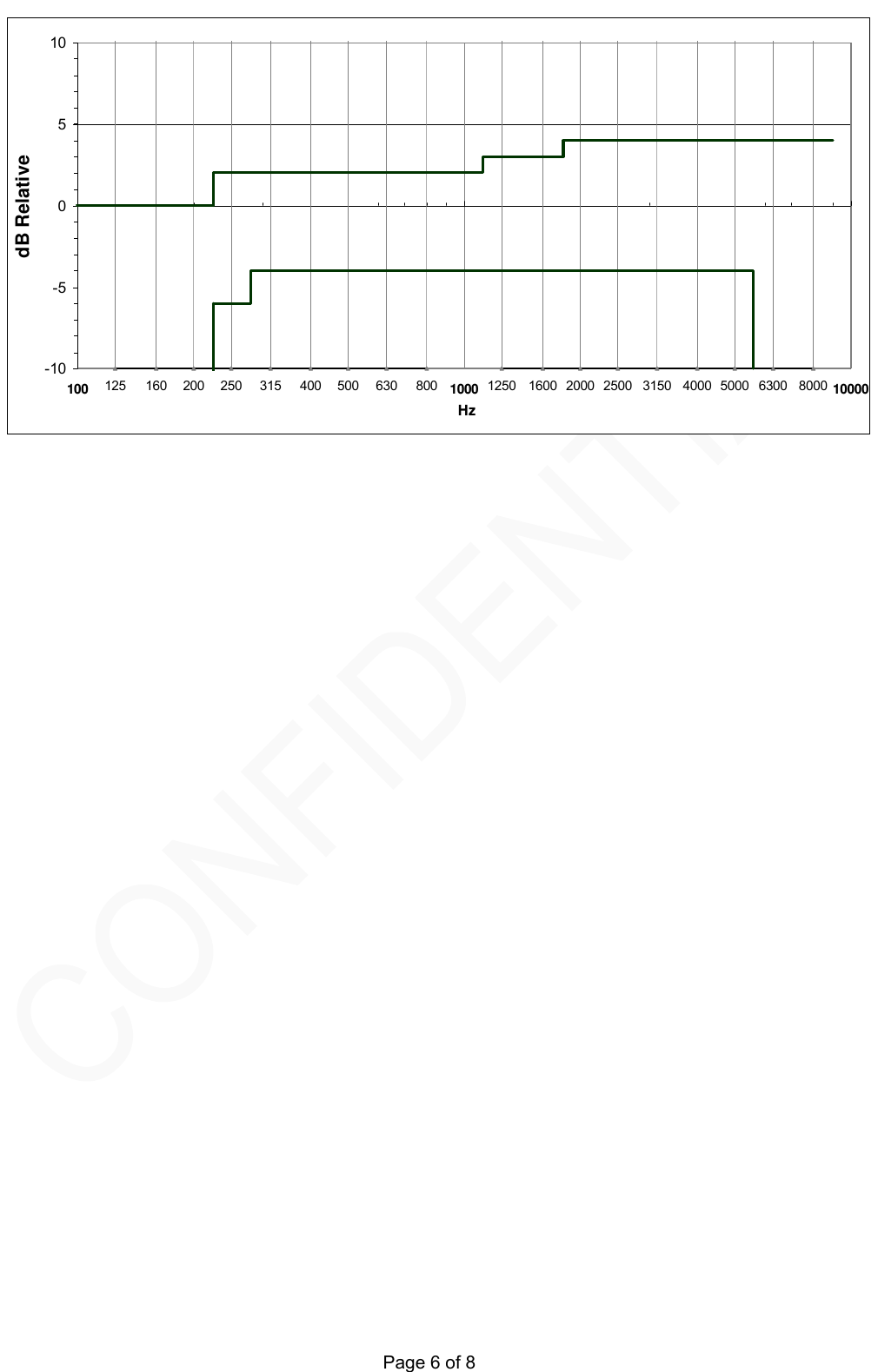

Page 6 of 8 125 160 200 250 315 400 500 630 800 1250 1600 2000 2500 3150 4000 5000 6300 8000-10-50510100 1000 10000HzdB Relative

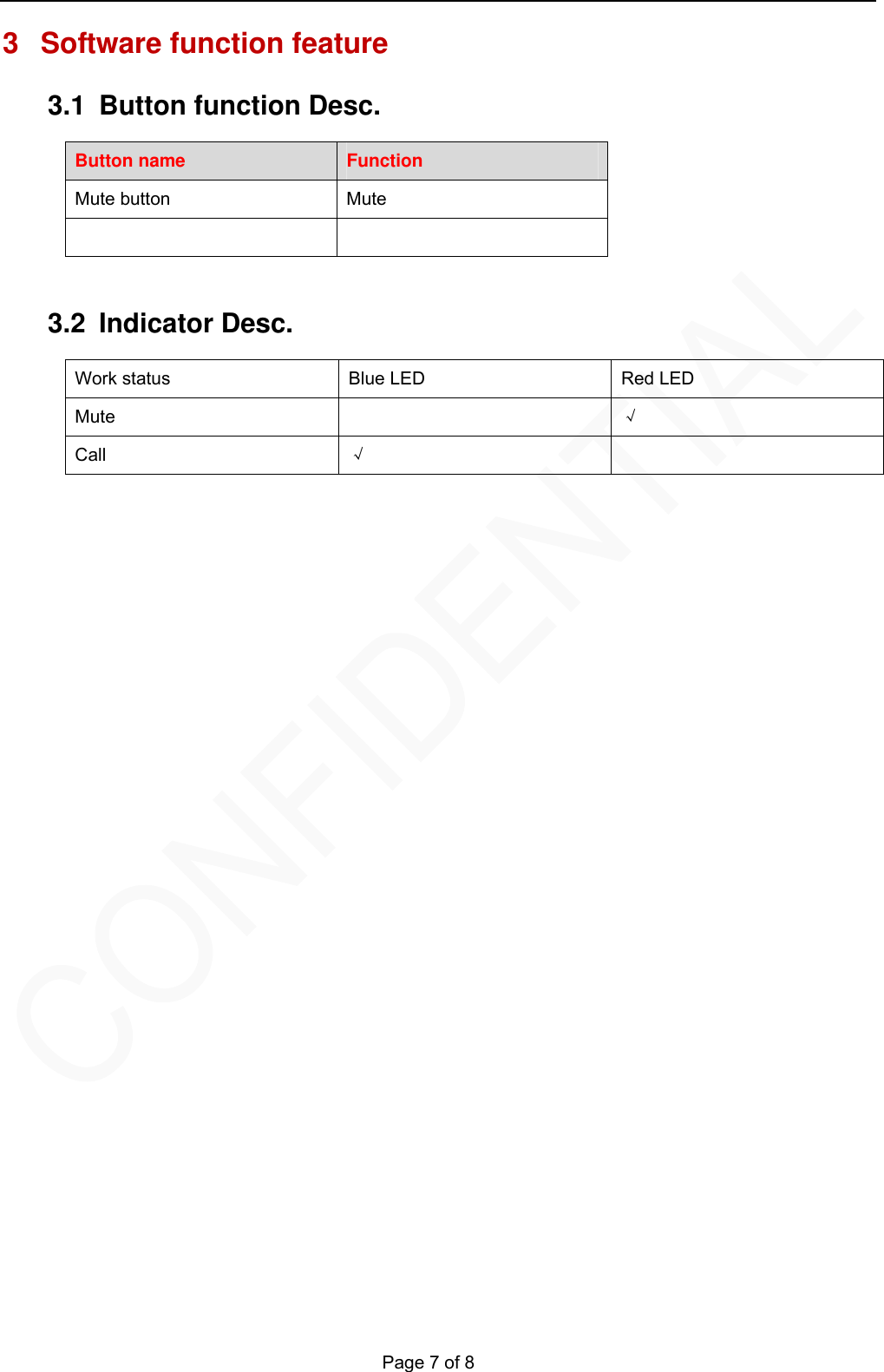

Page 7 of 8 3 Software function feature 3.1 Button function Desc. Button name Function Mute button Mute 3.2 Indicator Desc. Work status Blue LED Red LED Mute √ Call √

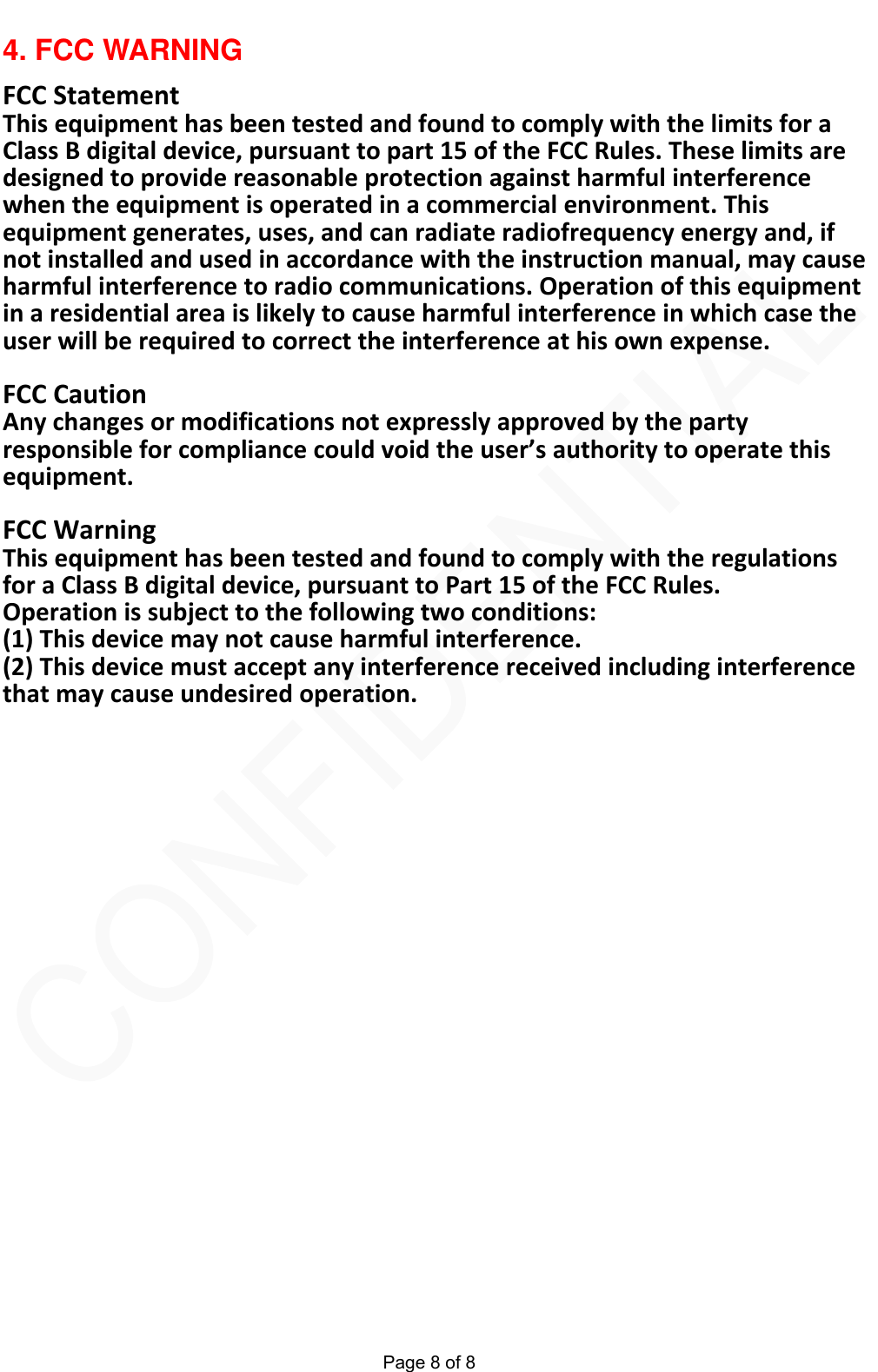

Page 8 of 8 4. FCC WARNING FCCStatementThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradiocommunications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrecttheinterferenceathisownexpense.FCCCautionAnychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.FCCWarningThisequipmenthasbeentestedandfoundtocomplywiththeregulationsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference.(2)Thisdevicemustacceptanyinterferencereceivedincludinginterferencethatmaycauseundesiredoperation.
