YAMAHA MOTOR POWERED JW9-85579-00 TERMINAL UNIT User Manual

YAMAHA MOTOR POWERED PRODUCTS CO., LTD. TERMINAL UNIT Users Manual

User manual

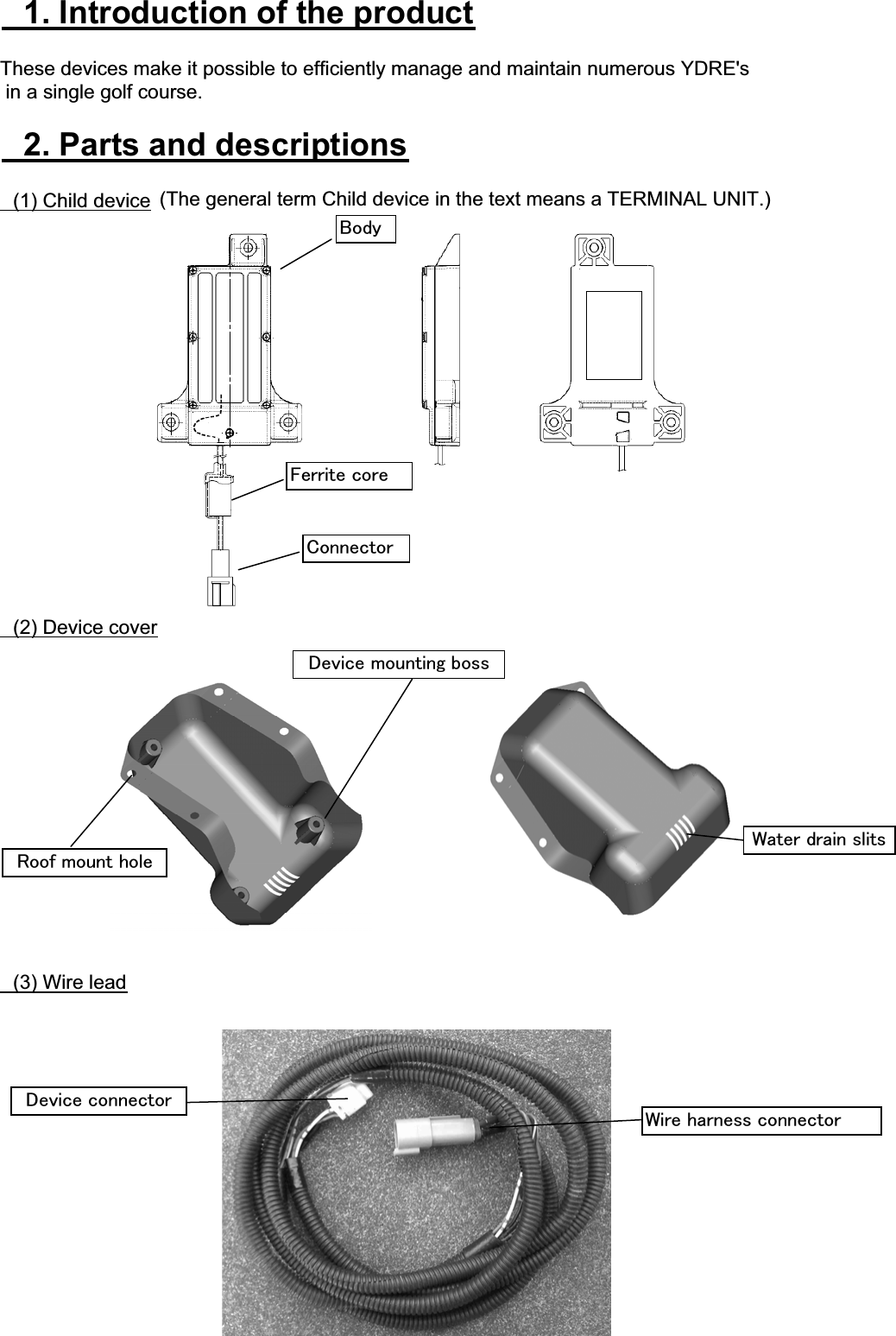

䇭1. Introduction of the productThese devices make it possible to efficiently manage and maintain numerous YDRE's in a single golf course.䇭2. Parts and descriptions䇭(1) Child device䇭(2) Device cover䇭(3) Wire lead㪝㪼㫉㫉㫀㫋㪼㩷㪺㫆㫉㪼㪩㫆㫆㪽㩷㫄㫆㫌㫅㫋㩷㪿㫆㫃㪼㪙㫆㪻㫐㪚㫆㫅㫅㪼㪺㫋㫆㫉㪛㪼㫍㫀㪺㪼㩷㫄㫆㫌㫅㫋㫀㫅㪾㩷㪹㫆㫊㫊㪮㫀㫉㪼㩷㪿㪸㫉㫅㪼㫊㫊㩷㪺㫆㫅㫅㪼㪺㫋㫆㫉㪛㪼㫍㫀㪺㪼㩷㪺㫆㫅㫅㪼㪺㫋㫆㫉㪮㪸㫋㪼㫉㩷㪻㫉㪸㫀㫅㩷㫊㫃㫀㫋㫊(Thegeneral term Child device in the text means a TERMINAL UNIT.) 

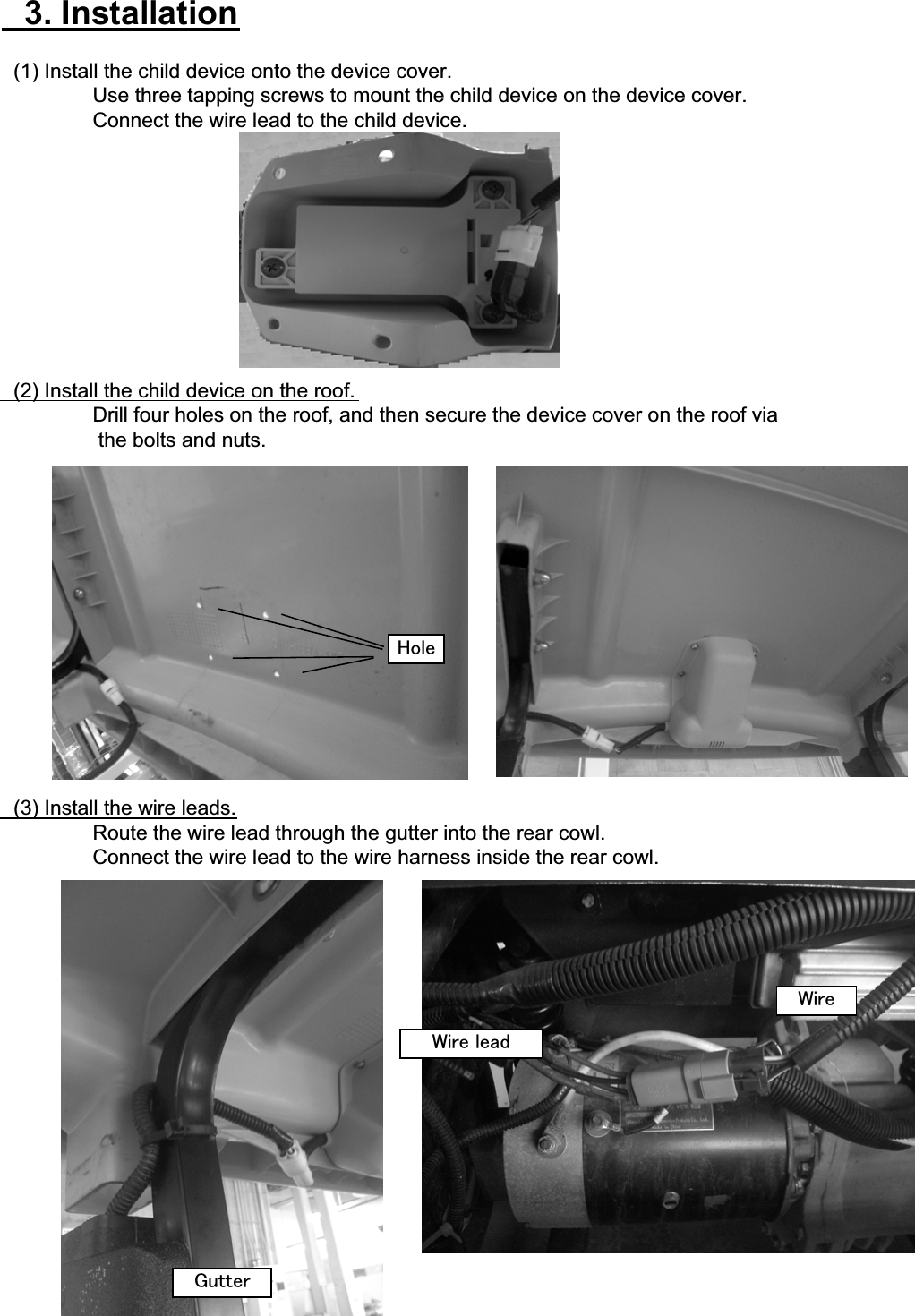

䇭3. Installation䇭(1) Install the child device onto the device cover.Use three tapping screws to mount the child device on the device cover.Connect the wire lead to the child device.䇭(2) Install the child device on the roof.Drill four holes on the roof, and then secure the device cover on the roof via the bolts and nuts.䇭(3) Install the wire leads.Route the wire lead through the gutter into the rear cowl.Connect the wire lead to the wire harness inside the rear cowl.㪟㫆㫃㪼㪞㫌㫋㫋㪼㫉㪮㫀㫉㪼㪮㫀㫉㪼㩷㫃㪼㪸㪻

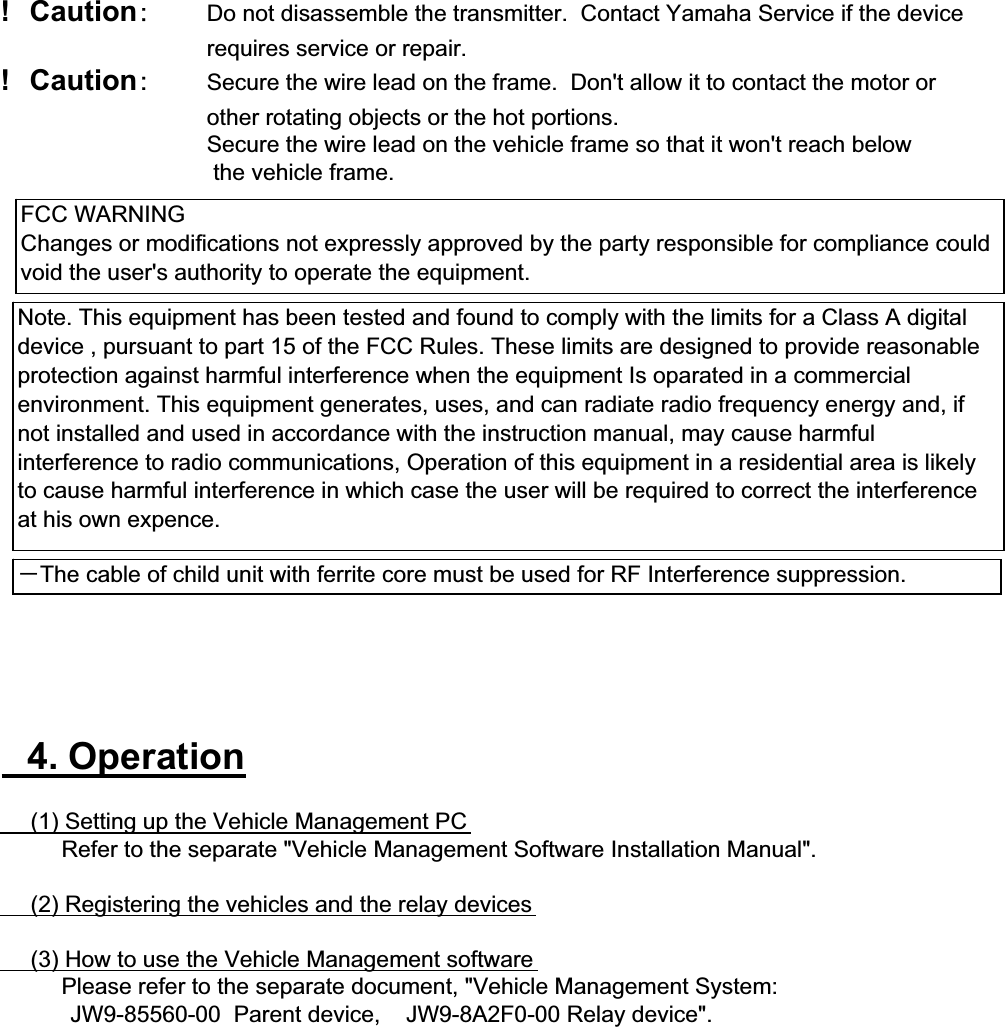

!䇭Caution䋺Do not disassemble the transmitter. Contact Yamaha Service if the device requires service or repair.!䇭Caution䋺Secure the wire lead on the frame. Don't allow it to contact the motor or other rotating objects or the hot portions.Secure the wire lead on the vehicle frame so that it won't reach below the vehicle frame.䇭4. Operation䇭䇭(1) Setting up the Vehicle Management PC䇭䇭䇭䇭Refer to the separate "Vehicle Management Software Installation Manual".䇭䇭(2) Registering the vehicles and the relay devices䇭䇭(3) How to use the Vehicle Management software䇭䇭䇭䇭Please refer to the separate document, "Vehicle Management System: JW9-85560-00 Parent device, JW9-8A2F0-00 Relay device".FCC WARNINGChanges or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.Note. This equipment has been tested and found to comply with the limits for a Class A digitaldevice , pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference when the equipment Is oparated in a commercialenvironment. This equipment generates, uses, and can radiate radio frequency energy and, ifnot installed and used in accordance with the instruction manual, may cause harmfulinterference to radio communications, Operation of this equipment in a residential area is likelyto cause harmful interference in which case the user will be required to correct the interferenceat his own expence.䋭The cable of child unit with ferrite core must be used for RF Interference suppression.

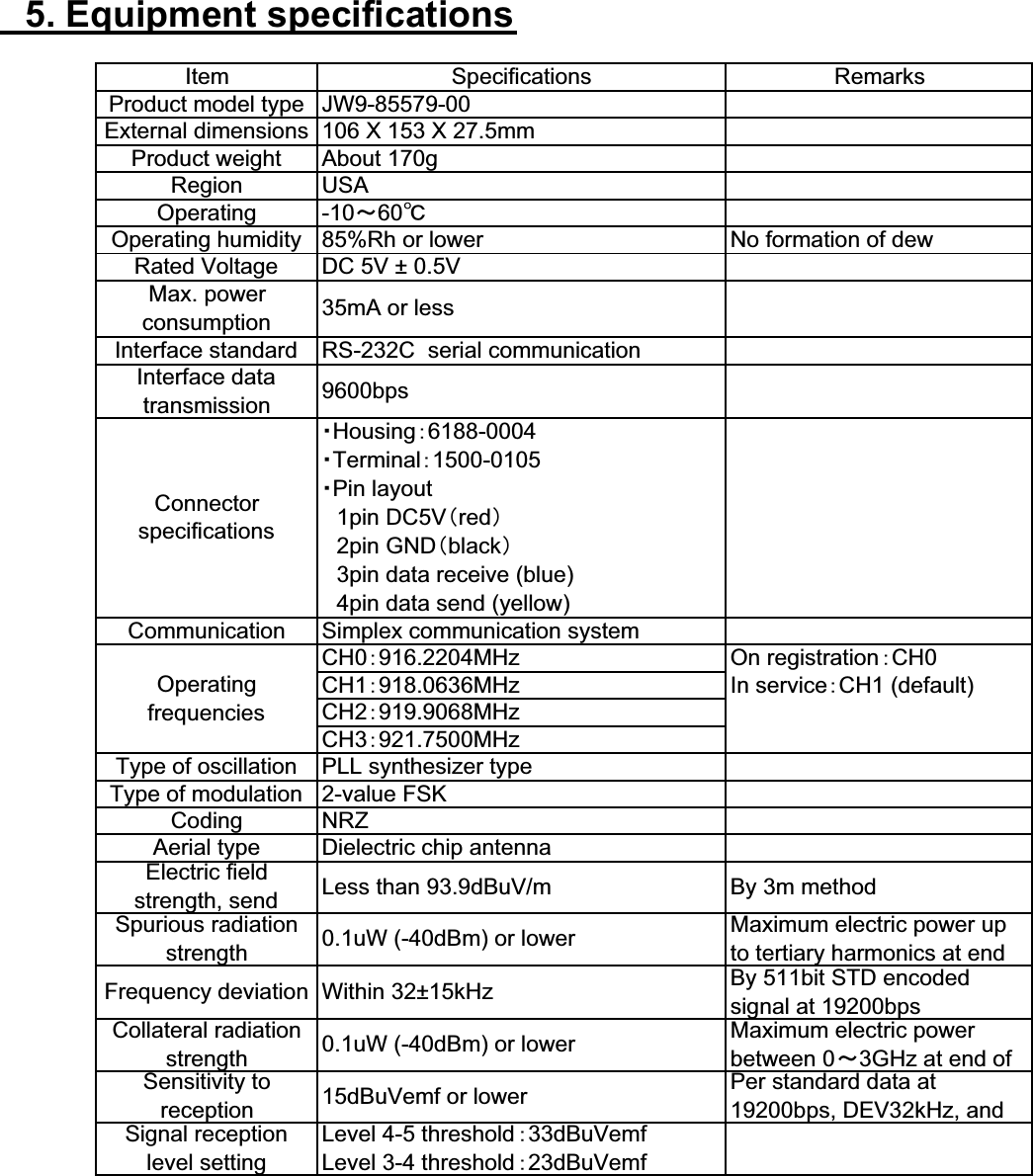

䇭5. Equipment specificationsIn service䋺CH1 (default)Item Specifications RemarksProduct model type JW9-85579-00External dimensions 106 X 153 X 27.5mmProduct weight About 170gRegion USAOperating -10䌾60㷄Operating humidity 85%Rh or lower No formation of dewRated Voltage DC 5V ± 0.5VMax. powerconsumption 35mA or lessInterface standard RS-232C serial communicationInterface datatransmission 9600bpsConnectorspecifications䊶Housing䋺6188-0004䊶Terminal䋺1500-0105䊶Pin layout䇭1pin DC5V䋨red䋩䇭2pin GND䋨black䋩䇭3pin data receive (blue)䇭4pin data send (yellow)Communication Simplex communication systemOperatingfrequenciesCH0䋺916.2204MHz On registration䋺CH0CH1䋺918.0636MHzCH2䋺919.9068MHzCH3䋺921.7500MHzType of oscillation PLL synthesizer typeType of modulation 2-value FSKCoding NRZAerial type Dielectric chip antennaElectric fieldstrength, send Less than 93.9dBuV/m By 3m methodSpurious radiationstrength 0.1uW (-40dBm) or lower Maximum electric power upto tertiary harmonics at endFrequency deviation Within 32±15kHz By 511bit STD encodedsignal at 19200bpsSignal receptionlevel settingLevel 4-5 threshold䋺33dBuVemfLevel 3-4 threshold䋺23dBuVemfCollateral radiationstrength 0.1uW (-40dBm) or lower Maximum electric powerbetween 0䌾3GHz at end ofSensitivity toreception 15dBuVemf or lower Per standard data at19200bps, DEV32kHz, and
