Yuneec Technology E90 Wireless Camera User Manual

Yuneec Technology Co., Limited Wireless Camera Users Manual

User Manual 2017-05-10

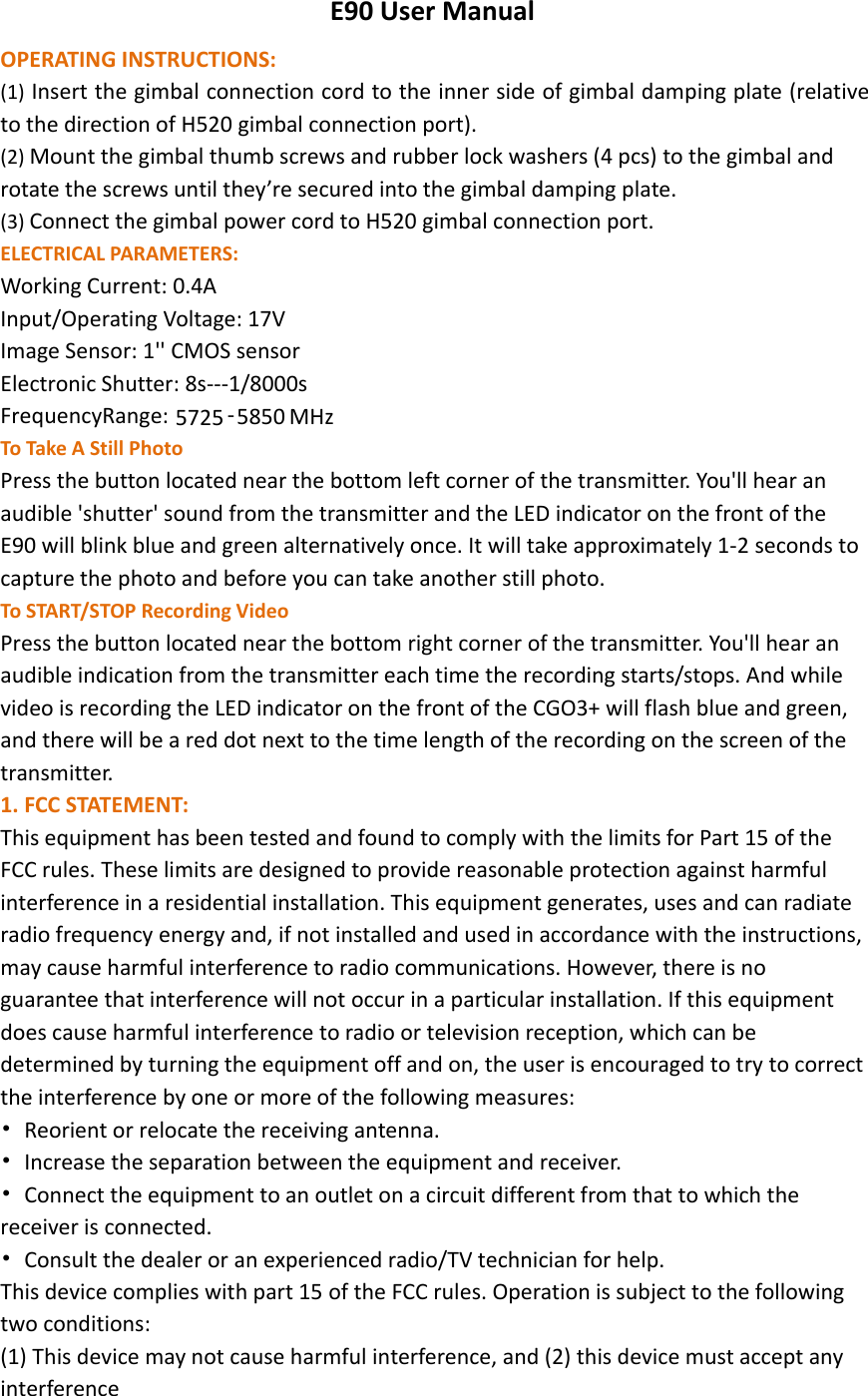

E90 User ManualOPERATING INSTRUCTIONS:(1) Insert the gimbal connection cord to the inner side of gimbal damping plate (relativeto the direction of H520 gimbal connection port).(2) Mount the gimbal thumb screws and rubber lock washers (4 pcs) to the gimbal androtate the screws until they’re secured into the gimbal damping plate.(3) Connect the gimbal power cord to H520 gimbal connection port.ELECTRICAL PARAMETERS:Working Current: 0.4AInput/Operating Voltage: 17VImage Sensor: 1'' CMOS sensorElectronic Shutter: 8s‐‐‐1/8000sFrequencyRange:To Take A Still PhotoPress the button located near the bottom left corner of the transmitter. You'll hear anaudible 'shutter' sound from the transmitter and the LED indicator on the front of theE90 will blink blue and green alternatively once. It will take approximately 1‐2 seconds tocapture the photo and before you can take another still photo.To START/STOP Recording VideoPress the button located near the bottom right corner of the transmitter. You'll hear anaudible indication from the transmitter each time the recording starts/stops. And whilevideo is recording the LED indicator on the front of the CGO3+ will flash blue and green,and there will be a red dot next to the time length of the recording on the screen of thetransmitter.1. FCC STATEMENT:This equipment has been tested and found to comply with the limits for Part 15 of theFCC rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment to an outlet on a circuit different from that to which thereceiver is connected.•Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC rules. Operation is subject to the followingtwo conditions:(1) This device may not cause harmful interference, and (2) this device must accept anyinterference5725 ‐5850 MHz
received, including interference that may cause undesired operation.—Consult the dealer or an experienced radio/TV technician for help.2. RF EXPOSURE WARNING• This equipment must be installed and operated in accordance with providedinstructions and the antenna(s) used for this transmitter must be installed to provide aseparation distance of at least 20 cm from all persons and must not be co‐located oroperating in conjunction with any other antenna or transmitter. End‐users and installersmust be provide with antenna installation instructions and transmitter operatingconditions for satisfying RF exposure compliance.3. IC RADIATION EXPOSURE STATEMENT FOR CANADAThis device complies with Industry Canada licence‐exempt RSS standard(s).Operation issubject to the following two conditions: (1) this device may not cause interference, and(2) this device must accept any interference, including interference that may causeundesired operation of the device.Le présent appareil est conforme aux CNR d'IndustrieCanada applicables aux appareils radio exempts de licence. L'exploitation est autoriséeaux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si lebrouillage est susceptible d'en compromettre le fonctionnement.This equipment complies with IC RSS‐102 radiation exposure limit set forth for anuncontrolled environment.Cet équipement respecte les limites d'exposition auxrayonnements IC définies pour un environnement non contrôléManufacturer:Yuneec International (China) Co., Ltd.Production Address:No.388 East Zhengwei Road, Jinxi Town, Kunshan, Jiangsu 215324, ChinaDistributor:CN: Youyu (Shanghai) Digital Technology Co.,Ltd.Address: B 15F, 461 HongCao Road,CaoHeJing Software Building XuHui District, Shanghai,ChinaTel.: +86 400 8207 506US: Yuneec USA Inc.Address: 5555 Ontario Mills Parkway, Ontario, CA91764, USATel.: +1 855 284 8888The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form.This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Installation et mise en œuvre de ce matériel devrait avec échangeur distance minimale entre 20 cm et ton corps.

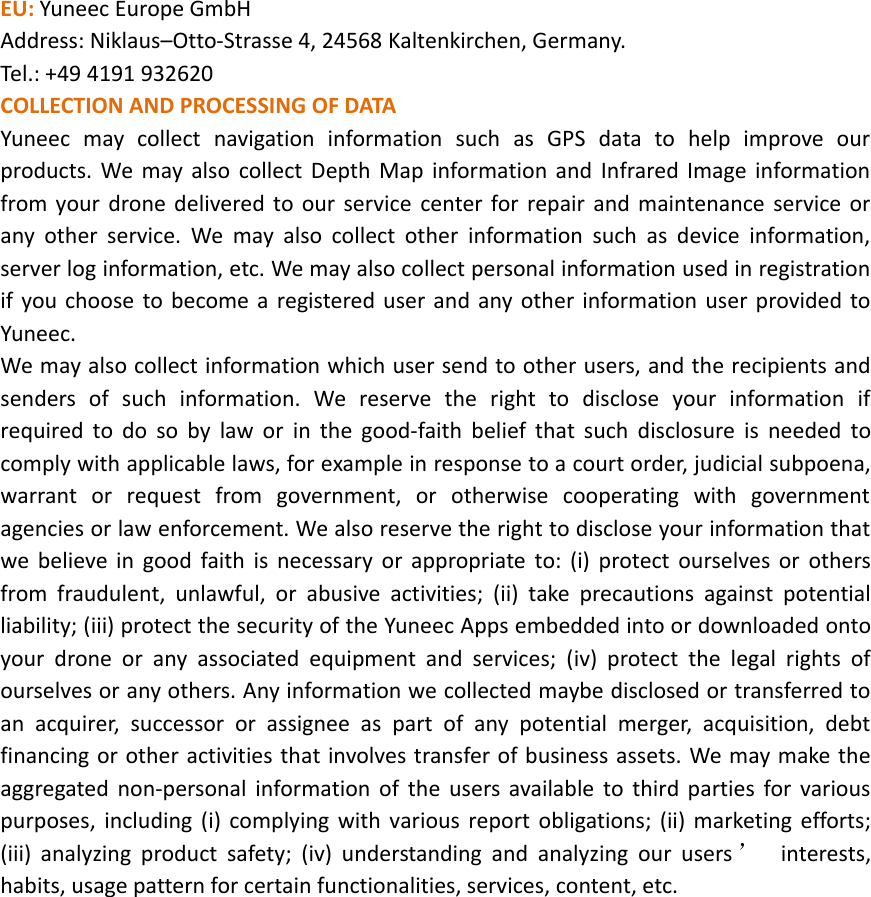

EU: Yuneec Europe GmbHAddress: Niklaus–Otto‐Strasse 4, 24568 Kaltenkirchen, Germany.Tel.: +49 4191 932620COLLECTION AND PROCESSING OF DATAYuneec may collect navigation information such as GPS data to help improve ourproducts. We may also collect Depth Map information and Infrared Image informationfrom your drone delivered to our service center for repair and maintenance service orany other service. We may also collect other information such as device information,server log information, etc. We may also collect personal information used in registrationif you choose to become a registered user and any other information user provided toYuneec.We may also collect information which user send to other users, and the recipients andsenders of such information. We reserve the right to disclose your information ifrequired to do so by law or in the good‐faith belief that such disclosure is needed tocomply with applicable laws, for example in response to a court order, judicial subpoena,warrant or request from government, or otherwise cooperating with governmentagencies or law enforcement. We also reserve the right to disclose your information thatwe believe in good faith is necessary or appropriate to: (i) protect ourselves or othersfrom fraudulent, unlawful, or abusive activities; (ii) take precautions against potentialliability; (iii) protect the security of the Yuneec Apps embedded into or downloaded ontoyour drone or any associated equipment and services; (iv) protect the legal rights ofourselves or any others. Any information we collected maybe disclosed or transferred toan acquirer, successor or assignee as part of any potential merger, acquisition, debtfinancing or other activities that involves transfer of business assets. We may make theaggregated non‐personal information of the users available to third parties for variouspurposes, including (i) complying with various report obligations; (ii) marketing efforts;(iii) analyzing product safety; (iv) understanding and analyzing our users ’interests,habits, usage pattern for certain functionalities, services, content, etc.
