Yuneec Technology SR24P Transmitter Module User Manual

Yuneec Technology Co., Limited Transmitter Module

User Manual

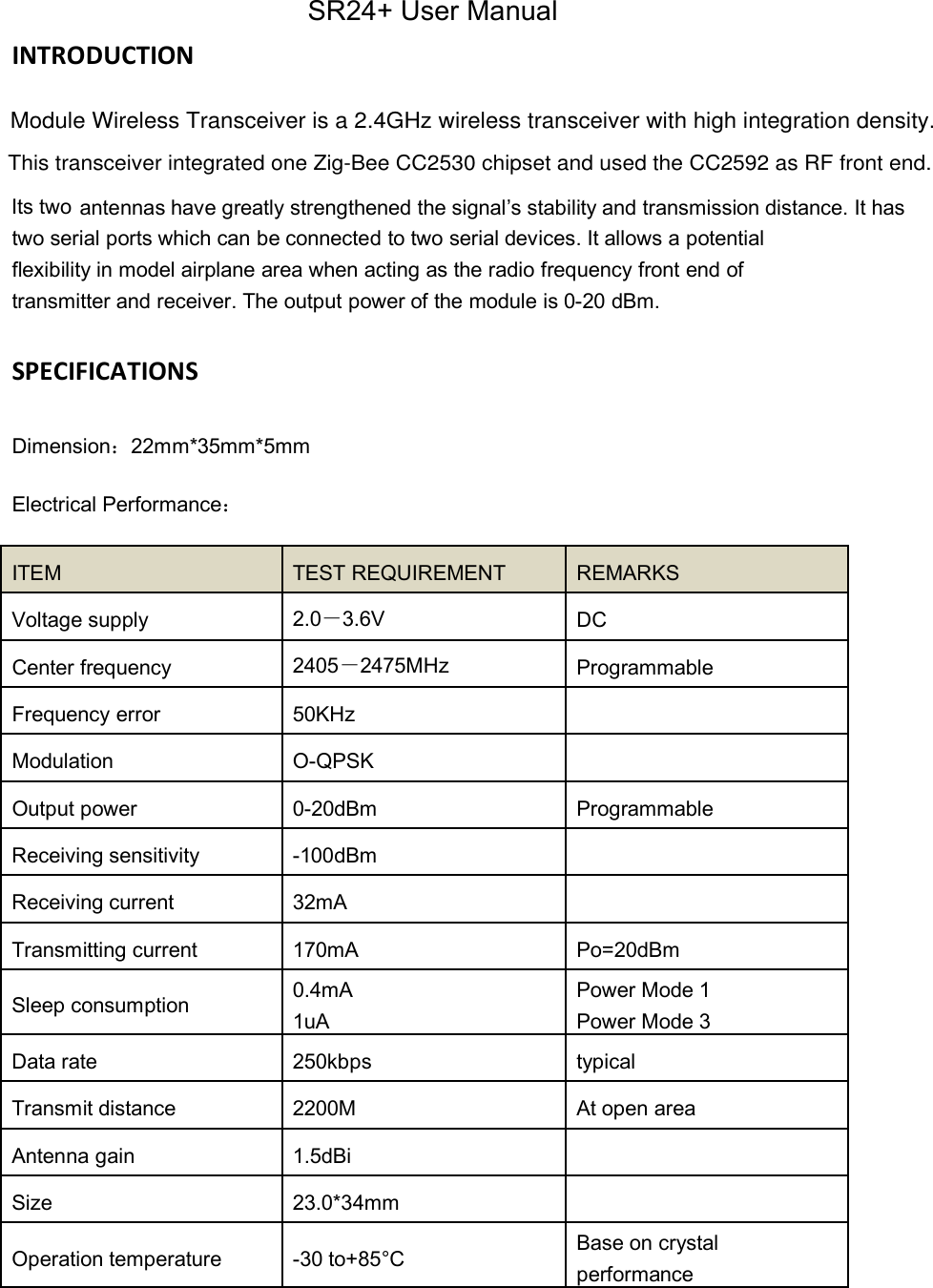

SR24+ User ManualINTRODUCTIONantennas have greatly strengthened the signal’s stability and transmission distance. It hastwo serial ports which can be connected to two serial devices. It allows a potentialflexibility in model airplane area when acting as the radio frequency front end oftransmitter and receiver. The output power of the module is 0-20 dBm.SPECIFICATIONSDimension：22mm*35mm*5mmElectrical Performance：ITEM TEST REQUIREMENT REMARKSVoltage supply 2.0－3.6V DCCenter frequency 2405－2475MHz ProgrammableFrequency error 50KHzModulation O-QPSKOutput power 0-20dBm ProgrammableReceiving sensitivity -100dBmReceiving current 32mATransmitting current 170mA Po=20dBmSleep consumption 0.4mA1uAPower Mode 1Power Mode 3Data rate 250kbps typicalTransmit distance 2200M At open areaAntenna gain 1.5dBiSize 23.0*34mmOperation temperature -30 to+85°C Base on crystalperformance Its twoModule Wireless Transceiver is a 2.4GHz wireless transceiver with high integration density. This transceiver integrated one Zig-Bee CC2530 chipset and used the CC2592 as RF front end.

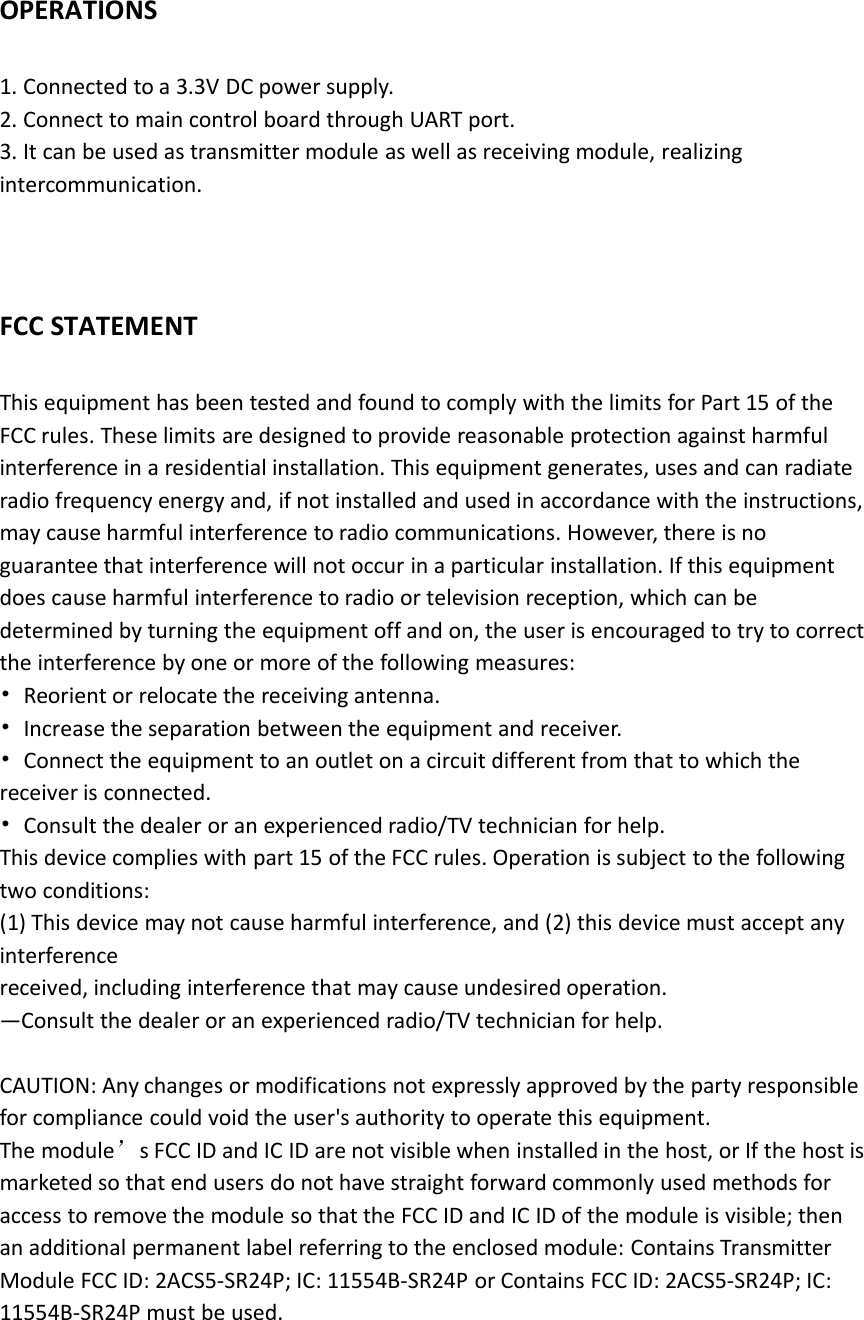

OPERATIONS1. Connected to a 3.3V DC power supply.2. Connect to main control board through UART port.3. It can be used as transmitter module as well as receiving module, realizingintercommunication.FCC STATEMENTThis equipment has been tested and found to comply with the limits for Part 15 of theFCC rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment to an outlet on a circuit different from that to which thereceiver is connected.•Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC rules. Operation is subject to the followingtwo conditions:(1) This device may not cause harmful interference, and (2) this device must accept anyinterferencereceived, including interference that may cause undesired operation.—Consult the dealer or an experienced radio/TV technician for help.CAUTION: Any changes or modifications not expressly approved by the party responsiblefor compliance could void the user's authority to operate this equipment.The module’s FCC ID and IC ID are not visible when installed in the host, or If the host ismarketed so that end users do not have straight forward commonly used methods foraccess to remove the module so that the FCC ID and IC ID of the module is visible; thenan additional permanent label referring to the enclosed module: Contains TransmitterModule FCC ID: 2ACS5-SR24P; IC: 11554B-SR24P or Contains FCC ID: 2ACS5-SR24P; IC:11554B-SR24P must be used.

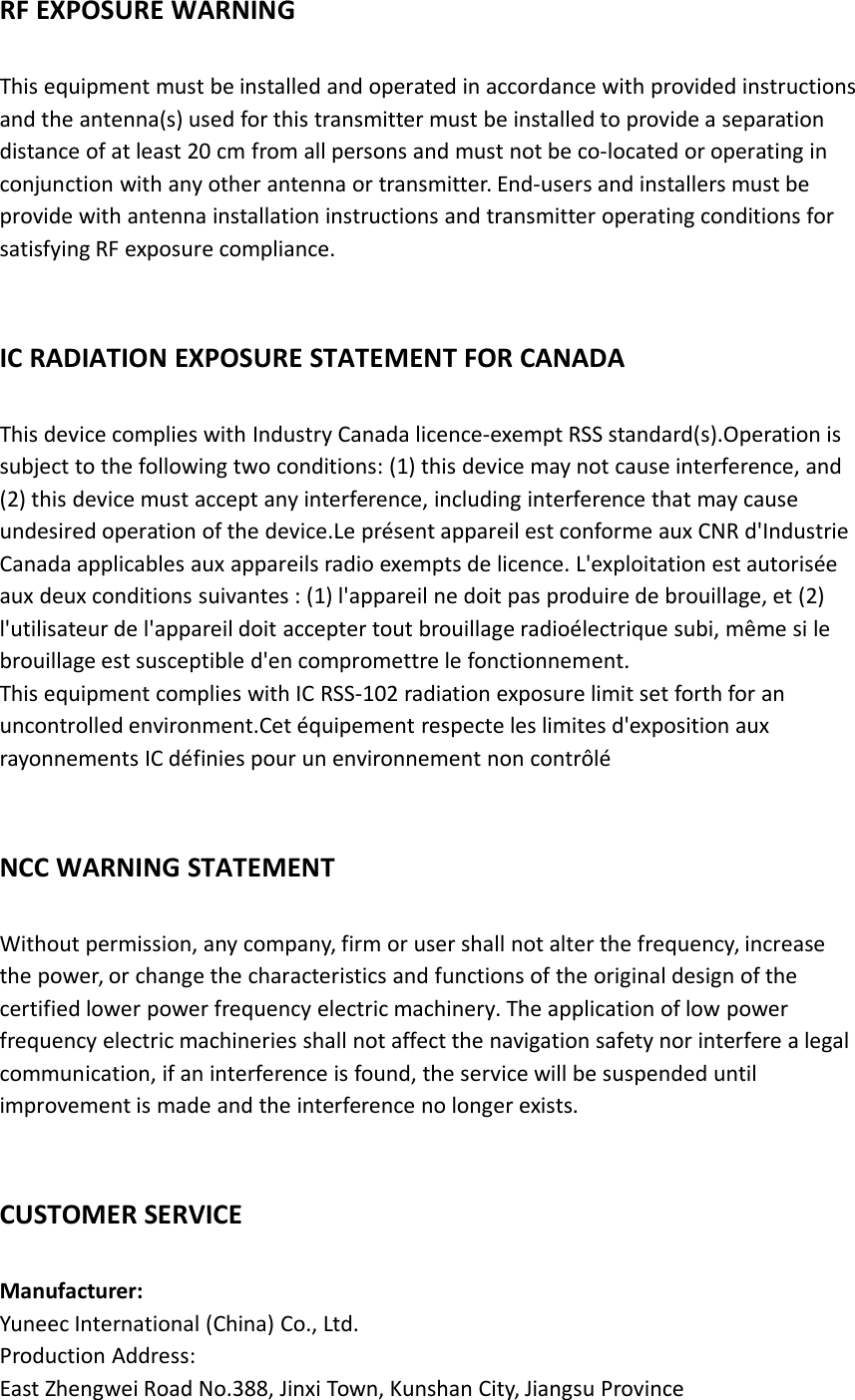

RF EXPOSURE WARNINGThis equipment must be installed and operated in accordance with provided instructionsand the antenna(s) used for this transmitter must be installed to provide a separationdistance of at least 20 cm from all persons and must not be co-located or operating inconjunction with any other antenna or transmitter. End-users and installers must beprovide with antenna installation instructions and transmitter operating conditions forsatisfying RF exposure compliance.IC RADIATION EXPOSURE STATEMENT FOR CANADAThis device complies with Industry Canada licence-exempt RSS standard(s).Operation issubject to the following two conditions: (1) this device may not cause interference, and(2) this device must accept any interference, including interference that may causeundesired operation of the device.Le présent appareil est conforme aux CNR d'IndustrieCanada applicables aux appareils radio exempts de licence. L'exploitation est autoriséeaux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si lebrouillage est susceptible d'en compromettre le fonctionnement.This equipment complies with IC RSS-102 radiation exposure limit set forth for anuncontrolled environment.Cet équipement respecte les limites d'exposition auxrayonnements IC définies pour un environnement non contrôléNCC WARNING STATEMENTWithout permission, any company, firm or user shall not alter the frequency, increasethe power, or change the characteristics and functions of the original design of thecertified lower power frequency electric machinery. The application of low powerfrequency electric machineries shall not affect the navigation safety nor interfere a legalcommunication, if an interference is found, the service will be suspended untilimprovement is made and the interference no longer exists.CUSTOMER SERVICEManufacturer:Yuneec International (China) Co., Ltd.Production Address:East Zhengwei Road No.388, Jinxi Town, Kunshan City, Jiangsu Province

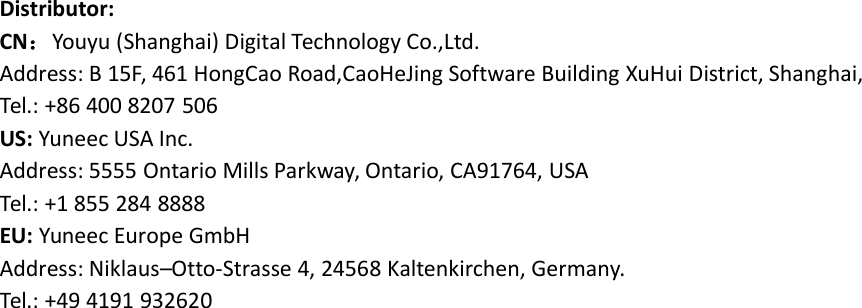

Distributor:CN：Youyu (Shanghai) Digital Technology Co.,Ltd.Address: B 15F, 461 HongCao Road,CaoHeJing Software Building XuHui District, Shanghai,Tel.: +86 400 8207 506US: Yuneec USA Inc.Address: 5555 Ontario Mills Parkway, Ontario, CA91764, USATel.: +1 855 284 8888EU: Yuneec Europe GmbHAddress: Niklaus–Otto-Strasse 4, 24568 Kaltenkirchen, Germany.Tel.: +49 4191 932620
