ZHIBOTONG ELECTRONICS ZBT-WE1326 wireless router User Manual en 300328v020200a

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. wireless router en 300328v020200a

User Manual

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD Manual Mode ： ZBT-WE1326

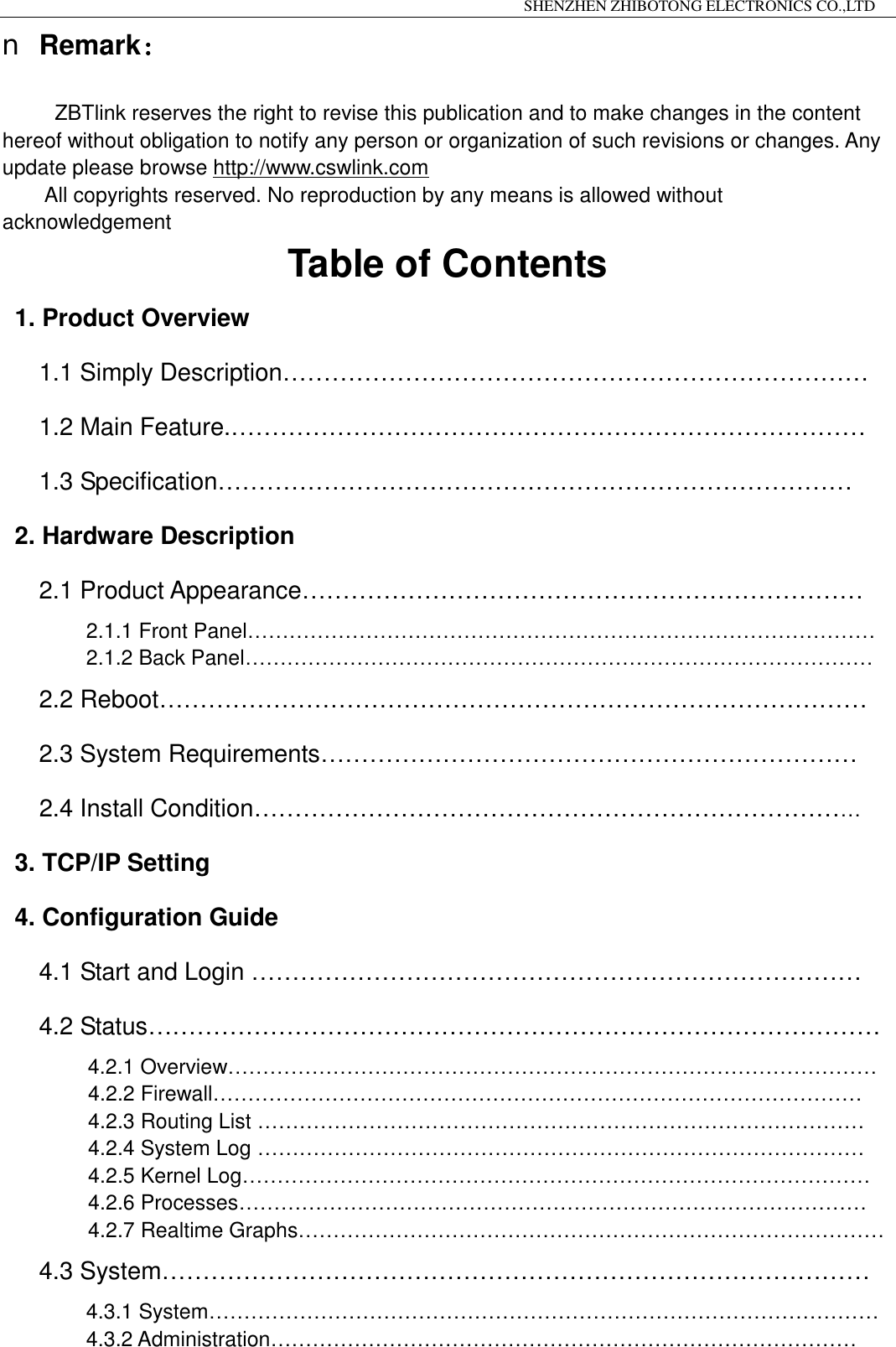

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD n Remark： ZBTlink reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Any update please browse http://www.cswlink.com All copyrights reserved. No reproduction by any means is allowed without acknowledgement Table of Contents 1. Product Overview 1.1 Simply Description……………………………………………………………… 1.2 Main Feature.…………………………………………………………………… 1.3 Specification…………………………………………………………………… 2. Hardware Description 2.1 Product Appearance…………………………………………………………… 2.1.1 Front Panel……………………………………………………………………………… 2.1.2 Back Panel……………………………………………………………………………… 2.2 Reboot…………………………………………………………………………… 2.3 System Requirements………………………………………………………… 2.4 Install Condition………………………………………………………………… 3. TCP/IP Setting 4. Configuration Guide 4.1 Start and Login ………………………………………………………………… 4.2 Status……………………………………………………………………………… 4.2.1 Overview………………………………………………………………………………… 4.2.2 Firewall………………………………………………………………………………… 4.2.3 Routing List …………………………………………………………………………… 4.2.4 System Log …………………………………………………………………………… 4.2.5 Kernel Log……………………………………………………………………………… 4.2.6 Processes……………………………………………………………………………… 4.2.7 Realtime Graphs………………………………………………………………………… 4.3 System…………………………………………………………………………… 4.3.1 System…………………………………………………………………………………… 4.3.2 Administration…………………………………………………………………………

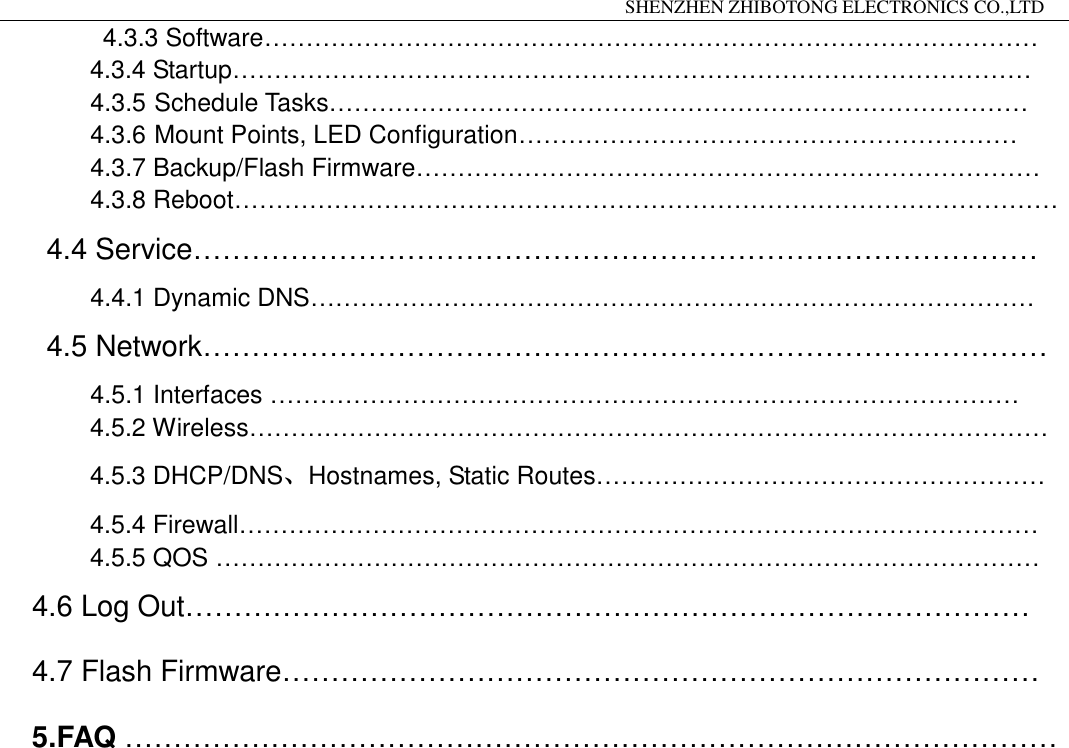

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4.3.3 Software………………………………………………………………………………… 4.3.4 Startup…………………………………………………………………………………… 4.3.5 Schedule Tasks………………………………………………………………………… 4.3.6 Mount Points, LED Configuration…………………………………………………… 4.3.7 Backup/Flash Firmware………………………………………………………………… 4.3.8 Reboot……………………………………………………………………………………… 4.4 Service…………………………………………………………………………… 4.4.1 Dynamic DNS…………………………………………………………………………… 4.5 Network…………………………………………………………………………… 4.5.1 Interfaces ……………………………………………………………………………… 4.5.2 Wireless…………………………………………………………………………………… 4.5.3 DHCP/DNS、Hostnames, Static Routes……………………………………………… 4.5.4 Firewall…………………………………………………………………………………… 4.5.5 QOS ……………………………………………………………………………………… 4.6 Log Out…………………………………………………………………………… 4.7 Flash Firmware…………………………………………………………………… 5.FAQ ……………………………………………………………………………………
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 1. Product Overview n 1.1 Simply Description CSW-WR246 provide an easy way to expend your wired Ethernet to wireless. It works well on gateway, and you could configure it via Web. It could meet both enterprise and the home’s requirements economically, its user could browser the internet and time and anywhere. It has multi-function ,highly-perfomance and easy install. Will be your best choice to build your own WLAN. About the wireless security, CSW-WR246 provides multi-protection, support unable SSID broadcast , also provide 64/128/152 bit WEP encryption , support for WPA / WPA-PSK, WPA2/WPA2-PSK security mechanism , in order to protect your data .Comply with 802.11a/ 802.11n/ 802.11g/ 802.11b/ 802.113/802.113u/802.11AC standard has 300Mbps , Our smart antenna management, makes the CSW-WR246 performs much better than other similar product in WiFi transmission distance, perfectly compitable with other network device. n 1.2 Features and Specification u 1.2.1 Main Features Ø Provide 5 10M/100M Ethernet ports Ø DHCP server Ø Support RTS/CTS protocol , ensure the communication quality Ø Roaming technology , efficient wireless connect Ø DHCP serve static IP address Ø Web manage u 1.2.2 Specification Ø Comply with 802.11a/802.11n/802.11g/802.11b/802.113/802.113u/802.11ac standard Ø Support TCP/IP、DHCP、ICMP protocol Ø Auto MDI/MDIX port Ø Indictor LED, power adapter(12V 1A) Ø Work temperature 0℃- 40℃ Ø Operating Humidity：10%~90% non-condensing 2. Hardware Description n 2.1 Panel Layout u 2.1.1 Front Panel

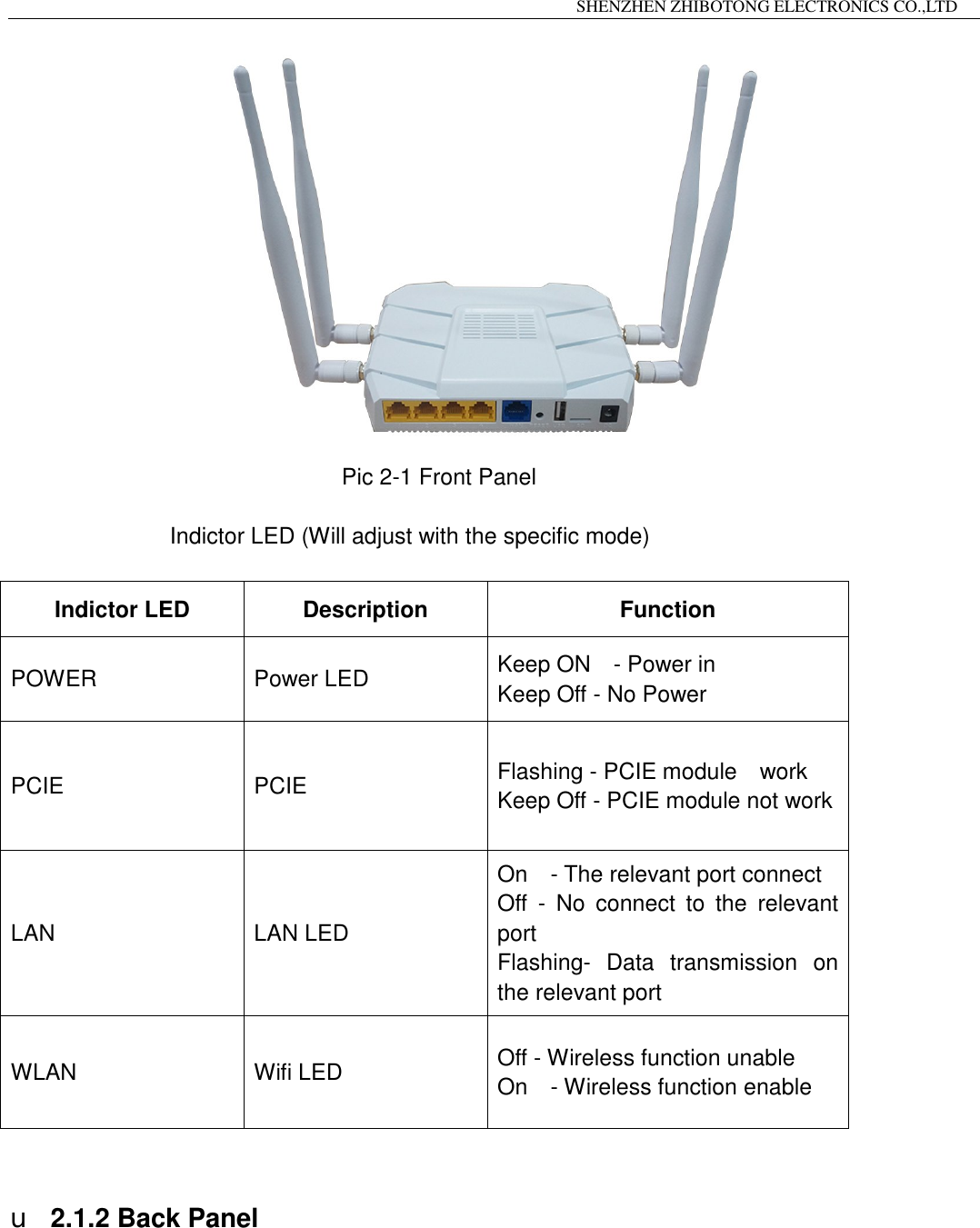

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD Pic 2-1 Front Panel Indictor LED (Will adjust with the specific mode) Indictor LED Description Function POWER Power LED Keep ON - Power in Keep Off - No Power PCIE PCIE Flashing - PCIE module work Keep Off - PCIE module not work LAN LAN LED On - The relevant port connect Off - No connect to the relevant port Flashing- Data transmission on the relevant port WLAN Wifi LED Off - Wireless function unable On - Wireless function enable u 2.1.2 Back Panel

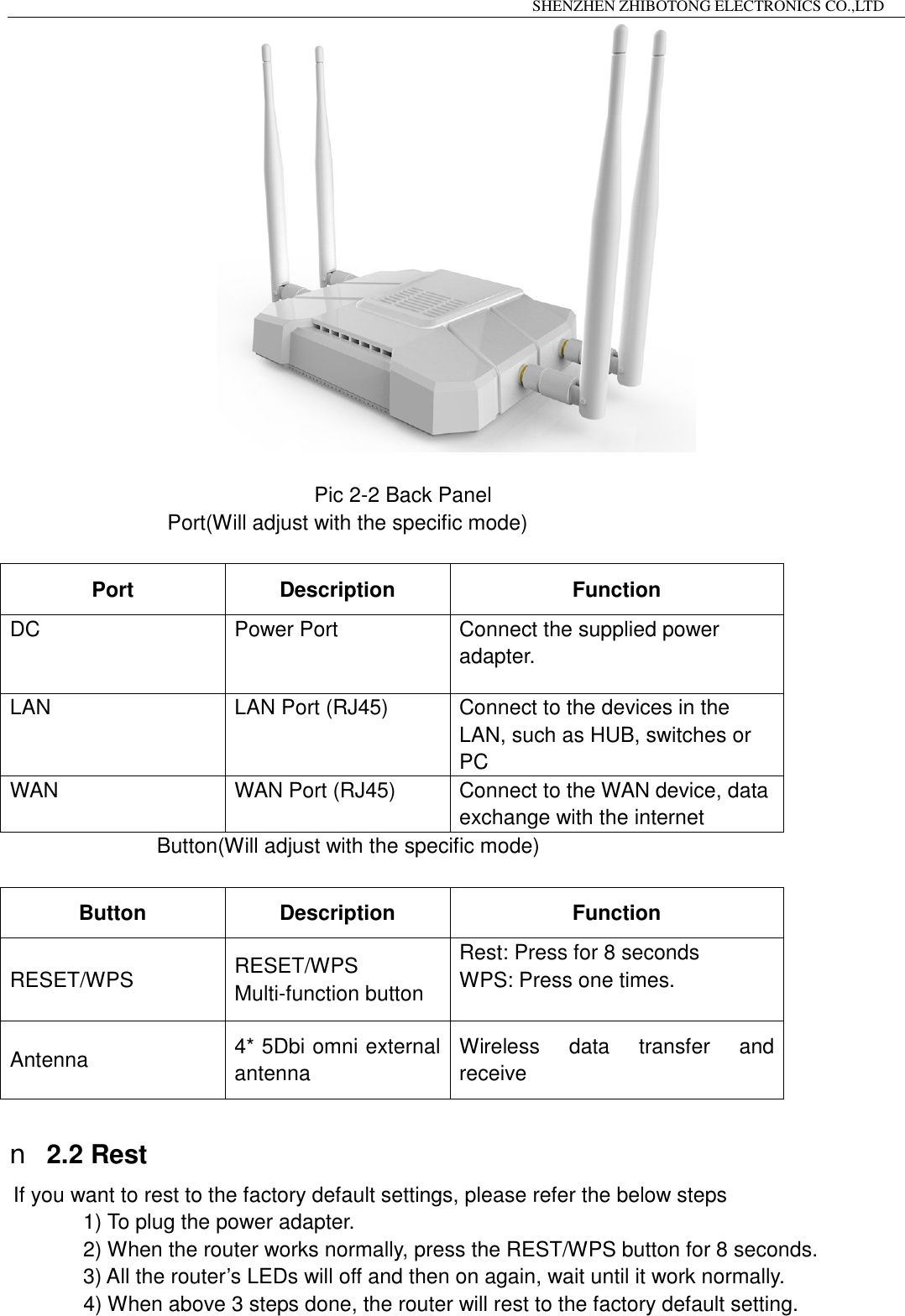

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD Pic 2-2 Back Panel Port(Will adjust with the specific mode) Port Description Function DC Power Port Connect the supplied power adapter. LAN LAN Port (RJ45) Connect to the devices in the LAN, such as HUB, switches or PC WAN WAN Port (RJ45) Connect to the WAN device, data exchange with the internet Button(Will adjust with the specific mode) Button Description Function RESET/WPS RESET/WPS Multi-function button Rest: Press for 8 seconds WPS: Press one times. Antenna 4* 5Dbi omni external antenna Wireless data transfer and receive n 2.2 Rest If you want to rest to the factory default settings, please refer the below steps 1) To plug the power adapter. 2) When the router works normally, press the REST/WPS button for 8 seconds. 3) All the router’s LEDs will off and then on again, wait until it work normally. 4) When above 3 steps done, the router will rest to the factory default setting.

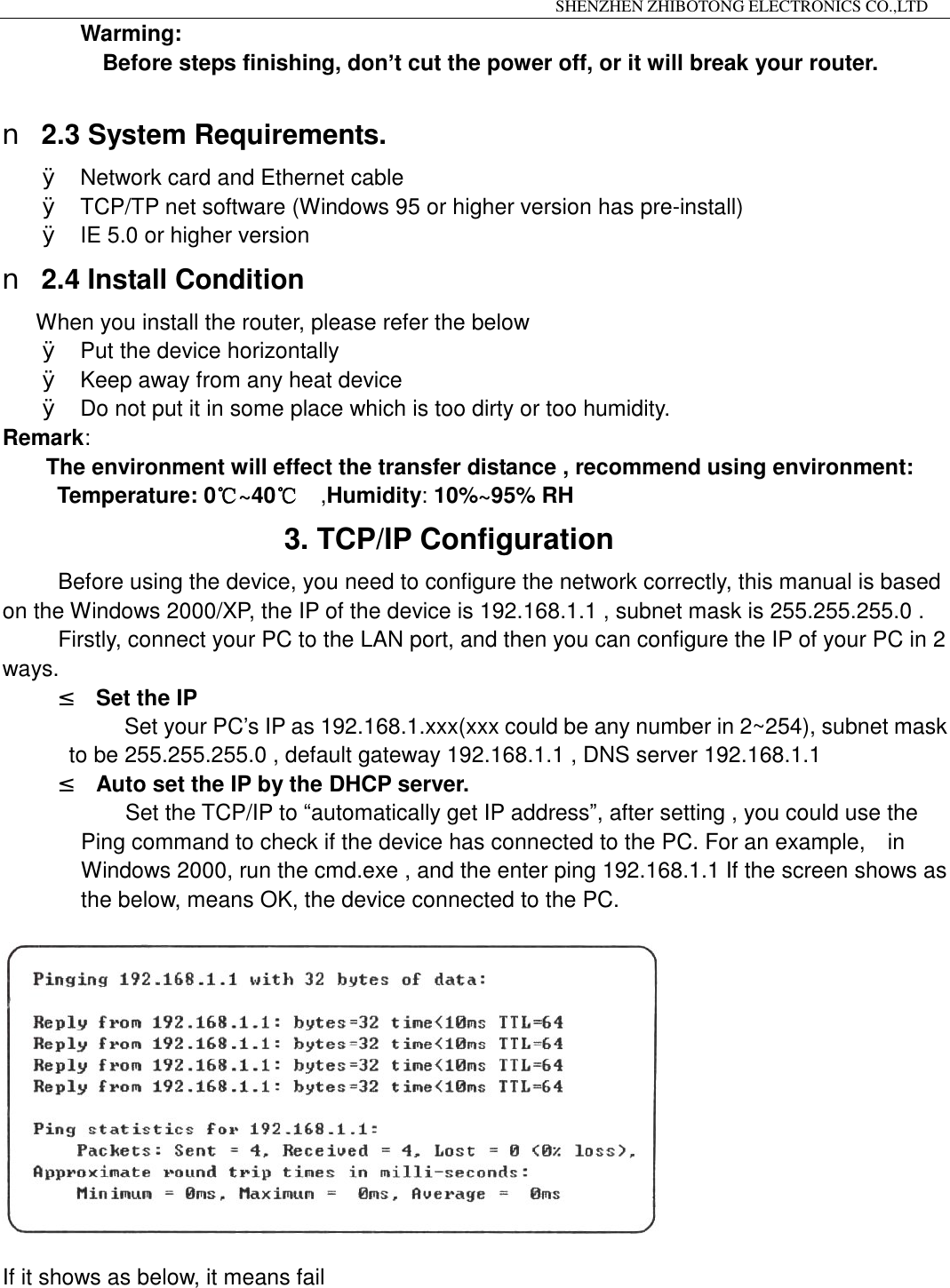

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD Warming: Before steps finishing, don’t cut the power off, or it will break your router. n 2.3 System Requirements. Ø Network card and Ethernet cable Ø TCP/TP net software (Windows 95 or higher version has pre-install) Ø IE 5.0 or higher version n 2.4 Install Condition When you install the router, please refer the below Ø Put the device horizontally Ø Keep away from any heat device Ø Do not put it in some place which is too dirty or too humidity. Remark: The environment will effect the transfer distance , recommend using environment: Temperature: 0~40℃℃ ,Humidity: 10%~95% RH 3. TCP/IP Configuration Before using the device, you need to configure the network correctly, this manual is based on the Windows 2000/XP, the IP of the device is 192.168.1.1 , subnet mask is 255.255.255.0 . Firstly, connect your PC to the LAN port, and then you can configure the IP of your PC in 2 ways. ² Set the IP Set your PC’s IP as 192.168.1.xxx(xxx could be any number in 2~254), subnet mask to be 255.255.255.0 , default gateway 192.168.1.1 , DNS server 192.168.1.1 ² Auto set the IP by the DHCP server. Set the TCP/IP to “automatically get IP address”, after setting , you could use the Ping command to check if the device has connected to the PC. For an example, in Windows 2000, run the cmd.exe , and the enter ping 192.168.1.1 If the screen shows as the below, means OK, the device connected to the PC. If it shows as below, it means fail

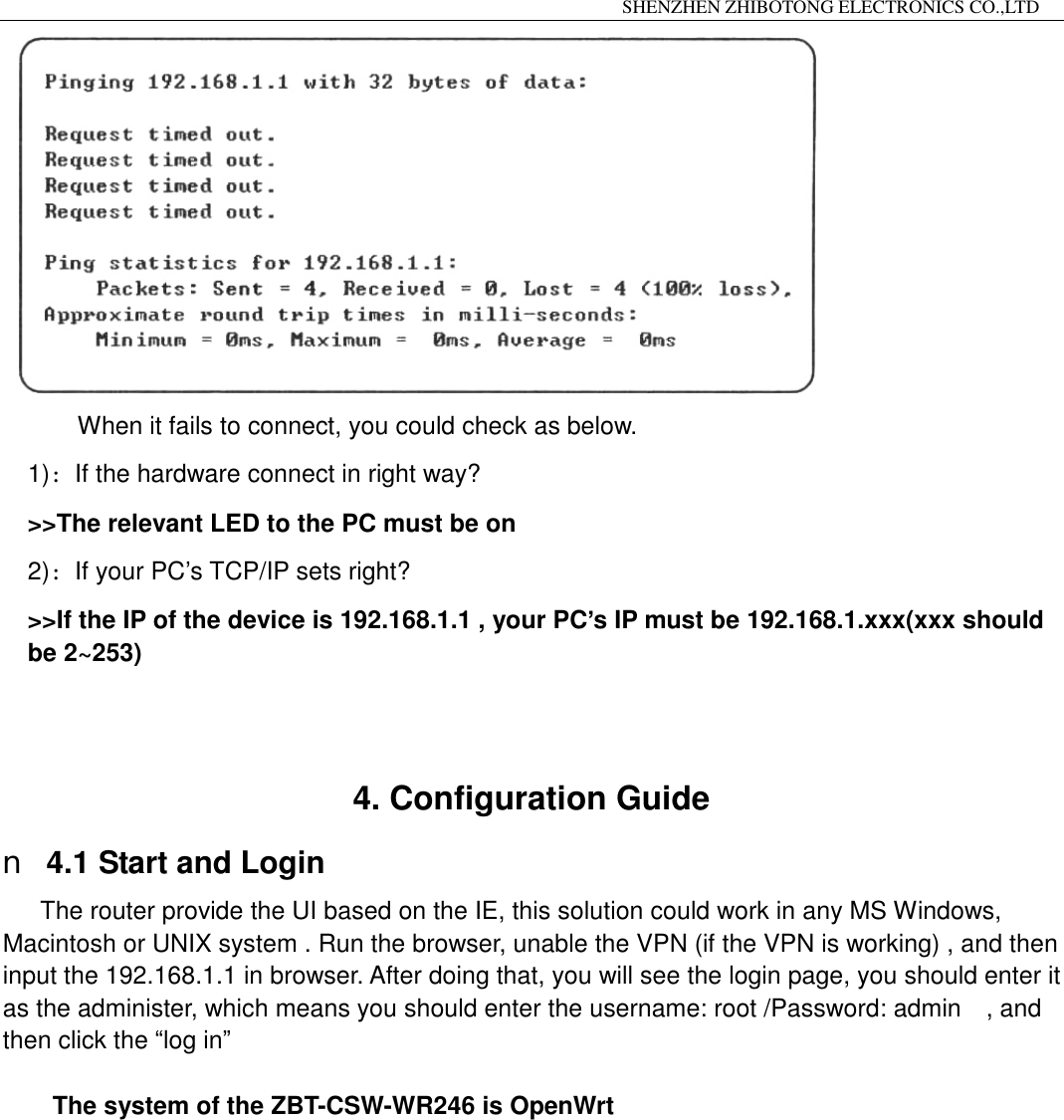

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD When it fails to connect, you could check as below. 1)：If the hardware connect in right way? >>The relevant LED to the PC must be on 2)：If your PC’s TCP/IP sets right? >>If the IP of the device is 192.168.1.1 , your PC’s IP must be 192.168.1.xxx(xxx should be 2~253) 4. Configuration Guide n 4.1 Start and Login The router provide the UI based on the IE, this solution could work in any MS Windows, Macintosh or UNIX system . Run the browser, unable the VPN (if the VPN is working) , and then input the 192.168.1.1 in browser. After doing that, you will see the login page, you should enter it as the administer, which means you should enter the username: root /Password: admin , and then click the “log in” The system of the ZBT-CSW-WR246 is OpenWrt
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4-1 Log in webpage When everything goes well, the browser will show as the 4-2. There are several tag, click some tag, you could configure relevant function settings. 4-2 I will explain each menu. n 4.2 us u 4.2.1 Overview Click the “Overview” You could check the running information, included system information, Memory, network, DHCP leases, wireless and associate stations, as 4.2.1

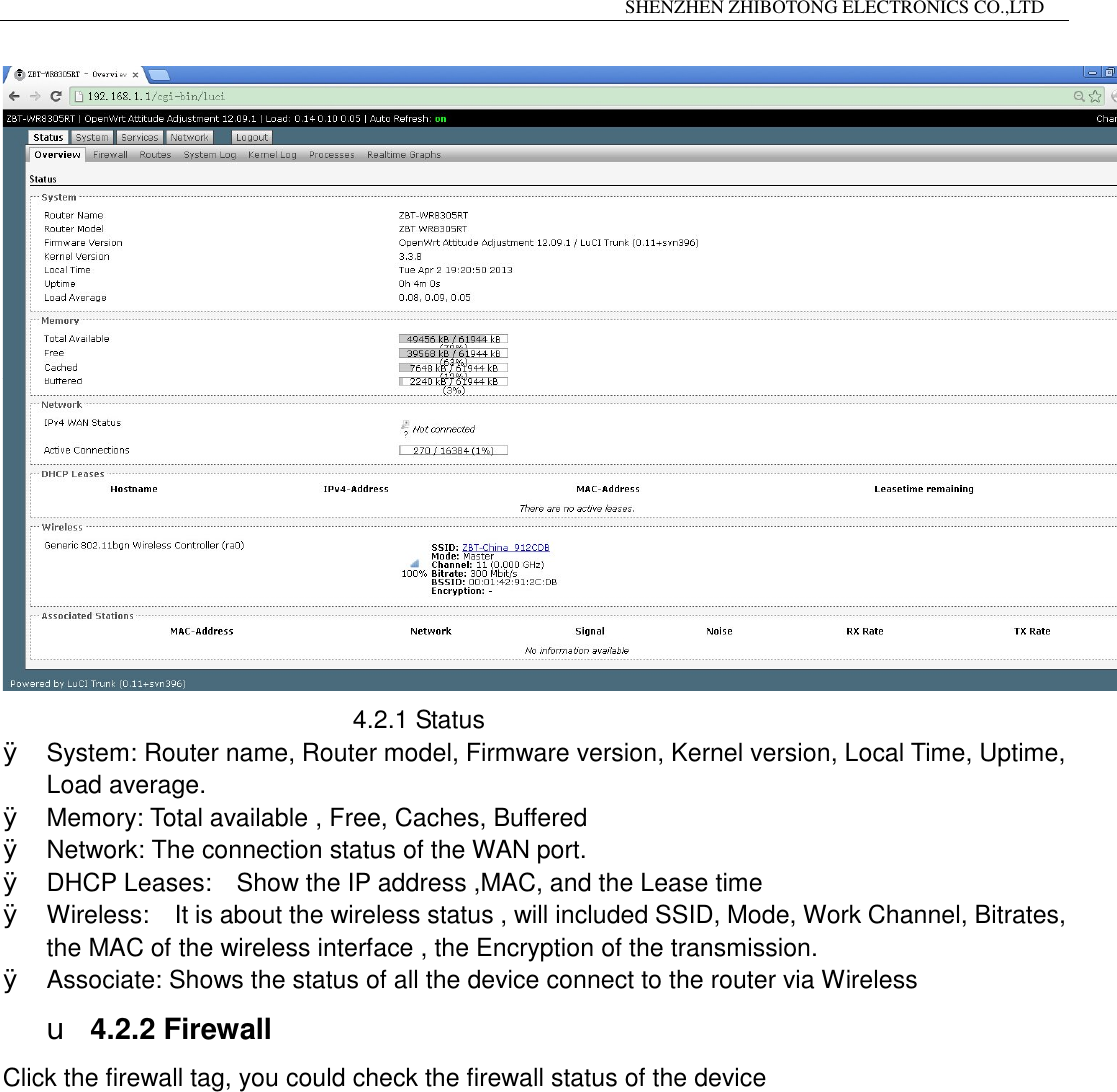

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4.2.1 Status Ø System: Router name, Router model, Firmware version, Kernel version, Local Time, Uptime, Load average. Ø Memory: Total available , Free, Caches, Buffered Ø Network: The connection status of the WAN port. Ø DHCP Leases: Show the IP address ,MAC, and the Lease time Ø Wireless: It is about the wireless status , will included SSID, Mode, Work Channel, Bitrates, the MAC of the wireless interface , the Encryption of the transmission. Ø Associate: Shows the status of all the device connect to the router via Wireless u 4.2.2 Firewall Click the firewall tag, you could check the firewall status of the device

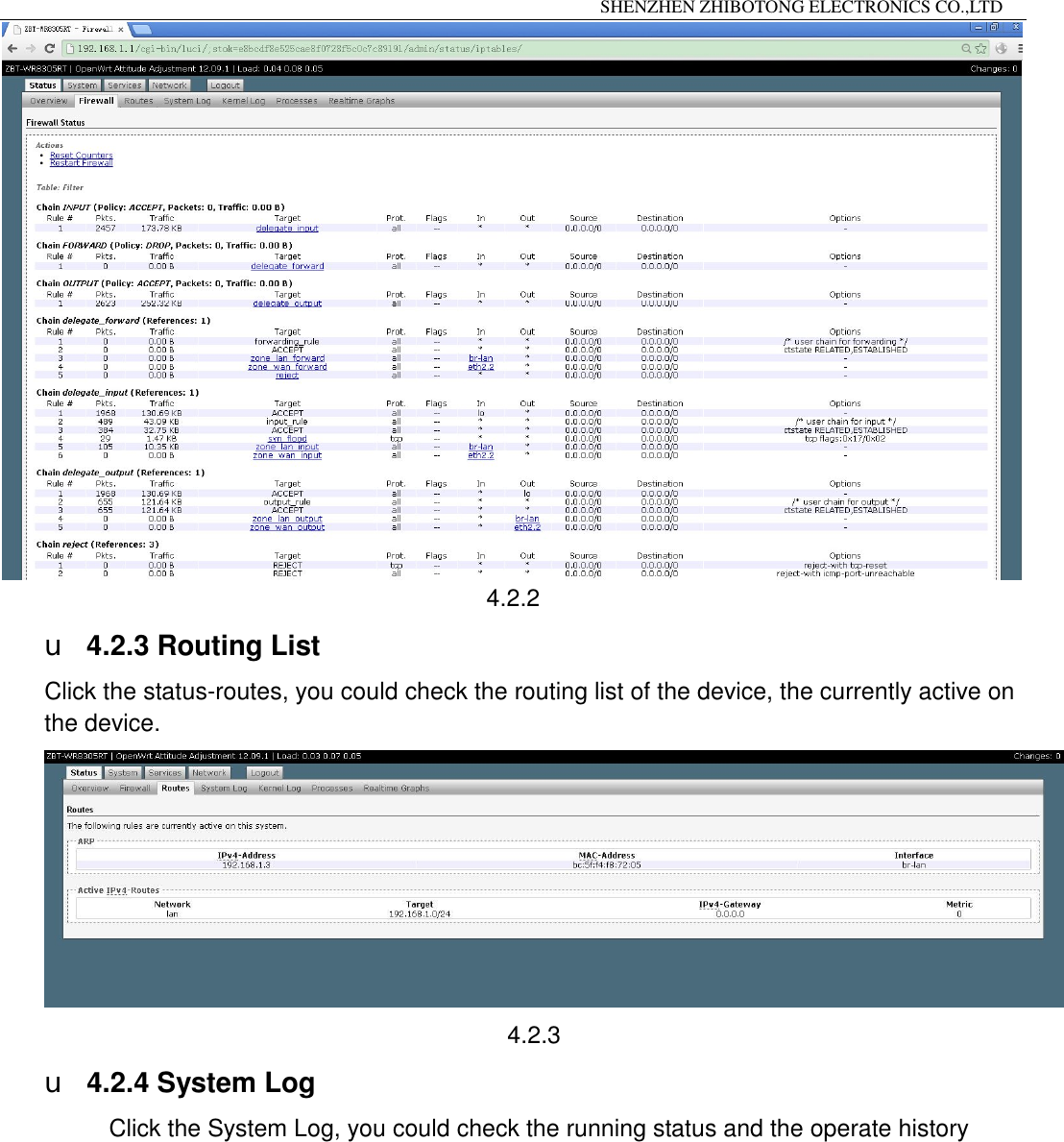

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4.2.2 u 4.2.3 Routing List Click the status-routes, you could check the routing list of the device, the currently active on the device. 4.2.3 u 4.2.4 System Log Click the System Log, you could check the running status and the operate history

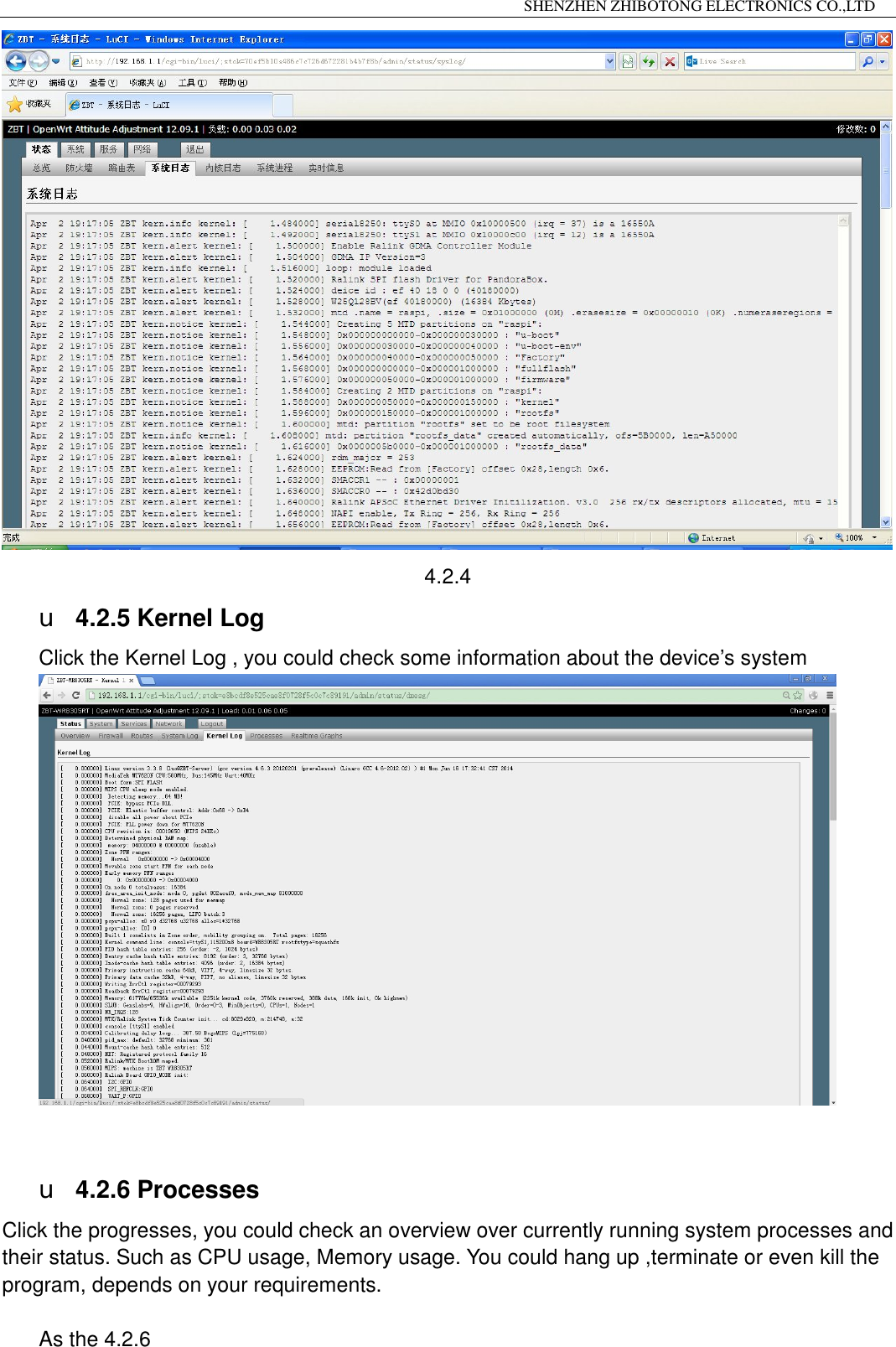

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4.2.4 u 4.2.5 Kernel Log Click the Kernel Log , you could check some information about the device’s system u 4.2.6 Processes Click the progresses, you could check an overview over currently running system processes and their status. Such as CPU usage, Memory usage. You could hang up ,terminate or even kill the program, depends on your requirements. As the 4.2.6

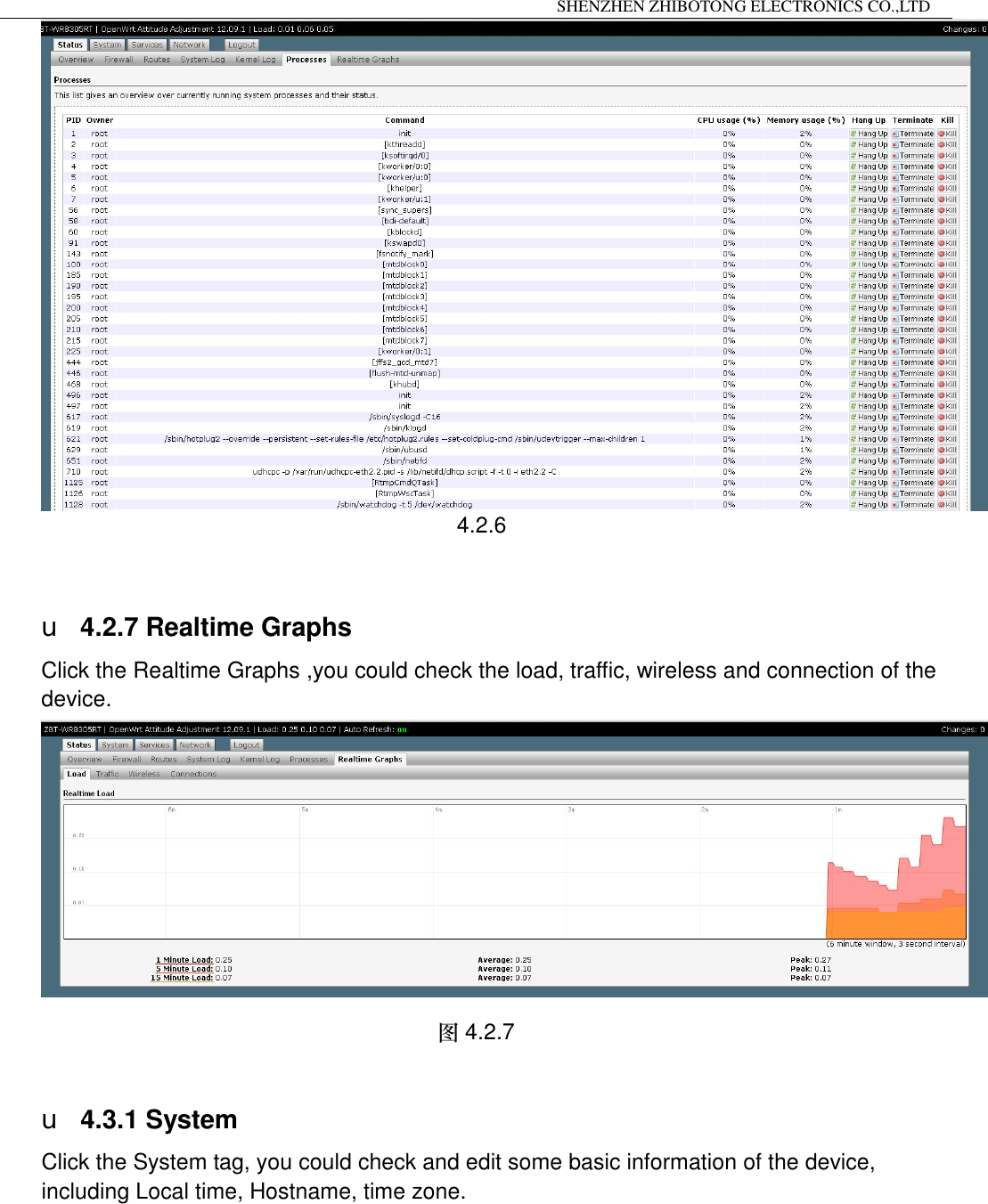

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4.2.6 u 4.2.7 Realtime Graphs Click the Realtime Graphs ,you could check the load, traffic, wireless and connection of the device. 图4.2.7 u 4.3.1 System Click the System tag, you could check and edit some basic information of the device, including Local time, Hostname, time zone.
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4.3.1 u 4.3.2 Administration You can edit the administrator password for accessing the device u 4.3.3 Software Click the software page, you could download and install the package , do not operate it without a professional engineer. u 4.3.4 Startup Click to the Startup page, You can enable or disable installed init scripts here. Changes will applied after a device reboot, do not operate it without a professional engineer. u 4.3.5 Schedule Tasks This is the system crontab in which scheduled tasks can be defined.，do not operate it
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD without a professional engineer. u 4.3.6 Mount Points, LED Configuration Do some edition about the system , do not operate it without a professional engineer. u 4.3.7 Backup/Flash Firmware You could upgrade the firmware or backup it in this page, as below. 4.3.7 u 4.3.8 Reboot Select menu system to restart, you can restart your device. When you click the Reboot tag, the device will reboot. n 4.4. Service u 4.4.1 Dynamic DNS Dynamic DNS allows that your router can be reached with a fixed hostname while having a dynamically changing IP address n 4.5 Network u 4.5.1 Interfaces Click the Interface tag, you could check the wired port’s status and edit it.
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 4.5.1 u 4.5.2 Wireless Click the Interface tag, you could check the wireless port’s status and edit it. 4.5.2 u 4.5.3 DHCP/DNS、Hostnames, Static Routes, You could edit these setting in relevant page. do not operate it without a professional engineer. u 4.5.4 Firewall The firewall creates zones over your network interfaces to control network traffic flow Pic 4.5.4 u 4.5.5 QOS With QoS you can prioritize network traffic selected by addresses, ports or services.

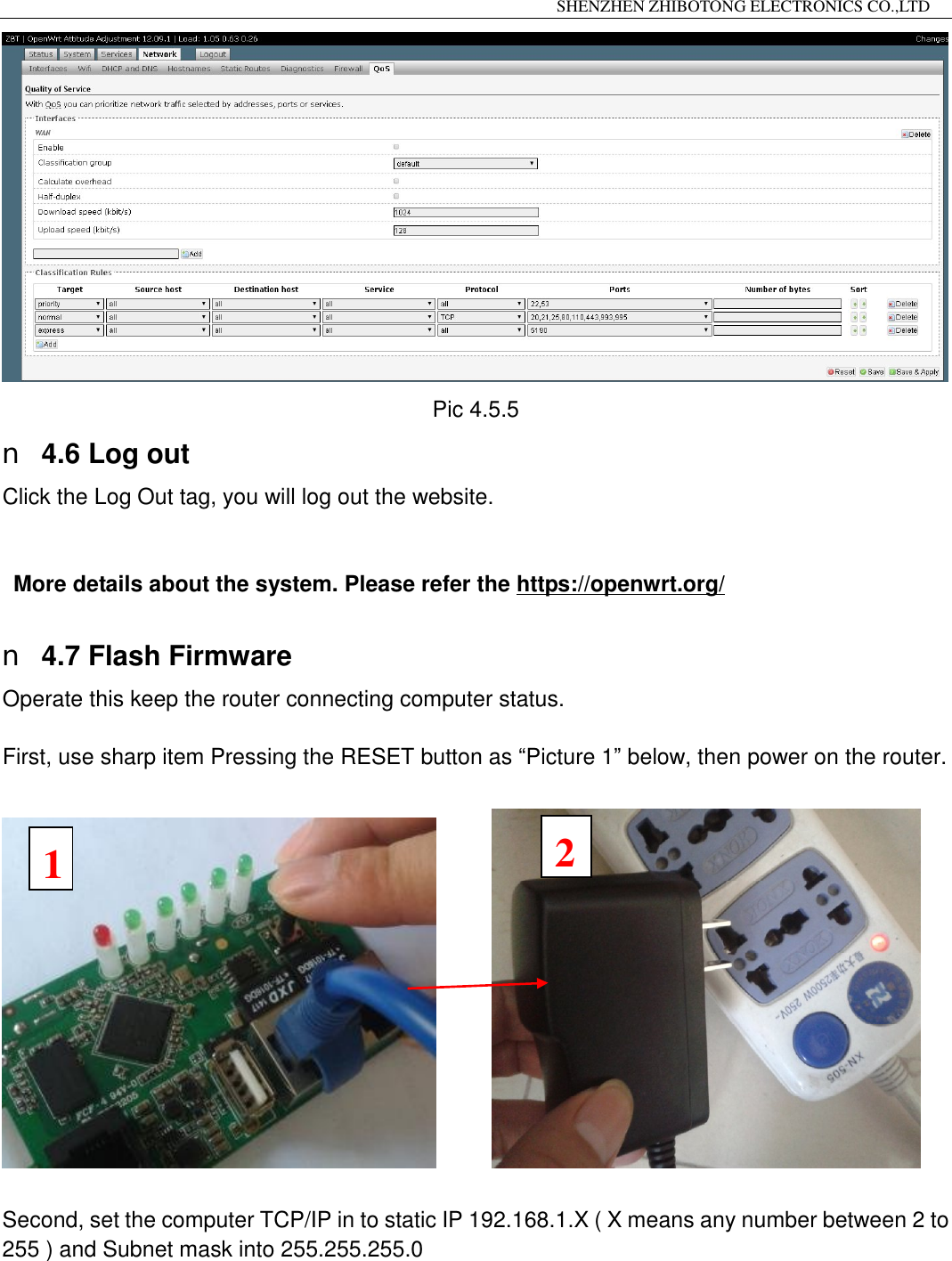

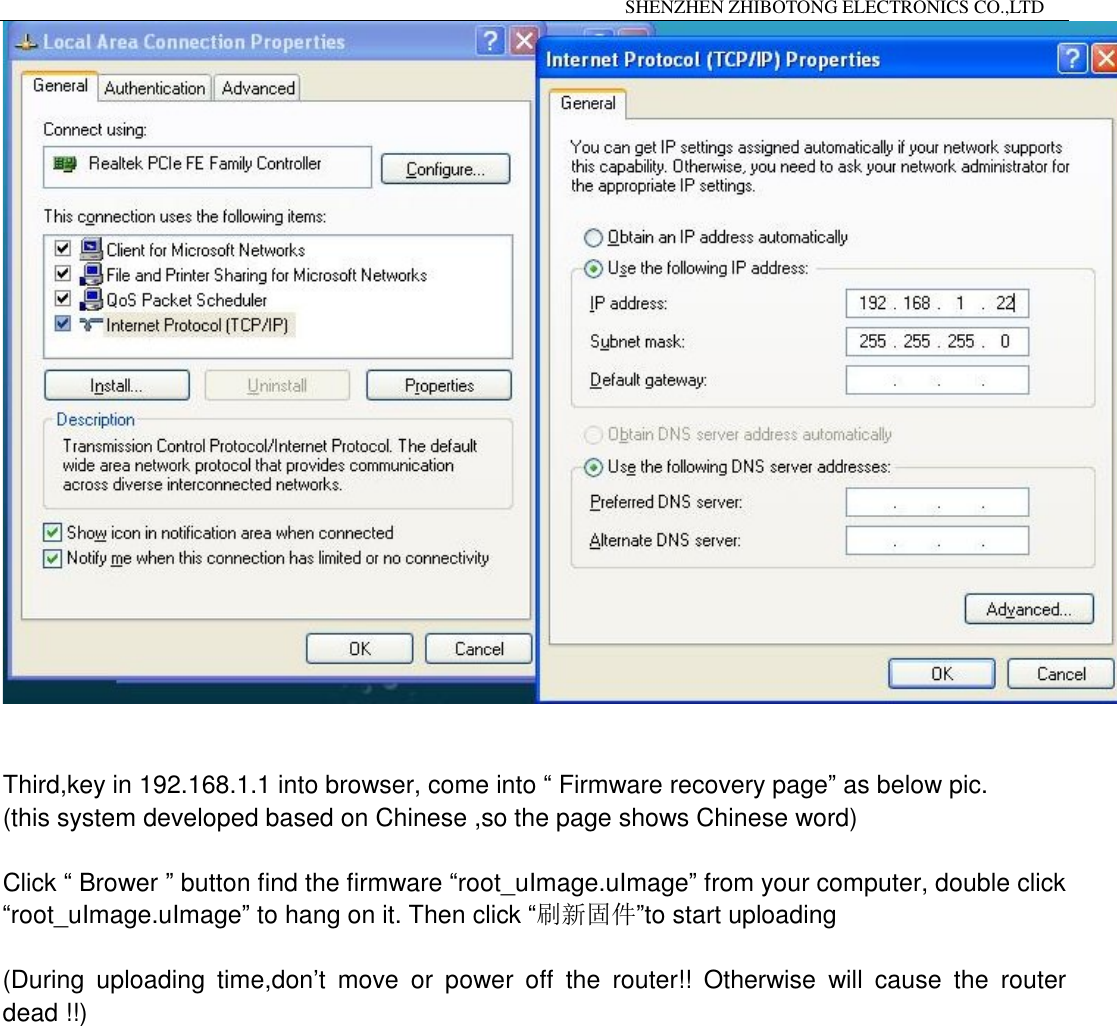

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD Pic 4.5.5 n 4.6 Log out Click the Log Out tag, you will log out the website. More details about the system. Please refer the https://openwrt.org/ n 4.7 Flash Firmware Operate this keep the router connecting computer status. First, use sharp item Pressing the RESET button as “Picture 1” below, then power on the router. Second, set the computer TCP/IP in to static IP 192.168.1.X ( X means any number between 2 to 255 ) and Subnet mask into 255.255.255.0 1 2
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD Third,key in 192.168.1.1 into browser, come into “ Firmware recovery page” as below pic. (this system developed based on Chinese ,so the page shows Chinese word) Click “ Brower ” button find the firmware “root_uImage.uImage” from your computer, double click “root_uImage.uImage” to hang on it. Then click “刷新固件”to start uploading (During uploading time,don’t move or power off the router!! Otherwise will cause the router dead !!)

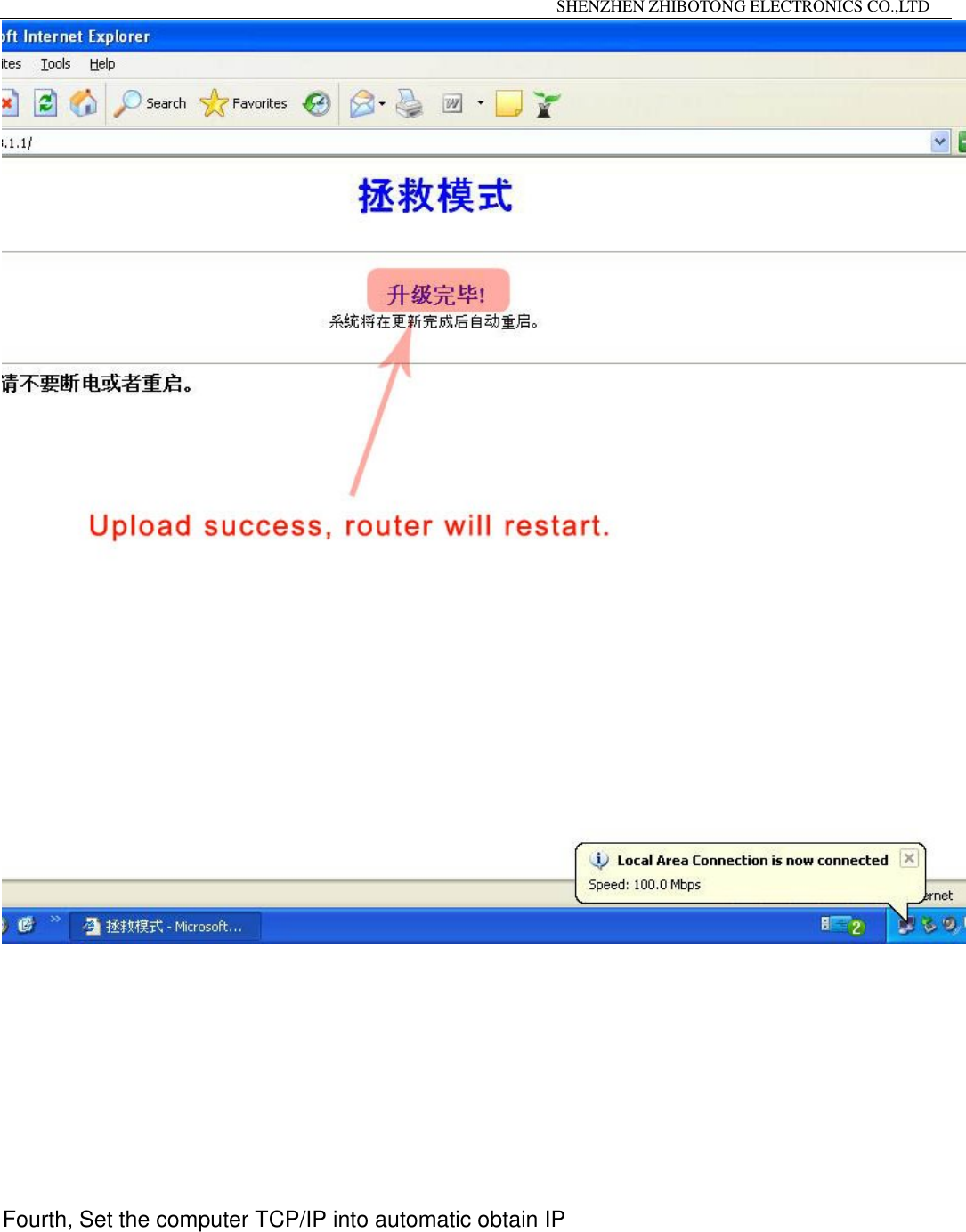

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD About 100seconds, the file upload success will show “升级完毕” as below picture show. And the router will automatic restart

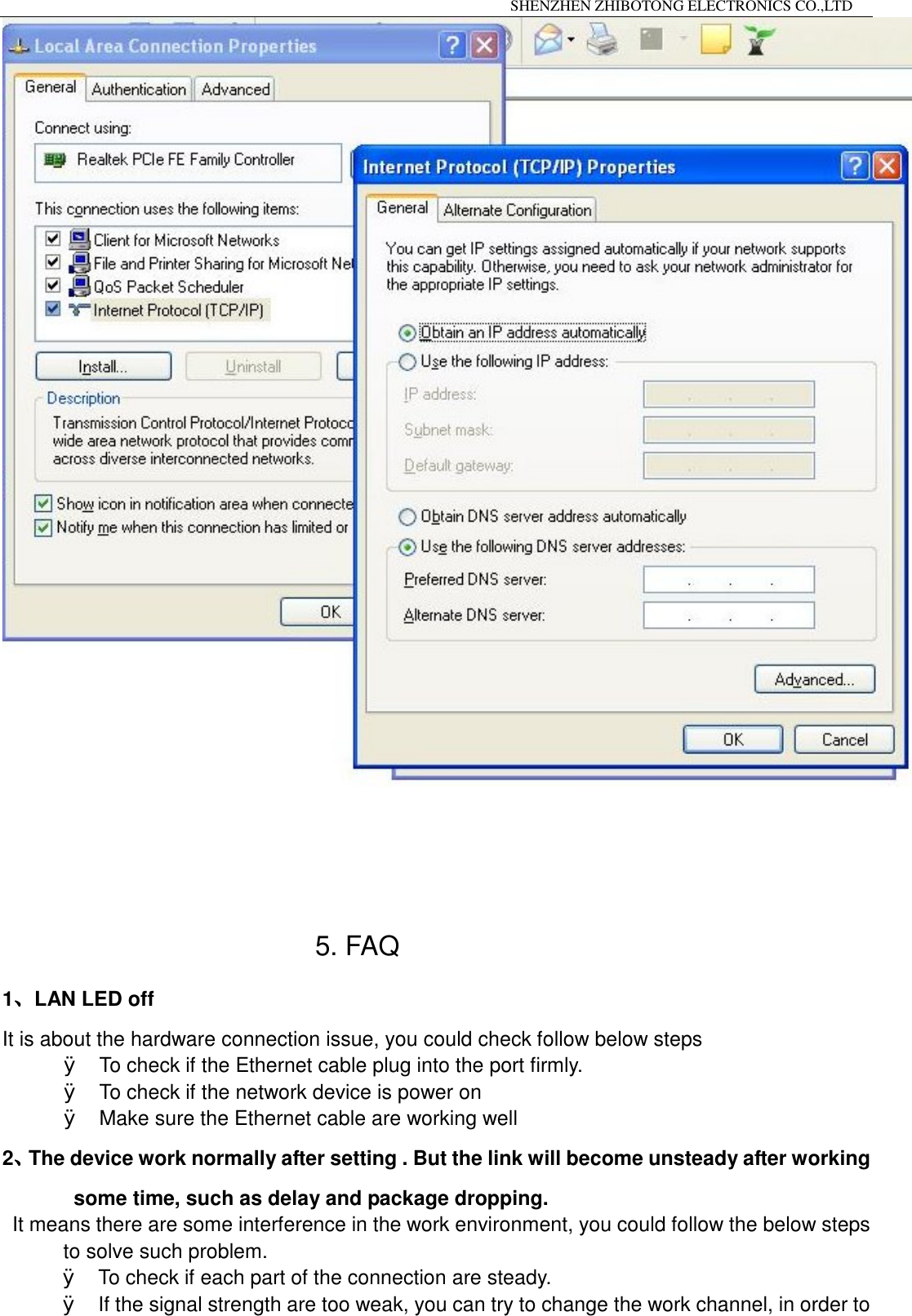

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD Fourth, Set the computer TCP/IP into automatic obtain IP
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD 5. FAQ 1、LAN LED off It is about the hardware connection issue, you could check follow below steps Ø To check if the Ethernet cable plug into the port firmly. Ø To check if the network device is power on Ø Make sure the Ethernet cable are working well 2、The device work normally after setting . But the link will become unsteady after working some time, such as delay and package dropping. It means there are some interference in the work environment, you could follow the below steps to solve such problem. Ø To check if each part of the connection are steady. Ø If the signal strength are too weak, you can try to change the work channel, in order to

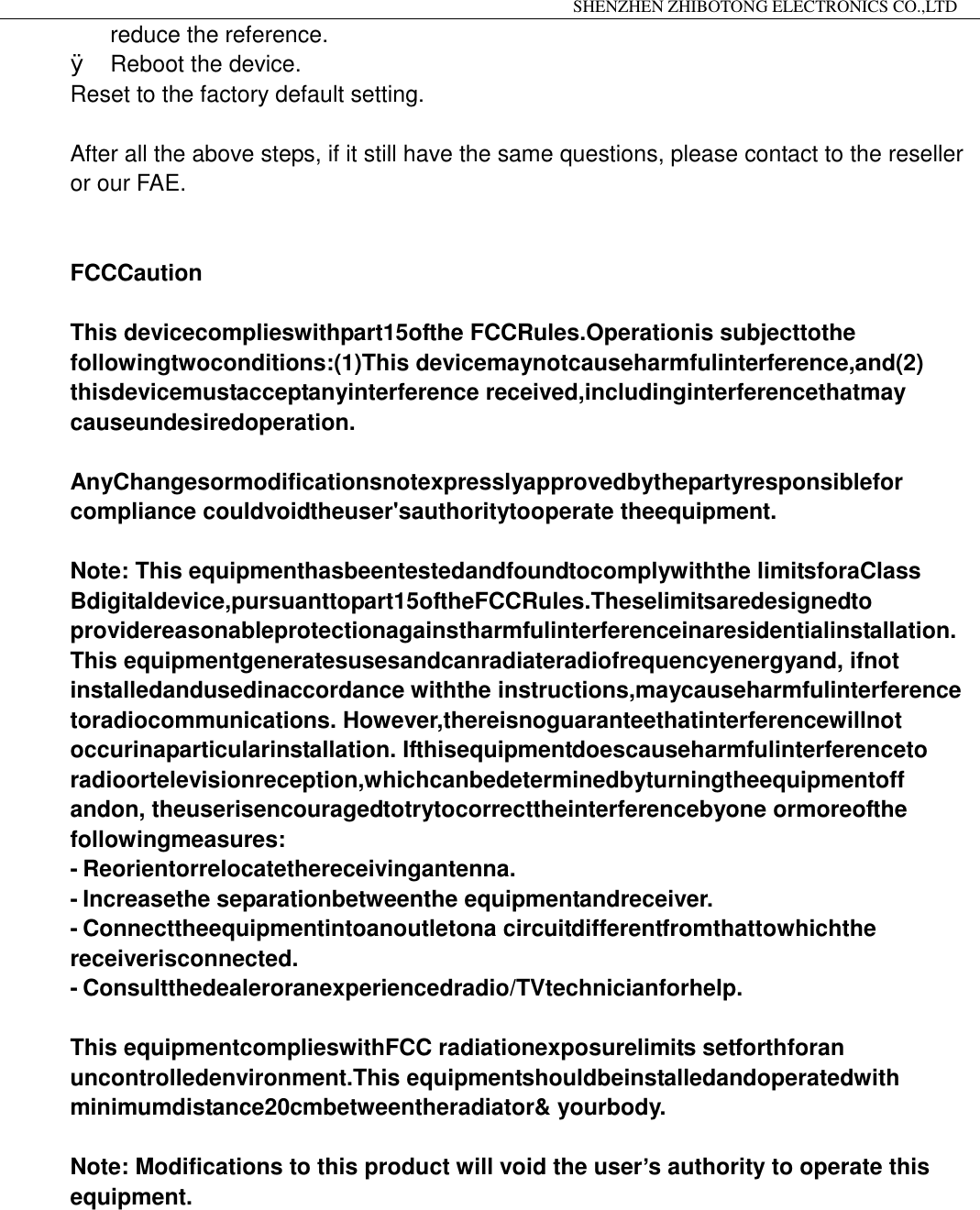

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD reduce the reference. Ø Reboot the device. Reset to the factory default setting. After all the above steps, if it still have the same questions, please contact to the reseller or our FAE. FCCCaution This devicecomplieswithpart15ofthe FCCRules.Operationis subjecttothe followingtwoconditions:(1)This devicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterference received,includinginterferencethatmay causeundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliance couldvoidtheuser'sauthoritytooperate theequipment. Note: This equipmenthasbeentestedandfoundtocomplywiththe limitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. This equipmentgeneratesusesandcanradiateradiofrequencyenergyand, ifnot installedandusedinaccordance withthe instructions,maycauseharmfulinterference toradiocommunications. However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation. Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon, theuserisencouragedtotrytocorrecttheinterferencebyone ormoreofthe followingmeasures: - Reorientorrelocatethereceivingantenna. - Increasethe separationbetweenthe equipmentandreceiver. - Connecttheequipmentintoanoutletona circuitdifferentfromthattowhichthe receiverisconnected. - Consultthedealeroranexperiencedradio/TVtechnicianforhelp. This equipmentcomplieswithFCC radiationexposurelimits setforthforan uncontrolledenvironment.This equipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator& yourbody. Note: Modifications to this product will void the user’s authority to operate this equipment.
