ZHUHAI WINGPOW EROTIC and NOVELTY 31415T Party in my pants User Manual
ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. Party in my pants Users Manual
user manual

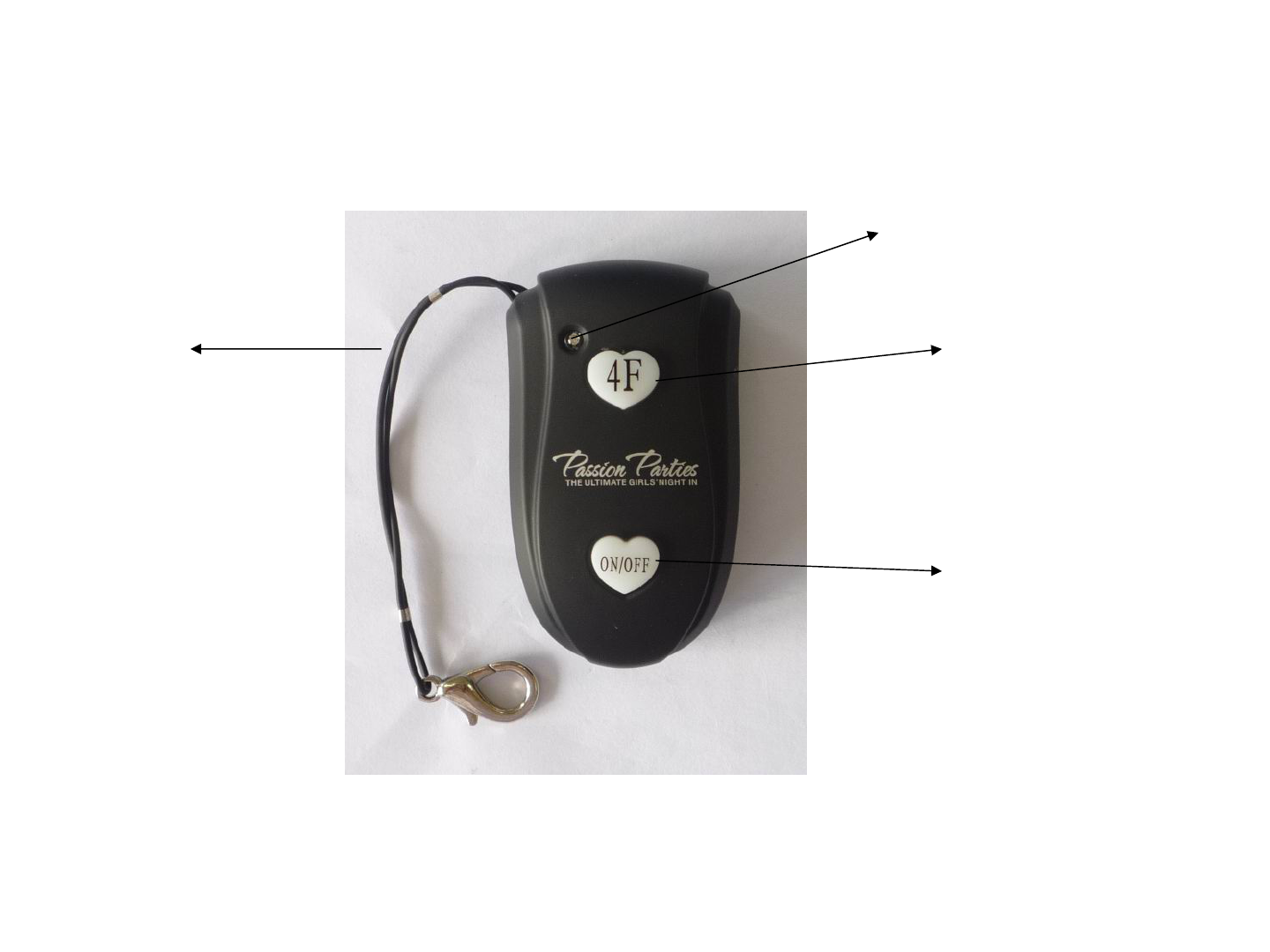

Introduction to Design Plan of Transmitter
Transmitter
Antenna 4F functional
button
ON/OFF button
LED display
Operating Principle
• Master Control Chip conducts data analysis and identification on button
demand through button scan. Analog signal will be converted to digital
signal through A/D Converter, and corresponding code signal will be
output following operation.
• After the user’s button demand is processed to code signal , the code
signal will be loaded to high-frequency local oscillator signal by
frequency mixing so as to form radio-frequency signal satisfying
requirement of transmission.
• Code signal is loaded to radio-frequency signal and is transmitted to
surrounding environment by antenna via transmission circuit, in order to
control action of receiver.

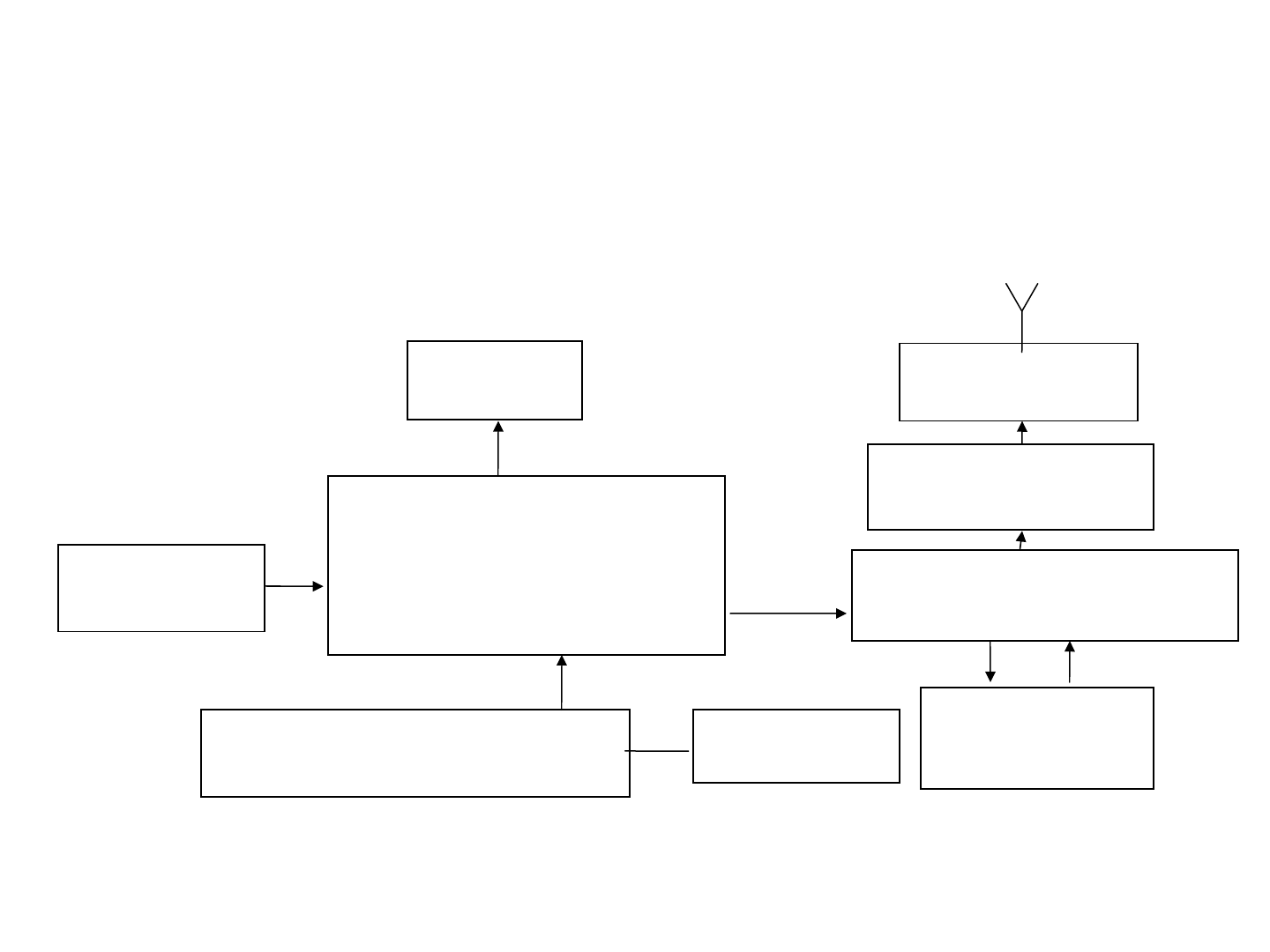

Logic Block Diagram
Transmission
antenna
Modulation of high-
frequency local oscillator
Voltage stabilization and
filtering
Status
display
Output of RF carrier
signal
Master Control Chip
Signal Processing Unit
A/D Converter and code
output
Functional
button circuit
12V battery as
power supply
Code
signal
433.92M Quartz
Crystal Local
Resonator
Electric Parameters and Properties
• Voltage of power supply：23A battery, 12VDC
• Transmission amplitude ：
Principal wave +17DB
Secondary harmonic -18DB
• Transmission frequency：433.92MHZ （+/-
20PPM）
• Modulation model：AM
Application Method
• Press Start button of receiver, and the system starts in ready
mode ；
• Long press ON/OFF button for 3 seconds, the product will work in
F1 mode and start vibration；
• Press 4F button of remote-controller, the product will work in F2
mode and accelerate vibration；
• Press 4F button of remote-controller again, the product will work in
F3 mode and vibrate at the highest speed；
• Press 4F button of remote-controller again, the product will work in
F4 mode and pulse vibration mode. The four modes may change
from F1 to F4 repeatedly.
• Long press ON/OFF button for 3 seconds again, the product will
turn off and stop work；
• Red light of LED can be seen while pressing button.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• (1) this device may not causeharmful interference, and
• (2) this device must accept any interference received, including interference that may
cause undesired operation.
• hanges or modifications not expressly approved by the party responsible for
compliance
• could void the user's authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
• designed to provide reasonable protection against harmful interference in a
• residential installation. This equipment generates, uses and can radiate radio
• frequency energy and, if not installed and used in accordance with the
• instructions, may cause harmful interference to radio communications. However,
• there is no guarantee that interference will not occur in a particular installation.
• If this equipment does cause harmful interference to radio or television reception,
• which can be determined by turning the equipment off and on, the user is
• encouraged to try to correct the interference by one or more of the following
• measures:
• -- Reorient or relocate the receiving antenna.
• -- Increase the separation between the equipment and receiver.
• -- Connect the equipment into an outlet on a circuit different
• from that to which the receiver is connected.
• -- Consult the dealer or an experienced radio/TV technician for help.
