ZIONCOM ELECTRONICS IP04304 AC1200 Mini Dual Band Wireless Router User Manual

ZIONCOM ELECTRONICS (SHENZHEN) LTD. AC1200 Mini Dual Band Wireless Router

User Manual

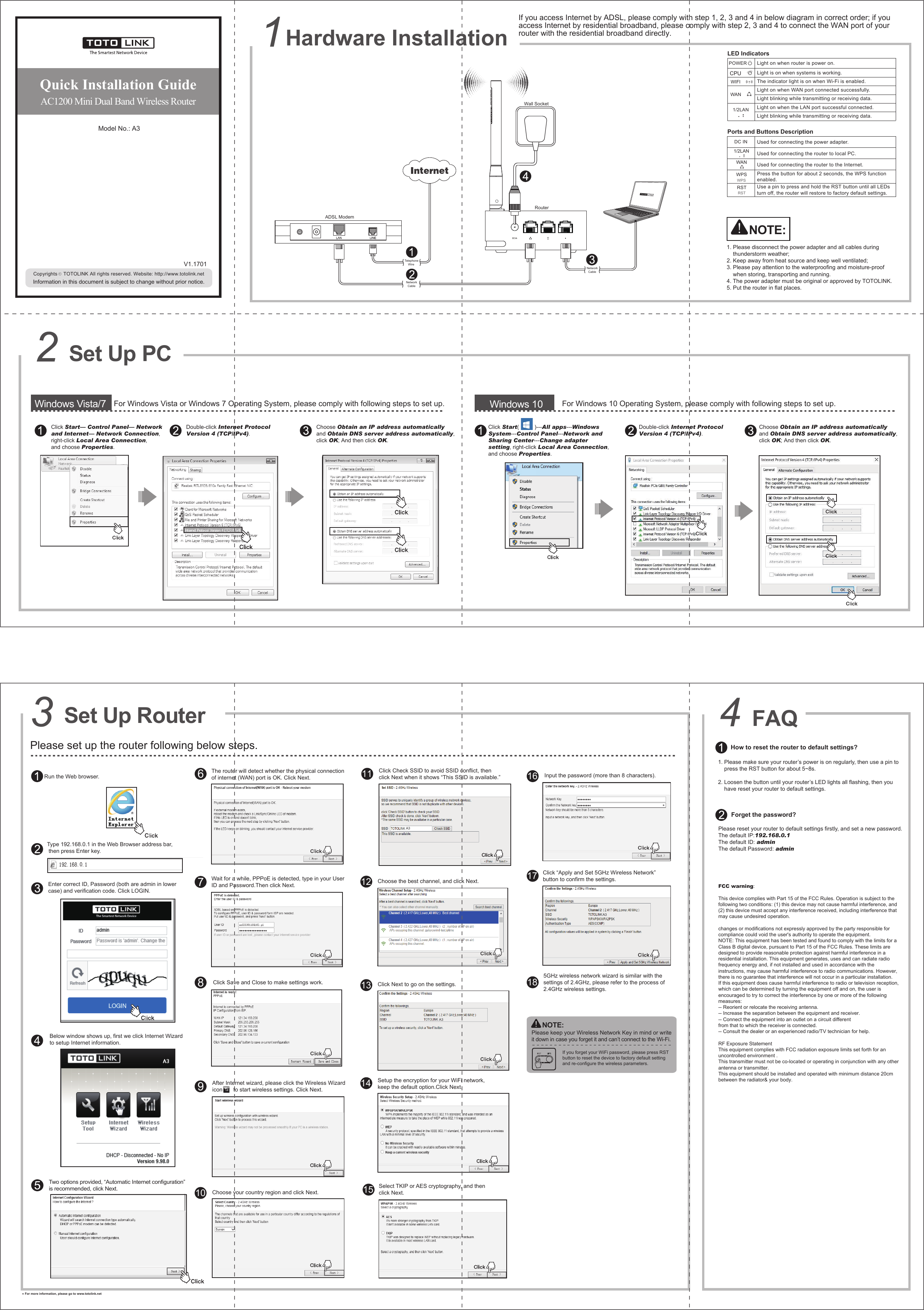

Hardware Installation1. Please disconnect the power adapter and all cables during thunderstorm weather;2. Keep away from heat source and keep well ventilated;3. Please pay attention to the waterproofing and moisture-proof when storing, transporting and running.4. The power adapter must be original or approved by TOTOLINK.5. Put the router in flat places.Set Up PCWindows 10Windows Vista/7 For Windows 10 Operating System, please comply with following steps to set up.If you access Internet by ADSL, please comply with step 1, 2, 3 and 4 in below diagram in correct order; if you access Internet by residential broadband, please comply with step 2, 3 and 4 to connect the WAN port of your router with the residential broadband directly.For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.Click Start— Control Panel— Network and Internet— Network Connection, right-click Local Area Connection, and choose Properties.Double-click Internet Protocol Version 4 (TCP/IPv4).Choose Obtain an IP address automaticallyand Obtain DNS server address automatically, click OK; And then click OK. Quick Installation GuideAC1200 Mini Dual Band Wireless RouterNOTE:For more information, please go to www.totolink.netInformation in this document is subject to change without prior notice.LED IndicatorsCPUWIFI1/2LANWANLight on when router is power on.POWERLight is on when systems is working. The indicator light is on when Wi-Fi is enabled.Light on when WAN port connected successfully.Light blinking while transmitting or receiving data.Light on when the LAN port successful connected.Light blinking while transmitting or receiving data.Ports and Buttons Description1/2LANWPSRSTWANUsed for connecting the power adapter.DC INUsed for connecting the router to local PC.Used for connecting the router to the Internet.Press the button for about 2 seconds, the WPS function enabled.Use a pin to press and hold the RST button until all LEDs turn off, the router will restore to factory default settings. WPSRSTModel No.: A3Copyrights TOTOLINK All rights reserved. Website: http://www.totolink.netV1.1701 TelephoneWire NetworkCableNetworkCableADSL ModemRouterWall SocketFAQForget the password?4How to reset the router to default settings?1. Please make sure your router’s power is on regularly, then use a pin to press the RST button for about 5~8s.2. Loosen the button until your router’s LED lights all flashing, then you have reset your router to default settings.Please reset your router to default settings firstly, and set a new password.The default IP:192.168.0.1The default ID: adminThe default Password: adminClick Start( )---All apps---WindowsSystem---Control Panel---Network and Sharing Center---Change adapter setting, right-click Local Area Connection, and choose Properties.Double-click Internet ProtocolVersion 4 (TCP/IPv4). Choose Obtain an IP address automaticallyand Obtain DNS server address automatically, click OK; And then click OK.Set Up RouterPlease set up the router following below steps.3678The router will detect whether the physical connection of internet (WAN) port is OK. Click Next.Wait for a while, PPPoE is detected, type in your User ID and Password.Then click Next. Click Save and Close to make settings work.910After Internet wizard, please click the Wireless Wizard icon to start wireless settings. Click Next.Choose your country region and click Next.11 Click Check SSID to avoid SSID conflict, then click Next when it shows “This SSID is available.”141213Choose the best channel, and click Next.Click Next to go on the settings.Setup the encryption for your WiFi network,keep the default option.Click Next.15 Select TKIP or AES cryptography, and then click Next.A3A31716Click “Apply and Set 5GHz Wireless Network” button to confirm the settings. Input the password (more than 8 characters).185GHz wireless network wizard is similar with the settings of 2.4GHz, please refer to the process of 2.4GHz wireless settings.A3Enter correct ID, Password (both are admin in lowercase) and verification code. Click LOGIN.Type 192.168.0.1 in the Web Browser address bar, then press Enter key.Run the Web browser.Below window shows up, first we click Internet Wizard to setup Internet information.Two options provided, “Automatic Internet configuration” is recommended, click Next.0If you forget your WiFi password, please press RSTbutton to reset the device to factory default settingand re-configure the wireless parameters.NOTE:Please keep your Wireless Network Key in mind or write it down in case you forget it and can’t connect to the Wi-Fi.FCC warning: This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for anuncontrolled environment .This transmitter must not be co-located or operating in conjunction with any otherantenna or transmitter.This equipment should be installed and operated with minimum distance 20cmbetween the radiator& your body.
