ZIONCOM ELECTRONICS IP04348 AC1200 Wireless Dual Band Gigabit Router User Manual 2018 1 31 IP04348

ZIONCOM ELECTRONICS (SHENZHEN) LTD. AC1200 Wireless Dual Band Gigabit Router 2018 1 31 IP04348

User Manual

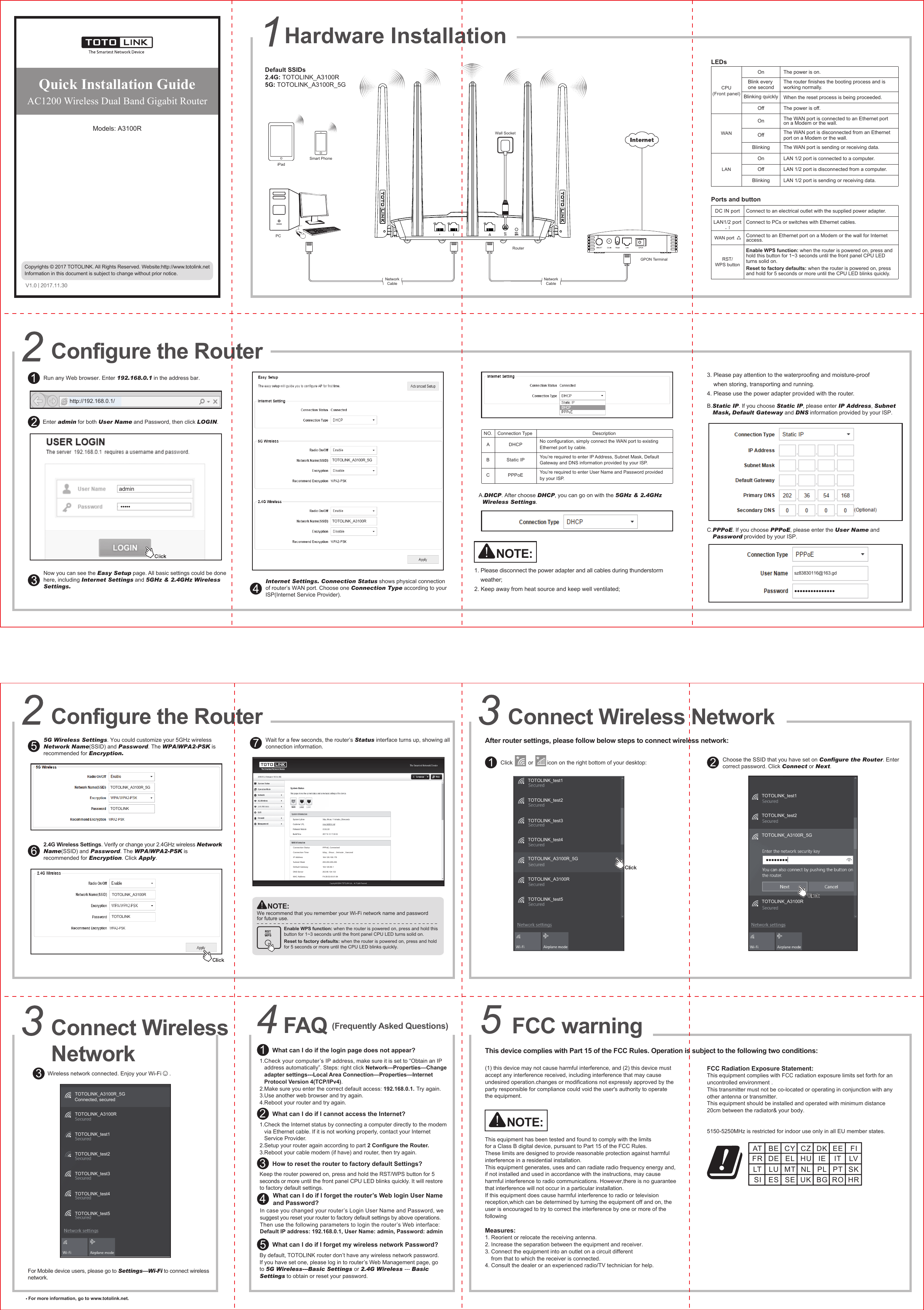

Hardware InstallationDefault SSIDs2.4G: TOTOLINK_A3100R 5G: TOTOLINK_A3100R_5GConfigure the RouterConfigure the RouterInternet Settings. Connection Status shows physical connectionof router’s WAN port. Choose one Connection Type according to yourISP(Internet Service Provider).TOTOLINK_A3100R_5GTOTOLINK_A3100R55G Wireless Settings. You could customize your 5GHz wirelessNetwork Name(SSID) and Password. The WPA/WPA2-PSK isrecommended for Encryption.TOTOLINK_A3100R_5GTOTOLINK62.4G Wireless Settings. Verify or change your 2.4GHz wireless NetworkName(SSID) and Password. The WPA/WPA2-PSK isrecommended for Encryption. Click Apply.TOTOLINKTOTOLINK_A3100RWhat can I do if the login page does not appear?1.Check your computer’s IP address, make sure it is set to “Obtain an IP address automatically”. Steps: right click Network—Properties—Change adapter settings---Local Area Connection—Properties—Internet Protocol Version 4(TCP/IPv4).2.Make sure you enter the correct default access: 192.168.0.1. Try again.3.Use another web browser and try again.4.Reboot your router and try again.1What can I do if I cannot access the Internet?1.Check the Internet status by connecting a computer directly to the modem via Ethernet cable. If it is not working properly, contact your Internet Service Provider. 2.Setup your router again according to part 2 Configure the Router.3.Reboot your cable modem (if have) and router, then try again.2By default, TOTOLINK router don’t have any wireless network password.If you have set one, please log in to router’s Web Management page, goto 5G Wireless---Basic Settings or 2.4G Wireless --- BasicSettings to obtain or reset your password. What can I do if I forget my wireless network Password?5What can I do if I forget the router’s Web login User Nameand Password?In case you changed your router’s Login User Name and Password, wesuggest you reset your router to factory default settings by above operations. Then use the following parameters to login the router’s Web interface:Default IP address: 192.168.0.1, User Name: admin, Password: admin4How to reset the router to factory default Settings?Keep the router powered on, press and hold the RST/WPS button for 5seconds or more until the front panel CPU LED blinks quickly. It will restoreto factory default settings.3(Frequently Asked Questions)FAQ4B.Static IP. If you choose Static IP, please enter IP Address, Subnet Mask, Default Gateway and DNS information provided by your ISP.C.PPPoE. If you choose PPPoE, please enter the User Name and Password provided by your ISP. sz83830116@163.gd●●●●●●●●●●●●●●●Quick Installation GuideModels: A3100RCopyrights © 2017 TOTOLINK. All Rights Reserved. Website:http://www.totolink.netInformation in this document is subject to change without prior notice.V1.0 | 2017.11.30 GPON TerminalRouterPCiPadSmart PhoneNetworkCableNetworkCableWall SocketLEDsThe power is on.The router finishes the booting process and isworking normally.OnOffBlink every one secondWhen the reset process is being proceeded.The power is off.The WAN port is sending or receiving data.On The WAN port is connected to an Ethernet port on a Modem or the wall.OffBlinkingLAN 1/2 port is connected to a computer.OnLAN 1/2 port is disconnected from a computer.OffLAN 1/2 port is sending or receiving data.BlinkingThe WAN port is disconnected from an Ethernet port on a Modem or the wall.Blinking quicklyCPU(Front panel)WANLANRun any Web browser. Enter 192.168.0.1 in the address bar. http://192.168.0.1/Now you can see the Easy Setup page. All basic settings could be donehere, including Internet Settings and 5GHz & 2.4GHz WirelessSettings. Enter admin for both User Name and Password, then click LOGIN.admin7Wait for a few seconds, the router’s Status interface turns up, showing allconnection information.Connection Status PPPoE, ConnectedConnection Time 0day，0hour，0minute，0secondIP Address 164.126.106.178Subnet Mask 255.255.255.255Default Gateway 164.126.96.1DNS Server 202.96.134.133MAC Address F4:28:53:00:01:84Enable WPS function: when the router is powered on, press and hold this button for 1~3 seconds until the front panel CPU LED turns solid on.Reset to factory defaults: when the router is powered on, press and hold for 5 seconds or more until the CPU LED blinks quickly.NOTE:We recommend that you remember your Wi-Fi network name and password for future use. For more information, go to www.totolink.net.Connect Wireless NetworkAfter router settings, please follow below steps to connect wireless network:Click or icon on the right bottom of your desktop: 1TOTOLINK_A3100RTOTOLINK_A3100R_5GTOTOLINK_test3TOTOLINK_test4TOTOLINK_test5TOTOLINK_test2TOTOLINK_test13Wireless network connected. Enjoy your Wi-Fi☺.For Mobile device users, please go to Settings—Wi-Fi to connect wireless network. TOTOLINK_A3100R_5GTOTOLINK_A3100RTOTOLINK_test1TOTOLINK_test2TOTOLINK_test3TOTOLINK_test4TOTOLINK_test5Connected, secured2Choose the SSID that you have set on Configure the Router. Enter correct password. Click Connect or Next.TOTOLINK_test1TOTOLINK_test2TOTOLINK_A3100R_5GTOTOLINK_A3100R3. Please pay attention to the waterproofing and moisture-proof when storing, transporting and running.4. Please use the power adapter provided with the router.RST/WPS buttonPorts and buttonConnect to an electrical outlet with the supplied power adapter.Connect to PCs or switches with Ethernet cables.Connect to an Ethernet port on a Modem or the wall for Internetaccess.DC IN portWAN portEnable WPS function: when the router is powered on, press andhold this button for 1~3 seconds until the front panel CPU LEDturns solid on.Reset to factory defaults: when the router is powered on, pressand hold for 5 seconds or more until the CPU LED blinks quickly.LAN1/2 port5 FCC warningFCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.5150-5250MHz is restricted for indoor use only in all EU member states.AT BE CY CZ DK EE FIFR DE EL HU IE IT LVLT LU MT NL PL PT SKSI ES SE UK BG RO HRDescriptionConnection TypeNO.No configuration, simply connect the WAN port to existingEthernet port by cable. DHCPAYou’re required to enter IP Address, Subnet Mask, DefaultGateway and DNS information provided by your ISP.Static IPBYou’re required to enter User Name and Password providedby your ISP.PPPoECA.DHCP. After choose DHCP, you can go on with the 5GHz & 2.4GHz Wireless Settings.1. Please disconnect the power adapter and all cables during thunderstorm weather;2. Keep away from heat source and keep well ventilated;NOTE:Connect Wireless NetworkThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:Measures:1. Reorient or relocate the receiving antenna.2. Increase the separation between the equipment and receiver.3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE:AC1200 Wireless Dual Band Gigabit Router
