Zero Energy Solutions YB25301 Amplified Zigbee module User Manual CC2530PA A1 Module

Zero Energy Solutions LTD. Amplified Zigbee module CC2530PA A1 Module

Manual

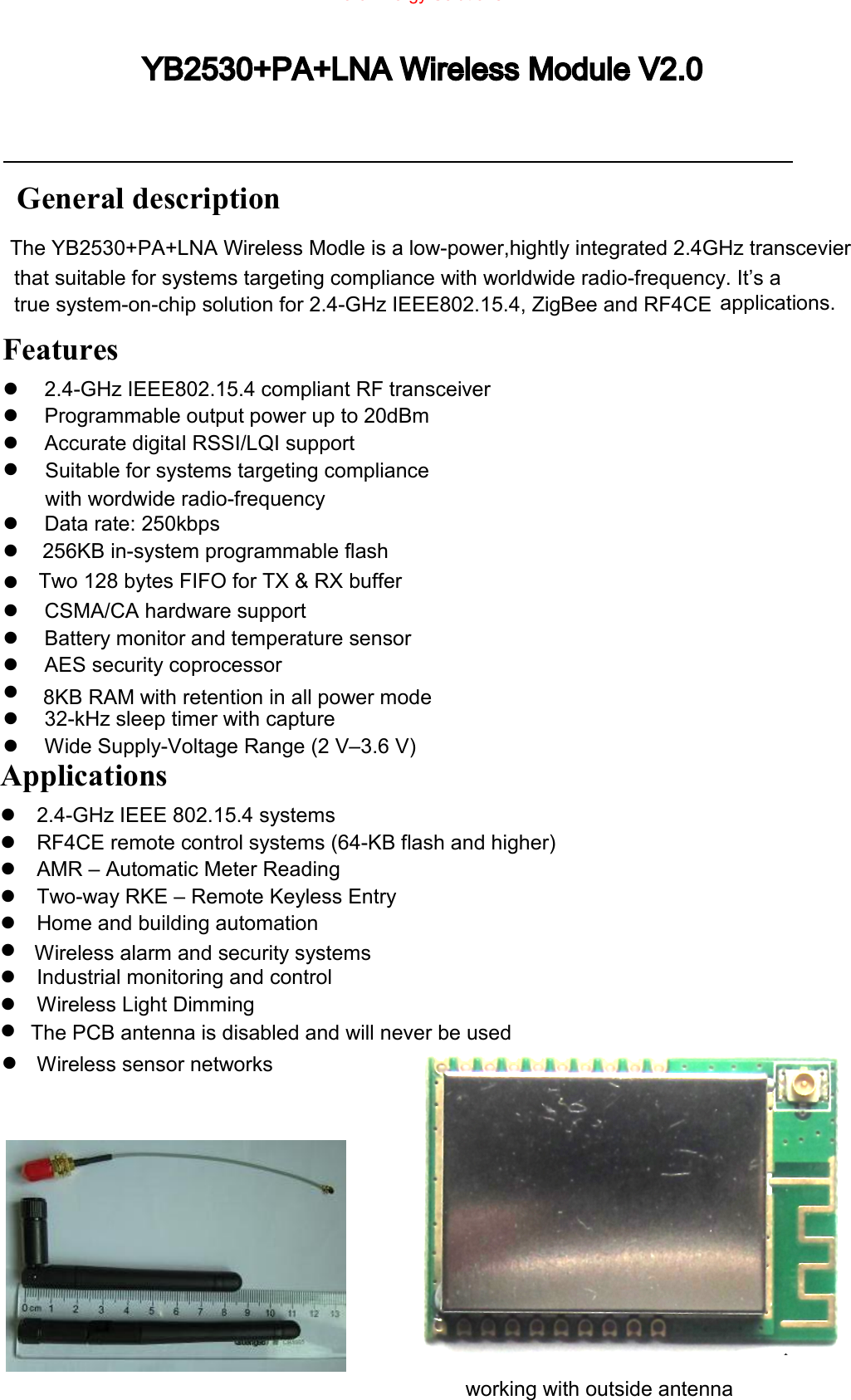

1 General description that suitable for systems targeting compliance with worldwide radio-frequency. It’s a true system-on-chip solution for 2.4-GHz IEEE802.15.4, ZigBee and RF4CE applications. Features  2.4-GHz IEEE802.15.4 compliant RF transceiver  Programmable output power up to 20dBm  Accurate digital RSSI/LQI support  Data rate: 250kbps  CSMA/CA hardware support  Battery monitor and temperature sensor  AES security coprocessor  8KB RAM with retention in all power mode  32-kHz sleep timer with capture  Wide Supply-Voltage Range (2 V–3.6 V) Applications  2.4-GHz IEEE 802.15.4 systems  RF4CE remote control systems (64-KB flash and higher)  AMR – Automatic Meter Reading  Two-way RKE – Remote Keyless Entry  Home and building automation  Wireless alarm and security systems  Industrial monitoring and control  Wireless Light Dimming  Wireless sensor networks YB2530+PA+LNA Wireless Module V2.0The YB2530+PA+LNA Wireless Modle is a low-power,hightly integrated 2.4GHz transcevierSuitable for systems targeting compliancewith wordwide radio-frequency256KB in-system programmable flashTwo 128 bytes FIFO for TX & RX bufferworking with outside antennaZero Energy Solutions LTD. The PCB antenna is disabled and will never be used

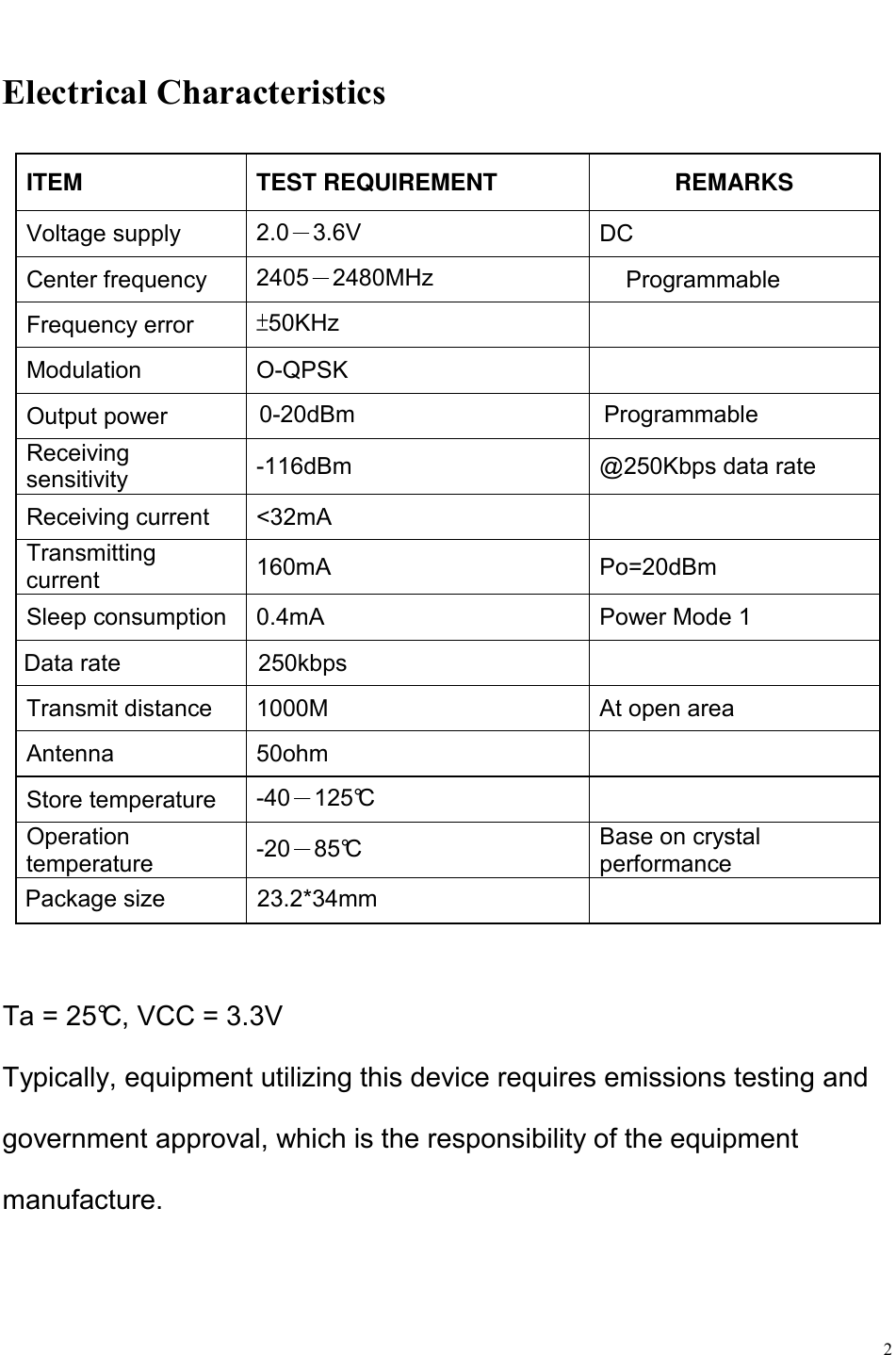

2 Electrical Characteristics ITEM TEST REQUIREMENT REMARKS Voltage supply 2.0－3.6V DC Center frequency 2405－2480MHz Programmable Frequency error ±50KHz Modulation O-QPSK Output power Receiving sensitivity -116dBm @250Kbps data rate Receiving current <32mA Transmitting current 160mA Po=20dBm Sleep consumption 0.4mA Power Mode 1 Transmit distance 1000M At open area Antenna 50ohm Store temperature -40－125°C Operation temperature -20－85°C Base on crystal performance Ta = 25°C, VCC = 3.3V Typically, equipment utilizing this device requires emissions testing and government approval, which is the responsibility of the equipment manufacture. Data rate 250kbps Package size 23.2*34mm 0-20dBm Programmable
4 Dimensions and Layout size Controlling the RF PA The two digital control pins ( ) have functional as below, CC2530 P1.1 Connect to PAEN of the PA chip    Design References 1. Texas Instruments Low-Power RF Web site has all our latest products, application and design notes, FAQ section news and events updates, and much more. Just go to www.ti.com/lprf. 2. IEEE Std. 802.15.4-2006: Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications http://standards.ieee.org/getieee802/download/802.15.4-2006.pdf Transmit mode PAEN logic 1, LNAEN logic 0Receive mode PAEN logic 0,LNAEN logic 1Idle mode PAEN logic 0,LNAEN logic 0CC2530 P1.4 Connect to LNAEN of the PA chipPAEN,LNAEN3. For IAR software,demo code,docments etc. over 700MB files,more than 300 membersin QQ group 255430047.

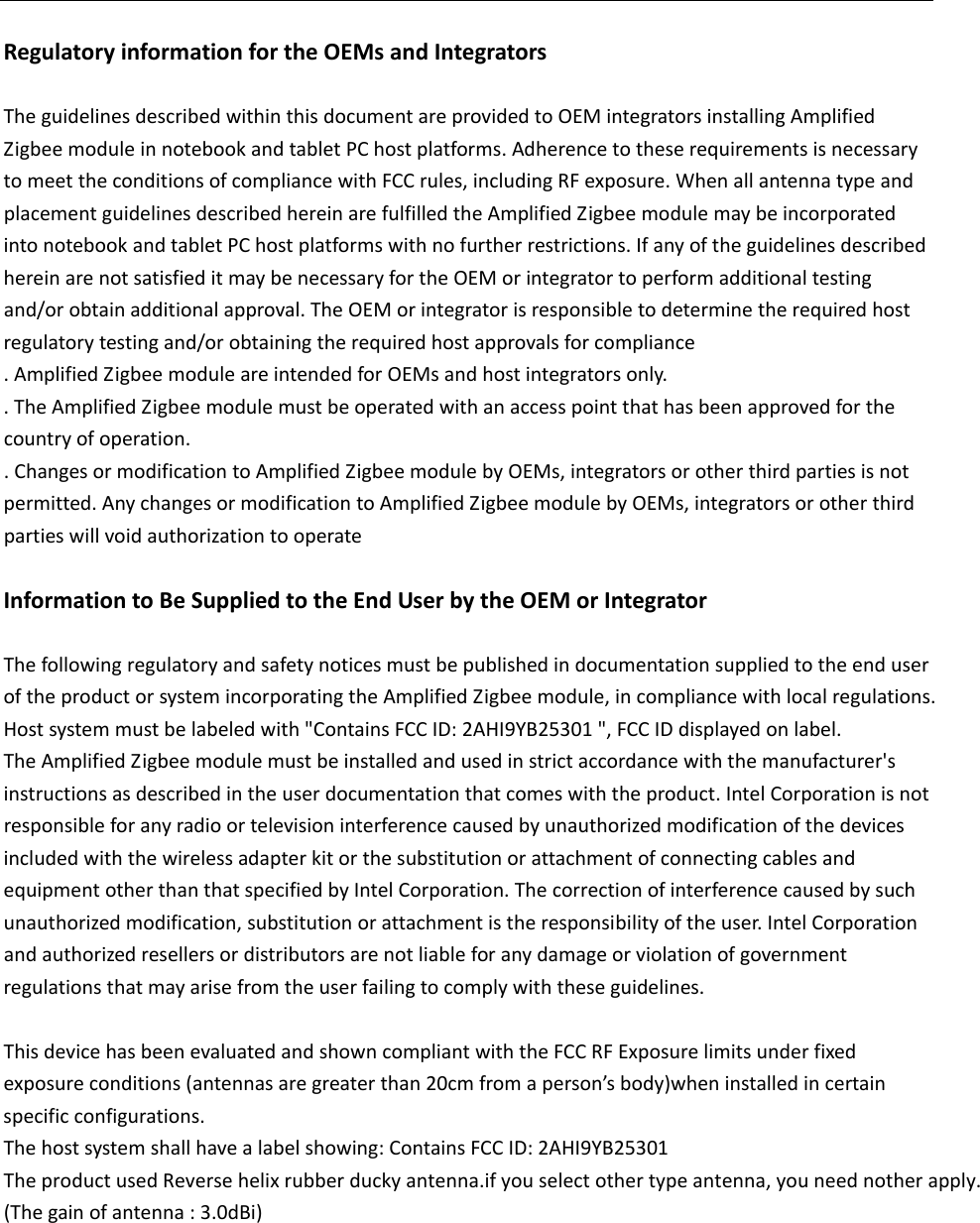

RegulatoryinformationfortheOEMsandIntegratorsTheguidelinesdescribedwithinthisdocumentareprovidedtoOEMintegratorsinstallingAmplifiedZigbeemoduleinnotebookandtabletPChostplatforms.AdherencetotheserequirementsisnecessarytomeettheconditionsofcompliancewithFCCrules,includingRFexposure.WhenallantennatypeandplacementguidelinesdescribedhereinarefulfilledtheAmplifiedZigbeemodulemaybeincorporatedintonotebookandtabletPChostplatformswithnofurtherrestrictions.IfanyoftheguidelinesdescribedhereinarenotsatisfieditmaybenecessaryfortheOEMorintegratortoperformadditionaltestingand/orobtainadditionalapproval.TheOEMorintegratorisresponsibletodeterminetherequiredhostregulatorytestingand/orobtainingtherequiredhostapprovalsforcompliance.AmplifiedZigbeemoduleareintendedforOEMsandhostintegratorsonly..TheAmplifiedZigbeemodulemustbeoperatedwithanaccesspointthathasbeenapprovedforthecountryofoperation..ChangesormodificationtoAmplifiedZigbeemodulebyOEMs,integratorsorotherthirdpartiesisnotpermitted.AnychangesormodificationtoAmplifiedZigbeemodulebyOEMs,integratorsorotherthirdpartieswillvoidauthorizationtooperateInformationtoBeSuppliedtotheEndUserbytheOEMorIntegratorThefollowingregulatoryandsafetynoticesmustbepublishedindocumentationsuppliedtotheenduseroftheproductorsystemincorporatingtheAmplifiedZigbeemodule,incompliancewithlocalregulations.Hostsystemmustbelabeledwith"ContainsFCCID: 2AHI9YB25301",FCCIDdisplayedonlabel.TheAmplifiedZigbeemodulemustbeinstalledandusedinstrictaccordancewiththemanufacturer'sinstructionsasdescribedintheuserdocumentationthatcomeswiththeproduct.IntelCorporationisnotresponsibleforanyradioortelevisioninterferencecausedbyunauthorizedmodificationofthedevicesincludedwiththewirelessadapterkitorthesubstitutionorattachmentofconnectingcablesandequipmentotherthanthatspecifiedbyIntelCorporation.Thecorrectionofinterferencecausedbysuchunauthorizedmodification,substitutionorattachmentistheresponsibilityoftheuser.IntelCorporationandauthorizedresellersordistributorsarenotliableforanydamageorviolationofgovernmentregulationsthatmayarisefromtheuserfailingtocomplywiththeseguidelines.ThisdevicehasbeenevaluatedandshowncompliantwiththeFCCRFExposurelimitsunderfixedexposureconditions(antennasaregreaterthan20cmfromaperson’sbody)wheninstalledincertainspecificconfigurations.Thehostsystemshallhavealabelshowing:ContainsFCCID:2AHI9YB25301The product used Reverse helix rubber ducky antenna.if you select other type antenna, you need nother apply. (Thegainofantenna:3.0dBi)

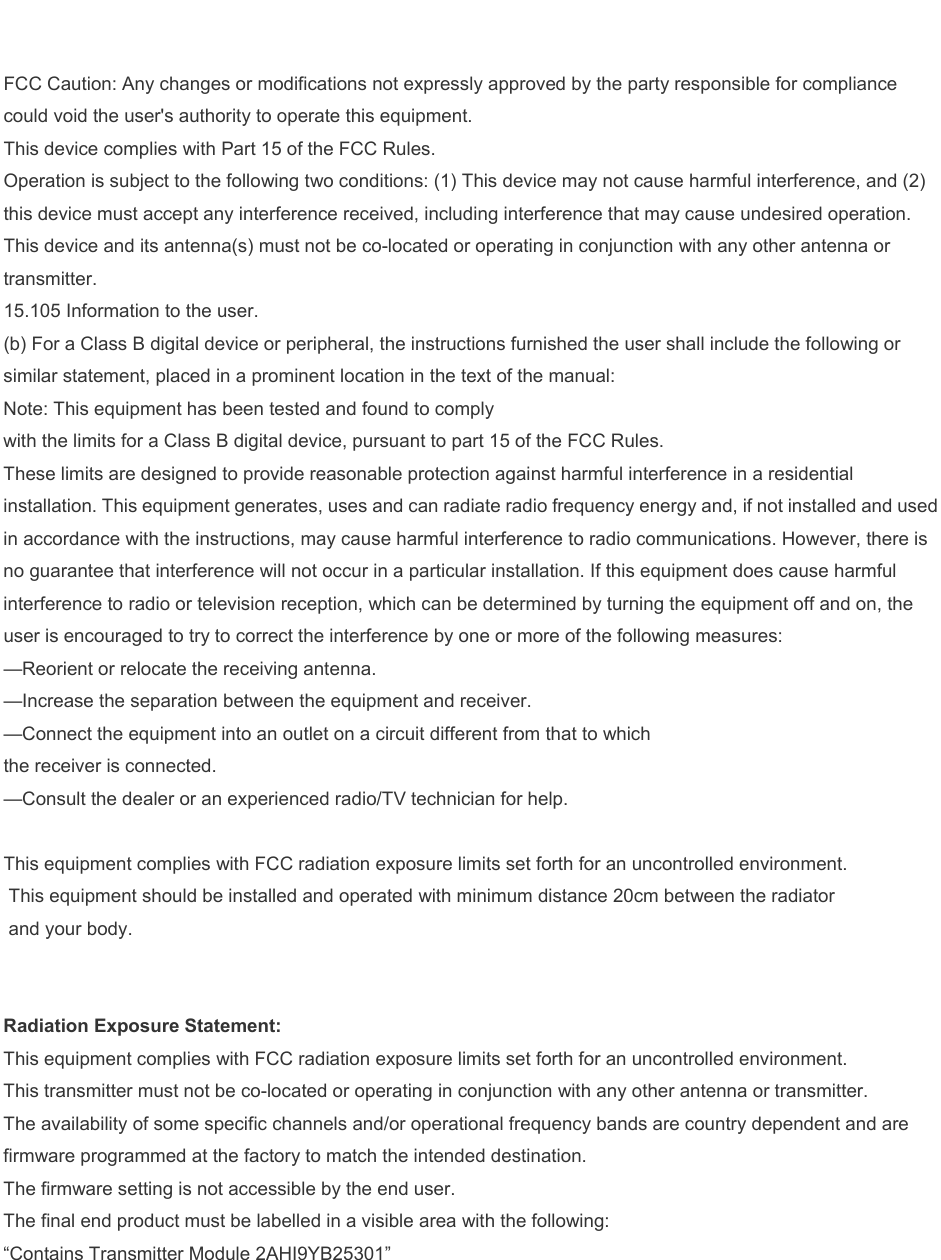

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. The final end product must be labelled in a visible area with the following: “Contains Transmitter Module 2AHI9YB25301” 
