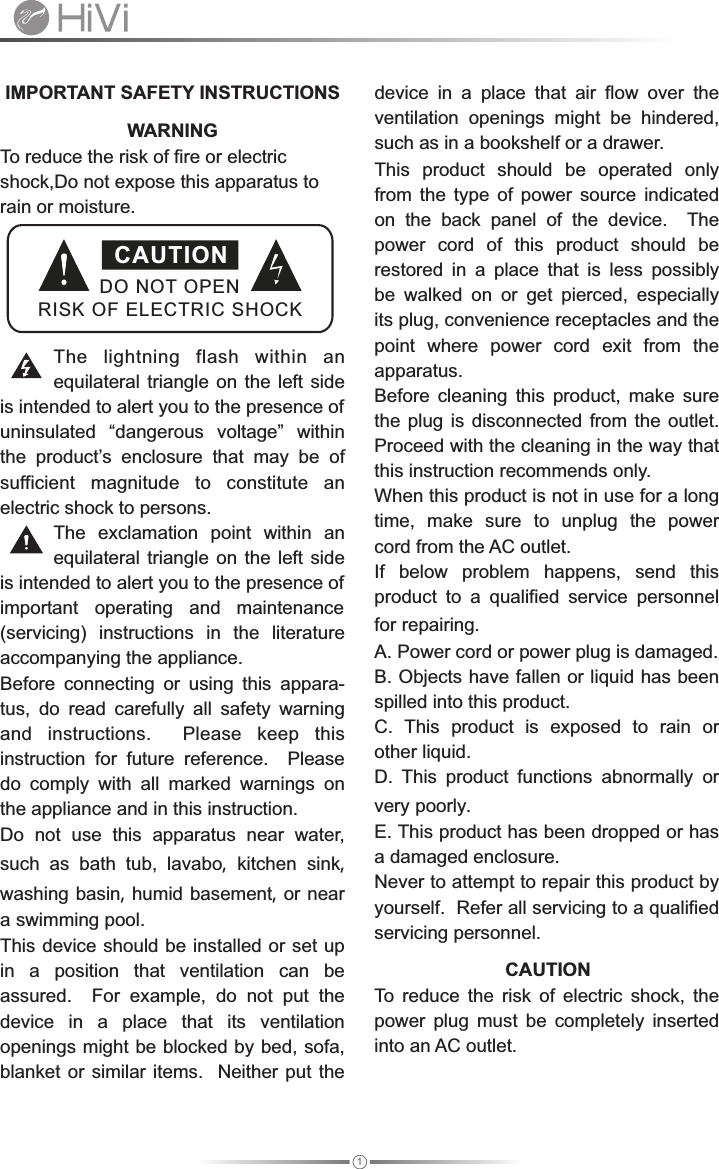

1 IMPORTANT SAFETY INSTRUCTIONS device in a place that air flow over the ventilation openings might be hindered, WARNING such as in a bookshelf or a drawer. To reduce the risk of fire or electric This product should be operated only shock,Do not expose this apparatus to from the type of power source indicated rain or moisture. on the back panel of the device. The power cord of this product should be restored in a place that is less possibly be walked on or get pierced, especially its plug, convenience receptacles and the point where power cord exit from the The lightning flash within an apparatus.equilateral triangle on the left side Before cleaning this product, make sure is intended to alert you to the presence of the plug is disconnected from the outlet. uninsulated “dangerous voltage” within Proceed with the cleaning in the way that the product’s enclosure that may be of this instruction recommends only. sufficient magnitude to constitute an When this product is not in use for a long electric shock to persons. time, make sure to unplug the power The exclamation point within an cord from the AC outlet.equilateral triangle on the left side If below problem happens, send this is intended to alert you to the presence of product to a qualified service personnel important operating and maintenance for repairing.(servicing) instructions in the literature A. Power cord or power plug is damaged.accompanying the appliance.B. Objects have fallen or liquid has been Before connecting or using this appara-spilled into this product.tus, do read carefully all safety warning C. This product is exposed to rain or and instructions. Please keep this other liquid.instruction for future reference. Please D. This product functions abnormally or do comply with all marked warnings on very poorly.the appliance and in this instruction.E. This product has been dropped or has Do not use this apparatus near water, a damaged enclosure.such as bath tub, lavabo, kitchen sink, Never to attempt to repair this product by washing basin, humid basement, or near yourself. Refer all servicing to a qualified a swimming pool. servicing personnel.This device should be installed or set up CAUTION in a position that ventilation can be To reduce the risk of electric shock, the assured. For example, do not put the power plug must be completely inserted device in a place that its ventilation into an AC outlet.openings might be blocked by bed, sofa, blanket or similar items. Neither put the DO NOT OPENRISK OF ELECTRIC SHOCKCAUTION

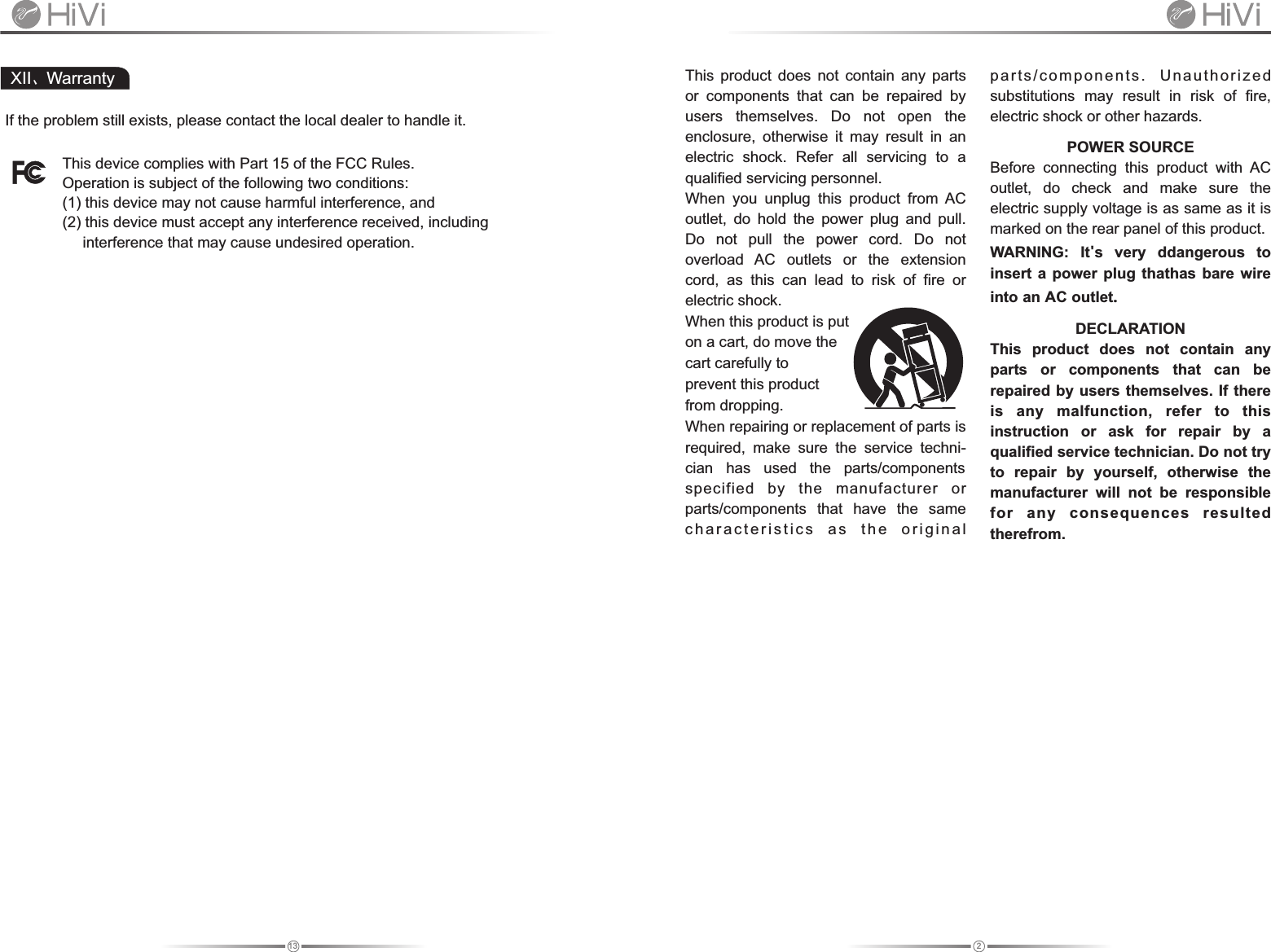

213This product does not contain any parts p a r t s / c o m p o ne n t s . U n au t h o r i z e d or components that can be repaired by substitutions may result in risk of fire, users themselves. Do not open the electric shock or other hazards.enclosure, otherwise it may result in an POWER SOURCEelectric shock. Refer all servicing to a Before connecting this product with AC qualified servicing personnel. outlet, do check and make sure the When you unplug this product from AC electric supply voltage is as same as it is outlet, do hold the power plug and pull. marked on the rear panel of this product. Do not pull the power cord. Do not WARNING: It's very ddangerous to overload AC outlets or the extension insert a power plug thathas bare wire cord, as this can lead to risk of fire or into an AC outlet.electric shock.When this product is put DECLARATIONon a cart, do move the This product does not contain any cart carefully to parts or components that can be prevent this product repaired by users themselves. If there from dropping. is any malfunction, refer to this When repairing or replacement of parts is instruction or ask for repair by a required, make sure the service techni- qualified service technician. Do not try cian has used the parts/components to repair by yourself, otherwise the specified by the manufacturer or manufacturer will not be responsible parts/components that have the same for any consequences resulted c h a r a c t e r i s t i c s a s t h e o r i g i n a l therefrom. XII、Warranty If the problem still exists, please contact the local dealer to handle it.This device complies with Part 15 of the FCC Rules.Operation is subject of the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

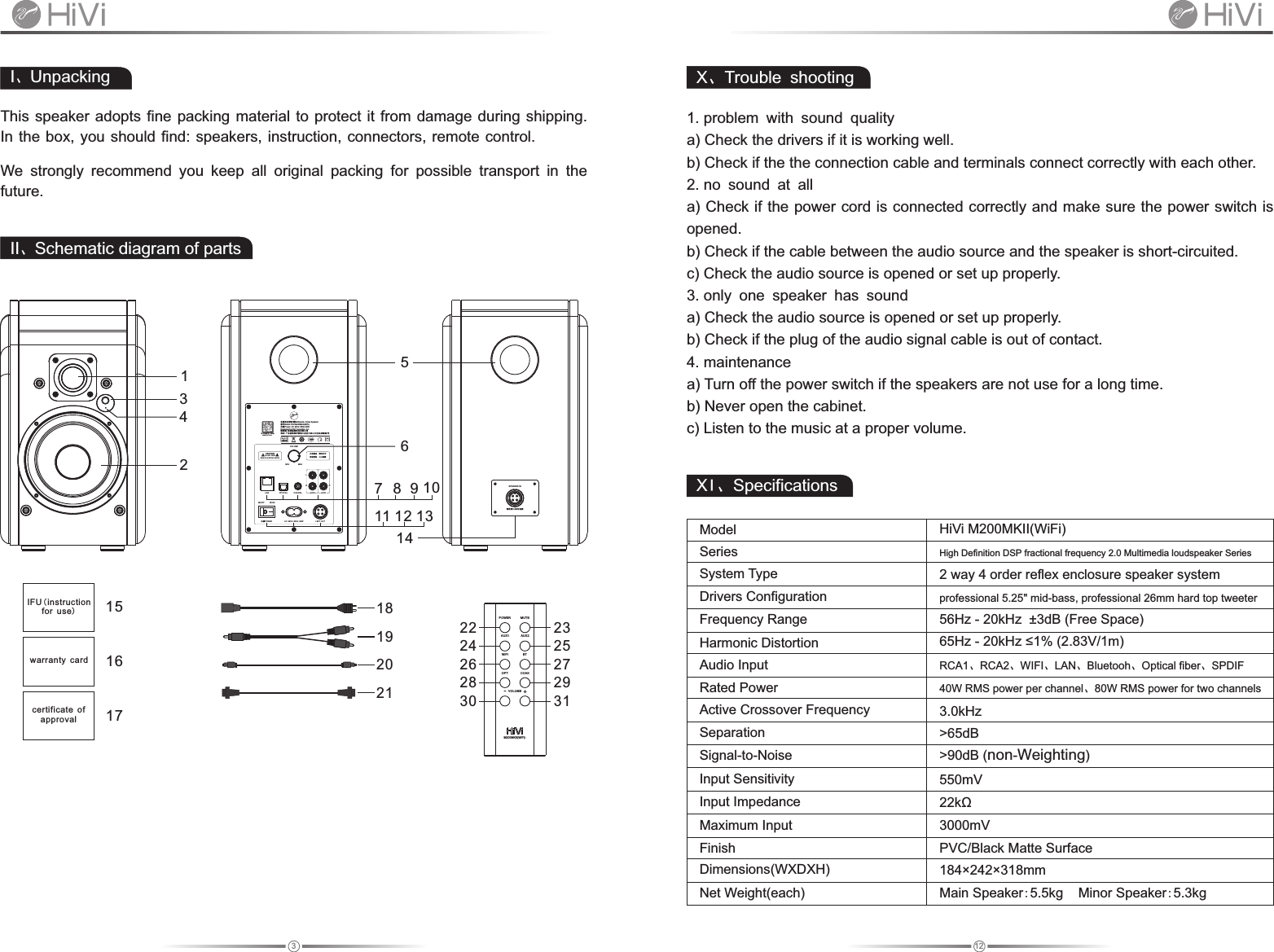

This speaker adopts fine packing material to protect it from damage during shipping In the box, you should find: speakers, instruction, connectors, remote control.We strongly recommend you keep all original packing for possible transport in the future..I、UnpackingHiVi M200MKII(WiFi)2 way 4 order reflex enclosure speaker system>90dB (non-Weighting)550mV22kΩPVC/Black Matte Surfaceprofessional 5.25" mid-bass, professional 26mm hard top tweeter3000mV56Hz - 20kHz ±3dB (Free Space)65Hz - 20kHz ≤1% (2.83V/1m)RCA1、2、WIFI、LAN、Bluetooh、Optical fiber、SPDIFRCA 184×242 mm×318Main Speaker:5.5kg Minor :5.3kg Speaker40W RMS power per channel、80W RMS power for two channelsHigh Definition DSP fractional frequency 2.0 Multimedia loudspeaker Series3.0kHz>65dBSystem TypeFrequency RangeDrivers ConfigurationSignal-to-NoiseInput SensitivityInput ImpedanceRated PowerFinishDimensions(WXDXH)Net Weight(each)SeriesHarmonic DistortionMaximum InputModelAudio Input SeparationActive Crossover Frequency3 12XI、Specifications1 problem with sound qualitya) Check the drivers if it is working well. b) Check if the the connection cable and terminals connect correctly with each other. 2 no sound at all a) Check if the power cord is connected correctly and make sure the power switch is opened. b) Check if the cable between the audio source and the speaker is short-circuited.c) Check the audio source is opened or set up properly. 3 only one speaker has sound a) Check the audio source is opened or set up properly. b) Check if the plug of the audio signal cable is out of contact.4 maintenance a) Turn off the power switch if the speakers are not use for a long time. b) Never open the cabinet. c) Listen to the music at a proper volume.. . . . 25232824222726AUX 1 AUX2POW ERVOL UME-+MUT EWiF i BTOPT C OAXM200MKII(WiFi) 3029311819202112356147 8 9 1011 12 13MAXMINVOLUM ELEFT OU TAC 220V ~50Hz 9 6W电源POW ER开/ON关/OFF背板散热 小心触摸 内有高压 请勿打开DO NOT OPENRISK OF ELECTRIC SHOCKCAUTION多媒体有源 音箱Multimedia Active Speaker型号Model: HiVi M200MKII(WiFi) 电源Power: AC 220V~50Hz 96WDesigned by HiVi Acoustics, Inc. 制造商: 珠海惠 威科技有限公司 地址: 广东省珠 海市联港工业区大 林山片区东成路南1号 www.hivi.com关注惠 威官方网站OPTIC ALLAN COA XIAL AUX1LRAUX2LRSPEA KER IN请按接 口指向连 接4II、Schematic diagram of parts151617IFU(instruction for use)warranty cardcertificate of approvalX、Trouble shooting

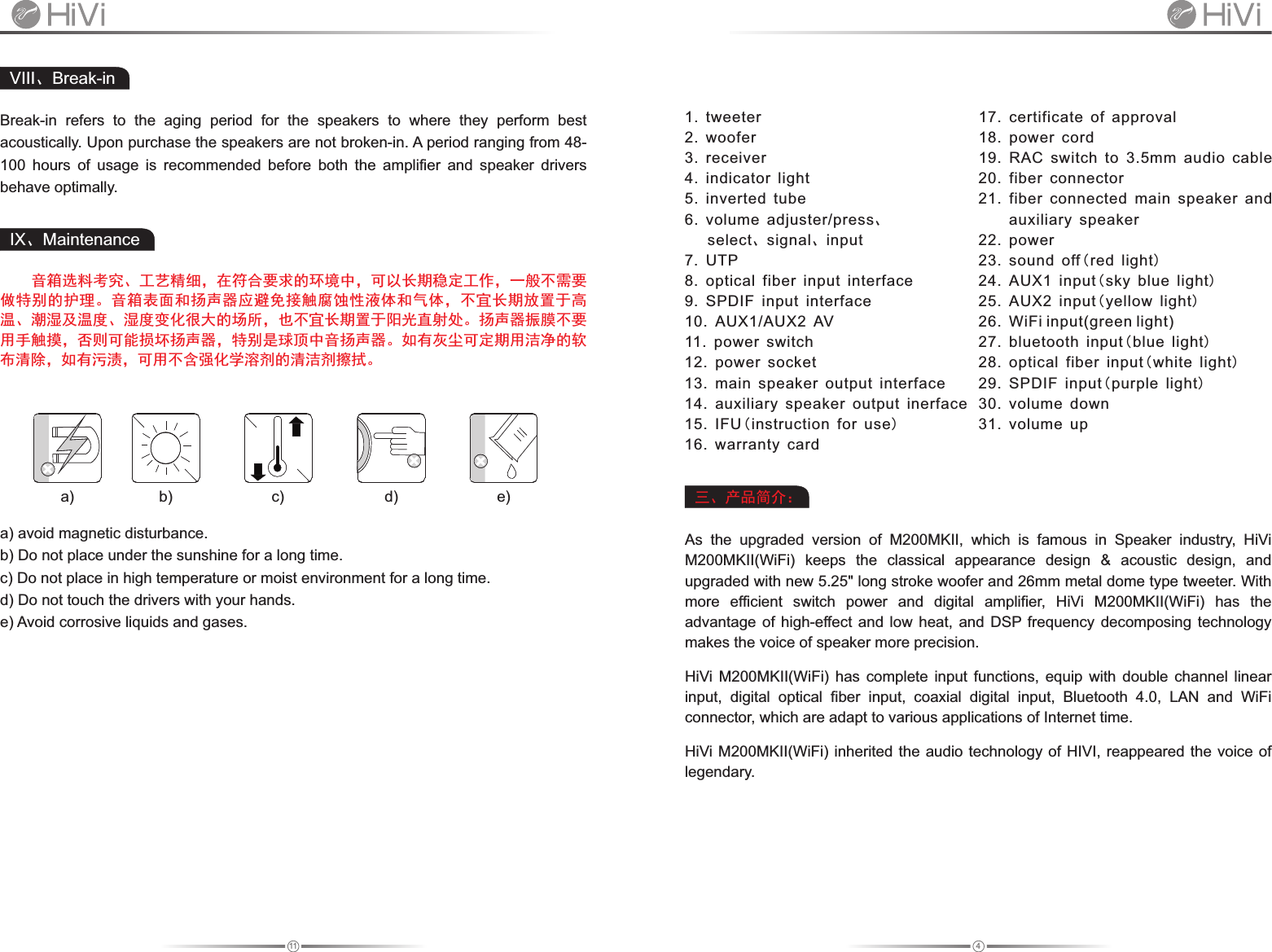

411三、产品简介：IX、Maintenance 音箱选料考究、工艺精细，在符合要求的环境中，可以长期稳定工作，一般不需要做特别的护理。音箱表面和扬声器应避免接触腐蚀性液体和气体，不宜长期放置于高温、潮湿及温度、湿度变化很大的场所，也不宜长期置于阳光直射处。扬声器振膜不要用手触摸，否则可能损坏扬声器，特别是球顶中音扬声器。如有灰尘可定期用洁净的软布清除，如有污渍，可用不含强化学溶剂的清洁剂擦拭。VIII -、Break inBreak-in refers to the aging period for the speakers to where they perform best acoustically. Upon purchase the speakers are not broken-in. A period ranging from 48-100 hours of usage is recommended before both the amplifier and speaker drivers behave optimally. 1. tweeter2. woofer3. receiver4. indicator light5. inverted tube6. volume adjuster press、 select、signal、input7. UTP8. optical fiber input interface9. SPDIF input interface10. AUX1 AUX2 AV11. power switch12. power socket13. main speaker output interface14. auxiliary speaker output inerface15. IFU(instruction for use)//16. warranty card17. certificate of approval18. power cord19. RAC switch to 3.5mm audio cable20. fiber connector21. fiber connected main speaker and auxiliary speaker22. power23. sound off(red light)24. AUX1 input(sky blue light)25. AUX2 input(yellow light)26. WiFi input(green light)27. bluetooth input(blue light)28. optical fiber input(white light)29. SPDIF input(purple light)30. volume down31. volume upAs the upgraded version of M200MKII, which is famous in Speaker industry, HiVi M200MKII(WiFi) keeps the classical appearance design & acoustic design, and upgraded with new 5.25" long stroke woofer and 26mm metal dome type tweeter. With more efficient switch power and digital amplifier, HiVi M200MKII(WiFi) has the advantage of high-effect and low heat, and DSP frequency decomposing technology makes the voice of speaker more precision.HiVi M200MKII(WiFi) has complete input functions, equip with double channel linear input, digital optical fiber input, coaxial digital input, Bluetooth 4.0, LAN and WiFi connector, which are adapt to various applications of Internet time.HiVi M200MKII(WiFi) inherited the audio technology of HIVI, reappeared the voice of legendary.a) b) Do not place under the sunshine for a long time. c) Do not place in high temperature or moist environment for a long time. d) Do not touch the drivers with your hands. e) Avoid corrosive liquids and gases. avoid magnetic disturbance. a) b) c) d) e)

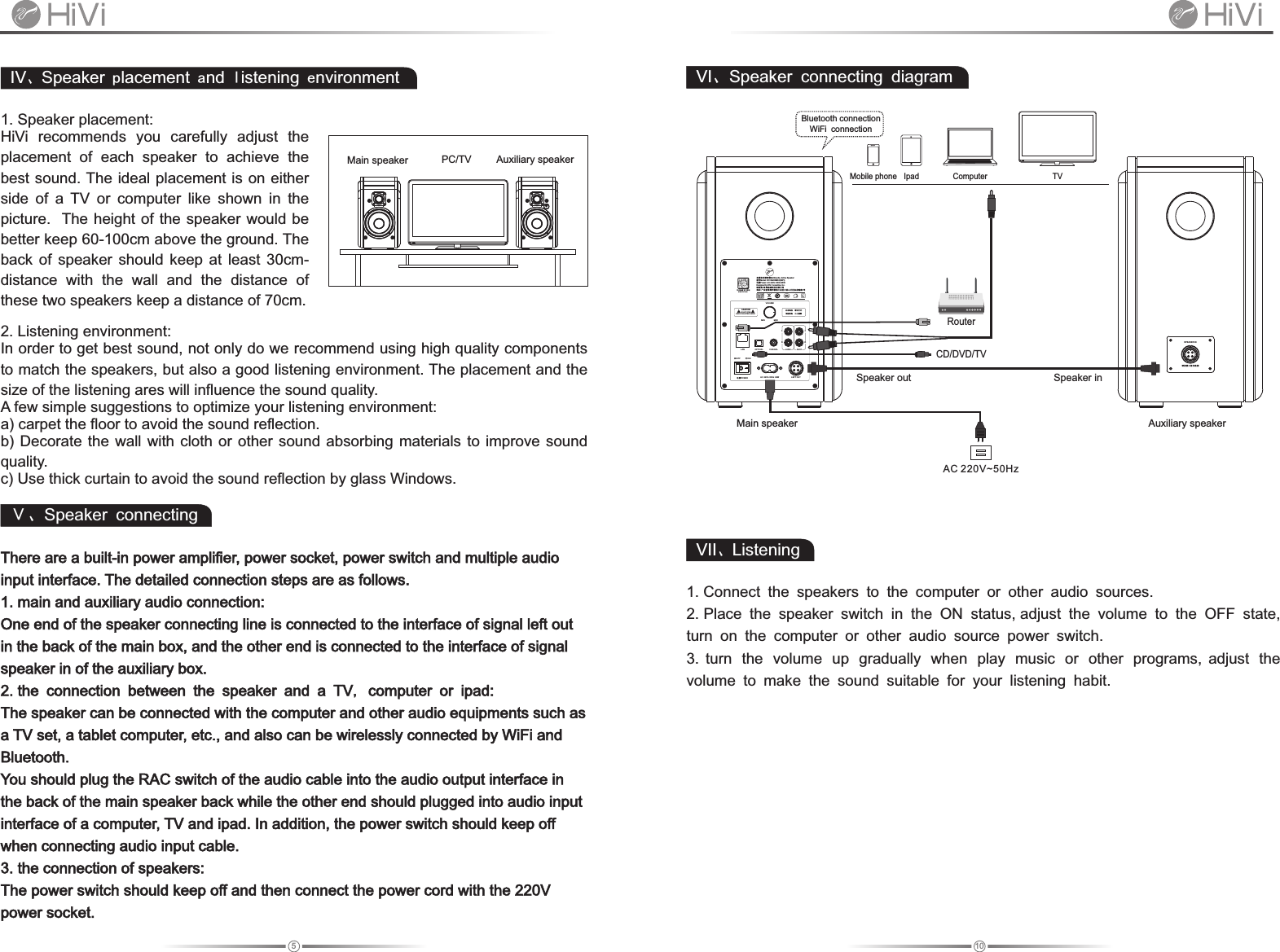

MAXMINVOLUM ELEFT OU TAC 220V ~50Hz 9 6W电源POW ER开/ON关/OFF背板散热 小心触摸 内有高压 请勿打开DO NOT OPENRISK OF ELECTRIC SHOCKCAUTION多媒体有源 音箱Multimedia Active Speaker型号Model: HiVi M200MKII(WiFi) 电源Power: AC 220V~50Hz 96WDesigned by HiVi Acoustics, Inc. 制造商: 珠海惠 威科技有限公司 地址: 广东省珠海市联港工业区大林山片区东成路南1号 www.hivi.com关注惠 威官方网站OPTIC ALLAN COA XIAL AUX1LRAUX2LRⅤ、Speaker connecting There are a built-in power amplifier, power socket, power switch and multiple audio input interface. The detailed connection steps are as follows.1. main and auxiliary audio connection:One end of the speaker connecting line is connected to the interface of signal left out in the back of the main box, and the other end is connected to the interface of signal speaker in of the auxiliary box. 2. the connection between the speaker and a TV, computer or ipad:The speaker can be connected with the computer and other audio equipments such as a TV set, a tablet computer, etc., and also can be wirelessly connected by WiFi and Bluetooth.You should plug the RAC switch of the audio cable into the audio output interface in the back of the main speaker back while the other end should plugged into audio input interface of a computer, TV and ipad. In addition, the power switch should keep off when connecting audio input cable.3. the connection of speakers: The power switch should keep off and then connect the power cord with the 220V power socket.51. Speaker placement: HiVi recommends you carefully adjust the placement of each speaker to achieve the best sound. The ideal placement is on either side of a TV or computer like shown in the picture. The height of the speaker would be better keep 60-100cm above the ground. The back of speaker should keep at least 30cm- distance with the wall and the distance of these two speakers keep a distance of 70cm. 2. Listening environment: In order to get best sound, not only do we recommend using high quality components to match the speakers, but also a good listening environment. The placement and the size of the listening ares will influence the sound quality.A few simple suggestions to optimize your listening environment:a) carpet the floor to avoid the sound reflection. b) Decorate the wall with cloth or other sound absorbing materials to improve sound quality. c) Use thick curtain to avoid the sound reflection by glass Windows. 10VI、Speaker connecting diagram1 Connect the speakers to the computer or other audio sources.2 Place the speaker switch in the ON status adjust the volume to the OFF stateturn on the computer or other audio source power switch.3 turn the volume up gradually when play music or other programs adjust the volume to make the sound suitable for your listening habit.. . , , . , VII、ListeningMain speaker Auxiliary speakerAC 220V~50HzS inpeakerSpeaker outRouterBluetooth connectionWiFi connectionComputer TVMobile phone IpadCD/DVD/TVSPEA KER IN请按接 口指向连 接IV、Speaker placement and listening environment Main speaker Auxiliary speakerPC/TV

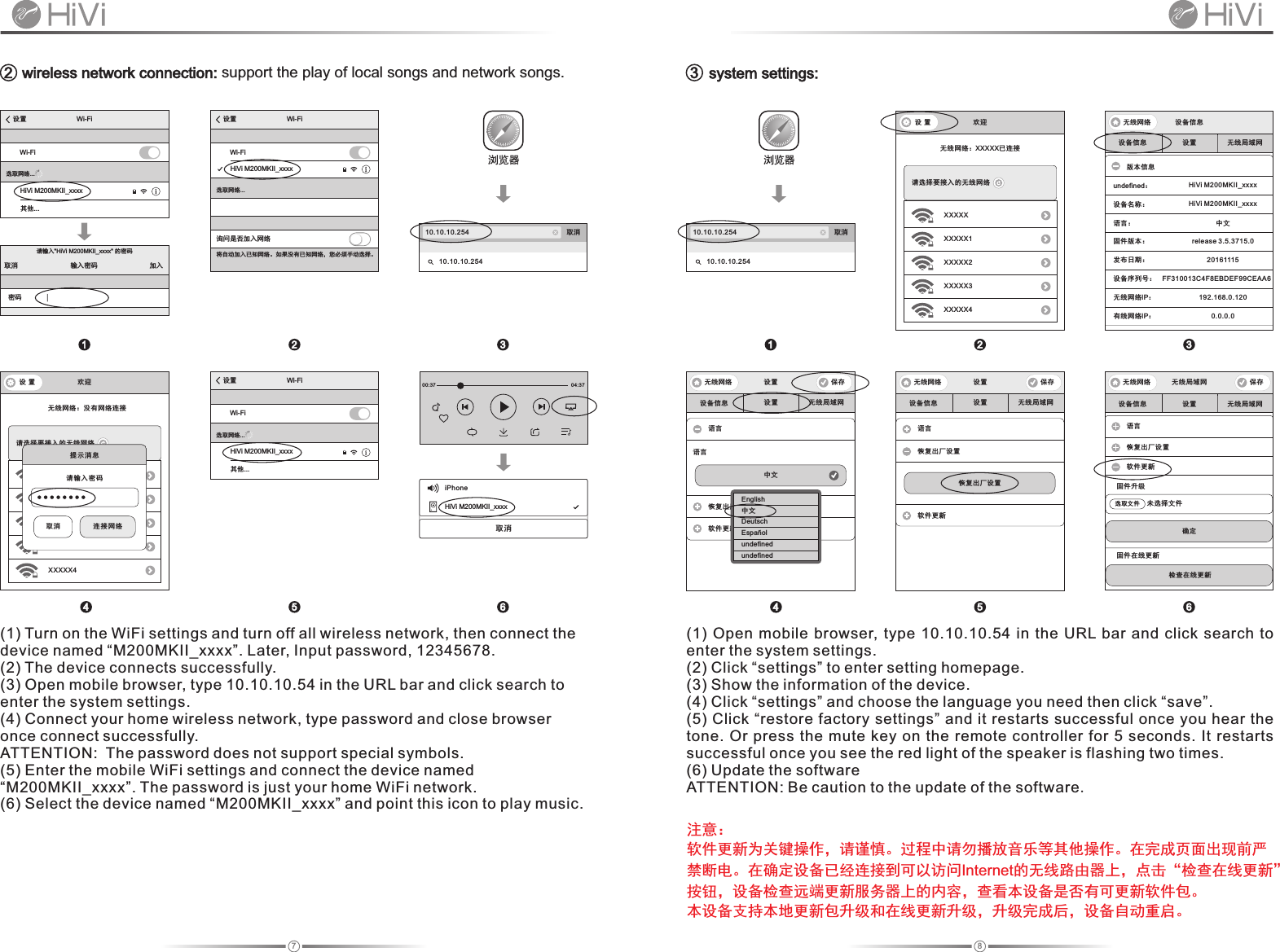

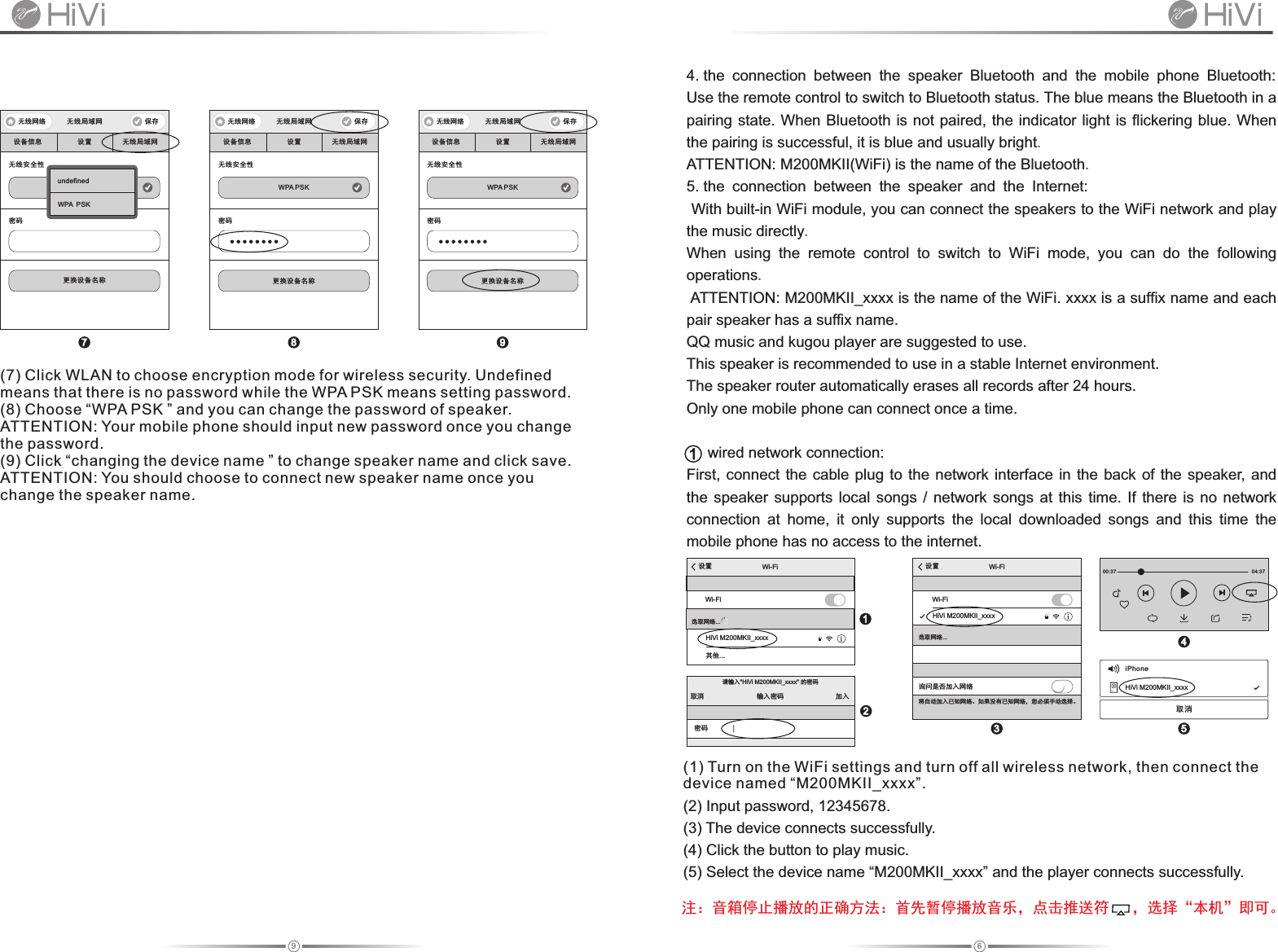

69设备信息 设置 无线局域网无线网络 无线局域网 保存无线安全性密码更换设备名称OpenundefinedWPA PSK设备信息 设置 无线局域网无线网络 无线局域网 保存无线安全性WPA PSK密码更换设备名称设备信息 设置 无线局域网无线网络 无线局域网 保存无线安全性WPA PSK密码更换设备名称注：音箱停止播放的正确方法：首先暂停播放音乐，点击推送符 ，选择“本机”即可。设置 Wi Fi-Wi Fi-HiVi M200MKII_xxxx其他...选取网络...请输入"HiVi M200MKII_xxxx" 的密码输入密码取消 加入密码设置 Wi Fi-Wi Fi-选取网络...询问是否加入网络将自动加入已知网络。如果没有已知网络，您必须手动选择。HiVi M200MKII_xxxx00:37 04:37iPhoneHiVi M200MKII_xxxx取消4. the connection between the speaker Bluetooth and the mobile phone Bluetooth: Use the remote control to switch to Bluetooth status. The blue means the Bluetooth in a pairing state. When Bluetooth is not paired, the indicator light is flickering blue. When the pairing is successful, it is blue and usually bright.ATTENTION: M200MKII(WiFi) is the name of the Bluetooth. 5. the connection between the speaker and the Internet: With built-in WiFi module, you can connect the speakers to the WiFi network and play the music directly.When using the remote control to switch to WiFi mode, you can do the following operations. ATTENTION: M200MKII_xxx is the name of the WiFi. xxx is a suffix name and each pair speaker has a suffix name.QQ music and kugou player are suggested to use.This speaker is recommended to use in a stable Internet environment.The speaker router automatically erases all records after 24 hours.Only one mobile phone can connect once a time. wired network connection: First, connect the cable plug to the network interface in the back of the speaker, and the speaker supports local songs / network songs at this time. If there is no network connection at home, it only supports the local downloaded songs and this time the mobile phone has no access to the internet. x x (1)II .(2) .(3) (4) .(5) I x . xTurn on the WiFi settings and turn off all wireless network, then connect the device named “M200MK _xxx ”Input password, 12345678The device connects successfully.Click the button to play music Select the device name “M200MKI _xxx ” and the player connects successfully 112345(7) means that there is no password while the WPA PSK means setting password.(8) Choose “WPA PSK ” and you can change the password of speaker.ATTENTION: Your mobile phone should input new password once you change the password.(9) Click “changing the device name ” to change speaker name and click save.ATTENTION: You should choose to connect new speaker name once you change the speaker name.Click WLAN to choose encryption mode for wireless security. Undefined 7 8 9
87 wireless network connection: support the play of local songs and network songs.10.10.10.254 取消10.10.10.254浏览器 system settings:2 310.10.10.254 取消10.10.10.254浏览器设 置 欢迎无线网络：XXXXX已连接XXXXX请选择要接入的无线网络XXXX 1XXXXXX2XXXXX3XXXXX4设备信息 设置 无线局域网版本信息undefined：HiVi M200MKII_xxxx设备名称：语言： 中文固件版本： release 3.5.3715.0发布日期： 20161115无线网络IP：192.168.0.120有线网络IP：0.0.0.0无线网络 设备信息设备序列号： FF310013C4F8EBDEF99CEAA6设备信息 设置 无线局域网无线网络 设置 保存语言恢复出厂设置软件更新恢复出厂设置设备信息 设置 无线局域网语言恢复出厂设置软件更新固件升级未选择文件选取文件确定检查在线更新固件在线更新无线网络 无线局域网 保存设备信息 设置 无线局域网无线网络 设置 保存语言语言软件更新中文恢复出厂设置注意：软件更新为关键操作，请谨慎。过程中请勿播放音乐等其他操作。在完成页面出现前严禁断电。在确定设备已经连接到可以访问Internet的无线路由器上，点击“检查在线更新”按钮，设备检查远端更新服务器上的内容，查看本设备是否有可更新软件包。本设备支持本地更新包升级和在线更新升级，升级完成后，设备自动重启。设置 Wi Fi-Wi Fi-HiVi M200MKII_xxxx其他...选取网络...请输入"HiVi M200MKII_xxxx" 的密码输入密码取消 加入密码设置 Wi Fi-Wi Fi-选取网络...询问是否加入网络将自动加入已知网络。如果没有已知网络，您必须手动选择。HiVi M200MKII_xxxxHiVi M200MKII_xxxxEnglish中文DeutschEspañolundefinedundefined1 2 3设置 Wi Fi-Wi Fi-HiVi M200MKII_xxxx其他...选取网络...00:37 04:37iPhoneHiVi M200MKII_xxxx取消设 置 欢迎无线网络：没有网络连接XXXXX请选择要接入的无线网络XXXX 1XXXXXX2XXXXX3XXXXX4提示消息 请输入密码 取消 连接网络(1) Turn on the WiFi settings and turn off all wireless network, then connect the device named “M200MKII_xxxx”. Later, Input password, 12345678.(2) The device connects successfully.(3) Open mobile browser, type 10.10.10.54 in the URL bar and click search to enter the system settings.(4) Connect your home wireless network, type password and close browser once connect successfully.ATTENTION: The password does not support special symbols.(5) Enter the mobile WiFi settings and connect the device named “M200MKII_xxxx”. The password is just your home WiFi network.(6) Select the device named “M200MKII_xxxx” and point this icon to play music.4 5 6(1) Open mobile browser, type 10.10.10.54 in the URL bar and click search to enter the system settings.(2) Click “settings” to enter setting homepage.(3) Show the information of the device. (4) Click “settings” and choose the language you need then click “save”.(5) Click “restore factory settings” and it restarts successful once you hear the tone. Or press the mute key on the remote controller for 5 seconds. It restarts successful once you see the red light of the speaker is flashing two times.(6) Update the softwareATTENTION: Be caution to the update of the software.1 2 34 5 6

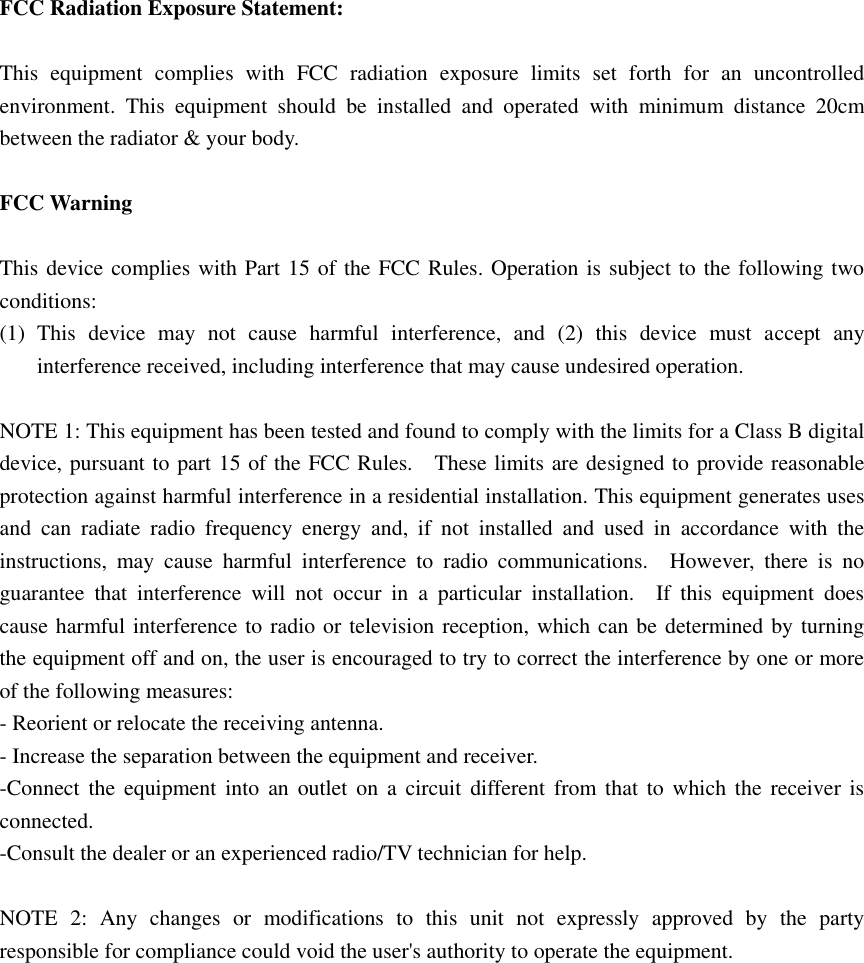

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
