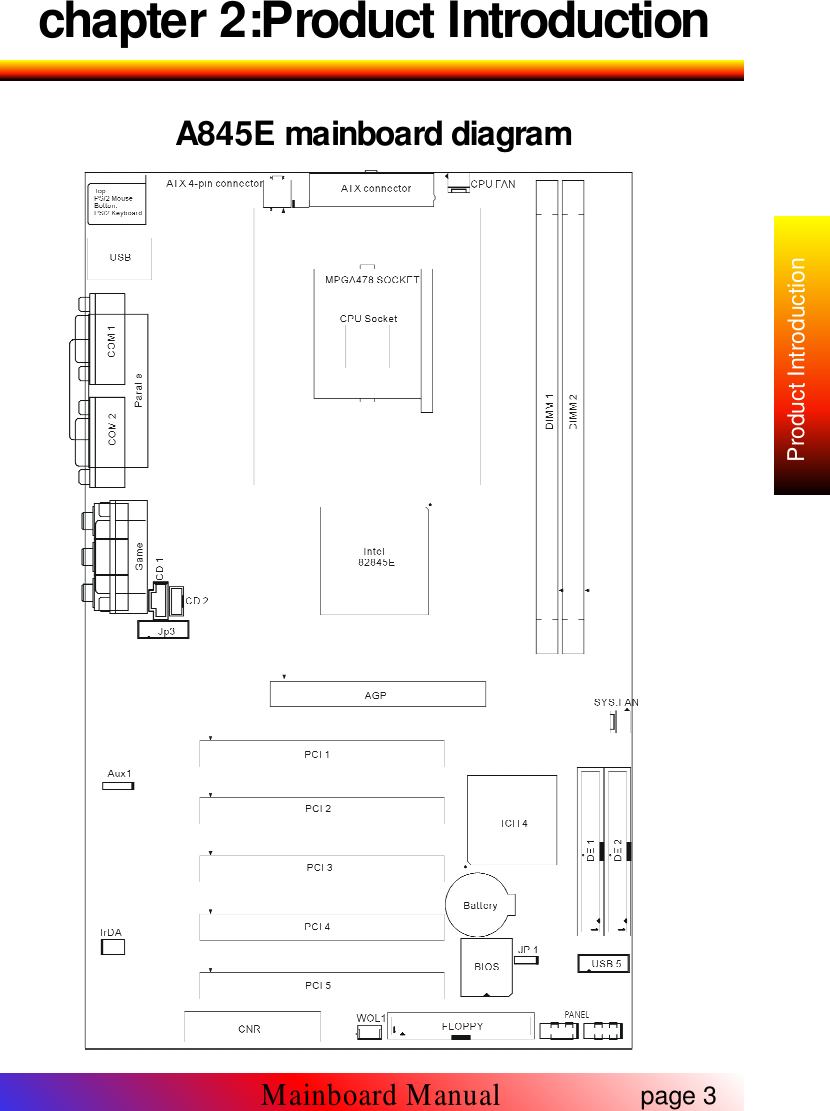

chapter 2:Product IntroductionA845E mainboard diagrampage 3Mainboard ManualProduct Introduction
chapter 2 Product IntroductionA845DD mainboard* Support Intel 478pin Pentium4 FC-PGA* Support 400MHz System Bus* Intel 845 + ICH2 Chipset* Two 184pin DDR DIMM slots support up to 2G Memory Capacity* Support PC1600 and PC2100 DIMM(DDR200/DDR266)* 6 x PCI slots, 1 x CNR slot* 1 x 4X AGP expansion slot* 4 x USB ports ( 2xRear USB, 2xFront) , 1 x IrDA port header* 1 x FDD port, 1 x Parallel port with ESD/EMI protection, 2 x COM ports* Dual IDE Channels support Four Ultra-DMA33/66/100 IDE Devices* Temperature, Fan speed and Voltage Hardware Monitor Support* Modem Ring Wakeup for External Modem* WAKEUP-LINK Header to Support Wake-On-LAN* Integrated AC97 Audio Onboard* AC97 2.1 Compliant Codec with 3D Stereo Enhancement* 1 x Line-out, 1 x Line-in, 1 x Mic-in* 1 x CD-in, 1 x AUX-in, 1 x Game Port* Overcurrent protection over Keyboard & Mouse* Coloured Connectors : FDD, IDE, COMs etc.* Keyboard & PS/2 Mouse Wakeup* Suspend-to-RAM (STR) Technology to support Instant ON (Optional)* Phoenix BIOS PC99/ACPI/DMI Compliant* ATX Power Supply Interface* ATX form factor 305mm x 220mmpage 4Mainboard Manual

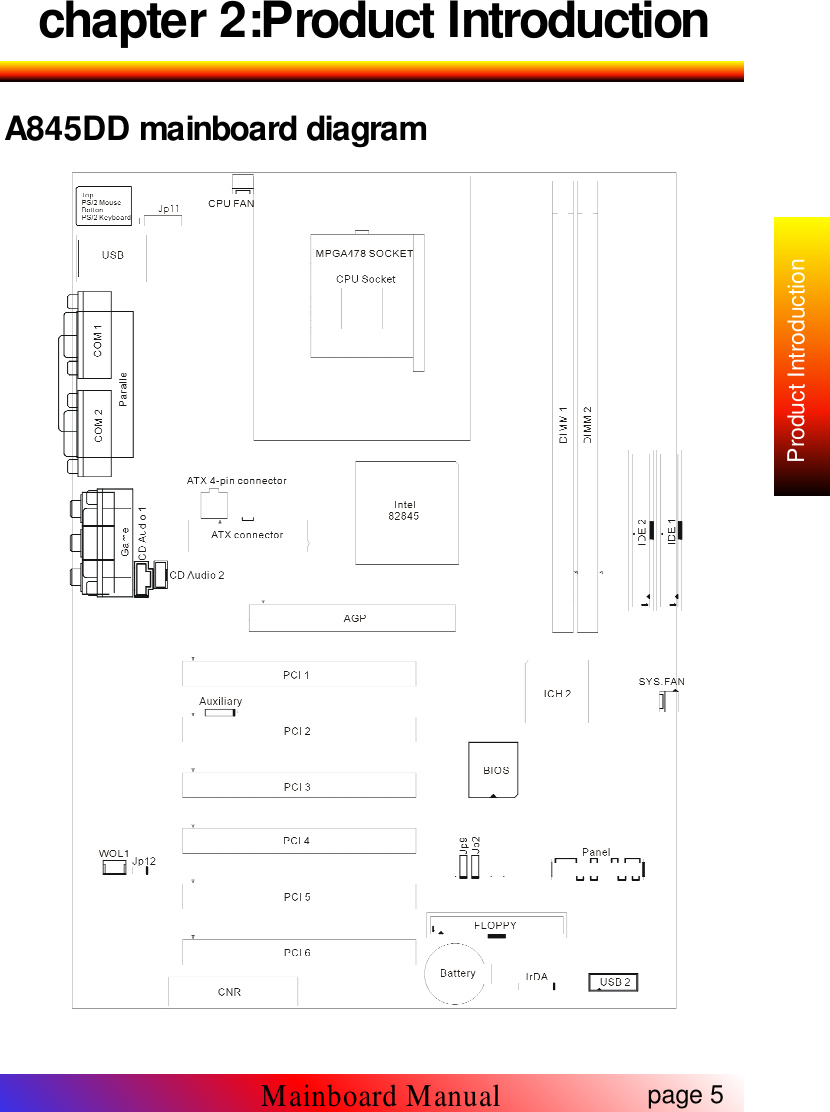

chapter 2:Product IntroductionA845DD mainboard diagrampage 5Mainboard ManualProduct Introduction

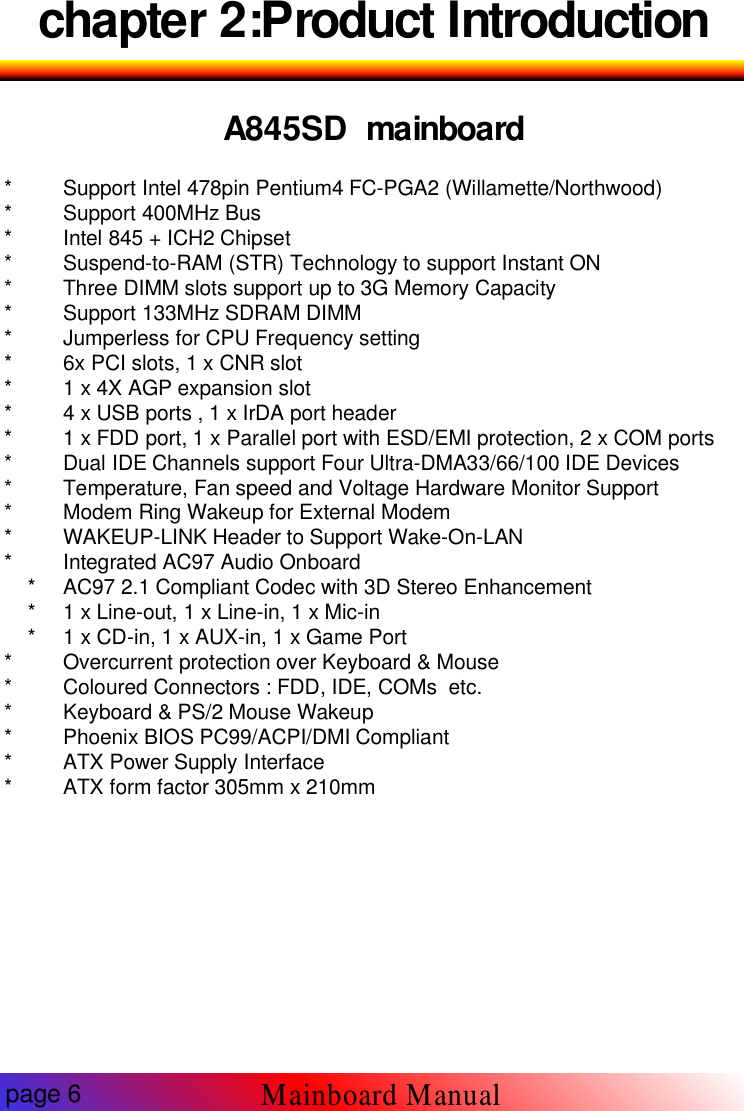

chapter 2:Product IntroductionA845SD mainboard* Support Intel 478pin Pentium4 FC-PGA2 (Willamette/Northwood)* Support 400MHz Bus* Intel 845 + ICH2 Chipset* Suspend-to-RAM (STR) Technology to support Instant ON* Three DIMM slots support up to 3G Memory Capacity* Support 133MHz SDRAM DIMM* Jumperless for CPU Frequency setting* 6x PCI slots, 1 x CNR slot* 1 x 4X AGP expansion slot* 4 x USB ports , 1 x IrDA port header* 1 x FDD port, 1 x Parallel port with ESD/EMI protection, 2 x COM ports* Dual IDE Channels support Four Ultra-DMA33/66/100 IDE Devices* Temperature, Fan speed and Voltage Hardware Monitor Support* Modem Ring Wakeup for External Modem* WAKEUP-LINK Header to Support Wake-On-LAN* Integrated AC97 Audio Onboard* AC97 2.1 Compliant Codec with 3D Stereo Enhancement* 1 x Line-out, 1 x Line-in, 1 x Mic-in* 1 x CD-in, 1 x AUX-in, 1 x Game Port* Overcurrent protection over Keyboard & Mouse* Coloured Connectors : FDD, IDE, COMs etc.* Keyboard & PS/2 Mouse Wakeup* Phoenix BIOS PC99/ACPI/DMI Compliant* ATX Power Supply Interface* ATX form factor 305mm x 210mmpage 6Mainboard Manual

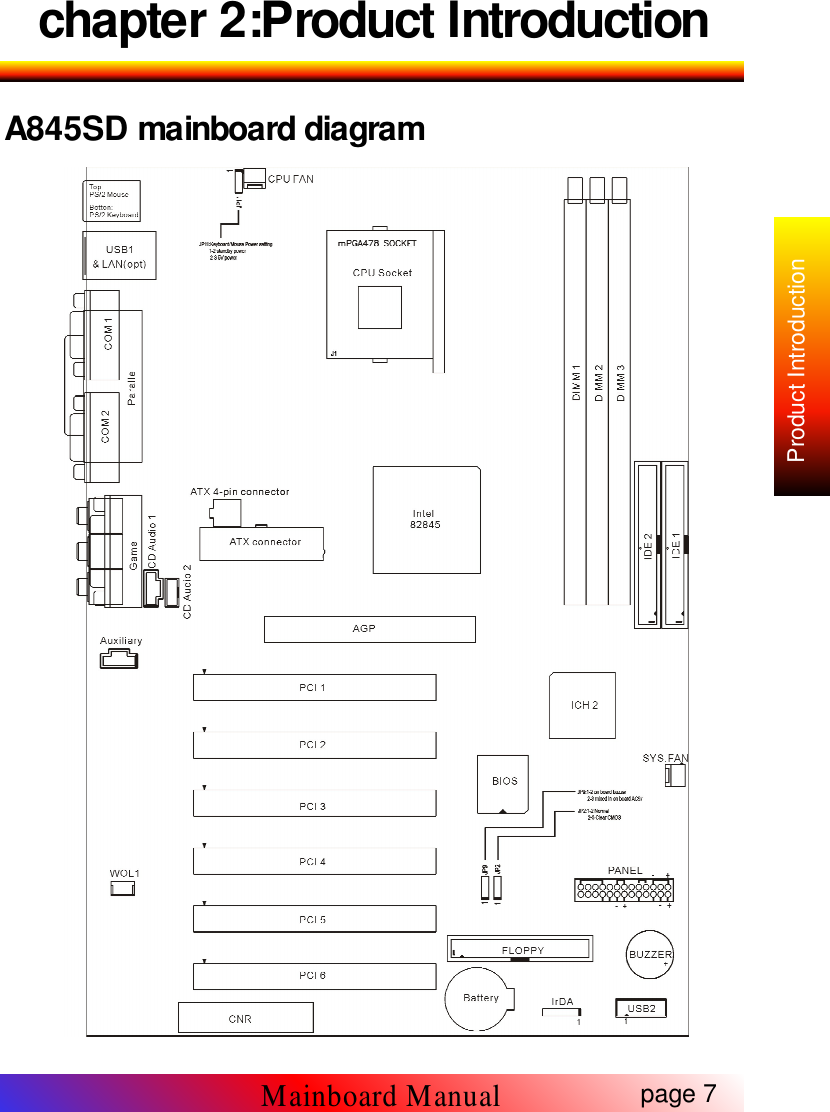

chapter 2:Product IntroductionA845SD mainboard diagrampage 7Mainboard ManualProduct Introduction

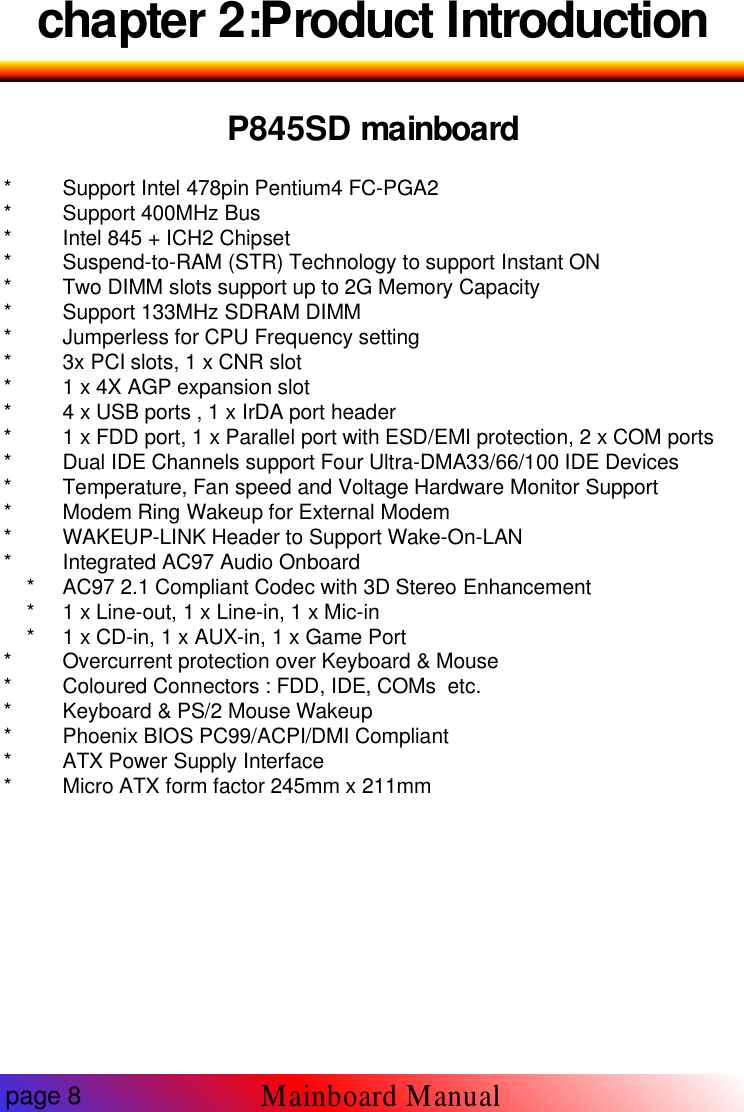

chapter 2:Product IntroductionP845SD mainboard* Support Intel 478pin Pentium4 FC-PGA2* Support 400MHz Bus* Intel 845 + ICH2 Chipset* Suspend-to-RAM (STR) Technology to support Instant ON* Two DIMM slots support up to 2G Memory Capacity* Support 133MHz SDRAM DIMM* Jumperless for CPU Frequency setting* 3x PCI slots, 1 x CNR slot* 1 x 4X AGP expansion slot* 4 x USB ports , 1 x IrDA port header* 1 x FDD port, 1 x Parallel port with ESD/EMI protection, 2 x COM ports* Dual IDE Channels support Four Ultra-DMA33/66/100 IDE Devices* Temperature, Fan speed and Voltage Hardware Monitor Support* Modem Ring Wakeup for External Modem* WAKEUP-LINK Header to Support Wake-On-LAN* Integrated AC97 Audio Onboard* AC97 2.1 Compliant Codec with 3D Stereo Enhancement* 1 x Line-out, 1 x Line-in, 1 x Mic-in* 1 x CD-in, 1 x AUX-in, 1 x Game Port* Overcurrent protection over Keyboard & Mouse* Coloured Connectors : FDD, IDE, COMs etc.* Keyboard & PS/2 Mouse Wakeup* Phoenix BIOS PC99/ACPI/DMI Compliant* ATX Power Supply Interface* Micro ATX form factor 245mm x 211mmpage 8Mainboard Manual
chapter 2:Product IntroductionP845SD mainboard diagrampage 9Mainboard ManualProduct Introduction
