Zida Technologies MB-P845GL Motherboard User Manual 845 SERIES MANUAL V2 0 ENGLISH

Zida Technologies Ltd. Motherboard 845 SERIES MANUAL V2 0 ENGLISH

manual 8 of 9

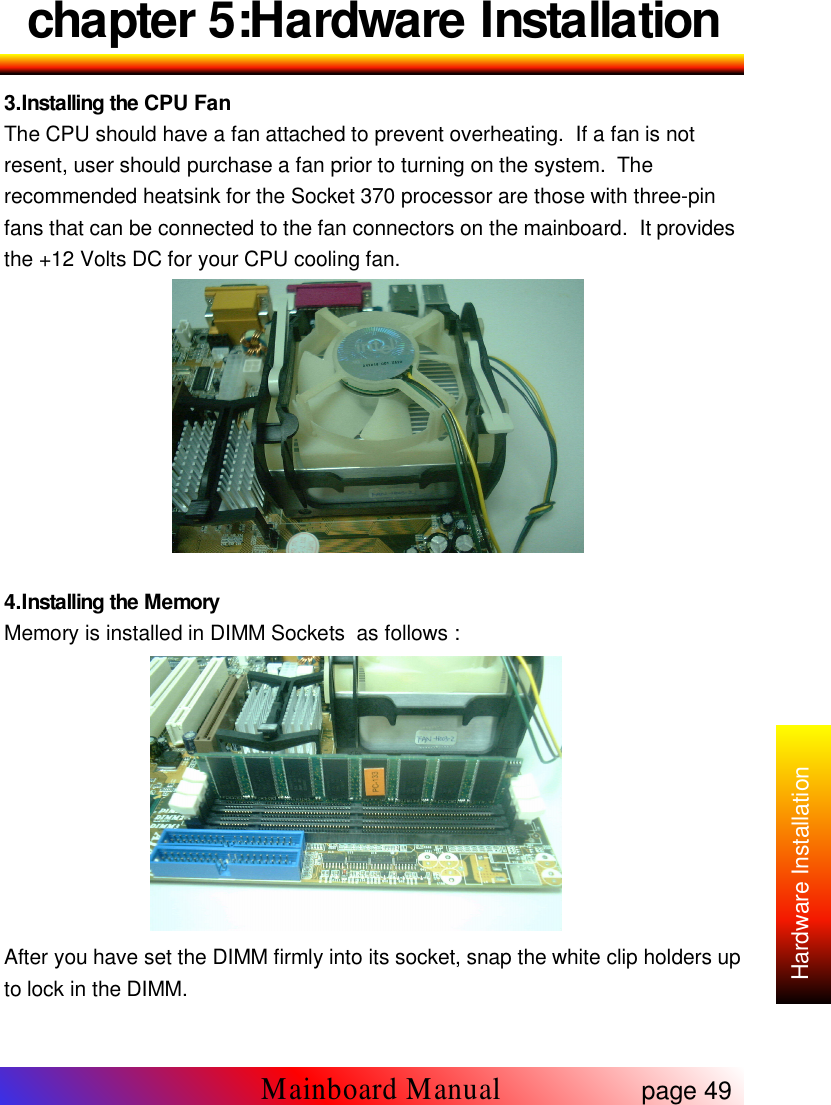

chapter 5:Hardware Installation3.Installing the CPU FanThe CPU should have a fan attached to prevent overheating. If a fan is notresent, user should purchase a fan prior to turning on the system. Therecommended heatsink for the Socket 370 processor are those with three-pinfans that can be connected to the fan connectors on the mainboard. It providesthe +12 Volts DC for your CPU cooling fan.4.Installing the MemoryMemory is installed in DIMM Sockets as follows :After you have set the DIMM firmly into its socket, snap the white clip holders upto lock in the DIMM.Mainboard Manualpage 49Hardware Installation
