User Manual

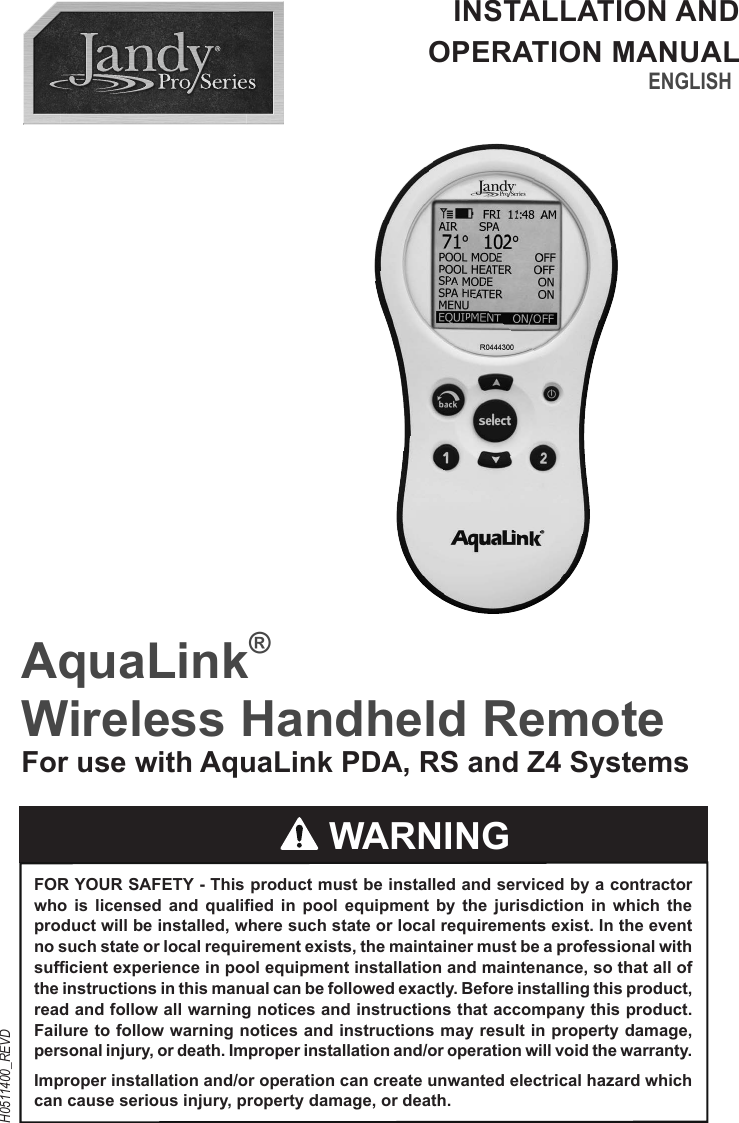

AquaLink® Wireless Handheld RemoteFor use with AquaLink PDA, RS and Z4 SystemsENGLISHH0511400_REVDINSTALLATION AND OPERATION MANUAL WARNINGFOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed, where such state or local requirements exist. In the event no such state or local requirement exists, the maintainer must be a professional with sufficient experience in pool equipment installation and maintenance, so that all of the instructions in this manual can be followed exactly. Before installing this product, read and follow all warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may result in property damage, personal injury, or death. Improper installation and/or operation will void the warranty.Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury, property damage, or death.
Page 2 ENGLISH Wireless Handheld Remote | Installation and Operation Manual

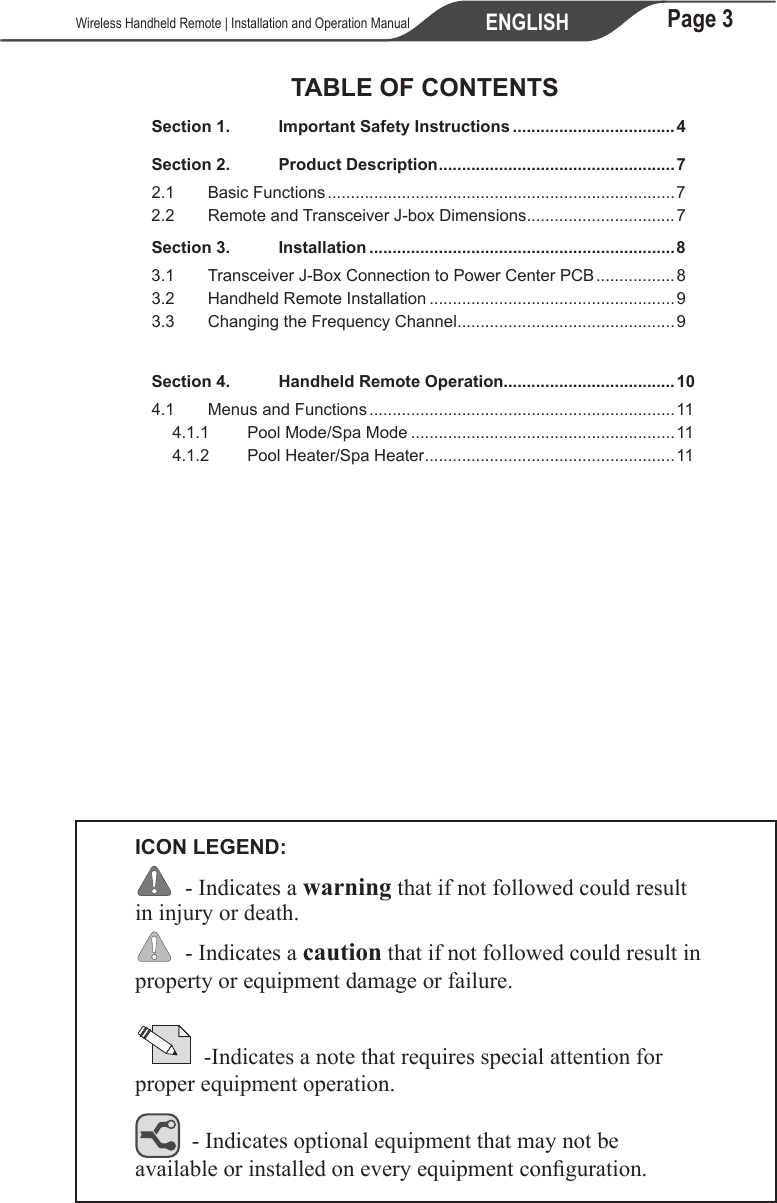

Page 3ENGLISH Wireless Handheld Remote | Installation and Operation ManualTABLE OF CONTENTSSection 1. Important Safety Instructions ...................................4Section 2. Product Description ...................................................72.1 Basic Functions ...........................................................................72.2 Remote and Transceiver J-box Dimensions ................................7Section 3. Installation ..................................................................83.1 Transceiver J-Box Connection to Power Center PCB ................. 83.2 Handheld Remote Installation .....................................................93.3 Changing the Frequency Channel ...............................................9Section 4. Handheld Remote Operation.....................................104.1 Menus and Functions ..................................................................114.1.1 Pool Mode/Spa Mode .........................................................114.1.2 Pool Heater/Spa Heater ......................................................11ICON LEGEND: - Indicates a warning that if not followed could result in injury or death. - Indicates a caution that if not followed could result in property or equipment damage or failure. -Indicates a note that requires special attention for proper equipment operation. - Indicates optional equipment that may not be available or installed on every equipment conguration.

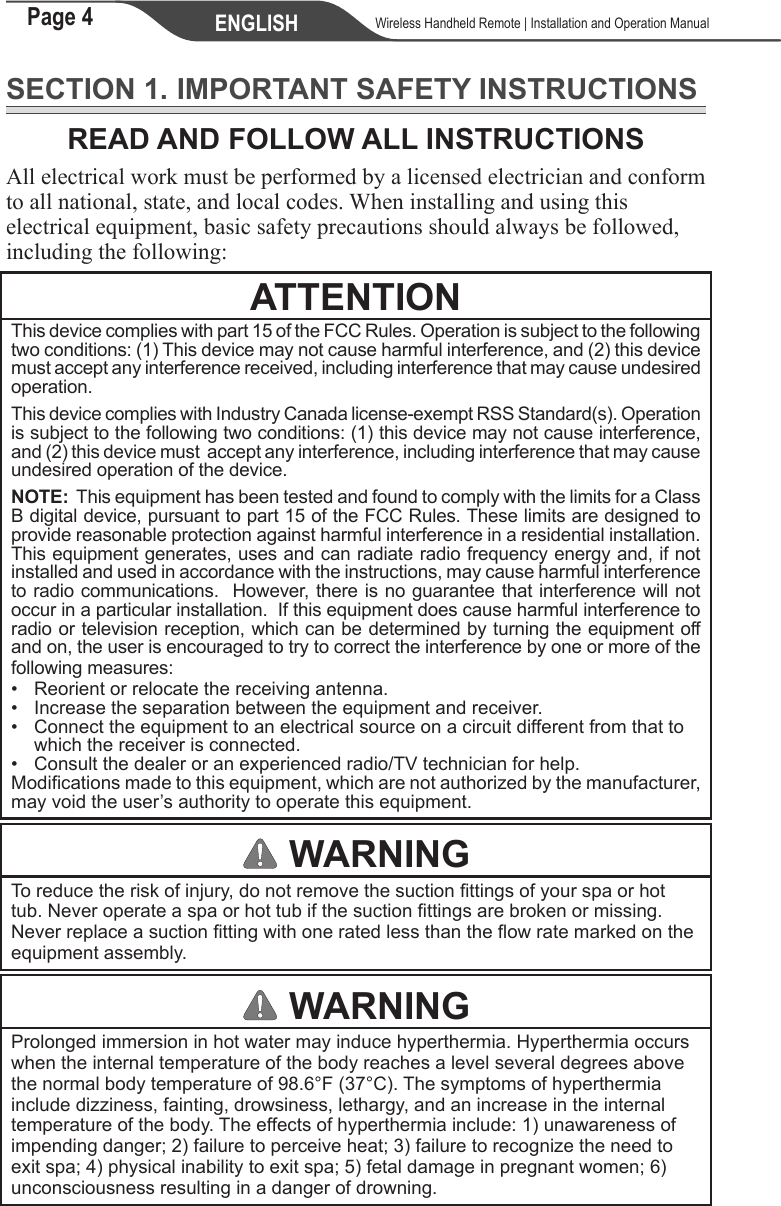

Page 4 ENGLISH Wireless Handheld Remote | Installation and Operation ManualSECTION 1. IMPORTANT SAFETY INSTRUCTIONSREAD AND FOLLOW ALL INSTRUCTIONSAll electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:ATTENTIONThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This device complies with Industry Canada license-exempt RSS Standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an electrical source on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.Modifications made to this equipment, which are not authorized by the manufacturer, may void the user’s authority to operate this equipment. WARNINGTo reduce the risk of injury, do not remove the suction ttings of your spa or hot tub. Never operate a spa or hot tub if the suction ttings are broken or missing. Never replace a suction tting with one rated less than the ow rate marked on the equipment assembly. WARNINGProlonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6°F (37°C). The symptoms of hyperthermia include dizziness, fainting, drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of hyperthermia include: 1) unawareness of impending danger; 2) failure to perceive heat; 3) failure to recognize the need to exit spa; 4) physical inability to exit spa; 5) fetal damage in pregnant women; 6) unconsciousness resulting in a danger of drowning.

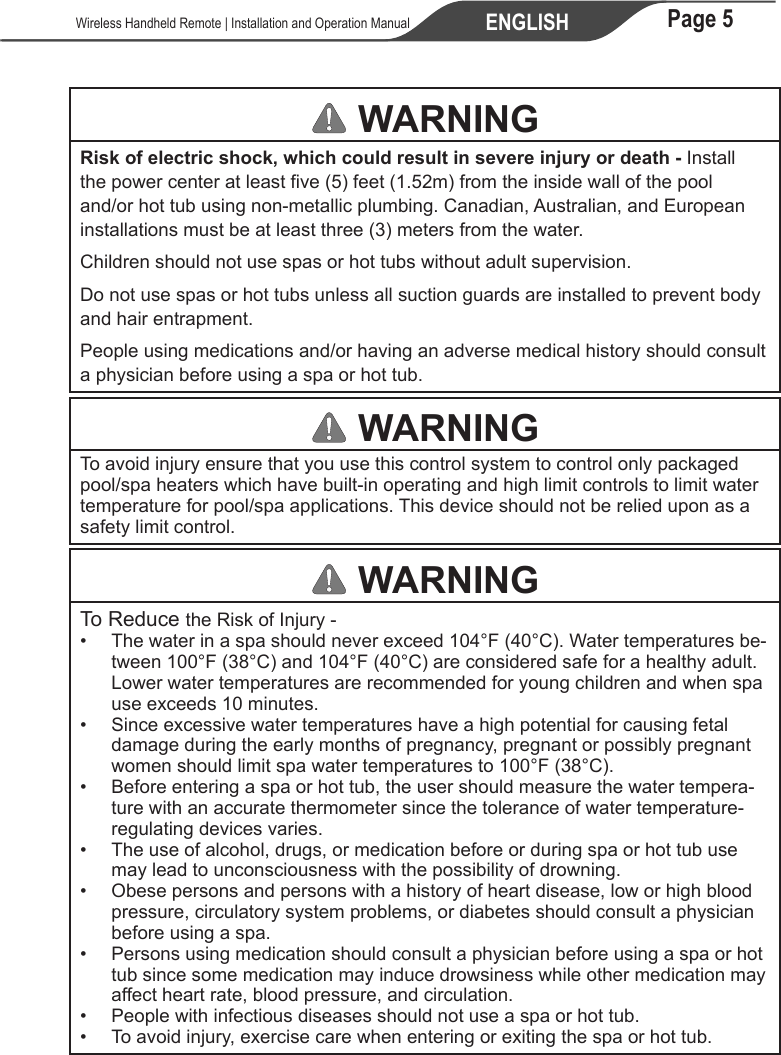

Page 5ENGLISH Wireless Handheld Remote | Installation and Operation Manual WARNINGRisk of electric shock, which could result in severe injury or death - Install the power center at least five (5) feet (1.52m) from the inside wall of the pool and/or hot tub using non-metallic plumbing. Canadian, Australian, and European installations must be at least three (3) meters from the water. Children should not use spas or hot tubs without adult supervision.Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment.People using medications and/or having an adverse medical history should consult a physician before using a spa or hot tub. WARNINGTo avoid injury ensure that you use this control system to control only packaged pool/spa heaters which have built-in operating and high limit controls to limit water temperature for pool/spa applications. This device should not be relied upon as a safety limit control. WARNINGTo Reduce the Risk of Injury -• The water in a spa should never exceed 104°F (40°C). Water temperatures be-tween 100°F (38°C) and 104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.• Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C).• Before entering a spa or hot tub, the user should measure the water tempera-ture with an accurate thermometer since the tolerance of water temperature-regulating devices varies.• The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with the possibility of drowning.• Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa.• Persons using medication should consult a physician before using a spa or hot tub since some medication may induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.• People with infectious diseases should not use a spa or hot tub.• To avoid injury, exercise care when entering or exiting the spa or hot tub.

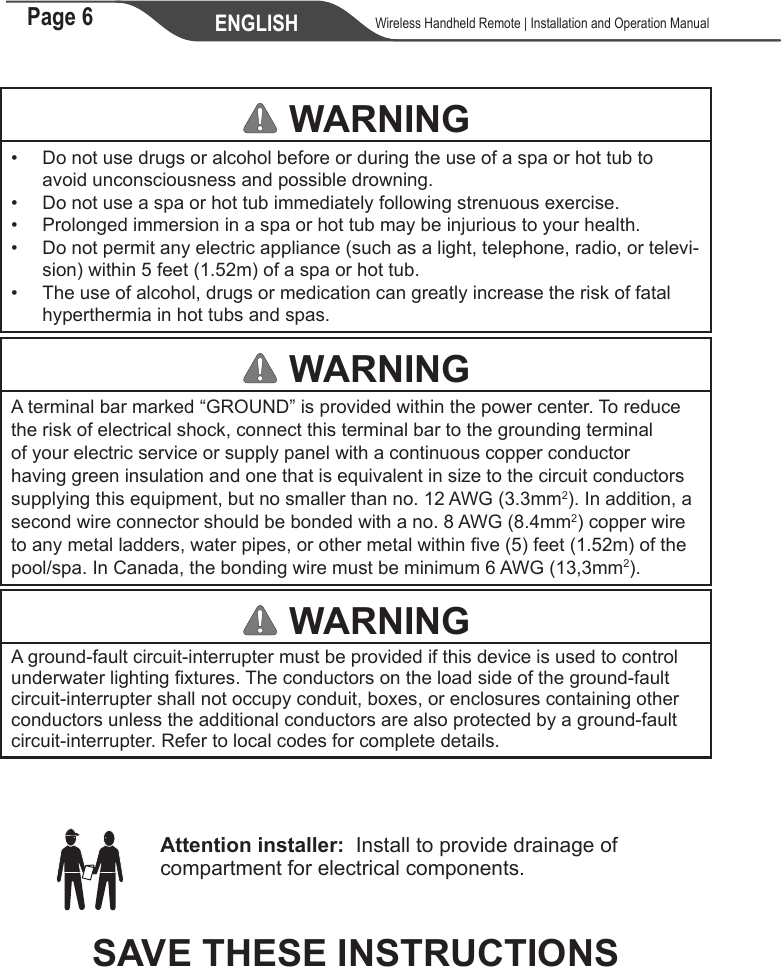

Page 6 ENGLISH Wireless Handheld Remote | Installation and Operation Manual WARNING• Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible drowning.• Do not use a spa or hot tub immediately following strenuous exercise.• Prolonged immersion in a spa or hot tub may be injurious to your health.• Do not permit any electric appliance (such as a light, telephone, radio, or televi-sion) within 5 feet (1.52m) of a spa or hot tub.• The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas. WARNINGA terminal bar marked “GROUND” is provided within the power center. To reduce the risk of electrical shock, connect this terminal bar to the grounding terminal of your electric service or supply panel with a continuous copper conductor having green insulation and one that is equivalent in size to the circuit conductors supplying this equipment, but no smaller than no. 12 AWG (3.3mm2). In addition, a second wire connector should be bonded with a no. 8 AWG (8.4mm2) copper wire to any metal ladders, water pipes, or other metal within ve (5) feet (1.52m) of the pool/spa. In Canada, the bonding wire must be minimum 6 AWG (13,3mm2). WARNINGA ground-fault circuit-interrupter must be provided if this device is used to control underwater lighting xtures. The conductors on the load side of the ground-fault circuit-interrupter shall not occupy conduit, boxes, or enclosures containing other conductors unless the additional conductors are also protected by a ground-fault circuit-interrupter. Refer to local codes for complete details. Attention installer: Install to provide drainage of compartment for electrical components.SAVE THESE INSTRUCTIONS

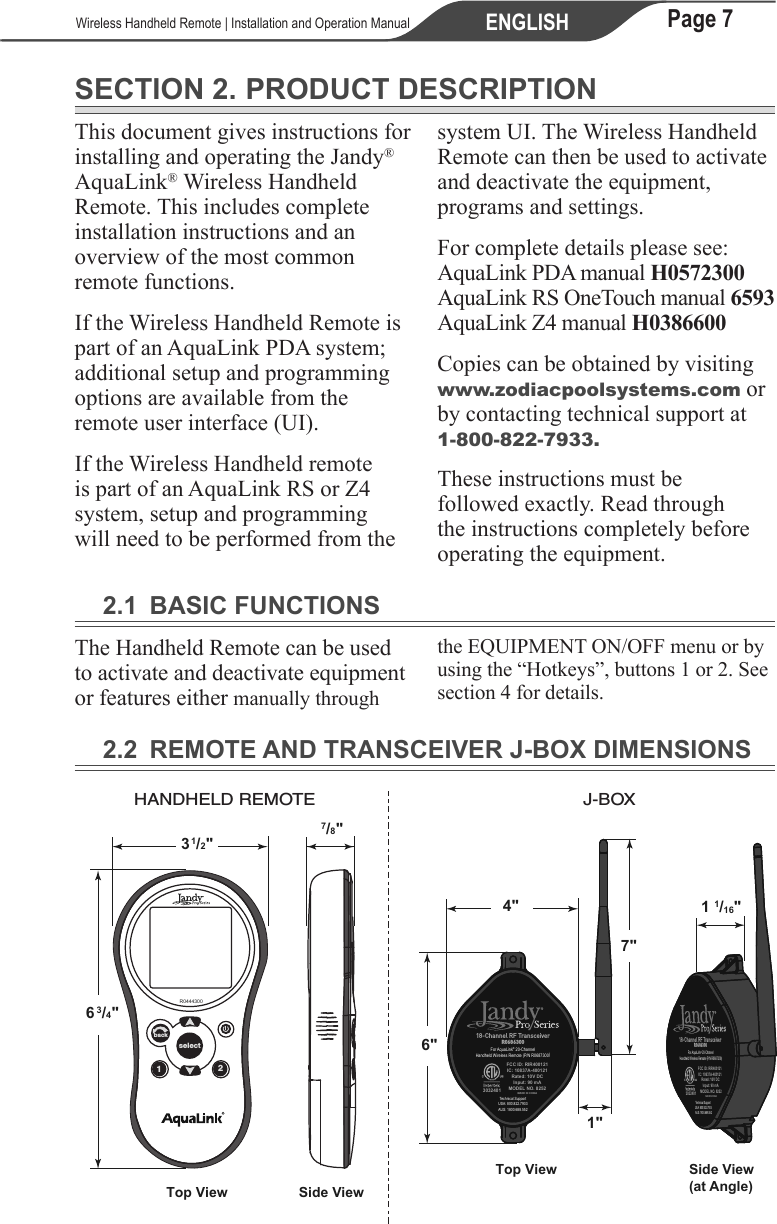

Page 7ENGLISH Wireless Handheld Remote | Installation and Operation ManualSECTION 2. PRODUCT DESCRIPTIONThis document gives instructions for installing and operating the Jandy® AquaLink® Wireless Handheld Remote. This includes complete installation instructions and an overview of the most common remote functions.If the Wireless Handheld Remote is part of an AquaLink PDA system; additional setup and programming options are available from the remote user interface (UI).If the Wireless Handheld remote is part of an AquaLink RS or Z4 system, setup and programming will need to be performed from the system UI. The Wireless Handheld Remote can then be used to activate and deactivate the equipment, programs and settings.For complete details please see: AquaLink PDA manual H0572300 AquaLink RS OneTouch manual 6593 AquaLink Z4 manual H0386600 Copies can be obtained by visiting www.zodiacpoolsystems.com or by contacting technical support at 1-800-822-7933. These instructions must be followed exactly. Read through the instructions completely before operating the equipment.2.1 BASIC FUNCTIONSThe Handheld Remote can be used to activate and deactivate equipment or features either manually through the EQUIPMENT ON/OFF menu or by using the “Hotkeys”, buttons 1 or 2. See section 4 for details.2.2 REMOTE AND TRANSCEIVER J-BOX DIMENSIONS1 1/16"4"6"1"7"Side View(at Angle)Top View18-Channel RF TransceiverR0686300For AquaLink® 20-ChannelHandheld Wireless Remote (P/N R0687300)Technical SupportUSA: 800.822.7933AUS: 1800.688.5523032401FCC ID: RIR400121IC: 10837A-400121Rated: 10V DCInput: 90 mAMODEL NO. 8252MADE IN CHINA18-Channel RF TransceiverR0686300For AquaLink® 20-ChannelHandheld Wireless Remote (P/N R0687300)Technical SupportUSA: 800.822.7933AUS: 1800.688.5523032401FCC ID: RIR400121IC: 10837A-400121Rated: 10V DCInput: 90 mAMODEL NO. 8252MADE IN CHINA12selectbackR04443001/2"3/4"37/8"6Side ViewTop ViewHANDHELD REMOTE J-BOX

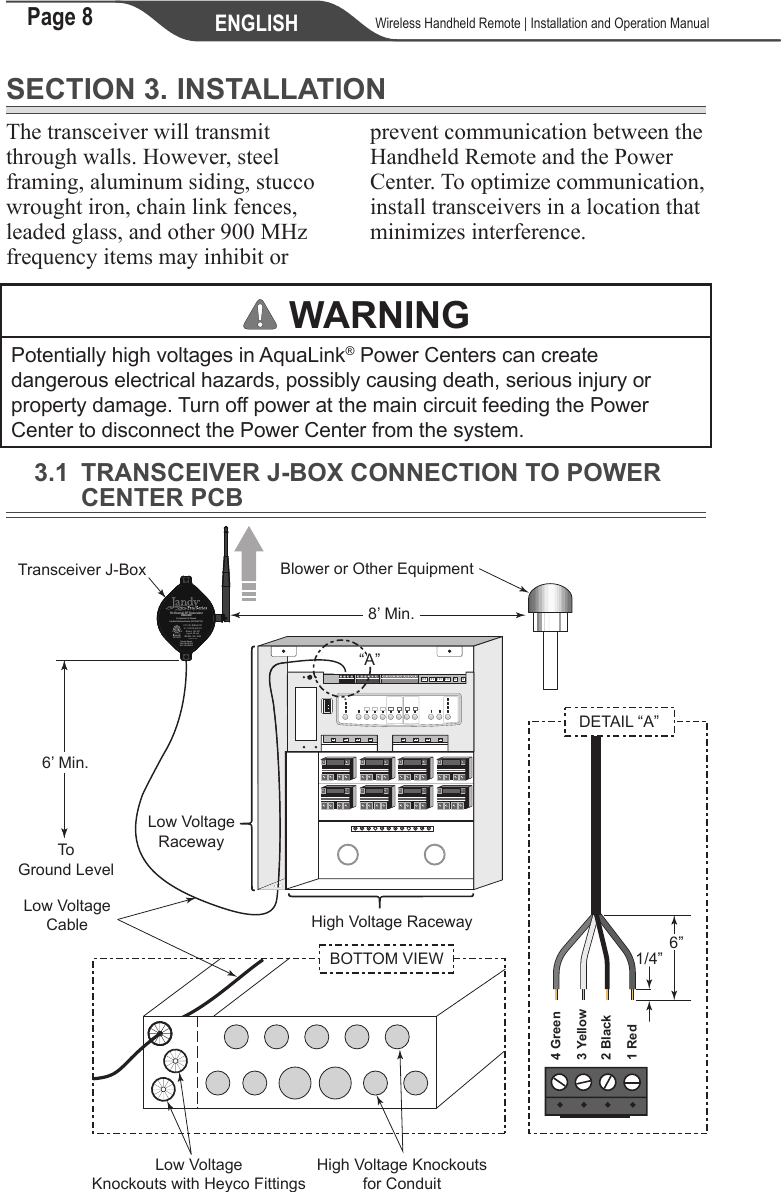

Page 8 ENGLISH Wireless Handheld Remote | Installation and Operation ManualSECTION 3. INSTALLATIONThe transceiver will transmit through walls. However, steel framing, aluminum siding, stucco wrought iron, chain link fences, lead ed glass, and other 900 MHz frequency items may inhibit or prevent com mu ni ca tion between the Handheld Remote and the Power Center. To optimize communication, install trans ceiv ers in a location that minimizes interference. WARNINGPotentially high voltages in AquaLink® Power Centers can create dangerous electrical hazards, possibly causing death, serious injury or property damage. Turn off power at the main circuit feeding the Power Center to disconnect the Power Center from the system.3.1 TRANSCEIVER J-BOX CONNECTION TO POWER CENTER PCBLow VoltageRaceway6’ Min.ToGround LevelBlower or Other EquipmentLow VoltageCableLow VoltageKnockouts with Heyco FittingsHigh Voltage RacewayHigh Voltage Knockoutsfor ConduitTransceiver J-BoxBOTTOM VIEW8’ Min.18-Channel RF TransceiverR0686300For AquaLink® 20-ChannelHandheld Wireless Remote (P/N R0687300)Technical SupportUSA: 800.822.7933AUS: 1800.688.5523032401FCC ID: RIR400121IC: 10837A-400121Rated: 10V DCInput: 90 mAMODEL NO. 8252MADE IN CHINA“A”3 Yellow1 Red2 Black4 Green1/4”6”DETAIL “A”

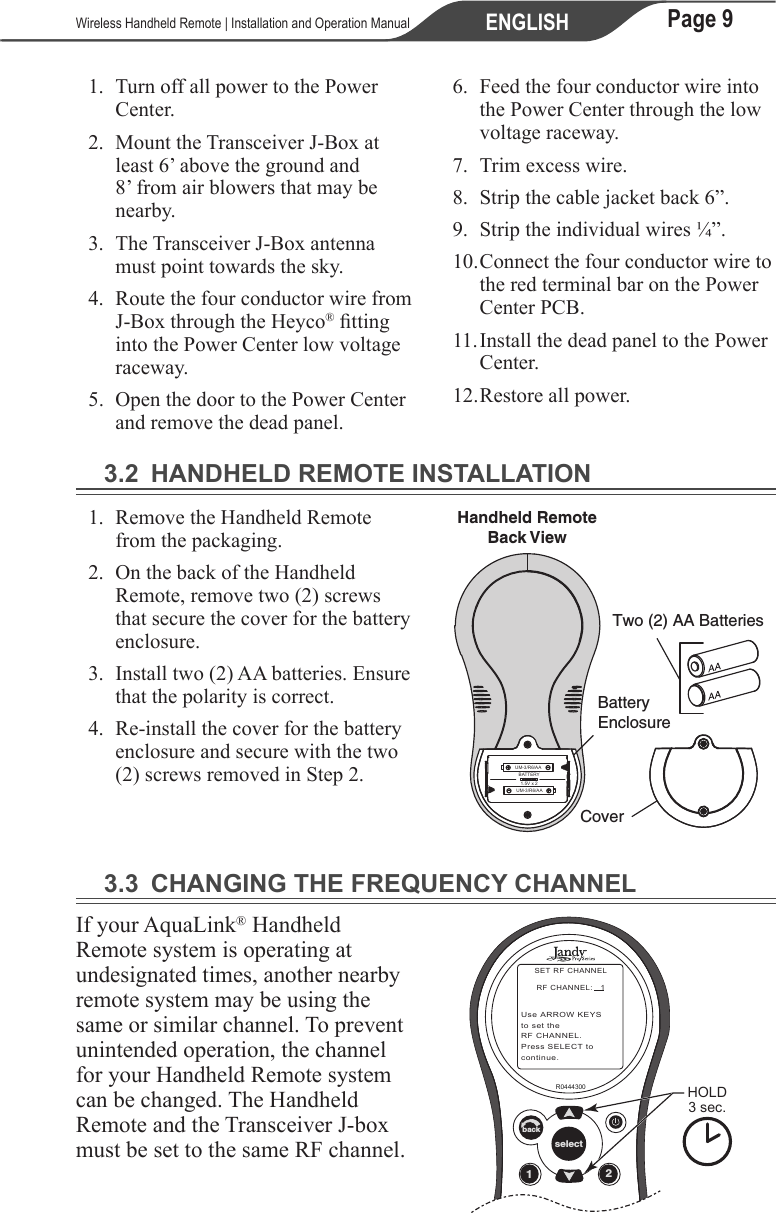

Page 9ENGLISH Wireless Handheld Remote | Installation and Operation Manual1. Turn off all power to the Power Center.2. Mount the Transceiver J-Box at least 6’ above the ground and 8’ from air blowers that may be nearby.3. The Transceiver J-Box antenna must point towards the sky.4. Route the four conductor wire from J-Box through the Heyco® tting into the Power Center low voltage raceway.5. Open the door to the Power Center and remove the dead panel.6. Feed the four conductor wire into the Power Center through the low voltage raceway.7. Trim excess wire.8. Strip the cable jacket back 6”.9. Strip the individual wires ¼”.10. Connect the four conductor wire to the red terminal bar on the Power Center PCB.11. Install the dead panel to the Power Center.12. Restore all power.3.2 HANDHELD REMOTE INSTALLATION1. Remove the Handheld Remote from the packaging.2. On the back of the Handheld Remote, remove two (2) screws that secure the cover for the battery enclosure.3. Install two (2) AA batteries. Ensure that the polarity is correct. 4. Re-install the cover for the battery enclosure and secure with the two (2) screws removed in Step 2.Two (2) AA BatteriesBatteryEnclosureHandheld RemoteBack ViewCoverUM-3/R6/AAUM-3/R6/AABATTERY1.5V x 23.3 CHANGING THE FREQUENCY CHANNELIf your AquaLink® Handheld Remote system is operating at undesignated times, another nearby remote system may be using the same or similar channel. To prevent unintended operation, the channel for your Handheld Remote system can be changed. The Handheld Remote and the Transceiver J-box must be set to the same RF channel. 12selectbackR0444300 HOLD3 sec.SET RF CHANNELRF CHANNEL: 1Use ARROW KEYSto set the RF CHANNEL.Press SELECT tocontinue.

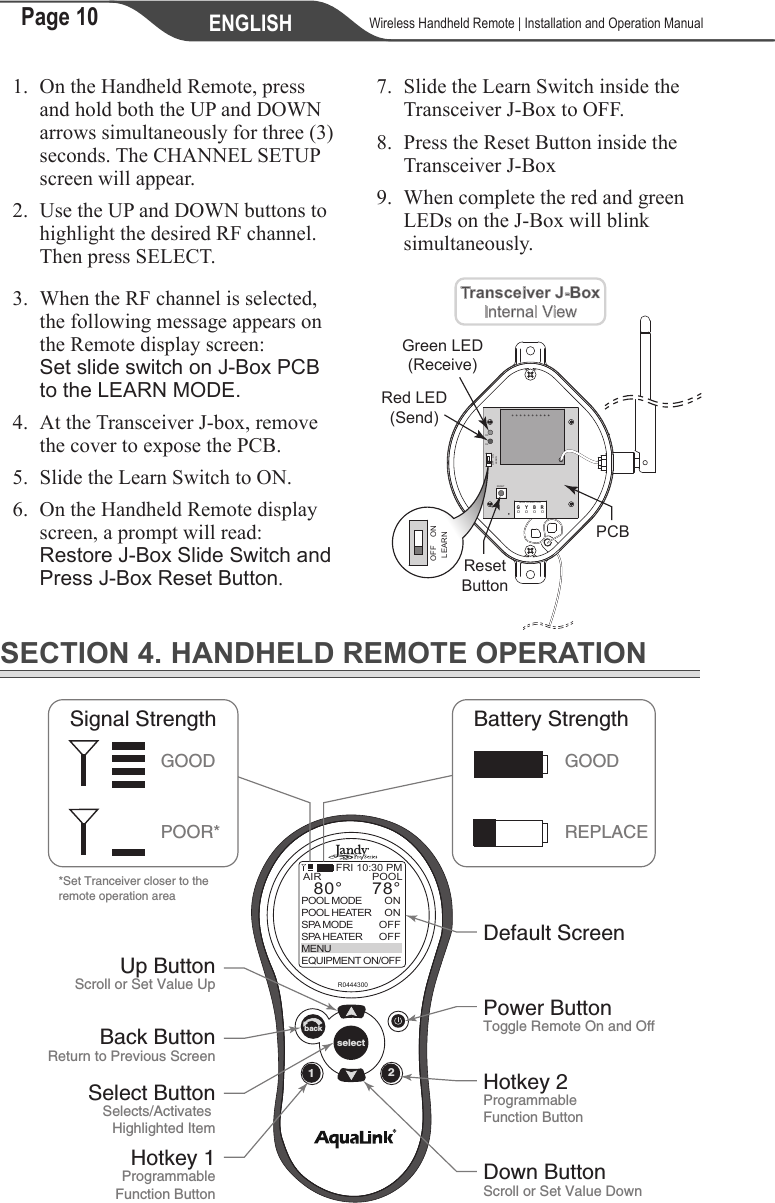

Page 10 ENGLISH Wireless Handheld Remote | Installation and Operation Manual1. On the Handheld Remote, press and hold both the UP and DOWN arrows simultaneously for three (3) seconds. The CHANNEL SETUP screen will appear.2. Use the UP and DOWN buttons to highlight the desired RF channel. Then press SELECT.3. When the RF channel is selected, the following message appears on the Remote display screen: Set slide switch on J-Box PCB to the LEARN MODE.4. At the Transceiver J-box, remove the cover to expose the PCB.5. Slide the Learn Switch to ON.6. On the Handheld Remote display screen, a prompt will read: Restore J-Box Slide Switch and Press J-Box Reset Button.7. Slide the Learn Switch inside the Transceiver J-Box to OFF.8. Press the Reset Button inside the Transceiver J-Box9. When complete the red and green LEDs on the J-Box will blink simultaneously.MAIN CONNECTORRESETD2D3LEARNY B RGOFF ONLEARNOFF ONRed LED(Send)PCBTransceiver J-BoxInternal ViewGreen LED(Receive)ResetButtonSECTION 4. HANDHELD REMOTE OPERATION12selectbackR0444300POOLONONOFFOFFAIR78°80°POOL MODEPOOL HEATERSPA MODESPA HEATERMENUEQUIPMENT ON/OFFFRI 10:30 PMDefault ScreenPower ButtonToggle Remote On and OffHotkey 2ProgrammableFunction ButtonDown ButtonScroll or Set Value DownHotkey 1ProgrammableFunction ButtonBack ButtonReturn to Previous ScreenSelect ButtonSelects/Activates Highlighted ItemUp ButtonScroll or Set Value Up*Set Tranceiver closer to theremote operation areaSignal StrengthGOODPOOR*Battery StrengthGOODREPLACE

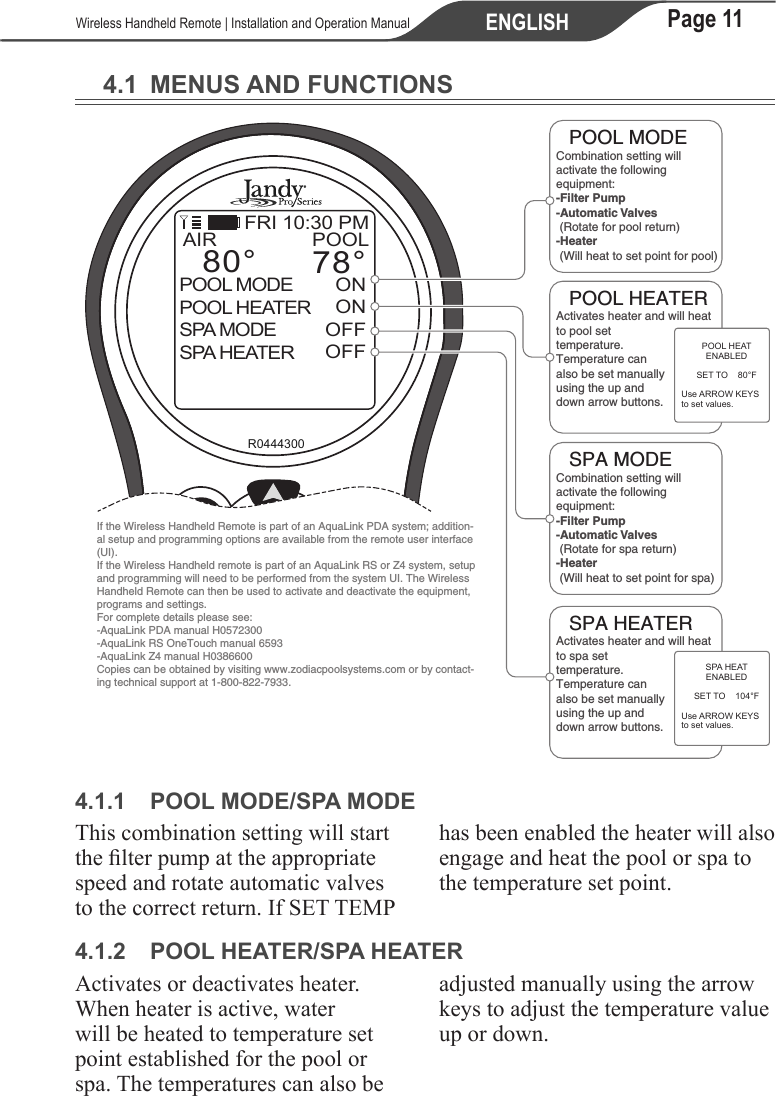

Page 11ENGLISH Wireless Handheld Remote | Installation and Operation Manual4.1 MENUS AND FUNCTIONS12selectbackR0444300POOLONONOFFOFFAIR78°80°POOL MODEPOOL HEATERSPA MODESPA HEATERMENUEQUIPMENT ON/OFFFRI 10:30 PMActivates heater and will heat to pool set temperature. Temperature can also be set manually using the up and down arrow buttons.POOL MODECombination setting will activate the following equipment:-Filter Pump-Automatic Valves (Rotate for pool return)-Heater (Will heat to set point for pool)POOL HEATERSPA MODECombination setting will activate the following equipment:-Filter Pump-Automatic Valves (Rotate for spa return)-Heater (Will heat to set point for spa)SPA HEATERActivates heater and will heat to spa set temperature. Temperature can also be set manually using the up and down arrow buttons.POOL HEATENABLEDSET TO 80°FUse ARROW KEYSto set values.SPA HEATENABLEDSET TO 104°FUse ARROW KEYSto set values.If the Wireless Handheld Remote is part of an AquaLink PDA system; addition-al setup and programming options are available from the remote user interface (UI).If the Wireless Handheld remote is part of an AquaLink RS or Z4 system, setup and programming will need to be performed from the system UI. The Wireless Handheld Remote can then be used to activate and deactivate the equipment, programs and settings.For complete details please see:-AquaLink PDA manual H0572300-AquaLink RS OneTouch manual 6593-AquaLink Z4 manual H0386600 Copies can be obtained by visiting www.zodiacpoolsystems.com or by contact-ing technical support at 1-800-822-7933. 4.1.1 POOL MODE/SPA MODEThis combination setting will start the lter pump at the appropriate speed and rotate automatic valves to the correct return. If SET TEMP has been enabled the heater will also engage and heat the pool or spa to the temperature set point.4.1.2 POOL HEATER/SPA HEATERActivates or deactivates heater. When heater is active, water will be heated to temperature set point established for the pool or spa. The temperatures can also be adjusted manually using the arrow keys to adjust the temperature value up or down.

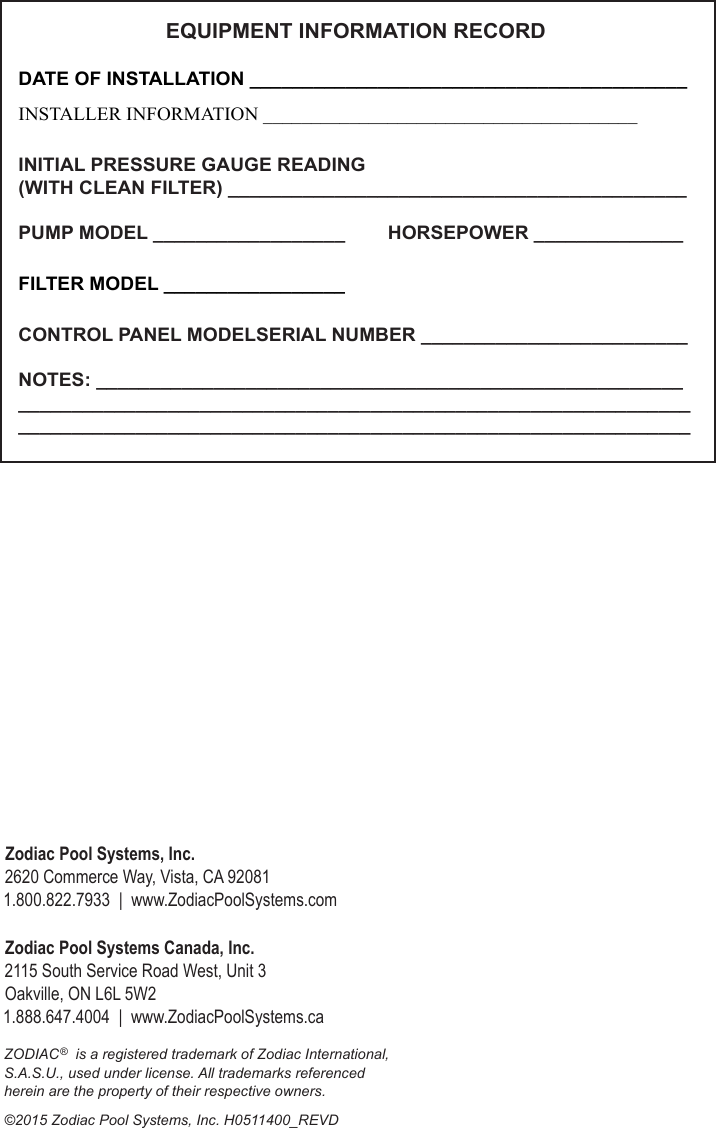

ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license. All trademarks referenced herein are the property of their respective owners.©2015 Zodiac Pool Systems, Inc. H0511400_REVDZodiac Pool Systems Canada, Inc. 2115 South Service Road West, Unit 3 Oakville, ON L6L 5W2 1.888.647.4004 | www.ZodiacPoolSystems.caZodiac Pool Systems, Inc. 2620 Commerce Way, Vista, CA 92081 1.800.822.7933 | www.ZodiacPoolSystems.comDATE OF INSTALLATION _________________________________________INSTALLER INFORMATION _______________________________________INITIAL PRESSURE GAUGE READING (WITH CLEAN FILTER) ___________________________________________PUMP MODEL __________________ HORSEPOWER ______________FILTER MODEL _________________CONTROL PANEL MODELSERIAL NUMBER _________________________NOTES: _____________________________________________________________________________________________________________________________________________________________________________________ EQUIPMENT INFORMATION RECORD
