iRevo RITETOUCH DIGITAL DOOR LOCK User Manual

iRevo Inc. DIGITAL DOOR LOCK

User Manual

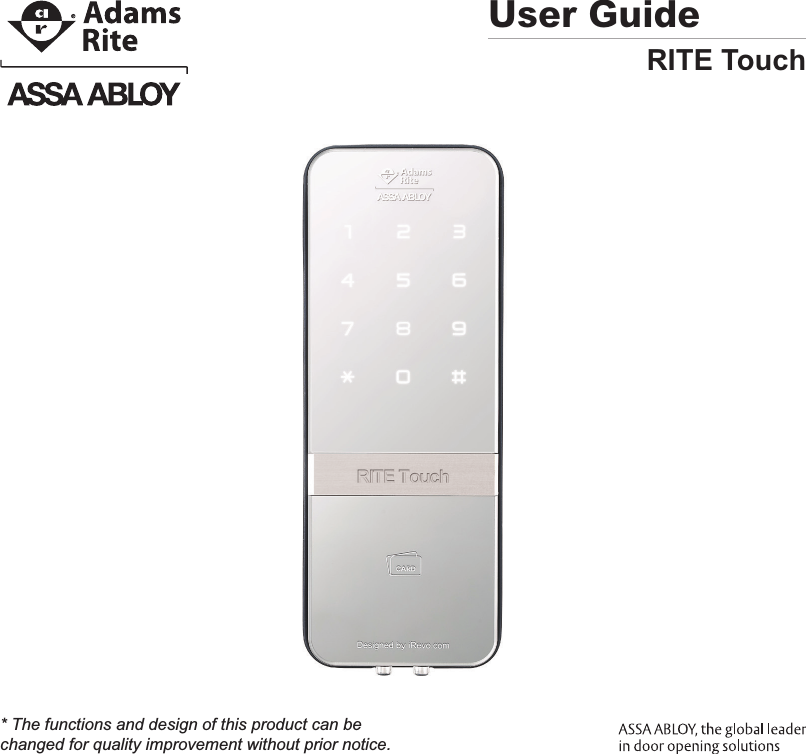

User GuideRITE Touch* The functions and design of this product can be changed for quality improvement without prior notice.

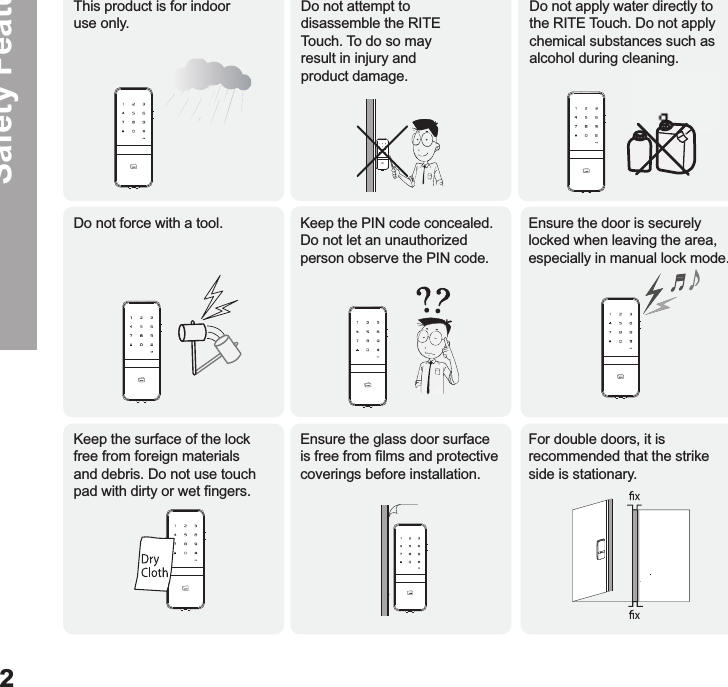

Safety FeaturesThis product is for indoor use only.Do not force with a tool.Keep the surface of the lock free from foreign materials and debris. Do not use touch pad with dirty or wet fingers.Ensure the glass door surface is free from films and protective coverings before installation.For double doors, it is recommended that the strike side is stationary. Keep the PIN code concealed. Do not let an unauthorized person observe the PIN code. Ensure the door is securely locked when leaving the area, especially in manual lock mode.Do not apply water directly to the RITE Touch. Do not apply chemical substances such as alcohol during cleaning.Do not attempt to disassemble the RITE Touch. To do so may result in injury and product damage.2

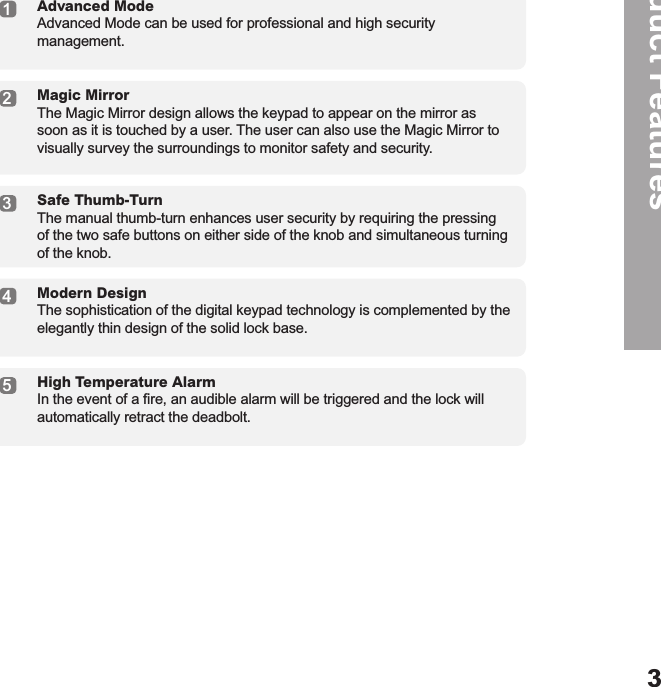

Product Features13245Advanced Mode Advanced Mode can be used for professional and high security management.Magic Mirror The Magic Mirror design allows the keypad to appear on the mirror as soon as it is touched by a user. The user can also use the Magic Mirror to visually survey the surroundings to monitor safety and security.Safe Thumb-Turn The manual thumb-turn enhances user security by requiring the pressing of the two safe buttons on either side of the knob and simultaneous turning of the knob.Modern Design The sophistication of the digital keypad technology is complemented by the elegantly thin design of the solid lock base.High Temperature Alarm In the event of a fire, an audible alarm will be triggered and the lock will automatically retract the deadbolt.3

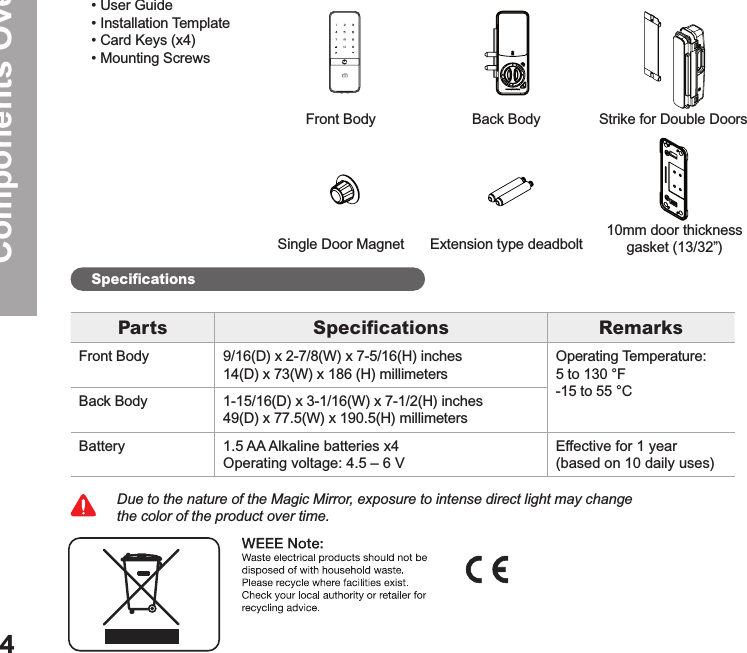

Components Overview4• User Guide • Installation Template• Card Keys (x4)• Mounting Screws Due to the nature of the Magic Mirror, exposure to intense direct light may change the color of the product over time. Front BodySingle Door MagnetExtension type deadbolt10mm door thickness gasket (13/32”)Back Body Strike for Double DoorsBasic ContentsSpecificationsParts Specifications RemarksFront Body 9/16(D) x 2-7/8(W) x 7-5/16(H) inches14(D) x 73(W) x 186 (H) millimetersOperating Temperature:5 to 130 °F-15 to 55 °CBack Body1-15/16(D) x 3-1/16(W) x 7-1/2(H) inches49(D) x 77.5(W) x 190.5(H) millimetersBattery 1.5 AA Alkaline batteries x4Operating voltage: 4.5 – 6 VEffective for 1 year (based on 10 daily uses)

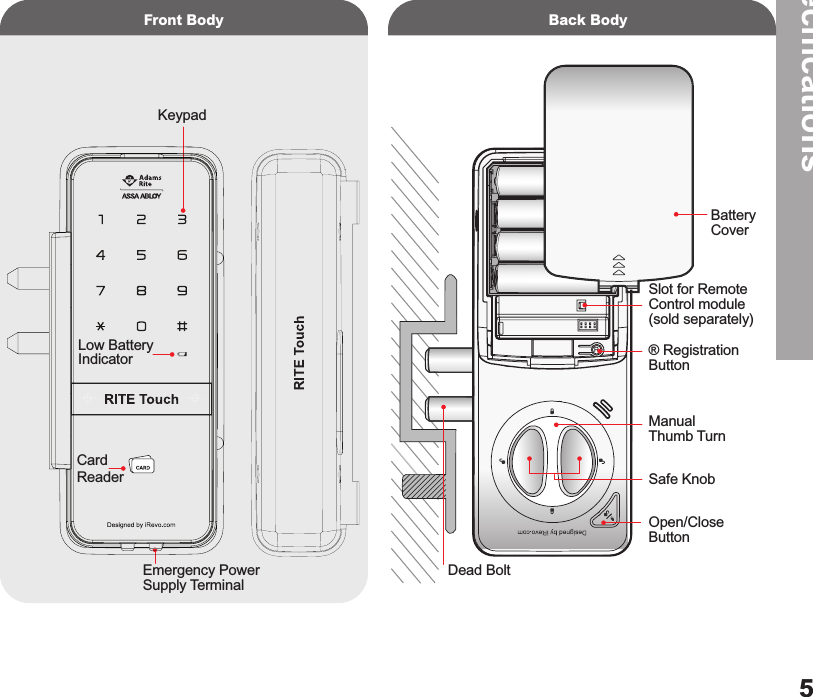

Specifications5KeypadBattery Cover® Registration ButtonManual Thumb TurnSlot for Remote Control module (sold separately)Safe KnobOpen/Close ButtonDead BoltLow Battery IndicatorCard ReaderEmergency Power Supply TerminalFront Body Back Body

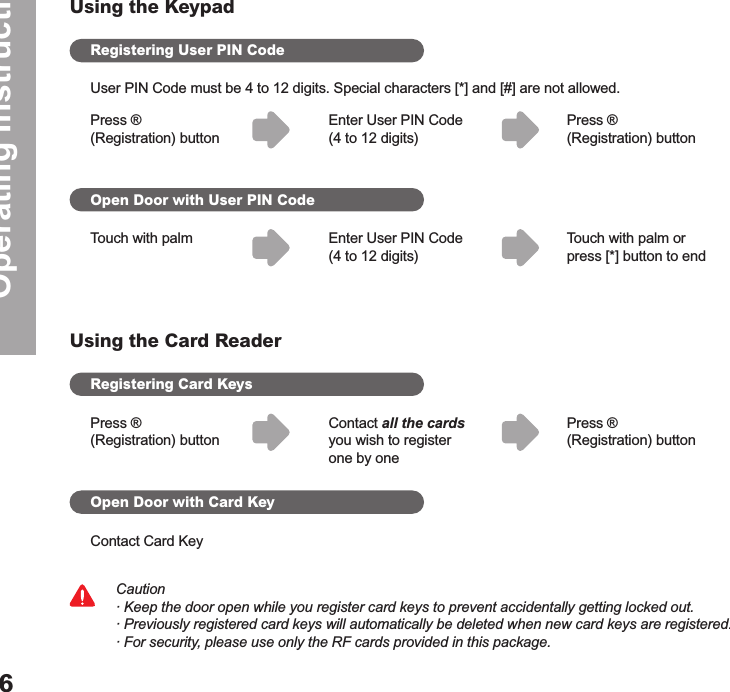

Operating Instructions6User PIN Code must be 4 to 12 digits. Special characters [*] and [#] are not allowed.Using the KeypadUsing the Card ReaderRegistering User PIN CodeRegistering Card KeysOpen Door with User PIN CodeOpen Door with Card KeyPress ® (Registration) buttonPress ® (Registration) buttonTouch with palmContact Card KeyPress ® (Registration) buttonPress ® (Registration) buttonTouch with palm or press [*] button to endEnter User PIN Code (4 to 12 digits)Contact all the cards you wish to register one by oneEnter User PIN Code (4 to 12 digits)Caution ∙ Keep the door open while you register card keys to prevent accidentally getting locked out. ∙ Previously registered card keys will automatically be deleted when new card keys are registered.∙ For security, please use only the RF cards provided in this package.

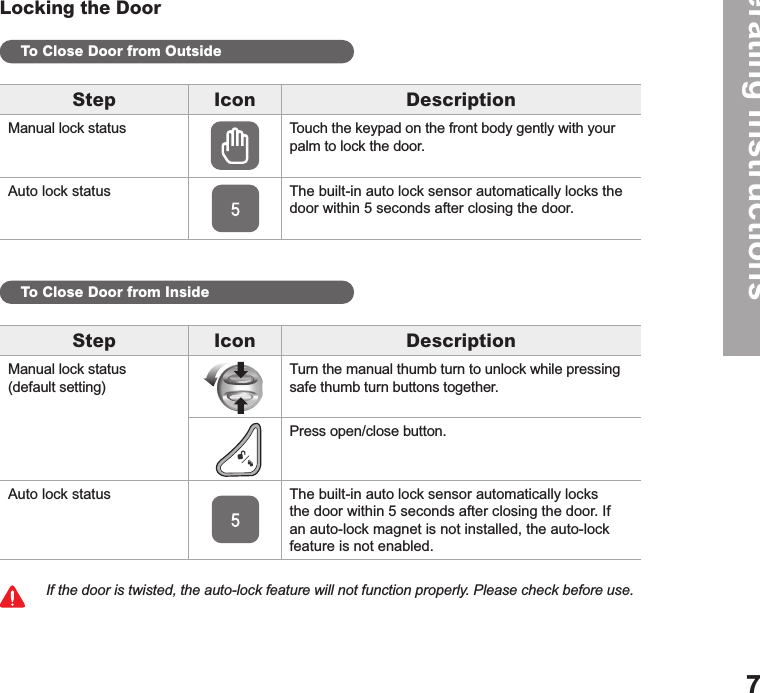

Operating Instructions7Locking the DoorTo Close Door from OutsideTo Close Door from InsideIf the door is twisted, the auto-lock feature will not function properly. Please check before use.Step Icon DescriptionManual lock status Touch the keypad on the front body gently with your palm to lock the door. Auto lock status The built-in auto lock sensor automatically locks the door within 5 seconds after closing the door. Step Icon DescriptionManual lock status (default setting)Turn the manual thumb turn to unlock while pressing safe thumb turn buttons together.Press open/close button.Auto lock status The built-in auto lock sensor automatically locks the door within 5 seconds after closing the door. If an auto-lock magnet is not installed, the auto-lock feature is not enabled.

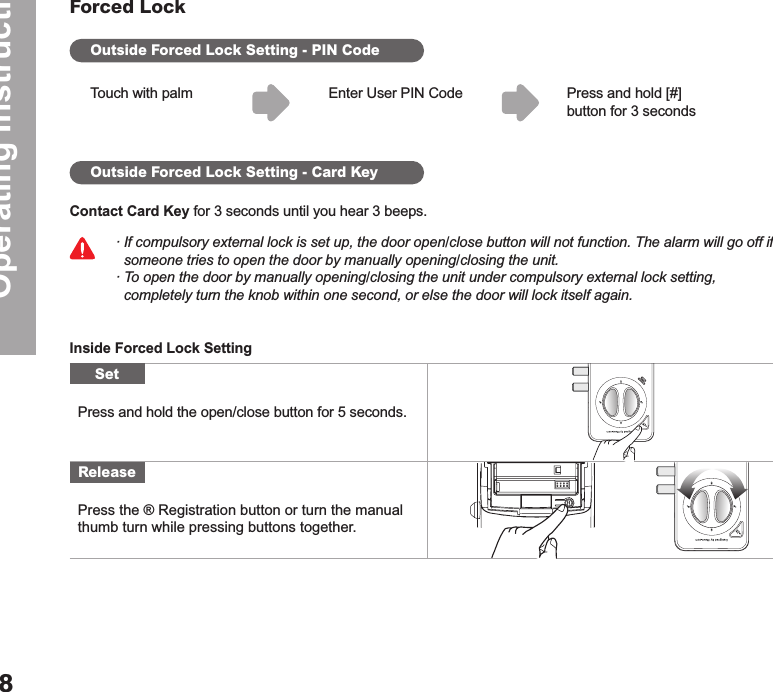

Operating Instructions8Forced LockOutside Forced Lock Setting - PIN CodeOutside Forced Lock Setting - Card KeyTouch with palmContact Card Key for 3 seconds until you hear 3 beeps.Inside Forced Lock SettingPress and hold [#] button for 3 secondsEnter User PIN Code∙ If compulsory external lock is set up, the door open/close button will not function. The alarm will go off if someone tries to open the door by manually opening/closing the unit. ∙ To open the door by manually opening/closing the unit under compulsory external lock setting, completely turn the knob within one second, or else the door will lock itself again.Press and hold the open/close button for 5 seconds. Press the ® Registration button or turn the manual thumb turn while pressing buttons together.SetRelease

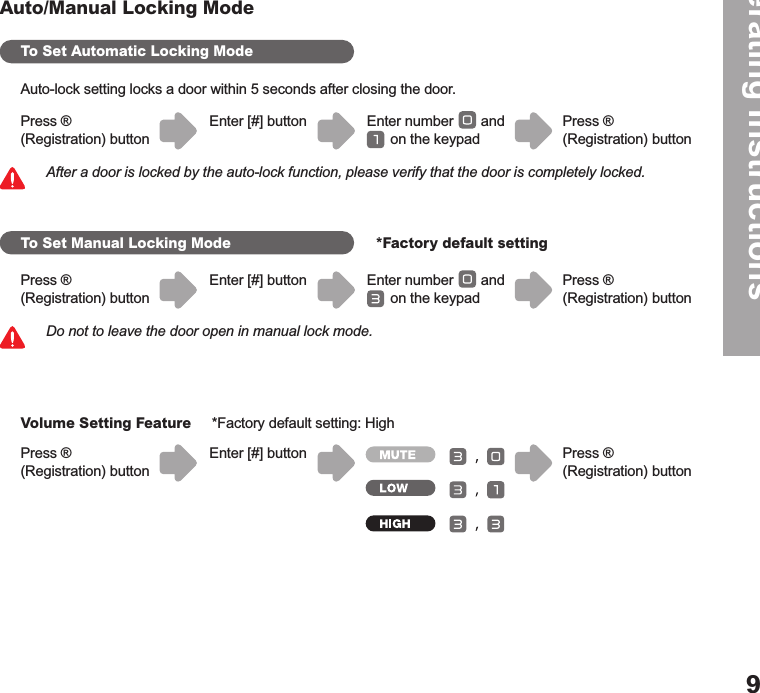

Operating Instructions9Auto/Manual Locking ModeTo Set Automatic Locking ModeTo Set Manual Locking ModeVolume Setting Feature*Factory default setting*Factory default setting: HighAfter a door is locked by the auto-lock function, please verify that the door is completely locked.Do not to leave the door open in manual lock mode.Auto-lock setting locks a door within 5 seconds after closing the door.Press ® (Registration) buttonPress ® (Registration) buttonPress ® (Registration) buttonPress ® (Registration) buttonPress ® (Registration) buttonPress ® (Registration) buttonEnter [#] buttonEnter [#] buttonEnter [#] buttonEnter number and on the keypadEnter number and on the keypad

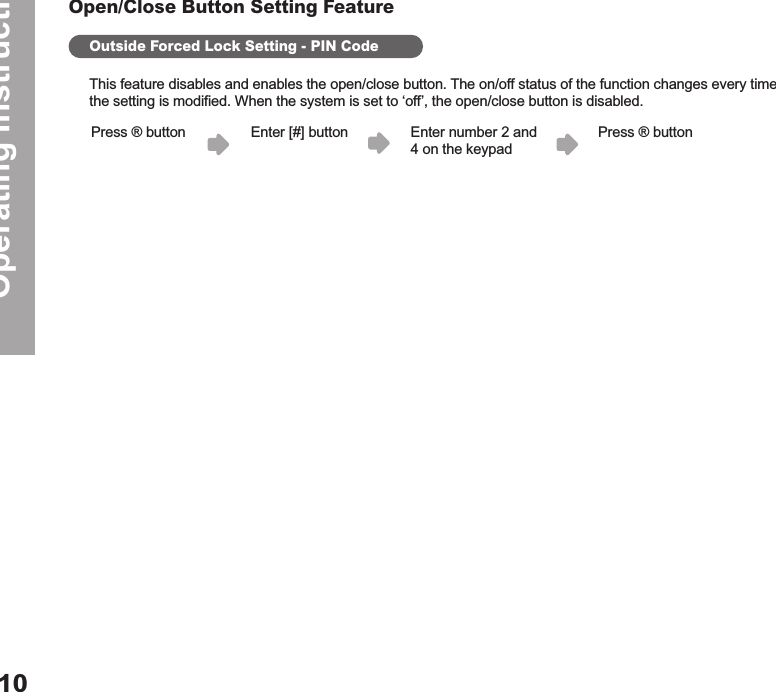

Operating Instructions10Open/Close Button Setting FeatureOutside Forced Lock Setting - PIN CodeThis feature disables and enables the open/close button. The on/off status of the function changes every time the setting is modified. When the system is set to ‘off’, the open/close button is disabled.Enter [#] button Enter number 2 and 4 on the keypadPress ® button Press ® button

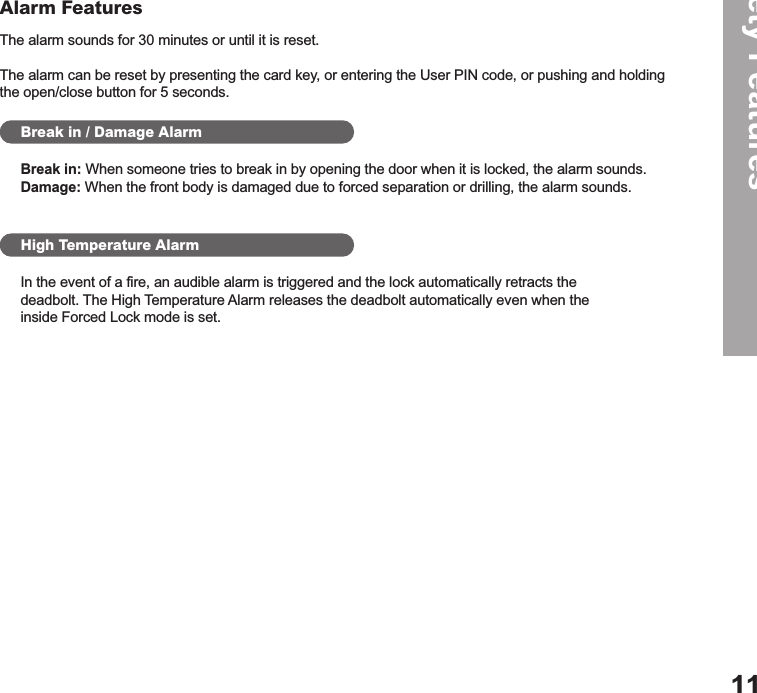

The alarm sounds for 30 minutes or until it is reset. The alarm can be reset by presenting the card key, or entering the User PIN code, or pushing and holding the open/close button for 5 seconds.Safety Features11Alarm FeaturesBreak in / Damage AlarmHigh Temperature AlarmBreak in: When someone tries to break in by opening the door when it is locked, the alarm sounds.Damage: When the front body is damaged due to forced separation or drilling, the alarm sounds.In the event of a fire, an audible alarm is triggered and the lock automatically retracts the deadbolt. The High Temperature Alarm releases the deadbolt automatically even when the inside Forced Lock mode is set.

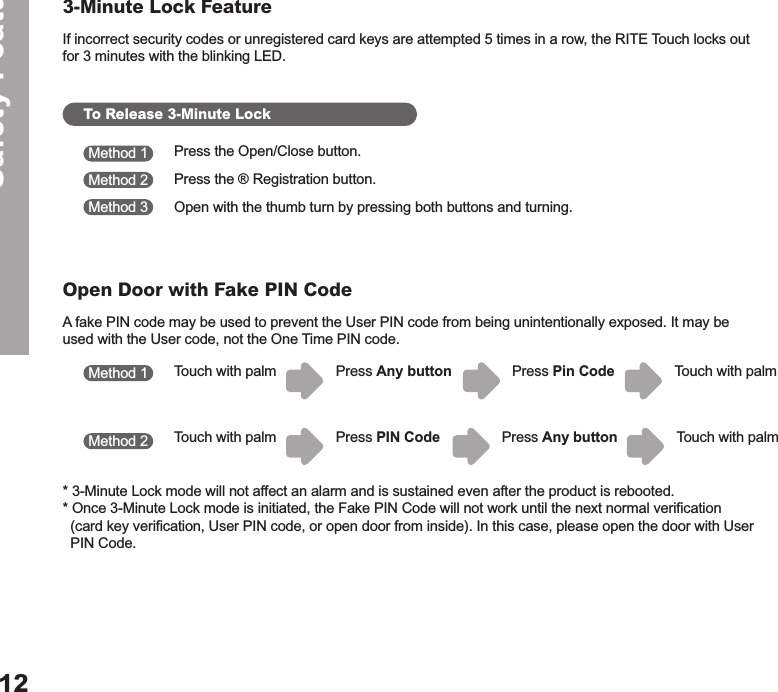

If incorrect security codes or unregistered card keys are attempted 5 times in a row, the RITE Touch locks out for 3 minutes with the blinking LED.A fake PIN code may be used to prevent the User PIN code from being unintentionally exposed. It may be used with the User code, not the One Time PIN code. * 3-Minute Lock mode will not affect an alarm and is sustained even after the product is rebooted.* Once 3-Minute Lock mode is initiated, the Fake PIN Code will not work until the next normal verification (card key verification, User PIN code, or open door from inside). In this case, please open the door with User PIN Code. Safety Features123-Minute Lock FeatureOpen Door with Fake PIN CodeTo Release 3-Minute LockPress the Open/Close button. Press the ® Registration button.Open with the thumb turn by pressing both buttons and turning. Method 1Method 1Method 2Method 2Method 3Touch with palmTouch with palmTouch with palmTouch with palmPress Any buttonPress PIN CodePress Pin CodePress Any button

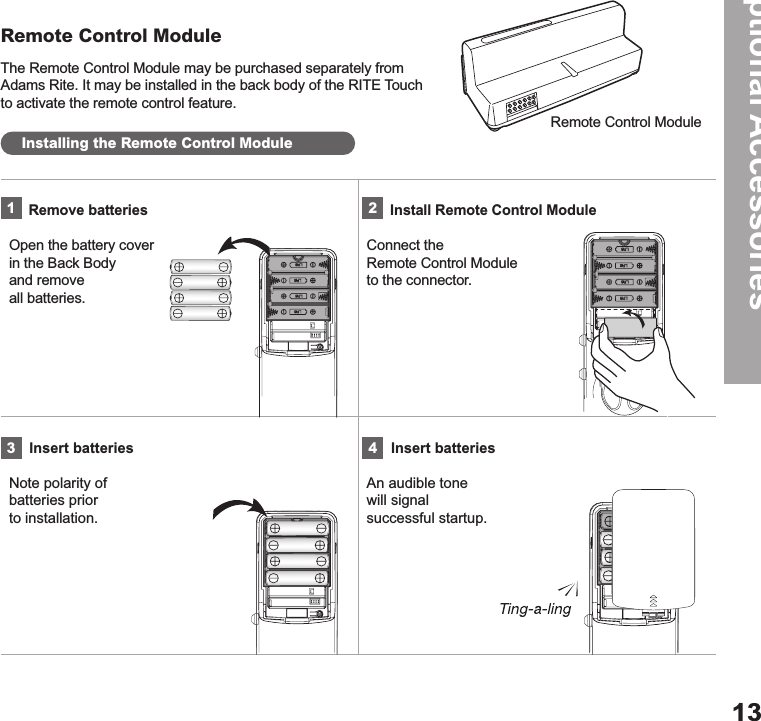

The Remote Control Module may be purchased separately from Adams Rite. It may be installed in the back body of the RITE Touch to activate the remote control feature.Remote Control ModuleOptional Accessories13Remote Control ModuleInstalling the Remote Control ModulePress the Open/Close button. Press the ® Registration button.Open with the thumb turn by pressing both buttons and turning. Touch with palmTouch with palm Remove batteries Open the battery cover in the Back Body and remove all batteries. Install Remote Control ModuleConnect the Remote Control Module to the connector. Insert batteriesNote polarity of batteries prior to installation. Insert batteriesAn audible tone will signal successful startup.1324

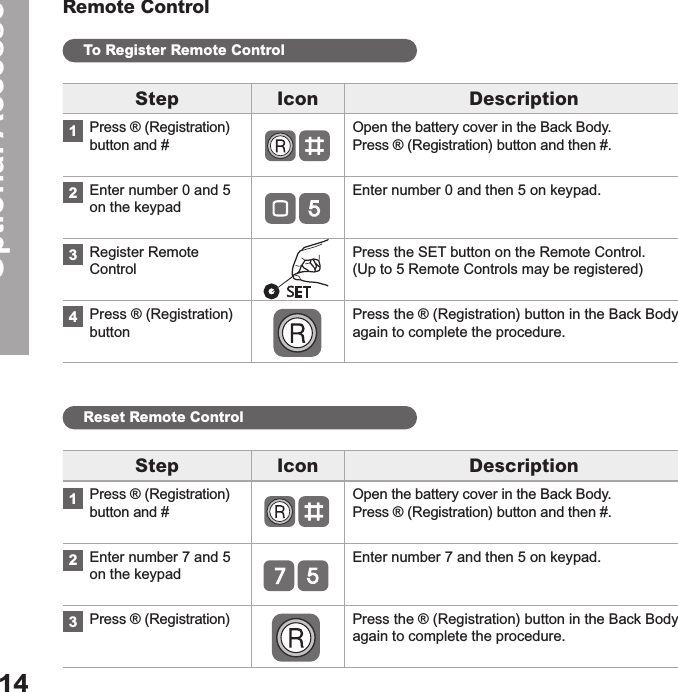

Remote ControlTo Register Remote ControlReset Remote ControlOptional AccessoriesStep Icon DescriptionPress ® (Registration) button and #Open the battery cover in the Back Body. Press ® (Registration) button and then #.Enter number 0 and 5 on the keypadEnter number 0 and then 5 on keypad.Register Remote ControlPress the SET button on the Remote Control. (Up to 5 Remote Controls may be registered) Press ® (Registration) buttonPress the ® (Registration) button in the Back Body again to complete the procedure.Step Icon DescriptionPress ® (Registration) button and #Open the battery cover in the Back Body. Press ® (Registration) button and then #.Enter number 7 and 5 on the keypadEnter number 7 and then 5 on keypad.Press ® (Registration) Press the ® (Registration) button in the Back Body again to complete the procedure.123412314

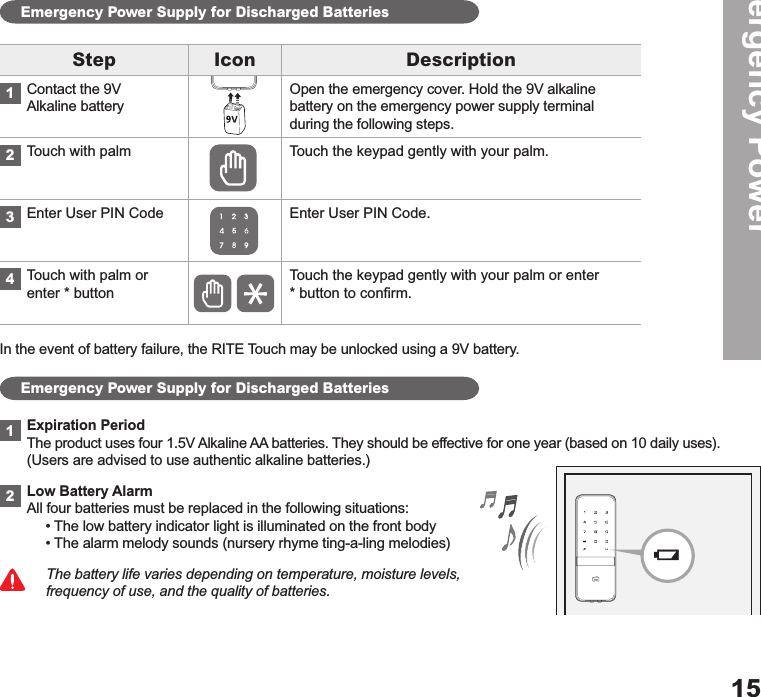

Step Icon DescriptionContact the 9V Alkaline batteryOpen the emergency cover. Hold the 9V alkaline battery on the emergency power supply terminal during the following steps. Touch with palm Touch the keypad gently with your palm.Enter User PIN Code Enter User PIN Code.Touch with palm or enter * buttonTouch the keypad gently with your palm or enter * button to conrm.112234In the event of battery failure, the RITE Touch may be unlocked using a 9V battery.Expiration PeriodThe product uses four 1.5V Alkaline AA batteries. They should be effective for one year (based on 10 daily uses). (Users are advised to use authentic alkaline batteries.)Low Battery Alarm All four batteries must be replaced in the following situations:• The low battery indicator light is illuminated on the front body • The alarm melody sounds (nursery rhyme ting-a-ling melodies) Emergency Power Supply for Discharged BatteriesEmergency Power Supply for Discharged BatteriesEmergency PowerThe battery life varies depending on temperature, moisture levels, frequency of use, and the quality of batteries.15

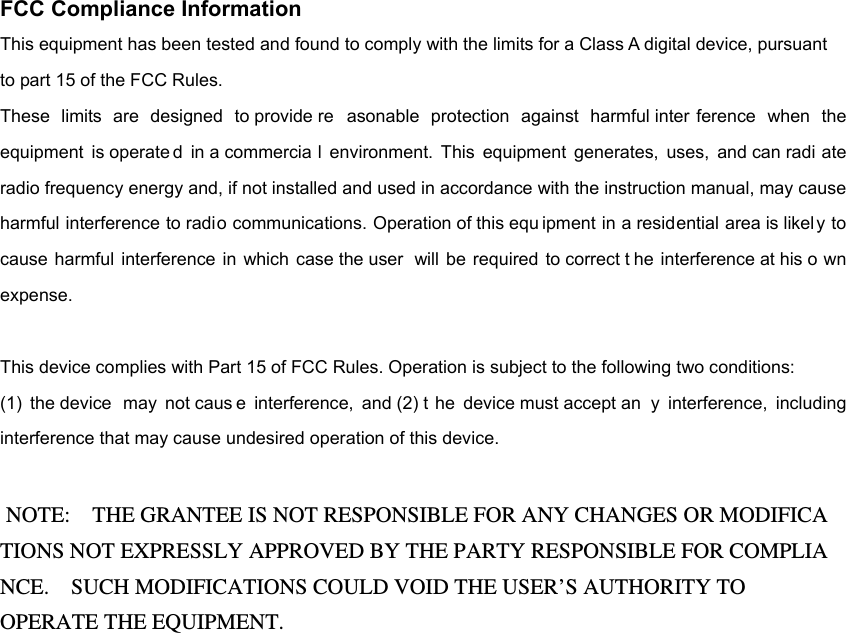

FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide re asonable protection against harmful inter ference when the equipment is operate d in a commercia l environment. This equipment generates, uses, and can radi ate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equ ipment in a residential area is likel y to cause harmful interference in which case the user will be required to correct t he interference at his o wn expense. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) the device may not caus e interference, and (2) t he device must accept an y interference, including interference that may cause undesired operation of this device. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICA TIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIA NCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
www.adamsrite.com800.872.3267
