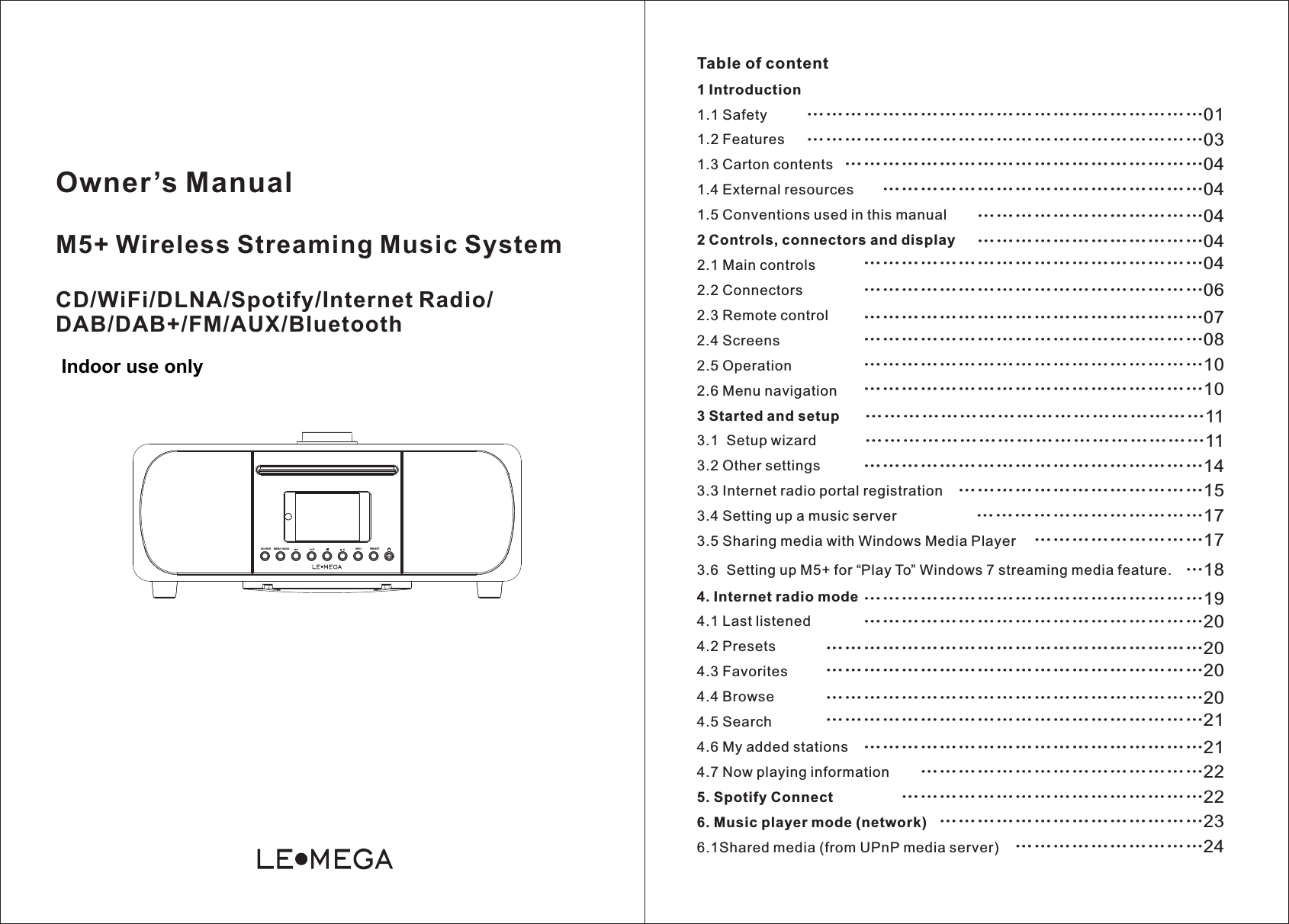

Owner’s Manual Wireless Streaming Music SystemCD/WiFi/DLNA/Spotify/Internet Radio/DAB/DAB+/FM/AUX/BluetoothM5+Table of content1 Introduction1.1 Safety1.2 Features1.3 Carton contents1.4 External resources1.5 Conventions used in this manual2 Controls, connectors and display2.1 Main controls2.2 Connectors2.3 Remote control2.4 Screens2.5 Operation2.6 Menu navigation3 Started and setup3.1 Setup wizard3.2 Other settings3.3 Internet radio portal registration3.4 Setting up a music server3.5 Sharing media with Windows Media Player3.6 Setting up M5+ for “Play To” Windows 7 streaming media feature.4. Internet radio mode4.1 Last listened4.2 Presets4.3 Favorites4.4 Browse4.5 Search4.6 My added stations4.7 Now playing information5. Spotify Connect6. Music player mode (network)6.1Shared media (from UPnP media server)…… …………………………………01…………………… …………………………………03…………………… …………………………………04……………… …………………………………04………… ……………………04………… ……………………04………… … ………………………………04…… ……… … ………………………………06…… ……… … ………………………………07…… ……… …………………………………08…………… …………………………………10…………… …………………………………10…………… …………………………………11…………… … ………………………………11…… ……… …………………14…………………………… …………………15…………… … ……………17……… ………17………………………18…… …… ………………………20…… …………… …… ………………………19…… …………… …… ……………………………20…… …………… …… ……………………………20…… …………… …………………………20………………………… …… ……………………………21…… …………… … …………………21…… …………………… … …………………22…… …………… ………………22………………………… …………………………23………………………………24SOURCE INFOMENU / BACK PRESETIndoor use only

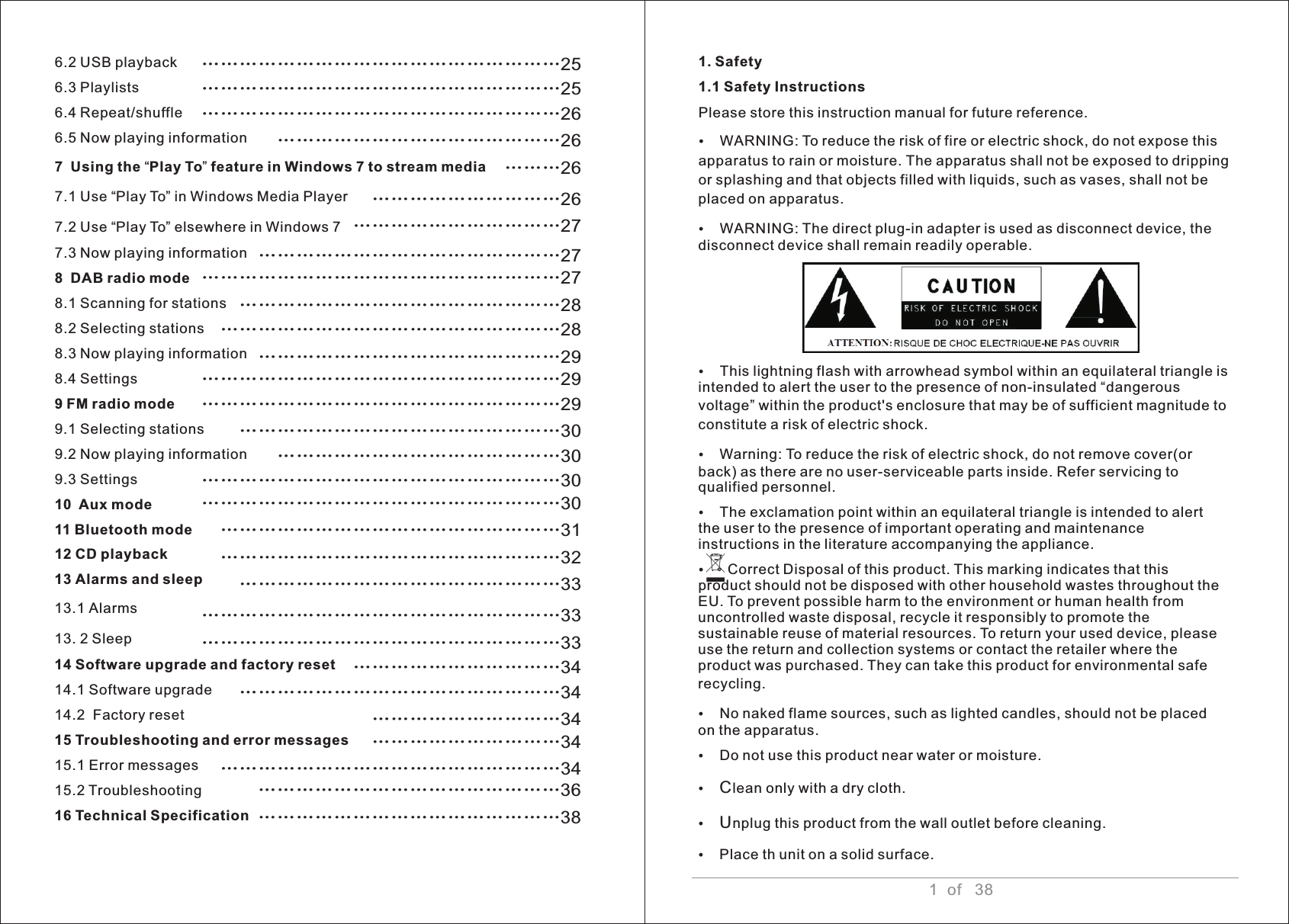

6.2 USB playback6.3 Playlists6.4 Repeat/shuffle6.5 Now playing information7 Using the “Play To” feature in Windows 7 to stream media7.1 Use “Play To” in Windows Media Player7.2 Use “Play To” elsewhere in Windows 77.3 Now playing information8 DAB radio mode8.1 Scanning for stations8.2 Selecting stations8.3 Now playing information8.4 Settings9 FM radio mode9.1 Selecting stations9.2 Now playing information9.3 Settings10 Aux mode11 Bluetooth mode12 CD playback13 Alarms and sleep13.1 Alarms13. 2 Sleep14 Software upgrade and factory reset14.1 Software upgrade14.2 Factory reset15 Troubleshooting and error messages15.1 Error messages15.2 Troubleshooting16 Technical Specification…… ………………………………25………………… ………………………………25………………… ………………………………26………………… ………………………………26…………26…………………………26……………………………27…… ………………………………27………… ………………………………27………………… …………………………28………………… ……………………………28………………… ………………………………29………… ………………………………29………………… ………………………………29………………… ………………………………30………………………………………………30…… ………………………………30………………… ………………………………30………………… ……………………………31………………… ………………………………32……………… ………………………………33…………… ………………………………33………………… ………33………………………………………… …………34………………… ………………………………34…………… ………34………………… ………34………………… ……………………………34………………… ………………………36………………… ………………………38……………1. Safety 1.1 Safety InstructionsPlease store this instruction manual for future reference.ŸWARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. ŸWARNING: The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable.ŸThis lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.ŸWarning: To reduce the risk of electric shock, do not remove cover(or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.ŸThe exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. Ÿ Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. ŸNo naked flame sources, such as lighted candles, should not be placed on the apparatus.ŸDo not use this product near water or moisture.ŸClean only with a dry cloth.ŸUnplug this product from the wall outlet before cleaning. ŸPlace th unit on a solid surface. 1 of 38

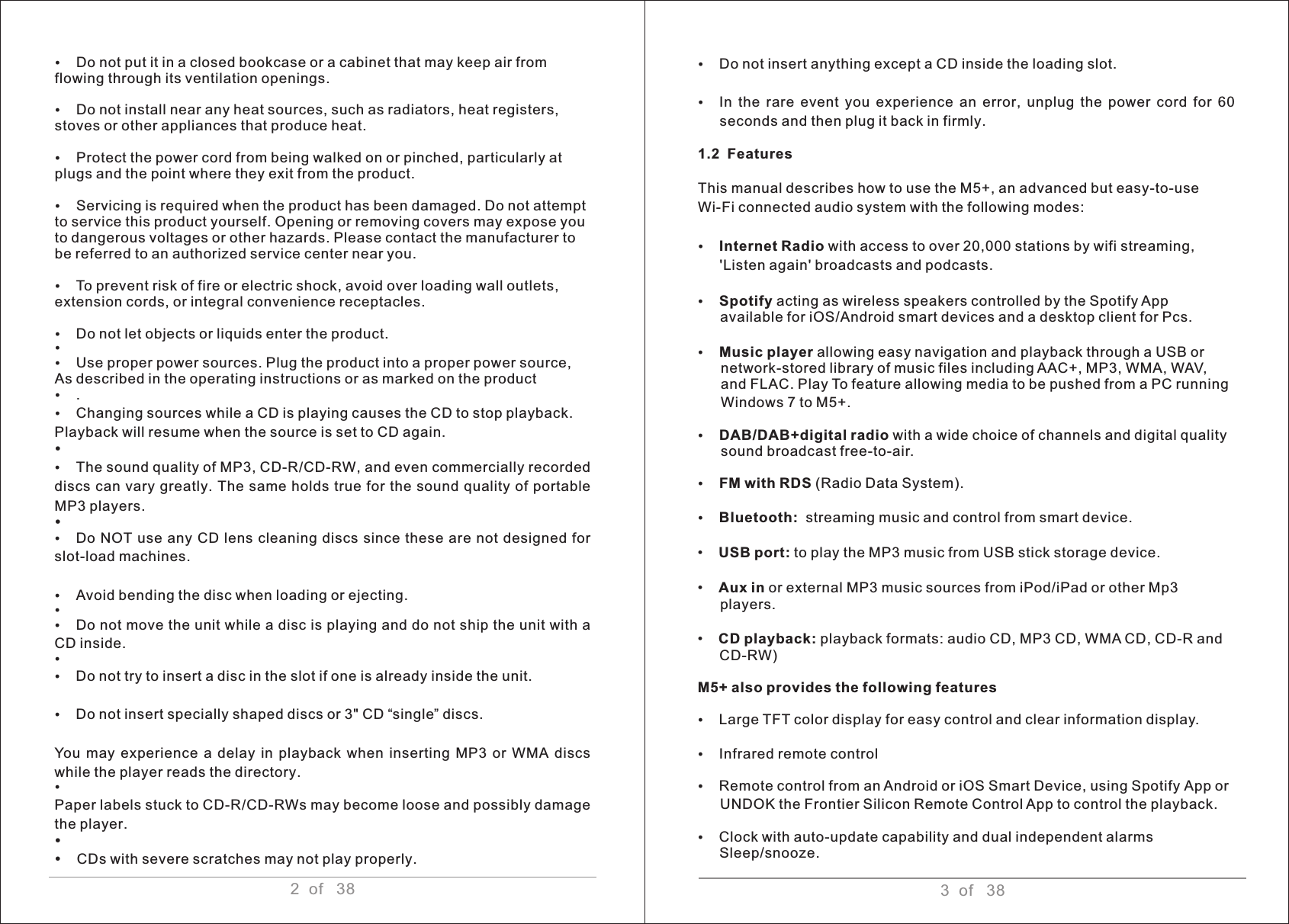

3 of 38ŸDo not put it in a closed bookcase or a cabinet that may keep air from flowing through its ventilation openings.ŸDo not install near any heat sources, such as radiators, heat registers, stoves or other appliances that produce heat.ŸProtect the power cord from being walked on or pinched, particularly at plugs and the point where they exit from the product.ŸServicing is required when the product has been damaged. Do not attempt to service this product yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please contact the manufacturer to be referred to an authorized service center near you.ŸTo prevent risk of fire or electric shock, avoid over loading wall outlets, extension cords, or integral convenience receptacles.ŸDo not let objects or liquids enter the product.ŸŸUse proper power sources. Plug the product into a proper power source, As described in the operating instructions or as marked on the productŸ.ŸChanging sources while a CD is playing causes the CD to stop playback. Playback will resume when the source is set to CD again.ŸŸThe sound quality of MP3, CD-R/CD-RW, and even commercially recorded discs can vary greatly. The same holds true for the sound quality of portable MP3 players.ŸŸDo NOT use any CD lens cleaning discs since these are not designed for slot-load machines.ŸAvoid bending the disc when loading or ejecting.ŸŸDo not move the unit while a disc is playing and do not ship the unit with a CD inside.ŸŸDo not try to insert a disc in the slot if one is already inside the unit.ŸDo not insert specially shaped discs or 3" CD “single” discs.You may experience a delay in playback when inserting MP3 or WMA discs while the player reads the directory.ŸPaper labels stuck to CD-R/CD-RWs may become loose and possibly damage the player.ŸŸCDs with severe scratches may not play properly.ŸDo not insert anything except a CD inside the loading slot.ŸIn the rare event you experience an error, unplug the power cord for 60 seconds and then plug it back in firmly.1.2 FeaturesThis manual describes how to use the M5+, an advanced but easy-to-use Wi-Fi connected audio system with the following modes:ŸInternet Radio with access to over 20,000 stations by wifi streaming, 'Listen again' broadcasts and podcasts. ŸSpotify acting as wireless speakers controlled by the Spotify App available for iOS/Android smart devices and a desktop client for Pcs. ŸMusic player allowing easy navigation and playback through a USB or network-stored library of music files including AAC+, MP3, WMA, WAV, and FLAC. Play To feature allowing media to be pushed from a PC running Windows 7 to M5+.ŸDAB/DAB+digital radio with a wide choice of channels and digital quality sound broadcast free-to-air. ŸFM with RDS (Radio Data System).ŸBluetooth: streaming music and control from smart device.• USB port: to play the MP3 music from USB stick storage device.• Aux in or external MP3 music sources from iPod/iPad or other Mp3 players.• CD playback: playback formats: audio CD, MP3 CD, WMA CD, CD-R and CD-RW) M5+ also provides the following featuresŸLarge TFT color display for easy control and clear information display.ŸInfrared remote control ŸRemote control from an Android or iOS Smart Device, using Spotify App or UNDOK the Frontier Silicon Remote Control App to control the playback. ŸClock with auto-update capability and dual independent alarms Sleep/snooze.2 of 38

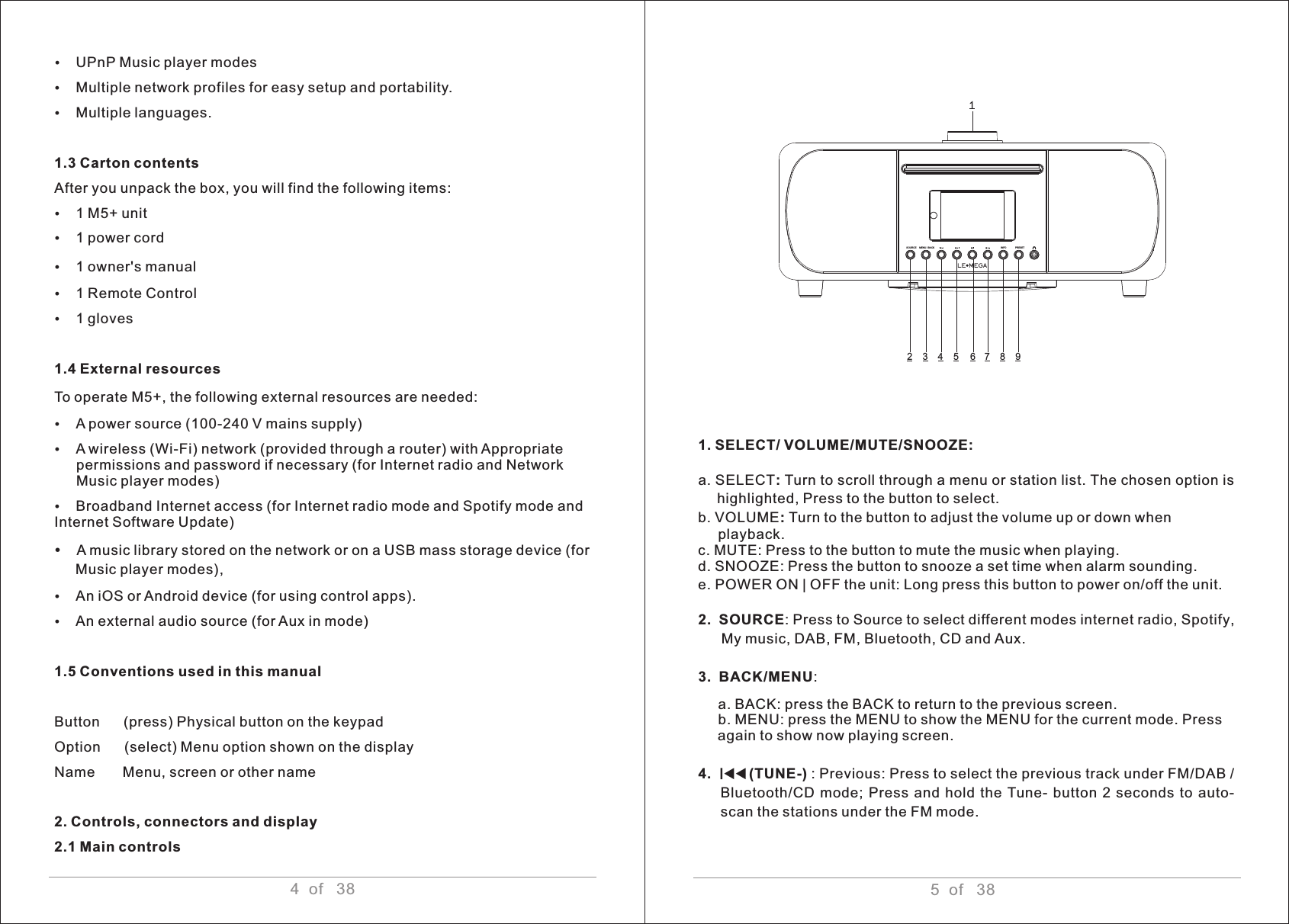

ŸUPnP Music player modesŸMultiple network profiles for easy setup and portability. ŸMultiple languages.1.3 Carton contentsAfter you unpack the box, you will find the following items:Ÿ1 M5+ unitŸ1 power cordŸ1 owner's manualŸ1 Remote ControlŸ1 gloves1.4 External resources To operate M5+, the following external resources are needed: ŸA power source (100-240 V mains supply)ŸA wireless (Wi-Fi) network (provided through a router) with Appropriate permissions and password if necessary (for Internet radio and Network Music player modes)ŸBroadband Internet access (for Internet radio mode and Spotify mode and Internet Software Update)ŸA music library stored on the network or on a USB mass storage device (for Music player modes), ŸAn iOS or Android device (for using control apps).ŸAn external audio source (for Aux in mode)1.5 Conventions used in this manualButton (press) Physical button on the keypadOption (select) Menu option shown on the displayName Menu, screen or other name2. Controls, connectors and display 2.1 Main controls1. SELECT/ VOLUME/MUTE/SNOOZE: POWER ON | OFF the unit: Long press this button to power on/off the unit2. SOURCE: Press to Source to select different modes internet radio, Spotify, My music, DAB, FM, Bluetooth, CD and Aux.3. BACK/MENU: a. BACK: press the BACK to return to the previous screen. b. MENU: press the MENU to show the MENU for the current mode. Press again to show now playing screen. 4. (TUNE-) : Previous: Press to select the previous track under FM/DAB / Bluetooth/CD mode; Press and hold the Tune- button 2 seconds to auto-scan the stations under the FM mode.a. SELECT: Turn to scroll through a menu or station list. The chosen option is highlighted, Press to the button to select. b. VOLUME: Turn to the button to adjust the volume up or down when playback. c. MUTE: Press to the button to mute the music when playing. d. SNOOZE: Press the button to snooze a set time when alarm sounding.e. .4 of 38 5 of 38SOURCE INFOMENU / BACK PRESET12 3 4 5 6 7 8 9
ŸPower switchŸPower input (100-240V) ŸUSB socket for USB stick with MP3 music playback (not for charging).ŸLine out (to connect to an external amplifier or active speaker)ŸAux in (to connect external MP3 music source from the iPod, or Pad other device)ŸHeadphones out on front panel for the headphone playback.2.3 Remote controlIn additional to duplicating most of buttons on top of the unit, the remote control adds the following functions:1. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 10+: Press to preset the favorite stations. The presets recalled using the 1 through 10+ buttons on the remote control.12SLEEP ZZZPRGMENUSHUF REP INFO7 of 385. (TUNE+) : Next: Press to select the next track under FM/DAB/ Bluetooth / CD mode; Press and hold the Tune+ button 2 seconds to auto-scan the stations under the FM mode.6. : Press to select Play/Pause under internet radio, Spotify, My music , Bluetooth and CD mode. In FM mode, press to do auto scan the stations. 7. :In CD mode, Press to stop CD track. Press again for CD ejection.8. INFO: View more information about the station or track playing. Press again to cycle through further information screens then return to the normal Now playing screen.9. PRESET: Long press preset to preset and save the favorite stations (save 20 favorite stations); Short Press to preset to select the favorite station or Preset recall. You can preset 20 stations by scroll the preset list to achieve.2.2 Connectors As shown below has connectors (from left to right)for the followings:6 of 38SOURCE INFOMENU / BACK PRESET

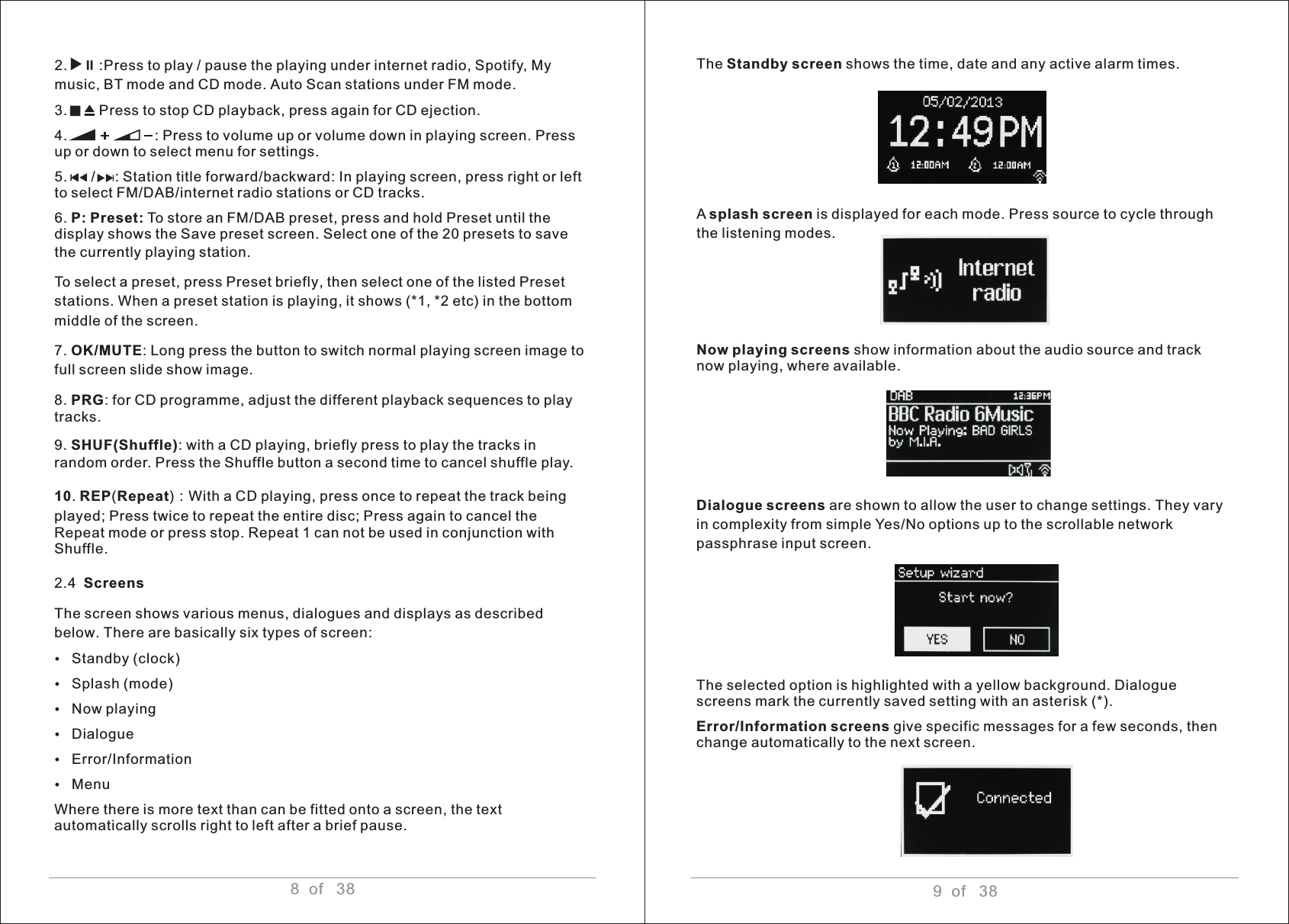

9 of 38The Standby screen shows the time, date and any active alarm times.A splash screen is displayed for each mode. Press source to cycle through the listening modes.Now playing screens show information about the audio source and track now playing, where available.Dialogue screens are shown to allow the user to change settings. They vary in complexity from simple Yes/No options up to the scrollable network passphrase input screen. The selected option is highlighted with a yellow background. Dialogue screens mark the currently saved setting with an asterisk (*).Error/Information screens give specific messages for a few seconds, then change automatically to the next screen. 2. :Press to play / pause the playing under internet radio, Spotify, My music, BT mode and CD mode. Auto Scan stations under FM mode.3. Press to stop CD playback, press again for CD ejection.4. : Press to volume up or volume down in playing screen. Press up or down to select menu for settings.5. / : Station title forward/backward: In playing screen, press right or left to select FM/DAB/internet radio stations or CD tracks.6. P: Preset: To store an FM/DAB preset, press and hold Preset until the display shows the Save preset screen. Select one of the 20 presets to save the currently playing station. To select a preset, press Preset briefly, then select one of the listed Preset stations. When a preset station is playing, it shows (*1, *2 etc) in the bottom middle of the screen.7. OK/MUTE: Long press the button to switch normal playing screen image to full screen slide show image.8. PRG: for CD programme, adjust the different playback sequences to play tracks.9. SHUF(Shuffle): with a CD playing, briefly press to play the tracks in random order. Press the Shuffle button a second time to cancel shuffle play.10. REP(Repeat)：With a CD playing, press once to repeat the track being played; Press twice to repeat the entire disc; Press again to cancel the Repeat mode or press stop. Repeat 1 can not be used in conjunction with Shuffle.2.4 Screens The screen shows various menus, dialogues and displays as described below. There are basically six types of screen:ŸStandby (clock)ŸSplash (mode) ŸNow playingŸDialogueŸError/InformationŸMenuWhere there is more text than can be fitted onto a screen, the text automatically scrolls right to left after a brief pause. 8 of 38u;

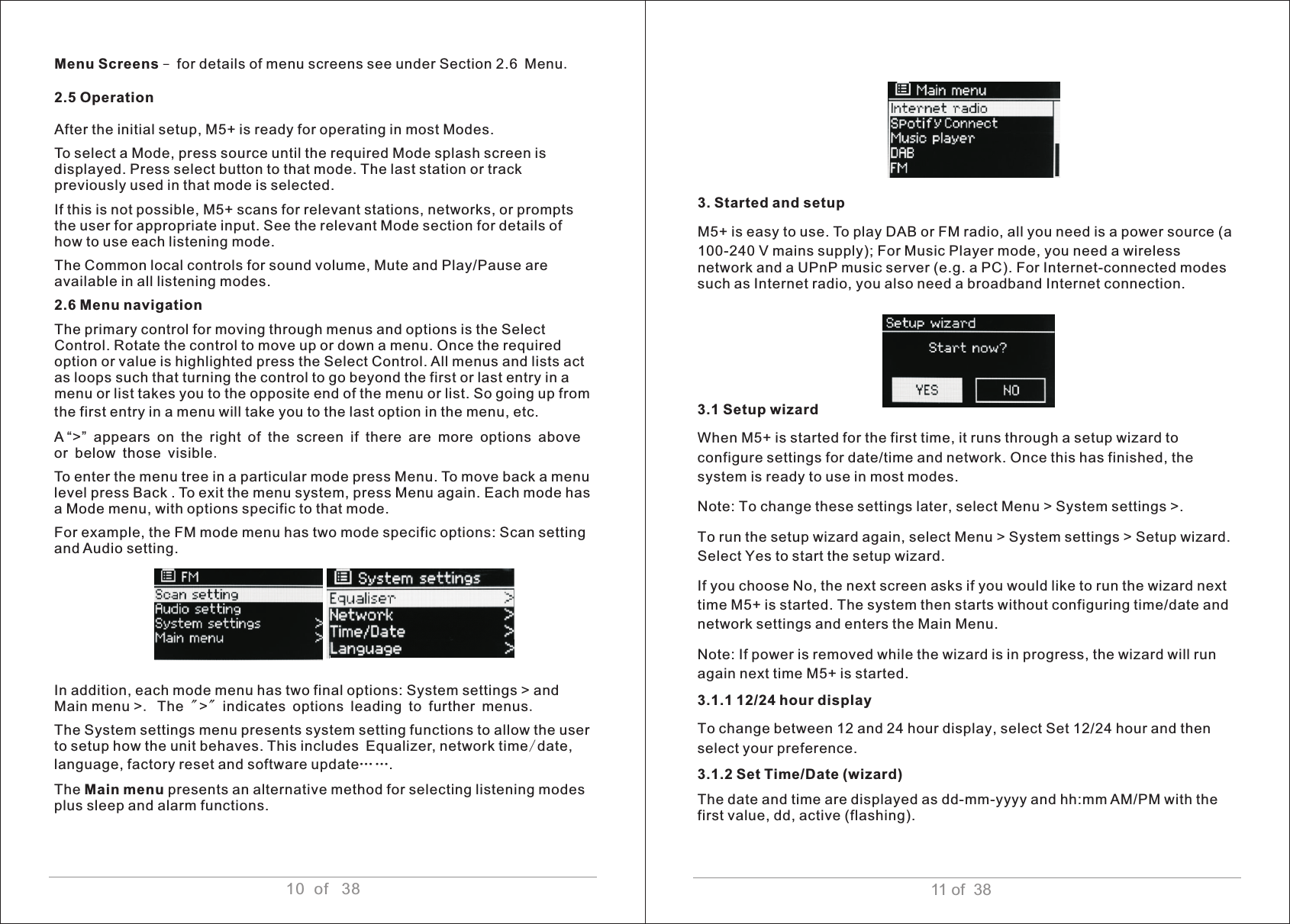

11 of 38Menu Screens – for details of menu screens see under Section 2.6 Menu.2.5 Operation After the initial setup, M5+ is ready for operating in most Modes. To select a Mode, press source until the required Mode splash screen is displayed. Press select button to that mode. The last station or track previously used in that mode is selected.If this is not possible, M5+ scans for relevant stations, networks, or prompts the user for appropriate input. See the relevant Mode section for details of how to use each listening mode. The Common local controls for sound volume, Mute and Play/Pause are available in all listening modes. 2.6 Menu navigation The primary control for moving through menus and options is the Select Control. Rotate the control to move up or down a menu. Once the required option or value is highlighted press the Select Control. All menus and lists act as loops such that turning the control to go beyond the first or last entry in a menu or list takes you to the opposite end of the menu or list. So going up from the first entry in a menu will take you to the last option in the menu, etc. A “>” appears on the right of the screen if there are more options above or below those visible.To enter the menu tree in a particular mode press Menu. To move back a menu level press Back . To exit the menu system, press Menu again. Each mode has a Mode menu, with options specific to that mode. For example, the FM mode menu has two mode specific options: Scan setting and Audio setting. In addition, each mode menu has two final options: System settings > and Main menu >. The ">" indicates options leading to further menus.The System settings menu presents system setting functions to allow the user to setup how the unit behaves. This includes Equalizer, network time/date, language, factory reset and software update……. The Main menu presents an alternative method for selecting listening modes plus sleep and alarm functions. 3. Started and setup M5+ is easy to use. To play DAB or FM radio, all you need is a power source (a 100-240 V mains supply); For Music Player mode, you need a wireless network and a UPnP music server (e.g. a PC). For Internet-connected modes such as Internet radio, you also need a broadband Internet connection.3.1 Setup wizardWhen M5+ is started for the first time, it runs through a setup wizard to configure settings for date/time and network. Once this has finished, the system is ready to use in most modes. Note: To change these settings later, select Menu > System settings >. To run the setup wizard again, select Menu > System settings > Setup wizard. Select Yes to start the setup wizard. If you choose No, the next screen asks if you would like to run the wizard next time M5+ is started. The system then starts without configuring time/date and network settings and enters the Main Menu.Note: If power is removed while the wizard is in progress, the wizard will run again next time M5+ is started.3.1.1 12/24 hour display To change between 12 and 24 hour display, select Set 12/24 hour and then select your preference.3.1.2 Set Time/Date (wizard)The date and time are displayed as dd-mm-yyyy and hh:mm AM/PM with the first value, dd, active (flashing). 10 of 38
